UNIDEN Model uh012sx UHF CB Radio
Introduction
The Uniden uh012sx is designed to provide you with years of trouble free service. Its rugged
components and materials are capable of withstanding harsh environments. Please read this
Operating Manual carefully to ensure you gain the optimum performance of the unit.
Transmit and Receive FM 40CH (UHF-CB, TX Power 5w)
7 Segments LED
Instant Channel (programmable)
One touch Instant Channel recalling
Duplex Capability (from CH01 - CH08 per channel)
Open Scan
38 Built-in CTCSS codes
Rotary Channel Select
Variable Squelch Level Adjust
Volume Control with Power On/Off Switch.
Compact Dimensions: 127mm(w) x 36mm(h) x 148mm(l)
The following system checks should be made every six to twelve months:
Check the Standing Wave Ratio (SWR).
Inspect the tightness of all electrical connections.
Inspect the antenna coaxial cable for wear or breaks on the shielding.
Inspect the tightness of all screws and other mounting hardware.
The citizen band radio service is licenced in Australia by ACMA Radio-communications
(Citizen Band Radio Stations) Class Licence and in New Zealand by MED General
User Licence for Citizen Band Radio and operation is subject to conditions contained in
those licenses.
Features
Troubleshooting:
Memory Backup:
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Preventative Maintenance:
Should the unit malfunction or perform poorly, follow these procedures.
Check the power cord and fuse.
Check the VOLUME control setting. Be sure the SQUELCH is adjusted properly.
Possibly the radio is over-squelched.
Check that the transmission line (coaxial cable) is securely connected to the
ANTENNA connector.
Check that the antenna is fully extended for proper operation.
Check that all transmission line (coaxial cable) connections are secure and free of
corrosion.
If the transceiver is completely inoperative...
If there is trouble with receiving...
If there is trouble with transmitting...
Check the CTCSS code.
2

TX BUSY CTCSS
A S C Technology
Advanced Signal Clarity
uh012sx
8
9
56
7
UNIDEN Model uh012sx UHF CB Radio

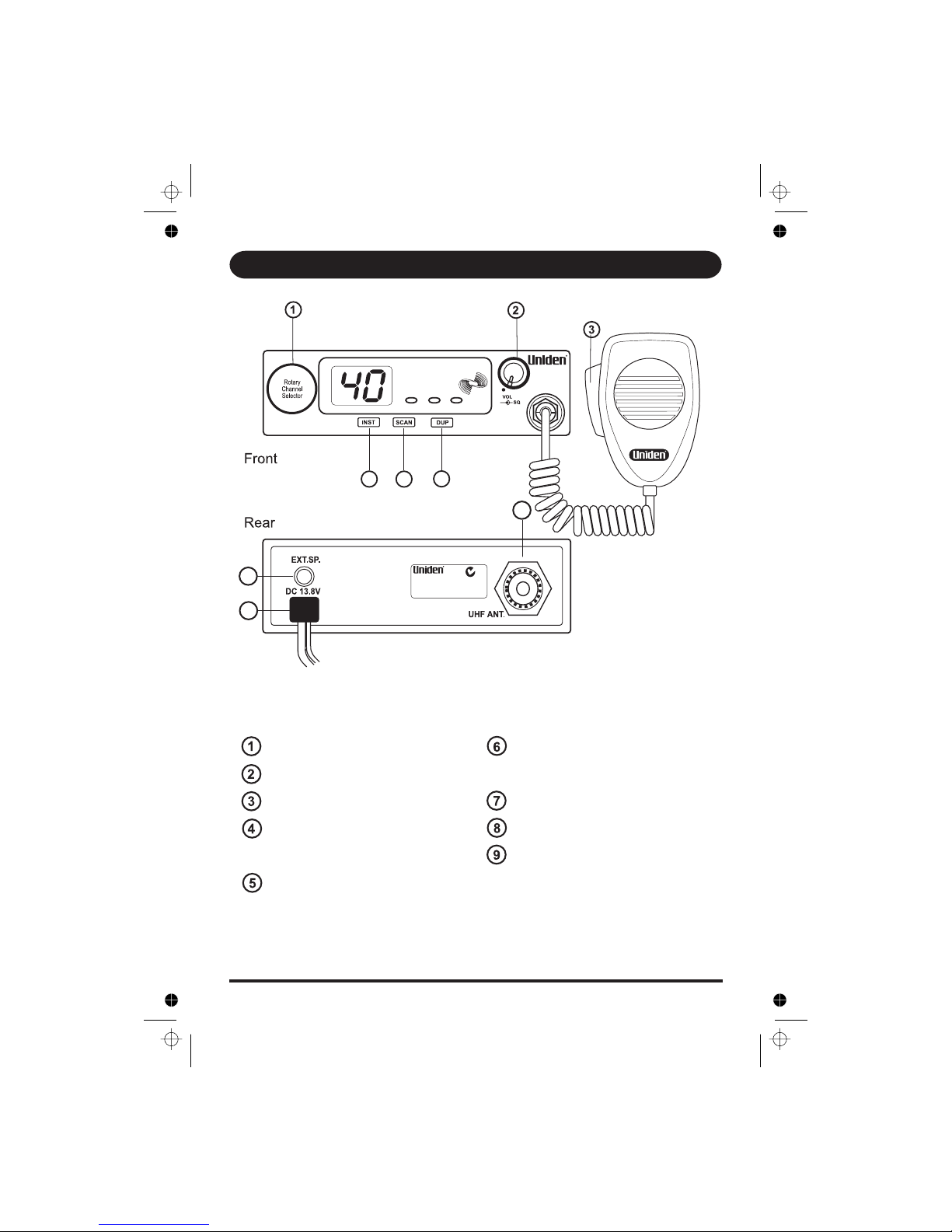

Controls/Connectors
CTCSS
Controls and Connectors
Ref Item Page Ref Item Page
Rotary Channel Selector 7
On/Off Volume & Squelch 6
Push to Talk (PTT) Switch 7
INST - Instant Channel Recall
& Instant Channel
Programming 9
DUP - Duplex On/Off 8
/CTCSS - Continuous Tone
Coded Squelch System 9
External Speaker Jack -
Power Input (13.8V DC) 2
UHF Antenna Connection 2
SCAN - Scan On/Off 8
3
4

TX
A S C Technology
Advanced Signal Clarity
uh012sx
1 2 34
2
3
1
4
UNIDEN Model uh012sx UHF CB Radio

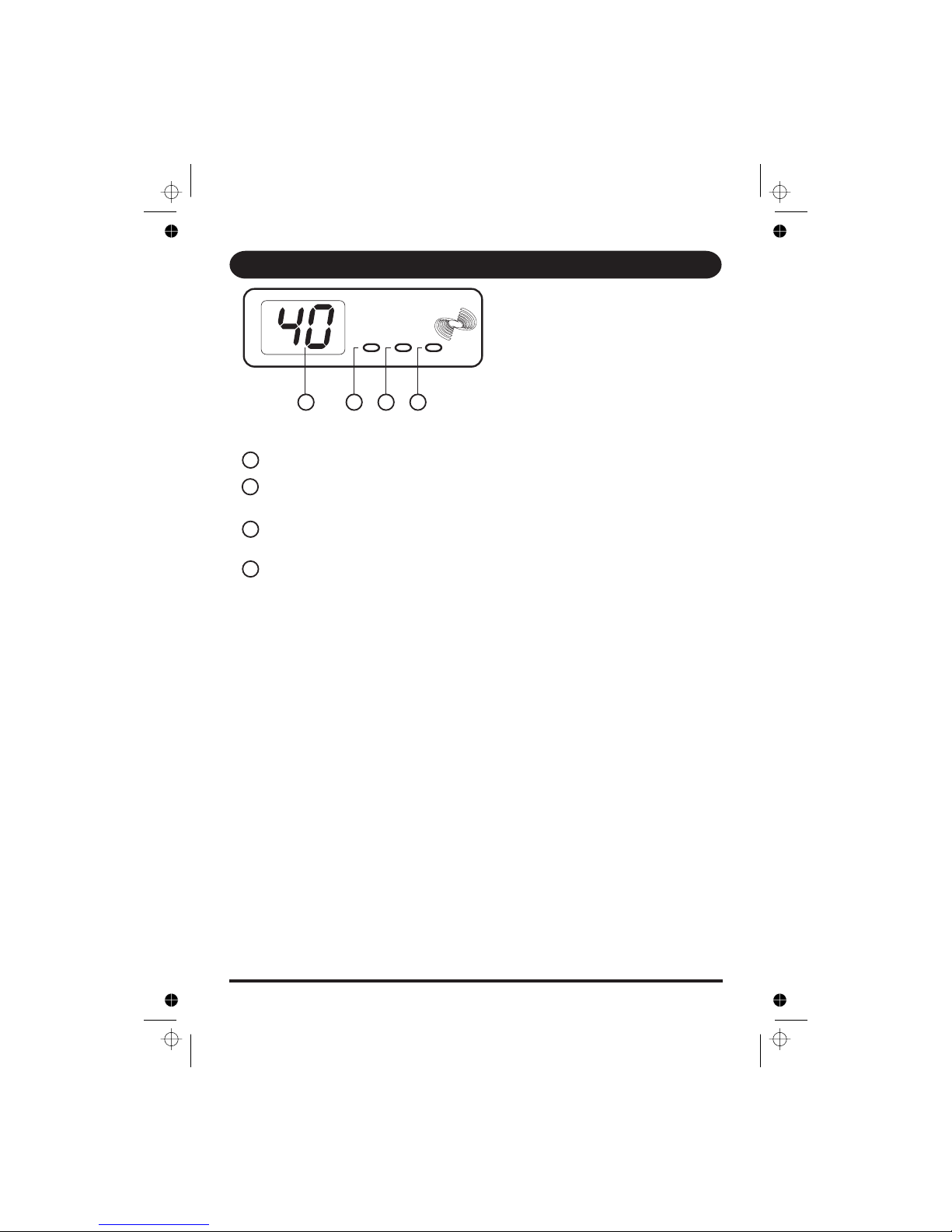

Indicators
Indicators
LED It is turned on when transmitting condition.
LED It is turned on when receiving a signal or decoding a CTCSS
code. It blinks while receiving a signal in scan mode.
LED It is turned on when the current displayed channel has CTCSS
set. It blinks when the CTCSS code is decoded OK.
LED (40) Indicates the Channel Number.
TX
BUSY
CTCSS
CH
BUSY CTCSS
4

UNIDEN Model uh012sx UHF CB Radio
Included with your uh012sx
Uniden Model uh012sx
CB Radio
uh012sx Owners Manual Microphone
Mounting Bracket, Knobs
Rubber Washer, Washer Stars
And Screws
Microphone Hanger, Screws
and Washers
5
Optional Accessories
DIN Mounting Kit (DMK8990)
External Speaker (MS100)
DC Power Cord with fuse

UNIDEN Model uh012sx UHF CB Radio
Operation
TX BUSY CTCSS
A S C Technology
Advanced Signal Clarity
uh012sx
CTCSS
Setting the FM Squelch
Turn the Unit ON by rotating
the volume control clockwise.
Turn the outer ring of the
control to adjust the Squelch.
You must select a
channel which is not
in use before setting
the SQUELCH
control. (see p.7)
Think of the squelch
control as a gate. If you
turn Squelch fully
clockwise it raises the
'Squelch gate' so high that
no signals get through.
If you turn the Squelch
fully counterclockwise it
lowers the 'Squelch Gate'
to the extent that all
signals get through -
weak, medium and strong
signals and noise.
To set the 'Squelch Gate'
to the desired level, turn
the squelch knob
counterclockwise until you
hear noise. Then carefully
turn the Squelch knob
clockwise until the noise
fades. Now only strong
signals get through.
6

UNIDEN Model uh012sx UHF CB Radio
Operation
Selecting a Channel
Turn the Rotary Channel Selector to
select the desired channel.
For your reference a list of the available
channels, corresponding frequencies and
guidelines for their use is printed on page
10. For Australia, Channels 05 and 35 are
reserved for Emergency Calls.
Transmitting
The uh012sx uses the 40 UHF-CB Channels
Select the desired channel. Press the microphone's PTT
button and speak normally into the microphone. Hold it
approx. 7cm from your mouth. Release the PTT button to
end the transmission and listen for a reply.
(Channels 22
and 23 are for telemetry and telecommand applications.
Transmit is inhibited on these channels).
Using Repeater Channels
UHF CB repeaters are used to retransmit or relay your signal. Repeaters will extend
the range of your radio and overcome the shielding effect caused by solid
obstructions. In normal Simplex operation, your radio transmits on one particular
frequency and receives on that same frequency. If there is a barrier that partially
blocks your transmitted signal, the probability of another radio receiving the signal is
very slim. Hills, tall buildings, metallic structures,...etc tend to act as a screen between
radios.
Standard Operation without the aid of a
Repeater Station.
Operation with the aid of a Repeater
Station (Duplex).
The signal coming from your radio is received by the Repeater Station and the
re-transmitted at the same time on another channel. This operation is called
"Duplexing".
For example,
CH01 on Duplex Mode will Receive on CH01 but Transmit on CH31
CH02 on Duplex Mode will Receive on CH02 but Transmit on CH32 etc...
If you transmit on CH01 Duplex mode, you are actually transmitting on CH31 the
repeater station down-coverts your signal and retransmits on CH01.
7

UNIDEN Model uh012sx UHF CB Radio
Operation
TX BUSY
A S C Technolo
g
Advanced Signal Clari
CTCS
S
TX
A S C Technolo
g
Advanced Signal Cla
r
CTCS
S
BUSY
8

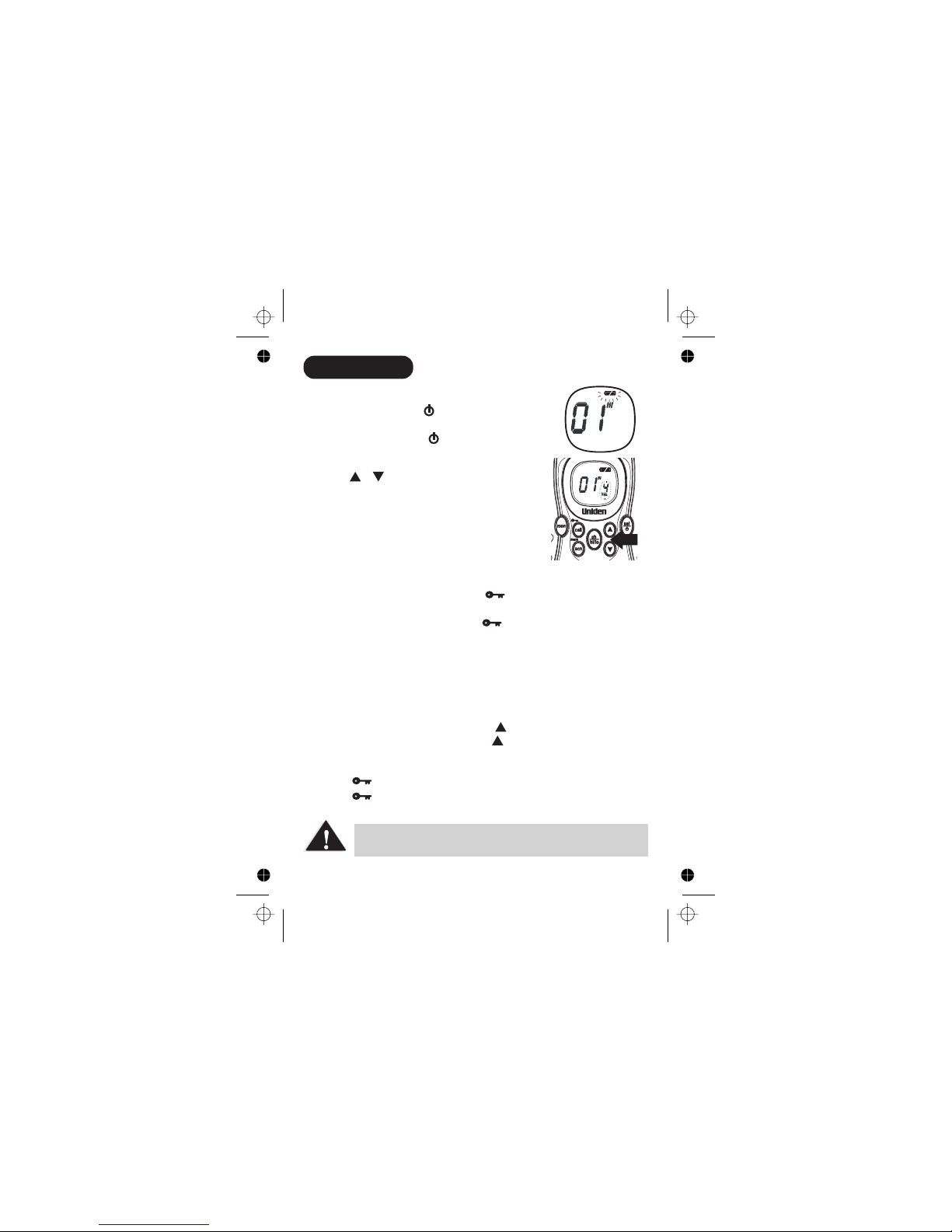

Operating the uh012sx in Duplex Mode
For this example we are adopting CH01 as the channel being used in your area for
repeater use.

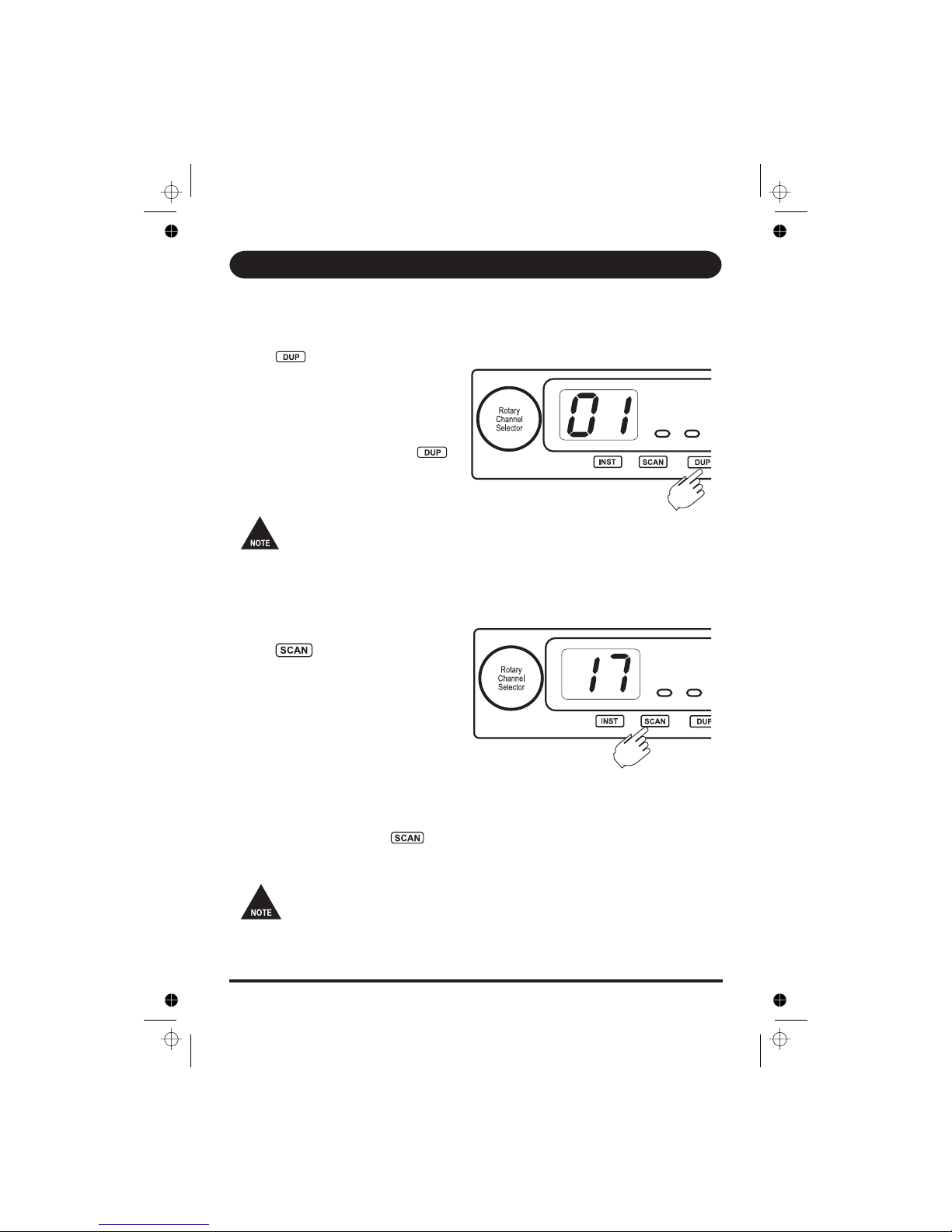

Press to switch Duplex On.
"r" (for repeater) is displayed in place of
the 1st digit of the channel number
indicator. e.g. 01 : normal channel 1
r1 : duplex channel 1
If Duplex is not required - press
again to switch Duplex off.
Only channels 01 - 08 are
available for Duplex.
The uh012sx has a scanning feature that allows you to search for active channels
automatically.
Press and Scanning starts.
Allows continuous scanning of all channels in ascending order.
If an active channel is found, scanning will stop on that channel.
If the received signal ceases, the unit will wait 3 seconds for the signal to return,
otherwise scanning resumes.
To deactivate SCAN, press or the PTT button on the microphone.
Check with your local Retailer for
information on available repeaters.
If SCAN is deactivated while on
an active channel, the uh012sx
will stay on that channel. If no channels
are active, the uh012sx will reinstate
the starting channel.
Scanning (open scan)
Open Scan (OS) Mode

TX
A S C Technology
Advanced Signal Clarity
uh012sx
UNIDEN Model uh012sx UHF CB Radio
Operation
Programming the Instant Priority Channe
Recalling the Instant Channel
l

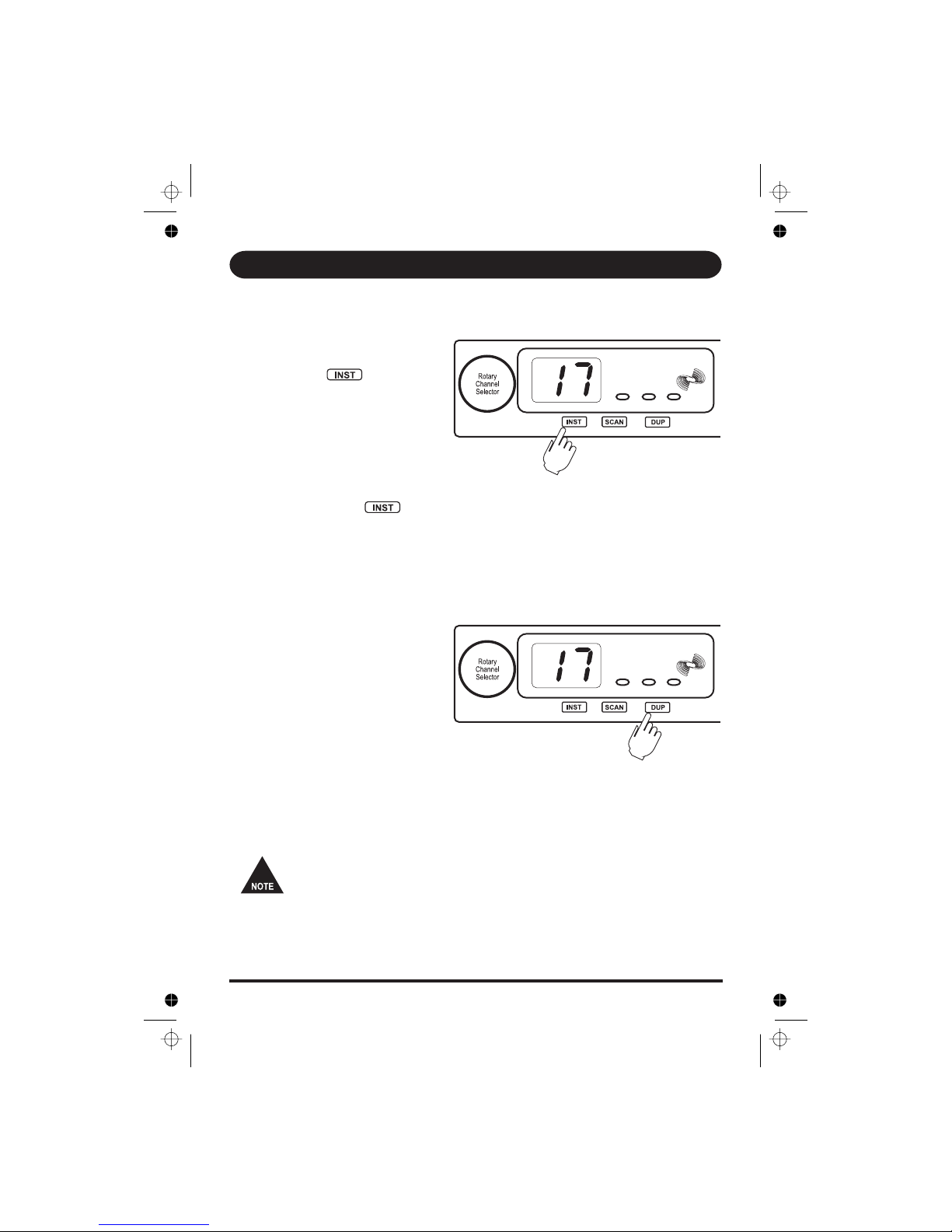

Turn the Rotary Channel Selector to
select the Priority Channel you prefer.
Press and hold for 1.5 seconds
to store the new setting.
Momentarily press the key at any time to return to the Instant Channel (except
during CTCSS CODE setting).
Continuous Tone Coded Squelch System (CTCSS)
This feature allows signals to be received only from callers who have selected the
same CTCSS code.
Turn the Rotary Channel Selector to
select the channel you want to set
CTCSS code.
Press and hold . The
channel display will flash the CTCSS
code.
Turn the Rotary Channel Selector to
select a desired CTCSS code. If you
select oF and press then
CTCSS will not set and CTCSS LED
will be off.
If you select a code from 01 to 38 and
press then the selected
code is set and CTCSS LED will be on.
If there is no selection for 10 seconds the operation is timed out.
DUP/CTCSS
DUP/CTCSS
DUP/CTCSS
Channels 05 and 35 are Emergency Channels. CTCSS will not operate on
these channels.
9
CTCSS
TX
A S C Technology
Advanced Signal Clarity
uh012sx
CTCSS
BUSY
BUSY
CTCSS
CTCSS

UNIDEN Model uh012sx UHF CB Radio
UHF CB CHANNELS & FREQUENCIES
Simplex Mode Duplex Mode Simplex Mode
CH No. Transmit / Receive Transmit CH No. Transmit/Receive
Frequency (MHz) Frequency (MHz) Frequency (Mhz)
1 476.425 477.175 CH31 21 476.925
2 476.450 477.200 CH32 22 476.950 (RX only)
3 476.475 477.225 CH33 23 476.975 (RX only)
4 476.500 477.250 CH34 24 477.000
5 476.525 477.275 CH35 25 477.025
6 476.550 477.300 CH36 26 477.050
7 476.575 477.325 CH37 27 477.075
8 476.600 477.350 CH38 28 477.100
9 476.625 29 477.125
10 476.650 30 477.150
11 476.675 31 477.175
12 476.700 32 477.200
13 476.725 33 477.225
14 476.750 34 477.250
15 476.775 35 477.275
16 476.800 36 477.300
17 476.825 37 477.325
18 476.850 38 477.350
19 476.875 39 477.375
20 476.900 40 477.400
Channels 05 and 35 are Emergency Channels.
Channel 11 is a Calling Channel.
Channels 22 and 23 are for telemetry and telecommand applications and TX
is inhibited on these channels.
Channel 40 - road channel (Australia).
Channels 01-08 (and 31-38) are repeater channels.
Please follow these guidelines for channel use in Australia:
General communication is accepted on all other channels with
these guidelines:
•
•
•
•
•
10

© 2005 Uniden Australia Pty Limited/Uniden New Zealand Limited
Printed in China UTZZ01932ZB(0)
UNIDEN uh012sx UHF CB Radio
Two Year Limited Warranty
Note:
Warrantor:
Warranty only available in original country of purchase
Elements of Warranty:
Warranty Duration:
Parts Covered:
Accessories:
Statement of Remedy:
Procedure for obtaining performance or warranty:
UNIDEN AUSTRALIA PTY LTD
Please keep your sales docket as it provides evidence of warranty.
Uniden Australia Pty Limited ABN 58 001 865 498
Uniden New Zealand Limited
Uniden warrants to the original retail owner for the duration of
this warranty, its uh012sx UHF CB Radio (hereinafter referred to as the Product) to be
free from defects in materials and craftsmanship with only the limitations or exclusions
set out below.
This warranty to the original retail owner only, shall terminate and
be of no further effect TWO (2) Years after the date of original retail sale. This warranty
will be deemed invalid if the product is; (A) Damaged or not maintained as reasonable
and necessary, (B) Modified, altered or used as part of any conversion kits,
subassemblies, or any configurations not sold by Uniden, (C) Improperly installed, (D)
Repaired by someone other than an authorized Uniden Repair Agent for a defect or
malfunction covered by this warranty, (E) Used in conjunction with any equipment or
parts or as part of a system not manufactured by Uniden, (F) Installed, programmed
or serviced by anyone other than an authorized Uniden Repair Agent, or (G) Where
the Serial Number label of the product has been removed or damaged beyond
recognition.
This warranty covers for 2 years, the main unit only.
Microphone, Power cord etc are covered for 90 days.
In the event that the product does not conform to this warranty
at any time while this warranty is in effect, the warrantor at its discretion, will repair the
defect or replace the product and return it to you without charge for parts and service.
THIS WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT
OR PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. THIS
GUARANTEE IS IN ADDITION TO AND DOES NOT AFFECT YOUR RIGHTS UNDER
THE CONSUMER GUARANTEES ACT.
In the event that the Product
does not conform to this warranty, the Product should be shipped or delivered, freight
prepaid, with evidence of original purchase, (eg. a copy of the sales docket), to the
warrantor at:
Service Division
345 Princes Highway,
Fax [phone]
UNIDEN NEW ZEALAND LTD
Service Division
150 Harris Road, East Tamaki,
Rockdale, NSW 2216 Auckland
Fax [phone]
UNIDEN Model uh012sx UHF CB Radio
WARRANTY

UH047SX-2
Operating Guide
To bring outstanding wireless Communication products
to people's lives throughout the world.

15
14
13
21
22
17
16
18
19
24
28
20
23
25
26
27
TORS
1 Antenna
2 PTT(Push-To-Talk) Key
3 Monitor Key
4 Keylock/Call Key
5 Memory/Scan Key
6 Channel/Power Hi-Lo Key
7 Speaker
8 Headset Jack
9 Select/Power On-Off Key
10 Volume/Select Up Key
11 Volume/Select Down Key
12 Microphone
13 Receive Indicator
14 Transmit Indicator
15 Channel Indicator
16 DCS ON Indicator
17 Scan Indicator
18 Memory Indicator
19 Priority Channel Indicator
20 CTCSS ON Indicator
21 Battery Level Indicator
22 HI Transmit Indicator
23 Lo Transmit Indicator
24 CTCSS and DCS Code/Volume Level Indictor
25 Volume Setting Indicator
26 VOX Indicator
27 Busy Channel Lockout Indicator
28 Keypad Lock Indicator
29 Charging LED's
(1)
29
10
11
12
CONTROL & INDICATORS
INCLUDED IN YOUR PACKAGE:
• UH047SX-2 Radio (2)
• Operating Guide
• Belt Clip (2)
• VOX Earset
• Carry Case
• Charging Cradle with AC Adaptor
• NiMH Battery Pack (2)
• VOX Headset (2)
• Speaker Mic
OPTIONAL ACCESSORIES

GETTING STARTED
Uniden does not represent this product to be waterproof. Do not
expose this product to Rain or Moisture.
If you don't use the UH047SX for long periods, Uniden
recommend removing the batteries. The UH047SX is designed
to retain the previous user settings. This feature will continue to
use a small amount of battery power while the unit is
switched off.
Do not charge alkaline or non rechargeable batteries.

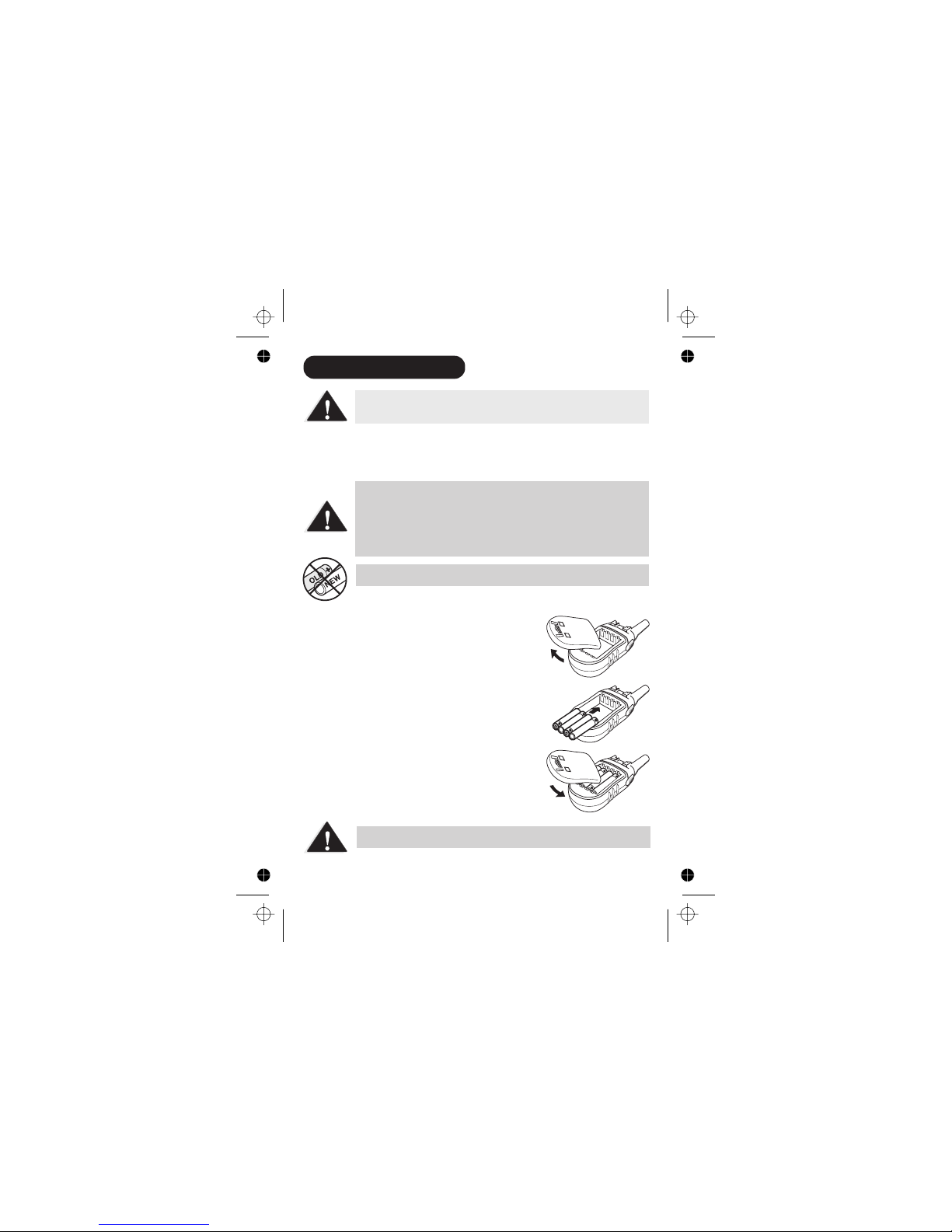

BATTERY INSTALLATION
Your UH047SX unit uses the included NiMH battery pack for power. The unit
can be powered with optional 4 AAA ALKALINE batteries.
1. Make sure your radio is off.
2. Release the battery cover clip, then remove the
battery cover.
3. Insert NiMH battery pack according to the
orientation on the battery pack.
Insert 4 AAA ALKALINE batteries (not included)
according to the polarity symbols inside the battery
compartment.
4. Align the battery cover tabs with the UH047SX tab
holes then replace the cover clip.
To avoid damage to the unit do not mix old and new batteries.
To install the batteries:
OR
(2)

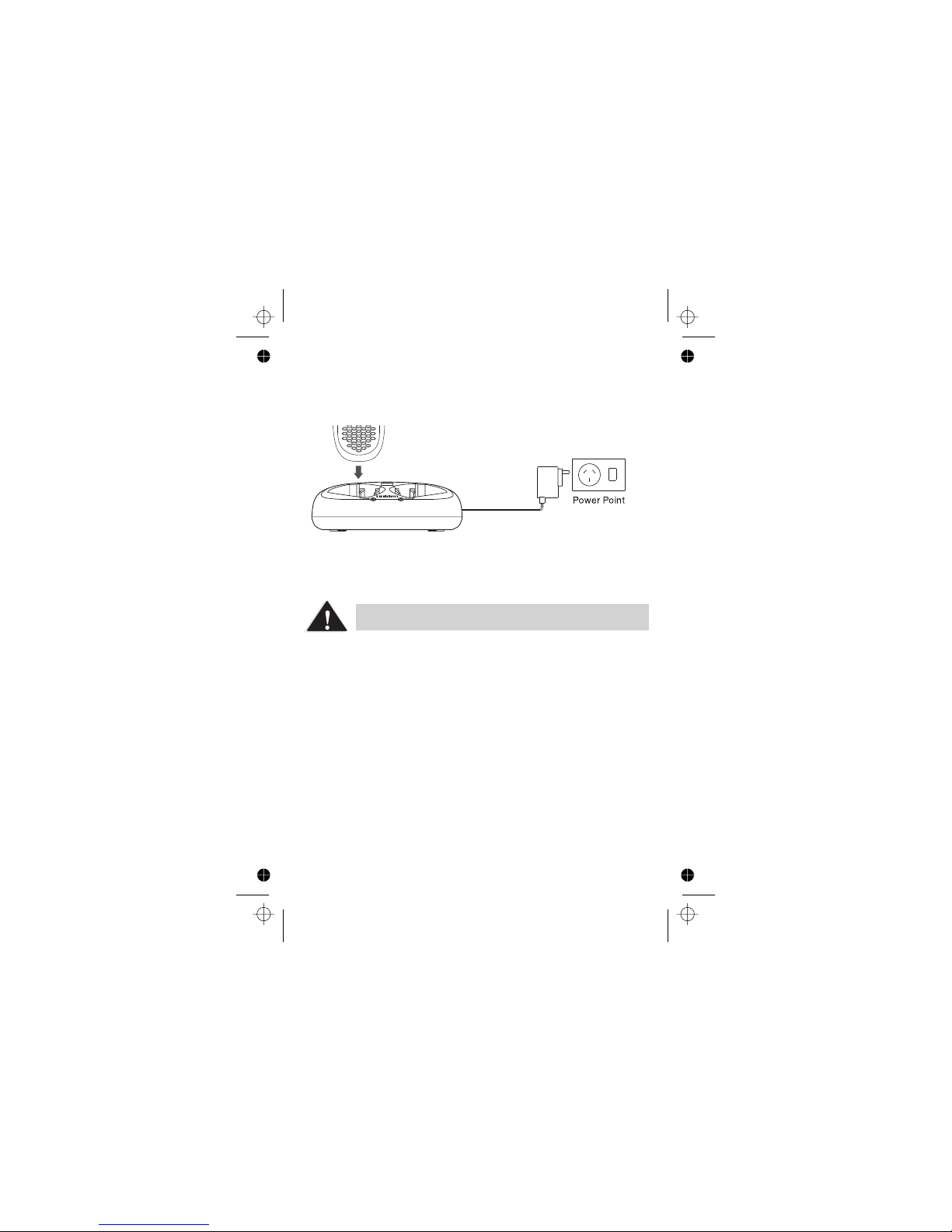

INSTALLING THE CHARGE CRADLE
1. Plug the AC adaptor into the rear of the charge cradle and into the
mains power.
UH047SX
2. Place the UH047SX into the charge cradle. The charge light will come on
to indicate the unit is charging.
3. Before operating the , charge the battery pack for 16 hours.
Do not charge alkaline or non rechargeable batteries.
(3)

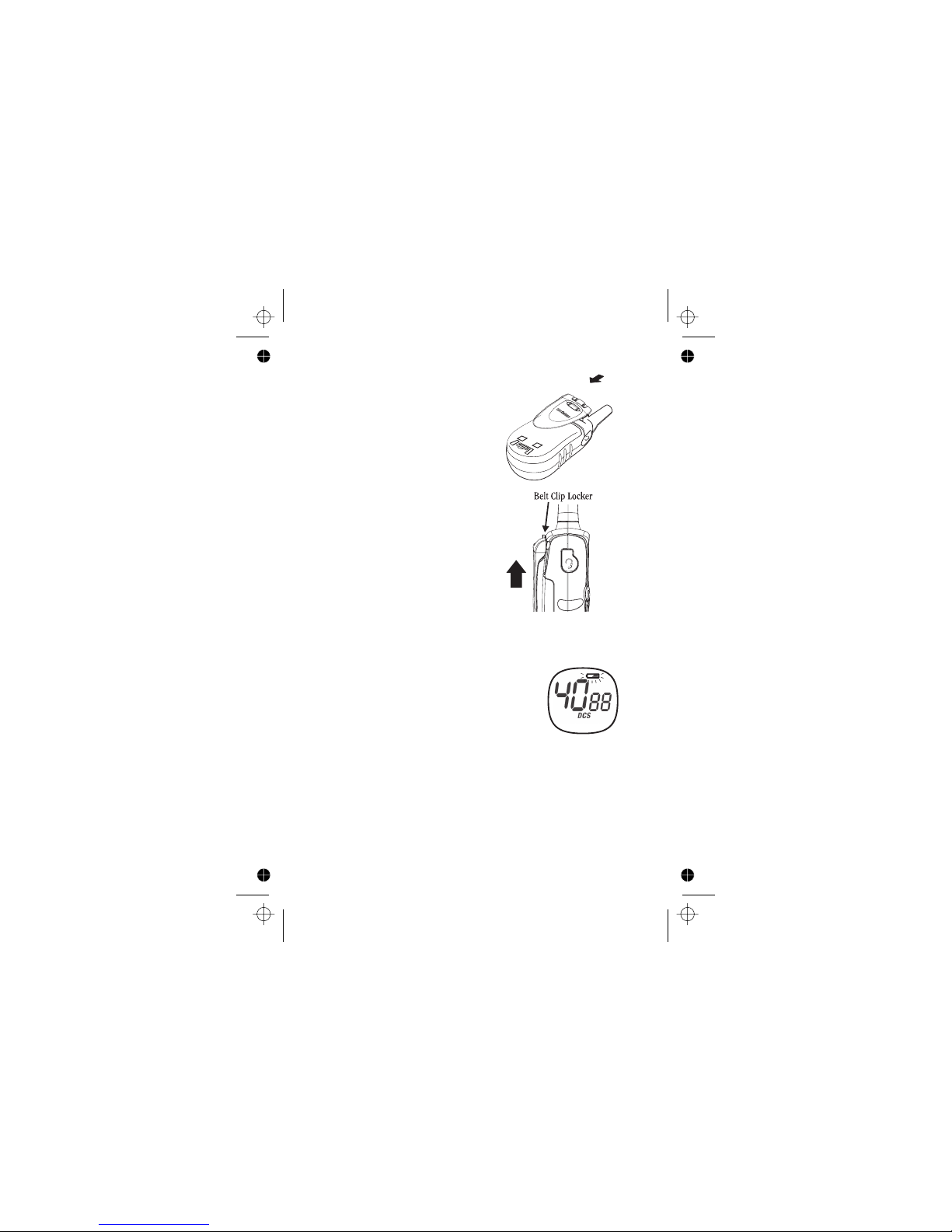

BELT CLIP
LOW BATTERY ALERT
To attach the belt clip:
To remove the belt clip:
Slide the belt clip until it snaps into place.
To remove the belt clip, press and hold
belt clip locker, slide the belt clip at the
same time until released.
If the battery level becomes low, the battery
indicator icon on the display begins flashing.
When the batteries in the unit are low, the unit
will go into a battery Low mode. The Transmit
mode is disabled. Replace the alkaline
batteries immediately or if you are using the
NiMH battery pack, place the radio on the
charge cradle to recharge. Full charge will take
up to 16 Hrs.
(4)

OPERATION

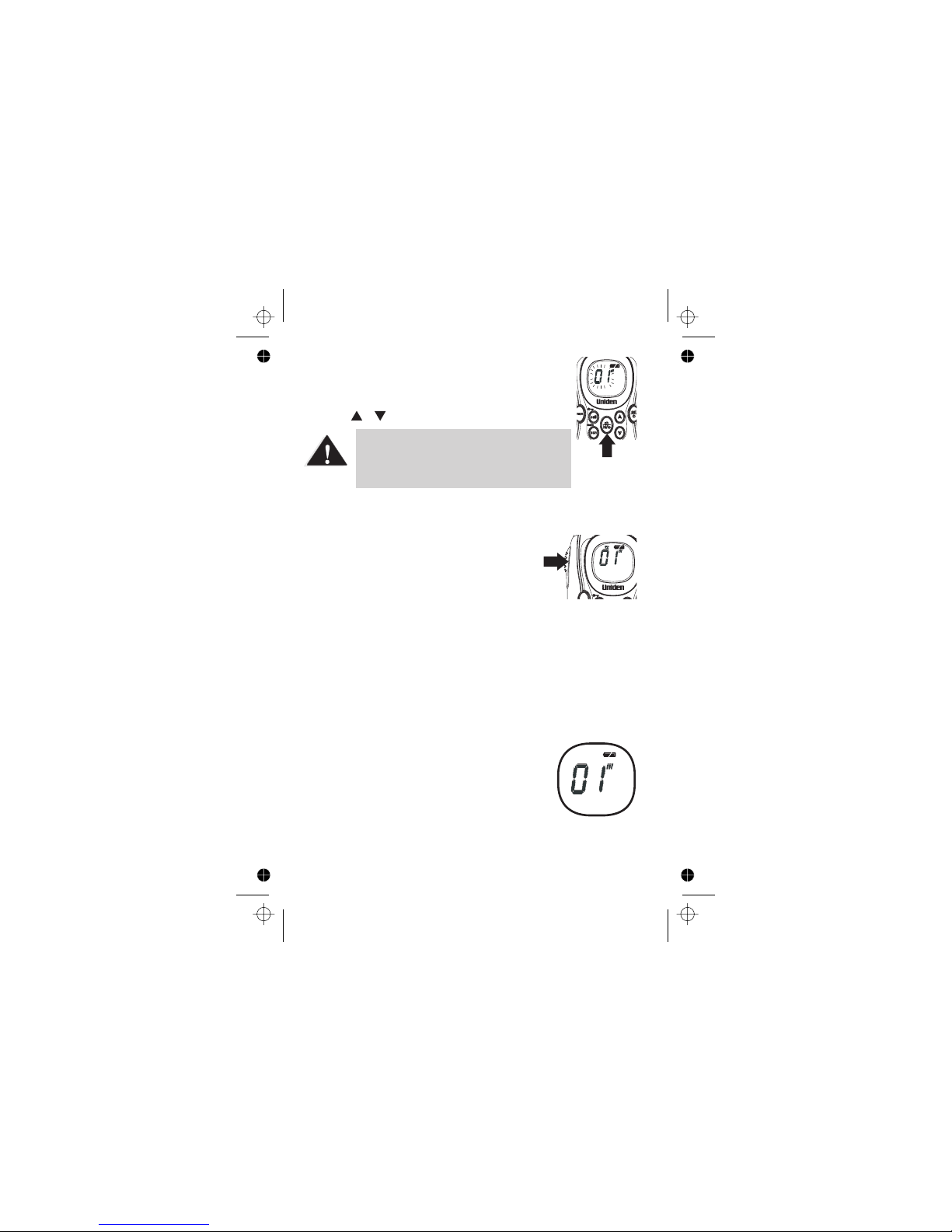

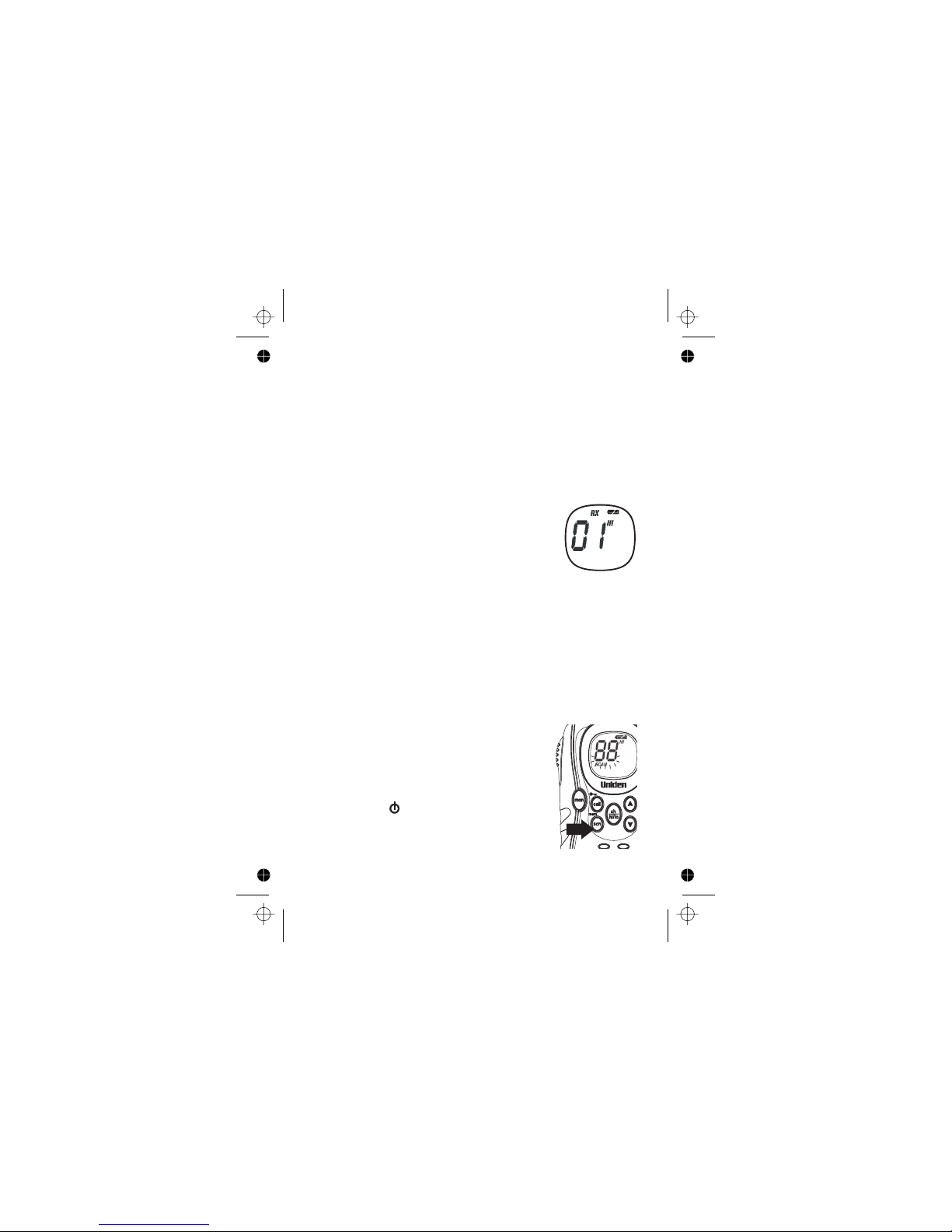

POWER ON/OFF
VOLUME
ADJUSTING THE KEY BEEPS
ROGER BEEP
1. Press and hold key to turn the radio on.
A channel number will appear on the display.
2. Press and hold key to turn the radio off.
1. Press or key to increase or decrease the
volume level. ‘VOL’ icon appears on the display
while volume is being adjusted.
There are 8 volume levels. Level 0 (No Audio) to
Level 7 (Maximum Volume).
Your radio emits a beep each time one of the keys (except for the PTT
button) is pressed.
1. To turn OFF this beep: Press and hold key while turning on
the radio.
2. To turn ON this beep: Press and hold key while turning on
the radio.
Roger Beep is a BEEP that is sent to notify the end of transmission (both PTT
and VOX transmission.) Roger Beep can be heard through the speaker when
Key Beep is on. Roger Beep is transmitted even if Key Beep is turned off.
However, Roger Beep will not be heard from the speaker.
1. To turn OFF Roger Beep: Press and hold key while turning on the radio.
2. To turn ON Roger Beep: Press and hold key while turning on the radio.
select/
select/
/call
/call
KEYLOCK ON/OFF
1. Press key for 1.5 seconds to enter keylock on mode.
2. Press key for 1.5 seconds while in Keylock mode to exit the
Keylock mode.
/call
/call
While in Keylock on mode, the UH047SX can still receive and
transmit.
(5)

(6)
SELECTING A CHANNEL
1. Press key momentarily to activate channel select
mode. The displayed channel will flash.
2. Press or key to select the desired channel.
3. Press key momentarily to exit channel select mode. If no button is
pressed within 5 sec the UH047SX will exit from the channel select mode.
The UH047SX uses the 40 UHF-CB Channels (
).
1. Before you transmit, listen for activity on the selected channel.
2. When the channel is clear, press and hold the PTT button to transmit.
icon appears on the display.
3. When you have finished speaking, release the PTT and listen for a response.
icon then disappears on the display. While receiving, the icon is
displayed.
TO TRANSMIT AND RECEIVE
Channels
22 and 23 are for telemetry and telecommand
applications. Transmit is inhibited on these channels
‘TX’
‘TX’ ‘RX’
ch/hi/lo
ch/hi/lo
Hold the radio with microphone approximately 5 cm in front of your mouth
with the antenna at approximately 45° angle away from your head. Speak in
a clear, normal conversational voice.
For your reference a list of the available channels,
corresponding frequencies and guidelines for their
use is printed on page 12. For Australia, Channels
05 and 35 are reserved for Emergency Calls.
1. Press and hold key to select desired transmit
level. icon will appear on the display for
maximum transmit level. icon will appear on the
display for minimum transmit level. The RF transmit power
of the UH047SX is selectable between 1.0W/0.5W.
TRANSMIT Hi/Lo POWER SELECT
‘HI’
‘LO’
ch/hi/lo

AUTOMATIC SQUELCH FEATURE
MONITOR
The UH047SX is equipped with an Automatic Squelch System which shuts off
weak transmissions and unwanted noise.
This feature enables users to listen for weak signals on the current channel
at the press of a button.
1. Press button. The icon will flash.
2. Release within 1.5 seconds and the unit exits Monitor
mode.
3. Press and hold button for 2 seconds for
continuous listening.
The receiver circuit will stay open, letting in both the noise & weak
signals. The icon flashes in this status.
4. To return to normal Receive mode press button. The icon
disappears or stops flashing in this status.
To use monitor:
‘RX’
‘RX’
‘RX’
mon
mon
mon
SCANNING
The scan function scans all channels which are stored in the SCAN CHANNEL
MEMORY and stops at an active channel. If a PRIORITY channel has been
selected then this channel will be monitored for activity every 3 seconds.
When the signal stops, the UH047SX waits 2 seconds (Reply Delay) before
scanning resumes.
1. Press key momentarily to begin scanning.
The icon is displayed.
2. Press key or key to cancel.
To initiate scanning;
‘SCAN’
mem/SCN
select/ mem/SCN
(7)
