UNIMO Technology UDR-208216 User manual

.
USER MANUAL

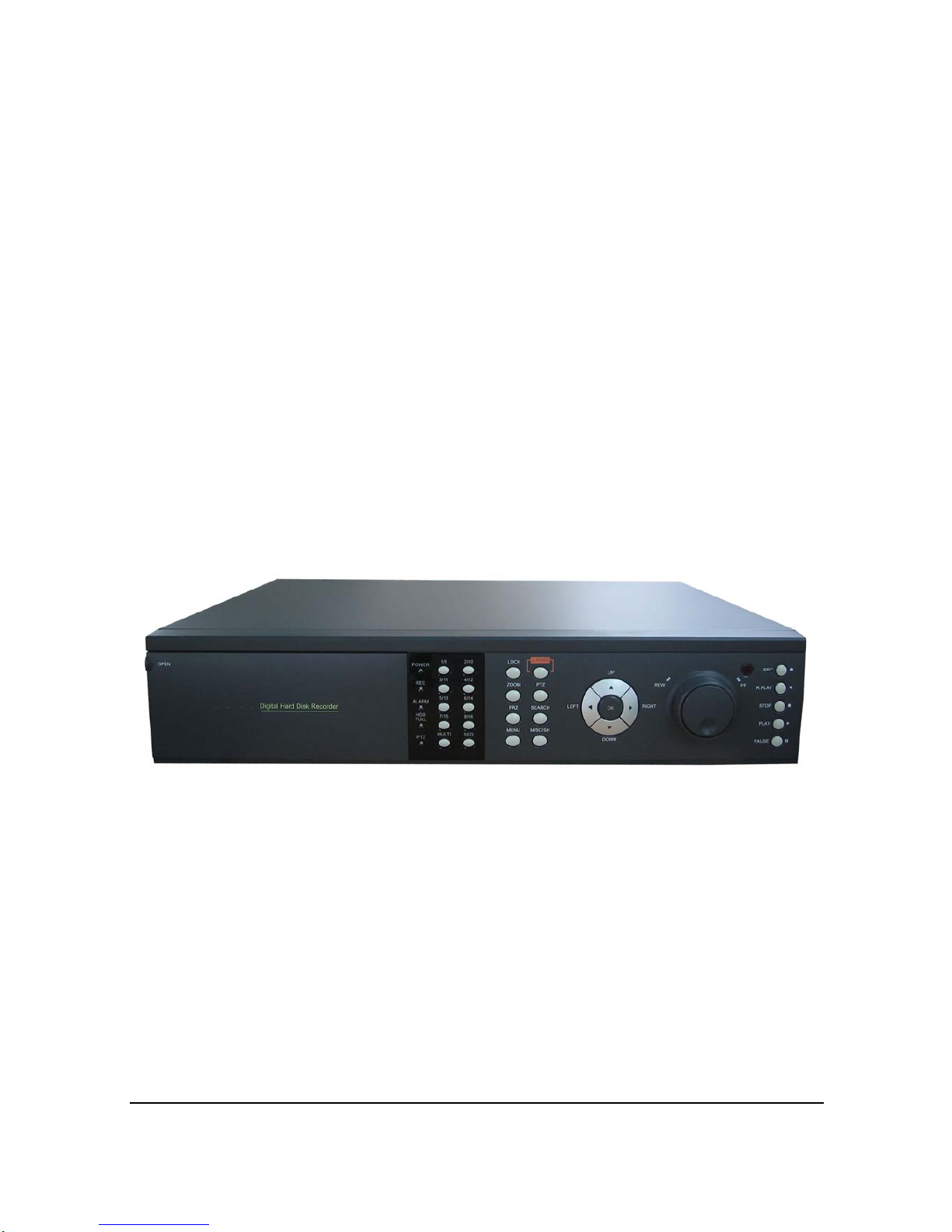

Digital Hard Disk Recorder
(8 & 16 Channel, MPEG-2)
* Default system password: 111111
(for RAMS, Record stop, Menu setup, System off, Auto key lock)
* Default ID: admin (for RAMS)

2
8 & 16 Channel DVR Operation manual Revision 1.0
Table of contents
1. SYSTEM OVERVIEWS ..........................................................10
1.1 SAFETY ................................................................................................................................ 10
1.2 COMPONENTS &OPTION...................................................................................................... 12
1.2.1 Components......................................................................................................................... 12
1.2.2 Options................................................................................................................................ 12
1.3 FEATURES &SPECIFICATIONS............................................................................................... 13
1.3.1 Features............................................................................................................................... 13
1.3.2 Specifications...................................................................................................................... 14
1.4 NAME,FUNCTION &CONNECTIONS...................................................................................... 15

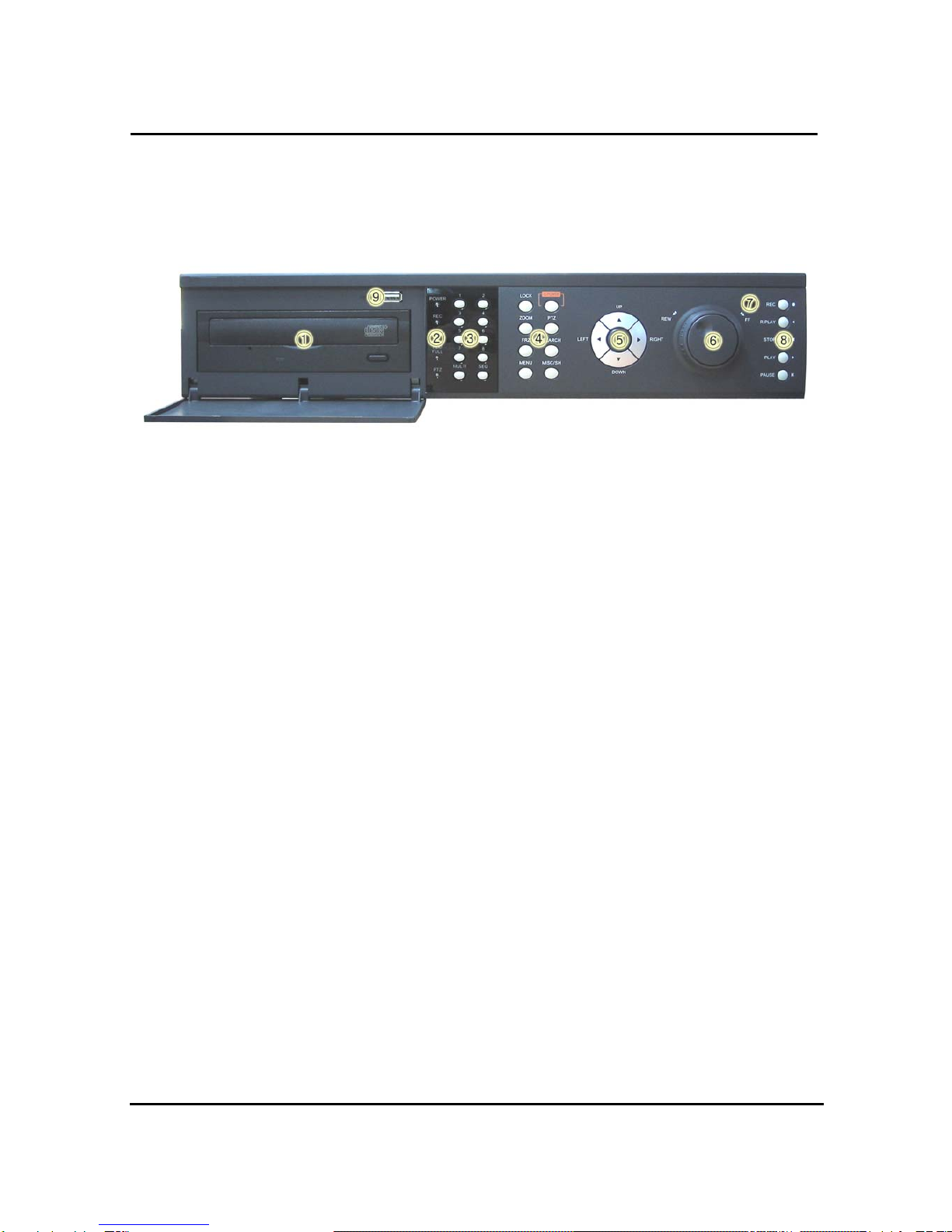

1.4.1 Front view ........................................................................................................................... 15

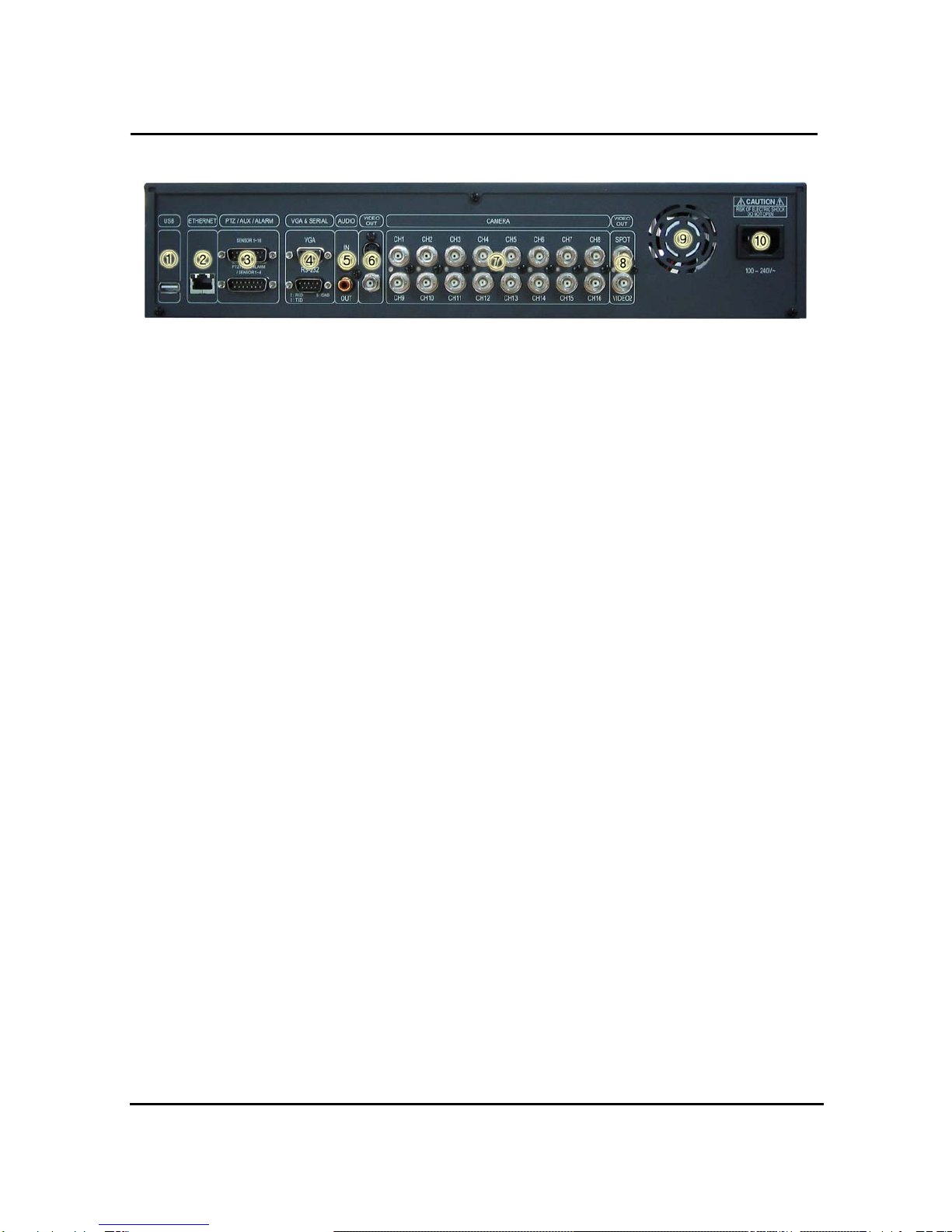

1.4.2 Rear panel view................................................................................................................... 18

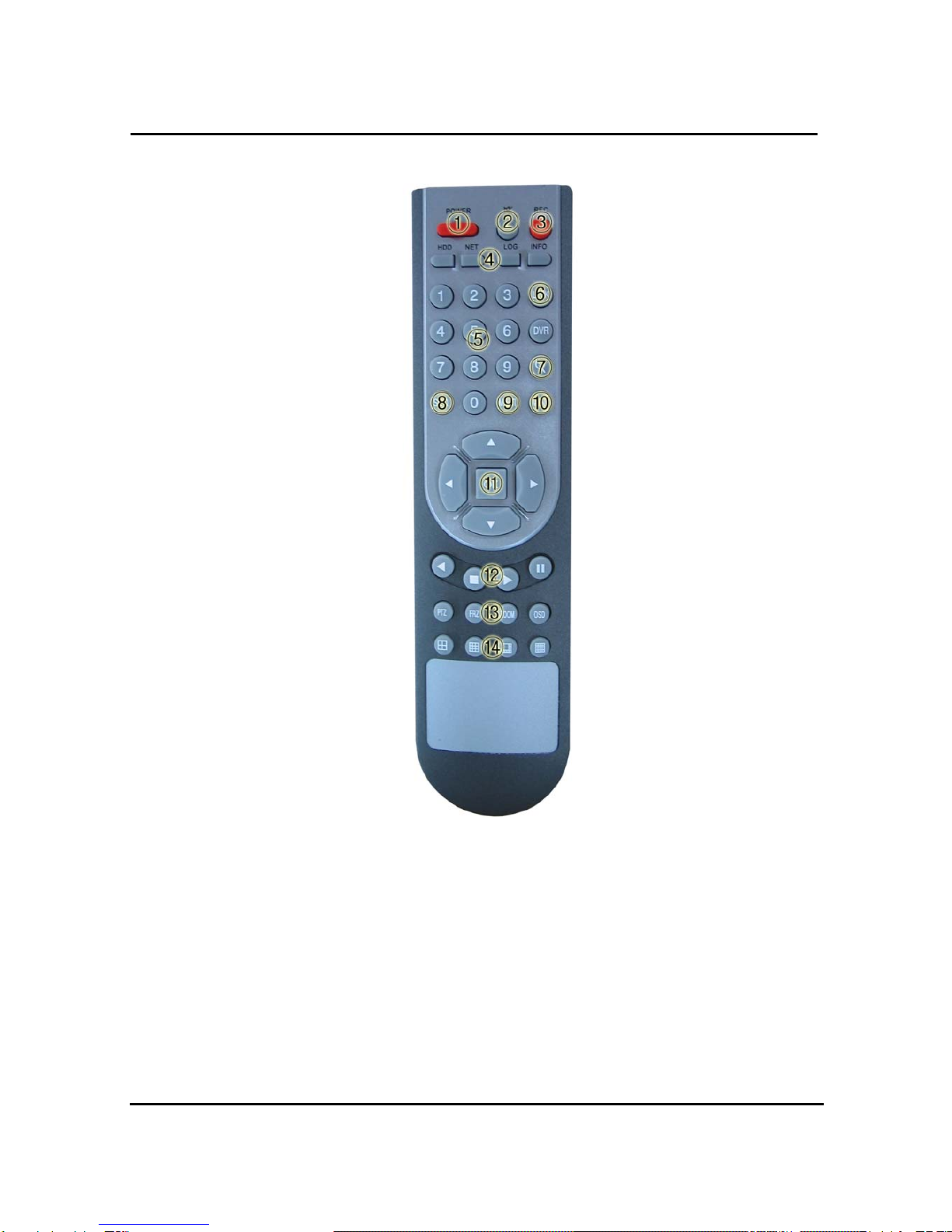

1.4.3 Remote controller function.................................................................................................. 19
1.5 INSTALLATION................................................................................................................. 21
1.5.1 Installation and connection.................................................................................................. 21
1.5.2 Camera ................................................................................................................................ 21
1.5.3 Video Out............................................................................................................................ 22
1.5.4 Audio................................................................................................................................... 22
1.5.5 RS-232................................................................................................................................. 22
1.5.6 PTZ/AUX/ALARM ............................................................................................................ 22
1.5.6.1 RS-485+, RS-485- .............................................................................................................................. 22
1.5.6.2 AUX 1~5 ............................................................................................................................................ 22
1.5.6.3 Alarm Out (NO, COM, NC) ............................................................................................................... 22
1.5.6.4 Sensor 1~16 ........................................................................................................................................ 23
1.5.7 Network............................................................................................................................... 23
1.5.8 USB flash memory.............................................................................................................. 23
2. BASIC OPERATION PROCEDURES...................................24
2.1 POWER ON/OFF.................................................................................................................... 24
2.1.1 Power ON............................................................................................................................ 24
2.1.2 Power OFF.......................................................................................................................... 24
2.2 DATE &TIME SETTING.......................................................................................................... 24
2.3 CHANGE OF LIVE VIDEO CHANNEL IN MUX MODE ................................................................ 24

3
8 & 16 Channel DVR Operation manual Revision 1.0
2.4 PASSWORD SETTING PROCEDURE.......................................................................................... 24
2.5 NETWORK SETTING .............................................................................................................. 25
2.6 RECORDING.......................................................................................................................... 25
2.6.1 Recording types................................................................................................................... 25
2.6.2 Recording modes................................................................................................................. 25
2.7 PLAYBACK ........................................................................................................................... 25
2.7.1 Press the Play button........................................................................................................... 25
2.7.2 Audio files........................................................................................................................... 25
2.8 SEARCH................................................................................................................................ 25
2.8.1 Search mode........................................................................................................................ 25
2.8.2 Search method..................................................................................................................... 25
2.9 BACKUP ............................................................................................................................... 26
2.9.1 CD-RW................................................................................................................................ 26
2.9.2 USB flash memory.............................................................................................................. 26
2.10 NETWORK ............................................................................................................................ 26
2.11 CLIENT PROGRAM................................................................................................................ 26
2.11.1 RAMS (Remote Access & Monitoring System).................................................................. 26
2.11.2 UniPlayer............................................................................................................................. 27
2.11.3 MultiViewer ........................................................................................................................ 27
2.11.4 Quick Installer..................................................................................................................... 27
3. MAIN SETUP SCREEN...........................................................28
3.1 CAMERA SETUP MENU.......................................................................................................... 28
3.1.1 Channel number................................................................................................................... 29
3.1.2 Camera Name Edit .............................................................................................................. 29
3.1.3 Camera hide ........................................................................................................................ 30
3.1.4 Picture Setting..................................................................................................................... 30
3.1.4.1 Contrast, Brightness, Hue, .................................................................................................................. 30
3.1.4.2 Default ................................................................................................................................................ 30
3.1.5 PTZ setup............................................................................................................................ 31
3.1.5.1 Model Number.................................................................................................................................... 31
3.1.5.2 PTZ ID................................................................................................................................................ 32
3.1.5.3 Reverse Control .................................................................................................................................. 32
3.1.5.4 RS-485 Setting.................................................................................................................................... 32
3.1.5.5 TEST................................................................................................................................................... 32

4
8 & 16 Channel DVR Operation manual Revision 1.0
3.1.5.6 Additional PTZ Menus........................................................................................................................ 32
3.1.6 Sequence time ..................................................................................................................... 33
3.1.7 Loop Through Setup............................................................................................................ 33
3.2 RECORD SETUP MENU .......................................................................................................... 34
3.2.1 Resolution ........................................................................................................................... 34
3.2.2 Audio Sync.......................................................................................................................... 34
3.2.3 Channel number .................................................................................................................. 34
3.2.4 Quality................................................................................................................................. 34
3.2.5 Frame rate............................................................................................................................ 34
3.2.6 Record mode ....................................................................................................................... 35
3.2.7 Record Schedule Setup........................................................................................................ 35
3.3 EVENT SETUP MENU ............................................................................................................ 36
3.3.1 Motion Detection Setting .................................................................................................... 37
3.3.1.1 Channel............................................................................................................................................... 37
3.3.1.2 Sensitivity........................................................................................................................................... 37
3.3.1.3 Detection Zone.................................................................................................................................... 38
3.3.2 Sensor Setting...................................................................................................................... 39
3.3.2.1 Sensor Type......................................................................................................................................... 39
3.3.2.2 Channel Link....................................................................................................................................... 39
3.3.3 Alarm Output ...................................................................................................................... 40
3.3.3.1 Sensor ................................................................................................................................................. 40
3.3.3.2 Motion ................................................................................................................................................ 40
3.3.3.3 Relay Time.......................................................................................................................................... 40
3.3.4 Post Alarm Record Time ..................................................................................................... 40
3.3.5 FTP Setting.......................................................................................................................... 41
3.3.5.1 FTP Server IP address......................................................................................................................... 41
3.3.5.2 ID........................................................................................................................................................ 42
3.3.5.3 Password............................................................................................................................................. 42
3.3.5.4 Target Path.......................................................................................................................................... 43
3.3.5.5 FTP Length of Image (second)............................................................................................................ 43
3.3.6 FTP Trigger Setting............................................................................................................. 43
3.3.6.1 Sensor ................................................................................................................................................. 44
3.3.6.2 Motion ................................................................................................................................................ 44
3.3.7 E-Mail Address Setting ....................................................................................................... 44
3.3.8 E-Mail Setting..................................................................................................................... 45
3.3.8.1 Send (Period) ...................................................................................................................................... 45

5
8 & 16 Channel DVR Operation manual Revision 1.0
3.3.8.2 Prohibition setting............................................................................................................................... 46
3.3.8.3 SMTP Server IP address ..................................................................................................................... 46
3.3.8.4 Authentication..................................................................................................................................... 46
3.3.8.5 Password............................................................................................................................................. 46
3.3.8.6 Event Log............................................................................................................................................ 46
3.4 PLAYBACK SETUP ................................................................................................................ 47
3.4.1 Channel ............................................................................................................................... 47
3.4.2 Starting Point....................................................................................................................... 47
3.4.3 Audio................................................................................................................................... 48
3.5 DISPLAY SETUP .................................................................................................................... 48
3.6 NETWORK SETUP ................................................................................................................. 49
3.6.1 DDNS setting...................................................................................................................... 49
3.6.2 Remote Connection Login Password .................................................................................. 51
3.6.3 Network Type...................................................................................................................... 51
3.6.3.1 Static ................................................................................................................................................... 52
3.6.3.2 DHCP.................................................................................................................................................. 53
3.6.3.3 PPPoE................................................................................................................................................. 53
3.6.4 Changing the Network configuration.................................................................................. 55
3.7 SYSTEM SETUP SCREEN........................................................................................................ 56
3.7.1 DVR Name.......................................................................................................................... 56
3.7.2 System Password................................................................................................................. 57
3.7.2.1 Password Setting................................................................................................................................. 57
3.7.2.2 Password Apply .................................................................................................................................. 58
3.7.3 Auto Key Lock.................................................................................................................... 58
3.7.4 Time / Date.......................................................................................................................... 58
3.7.4.1 Set up Time / Date............................................................................................................................... 59
3.7.4.2 Time / Date Format............................................................................................................................. 59
3.7.4.3 Day Light Saving Time....................................................................................................................... 59
3.7.5 Buzzer ................................................................................................................................. 60
3.7.6 Language............................................................................................................................. 60
3.7.7 HDD Setup.......................................................................................................................... 60
3.7.7.1 The number of HDD........................................................................................................................... 61
3.7.7.2 Write Mode......................................................................................................................................... 61
3.7.7.3 Forced Deletion................................................................................................................................... 61
3.7.7.4 Hard Disk............................................................................................................................................ 62
3.7.8 Aux Port.............................................................................................................................. 62

6
8 & 16 Channel DVR Operation manual Revision 1.0
3.7.8.1 Active.................................................................................................................................................. 63
3.7.8.2 Function.............................................................................................................................................. 63
3.7.9 Factory Default.................................................................................................................... 63
3.7.10 Software Upgrade................................................................................................................ 64
3.8 BACKUP ............................................................................................................................... 65
3.8.1 Backup Device .................................................................................................................... 65
3.8.2 Start Time............................................................................................................................ 65
3.8.3 End Time............................................................................................................................. 65
3.8.4 Channel ............................................................................................................................... 65
3.8.5 Event ................................................................................................................................... 66
3.8.6 Backup Start........................................................................................................................ 66
3.8.7 Format................................................................................................................................. 66
3.9 SYSTEM LOG........................................................................................................................ 66
3.10 SYSTEM INFORMATION......................................................................................................... 67
3.10.1 Video type ........................................................................................................................... 67
3.10.2 H/W version ........................................................................................................................ 67
3.10.3 S/W version......................................................................................................................... 67
3.10.4 KERNEL version ................................................................................................................ 67
3.10.5 Mac Address........................................................................................................................ 67
3.11 SEARCH MENU..................................................................................................................... 68
3.11.1 Search by Time.................................................................................................................... 68
3.11.1.1 Starting Time....................................................................................................................................... 69
3.11.1.2 Ending Time........................................................................................................................................ 69
3.11.1.3 Channel............................................................................................................................................... 69
3.11.1.4 Event................................................................................................................................................... 69
3.11.1.5 Example of Search Result................................................................................................................... 70
3.11.2 Search of still image............................................................................................................ 70
3.11.2.1 Screen of search.................................................................................................................................. 70
3.12 PLAYBACK........................................................................................................................ 71
3.12.1 PLAYBACK of recorded Images........................................................................................ 71
3.12.2 Method of playback............................................................................................................. 71
3.12.3 Screen of played back. ........................................................................................................ 71
3.12.4 Control during play back..................................................................................................... 72
3.12.5 Playback of still image........................................................................................................ 73
3.12.5.1 Method of playback ............................................................................................................................ 73
3.12.5.2 Screen of playing back........................................................................................................................ 73

7
8 & 16 Channel DVR Operation manual Revision 1.0
3.12.5.3 Control during Play back .................................................................................................................... 73
3.12.6 Playback the backed up-image............................................................................................ 74
3.13 MISCELLANEOUS MENU....................................................................................................... 74
3.13.1 NET..................................................................................................................................... 74
3.13.2 OSD..................................................................................................................................... 75
3.13.3 Audio Mute ......................................................................................................................... 75
3.13.4 HDD.................................................................................................................................... 75
3.13.5 LOG .................................................................................................................................... 75
4. DVR CLIENT PROGRAM......................................................76
4.1 OVERVIEW OF DVR ............................................................................................................. 76
4.2 PC REQUIREMENT (MINIMUM).............................................................................................. 76
4.3 INSTALLATION &EXECUTION OF PROGRAM.......................................................................... 76
4.4 RAMS (REMOTE ACCESS &MONITORING SYSTEM)............................................................ 77
4.4.1 Screen and button................................................................................................................ 77
4.4.2 Connecting to DVR............................................................................................................. 78
4.4.3 UniPlayer link ..................................................................................................................... 79
4.4.4 Full-screen display .............................................................................................................. 80
4.4.5 Program setup...................................................................................................................... 81
4.4.6 DVR recording.................................................................................................................... 81
4.4.7 DVR playback search.......................................................................................................... 82
4.4.8 DVR playback search.......................................................................................................... 83
4.4.9 DVR backup........................................................................................................................ 86
4.4.10 DVR Setting........................................................................................................................ 87
4.4.11 Still image Capture.............................................................................................................. 87
4.4.12 Watermark insertion............................................................................................................ 88
4.4.13 Printing still image.............................................................................................................. 88
4.4.14 Motion picture recording..................................................................................................... 88
4.4.15 PAN/TILT, ZOOM/FOCUS ................................................................................................ 89
4.4.16 HDD Information................................................................................................................ 89
4.4.17 Check the program version.................................................................................................. 90
4.4.18 S/W upgrade of DVR .......................................................................................................... 91
4.4.19 Program minimizing............................................................................................................ 91
4.4.20 Close program..................................................................................................................... 92
4.5 UNIPLAYER.......................................................................................................................... 92

8
8 & 16 Channel DVR Operation manual Revision 1.0
4.5.1 Screen and button................................................................................................................ 92
4.5.2 Search.................................................................................................................................. 93
4.5.2.1 Search option from video image & backup file................................................................................... 93
4.5.2.2 Search option for still image............................................................................................................... 95
4.5.2.3 Searching by directory........................................................................................................................ 96
4.5.2.4 Still Image Capture ............................................................................................................................. 97
4.5.3 Input water mark ................................................................................................................. 98
4.5.4 Printing still image.............................................................................................................. 98
4.5.5 Moving picture file playback, playing, pause, temporarily pause, move............................ 98
by interval of frame, fast forward Playing .................................................................................................... 98
4.5.6 Water mark drawing............................................................................................................ 99
4.5.7 Panorama........................................................................................................................... 100
4.5.8 Check the program version................................................................................................ 102
4.5.9 Close Program...................................................................................................................102
4.6 MULTIVIEWER ................................................................................................................... 102
4.6.1 Program login.................................................................................................................... 102
4.6.2 Screen and Button ............................................................................................................. 103
4.6.3 DVR LIST management & connection............................................................................. 104
4.6.4 Camera On/Off.................................................................................................................. 106
4.6.5 Full Screen ........................................................................................................................ 107
4.6.6 Program Setup...................................................................................................................107
4.6.7 Link with UniPlayer.......................................................................................................... 108
4.6.8 PAN/TILT, ZOOM/FOCUS .............................................................................................. 108
4.6.9 HDD Information.............................................................................................................. 108
4.6.10 Confirmation of Version of Program................................................................................. 109
4.6.11 Minimizing of program..................................................................................................... 109
4.6.12 Closing of Program ........................................................................................................... 109
4.7 QUICK INSTALLER...............................................................................................................110
4.7.1 Select model.......................................................................................................................110
4.7.2 System parameter setting....................................................................................................110
4.7.3 Communication over Network or serial port......................................................................111
4.8 CONNECTION BY INTERNET EXPLORER ...............................................................................112
4.8.1 Security setup.....................................................................................................................112
4.8.2 Download ActiveX control.................................................................................................113
4.8.3 Connection with DVR........................................................................................................113
4.8.4 Login..................................................................................................................................113

9
8 & 16 Channel DVR Operation manual Revision 1.0
4.8.5 Connected screen................................................................................................................114
4.8.6 Search.................................................................................................................................115
4.8.7 Playback.............................................................................................................................115
5. APPENDIX..............................................................................116
5.1 INSTALLING HDD ...............................................................................................................116
5.1.1 Installing single hard disk drive .........................................................................................116
5.2 TERMINAL INFORMATION....................................................................................................119
5.2.1 DSUB-9P (RS-232)............................................................................................................119
5.2.2 DSUB-15P (PTZ / AUX / ALARM / SENSOR)............................................................... 120
5.3 FACTORY DEFAULT VALUE ................................................................................................. 121
5.3.1 Main Menu........................................................................................................................ 121
1.5.1. Search Menu...................................................................................................................... 124
5.4 PROTOCOL ......................................................................................................................... 125
5.4.1 Code table.......................................................................................................................... 125
5.4.2 Usage................................................................................................................................. 126
5.5 HDD RECORDING TIME TABLE............................................................................................ 127
All rights reserved. No part of this publication may be reproduced or transmitted in any form or any means,
electronic or mechanical, including photocopy, recording, or any information storage and retrieval system,
without prior permission.

10
8 & 16 Channel DVR Operation manual Revision 1.0
1. SYSTEM OVERVIEWS
1.1 Safety
To prevent fire or shock hazard, do not expose the unit to rain
or moisture.
The symbol is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
Warning -- This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at its own expense.
Warning – If TIMEKEEPER NVRAM IC that is consist of RTC, SRAM, POWER-FAIL CONTROL
CIRCUIT and BATTERY is replaced, the replacement is to be done by a trained technician with the
same type of component.
Caution -- Any changes or modifications in construction of this device which are not expressly
WARNING

11
8 & 16 Channel DVR Operation manual Revision 1.0
approved by the party responsible for compliance could void the user's authority to operate the
equipment.
Warranty will be made void if the product is disassembled or manipulated by the user.
Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade or the third prong is provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

12
8 & 16 Channel DVR Operation manual Revision 1.0
1.2 Components & Option
The following items are included with the 8 & 16 Channel DVR. Please be certain that all items are
included as soon as you open the box:
1.2.1 Components
zDVR ( CD/RW as a basic specification)
zPower cable
zDSUB-15 connector for PTZ /AUX /ALARM
zQuick Manual
zSoftware CD (RAMS, Uni Player, Multi Viewer, Quick Installer and Operation Manual)
zScrews for Assembling HDD
1.2.2 Options
zRemote controller (two battery included)
zHard disk drive (Option or included)

13
8 & 16 Channel DVR Operation manual Revision 1.0
1.3 Features & specifications
1.3.1 Features
z8/16 channel Embedded Digital Video Recorder
zMPEG-2 compression
zQuad-plex mode for simultaneous recording, playback, backup, and networking
zLive remote viewing, on-the-fly recording, and control over the network
zDynamic IP support (DHCP & PPPoE)
zAlarm triggered FTP and E-mail alert function
zMotion detection, Video loss, and sensor alarm function
zUser defined setting for recording frame rate & resolution
zVarious backup method support
( CD-RW, USB, Network)
zAudio recording available
zMultiple recording modes: Time lapse, video loss alarm, schedule, manual, & continuous
recording
zStill image capture and search function
zConvenient search by alarm, time, or date
zQuick and responsive playback & field-by-field viewing with the Jog/Shuttle dial
zWatermarking (Backup)
zPTZ control through RS-485
zQuick & easy setup through RS-232
zRemote controller available (optional)
zDual video modes: Selectable NTSC & PAL
zRack mountable : 2U
zFree voltage power input (100 - 240VAC, 50Hz/60Hz, 70W)
zVarious Video output (CVBS 2 ea out, VGAout, Spot out, S-Video out)

14
8 & 16 Channel DVR Operation manual Revision 1.0
1.3.2 Specifications
Item 8 Channel 16 Channel
Image System NTSC, PAL selectable
Video Channel 8 CH 16 CH
Multi-tasking Quad-plex
Video Output 2 Ch Composite(BNC), 1Ch S-Video, 1 Ch Spot, VGA
Video Compression MPEG-2
Recording Resolution NTSC : 640x240, 320x240
PAL : 640x288, 320x288
Recording Quality 4 Levels (Normal, Enhanced, Fine, Super Fine)
Max Recording Speed 120fps (320*240), 100 fps (320*288),
60 fps (640*240), 50 fps (640*288)
NTSC: 1,2,3,4,5,6,7,8,9,10,15,20,30Time Laps Recording
Interval (FPS) PAL : 1,2,3,4,5,6,7,8,9,10,15,20,25
Recording Mode Schedule, Event (sensor, motion detection),
Mnual, Continuous
Playback Search Date/Time, Event (Alarm, Motion detection)
Playback Speed x1, x2, x4, x8, x16, x32, x64, x128, Field by Field
(Forward/ Backward)
Slow Motion X1/4, x1/2 (Forward only)
Sensor Input 8 (NO/NC Selectable) 16 (NO/NC Selectable)
Alarm Output 1 (NO/NC)
Aux Control In/Out 2/3 (Selectable Function Menu)
Alarm Reset In, Record Start In, Record ON/OFF, Alarm Out,
Error Out, Record Start Out, Disk Full Out, Record Status Out
Audio 1CH, mono
Network 10Base-T (STATIC,DHCP, PPPoE, E-mail, & FTP)
Motion Detection 12* 12, 8 Level Sensitivity
Hard Disk Max Two HDD
Backup Method CD-RW,USB Memory, Network
Watermarking Still image backup
PTZ Control RS-485
System Log Video Loss, Power On/Off, HDD Full, HDD Fail, Menu called,
Reset HDD, Format, Reset SW Upgrade, E-mail Fail, FTP fail
Language Korean, English, Japanese, French, Spanish
S/W upgarde Network, USB Memory stick
Password Function Power ON/OFF, MENU, Record OFF, Key Lock
Digital Zoom x 2
Timer Built-in real time clock
Remote control Optional
Power Source Free Voltage (100 - 240VAC, 50Hz/60Hz, 70W)
Dimension 433(W) x 385(D) x 88(H)
Operating Temperature 5℃~ 40℃
Weight 7 Kg (w/o HDD)
zDesign and specifications are subjected to change without notice.

15
8 & 16 Channel DVR Operation manual Revision 1.0
1.4 Name, function & connections
1.4.1 Front view
Description:
1. CD/RW
* Easy backup by CD/RW is available. The cover of CD/RW shows an excellent design.
2. LED indicator
zPOWER: Power Off status is indicated by a Red light and ON status is indicated
by a Green light.
zREC: Green light (Recording)
zALARM: Green light (Alarm triggered)
zHDD FULL: Green light (No more disk space for recording)
zPTZ: Pan, Tilt, Zoom, Focus status is indicated by Green
3. Numeric button - Live Viewing mode button
z16 Channel : 1/9, 2/10, 3/11, 4/12, 5/13, 6/14, 7/15, 8/16
- Channel selection for Live Viewing and Playback mode, Password inputting,
- Channel selection by pushing the button 1 & 9, 2 &10, …
z8 Channel : 1, 2, 3, 4, 5, 6, 7, 8,
- Channel selection for Live Viewing and Playback mode, Password inputting.
zMULT (16 Channel) :
- Selection of Screen Division for Live Viewing mode
(16 screen, 4 screen division, 8 screen division, 9 screen division)
- In order to go back to previous mode, user is required to push “MULT” button,
after selecting a specific channel.

16
8 & 16 Channel DVR Operation manual Revision 1.0
zMULT (8 Channel)
- Selection of Screen Division for Live Viewing mode
(8 screen, 4 screen division, )
- In order to go back to previous mode, user is required to push “MULT” button,
after selecting a specific channel
zSEQ : Sequential view.
- View all active channels sequentially.
Also, Release all sections for Motion Detection Zone
4. Function button
zPOWER: Press this button to power ON/OFF
- Soft Power method is adapted. Therefore, If Power button is pressed,
user is asked to input Password, before Power off.
zLOCK: Press this button to lock/unlock the buttons of DVR, in order to prevent the use by
Unapproveduser.
- If the LOCK button is pressed, DVR is locked, and it’s unlocked by inputting correct
password
zZOOM: Zoom In/Out on the images during Live Viewing.
zFRZ : Freeze.
- Press button once to freeze the frame at live mode. Press again to return.
- To take a still image capture at playback mode.
- Exchange of video input type : Press power button with FRZ button from NTSC to Pal
or PAL to NTSC.
zMISC/SH: Miscellaneous functions or Shuttle Hold.
- MISC: To substitute for the buttons that are placed on the remote control but that are
not placed on the keypad (NET, OSD, Audio Mute, HDD, LOG).
(If the button is pressed, windows appear, and user can select lower menu one by one)
- SH: Press button while using the Shuttle to hold the speed.
zSEARCH : Press once to open the menu to search for recorded files.
zPTZ: Pan/Tilt/Zoom. Press once to access the Pan/Tilt/Zoom/Focus control mode.
Press again to exit.
zMENU: Press button to access Main Menu. Press again to return.
5. Direction/select button
zUP: Used to move the cursor up; change possible values in the setup menu; under
PTZ control sub menu, used to move camera; or used to adjust focus.

17
8 & 16 Channel DVR Operation manual Revision 1.0
zDOWN: Used to move the cursor up; change possible values in the setup menu; under
PTZ control sub menu, used to move camera; or used to adjust focus.
zLEFT: Used to change possible values in the setup menu. Under PTZ control menu,
used to move the camera left or used to do Zoom Out; At playback mode, used to
decrease playback speed.
zRIGHT: Used to change possible values in the setup menu. Under PTZ control menu,
used to move the camera left or used to do Zoom In; At playback mode, used to
increase playback speed.
zOK: Used as a selection key. Under PTZ control menu, used to be interchanged P/T
mode with Z/F mode
6. Jog/Shuttle
zShuttle: Multi-speed forward/reverse playback. Under Network Setup sub menu,
used to input parameters fast.
zJog: Frame by frame search.
7. IR receiver
zRemote control signal receiver
8. Recording/Playback buttons
zRECORD: Press once to begin recording all active channels. Press again to end recording.
zR-PLAY: Reverse Playback. Press to begin reverse playback. Under PTZ control menu,
used to decrease the speed of Pan, Tilt, Zoom, Focus.
zSTOP: Stop playback.
zPLAY: Access to playback.
- Playback button will activate assigned starting position and Channel at playback setup of
menu.
- At pause mode, it will release pause mode.
- Under PTZ control menu, used to increase the speed of Pan, Tilt, Zoom, Focus.
zPAUSE: Press to freeze the picture at playback mode..
9. USB connector in the front panel
* This connector is for USB Memory stick to back up the image

18
8 & 16 Channel DVR Operation manual Revision 1.0
1.4.2 Rear panel view
Description:
1. USB
zConnect USB flash drives for backing up stored video files.
2. ETHERNET
zNetwork terminal for 10Base-T (RJ-45)
3. PTZ/AUX/ALARM
zTerminal for PTZ, sensor, alarm, and AUX IN/OUT (DB-15 Male Connector)
4. VGA and SERIAL
zVGA : Terminal for VGA video output (DB-15 Male Connector)
zSerial terminal for RS-232C (PC) for console or quick installation (DB-9 Male Connector)
5. AUDIO
zIN: Audio line input
zOUT: Audio line output
6. VIDEO OUT
zTerminals for composite video and s-video to connect with monitor
7. CAMERA
z16 Channel : 16 Inputs ( 1~16 ch) : In order to use Loop through, please refer to Article 3.1.7.
z8 Channel : 8 Inputs ( 1 ~ 8 ch) : With 8 loop through, the video of each channel can be out.
8. VIDEO OUT (SPOT and VIDEO 2)
zSPOT : User can use this connector for a specific Spot Monitor
zVIDEO 2 : With the Extra Output, user can connector with other monitor
( Same video image as Video 1)
9. FAN
zHeat protection fan to reduce heat in the unit
10. POWER INPUT
zPower cord terminal (free voltage, 100 - 240VAC, 50Hz/60Hz)

19
8 & 16 Channel DVR Operation manual Revision 1.0
1.4.3 Remote controller function
① POWER : button for power on/off. (DVR should be standby or on working)
② MUTE : button for voice off ( If it’s pressed again, voice on)
③ RECORD : button for forced recording (If it’s pressed again, recording stops)
④ INFO BUTTON GROUP : button group for HDD, NET, LOG, INFO.
If each button is pressed, the relative information shows and press Menu button for exit
⑤ NUMBER KEYPAD : use with OK button to select any channel
Ex : to select Ch 7, press 7 button and OK button.

20
8 & 16 Channel DVR Operation manual Revision 1.0
⑥ LOCK : Remocon Rock button. Same function as Lock button in the front panel.
To unlock, press any button and input password.
⑦ SEARCH : button to search data in HDD. Press the button to enter, and repress for exit
⑧ SEQ : button for sequence ( 2 functions)
- Press one time : one channel in full screen shows by interval.
- Press 2nd time : 4 division / 8 division/ 9 division/ 16 division/ 4 division screen shows.
- If press again, previous screen shows. To exit, press MULT button
⑨ MULT : button for division screen
- Basic screen : 16 ch. If it’s pressed each time, 4 ch/ 8ch/ 9ch/ 16ch screen shows
⑩ MENU : Button for menu. Various sub menu can be selected
- To exit, press again the button
⑪ Up/down, Right/left & OK button
Status OK Up/down Right/left
Menu Selection, sub menu Menu move x
Sub Menu Selection Move Menu Adjust value
Play x x Low speed and playback speed
