Unipulse F701-C User manual

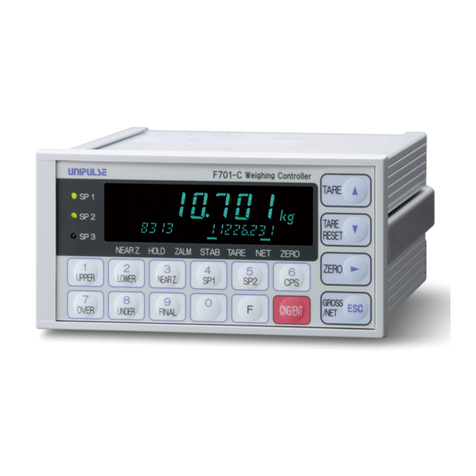

F701-C WEIGHING CONTROLLER
01 Apr. 2015
Rev. 1.16
OPERATION MANUAL

INTRODUCTION
I
INTRODUCTION
Thank you very much for purchasing our Weighing Controller F701-C.
For good performance, and proper and safe use of the F701-C, be sure to read this instruction
manual and properly understand the contents of it before use. Also, carefully keep this instruction
manual so that it can be referred to at any time.
SAFETY PRECAUTIONS
In order to have an F701-C Weighing Controller used safely, notes we would like you to surely
follow divide into " " and " ", and are indicated by the following
documents. Notes indicated here are the serious contents related to safely. Please use F701-C after
understanding the contents well.
For safety reasons, please read the following safety precautions thoroughly.
WARNING
CAUTION
WARNING
This sign forewarns the presence of hazards that could result in serious injury or
fatality when incorrectly handled.
CAUTION
This sign forewarns the presence of hazards that could result in personnel injury or
property damage when incorrectly handled.

SAFETY PRECAUTIONS
II
WARNING
●For the entire system to function safely when the F701-C becomes faulty or malfunctions,
provide a safety circuit outside the F701-C.
●Before using the F701-C as described below, make sure to consult with our sales personnel.
- Use in environments not described in the operation manual.
- Use greatly impacting human lives and assets, such as medical devices, transport devices
entertainment devices, and safety devices.
●Do not disassemble, repair, or modify the F701-C. Doing so may cause a fire or an electric
shock.
●Do not install in the following environments.
- Places containing corrosive gas or flammable gas.
- Where the product may be splashed with water, oil or chemicals.
●Do not connect a commercial power source directly to the signal input/output terminals.
●Be sure to ground the protective ground terminal.
●The attached AC cable is designed for domestic use in Japan, and its rating is 125V AC, 7A.
For use at voltages exceeding the rating and for overseas use, have a separate AC cable
prepared.
●Before performing the following, make sure that no power is applied.
- Attachment/detachment of connectors of options, etc.
- Wiring/connection of cables to the signal input/output terminals.
- Connection of the earth cable.
●For connection to the signal input/output terminals, check the signal names and pin
assignment numbers, and then carry out wiring properly.
●Be sure to use crimp contacts for connection to the terminal blocks, and do not to connect
bare wires as they are.
●After wiring, be sure to mount the attached terminal block cover. Otherwise, it may cause an
electric shock.
●Do not connect anything to unused terminal(s).
●Before applying power, carefully check the wiring, etc.
This sign forewarns the presence of hazards
that could result in serious injury or fatality
when incorrectly handled.
Warning on design
Warning on installation
Warning on wiring

SAFETY PRECAUTIONS
III
WARNING
●Use a power supply voltage and load within the specified and rated ranges.
●Do not damage the power cord. Doing so may cause fire or electric shocks.
●Do not touch any signal input/output terminal while applying power. Doing so may cause
electric shocks or malfunctions.
●If the cover of the main body is opened, it may cause an electric shock internally. Even if the
power is off, the internal capacitor is charged. Contact us for internal inspection or repair.
●In the case of smoke, an abnormal smell or strange sound, immediately turn off the power,
and disconnect the power cable.
●Lithium battery use in the F701-C unit.
type: CR14250SE manufactured by Sanyo Electric, or equivalent
Voltage: 3 volts
Capacity: 850 mAh
This sign forewarns the presence of hazards
that could result in serious injury or fatality
when incorrectly handled.
Warning during startup and maintenance
CAUTION
●Use the F701-C as it is incorporated in a control panel, etc.
●Do not install in the following environments:
- Locations where temperature or humidity exceeds specifications;
- Locations subjected to drastic temperature fluctuations or icing and condensing;
- Outdoors or locations above 2,000m;
- Locations exposed to direct sunlight;
- Locations subject to dust accumulation;
- Locations with poor ventilation;
- Locations with a lot of salt and metal powder;
- Locations where the main unit is subject to direct vibration and shock.
●Take adequate shielding measures when using at the following locations.
- Near a power line.
- Where a strong electric field or magnetic field is formed.
- Where static electricity, relay noise or the like is generated.
●Install the F701-C as far away from devices generating high frequency, high voltage, large
current, surge, etc., as possible. Also, carry out wiring separately from their power lines. Do
not carry out parallel wiring and common wiring.
●Do not use it, broken down.
This sign forewarns the presence of hazards
that could result in personnel injury or property
damage when incorrectly handled.
Caution on installation

IV
CAUTION
●Tighten the screws for the signal input/output terminals at the specified torque.
If they are loose, shorts, fire or malfunctions may occur.
Tightening torque: 0.5N•m
●For sensors, external inputs/outputs and options, use shielded cables.
●The temporary overvoltage applied to the power should not exceed 1500V.
●For turning on/off the power, be sure to keep intervals of 5 seconds or more.
●After power-on, make sure to warm up the F701-C for at least 30 minutes or more before use.
●If the F701-C is not used by the specified method, its protective performance may be
impaired.
●Maintenance
- When performing maintenance, disconnect the power.
- Do not wipe with a wet rag, or with benzine, thinner, alcohol, etc. Doing so may cause
discoloration or deformation of the F701-C. In the case of heavy contamination, wipe off
the contamination with a cloth after dipping it into a diluted neutral detergent and wringing
it well, and then wipe with a soft, dry cloth.
●When the F701-C is shipped, spacers made of corrugated cardboard are used as
cushioning materials.
Though it is factory-designed so that shocks can sufficiently be absorbed, breakage may
result if shocks are applied when the spacers are reused for transportation. If you send the
F701-C to us for repair, etc., take adequate measures against shocks by using polyurethane
materials, etc., separately.
●If you dispose of the product, handle it as industrial waste.
●Remove the lithium batteries used in the F701-C and make sure to dispose them according
to classification of waste collection.
This sign forewarns the presence of hazards
that could result in personnel injury or property
damage when incorrectly handled.
Caution on wiring
Caution during startup and maintenance
Caution during transportation
Caution during disposal

CONTENTS
V
CONTENTS
1．APPEARANCE DESCRIPTION .................................................1
1-1．Front Panel .................................................................................................... 1
1-2．Rear Panel ..................................................................................................... 6
2．CONNECTION ............................................................................8
2-1．Load cell Connection ................................................................................... 8
2-1-1．6-wire Connection ........................................................................................ 10
2-1-2．4-wire Connection ........................................................................................ 10
2-1-3．Connecting Load cells in Parallel ............................................................... 11
2-1-4．Sensor Cable ................................................................................................. 11
2-2．Connection of the Power Input Terminals ............................................... 12
2-3．Connection of the Guard Ground ............................................................. 12
2-4．SI/F Connection .......................................................................................... 13
2-5．Connection of the Control Connector ...................................................... 14
2-5-1．Control Connector-Pin Assignment ........................................................... 14
2-5-2．How to Assemble the Connector ................................................................ 15
2-5-3．Equivalent Circuit (Input) ............................................................................. 16
2-5-4．Equivalent Circuit (Output) .......................................................................... 16
3．METHODS OF SETTING .........................................................17
3-1．Setting Procedure ...................................................................................... 17
3-1-1．Method of Selecting a Setting Mode ........................................................... 17
3-1-2．Method of Entering a Setting Value ............................................................ 19
3-2．Setting Mode ............................................................................................... 23
3-2-1．Setting Mode 0 .............................................................................................. 24
3-2-2．Setting Mode 1 .............................................................................................. 26
3-2-3．Setting Mode 2 .............................................................................................. 28
3-2-4．Setting Mode 3 .............................................................................................. 31
3-2-5．Setting Mode 4 .............................................................................................. 33
3-2-6．Setting Mode 5 .............................................................................................. 36
3-2-7．Setting Mode 8 .............................................................................................. 38
4．CALIBRATION .........................................................................41
4-1．Span Calibration ......................................................................................... 41
4-2．Span Calibration Procedure ...................................................................... 42
4-3．Secondary Calibration Procedure (Equivalent Calibration) ................... 43
4-4．Preparation for Calibration ........................................................................ 45
4-4-1．LOCK Release ............................................................................................... 45
4-4-2．Unit ................................................................................................................. 46
4-4-3．Decimal Place ............................................................................................... 46
4-4-4．Capacity ......................................................................................................... 47

CONTENTS
VI
4-4-5．Minimum Scale Division .............................................................................. 47
4-4-6．Balance Weight Value .................................................................................. 48
4-4-7．Gravitational Acceleration ........................................................................... 48
4-4-8．1/4 Scale Division ......................................................................................... 50
4-5．Zero Calibration .......................................................................................... 51
4-6．Span Calibration ......................................................................................... 53
4-7．Secondary Calibration (Equivalent Calibration) ...................................... 54
5．FUNCTION SETTINGS .............................................................55
5-1．Display Frequency ..................................................................................... 55
5-2．Subdisplay Selection ................................................................................. 56
5-3．Digital Filter ................................................................................................. 56
5-4．Analog Filter ............................................................................................... 57
5-5．Filter in Stable Condition ........................................................................... 57
5-6．Motion Detection (MD) ............................................................................... 58
5-7．Zero Tracking (ZT) ...................................................................................... 60
5-8．Digital Zero (DZ) ......................................................................................... 61
5-9．Digital Zero Clear ........................................................................................ 62
5-10．Zero Regulation Value ............................................................................. 62
5-11．One-touch Tare Subtraction .................................................................... 63
5-12．One-touch Tare Subtraction Reset ......................................................... 64
5-13．Digital Tare Subtraction ........................................................................... 65
5-14．Restriction of the Tare Subtraction Function ........................................ 66
5-15．Switching Gross Weight/Net Weight Display ........................................ 67
5-16．Reversing Symbol at Discharging Control ............................................ 68
5-17．Invalidation of Function Keys ................................................................. 68
6．DISCHARGING CONTROL MODE ..........................................69
6-1．Feeding Weighing and Discharging Weighing ........................................ 69
6-1-1．Feeding Weighing ......................................................................................... 69
6-1-2．Discharging Weighing .................................................................................. 72
6-1-3．Discharging Mode ........................................................................................ 75
6-2．Simple Comparison Control and Sequence Control ............................... 76
6-2-1．Simple Comparison ...................................................................................... 76
6-2-2．Sequential Control ........................................................................................ 77
6-2-3．Sequence Mode ............................................................................................ 82
6-3．Auto Free Fall Compensation Regulation /
Auto Free Fall Compensation ON/OFF /
Average Count of Auto Free Fall Compensation /
Auto Free Fall Compensation Coefficient ................................................ 83

CONTENTS
VII
6-4．Final / Set Point 2 / Set Point 1 / Compensation / Over / Under ............. 86
6-5．Negative Compensation ............................................................................ 89
6-6．Near Zero / Upper Limit / Lower Limit ...................................................... 90
6-7．Upper/Lower Limit Comparison /
Upper/Lower Limit Comparison Mode /
Near Zero Comparison / Final and Comparison /
Over/Under Comparison Mode ................................................................. 91
6-8．Complete Signal Output Mode / Complete Output Time /
Judging Time / Comparison Inhibit Time / Output Selection 2 .............. 93
6-9．Judging Times / AZ Times / At Start Near Zero Confirmation /
At Start Weight Value Confirmation / Adjust Feeding /
Adjust Feeding Time .................................................................................. 96
6-10．Net Over / Gross Over ............................................................................ 100
6-11．Weight Error / Sequence Error .............................................................. 101
7．STATISTICAL AND ACCUMULATION FUNCTION SETTING AND
OPERATION ...........................................................................102
7-1．Data Display .............................................................................................. 103
7-2．Accumulation Command ......................................................................... 103
7-3．Accumulation Clear .................................................................................. 105
7-4．Auto Accumulation Command ................................................................ 107
8．SYSTEM MODE .....................................................................109
8-1．LOCK (soft) ............................................................................................... 109
8-2．Password .................................................................................................. 109
8-3．Self-Check and Memory Clear ................................................................. 110
9．EXTERNAL INPUT/OUTPUT SIGNALS
(CONTROL CONNECTOR) ....................................................111
9-1．Control Connector-Pin Assignment ....................................................... 111
9-2．Equivalent Circuit (Input) ......................................................................... 112
9-3．Equivalent Circuit (Output) ...................................................................... 112
9-4．External Input Signal ................................................................................ 113
9-4-1．Gross/Net Switching (G/N) <Edge Input> <Level Input> ......................... 113
9-4-2．Digital Zero (D/Z ON) <Edge Input> .......................................................... 113
9-4-3．Tare Subtraction (TARE ON) <Edge Input> .............................................. 114
9-4-4．Tare Subtraction Reset (TARE OFF) <Edge Input> ................................. 114
9-4-5．Hold (HOLD) <Level Input> ........................................................................ 114
9-4-6．Judge <Level Input> ................................................................................... 115
9-4-7．Feed / Discharge <Level Input> ................................................................. 115
9-4-8．Input Signals Used in Sequence Mode ..................................................... 115

CONTENTS
VIII
9-4-9．Accumulation command <Edge Input> .................................................... 116
9-4-10．Accumulation Clear <Edge Input> .......................................................... 116
9-4-11．Input Selection .......................................................................................... 117
9-5．External Output Signal ............................................................................. 118
9-5-1．Near Zero ..................................................................................................... 118
9-5-2．Lower Limit, Upper Limit ........................................................................... 118
9-5-3．Stable ........................................................................................................... 118
9-5-4．Weight Error ................................................................................................ 118
9-5-5．Sequence Error ........................................................................................... 119
9-5-6．RUN .............................................................................................................. 119
9-5-7．Accumulation Error .................................................................................... 119
9-5-8．SP1, SP2, SP3 ............................................................................................. 120
9-5-9．Under, Go, Over .......................................................................................... 121
9-5-10．Complete ................................................................................................... 122
9-5-11．Output selection ....................................................................................... 123
10．INTERFACE .........................................................................124
10-1．2-wire Serial Interface (SI/F) .................................................................. 124
10-1-1．Connection ................................................................................................ 124
10-1-2．Auto Print Command ................................................................................ 124
10-2．RS-232C Interface ................................................................................... 125
10-2-1．Communication Specifications ............................................................... 125
10-2-2．Cable .......................................................................................................... 125
10-2-3．Setting Values for RS-232C ..................................................................... 126
10-2-4．Communication Mode .............................................................................. 126
10-2-5．Transmission Format ............................................................................... 128
10-2-6．Communication Format ........................................................................... 129
10-3．BCD Parallel Data Output Interface ...................................................... 137
10-3-1．Control Connector-Pin Assignment ....................................................... 137
10-3-2．Equivalent Circuit (Input) ......................................................................... 137
10-3-3．Equivalent Circuit (Output) ...................................................................... 138
10-3-4．BCD Data Output ...................................................................................... 138
10-3-5．Polarity Output (MINUS) ........................................................................... 138
10-3-6．Over Status Output (OVER) ..................................................................... 139
10-3-7．Print Command Output (P.C) ................................................................... 139
10-3-8．Data Strobe (STROBE) ............................................................................. 139
10-3-9．BCD Data Update Rate Selection ............................................................ 140
10-3-10．Data Hold Input ....................................................................................... 140
10-3-11．Logic Switching Input ............................................................................ 140
10-3-12．Output Selection Input ........................................................................... 140
10-4．D/A Converter ......................................................................................... 141
10-4-1．Name of Each Part .................................................................................... 141
10-4-2．Specifications ........................................................................................... 143
10-4-3．Method of Adjusting the D/A Zero and Gain .......................................... 143
10-4-4．About D/A Resolution .............................................................................. 145
10-5．RS-485 Communication Interface ......................................................... 146
10-5-1．Communication Specifications ............................................................... 146
10-5-2．RS-485 Connection ................................................................................... 146
10-5-3．Setting Values for RS-485 ........................................................................ 147
10-5-4．Communication Method ........................................................................... 148
10-5-5．Communication Format ........................................................................... 149

CONTENTS
IX
11．OVER SCALE & ERROR .....................................................157
11-1．Over Scale ............................................................................................... 157
11-2．Sequence Error ....................................................................................... 157
11-3．Calibration Error ..................................................................................... 158
12．TROUBLE SHOOTING ........................................................159
13．REPLACEMENT OF THE BACKUP BATTERY ..................166
14．BLOCK DIAGRAM ...............................................................167
15．DIMENSIONS .......................................................................168
16．MOUNTING ON A PANEL ...................................................169
17．SPECIFICATIONS ................................................................170
17-1．Analog Section ....................................................................................... 170
17-2．Display Section ....................................................................................... 171
17-3．Setting Section ....................................................................................... 171
17-4．External Input/Output ............................................................................. 172
17-5．Interface .................................................................................................. 172
17-6．General Performance ............................................................................. 174
17-7．Attachment .............................................................................................. 175
18．THE LIST OF INITIAL SETTING VALUE .............................176
18-1．Setting Mode 0 ........................................................................................ 176
18-2．Setting Mode 1 ........................................................................................ 176
18-3．Setting Mode 2 ........................................................................................ 177
18-4．Setting Mode 3 ........................................................................................ 177
18-5．Setting Mode 4 ........................................................................................ 177
18-6．Setting Mode 5 ........................................................................................ 178
18-7．Setting Mode 8 ........................................................................................ 178
18-8．Calibration Mode (Setting Mode 9) ....................................................... 178

CONTENTS
X
M E M O

1.APPEARANCE DESCRIPTION
1
1. APPEARANCE DESCRIPTION
1-1. Front Panel
①Main display
The following three types are displayed.
(1) Weight value display
Displays the Gross weight or the Net weight.
When error occurred, the display shows error and weight value alternately.
(2) Over scale and error display
Over-scale, sequence errors and calibration errors are displayed.
* Please refer to "11.OVER SCALE & ERROR" on P.157.
(3) Setting value display
Various final discharge setting values and setting values for adjustment, such as Final and Set
Point 2, are displayed.
④Status display
①Main display
⑤Setting keys
③Unit indication
⑥Function keys
②Subdisplay

1.APPEARANCE DESCRIPTION
2
②Subdisplay
Weighing data, such as Accumulation Value, and various setting values are displayed by setting.
* Please refer to "- Function Selection" on P.32, "5-2.Subdisplay Selection" on P.56.
(1) Accumulation Count, Accumulation Value
(2) Latest Accumulation Data, Accumulation Value
(3) Accumulation Count, Latest Accumulation Data, Final
(4) Final, Over, Under
(5) Near Zero, Upper Limit, Lower Limit
(6) None
Accumulation Count Accumulation Value
Latest Accumulation Data Accumulation Value
Accumulation Count FinalLatest Accumulation Data
Final UnderOver
Near Zero Lower LimitUpper Limit

1.APPEARANCE DESCRIPTION
3
Accumulation Count Displays the count accumulated by the auto
accumulation command or external input/output signal,
or through RS-232C communication, etc.
Accumulation Value Displays the value accumulated by the auto
accumulation command or external input/output signal,
or through RS-232C communication, etc.
Latest Accumulation Data Displays the latest data accumulated by the auto accumulation
command or external input/output signal, or through RS-232C
communication, etc.
Final Displays the “Final” value set in the setting mode 0-9.
Over Displays the “Over” value set in the setting mode 0-7.
Under Displays the “Under” value set in the setting mode 0-8.
Near Zero Displays the “Near zero” value set in the setting mode 0-3.
Upper Limit Displays the “upper limit” value set in the setting mode 0-1.
Lower Limit Displays the “lower limit” value set in the setting mode 0-2.
③Unit indication
The unit can select from six types: t, kg, g, N, lb and None.
④Status display
SP1 Lights when the Set Point 1 signal is ON.
SP2 Lights when the Set Point 2 signal is ON.
SP3 Lights when the Set Point 3 signal is ON.
NEAR Z. Lights when the Near Zero signal is ON. “ ”
HOLD Lights when the weight value is held. “ ”
ZALM Lights when the DZ Regulation Value is exceeded in
Digital zero/Zero tracking operation.
(Such as when any load cell has a problem with its zero point.)
STAB Lights when the weight value is stable. “ ”
TARE Lights when Tare subtraction is performed.
Flashes when the Tare weight is displayed.
NET Lights when the weight value display is Net weight.
Goes out when it is Gross weight.
NEAR Z.
HOLD
“ ”
ZALM
STAB
“ ”
TARE
“ ”
NET

1.APPEARANCE DESCRIPTION
4
ZERO - Lights at a true zero point (0±1/4 scale division).
(When the 1/4 scale division display is OFF under
Function Selection in setting mode 3.)
- Lights at a true zero point (0±1/4 scale division),
and at the central point of the scale interval of the indicated
value (indicated value ±1/4 × Min. Scale Division).
(When the 1/4 scale division display is ON under
Function Selection in setting mode 3.)
Flashes when the voltage of the lithium battery for memory backup has
dropped.Replace with a new battery.
For the method of replacement, refer to "13.REPLACEMENT OF THE BACKUP
BATTERY" on P.166.
* The expression “ ” in this instruction manual shows that「」on the status display lights,
goes out, or flashes.
⑤Setting keys
When the key is pressed, the Tare weight is displayed, and
“”flashes.
(When the Tare weight display with the key is valid under
Restriction on the Tare Subtraction Function in setting mode 4.)
To go back to the weight display, press the key again.
Numerical keys to make settings.
Function key to switch the setting mode.
Change/Enter key to confirm setting items and setting values.
⑥Function keys
Key to perform one-touch Tare subtraction.
“ ” on the status display lights. (In setting mode 0)
However, Tare subtraction is performed only in the following cases
depending on the setting of Restriction on the Tare Subtraction Function
in setting mode 4.
- When the weight value is stable (when “ ” is on).
- When the range of Tare subtraction is 0 ＜Tare ≦Capacity.
Use as an increment key for setting operation.
Key to reset Tare subtraction. (In setting mode 0)
However, the Tare Weight is not cancelled.
Use as a decrement key for setting operation.
“ ”
ZERO
＊＊
0
0
TARE
0
0
~
1
UPPER
9
FINAL
F
CNG/ENT
TARE
TARE
STAB
TARE
RESET

1.APPEARANCE DESCRIPTION
5
When →is pressed, Gross is zeroed
immediately. (In setting mode 0)
However, if this operation is performed with Gross out of
the DZ Regulation Value, “ ” flashes.
(For details of the DZ Regulation Value, refer to
"5-10.Zero Regulation Value" on P.62.)
To discontinue, press the key.
Use to shift setting values for setting operation.
Switch the weight display (Gross/Net). (In setting mode 0)
Pressing on Gross weight display (when “ ” is OFF)
switches to Net weight display, and pressing on Net weight display
(when “ ” is ON) switches to Gross weight display.
However, the display cannot be switched with this key if the switching
Gross weight/Net weight display is set to external input mode under
External Function Selection in setting mode 4.
Use as an ESC key for setting operation.
ZERO
ZERO
CNG/ENT
ZALM
GROSS
/NET
ＥＳＣ
GROSS
/NET
ＥＳＣ
NET
NET
Functioning of the Function keys can be invalidated by setting of
"5-17.Invalidation of Function Keys" on P.68.

1.APPEARANCE DESCRIPTION
6
1-2. Rear Panel
①AC power input terminal block
Connect AC power code. The input voltage is 100V ~ 240V AC.
The frequency is 50/60Hz.
②Protective ground
Be sure to ground the protective ground terminal to prevent electric shocks.
③Frame ground
Please ground the frame ground terminal to prevent failures due to static electricity.
(The frame and the frame ground terminal are conducted.)
It may be better to remove depending on the environment of the installation location.
④Control connector
This is a connector to input external signals and output control signals. The Input/Output circuit and
internal circuit are photocoupler-insulated electrically.
The applicable connector is the following (accessory) manufactured by Fujitsu Component or an
equivalent:
Connector : FCN-361J024-AU
Cover : FCN-360C024-B
①AC power input terminal block
④Control connector
⑥SI/F terminal block
⑦LOCK switch
⑧Load cell input terminal block
⑨Option space
③Frame ground
⑤RS-232C connector
②Protective ground

1.APPEARANCE DESCRIPTION
7
⑤RS-232C connector
RS-232C connector for receiving and transmitting weight data and status information.
The applicable connector is JAE DE-09SN or its equivalent.
⑥SI/F terminal block
2-wire serial interface is to connect unipulse peripheral equipment such as printer, remote display
or data converter.
⑦LOCK switch
LOCK switch for avoiding changes of setting value, it prohibits to change setting value while the
switch is ON.
⑧Load cell input terminal block
This is a terminal block to connect load cell(s).
The applicable terminal block is Osada-manufactured ETB42-07P.
⑨Option space
One of the following options can be mounted.
- BCD parallel data output interface (BCO)
- D/A converter (DAC)
- RS-485 communication interface (485)
- CC-Link interface (CCL)

2.CONNECTION
8
2. CONNECTION
2-1. Load cell Connection
The voltage application of F701-C is 10V, and the maximum current is 120mA, to which up to four
350Ωload cells can be connected in parallel.
Load cell terminal block pin assignments
Pin No. Signal (6-wire) Signal (4-wire)
1+SIG +SIG
2-SIG -SIG
3+EXC +EXC
(Connect 3 to 4)
4+S
5 -EXC -EXC
(Connect 5 to 6)
6-S
7 SHIELD SHIELD
Load cell terminal block

2.CONNECTION
9
Method of connection
1) Peel the sheath of the wire to be connected 5mm.
2) Twist the end to such an extent that it will not become loose.
3) Remove the terminal block from the F701-C body
with a strong pull.
4) Loosen the screw with a screwdriver to open the hole.
A Phillips screwdriver with a shaft diameter of 3 ~ 3.5mm
#1 is recommendable
(precision screwdriver, etc.).
5) Insert the wire into the hole so as not to loosen the end.
6) Tighten the screw with the screwdriver.
7) Lightly pull the wire to check that it is clamped securely.
* Connectable wires are 0.21 ~ 3.31mm2(AWG12 ~ 24).
Recommendable tightening torque is 0.5Nm.
8) Insert the wire-connected plug into
the F701-C body, and tighten the
screws (two).
5mm
Hole
Turn
counterclockwise.
Turn
clockwise.
Turn clockwise.
Screws(two)
When mounting the terminal block to the
F701-C body, check its vertical orientation.
(See the illustration on the right-hand side.)
UP
DOWN
Request
Insertion side
