Unisight EmPower NVR User manual

EmPower NVR
User’s Manual
V4.4.3

II
Cybersecurity Recommendations
Mandatory actions to be taken towards cybersecurity
1. Change Passwords and Use Strong Passwords:
The number one reason systems get “hacked” is due to having weak or default passwords. It is
recommended to change default passwords immediately and choose a strong password whenever
possible. A strong password should be made up of at least 8 characters and a combination of special
characters, numbers, and upper and lower case letters.
2. Update Firmware
As is standard procedure in the tech-industry, we recommend keeping NVR, DVR, and IP camera
firmware up-to-date to ensure the system is current with the latest security patches and fixes.
“Nice to have” recommendations to improve your network security
1. Change Passwords Regularly
Regularly change the credentials to your devices to help ensure that only authorized users are able to
access the system.
2. Change Default HTTP and TCP Ports:
● Change default HTTP and TCP ports for systems. These are the two ports used to communicate and to
view video feeds remotely.
● These ports can be changed to any set of numbers between 1025-65535. Avoiding the default ports
reduces the risk of outsiders being able to guess which ports you are using.
3. Enable HTTPS/SSL:
Set up an SSL Certificate to enable HTTPS. This will encrypt all communication between your devices
and recorder.
4. Enable IP Filter:
Enabling your IP filter will prevent everyone, except those with specified IP addresses, from accessing
the system.
5. Change ONVIF Password:
On older IP Camera firmware, the ONVIF password does not change when you change the system’s
credentials. You will need to either update the camera’s firmware to the latest revision or manually
change the ONVIF password.
6. Forward Only Ports You Need:
● Only forward the HTTP and TCP ports that you need to use. Do not forward a huge range of numbers
to the device. Do not DMZ the device's IP address.
● You do not need to forward any ports for individual cameras if they are all connected to a recorder on
site; just the NVR is needed.

III
7. Limit Features of Guest Accounts:
If your system is set up for multiple users, ensure that each user only has rights to features and functions
they need to use to perform their job.
8. UPnP:
● UPnP will automatically try to forward ports in your router or modem. Normally this would be a good
thing. However, if your system automatically forwards the ports and you leave the credentials defaulted,
you may end up with unwanted visitors.
● If you manually forwarded the HTTP and TCP ports in your router/modem, this feature should be
turned off regardless. Disabling UPnP is recommended when the function is not used in real applications.
9. SNMP:
Disable SNMP if you are not using it. If you are using SNMP, you should do so only temporarily, for
tracing and testing purposes only.
10. Multicast:
Multicast is used to share video streams between two recorders. Currently there are no known issues
involving Multicast, but if you are not using this feature, deactivation can enhance your network security.
11. Check the Log:
If you suspect that someone has gained unauthorized access to your system, you can check the system
log. The system log will show you which IP addresses were used to login to your system and what was
accessed.
12. Physically Lock Down the Device:
Ideally, you want to prevent any unauthorized physical access to your system. The best way to achieve
this is to install the recorder in a lockbox, locking server rack, or in a room that is behind a lock and key.
13. Connect IP Cameras to the PoE Ports on the Back of an NVR:
Cameras connected to the PoE ports on the back of an NVR are isolated from the outside world and
cannot be accessed directly.
14. Isolate NVR and IP Camera Network
The network your NVR and IP camera resides on should not be the same network as your public
computer network. This will prevent any visitors or unwanted guests from getting access to the same
network the security system needs in order to function properly.

Regulatory Information
FCC Information
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
FCC conditions:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
⚫This device may not cause harmful interference.
⚫This device must accept any interference received, including interference that may cause
undesired operation.
FCC compliance:
This equipment has been tested and found to comply with the limits for a digital device,
pursuant to part 15 of the FCC Rules. This equipment generate, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the guide, may cause
harmful interference to radio communication.
⚫For class A device, these limits are designed to provide reasonable protection against
harmful interference in a commercial environment. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
⚫For class B device, these limits are designed to provide reasonable protection against
harmful interference in a residential installation. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
⚫Reorient or relocate the receiving antenna.
⚫Increase the separation between the equipment and receiver.
⚫Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
⚫Consult the dealer or an experienced radio/TV technician for help.

V
Table of Contents
1Features and Specifications ............................................................................................................................1
1.1 Overview.....................................................................................................................................................1
1.2 Features......................................................................................................................................................1
2Front Panel and Rear Panel.......................................................................... Error! Bookmark not defined.
2.1 Front Panel............................................................................................... Error! Bookmark not defined.
2.1.1 Beneficio smart 1U/Beneficio smart 1U(S2)/ 4K smart 1U (S2)/ Beneficio 4K Smart 1U(S2)
Series Error! Bookmark not defined.
2.1.2 Beneficio Mini 1U Series................................................................. Error! Bookmark not defined.
2.1.3 Compact 1U Wireless Series.......................................................... Error! Bookmark not defined.
2.1.4 Beneficio Smart 1U with 8 PoE port Series.................................. Error! Bookmark not defined.
2.1.5 Beneficio 1U Series.......................................................................... Error! Bookmark not defined.
2.1.6 Compact 1U（S2）/ 4K compact 1U (S2)/ Compact 1U 4K（S2）SeriesError! Bookmark
not defined.
2.1.7 1U/1.5U/2U Series........................................................................... Error! Bookmark not defined.
2.1.8 Beneficio 1.5U Series...................................................................... Error! Bookmark not defined.
2.1.9 Beneficio 2U Series.......................................................................... Error! Bookmark not defined.
2.1.10 Beneficio Vertical 1U Series....................................................... Error! Bookmark not defined.
2.1.11 Smart 1U 4K (S2) wih Wireless Series..................................... Error! Bookmark not defined.
2.1.12 Compact 1U 4K (S2) wih Wireless Series................................ Error! Bookmark not defined.
2.2 Rear Panel ............................................................................................... Error! Bookmark not defined.
2.2.1 Beneficio Smart 1U / Beneficio Smart 1U with 1 PoE port/ Beneficio Smart 1U with 8 PoE
ports/ Beneficio Smart 1U with wireless Series.......................................... Error! Bookmark not defined.
2.2.2 Beneficio Smart 1U (S2)/ Beneficio 4K Smart 1U(S2) Series... Error! Bookmark not defined.
2.2.3 Beneficio Mini 1U / Beneficio Mini 1U with 1 PoE port/ Beneficio Mini 1U with 8 PoE ports
Series Error! Bookmark not defined.
2.2.4 Compact 1U（S2）/ Compact 1U 4K（S2）Series................... Error! Bookmark not defined.
2.2.5 Compact 1U Wireless Series.......................................................... Error! Bookmark not defined.
2.2.6 Beneficio 1U (S2)/ Beneficio 4K 1U(S2) Series........................... Error! Bookmark not defined.
2.2.7 Beneficio 1U / Beneficio Entry-level 1U/ Beneficio 1U with 1 PoE port/ Beneficio 1U with 8
PoE ports/ Beneficio 1U with 16 PoE Ports Series.................................... Error! Bookmark not defined.
2.2.8 Professional 4K 1U/ Professional 4K 1U with 8 PoE ports/ Professional 4K 1U with 16 PoE
ports/4K 1U (S2) with 24 PoE Ports/4K 1U (S2E) with 8 PoE ports/4K 1U (S2E) with 16 PoE ports
Series Error! Bookmark not defined.
2.2.9 Beneficio 1.5U / Beneficio 1.5U with 8 PoE ports/ Beneficio 1.5U with 16 PoE ports Series
Error! Bookmark not defined.
2.2.10 Professional 4K 1.5U/ Professional 4K 1.5U with 16 PoE ports/ Professional 4K 2U /
Professional 4K 2U with 16 PoE ports/4K 1.5U (S2) with 24 PoE ports/4K 1.5U (S2E) with 16 PoE
Ports/4K 2U (S2E) with 16 PoE ports Series.............................................. Error! Bookmark not defined.
2.2.11 4K Smart 1U (S2) Series............................................................ Error! Bookmark not defined.
2.2.12 Beneficio Vertical 1U Series....................................................... Error! Bookmark not defined.
2.2.13 4K Compact 1U (S2) Series....................................................... Error! Bookmark not defined.
2.2.14 4K 1U (S2) Series........................................................................ Error! Bookmark not defined.
2.2.15 4K 1.5U (S2) Series..................................................................... Error! Bookmark not defined.

VI
2.2.16 Beneficio 2U/Beneficio 2U with 16 PoE ports Series............. Error! Bookmark not defined.
2.2.17 4K 2U (S2) Series........................................................................ Error! Bookmark not defined.
2.2.18 Smart 1U 4K (S2) wih Wireless Series..................................... Error! Bookmark not defined.
2.2.19 Compact 1U 4K (S2) wih Wireless Series................................ Error! Bookmark not defined.
2.3 Alarm Connection.................................................................................... Error! Bookmark not defined.
2.3.1 Alarm Port.......................................................................................... Error! Bookmark not defined.
2.3.2 Alarm input port ................................................................................ Error! Bookmark not defined.
2.3.3 Alarm input and output port............................................................. Error! Bookmark not defined.
2.3.4 Alarm relay specifications ............................................................... Error! Bookmark not defined.
2.4 Bidirectional talk ...................................................................................... Error! Bookmark not defined.
2.4.1 Device-end to PC-end..................................................................... Error! Bookmark not defined.
2.4.2 PC-end to the device-end ............................................................... Error! Bookmark not defined.
2.5 Mouse Operation..................................................................................... Error! Bookmark not defined.
2.6 Remote Control ....................................................................................... Error! Bookmark not defined.
3Device Installation.............................................................................................................................................3

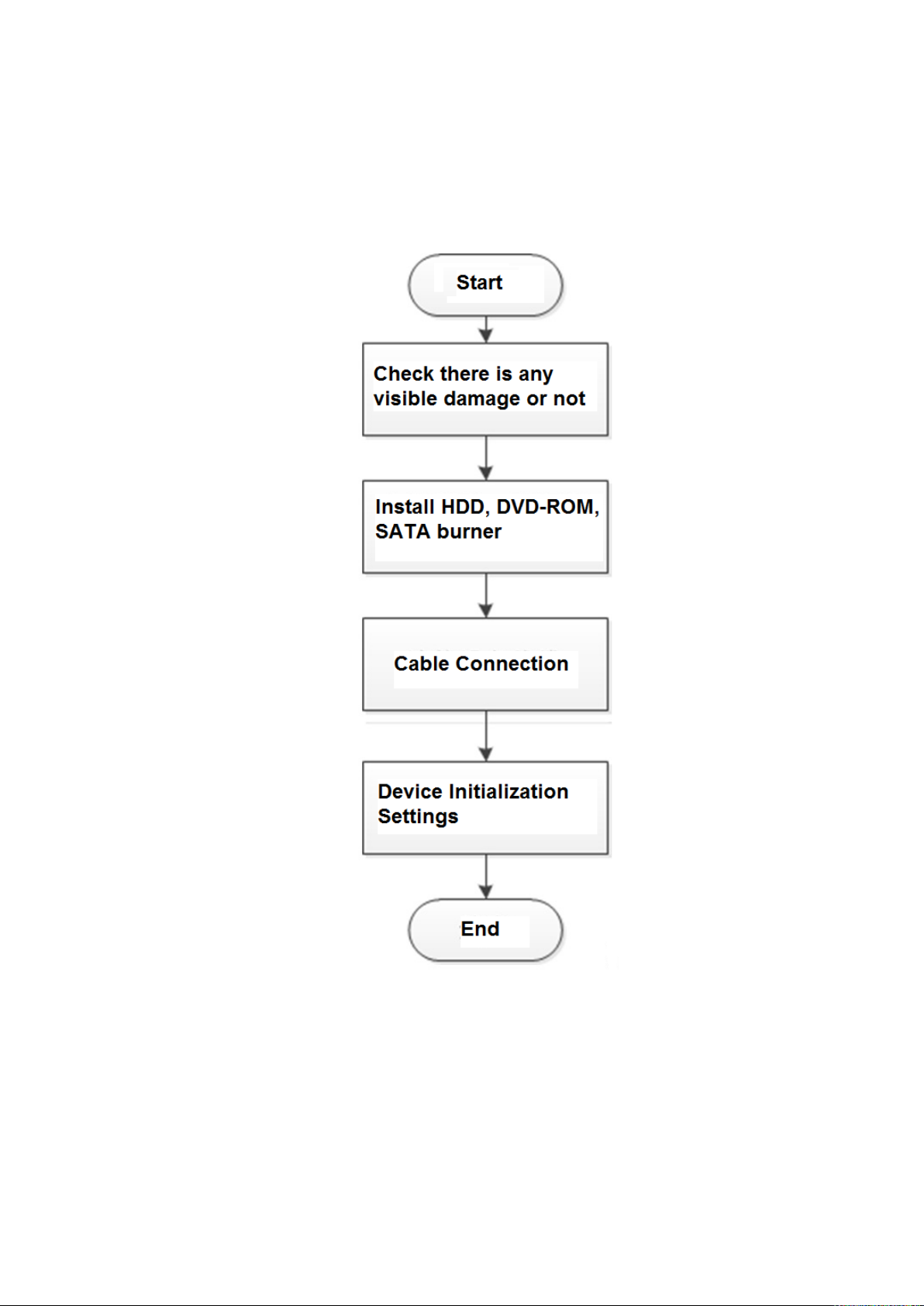

3.1 Device Installation Diagrams...................................................................................................................3
3.2 Check Unpacked NVR..............................................................................................................................3
3.3 About Front Panel and Rear Panel.........................................................................................................3
3.4 HDD Installation.........................................................................................................................................4
3.4.1 Smart 1U Series............................................................................... Error! Bookmark not defined.
3.4.2 Mini 1U/Compact 1U Series..............................................................................................................4
3.4.3 1U Series.............................................................................................................................................5
3.4.4 1.5U Series..........................................................................................................................................5
3.4.5 General 2U Series..............................................................................................................................6
3.5 CD-ROM Installation.................................................................................................................................6
3.6 Connection Sample................................................................................. Error! Bookmark not defined.
3.6.1 Beneficio Smart 1U/Beneficio Smart 1U(S2)/ 4K Smart 1U (S2) SeriesError! Bookmark not
defined.
3.6.2 Beneficio Mini 1U / Beneficio Mini 1U with 4 PoE Ports / Beneficio mini 1U with 8 PoE Ports
Series Error! Bookmark not defined.
3.6.3 Smart 1U / Compact 1U Wireless Series...................................... Error! Bookmark not defined.
3.6.4 Compact 1U（S2）/4K Compact 1U (S2) Series........................ Error! Bookmark not defined.
3.6.5 Beneficio 1U (S2) Series................................................................. Error! Bookmark not defined.
3.6.6 Beneficio Entry-level 1U Series...................................................... Error! Bookmark not defined.
3.6.7 Beneficio 1U/Professional 4K 1U/ Professional 4K 1U with 8 PoE ports/ Professional 4K 1U
with 16 PoE ports/4K 1U (S2) with 24 PoE Ports/4K 1U (S2E) with 8 PoE Ports/4K 1U (S2E) with 16
PoE Ports Series............................................................................................. Error! Bookmark not defined.
3.6.8 General 4K 1U (S2)/Beneficio 4K 1U with 8 PoE ports/4K 1U (S2) with 4 PoE ports/4K 1U
(S2) with 8 PoE ports/4K 1U (S2) with 16 PoE ports Series.................... Error! Bookmark not defined.
3.6.9 Professional 4K 1.5U/ Professional 4K 1.5U with 16 PoE ports/ Professional 4K 2U /
Professional 4K 2U with 16 PoE ports/4K 1.5U (S2E) with 16 PoE ports/4K 2U (S2E) with 16 PoE
Ports Series...................................................................................................... Error! Bookmark not defined.
3.6.10 Beneficio 1.5U / Beneficio 1.5U with 8 PoE ports / Beneficio 1.5U with 16 PoE ports/4K
1.5U (S2) Series.............................................................................................. Error! Bookmark not defined.
3.6.11 4K 2U (S2) Series........................................................................ Error! Bookmark not defined.
3.6.12 Beneficio Vertical 1U Series....................................................... Error! Bookmark not defined.

VII
4Local Basic Operation......................................................................................................................................9
4.1 Getting Started...........................................................................................................................................9
4.1.1 Boot up and Shut down.....................................................................................................................9
4.1.2 Device Initialization ............................................................................................................................9
4.1.3 Reset Password................................................................................................................................13
4.1.4 Quick Settings...................................................................................................................................17
4.2 Camera.....................................................................................................................................................41
4.2.1 Connection ........................................................................................................................................41
4.2.2 Remote Device Initialization ...........................................................................................................43
4.2.3 Short-Cut Menu to Register Camera.............................................................................................48
4.2.4 Image .................................................................................................................................................48
4.2.5 Encode...............................................................................................................................................50
4.2.6 Channel Name..................................................................................................................................54
4.2.7 Remote Upgrade..............................................................................................................................55
4.2.8 Remote Device Info..........................................................................................................................56
4.3 Preview.....................................................................................................................................................58
4.3.1 Preview..............................................................................................................................................58
4.3.2 Navigation bar...................................................................................................................................59
4.3.3 Preview Control Interface................................................................................................................61
4.3.4 Right Click Menu ..............................................................................................................................63
4.3.5 Edit View (Sequence)......................................................................................................................65
4.3.6 Preview Display Effect Setup..........................................................................................................67
4.3.7 Fisheye (Optional)............................................................................................................................74
4.4 PTZ............................................................................................................................................................76
4.4.1 PTZ Settings......................................................................................................................................76
4.4.2 PTZ Control.......................................................................................................................................78
4.5 Record File...............................................................................................................................................83
4.6 Playback and Search..............................................................................................................................83
4.6.1 Instant Playback ...............................................................................................................................83
4.6.2 Search Interface...............................................................................................................................83
4.6.3 Smart Search Playback...................................................................................................................91
4.6.4 Mark Playback ..................................................................................................................................92
4.6.5 Playback Image................................................................................................................................93
4.6.6 Splice Playback.................................................................................................................................93
4.6.7 Smart Playback.................................................................................................................................94
4.6.8 File List.............................................................................................................................................102
4.6.9 Other Aux Functions.....................................................................................................................104
4.7 Event Manager......................................................................................................................................104
4.7.1 Video Detect....................................................................................................................................104
4.7.2 Smart Plan.......................................................................................................................................111
4.7.3 IVS (General Behavior Analytics) (Optional)..............................................................................113
4.7.4 Face Detect (Optional)...................................................................................................................132
4.7.5 People Counting (Optional)...........................................................................................................133
4.7.6 Heat Map.........................................................................................................................................134
4.7.7 Plate Recognition...........................................................................................................................136
4.7.8 Audio Detect (Optional).................................................................................................................138

VIII
4.7.9 Alarm Settings.................................................................................................................................139
4.7.10 Abnormality.................................................................................................................................144
4.7.11 Alarm output ...............................................................................................................................146
4.7.12 POS..............................................................................................................................................147
4.8 Network...................................................................................................................................................151
4.8.1 Network Settings ............................................................................................................................151
4.8.2 Network Test....................................................................................................................................176
4.9 Storage....................................................................................................................................................178
4.9.1 Basic.................................................................................................................................................178
4.9.2 Schedule..........................................................................................................................................179
4.9.3 HDD..................................................................................................................................................179
4.9.4 FTP...................................................................................................................................................180
4.9.5 Record Control................................................................................................................................182
4.9.6 HDD Information.............................................................................................................................182
4.9.7 HDD Group......................................................................................................................................184
4.9.8 HDD Detect.....................................................................................................................................184
4.9.9 RAID Manager................................................................................................................................187
4.10 Device Maintenance and Manager.....................................................................................................189
4.10.1 Account........................................................................................................................................189
4.10.2 System Info.................................................................................................................................198
4.10.3 Voice............................................................................................................................................201
4.10.4 RS232..........................................................................................................................................203
4.10.5 Broadcast....................................................................................................................................204
4.10.6 Security........................................................................................................................................206
4.10.7 Auto Maintain..............................................................................................................................209
4.10.8 Backup.........................................................................................................................................209
4.10.9 Default.........................................................................................................................................213
4.10.10 Upgrade.......................................................................................................................................214
4.11 Logout /Shutdown/Restart ...................................................................................................................216
5Web Operation...............................................................................................................................................218
5.1 General Introduction.............................................................................................................................218
5.1.1 Preparation......................................................................................................................................218
5.2 Device Initialization...............................................................................................................................218
5.3 Log in.......................................................................................................................................................221
5.4 Reset Password....................................................................................................................................222
5.5 LAN Mode...............................................................................................................................................224
5.6 Real-time Monitor..................................................................................................................................226
5.7 PTZ..........................................................................................................................................................227
5.8 Image/Alarm-out....................................................................................................................................228
5.8.1 Image ...............................................................................................................................................229
5.8.2 Alarm output....................................................................................................................................229
5.9 Zero-channel Encode...........................................................................................................................229
5.10 WAN Login.............................................................................................................................................230
5.11 Setup.......................................................................................................................................................231
5.11.1 Camera........................................................................................................................................231
5.11.2 Network .......................................................................................................................................244

IX
5.11.3 Event............................................................................................................................................263
5.11.4 Storage........................................................................................................................................292
5.11.5 Setting..........................................................................................................................................301
5.12 Information .............................................................................................................................................323
5.12.1 Version.........................................................................................................................................323
5.12.2 Log...............................................................................................................................................323
5.12.3 Online User.................................................................................................................................324
5.12.4 People Counting.........................................................................................................................325
5.12.5 Heat Map.....................................................................................................................................325
5.12.6 HDD.............................................................................................................................................326
5.13 Playback.................................................................................................................................................326
5.13.1 Search Record ...........................................................................................................................327
5.13.2 File List........................................................................................................................................327
5.13.3 Playback......................................................................................................................................328
5.13.4 Download....................................................................................................................................328
5.13.5 Load more...................................................................................................................................329
5.14 Smart Playback .....................................................................................................................................331
5.14.1 IVS (Behavior Analytics) ...........................................................................................................332
5.14.2 Plate Recognition.......................................................................................................................333
5.14.3 Human Face...............................................................................................................................334
5.15 Alarm.......................................................................................................................................................335
5.16 Log out....................................................................................................................................................336
5.17 Un-install Web Control..........................................................................................................................337
6Glossary..........................................................................................................................................................338
7FAQ.................................................................................................................................................................339
8Appendix A HDD Capacity Calculation ......................................................................................................344
9Appendix B Compatible Network Camera List..........................................................................................345

X
Foreword
General
This user’s manual (hereinafter referred to be "the Manual") introduces the installation, functions
and operations of the Network Video Recorder (NVR) devices (hereinafter referred to be "the
Device").
Safety Instructions
The following categorized signal words with defined meaning might appear in the Manual.
Signal Words
Meaning
Indicates a high potential hazard which, if not avoided, will result
in death or serious injury.
Indicates a medium or low potential hazard which, if not avoided,
could result in slight or moderate injury.
Indicates a potential risk which, if not avoided, may result in
property damage, data loss, lower performance, or unpredictable
result.
Indicates dangerous high voltage.
Take care to avoid coming into contact with electricity.
Indicates a laser radiation hazard.
Take care to avoid exposure to a laser beam.
Electrostatic Sensitive Devices.
Indicates a device that is sensitive to electrostatic discharge.
Provides methods to help you solve a problem or save you time.
Provides additional information as the emphasis and supplement
to the text.
Revision History
No.
Version
Revision Content
Release Time

XI
No.
Version
Revision Content
Release Time
1
V1.0.0
First Release.
-
2
V3.0.0
⚫Add new modules.
⚫Baseline switch and update screen
interfaces.
⚫Add new models.
May 10, 2016
3
V4.0.0
⚫Add cloud update module.
⚫Baseline switch and update screen
interfaces.
August 15, 2017
4
V4.1.0
⚫Update POS.
⚫Modify pictures with QR code and SN.
September 6, 2017
5
V4.2.0
Add models.
September 21, 2017
6
V4.3.0
Delete old models and add new models.
Update relevant information.
October 12, 2017
8
V4.3.1
Add new models and update relevant
information.
April 28, 2018
9
V4.3.2
Add Privacy Protection Notice and update
About the Manual.
May, 2018
10
V4.4.2
⚫Add GDPR information.
⚫Add FCC information.
⚫Update HDD installation.
June, 2018
Privacy Protection Notice
As the device user or data controller, you might collect personal data of others' such as face,
fingerprints, car plate number, Email address, phone number, GPS and so on. You need to be in
compliance with the local privacy protection laws and regulations to protect the legitimate rights
and interests of other people by implementing measures include but not limited to: providing
clear and visible identification to inform data subject the existence of surveillance area and
providing related contact.
About the Manual
⚫The Manual is for reference only. If there is inconsistency between the Manual and the
actual product, the actual product shall govern.
⚫We are not liable for any loss caused by the operations that do not comply with the Manual.
⚫The Manual would be updated according to the latest laws and regulations of related
regions. For detailed information, see the paper User's Manual, CD-ROM, QR code or our
official website. If there is inconsistency between paper User's Manual and the electronic
version, the electronic version shall prevail.
⚫All the designs and software are subject to change without prior written notice. The product
updates might cause some differences between the actual product and the Manual. Please
contact the customer service for the latest program and supplementary documentation.

XII
⚫There still might be deviation in technical data, functions and operations description, or
errors in print. If there is any doubt or dispute, please refer to our final explanation.
⚫Upgrade the reader software or try other mainstream reader software if the Guide (in PDF
format) cannot be opened.
⚫All trademarks, registered trademarks and the company names in the Manual are the
properties of their respective owners.
⚫Please visit our website, contact the supplier or customer service if there is any problem
occurred when using the device.
⚫If there is any uncertainty or controversy, please refer to our final explanation.
Important Safeguards and Warnings

XIII
The following description is the correct application method of the device. Read the manual
carefully before use to prevent danger and property loss. Strictly conform to the manual during
application and keep it properly after reading.
Operating Requirement
⚫Install the POE front-end device indoors.
⚫The device does not support wall mount.
⚫Don’t place and install the device in an area exposed to direct sunlight or near heat
generating device.
⚫Don’t install the device in a humid, dusty or fuliginous area.
⚫Keep its horizontal installation, or install it at stable places, and prevent it from falling.
⚫Don’t drip or splash liquids onto the device; don’t put on the device anything filled with
liquids, in order to prevent liquids from flowing into the device.
⚫Install the device at well-ventilated places; don’t block its ventilation opening.
⚫Use the device only within rated input and output range.
⚫Don’t dismantle the device arbitrarily.
⚫Transport, use and store the device within allowed humidity and temperature range.
Power Requirement
⚫Make sure to use the designated battery type. Otherwise there may be explosion risk.
⚫Make sure to use batteries according to requirements; otherwise, it may result in fire,
explosion or burning risks of batteries!
⚫To replace batteries, only the same type of batteries can be used.
⚫Make sure to dispose the exhausted batteries according to the instructions.
⚫The product shall use electric wires (power wires) recommended by this area, which shall
be used within its rated specification.
⚫Make sure to use standard power adapter matched with this device. Otherwise, the user
shall undertake resulting personnel injuries or device damages.
⚫Use power supply that meets SELV (safety extra low voltage) requirements, and supply
power with rated voltage that conforms to Limited Power Source in IEC60950-1. For
specific power supply requirements, please refer to device labels.
⚫Products with category I structure shall be connected to grid power output socket, which is
equipped with protective grounding.
⚫Appliance coupler is a disconnecting device. During normal use, please keep an angle that
facilitates operation.

1
1 Features and Specifications
1.1 Overview
This series NVR is a high performance network video recorder. This series product support local preview,
multiple-window display, recorded file local storage, remote control and mouse shortcut menu operation,
and remote management and control function.
This series product supports center storage, front-end storage and client-end storage. The monitor zone
in the front-end can be set in anywhere. Working with other front-end devices such as IPC, NVS, this
series product can establish a strong surveillance network via the CMS. In the network system, there is
only one network cable from the monitor center to the monitor zone in the whole network. There is no
audio/video cable from the monitor center to the monitor zone. The whole project is featuring of simple
connection, low-cost, low maintenance work.
This series NVR can be widely used in many areas such as public security, water conservancy,
transportation and education.
1.2 Features
Cloud
Upgrade
•For the NVR connected with the Internet, it supports online upgrade to
update applications.
Real-time
Surveillance
•VGA, HDMI port. Connect to monitor to realize real-time surveillance.
Some series support TV/VGA/HDMI output at the same time.
•Short-cut menu when preview.
•Support popular PTZ decoder control protocols. Support preset, tour
and pattern.
Playback
•Support each channel real-time record independently, and at the same
time it can support search, forward play, network monitor, record search,
download and etc.
•Support various playback modes: slow play, fast play, backward play
and frame by frame play.
•Support time title overlay so that you can view event accurate occurred
time
•Support specified zone enlargement.
User
Management
•Each group has different management powers that can be edited freely.
Every user belongs to an exclusive group.
Storage
•Via corresponding setup (such as alarm setup and schedule setup), you
can backup related audio/video data in the network video recorder.
•Support Web record and record local video and storage the file in the
client end.
Alarm
•Respond to external alarm simultaneously (within 200MS), based on
user’s pre-defined relay setup, system can process the alarm input
correctly and prompt user by screen and voice (support pre-recorded
audio).
•Support central alarm server setup, so that alarm information can
remotely notify user automatically. Alarm input can be derived from

2
various connected peripheral devices.
•Alert you via email/sms.
Network
Monitor
•Through network, sending audio/video data compressed by IPC or NVS
to client-ends, then the data will be decompressed and display.
•Support max 128 connections at the same time.
•Transmit audio/video data by HTTP, TCP, UDP, MULTICAST,
RTP/RTCP and etc.
•Transmit some alarm data or alarm info by SNMP.
•Support WEB access in WAN/LAN.
Window Split
•Adopt the video compression and digital process to show several
windows in one monitor. Support 1/4/8/9/16/ 25/36-window display when
preview and 1/4/9/16-window display when playback.
Record
•Support normal/motion detect/alarm record function. Save the recorded
files in the HDD, USB device, client-end PC, or network storage server.
You can search or playback the saved files at the local-end or via the
Web/USB device.
Backup
•Support network backup, USB2.0 record backup function, the recorded
files can be saved in network storage server, peripheral USB2.0
device, burner and etc.
Network
Management
•Supervise NVR configuration and control power via Ethernet.
•Support management via WEB.
Peripheral
Equipment
Management
•Support peripheral equipment management such as protocol setup and
port connection.
•Support transparent data transmission such as RS232 (RS-422), RS485
(RS-485).
Auxiliary
•Support switch between NTSC and PAL.
•Support real-time system resources information and running statistics
display.
•Support log file.
•Local GUI output. Shortcut menu operation via mouse.
•IR control function (For some series product only.). Shortcut menu
operation via remote control.
•Play the video/audio from the network camera or NVS remotely.

3
2 Device Installation
Note: All the installation and operations here should conform to your local electric safety rules.
2.1 Device Installation Diagrams
Please refer to the following diagrams to install the NVR.
2.2 Check Unpacked NVR
When you receive the NVR from the forwarding agent, please check whether there is any visible damage.
The protective materials used for the package of the NVR can protect most accidental clashes during
transportation. Then you can open the box to check the accessories.
Please check the items in accordance with the list. Finally you can remove the protective film of the NVR.
2.3 About Front Panel and Rear Panel

4
The model number in the stick on the bottom of NVR is very important; please check according to your
purchase order.
The label in the rear panel is very important too. Usually we need you to represent the serial number
when we provide the service after sales.
2.4 HDD Installation
For the first time installation, make sure whether the HDD has been installed or not. It is recommended to
use the company's recommended HDD brand (high-speed HDD with 7200 RPM or above). It is not
recommended to use PC HDD.
⚫Shut off the power before you replace the HDD.
⚫Use the dedicated SATA HDD for monitoring recommended by the HDD manufacturer.
⚫You can refer to theAppendix for HDD space information and recommended HDD brand.
2.4.1 Mini 1U/Compact 1U Series
○
1. Loosen the screws of the upper
cover and side panel.
○
2Connect the one end of the
HDD data cable and the power
cable to the mainboard.
○
3Connect the other end of the
HDD data cable and the power
cable to the HDD.
○
4Place the HDD in accordance
with the four holes on the bottom of
the chassis.
○
5Turn the device upside down;
fix the screws to secure the HDD
on the bottom of the chassis.
○
6Put the cover in accordance
with the clip and then fix the
screws on the rear panel and side
panel.

5
2.4.2 1U Series
The following figures are based on the professional 1U with 8 PoE ports series.
Note
Connect cable and then secure the HDD on the NVR if it is not convenient to connect the HDD data cable
and power cable at first.
○
1Loosen the screws of the rear
panel and side panel.
②Place the HDD in accordance with
the four holes in the bottom.
③Turn the device upside down and
then secure the screws firmly. It is to
fix the HDD on the chassis.
④Connect the HDD cable and power
cable.
⑤Put the cover in accordance with
the clip and then fix the screws on the
rear panel and side panel.
2.4.3 1.5U Series
①Use the screwdriver to loose the screws of the rear
panel and then remove the front cover.
②Put the HDD to the HDD bracket in the chassis
and then line up the four screws to the four holes
in the HDD. Use the screwdriver to fix the screws
firmly to secure HDD on the HDD bracket

6
③Connect to the HDD data cable to the main board
and the HDD port respectively. Loosen the power
cable of the chassis and connect another end of the
power cable to the HDD port.
④After connect the cable, put the front cover back to
the device and then fix screws of the rear panel.
2.4.4 General 2U Series
①①Use the screwdriver to loose the screws
of the rear panel and then remove the front
cover.
②②Put the HDD to the HDD bracket in
the chassis and then line up the four
screws to the four holes in the HDD.
Use the screwdriver to fix the screws
firmly to secure HDD on the HDD
bracket
③Connect to the HDD data cable to the main board
and the HDD port respectively. Loosen the power cable
of the chassis and connect another end of the power
cable to the HDD port.
④After connect the cable, put the front cover
back to the device and then fix screws of the rear
panel.
2.5 CD-ROM Installation
Please follow the steps listed below.

7
①Open top cover and then remove the
HDD bracket
②Take off the bottom of the HDD bracket and CD-ROM
bracket.
③Fix the CD-ROM bracket at the HDD
bracket.
④Install a pair of the CD-ROM bracket. Please make
sure the reverse side is secure too.
⑤Install SATA burner. Line up the SATA
burner to the hole positions.
⑥User screwdriver to fix the screws.
