UniStrong UT56 User manual

UT56
Quick Start Guide

Function introduction
1
volume Micro SDNano SIM
3.5mm
Headset
Type-c
Hang
rope hole
Power
Kensington
Lock
Docking
Contact Pins
Light Sensor
Charging LED
Camera LED
Front Camera
Mic
F1
F2
F3

Rear cameraLED flash
Air vent
Speaker

2
Micro SD
SIM

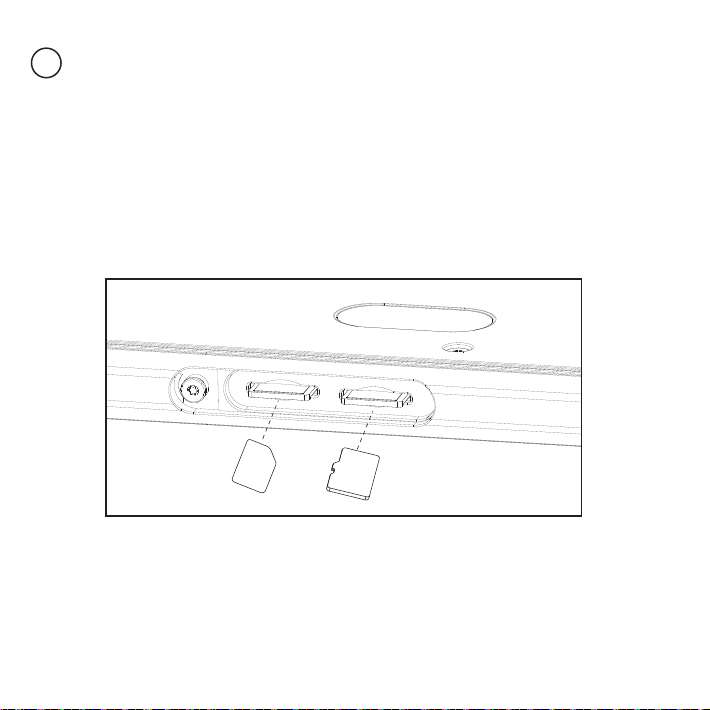

INSERT/REMOVE SD/SIM
Install or remove SD card as shown below

Notice
1. Some special places, such as airports, hospitals, gas stations and other places, do not
allow the use of electronic equipment. Please comply with the rules and do not use this
product in these places.
2. For your safety and the safety of others, please do not use this product while driving
a vehicle.
3. In order to avoid potential safety problems, do not put this product near the vehicle's
airbag.
4. For your safety, please do not use this product during thunderstorms.
5. Although this product is waterproof, do not leave this product for long periods of time in
areas with water or moisture.
6. This product has an operating temperature range of -10°C~+55°C and a storage
temperature range of -40°C~+70°C. Extreme temperatures can affect the device's
performance and service life.
7. Please use an original rechargeable lithium battery. Low-quality batteries will affect the
performance and service life of the device, and may even have the danger of explosion.
8. Although the product has been tested to withstand harsh operating environments, do use
the product in an improper manner.
9. Please do not disassemble this product. In case of failure, please send to our authorized
service centres to proceed with repairs.
10. After the device has reached the end of its service life, please discard in a proper way to
avoid environmental pollution.
11. When replacing the battery or during the use of an external power supply, shut down the
device completely before removing the battery or disconnecting the external power
supply to prevent damage.
12. This product is a Class B product, which may cause radio interference. The user may be
required to take necessary preventive measures.

Battery Instructions
1. This product uses a rechargeable lithium battery as a power source. When the power is
low, please charge the battery. To maintain battery life, it is recommended to deplete the
battery's power before charging.
2. When the battery charger is not in use, please remove it from the power supply. Do not
connect the charger to the battery for more than one week. Excessive charging will shorten
the battery life.
3. Temperature affects the battery charging limit. Therefore, the battery may need to be
cooled or warmed up before charging.
4. Please use the battery for its original intended purpose to prevent short-circuiting the
battery. A short circuit will occur when a conductive material connects the battery’s positive
and negative terminals.
5. Do not use a battery that is damaged.
6. Placing the battery in extremely cold or hot places will lead to shortened battery life.
Exposing the battery to extreme temperatures may cause the phone to malfunction, even if
the battery is fully charged.
7. Do not put the battery in a fire. Please discard the battery in a proper manner or take the
battery to a battery recycling station. Please dispose waste batteries in accordance with
local laws and regulations.
Importer : UniStrong APAC Pte Ltd
51 Ubi Ave 1 #01-22 Paya Ubi Industrial Park Singapore 408933 [phone]
Manufacturer : Shenzhen UniStrong Science & Technology Co.,Ltd.
B Zone, No.4-4 Workshop Zhengcheng 2nd Road, Fuyong Street,Bao’an District,
Shenzhen City, Guangdong Province, P.R. China
NOTICE:
The SAR limit of Europe is 2.0 W/kg. Device types UT56 has also been tested against this
SAR limit. The highest SAR value reported under this standard during product certification
when properly worn on the body is 0.534W/kg This device was tested for typical body - worn
operations with the back of the handset kept 0 cm from the body. To maintain compliance
with RF exposure requirements, use accessories that maintain a 0 cm separation distance
between the user's body and the back of the handset. The use of belt clips, holsters and
similar accessories should not contain metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not comply with RF exposure
requirements, and should be avoided.

Hereby, [Shenzhen UniStrong Science & Technology Co.,Ltd.] declares that the radio
equipment
type [UT56] is in compliance with Directive 2014 / 53 /EU.
The full text of the EU declaration of conformity is available at the following internet address:
http:en.unistrong.com/declaration.html
Notice
This device is restricted to indoor use where operated in the European and USA.Canada
Community using frequency in 5150MHz ~ 5250MHz to reduce the potential for
interference. Restriction in BE, BG, CZ, DK,DE,EE,IE,EL,ES,FR,HR,IT,CY,LV,LT,
LU,HU,MT,NL,AT,PL,PT,RO,SI,SK,FI,SE,UK.

NOTICE:
The SAR limit of FCC and ISED is 1.6 W/kg averaged over one gram of tissue. Device types UT56
( FCC ID:2AOPD-UT56 and IC: 11546A-UT56 ) has also been tested against this SAR limit. The
highest SAR value reported under this standard during product certification for use on the body is
1.041 W/kg. This device was tested for typical body -worn operations with the back of the handset kept
0 cm from the body. To maintain compliance with FCC and ISED RF exposure requirements, use
accessories that maintain a 0 cm separation distance between the user's body and the back of the
handset. The use of belt clips, holsters and similar accessories should not contain metallic compo-
nents in its assembly. The use of accessories that do not satisfy these requirements may not
comply with FCC and ISED RF exposure requirements, and should be avoided.

NOTICE:
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
NOTICE:
Changes or modifications made to this equipment not expressly approved by Shenzhen UniS-
trong Science & Technology Co.,Ltd. may void the FCC authorization to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installe d and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTICE:
This Class [B] digital apparatus complies with Canadian ICES -003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB - 003 du Canada.
RF mode and power tune-up refer to appendix A

www.UniStrong.com

Normal Mode RF Power Range (GSM, WCDMA)
Mode
Range(dBm)
GPRS900 (1 Slot)
30.50-31.50
GPRS900 (2 Slots)
30.50-31.50
GPRS900 (3 Slots)
30.50-31.50
GPRS900 (4 Slots)
30.50-31.50
EGPRS (8PSK, 1-Slot)
22.00-22.50
EGPRS (8PSK, 2-Slots)
22.00-22.50
EGPRS (8PSK, 3-Slots)
22.00-22.50
EGPRS (8PSK, 4-Slots)
22.00-22.50
GPRS1800 (1 Slot)
26.00-27.00
GPRS1800 (2 Slots)
26.00-27.00
GPRS1800 (3 Slots)
26.00-27.00
GPRS1800 (4 Slots)
26.00-27.00
EGPRS (8PSK, 1-Slot)
21.00-22.00
EGPRS (8PSK, 2-Slots)
21.00-21.50
EGPRS (8PSK, 3-Slots)
20.00-21.00
EGPRS (8PSK, 4-Slots)
20.00-21.00
WCDMA Band 1 RMC
23.00-23.50
HSDPA Band 1
21.50-22.50
HSUPA Band 1
19.50-22.00
WCDMA Band 8 RMC
23.00-23.50
HSDPA Band 8
21.50-22.50
HSUPA Band 8
19.50-22.00

Normal Mode RF Power Range (LTE)
Mode
Bandwidth
RB
Modulation
Range(dBm)
LTE Band 1
20 MHz
1
QPSK
23.00-24.00
50
22.00-22.50
100
22.00-22.50
1
16QAM
22.00-23.00
50
21.00-21.50
100
21.00-21.50
15 MHz
1
QPSK
23.00-23.50
36
22.00-22.50
75
22.00-22.50
1
16QAM
22.00-23.00
36
21.00-21.50
75
21.00-21.50
10 MHz
1
QPSK
23.00-23.50
25
22.00-22.50
50
22.00-22.50
1
16QAM
22.00-23.00
25
21.00-21.50
50
21.00-21.50
5 MHz
1
QPSK
23.00-23.50
12
22.00-22.50
25
22.00-22.50
1
16QAM
22.00-23.00
12
21.00-21.50
25
21.00-21.50
Mode
Bandwidth
RB
Modulation
Range(dBm)
LTE Band 3
20 MHz
1
QPSK
24.00-25.00
50
23.00-24.00
100
23.00-24.00
1
16QAM
23.50-24.50
50
22.00-23.00

100
22.00-23.00
15 MHz
1
QPSK
24.00-25.00
36
23.00-24.00
75
23.00-24.00
1
16QAM
23.00-24.00
36
22.00-23.00
75
22.00-23.00
10 MHz
1
QPSK
24.00-25.00
25
23.00-24.00
50
23.00-24.00
1
16QAM
23.00-24.10
25
22.00-23.00
50
22.00-23.00
5 MHz
1
QPSK
24.00-25.00
12
23.00-24.00
25
23.00-24.00
1
16QAM
23.00-24.10
12
22.00-23.00
25
22.00-23.00
3 MHz
1
QPSK
24.00-25.00
8
23.00-24.00
15
23.00-24.00
1
16QAM
23.00-24.00
8
22.00-23.00
15
22.00-23.00
1.4 MHz
1
QPSK
24.00-25.00
3
23.00-24.00
6
23.00-24.00
1
16QAM
23.00-24.00
3
22.00-23.00
6
22.00-23.00

Mode
Bandwidth
RB
Modulation
Range(dBm)
LTE Band 7
20 MHz
1
QPSK
23.00-24.50
50
22.00-23.00
100
22.00-23.00
1
16QAM
22.50-23.50
50
21.00-22.00
100
21.00-22.00
15 MHz
1
QPSK
23.00-24.00
36
22.00-23.00
75
22.00-23.00
1
16QAM
22.00-23.00
36
21.00-22.00
75
21.00-22.00
10 MHz
1
QPSK
23.00-24.00
25
22.00-23.00
50
22.00-23.00
1
16QAM
22.00-23.00
25
21.00-22.00
50
21.00-22.00
5 MHz
1
QPSK
23.00-24.00
12
22.00-23.00
25
22.00-23.00
1
16QAM
22.00-23.10
12
21.00-22.00
25
21.00-22.00
Mode
Bandwidth
RB
Modulation
Range(dBm)
LTE Band 8
10 MHz
1
QPSK
23.00-24.00
25
22.00-23.00
50
22.00-23.00
1
16QAM
22.00-23.00
25
21.00-22.00
50
21.00-22.00
5 MHz
1
QPSK
23.00-24.00

12
22.00-23.00
25
22.00-23.00
1
16QAM
22.00-23.00
12
21.00-22.00
25
21.00-22.00
3 MHz
1
QPSK
23.00-24.00
8
22.00-23.00
15
22.00-23.00
1
16QAM
22.00-23.00
8
21.00-22.00
15
21.00-22.00
1.4 MHz
1
QPSK
23.00-24.00
3
22.00-23.00
6
22.00-23.00
1
16QAM
22.00-23.00
3
21.00-22.00
6
21.00-22.00
Mode
Bandwidth
RB
Modulation
Range(dBm)
LTE Band 20
20 MHz
1
QPSK
24.00-25.00
50
23.00-24.00
100
23.00-24.00
1
16QAM
23.50-24.50
50
22.00-23.00
100
22.00-23.00
15 MHz
1
QPSK
24.00-25.00
36
23.00-24.00
75
23.00-24.00
1
16QAM
23.00-24.00
36
22.00-23.00
75
22.00-23.00
10 MHz
1
QPSK
24.00-25.00
25
23.00-24.00
50
23.00-24.00

1
16QAM
23.00-24.00
25
22.00-23.00
50
22.00-23.00
5 MHz
1
QPSK
24.00-25.00
12
23.00-24.00
25
23.00-24.00
1
16QAM
23.00-24.10
12
22.00-23.00
25
22.00-23.00
Mode
Bandwidth
RB
Modulation
Range(dBm)
LTE Band 28
20 MHz
1
QPSK
23.00-24.00
50
22.00-23.00
100
22.00-23.00
1
16QAM
22.00-23.00
50
21.00-22.00
100
21.00-22.00
15 MHz
1
QPSK
23.00-24.00
36
22.00-23.00
75
22.00-23.00
1
16QAM
22.00-23.00
36
21.00-22.00
75
21.00-22.00
10 MHz
1
QPSK
23.00-24.00
25
22.00-23.00
50
22.00-23.00
1
16QAM
22.00-23.00
25
21.00-22.00
50
21.00-22.00
5 MHz
1
QPSK
23.00-24.00
12
22.00-23.00
25
22.00-23.00
1
16QAM
22.00-23.00
12
21.00-22.00

25
21.00-22.00
3 MHz
1
QPSK
23.00-24.00
8
22.00-23.00
15
22.00-23.00
1
16QAM
22.00-23.00
8
21.00-22.00
15
21.00-22.00
Mode
Bandwidth
RB
Modulation
Range(dBm)
LTE Band 38
20 MHz
1
QPSK
22.50-23.50
50
21.50-22.50
100
21.50-22.50
1
16QAM
22.00-23.00
50
20.50-21.50
100
20.50-21.50
15 MHz
1
QPSK
22.50-23.50
36
21.50-22.50
75
21.50-22.50
1
16QAM
22.00-23.00
36
20.50-21.50
75
20.50-21.50
10 MHz
1
QPSK
22.50-23.50
25
21.50-22.50
50
21.50-22.50
1
16QAM
22.00-23.00
25
20.50-21.50
50
20.50-21.50
5 MHz
1
QPSK
22.50-23.50
12
21.50-22.50
25
21.50-22.50
1
16QAM
22.00-23.00
12
20.50-21.50
25
20.50-21.50

Mode
Bandwidth
RB
Modulation
Range(dBm)
LTE Band 40
20 MHz
1
QPSK
24.00-25.00
50
23.00-24.00
100
23.00-24.00
1
16QAM
23.50-24.00
50
22.00-23.00
100
22.00-23.00
15 MHz
1
QPSK
24.00-25.00
36
23.00-24.00
75
23.00-24.00
1
16QAM
23.50-24.10
36
22.00-23.00
75
22.00-23.00
10 MHz
1
QPSK
24.00-25.00
25
23.00-24.00
50
23.00-24.00
1
16QAM
23.50-24.20
25
22.00-23.00
50
22.00-23.00
5 MHz
1
QPSK
24.00-25.00
12
23.00-24.00
25
23.00-24.00
1
16QAM
23.50-24.00
12
22.00-23.00
25
22.00-23.00

Normal Mode RF Power Range (WLAN/Bluetooth)
Band (GHz)
Mode
Range(dBm)
WIFI 2.4G
(2.4~2.4835)
802.11b
11.50-12.50
802.11g
10.00-11.50
802.11n(HT20)
10.00-11.50
802.11n(HT40)
10.00-11.70
Band (GHz)
Mode
Range(dBm)
WIFI 5.2 G
(5.15~5.25)
802.11a
10.00-11.00
802.11n(HT20)
10.50-11.50
802.11ac(VHT20)
10.00-11.00
802.11n(HT40)
10.00-10.70
802.11ac(VHT40)
10.00-10.70
802.11ac(VHT80)
10.00-10.60
WIFI 5.8G
(5.725~5.850)
802.11a
10.00-11.00
802.11n(HT20)
10.50-11.00
802.11ac(VHT20)
10.00-11.00
802.11n(HT40)
10.50-11.00
802.11ac(VHT40)
10.50-11.00
802.11ac(VHT80)
10.50-11.00
Band (GHz)
Mode
Range(dBm)
Bluetooth
(2.4~2.4835)
GFSK
3.00-6.00
π/4-DQPSK
2.50-5.50
8-DPSK
2.50-5.50
BLE
(-9.45)- (-3.00)
