United Vision Solutions TM50Z1040 User manual

10 Center St. , Chicopee, MA 01013, USA
Sales Dept. 413-592-8477
Email: [email protected] Email: [email protected]
United Vision Solutions

tedvis
United Vision Solutions, Co.
COMMERCIAL–IN-CONFIDENCE
United Vision Solutions, Co.
10 Center St., Chicopee, MA, 01013, USA.
[email protected]
413-592-8477
HomeLand Security
Products & Solutions

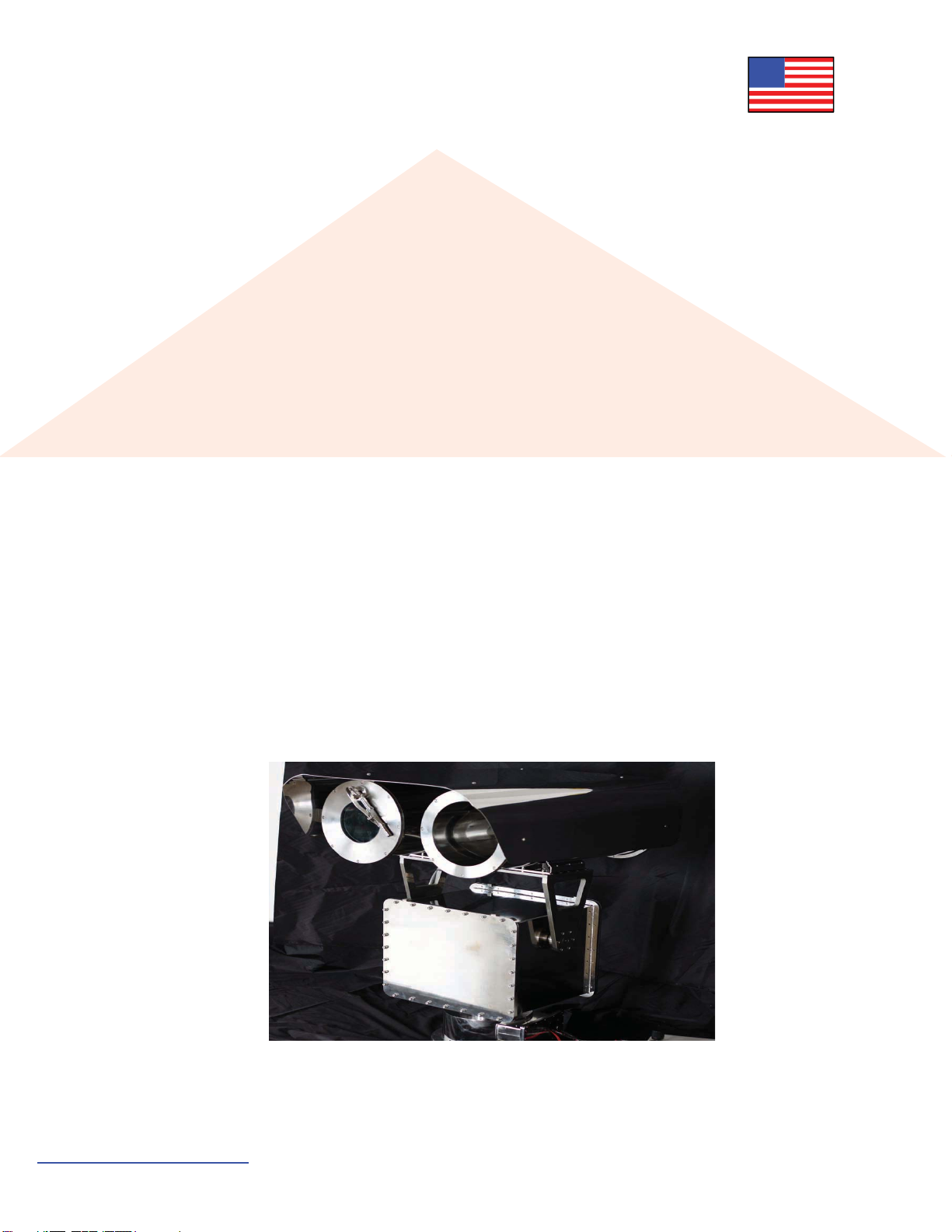

Eagle Vision EV3000-D IR
Dual camera system for 24/7 surveillance
Stainless Steel 316L enclosure and Pan/Tilt
Forget rust and salt air corrosion

Sensor Platform
–Heavy Duty, Stabilized Pan/Tilt
–Stainless Steel Enclosure
Day/Night Camera
– 1/2” High-Resolution EMCCD
– 0.00025 Lux Minimum Illumination
– Lens 10-500mm / 20-1000mm
Pan/Tilt resolution
System Highlights
t3-5 micron InSb detector
t640X480 format
tDFOV
Thermal Imager Tri-FOV
t 100/500 mm lenses

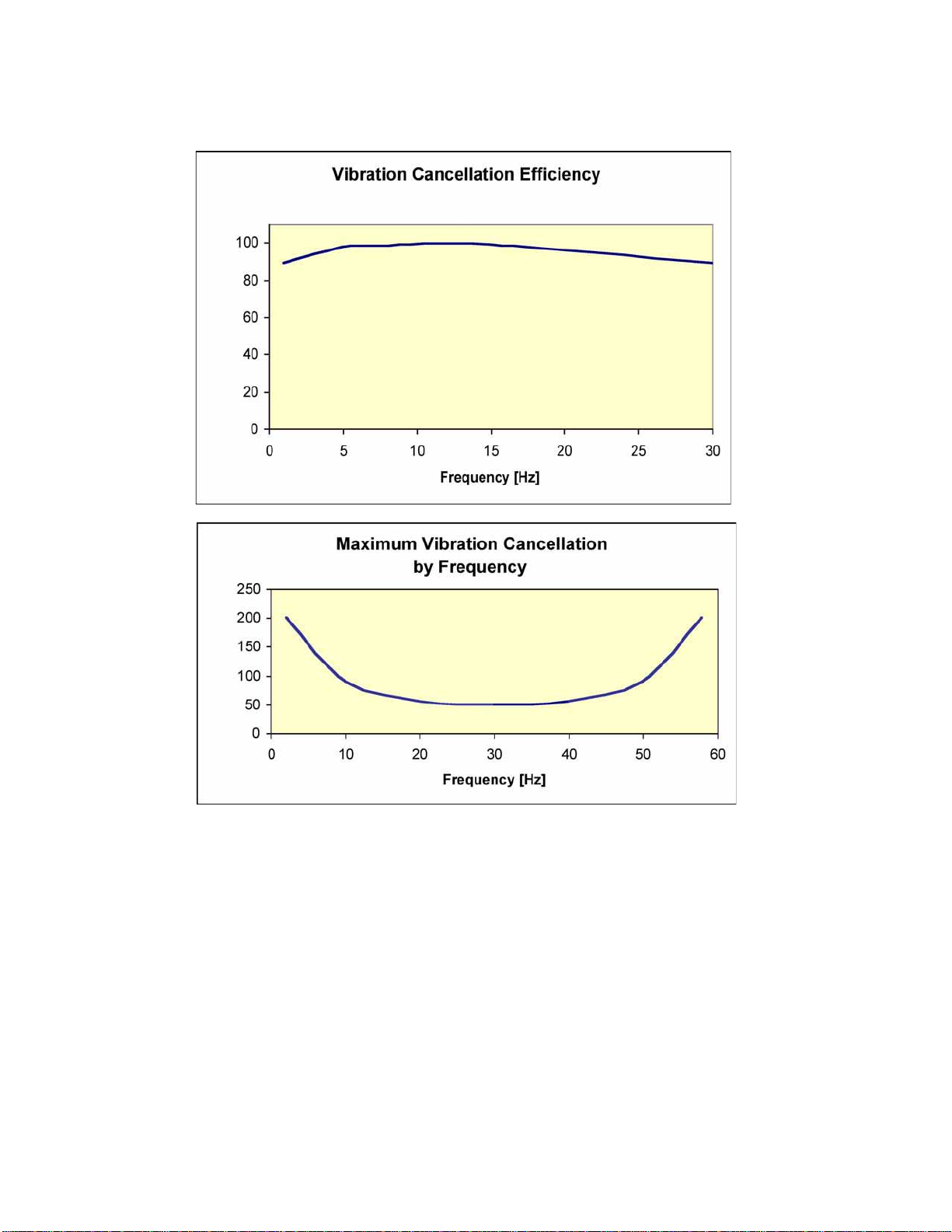

Video Stabilizer
– Digital Real Time Video Stabilization
– Sharp details for high quality video
CCTV software with TCP/IP
– Full control of Thermal / Day-Night /
Pan/Tilt
– Using standard Protocol Pelco-D
- SDK software library for developing
Control Softwware locally
– Reproduces full colour, full motion
images in starlight conditions
High performance, brushless,
maintenance-free step motors
provide very precise, extremely
effective motion control
with preset and 0-360
degree endless rotation
Detection Human at 12 miles
Truck at 23 miles
Recognition Human at 4 miles
Truck at 9 miles
Identify Human at 2 miles
Truck at 5 miles
–Heavy duty enclosure for marine
use with blower, heater, and sunshield
–Anti-rust, Anti-salt air, anti corrosion
use with blower, heater, and sunshield

Truck at 22km
Thermal Imager and Day-Night camera
Reproduces full colour, full motion
images in starlight conditions

PROPRIETARY
The information contained in this document is proprietary and/or restricted. Diversion contrary to US law is prohibited. This document and data disclosed herein or herewith is
not to be reproduced, used, or disclosed in whole or in part to anyone without the written permission of United Vision Solutions.
WARNING: This document contains technical data whose export is restricted by the Arms Export Control Act (Title 22, U>S>C Sec 2751, et esq) or the Export Administration
Act of 1979, as amended (title 50, U.S.C., app 2401et seq.). Violators of these Export laws are subject to severe criminal penalties.
Page 1
Eagle Vision Surveillance System
Highlights
Hi-Resolutions Color Camera at day time.
Thermal Imaging at dark and bad weather.
Stainless Steel Enclosure for ultimate protection.
Stainless Steel Pan/Tilt unit, with precise step rotation 0.1 degree.
Low power Consumption, perfect choice when solar power is required.
Long Range wireless using Hi-tech codec system.
Stander Pelco D-Protocol to integrate with any off-shelf CCTV products.
Selection of the EV3000 series is the lowest risk choice for user required 24/7 surveillance system, EV’s
mature design, broadly accepted performance advantages, and UVS’s proven integration capability.
Eagle vision Systems offers a very low schedule risk based on current production capacity, inventory and
vertical integration. Low life-cycle cost and logistical experience also make Eagle Vision the low-risk
choice, with its commitment to a carefully implemented, long-term support program. UVS’s unique
vertical integration insures that we can provide critical replacement components and servicing faster and
at lower prices than other suppliers who depend on third parties.
TECHNICAL DATA
The EV3000-D IR model is a self-contained day and thermal imaging system, the EV-ST IR camera which
detects radiation in the 3.4 to 5.1-micron infrared band. The EV-ST is capable of target discrimination and
recognition in total darkness or through daylight obscurants and was designed for short- or long-term
stationary surveillance applications. The EV3000-D IR model imager is contained in an environmentally
sealed stainless steel enclosure permitting deployment in severe climatic and weather conditions. Its DFOV
(Dual Field-of-View) lens and low power consumption is ideal for use in field operations. The EV3000’s
Hi-resolution color camera brings sharp, crispy images around the clock, combined with AC or DC power
sources and remote control capability, makes it well suited for long-range surveillance applications
requiring remote operation.

PROPRIETARY
The information contained in this document is proprietary and/or restricted. Diversion contrary to US law is prohibited. This document and data disclosed herein or herewith is
not to be reproduced, used, or disclosed in whole or in part to anyone without the written permission of United Vision Solutions.
WARNING: This document contains technical data whose export is restricted by the Arms Export Control Act (Title 22, U>S>C Sec 2751, et esq) or the Export Administration
Act of 1979, as amended (title 50, U.S.C., app 2401et seq.). Violators of these Export laws are subject to severe criminal penalties.
Page 2
Delivering outstanding imaging performance, advanced features of the EV3000-D IR model include:
x640 x 480 Pixel InSb Focal Plane Array with ultra-fine
15 µm detector pitch for high resolution imagery
xAuto-focus
xRuggedized weatherproof Stainless Steel environmental enclosure
xHigh durability coated front lens
xLens defroster
x100/500mm, dual field-of-view optical zoom
x2x and 4x digital zoom
xInternal NUC paddle
xFreeze frame
xColor or Monochrome video output
xAuto gain and level control
xThree integration times
xTethered lens cover
xRS-422 interface
xS-video and RS170 outputs
The EV3000-D IR model is UVS Systems’ next generation imager benefiting from unique developments
aimed at mproving signal processing and imaging performance. Using High Resolution Video Processor
(HRVP) generates the EV3000-D IR model’s high quality images and long-range performance.
This multi-layer PCB (printed circuit card) is a unique feature and provides the user with an advanced
suite of capabilities including:
xAdvanced digital signal processing with temporal noise filters
xTrue multi-mode sensitivity (user selectable for hot or cold scenes)
xHistogram equalization
xDigital zoom
xColor palettes
xFreeze frame
The EV3000-D IR model imager also includes easily accessible and automated image processing software
that automatically adjusts contrast and brightness levels for the scenes being viewed, simplifying operation
by the agent. For more specialized situations, operators can choose between different sensitivity levels in the
IR imaging system depending on the environmental conditions that affect the thermal contrast of people
and vehicles under observation.

PROPRIETARY The informaon contained in this document is proprietary and/or restricted. Diversion contrary to US law is
prohibited. This document and data disclosed herein or herewith is not to be reproduced, used, or disclosed in whole or in part
to anyone without the wrien permission of United Vision Soluons. WARNING: This document contains technical data whose
export is restricted by the Arms Export Control Act (Title 22, U>S>C Sec 2751, et esq) or the Export Administraon Act of 1979,
as amended (tle 50, U.S.C., app 2401et seq.). Violators of these Export laws are subject to severe criminal penales.
EV3000-D IR camera system
EV3000-D IR with Focal Length 100/500 mm
F numbe
r
f/4
WFOV NFO
V
5.5° x 4.1°
1.1° x 0.8°
IFOV, Wide / Narrow 0.15 mrad
0.03 mrad
Range miles
Man Size Target
Identification 2
Recognition 4
Detection 12
truck Size Target
Identification 5
Recognition 9
Detection 23

PROPRIETARY The information contained in this document is proprietary and/or restricted. Diversion contrary to US law is
prohibited. This document and data disclosed herein or herewith is not to be reproduced, used, or disclosed in whole or in part
to anyone without the written permission of United Vision Solutions. WARNING: This document contains technical data whose
export is restricted by the Arms Export Control Act (Title 22, U>S>C Sec 2751, et esq) or the Export Administration Act of 1979,
as amended (title 50, U.S.C., app 2401et seq.). Violators of these Export laws are subject to severe criminal penalties.
Hyperfocal distance is the distance beyond which all objects are acceptably
Min focus and hyperfocal are parameters related to focus adjustment not for range
When you are zooming in range 10 meters to 1500 meters you will find image crispy and really you will need
to adjust focus. And for range greater than hyperfocal, the focus of lens start to have effect, and user
sometimes need to refocus the lens to get crispy images
Range of EV-3000 D IR high resolution with 640x480 resolutions

High Resolution Video Processor
The HRVP (High Resolution Video Processor) board is a powerful digital image processing platform that
provides an array of features designed for use in the EV3000-D IR model thermal imagers.
The HRVP will output corrected IR video in color (or monochrome), NTSC/PAL video format.
Basic display options will include manual gain, manual level, and image polarity. More sophisticated
display options include continuous or on-demand auto-span (gain and level), digital zoom and histogram
equalization. Auto-span and histogram equalization are based on programmable Regions Of Interest.
The 2x and 4x digital zoom is capable of operating in either pixel replication mode or bilinear
interpolation mode. Pan capability within the zoomed image is supported. In addition, the HRVP
contains the video processing hardware required to convert the FPA data to the final video stream output
to the monitor.
The photographs below demonstrate the improved imaging performance the advanced HRVP video
processor provides to the end user. Cleaner edges, sharper contrast and smoother images all work together
to provide the user a more useable picture on the monitor contributing to better target recognition and
minimized user strain and eye fatigue.
Original Image Filtered Image
PROPRIETARY
The information contained in this document is proprietary and/or restricted. Diversion contrary to US law is prohibited. This document and data disclosed herein or herewith is
not to be reproduced, used, or disclosed in whole or in part to anyone without the written permission of United Vision Solutions.
WARNING: This document contains technical data whose export is restricted by the Arms Export Control Act (Title 22, U>S>C Sec 2751, et esq) or the Export Administration
Act of 1979, as amended (title 50, U.S.C., app 2401et seq.). Violators of these Export laws are subject to severe criminal penalties.
Page 3

NETD
The EV3000-D IR model has an NETD of less than 40mk@23oC. Most camera systems will
exceed the requirement, and the typical system NETD is 35mk. This sensitivity is a result
of a highly sensitive detector array, efficient f/4 optics and high-performance electronics.
EV3000-D IR model provides additional sensitivity and target recognition capability through
Digital Detail Enhancement (DDE). DDE is an electronic image processing algorithm that allows
the system operator to see image details in even the most difficult conditions. In uniformly hot
scenes of very high contrast (like those encountered in the desert) it can be hard for an imager
to break out the detail an operator needs to recognize a human target at long range. Such details
are often lost in the surrounding clutter, allowing targets to escape detection. Even in scenes
without any discernable target contrast, DDE brings details out for classification, providing a
distinct tactical advantage to EV3000-D IR model users.
Acceptance
United Vision Solutions shall plan, perform and report acceptance
testing in accordance with United Vision Solutions’ Acceptance
Plan to be approved by the buyer. United Vision Solutions has
extensive experience working with customers around the world,
and we are committed to the delivery of products that are in
conformance with the requirements.
The topmost picture shows raw imagery with DDE off, while the bottom image
demonstrates the effects of having DDE on.
PROPRIETARY
The information contained in this document is proprietary and/or restricted. Diversion contrary to US law is prohibited. This document and data disclosed herein or herewith is
not to be reproduced,used,or disclosed in whole or in part to anyone without the written permission of United VisionSolutions.
WARNING: This document containstechnical data whose export is restricted bythe Arms Export Control Act (Title 22, U>S>C Sec 2751, et esq) or the ExportAdministration
Act of 1979,as amended (title 50,U.S.C., app 2401et seq.). Violators of these Export laws are subject to severe criminal penalties.
Page 4

High sensitivity color camera
EM-CCD Day-Night
High sensitivity color camera K P - D E 500 High sensitivity monochrome camera K P - E 500
100 Times More Sensitive Than A Normal
Camera
A new 1/2 inch EM-CCD with electron multiplication is
used to achieve exceptional sensitivity.
Color in full motion mode 0.009 lx
Color accumulation mode 0.00015 lx
Monochrome in full motion mode 0.0005 lx
Monochrome accumulation mode 0.000008 lx
Hitachi Technology Enables Superior
Image Reproduction In Low Light Levels
Thermoelectric cooling used on the EM-CCD to reduce
the effects of dark current noise along with a new digital
signal processor (DSP) that provides digital noise
reduction of the luminous signal yields sharp clear
pictures with a high S/N ratio.
For Even Greater Sensitivity A Monochrome
Version of the Camera is Available Allowing
Use in Even Lower Light Levels
In the normal mode of operation the camera provides
higher sensitivity as compared to a normal camera. In
the accumulation mode unmatched sensitivity is
achieved allowing use in extremely low light situations.
Monochrome in full motion mode 0.0003 lx
Monochrome accumulation mode 0.000005 lx
Electron Multiplication used in the EM-CCD
Improves Performance While Reducing
Technical Issues
Typical high sensitivity cameras use an Image Intensifier
Tube that is subject to burn in, afterimage (lag) and short
life span. These problems are eliminated with the use of
the EM-CCD.

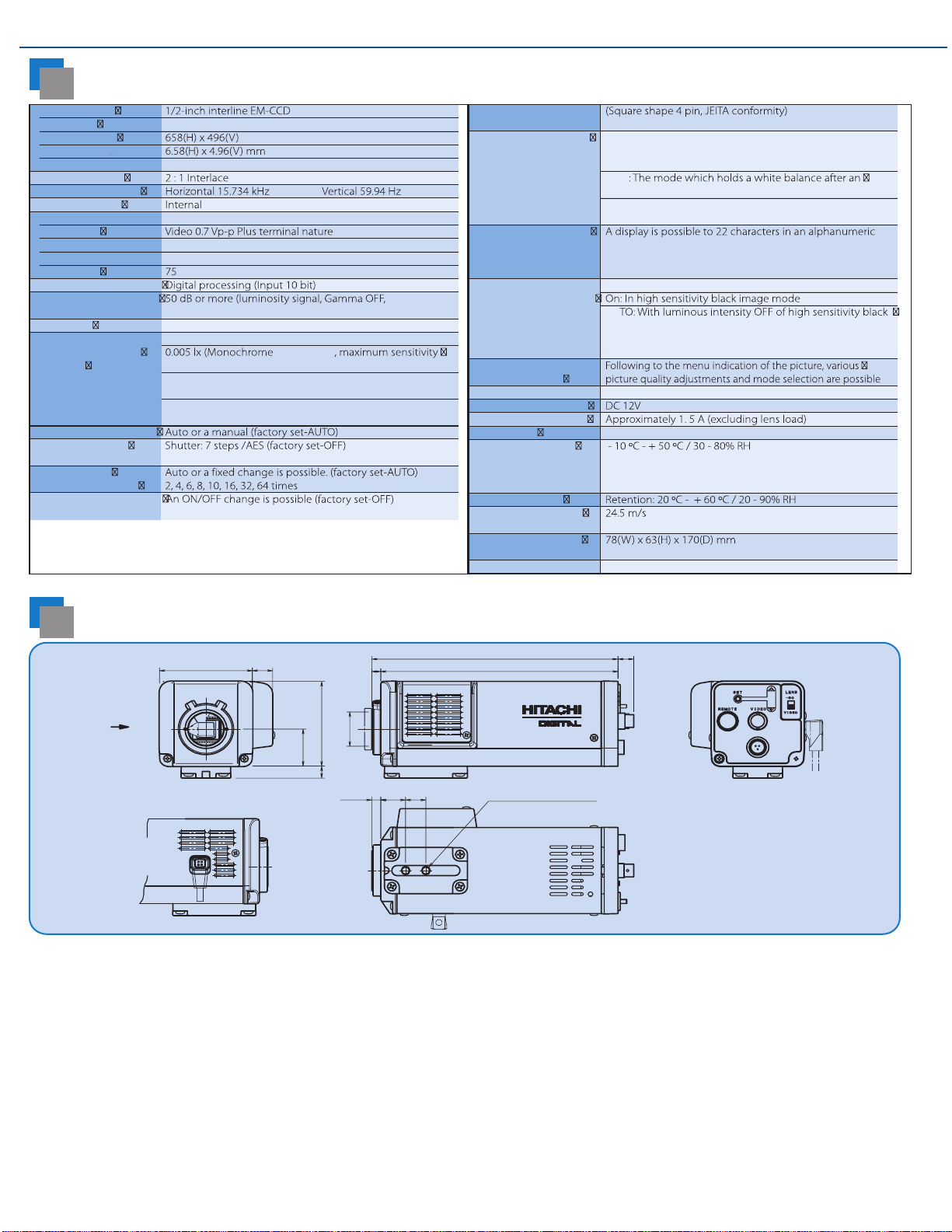

High sensitivity color camera
Pickup element
Total pixels 680(H) x 500(V)
Eective pixels
Imaging area
Pixel pitch 10.0(H) x 10.0(V)µm (Square pixel)
Scanning system
Scanning frequency
Synchronization
Video output
VBS output
Sync 0.3 Vp-p Negative polarity
Burst 0.3 Vp-p, More than 8 cycles
Impedance ΩUn-balancing.
Signal-processing system
Signal to noise ratio (S/N)
minimum gain, without detail boost)
Resolution Horizontal: 480 lines Vertical: 350 lines (In the central part)
Minimum photographic
0.009 lx ( Color in full motion, maximum sensitivity setup, F1.4, 50 IRE )
subject illumination in full motion
KP-DE500 setup, F1.4, 50 IRE)
0.00015 lx (Color 64 time accumulation, maximum
sensitivity setup. F1.4, 50 IRE)
0.000008 lx (Monochrome 64 time accumulation, maximum
sensitivity setup, F1.4, 50 IRE)
Sensitivity (Gain) setup
Electronic shutter
OFF(1/60), 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec
Accumulation
magnication setup
Backlight compensation
Light-measurement area: Nine area to selection is possible.
The output for auto iris
lenses A galvanometer system/video signal
White balance control
From the following three modes to selection (factory set-ATW)
*Only KP-DE500 (color)
ATW: The mode which follows automatically
AWC
automatic setup
MANUAL: They are red and the mode which carries out blue
gain adjustment and unites a white with manual operation
Camera title character
display character and a sign
A setup to either of two upper and lower sides of a screen is
possible in the position of a character.
B/W Mode OFF: The mode of xation on a color image
*Only KP-DE500 (color)
AU
image, the mode where ON changes automatically
In addition, it changes, as for luminous intensity from 3
stages of the HI, the MID and the LOW selective possibility
Picture quality
adjustment
menu
DNR Change of AUTO / MANU (8 steps) (factory set-AUTO)
Power supply voltage ±1 V
Current consumption
Lens mount The C / CS mount (ange back adjustment mechanism it is attached)
Ambient, operating
*when in order for you to use with the eciency which
long time is stabilized, it continues uses by all means
+40 ºC please use at below.
Ambient, storage
Vibration endurance
2
(10 - 200Hz XYZ direction each 30 minute)
*Please do not add the strong vibration over long time.
External dimensions
(The lens and the projection section are excluded)
Mass Approximately 53g (The lens is excluded)
Main Specications
Dimensions
A
A
64 ±1.5 4 ±1.5
27.5
±1.5
63 ±1.5
9 ±1
6.3 ±1.5
1U
(169.9)
163.6 ±1.5
(10.8)
(6.3)
17.1
±1.5
14 ±12-1/4 M20 (DEPTH: 9)

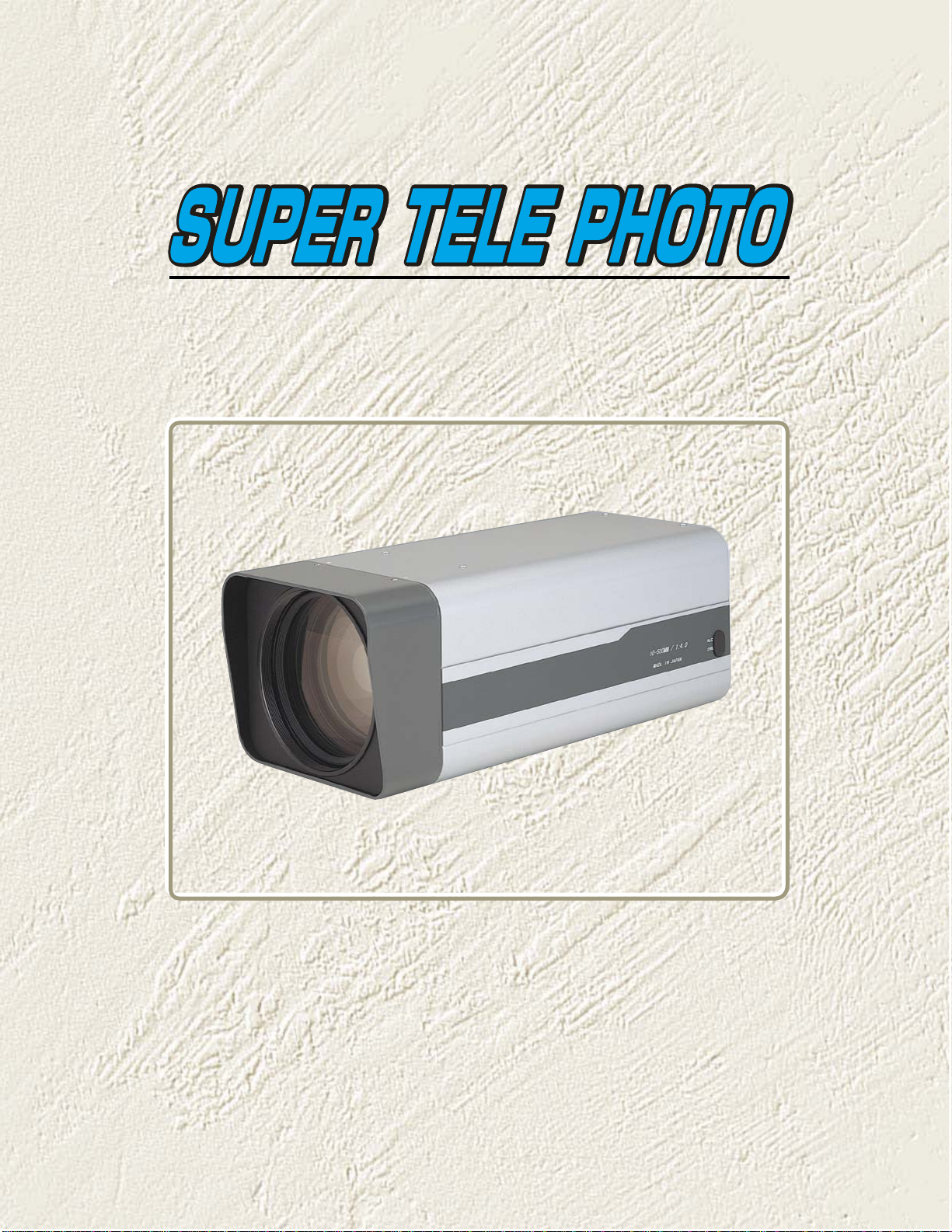

Amazing 50X Motorized Zoom Lens

MotorizedZoomLensisoneofthemostcomplicated
products among various kind of optical products.
Whilehavingbeenengagedindevelopmentand
manufacture of zoom lenses for the broadcasting services,
Tokina has tried to establish an essential method in the
approach for developing optical products, which is neither
basedonsuperciallycleverstylenoraiming at easily
achieved mass-production. In doing so, Tokina has worked
hard for cultivating the most rened techniques and has
accumulatedavast amount of valuable know-how in this
area.
The surveying activity using long focal-distance lens is not
an application that is very special in nature for sophisticated
surveillance and border patrol but one that is widely used in
the whole world.
From such an analysis, Tokina set out the aim of producing
a "standard" lens for the long focal-distance surveillance
application by ourselves. The goal was to oer it to the
users to allow them to build the surveying system atamore
reasonable cost. Tokina has now succeeded to develop this
lens, which has literally accomplished this purpose.
High magnication
and long focal length
This model features high magnication
of 50X and long focal length of 1000mm
at telephoto(2X Ext.) with compact body
of 124(W)x108(H)x300(L)mmand
light weight of 3.2kg.
Thesefeatursoeroutstanding
advantages to your applications.
Dierent angle eld of View
10mm
250mm
500mm
750mm
1000mm

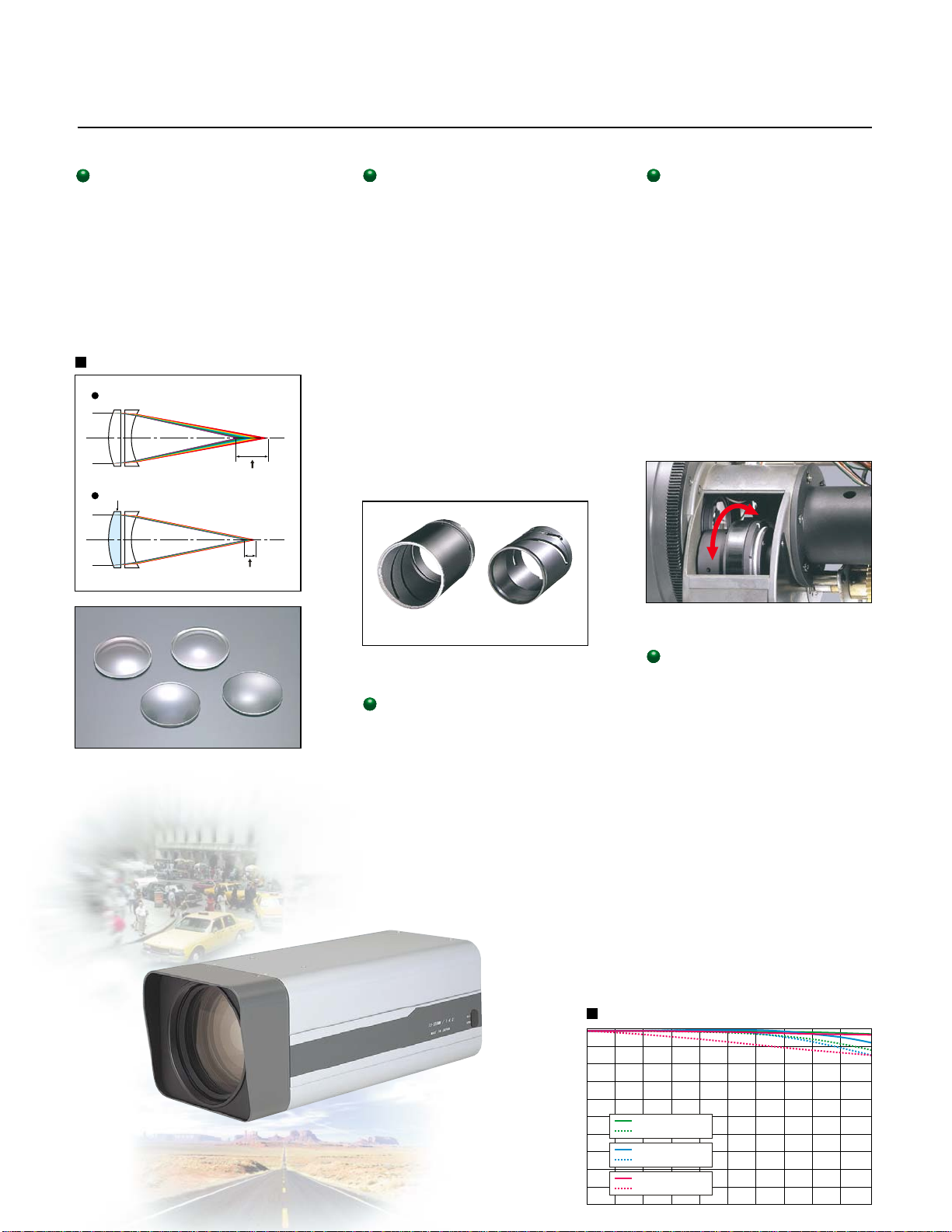

Technical Information

Superapochromat
using the SD glass
Expensivesuperlowdispersionglass
which has been used for TV Broadcast
lenses is used in the frontal part of the
lens to eliminate in an ideal manner the
secondaryaberrationoccurring at the
telephoto side.
Remote extender
Tokina employed the extender system
which has been used for TV broadcast
zoom lenses in contrast to conventional
extenders attached to the rear end of a
lens, this extender has been incorpora
ted into its optical system itsel rom the
designing stage to ensure that an opti
malextendermostappropriateforthe
lensshouldbedeveloped.Moreover,
use of a motorized system for moving of
the extender has allowed it to be remote
ly controlled.
Triplet compensator
Tokinahassolvedtheproblem of a
deterioration of the center performance
at around halfway of the zooming range
with this compensator. The deterioration
isacharacteristic commonly observed in
telescopic lenses withahigh magnifying
power. A result of the Tokina's advanced
opticaltechnologies,thecompensator
prevents the deterioration from occurring
and achievesahigh resolution over the
entire zooming range.
High resolution suitable for
3CCD cameras
The progress in the use of 3CCD cam
eras is remarkable in recent years. Pro
vided withahigh resolving power, the
lens will allow you to fully utilize the cam
era'sperformancetoobtainimages in
bright colors with high resolution.
Employment of the internal
cam system
The system allows the cam grooves to
be cut by an easier gradient. This will
permit at the same time the strength of
the cam barrel to be increased relative to
thatoftheconventionalsystem. An
increase of precision in the direction of
theopticalaxishasmadeitpossible
for an ideal optical performance to be
achieved at a value almost identical with
that of the design. Withadecrease of
theloadtothezoomingandfocusing
motors, the overall durability has signi
cantly enhanced.
NORMAL GLASS
SD GLASS
SD (Super Low Dispersion) GLASS
Sosticated Tokina's designing and manufacturing technologies are
incorporated with compact and light weight body.
secondary spectrum
secondary spectrum
Internal cam Normal cam
MTF (Modulation Transfer Function)
100
50
00 2 4.2
Image Height(mm)
Response(%)
Saggital(f=10mm)
Meridional(f=10mm)
Saggital(f=250mm)
Meridional(f=250mm)
Saggital(f=500mm)
Meridional(f=500mm)
TM50Z1040
(10-500mm 1:4.0)

124
95 P=1
1061.8
300
134
17.526
46
Lens Hood Tripod Connection CU 1/4"
ALC/LEVEL Adjust C Mount
ND360 is available
Specications are subject to change without notice.
Unit:mm
Dimensions
*1
EV3000-D-500 lens
Model No.
Format
Focal Length
Zoom Ratio
Iris Range
Angle eld of View
(H x V)
Filter Screw Size
Dimensions
Weight
Mount
Operation
Operating Temperature
Iris
(Auto)
Zoom
(Motorized)
Focus
(Motorized)
Extender
(Motorized)
Metering Method
Input Voltage
Input Signal
Iris Accuracy
Sensitivity Adjustment
Respond Speed
Input Impedance
Control Voltage
Mortorization Speed
Potentio Meter
Control Voltage
Motorization Speed
Potentio Meter
Control Voltage
Motorization Speed
1/2 inch
10-500mm/20-1000mm(with Extender)
50x
F4.0-125(360) /F8.0-250(720) (with Extender)
35.5° x 27.0°(10mm) 18.2° x 13.7°(20mm)
0.7° x 0.6°(500mm) 0.4° x 0.3°(1000mm)
M95 P=1mm
124mm x 106mm x 300mm
3.2Kg
C Mount F.B=17.526mm(in air)
Continuously Adjustment(Peak-Avarage)
DC8 ~16V(Max.40mA)
V or VS Signal
±15% at Image Signal
0.5 ~1.0Vp-p at Video
Approx. 4sec.
High Impedance
DC12V(Max.120mA)
Approx. 6Sec.
5K
DC12V(Max.120mA)
Approx. 7Sec.
5K
DC12V(Max. 50mA)
2Sec.
-10 ~+50°C
General Specications
*1*1

Video Stabilizer Specification Sheet
Video Input
• 1 input channel
• Auto-detect composite PAL or NTSC
• 75 Ohm BNC connector
Video Output
• 1 output channel
• Output automatically adapted to input format
• 75 Ohm BNC connector
Power
• External power supply included
• 12VDC, 1.2A
• DC Power Plug 2.5x5.5x14mm, Center+
Operating Conditions:
• Temperature: 30 – 120°F (0 – 50°C)
• Humidity: 20 – 95%, non-condensing
Dimensions and Mechanics:
• Height: 2.2” (5.5 cm)
• Width: 6.7” (16.9 cm)
• Length: 7.3” (18.5 cm)
• Weight: 2.4 lbs (1.1 kg)
• Finish: Black powder-coated aluminum
• Protection: Classification IP 65
EMC compliance
• FCC part 15B class A
• EN55022 class A
• EN61000-3-2
• EN61000-3-3
• EN61000-6-2
Power Failure Safe
• All user settings stored in EEPROM
Application Setup
• 12 DIP-switches for parameter selection
• 6-key keypad for control of OSD.
Board Features:
• Equator 300 MHz BSP-15 DSP
• Coprocessor
• 64 MB SDRAM
• 4 MB Flash
• 4 kbit parameter memory
• Video decoder, ITU 656 YUV 4:2:2 format
• Video encoder, ITU 656 YUV 4:2:2 format
• Extension slot
Stabilization Correction
• X/Y correction
• Rotation correction
• Zoom correction
Shake Capture Range Presets
• Small/medium/large
Output Video Latency
• approx. 100 milliseconds
Exclusion Areas
• Default Region of Interest is entire Frame
• Definition of top and bottom frame exclusion
areas (exclude lettering)
Demo Modes
• Picture-in-picture demo mode
• Side-by-side demo mode
• Manual Toggle with front cancel button

Video Stabilizer Performance
slexiP )%(ycneiciffE

CCTVSoftware
The new
CCTV Software
, is to serve as a viewer-controller-recorder vision solution for Camera System
The system shall integrate with controllable an-Tilt, Thermal (IR) , laser rangfinder, and Day/Night camera. ll of
the control, recorder and viewer software components shall operate on a single workstatio.
.
Features
- Control IR camera settings from software application
- Control IR oom from software application
- Control an/Tilt (orientation) from software application with a oystick
- Read Range inder info and display on software application
- Control Daylight zoom from software application
- Target Tracking
- Display Daylight and IR Images live
- Recording to hard drive capabilities of both cameras along with Range inder information
Camera, Thermal Imager & Laser Rangefinder Control with Auto Target Tracking

U
S
E
S
ER’
S
E
V
E
agl
e
S
M
A
V
300
0
e
Vi
A
NU
A
0
-D
sio
n
A
L
n
LLong Rangge Duual CCameera Syystemm
Equipment described herein may require US Government authorization for export purposes.
Diversion contrary to US law is prohibited. ©2008 UnitedVision solutions, Co., Speci cations
are subject to change. Check website: www.unitedvisionsolutions.com
