•IP66 rated - suitable for virtually any outdoor
location installation
•IK10-rated vandal-resistant feature to protect
the camera from destructive behaviors*3
•True Day/Night function allows user-provided
IR illuminators in night mode
•DEPA Intelligent Video Analytics
- alarm sending based on built-in
motion based filters
•Image Stabilizer to help minimize the effect of
camera shake or vibration, avoiding blurry
images
•SD memory card slot for an on-board recording
capability*1*2
•Built-in HTML viewer compatible with most
Smartphones
•ONVIF (Open Network Video Interface Forum)
Profile S conformance
*1 The on-board recording function cannot be used simultaneously with
the intelligent motion detection function and the tamper alarm function.
*2 Data recorded on an SD memory card may be lost or damaged by data
access during power-off, mechanical shock, memory card detachment,or
other operations. Data loss or damage can also occur when a memory
card reaches end of life, which varies according to operational conditions.
No guarantee is given against damage (including passive damage).
*3 IK10 is the highest impact resistance rating based the international
standard IEC 62262:2002.
KEY FEATURES
Unitized Outdoor 1080p Full HD
Rapid Dome Camera
nPowerful 30x optical zoom capability
nExcellent 1080p Full HD picture quality
nOperating temperature from -40°F to +140°F
nHigh-speed 360 degrees endless rotation
nDynamic range of 86 dB (calculated) achieved with
DynaView™ technology
nIP66-rated for outdoor use
nIK10-rated vandal-resistant feature
•30x optical and total zoom ratio of 360x with
12x digital zoom
•Excellent 1080p Full HD picture quality at 30 fps
(1920 x 1080 maximum resolution)
•The Exmor™ CMOS sensor delivers high-quality
images with low noise
•Three codecs (H.264, MPEG-4, JPEG) and
dual-streaming capability
•Operating temperature from -40°F to +140°F
•High-speed 360 degrees endless rotation
•Above-the-horizon tilt – 15° tilt-up,
Total tilt range - 210° (15 degrees above horizon)
•DynaView — Wide-D technology to handle
various lighting conditions in a scene
* When using Wide-D technology, the maximum frame rate becomes
15 fps.
With Wide-D Technology
(simulated images)
Normal Shutter Speed
High Shutter Speed
SNC-ER585
Network Rapid Dome Camera – E Series

©2013 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
Weights and measurements are approximate.
Sony, DynaView, IPELA, Exmor, DEPA, ONVIF and the Sony make.believe logo are trademarks of Sony.
All other trademarks are the trademarks of their respective owners.

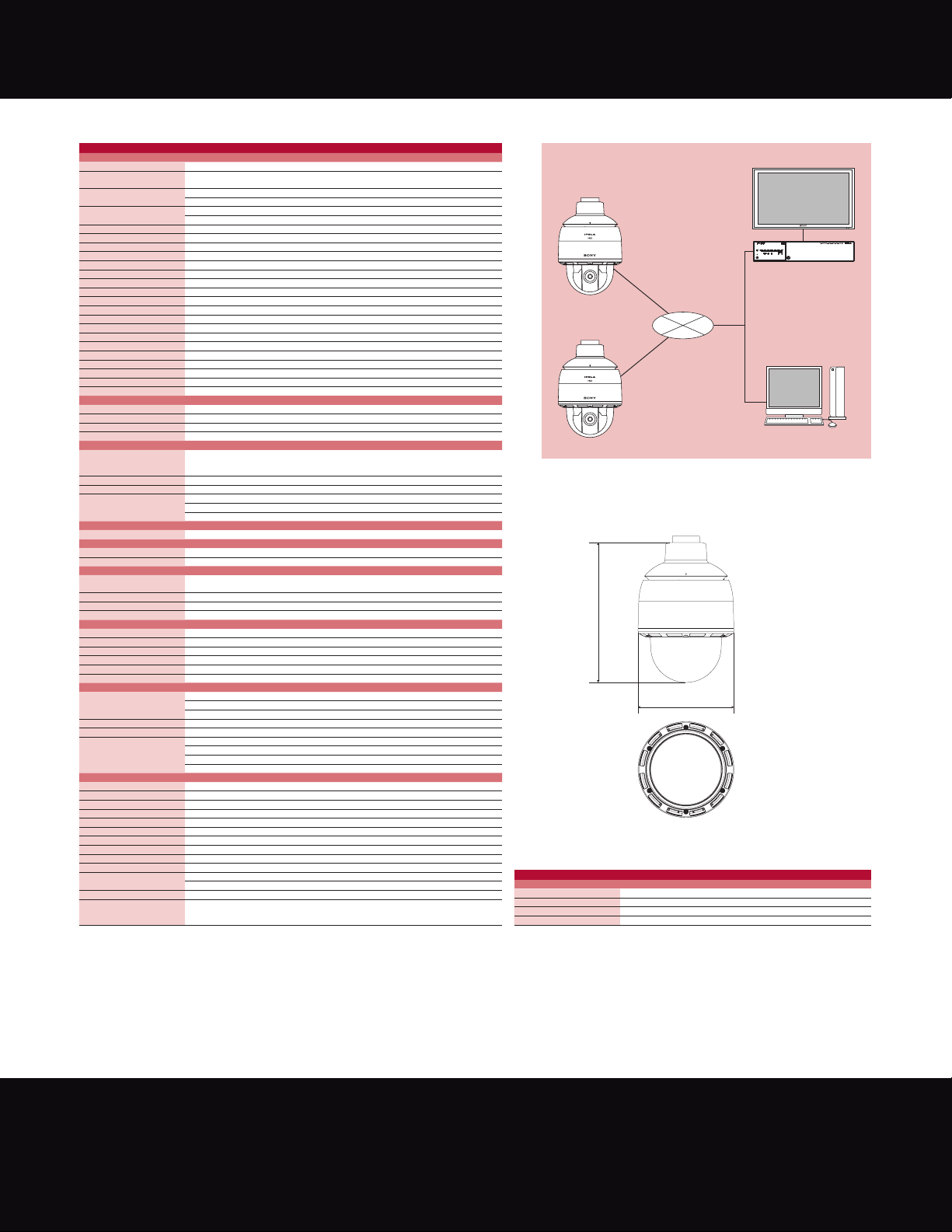

SPECIFICATIONS
DIMENSIONS
Network
Recording Software
IMZ-NS100 Series
Recording Server
NSR-500
PC
SNC-ER585
SNC-ER585
HD monitor
SYSTEM CONFIGURATION
Unit: mm (inches)
12 7/8 (324.1)
ø8 3/4 (222.0)
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/security
S-IP2152 (MK11013V1) Printed in USA (1/13)
SNC-ER585
Camera
Image Sensor 1/2.8-type Exmor CMOS
Image Sensor (Number of
Effective Pixels)
Approx. 3.27 Megapixels
Minimum Illumination (50 IRE) Color: 1.7 lx (F1.6, shutter 1/30 s,AGC ON, 50 IRE)
B/W:0.3 lx (F1.6, shutter 1/30 s,AGC ON, Night Mode, 50 IRE)
Minimum Illumination (30 IRE) Color: 1.2 lx (F1.6, shutter 1/30 s,AGC ON, 30 IRE)
B/W:0.18 lx (F1.6, shutter 1/30 s,AGC ON, Night Mode, 30 IRE)
Dynamic Range 86 dB with DynaView Technology (calculated)
S/N Ratio More than 50 dB (Gain 0 dB)
Gain Auto/Manual (-3 dB to +28 dB)
Shutter Speed 1/1 s to 1/10000 s
Sync System Internal synchronization
Exposure Control Full auto, Shutter priority,Iris priority,Manual
White Balance Auto, Advanced Auto,ATW, Indoor, Outdoor, One-push, Manual, Sodium vapor lamp
Lens Auto-focus Zoom Lens
Powered Zoom Yes
Zoom Ratio Optical zoom 30x, Digital zoom 12x,Total zoom 360x
Powered Focus Yes
Horizontal Viewing Angle 59.5° to 2.1°
Focal Length f = 4.3 mm to 129.0 mm
F-Number F1.6 to F4.7
Minimum Object Distance 300 mm (wide) to 1200 mm (tele)
Pan/Tilt Angle 360° endless rotation/ 210°
Pan/Tilt Speed 300°/s (max.)/300°/s (max.)
Preset Position 256
Tour 5
Camera Features
Day/Night Yes (True D/N)
Wide-D Yes (DynaView)
Noise Reduction Yes
Image Stabilizer Yes*1
Codec Image Size (H x V) 1920 x 1080, 1680 x 1056, 1280 x 1024, 1440 x 912, 1280 x 960, 1376 x 768, 1280 x 800,
1280 x 720, 1024 x 768, 1024 x 576, 800 x 600, 800 x 480, 768 x 576, 720 x 576, 704 x 576,
720 x 480, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192
Video Compression Format H.264, MPEG-4, JPEG
Codec Streaming Capability Dual streaming*2
Maximum Frame Rate H.264: 30fps (1920 x 1080)*3
MPEG-4: 30fps (1440 x 912)*3
JPEG: 30fps (1440 x 912)*3
Audio
Audio Compression Format G.711/G.726
Scene Analytics
Intelligent Motion Detection Yes
Rule-based Filter DEPA
Network
Protocols IPv4, IPv6,TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP, SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP,
SNMP (MIB-2)
ONVIF Conformance Yes (Profile S)
Number of Clients 5
Authentication IEEE802.1X
Interface
Line Output Mini jack (monaural),Maximum output level:1Vrms
Network Port 10BASE-T / 100BASE-TX (RJ-45)
Sensor Input x2 (normally open/normally closed configurable)
Alarm Output x 1, 24 V AC/DC,1 A (mechanical relay outputs electrically isolated from the camera)
Microphone Input Mini jack (monaural)
Card Slots SD Card x 1
System Requirements
Operating System Windows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate,Business Edition
Windows 7 (32/64 bit) Ultimate,Professional Edition
Processor Intel Corei7 2.8 GHz or higher
Memory 2 GB or more
Web Browser Microsoft Internet Explorer Ver. 7.0,Ver. 8.0, Ver. 9.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver. 4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
General
Power Requirements AC 24 V
Power Consumption Heater ON: 76 W max.,Heater OFF: 26 W max.
Operating Temperature -40°F to +140°F (-40°C to +60°C)
Starting Temperature -40°F to +140°F (-40°C to +60°C)
Storage Temperature -4°F to +140°F (-20°C to +60°C)
Operating Humidity 20% to 80%
Storage Humidity 20% to 95%
Vandal Resistant IK10
Dimensions (W x H x D) ø 8 3/4 inches x 12 7/8 inches (ø 222.0 mm x 324.1 mm)
Weight Approx.9 lb 8 oz (4.3 kg)
Safety Regulations UL2044, IEC60950-1 (CB)
FCC (Class A)
Ingress Protection IP66
Supplied Accessories CD-ROM (User’s guide, Supplied programs) (1),Installation manual (1),Dome cover (1),
Top sunshade (1),Coupling (1),Wire fixing belt (1), Wire bracket (1),Bolts (2),
Power supply connector (1), I/O harness (1), Harnes band (1), Band mount (1)
Optional Wall Mount Brackets
Model
UNI-WMB3 Low profile wall mount bracket with coupling
UNI-WMB1 Gooseneck wall mount bracket with 1.5”NPT threads
UNI-WMBB1 Wall/Pole mount adaptor; requires UNI-WMB3 or UNI-WMB1
UNI-PBU1 Wall/Pole Mount Power Block Unit,requires UNI-WMB3 or UNI-WMB1
*1 Default setting:OFF
*2 Dual streaming (Any combination with JPEG/MPEG-4/H.264,including multiple streams of the same format)
*3 When using DynaView technology,the maximum frame rate becomes 15 fps
