Northern IP4DIR100 User manual

Rev. 061218
3625 Cincinnati Avenue, Rocklin, CA 95765 ♦ 855-388-7422 ♦ www.northernvideo.com
Installation & Quick Setup Guide

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
1
1
About this Manual
This Manual is applicable to IP4DIR100 & IP4DIR1004MM Network
Cameras.
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without
notice, due to firmware updates or other reasons. Please find the
latest version in the company website
Please use this user manual under the guidance of professionals.
Legal Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY
SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL
OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING
FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR
OTHER INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY WILL
PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE
EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
2
2
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
3
3
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the EMC Directive 2014/30/EU, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your
supplier or to a designated collection point. For more information
see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards
requirements.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
4
4
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings
●In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
●Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 12 VDC according
to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
Warnings Follow these
safeguards to prevent serious
injury or death.
Cautions Follow these
precautions to prevent potential
injury or material damage.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
5
5
●Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
●Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
●If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
●Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
Cautions
●Make sure the power supply voltage is correct before using the
camera.
●Do not drop the camera or subject it to physical shock.
●Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
●Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.
●The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
6
6
●Do not place the camera in extremely hot, cold (the operating
temperature shall be -30°C to +60°C), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
●To avoid heat accumulation, good ventilation is required for
operating environment.
●Keep internal components of the camera away from liquid while
in use.
●While in shipping, the camera shall be packed in its original
packing, or packing of the same quality.
●If the product does not work properly, please contact tech
support at 855-388-7422 or [e-mail]
your dealer or the nearest service center. Never attempt to
disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
7
7
Table of Contents
1 Appearance Description ................................................................. 8
1.1 Overview of IP4DIR100 Series Camera ............................ 8
2 Installation.................................................................................... 11
Memory Card Installation.............................................. 122.1
Ceiling Mounting........................................................... 132.2
Mounting with Brackets ................................................ 172.3
2.4 Network Cable Waterproof Jacket Installation .............. 24
3 Set the Network Camera over the LAN......................................... 27
3.1 Wiring ........................................................................... 27
3.2 Activate the Camera...................................................... 28
3.3 Modify the IP Address ................................................... 31
4 Access via Web Browser ............................................................... 34
5 Operate via Guarding Vision App ................................................. 36
5.1 Enable Guarding Vision Service on Camera................... 36
5.2 Guarding Vision Setup................................................... 39
5.3 Add Camera to Guarding Vision .................................... 39
5.4 Initialize the Memory Card............................................ 41

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
8
8
1Appearance Description
1.1 Overview of IP4DIR100 Series Camera
5
7
6
8
1
4
3*
DC12VIN
2*

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
9
9
9
10

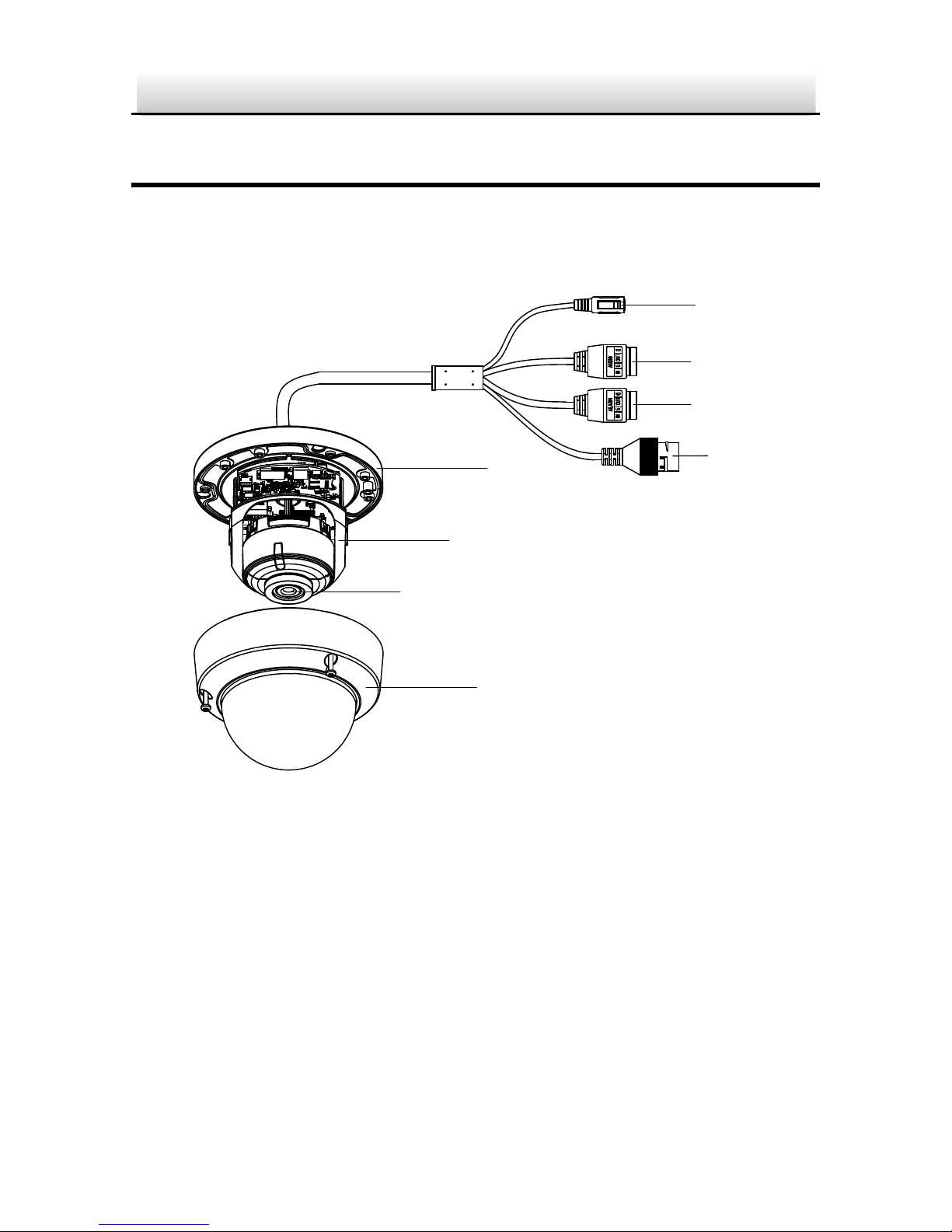

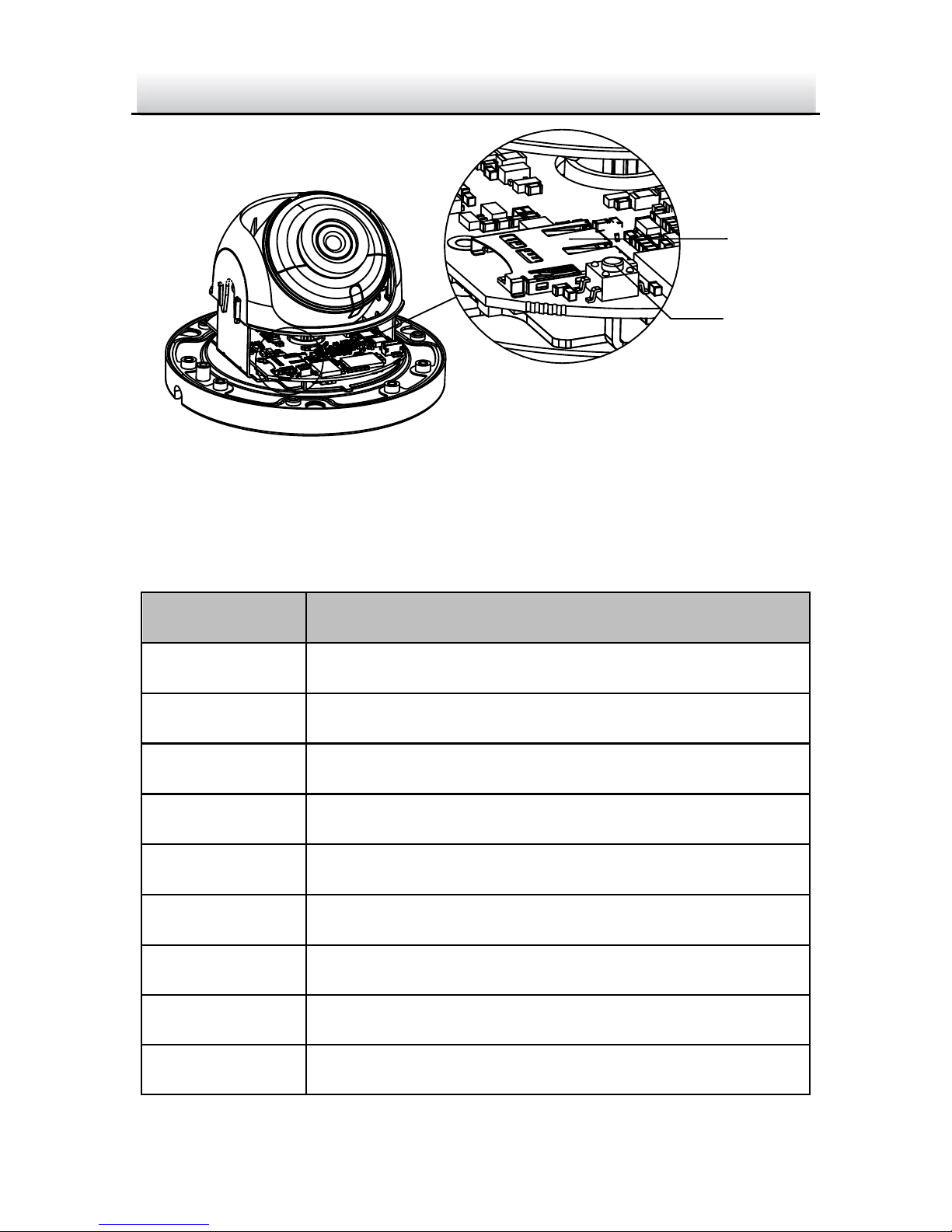

Overview of IP4DIR100 Series CameraFigure 1-1
Description of IP4DIR100 Series CameraTable 1-1
No.
Description
1
Power supply interface (12 VDC)
2
Audio input and output interface
3
Alarm input and output interface
4
RJ45 self-adaptive network interface (PoE)
5
Mounting base
6
Black liner
7
Lens
8
Bubble
9
Memory card slot

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
10
10
10
Reset button
Note:
To reset the camera to default status you first need to remove
power from the camera. Then press and hold the reset button
while re-applying power, continue to hold the reset button for at
least 15 seconds after applying power to default the camera.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
11
11
2Installation
Before you start:
●Make sure the device in the package is in good condition and all
the assembly parts are included.
●The standard power supply is 12 VDC or PoE (802.3 af), please
make sure your power supply matches with your camera.
●Make sure all the related equipment is power-off during the
installation.
●Check the specification of the products for the installation
environment.
●Make sure that the wall is strong enough to withstand four
times the weight of the camera and the bracket.
For the camera that supports IR, you are required to pay attention to
the following precautions to prevent IR reflection:
●Dust or grease on the dome cover will cause IR reflection.
Please do not remove the dome cover film until the installation
is finished. If there is dust or grease on the dome cover, clean
the dome cover with clean soft cloth and isopropyl alcohol.
●Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
●The foam ring around the lens must be seated flush against the
inner surface of the bubble to isolate the lens from the IR LEDS.
Fasten the dome cover to camera body so that the foam ring
and the dome cover are attached seamlessly.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
12
12
Memory Card Installation2.1
This cameras supports memory card as local storage, you can follow
the steps to mount and unmount the memory card.
Steps:
1. Loosen the screws on the bubble. Remove the bubble to expose
the memory card slot.
Remove BubbleFigure 2-1
Notes:
●Screws on bubble cannot be unscrewed completely in order to
prevent dropping or loss.
●The bubble is fastened to the camera with a safety rope.
2. Find the memory card slot to insert the memory card.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
13
13
Insert Memory CardFigure 2-2
3. (Optional) To unmount the memory card, push to get it ejected.
Ceiling Mounting2.2
Steps:

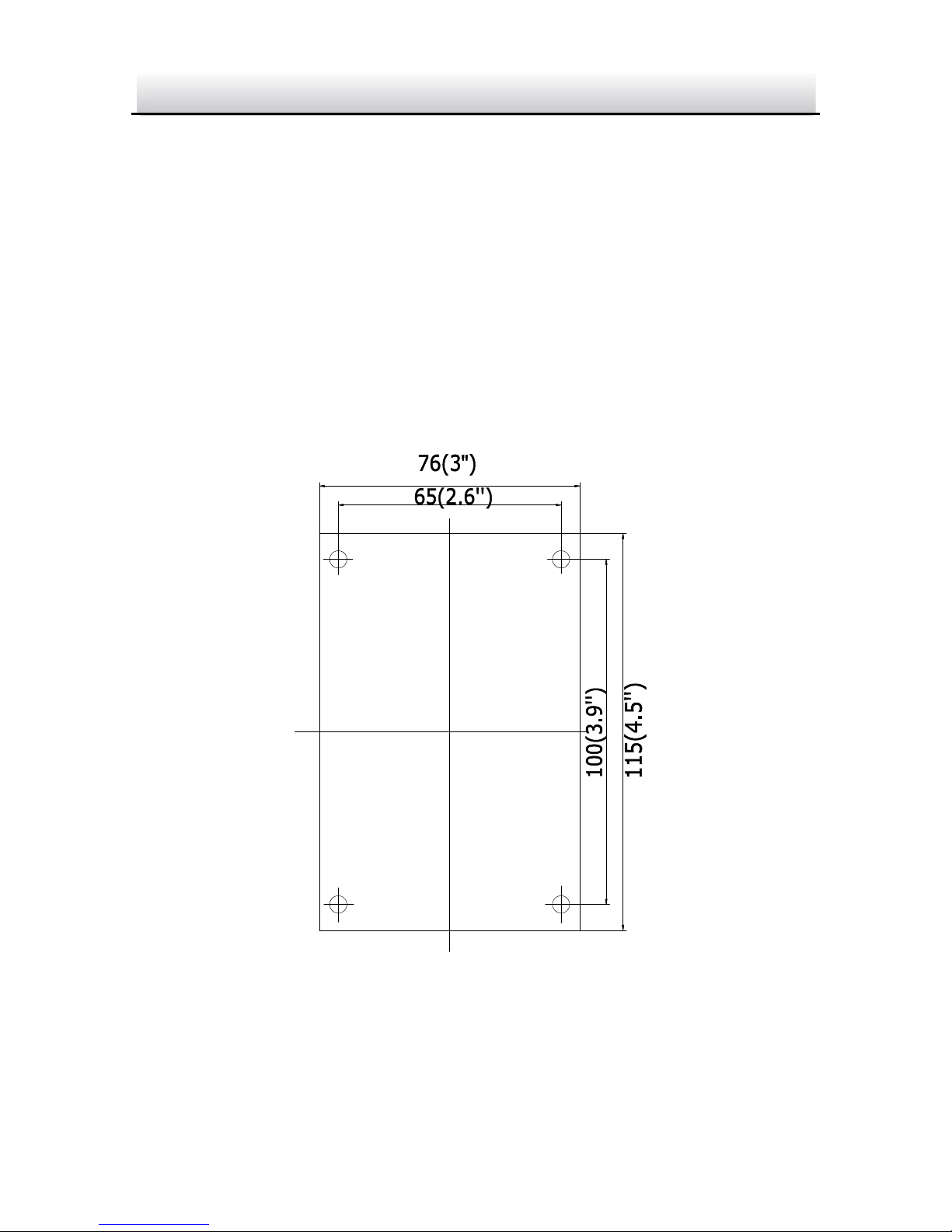

1. Paste the drill template to desired mounting place.
2. Drill the screw holes on the ceiling according to the drill
template.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
14
14
1
1
1
A

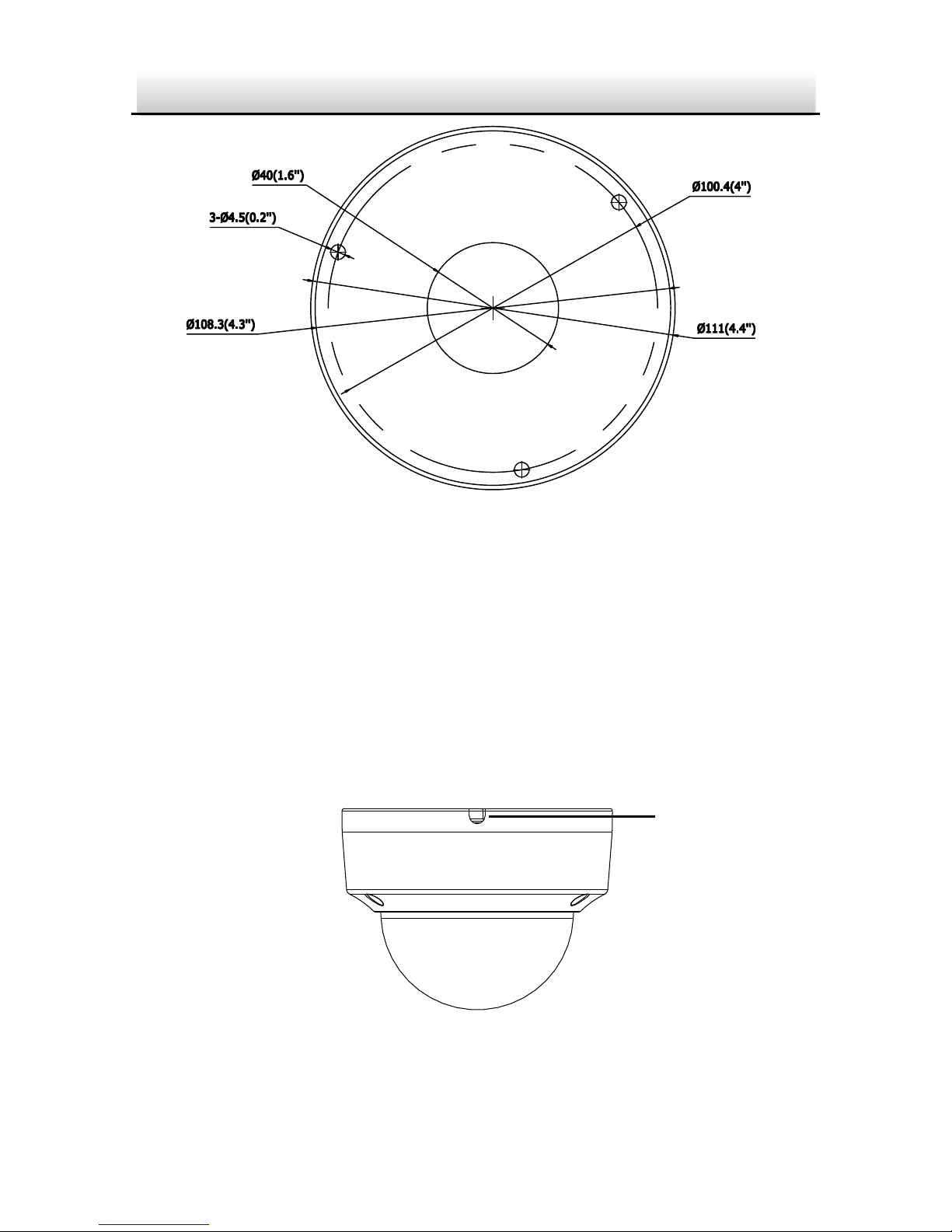

Drill Template
Hole A: for cables routed through the ceiling
Screw hole 1: for Mounting Base
Drill TemplateFigure 2-3
Notes:
●If you choose to route cable through the ceiling, cut a cable
hole according to Hole A on drill template.
●You can also route cable from the side outlet.
●If you install the camera in outdoor, install the waterproof
jacket to the network cable. See Section 2.4.
Side OutletFigure 2-4
Side Outlet

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
15
15
3. Route the cables and fix the mounting base on the ceiling with
three screws.
Fix the Mounting BaseFigure 2-5

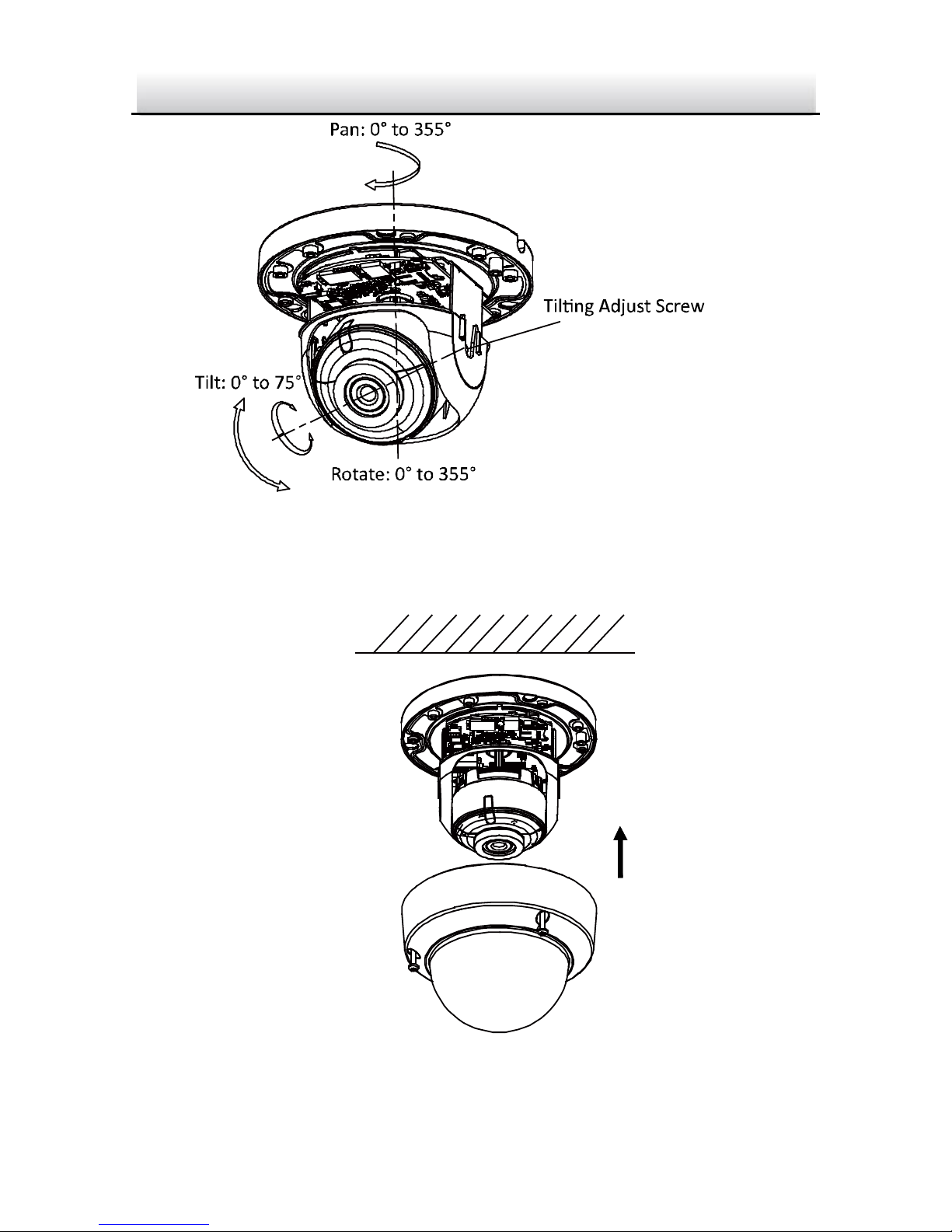

4. Adjust surveillance angle.
1). Loosen one tilting adjust adjusting screw to adjust the tilting
position. Tighten the screw after adjustment.
2). Hold the black liner to adjust the panning position.
3). Hold the lens to adjust the rotating position.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
16
16
Angle Adjustment of CameraFigure 2-6
5. Install the bubble back to the camera.
Install Bubble
Figure 2-7

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
17
17
Mounting with Brackets2.3
This camera supports various mounting accessories. Wall Mounting
is used as an example in this manual.
The wall mounting bracket is not included in the package. You need
to purchase one separately, if you adopt this mounting type.
Steps:
1. For the WM110 plastic indoor wall mount: Mark the screw holes
on desired mounting place.
Hole
Hole
Hole
Hole
Mark Screw HoleFigure 2-8
2. Drill 4 screw holes for expansion screws.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
18
18
3. Unscrew the bubble of the camera.
4. (Optional) Insert the memory card to the camera, if your camera
supports memory card installation. Refer to Section 2.1.

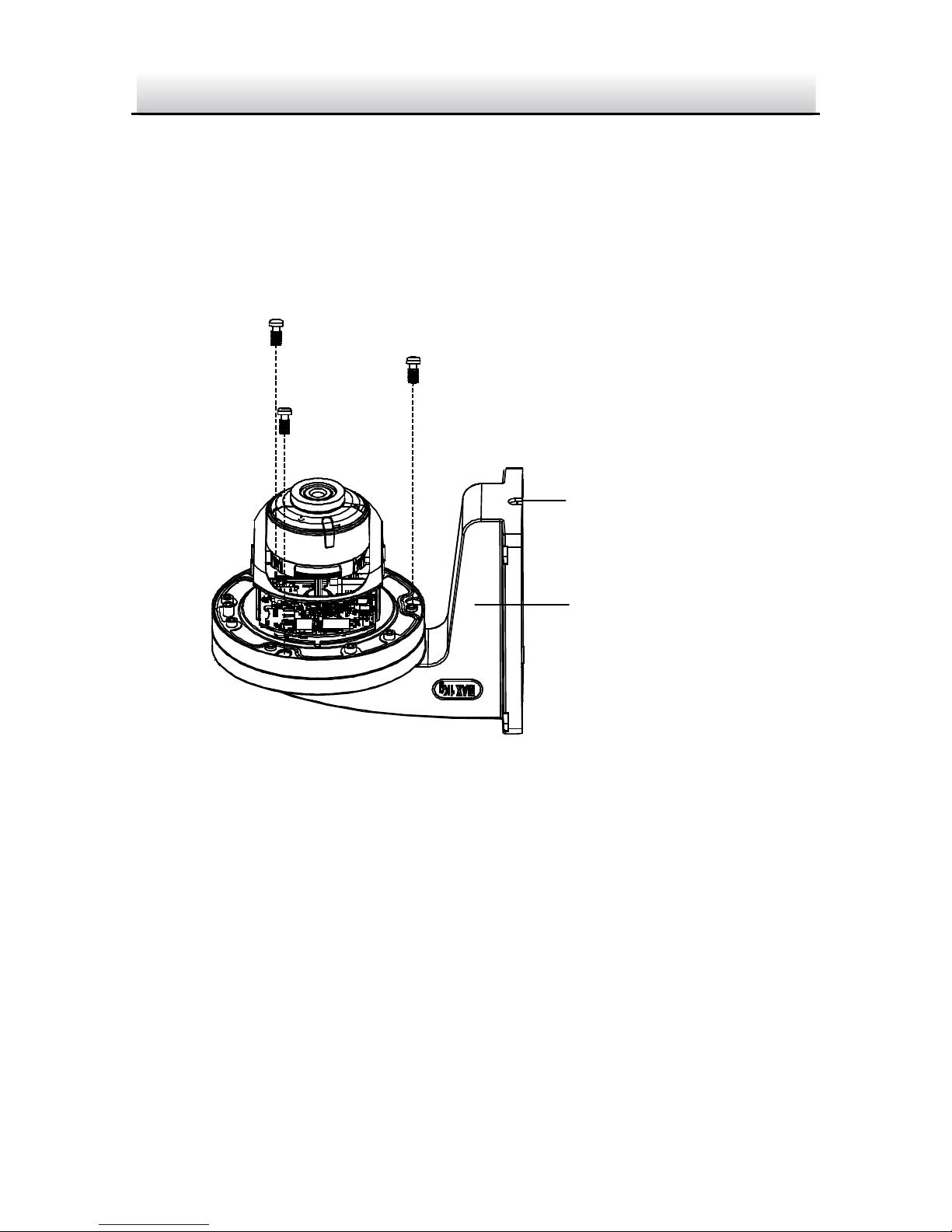

5. Route the cables and fix the camera to the cap of the wall
mounting bracket with three supplied self-tapping screws.
Wall Mounting
Bracket
Cable Hole
Fix the Camera to Indoor WM110 Wall Mounting BracketFigure 2-9
6. Align the wall mounting bracket to the screw holes and fix it to
wall.
Note:
If you install the camera in outdoor, install the waterproof jacket
to the network cable. See Section 2.4.

IP4DIR100 Series IP Dome Camera ·Quick Start Guide
19
19
Fix the Indoor WM110 Wall Mounting Bracket to WallFigure 2-10
7. Adjust surveillance angle of camera. Refer to Step 4 in Section
2.2.
8. Install the bubble back to the camera.
Figure 2-11 Install the Bubble
