Unitek Watchman H3004 Installation instructions

FULL MANUAL: (960H Recording & Full HD Display): Version 0.1.0
by
Publication date 2014/03/14 18:07:12 (r2804)

1
Chapter 1. Product Configuration
1.1. Features
• 4/8/16ch Stand-alone HD Display Real time DVR (1080p)
• Independent for each channel resolution, quality and frame rate setting
• Quick search using up to 256 times normal speed playback feature
• Bookmark during playback, Repeat playback
• Using bookmark backup
• Self-diagnostic capabilities in the network connection
• Set your own domain name is possible with default Mac. address based domain name
• Possible to recover system by power outages during upgrade
• S.M.A.R.T. function for Harddisk
• E-mail notification function
• Admin + 100 users account setting
• Mac Windows 100% compatible CMS
• iPhone, iPAD, Android support
• Audio support
1.2. Components
• DVR
• Program/Manual CD
• Power Adaptor
• 8pins Connector(2ea)(8/16ch only)
• Screws
1.3. Name and Function of Each Part
1.3.1. Front Panel
Figure 1.1. Front Panel

Product Configuration
2
No. Name Function
1 Numeric Button Channel selection, Number input
2 RECORD Record button
3 REVERSE Reverse Playback
4 STOP Stop of Playback
5 PLAY Playback
6 PAUSE Pause
7 Power LED Power LED
8 Record LED Record LED
9 IR receiver Remote controller receiver
10 USB PORT USB Port(Memory Stick, Mouse)
11 PTZ PTZ control Button
12 MENU Menu Button
13 BACKUP Backup Button
14 SEARCH Search Button
15 DISPLAY Multi-channel switch button
16 ALT Alternative function button
17 UP Move up in the menu, Increase the channel number
18 DOWN Move down from the menu , decrease the channel number
19 LEFT Move left in the menu
20 RIGHT Move right in the menu
21 OK Select in the menu
Table 1.1. Explaination of Front Pannel
1.3.2. Rear Panel
Figure 1.2. 16CH Rear Panel
Figure 1.3. 8CH Rear Panel
No. Name Function
1 VIDEO IN Camera video input

Product Configuration
3
No. Name Function
2 AUDIO IN Camera audio input
3 AUDIO OUT Audio Output
4 SPOT SPOT output
5 eSATA eSATA connector
6 HDMI PORT HDMI output
7 USB PORT USB Port
8 ETHERNET Ethernet connector
9 VGA PORT VGA output
10 MULTI PORT Sensor input, RS-232, RS-485, Relay output
11 POWER INPUT Power input connector (Adaptor)
Table 1.2. Rear connector description
1.3.3. Spec
Item H3004 H3008 H3016
Video input No. of channel 4ch BNC 8ch BNC 16ch BNC
Video Output Monitor 1ch HDMI, 1ch Spot (Multi channel), 1ch VGA
Multitasking Quadplex
Video Compression H.264
Resolution 960x480, 704x480, 704x240, 352x240(NTSC) /
960x576, 704x576, 704x288, 352x288(PAL)
No. of Frame 1,2,3,4,5,6,8,10,15,30 (NTSC,10 Steps) /
1,2,3,4,5,7,9,13,20,25 (PAL,10 Steps)
Quality 4 Levels (Low, Medium, High, Super)
Max. Speed 120fps at 960H (NTSC) / 100fps
at 960H (PAL)
240fps at 960H
(NTSC) / 200fps
at 960H (PAL)
480fps at 960H
(NTSC) / 400fps
at 960H (PAL)
Recording
Mode Schedule, Event(Sensor, Motion Detection),
Manual, Continuous, Continuous+Event
Max. Speed 120fps (NTSC)
100fps (PAL) 240fps (NTSC) 200fps (PAL) 480fps (NTSC) 400fps (PAL)
Display Resolution Up to HD 1080p
Search Mode Quick, Calendar, Bookmark, Event
(Sensor, Motion Detection), USB
Speed x1,x2,x4,x8,x16,x32,x64,x128,x256, Field by Field (Forward,
Backward) x1/4, x1/2 Slow Motion (Forward Only), Repeat A-B
Playback Multi Screen 1, 4ch 1, 4, 9ch 1, 4, 9, 16ch
Sensor Input 4 (NO/NC
Selectable) 8 (NO/NC Selectable) 8 (NO/NC Selectable)
Alarm(Relay) Output 1 Relay Output
No. of Input 4ch 8ch 16ch
Audio No. of Output 1ch
Network Speed 10/100Base-T (Static, DHCP, E-mail ), DDNS server available

Product Configuration
4
Item H3004 H3008 H3016
Codec Dual Codec. (H.264)
Bandwidth Limit Yes
Motion Detection 22x15 (NTSC) / 22x18 (PAL), 8Level Sensitivity
Storage No. of
HDD(SATA) 2(Internal) / 1(Internal) + 1 eSATA(External)
Backup USB Flash Memory, Network
Password Protection 101 Level (admin / 100 users)
PTZ Control RS-485
Interface Serial Port RS-232
(TTL Level) RS-232
Method USB Flash Memory, Network
SW Upgrade Blackout Protection Yes
Power Source Consumption +12VDC/4A Adaptor (100-240VAC, 50Hz/60Hz, 60W)
Dimension(mm) 320(W) x 340(D) x 70(H)
Weight(Kg) 5Kg (net)
Operating Temperature +5 ~ +40 (Celsius)
Table 1.3. Specification Table

5
Chapter 2. Operation
2.1. Product Installation
2.1.1. Harddisk installtion
Install SATA harddisk drivers to the DVR, using the provied rack brackets.
2.1.2. Connecting the camera
Connect the cameras.
2.1.3. Power supply
Connect the power supply to operate the product.
2.1.4. Product configuration
Using the default setting is sufficient, also the user can change the recording setting depending on the purpose,
the network setting for one's network environment.
2.2. System operating
2.2.1. The boot image
Figure 2.1. The boot image
During the booting time, boot image will appear. Booting takes about one minute to complete.
2.2.2. Start Menu
Two methods are available in the start menu. The start menu that appears at the bottom of the screen and the Mouse
menu that appears when you click the right button of the mouse.

Operation
6
Figure 2.2. Start Menu
No. Name Function
1 Setup Enter the setup menu
2 4split 4-split screen
3 9split 9-split screen
4 16split 16-split screen
5 Search Enter the search menu
6 Backup Enter the backup menu
7 Record Turning on and off the recording
8 Power Power off
Table 2.1. Start Menu
Figure 2.3. Mouse menu
No. Name Function
1 View1 Single screen selection menu

Operation
7
No. Name Function
2 View4 4-split screen selection menu
3 View9 9-split screen selection menu
4 View16 16-split screen selection menu
5 SEQ Running the sequence mode
6 PTZ PTZ menu (only single screen mode)
7 Freeze Runnning freeze
8 ZOOM Running zoom (only single xcreen mode)
9 RECORD Turning on and off the recording
10 Menu Enter the setup menu
11 Search Enter the search menu
12 Backup Enter the backup menu
13 Remote DVR View a Remote DVR
14 Log off Log off
15 Power off Power off
Table 2.2. Mouse menu
2.3. Setup
Figure 2.4. Setup menu
DVR setup menu. For more information, see the setup menu chapter.

Operation
8
2.4. Search
Figure 2.5. Search menu
Search menu displays as shown above . Depending on search method, Quick, Calendar, Bookmark, Event, USB
search options are available.

Operation
9
2.4.1. Quick Search
Figure 2.6. Quick Search
Search menu window appeares as shown above. Select the playback start time.
• 2 minutes ago : Playback the video just two minutes ago from the current time.
• 10 minutes ago : Playback the video just 10 minutes ago from the current time.
• 1 hour ago : Playback the video just 1 hour ago from the current time.
• 6 hours ago : Play the video just 6 hours ago from the current time.
• 1 day ago : Playback the video just 1 day ago from the current time.

Operation
10
2.4.2. Calendar Search
Figure 2.7. Calendar Search
Calendar search function is supported. Identifying the presence of recorded video per channel is easy. The
time zone which the recording data exists is displayed with different colors. Red(Manual or Continous record),
Green(Motion record), Orange(Sensor record).

Operation
11
2.4.3. Bookmark to play
Figure 2.8. Bookmark to play
Bookmark search function is supported. The list of bookmarks are displayed. It is convenient to use bookmarks
on the plaback buckup.

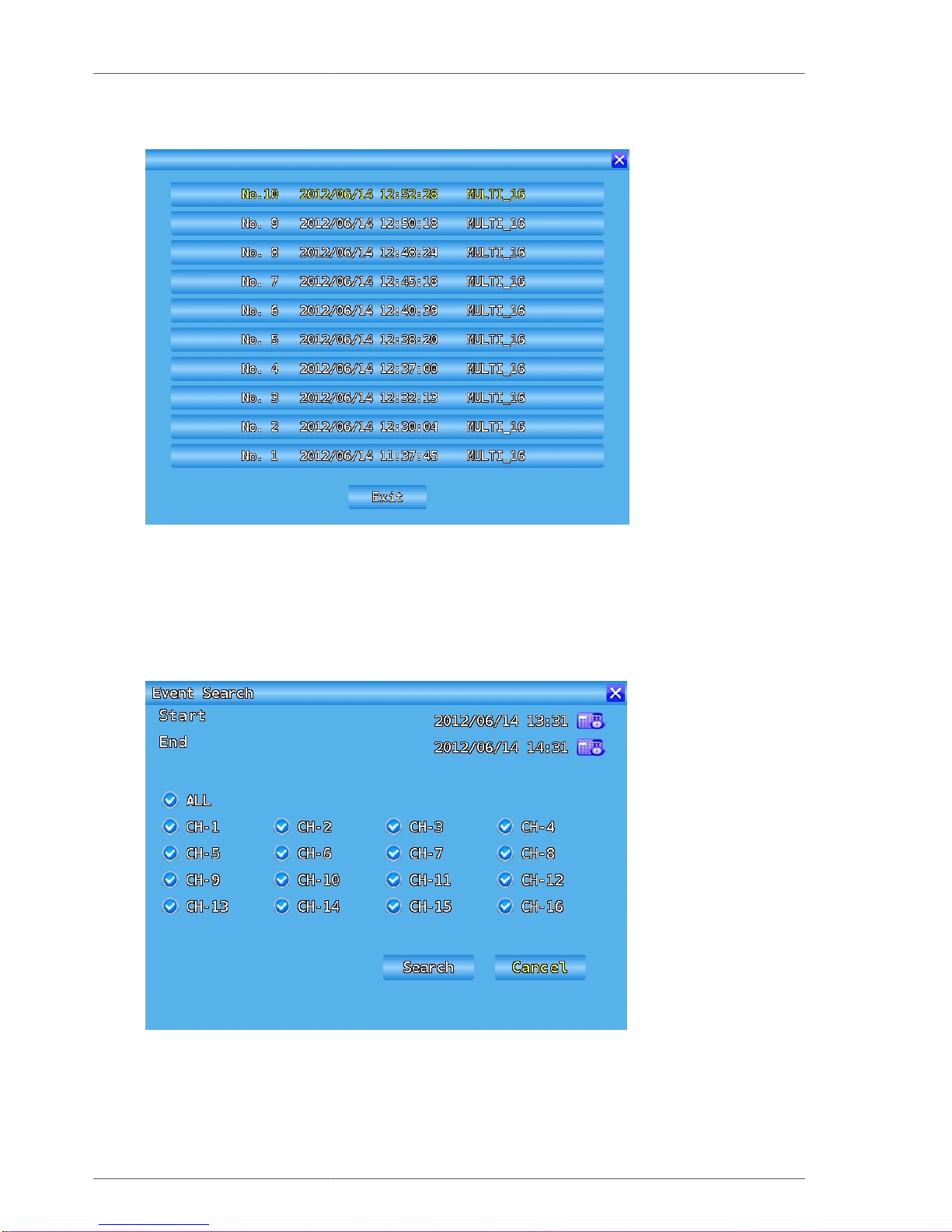

2.4.4. Event
Figure 2.9. Event
Event search is supported. Select start time, end time and channels that you want to search in the event search
menu, then event lists that occurred during that time period are displayed.

Operation
12
2.5. Playback
2.5.1. Playback menu bar
Figure 2.10. Playback menu bar
Split-screen seletion, playback related buttons are displayed.
No. Name Function
1 Time Display Playback time
2 Playback speed Display Playback speed
3 Stop Stop of Playback
4 Reverse Reverse Playback
5 Playback Playback
6 Pause Pause
7 Slow Playback Slow playback (x1/4 ~ x1/2)
8 Fast Playback Fast playback (x2 ~ x256)
Table 2.3. Playback menu
2.5.2. Playback Mouse menu
Figure 2.11. Playback Mouse menu
User can select the playback screen mode which is single, 4-split, 9-split, 16-split. support zoom fuction at display
mode. User can set a bookmark during playback. The saved bookmarks are used A-B repeat during playback.

Operation
13
2.6. Backup
2.6.1. Backup menu
Figure 2.12. Backup menu
• Device : Select the device you want to back up. USB memory is available.
• File Format : Select the file format to back up. HAV, AVI can be selected. EZPlayer will be stored together
when HAV format is selected. The backed up data is displayed using EZPlayer without an additional program
installation. The backed up files using AVI format can be playbacked as a normal media player.
• Time Setting : Select the time to back up. Start and end time of backup can be set by time or bookmarks.
• Channel Selection : All channel or individual channel can be selected. After selecting the channel, you can back
up by pressing the Backup button. During backup, the progress bar is displayed for noticing the status.

Operation
14
2.7. Network monitoring
2.7.1. CMS
Figure 2.13. CMS
Network monitoring program is provided. It supports Windows PC and Mac PC.

Operation
15
2.7.2. Mobile
Figure 2.14. Mobile
Smart Phone application is also supported. iPhone, iPAD, Android smartphones are supported.

16
Chapter 3. Setup menu
Figure 3.1. Setup menu screen
Level 1 Level 2 Level 3 Level 4
Name
Name ID ID
Data Format
Time Format
Time Zone
NTP
Time Date
Date
Language
SW Upgrade Type Application, Kernel
Factory Default
Conf. file exportConfiguration
Conf. file import
Sensor
Motion
Video Loss
Record Fail
Buzzer
Record Warning
Camera Name
Motion Icon
Sensor Icon
Record Icon
System
Display
Status Bar

Setup menu
17
Level 1 Level 2 Level 3 Level 4
Resolution
HDMI/VGA
VGA Only
Auto UPnP
StaticTCP/IP Type
DHCP
Default
DDNS Hostname
Stream Channel
IP Address
EXT. IP Address
Network Test
UPnP Test
DNS Test
Status
DDNS Test
Client Info
Network
Remote DVR
Channel ALL, CH1 ~ CH16
Resolution 360x240, 720x240,
720x480, 960x480
Quality LOW,MEDIUM,HIGH,SUPER
Framerate
Channel
Mode
MANUAL,
CONTINUOUS,
MOTION, SENSOR,
MOTION+SENSOR,
CONTINUOUS
+EVENT, SCHEDULE
Schedule Number 1~4
Audio Record
Misc Record Time Overlay
Channel 1CH ~ 16CH, ALL
Start Point
First Data, 2 minutes
ago, 10 minutes
ago, 1 hour ago, 6
hours ago, 1 day ago
Record
Playback
Audio Play
Mode OVERWRITE, ONCE
Mode Forced Deletion OFF,1day ~ 99days
S.M.A.R.T. ON, OFF
S.M.A.R.T. Check Interval 6hours, 12hours, 24hours
Harddisk
Format

Setup menu
18
Level 1 Level 2 Level 3 Level 4
Information1 Model, Usage
Information2 Model, Temperature,
SMART test result
Record Time Available Record Time
Sensitivity
Detection ZoneChannel
Pop Up
Motion
Pop Down CONT, 5SECS,
10SECS, 30SECS
Type
Link ChannelNumber
Pop Up
Sensor
Pop Down CONT, 5SECS,
10SECS, 30SECS
Sensor
Motion
Record Fail
Record Warning
Relay
Keep Time NONE, 5SECS,
10SECS, 30SECS
Address Sender, Receiver
SMTP Address, Port, ID,
Password, SSL, MIME
Condition Period, Prohibition
Email
Contents Motion, Sensor, Video Loss, Record
Status, System Access
Event
Post Record Post Alarm Record NONE, 10SECS
~ 60 SECS
Admin Password
Name
Password
User
Permission
CH-1 ~ CH-16,
PTZ, Playback,
Backup, Network,
Network Timeout
Auto
Account
Log off Wait Time 30SECS, 1MIN, 3MINS,
5MINS, 10MINS
Name
Covert
Contrast
Camera
Adjustment Brightness

Setup menu
19
Level 1 Level 2 Level 3 Level 4
Sharpness
Channel CH-1 ~ CH-16
Model PELCO_D
ID 0 ~ 255
Reverse Control Pan, Tilt, Zoom, Focus
PTZ
Baudrate 1200, 2400, 4800, 9600, 19200, 38400,
57600, 115200
Channel CH-1 ~ CH-16, M1-4, M5-8, M9-12, M13-16,
M1-9, M8-16, M1-16
Sequence
Dwell Time
1SEC, 2SECS,
4SECS, 5SECS,
8SECS, 10SECS,
15SECS, 30SECS
Spot Mode Single, Quad, 9Split,
Sequence, 16Split
Event Log
System Log
Model
Video Type
Version Hardware,
Kernel, Software
Information
Information
MAC Address
Table 3.1. Menu tree
