Universal Weight Electronics ZS Series User manual

1
INDEX
Installation 2
Specifications 3
Key Layout & Functions 4
Internal Functions 6
Initial Setup 8
Instructions for Use 11
Error Codes & Troubleshooting 15
Daily Care & Maintenance 17

2

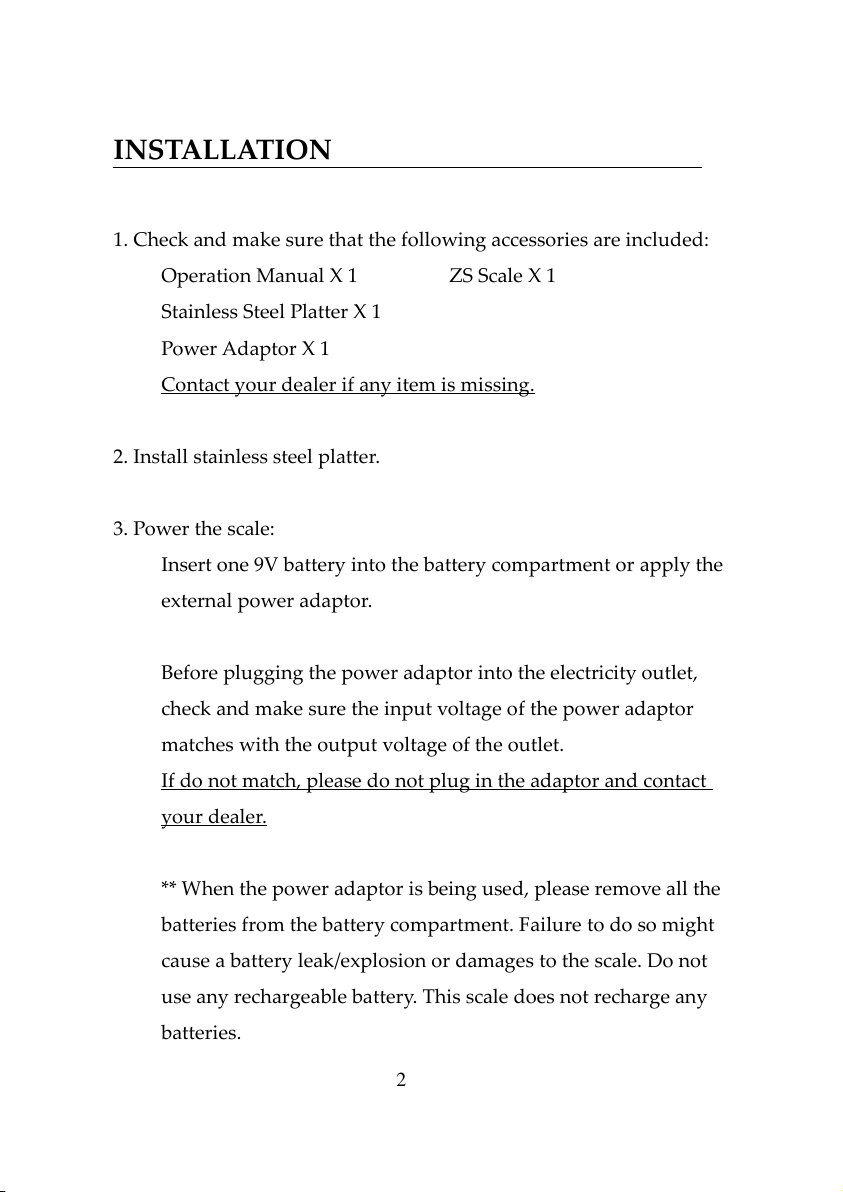

INSTALLATION
1. Check and make sure that the following accessories are included:
Operation Manual X 1 ZS Scale X 1
Stainless Steel Platter X 1
Power Adaptor X 1
Contact your dealer if any item is missing.
2. Install stainless steel platter.
3. Power the scale:
Insert one 9V battery into the battery compartment or apply the
external power adaptor.
Before plugging the power adaptor into the electricity outlet,
check and make sure the input voltage of the power adaptor
matches with the output voltage of the outlet.
If do not match, please do not plug in the adaptor and contact
your dealer.
** When the power adaptor is being used, please remove all the
batteries from the battery compartment. Failure to do so might
cause a battery leak/explosion or damages to the scale. Do not
use any rechargeable battery. This scale does not recharge any
batteries.

3
SPECIFICATIONS
Model
Capacity
Division
ZS-600
600g/1lb 5.195oz
0.1g/0.005oz
ZS-1200
1200g/2lb 10.40oz
0.2g/0.01oz
ZS-3000
3000g/6lb 9.98oz
0.5g/0.02oz
ZS-2500
2500g/5lb 8.50oz
1g/0.05oz
Power
Source
9V battery or External Power Adaptor
Max. Zero
Range
2% of Rated capacity
Max. Tare
Range
100% of Rated capacity (Subtractive)
Weight Units
(Note A)
Metric (g), Avoirdupois (lb & oz) & Taiwanese (tg)
Operation
Environment
0o~40oC (32o~104oF), Non-condensed. R.H.≤85%
Specifications subject to change without notice
NOTE A:
To comply with the law of certain countries, Avoirdupois and
Taiwanese weight units may be disabled. Contact your dealer for
more information.

4

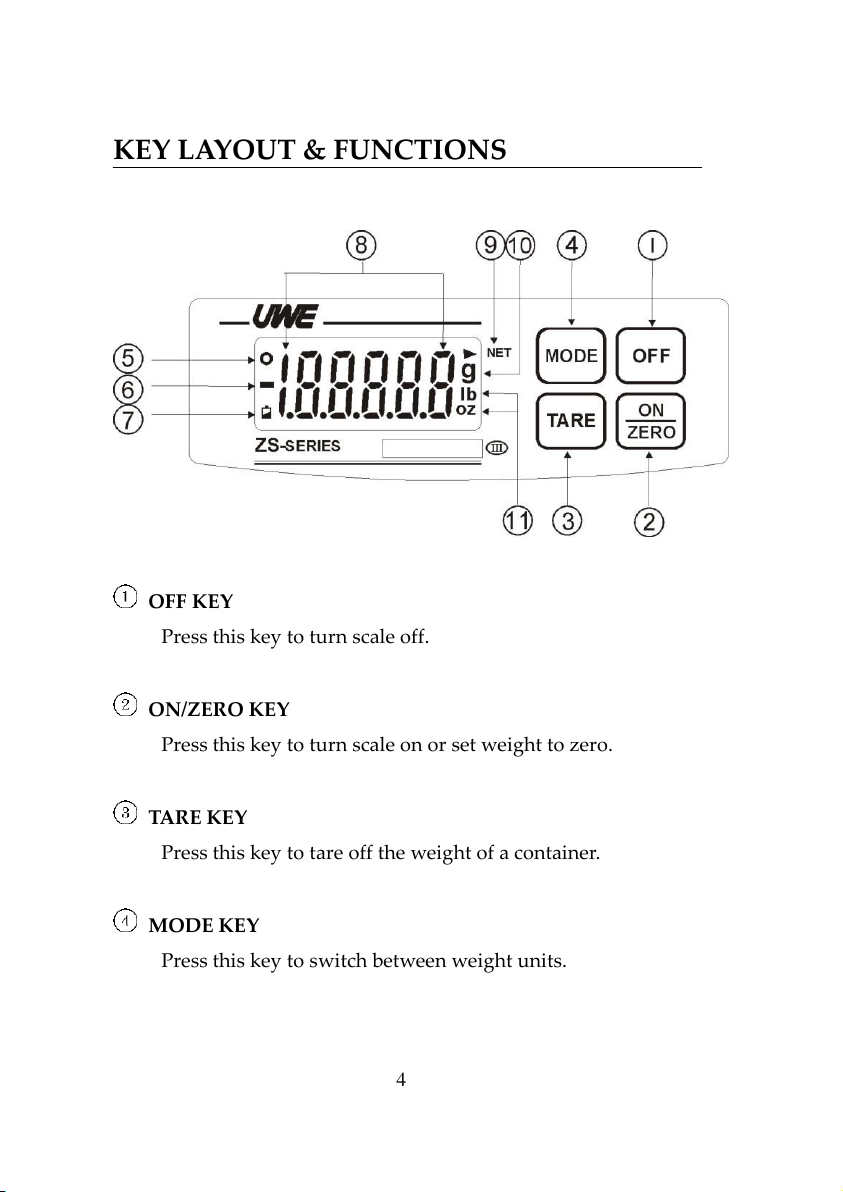

KEY LAYOUT & FUNCTIONS
OFF KEY
Press this key to turn scale off.
ON/ZERO KEY
Press this key to turn scale on or set weight to zero.
TARE KEY
Press this key to tare off the weight of a container.
MODE KEY
Press this key to switch between weight units.

5

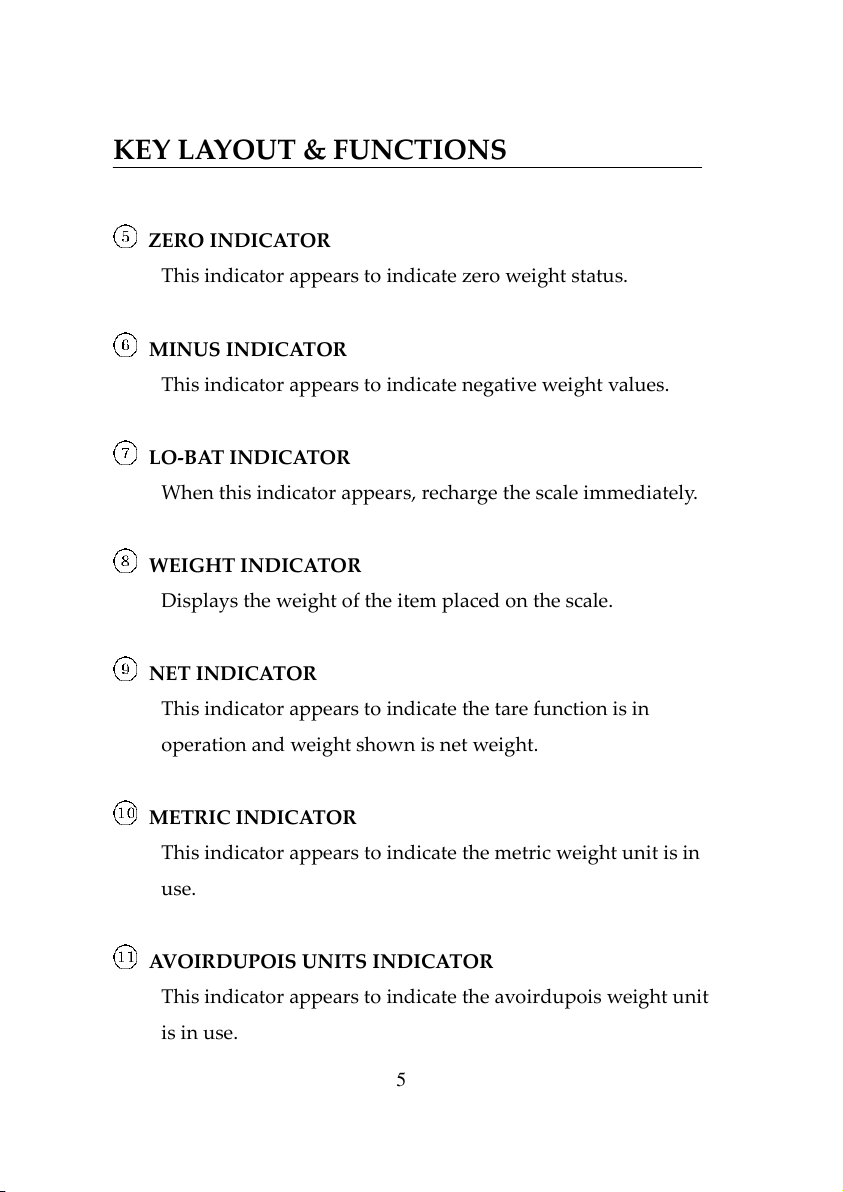

KEY LAYOUT & FUNCTIONS
ZERO INDICATOR
This indicator appears to indicate zero weight status.
MINUS INDICATOR
This indicator appears to indicate negative weight values.
LO-BAT INDICATOR
When this indicator appears, recharge the scale immediately.
WEIGHT INDICATOR
Displays the weight of the item placed on the scale.
NET INDICATOR
This indicator appears to indicate the tare function is in
operation and weight shown is net weight.
METRIC INDICATOR
This indicator appears to indicate the metric weight unit is in
use.
AVOIRDUPOIS UNITS INDICATOR
This indicator appears to indicate the avoirdupois weight unit
is in use.

6
INTERNAL FUNCTIONS
The scale is equipped with 12 internal functions, which are:
FUNCTION
NUMBER
FUNCTION DESCRIPTION
Fun 1
For Qualified Technical Personnel Only
Fun 2
Check Display Segment
Fun 3
Select Auxiliary Weight Units
Fun 4
Select Auto Power Off
**Fun 5
Select Rs-232 Baud Rate & Protocol
Fun 6
Select Digital Motion Filtering Function
**Fun 7
Select Serial Output Mode
**Fun 8
Select UTP Printout Format
(This function is UTP related)
Fun 9
Select Auto Tare Function
**Fun 12
Select Number Of Printout Copy
(This function is UTP related)
**Fun 15
Set and Send Date & Time Data to UTP
(This function is UTP related)
Fun 19
For Qualified Technical Personnel Only

7
INTERNAL FUNCTIONS
** Fun 5, Fun 7, Fun 8, Fun 12, and Fun 15 have been reserved for
future use; they are not functional.
Do not alter any parameters set in Fun 1 & 19, which may cause
system unstable, error, or non accurate weighing result. If entered by
mistake, press OFF immediately. Contact your dealer for more
information.

8

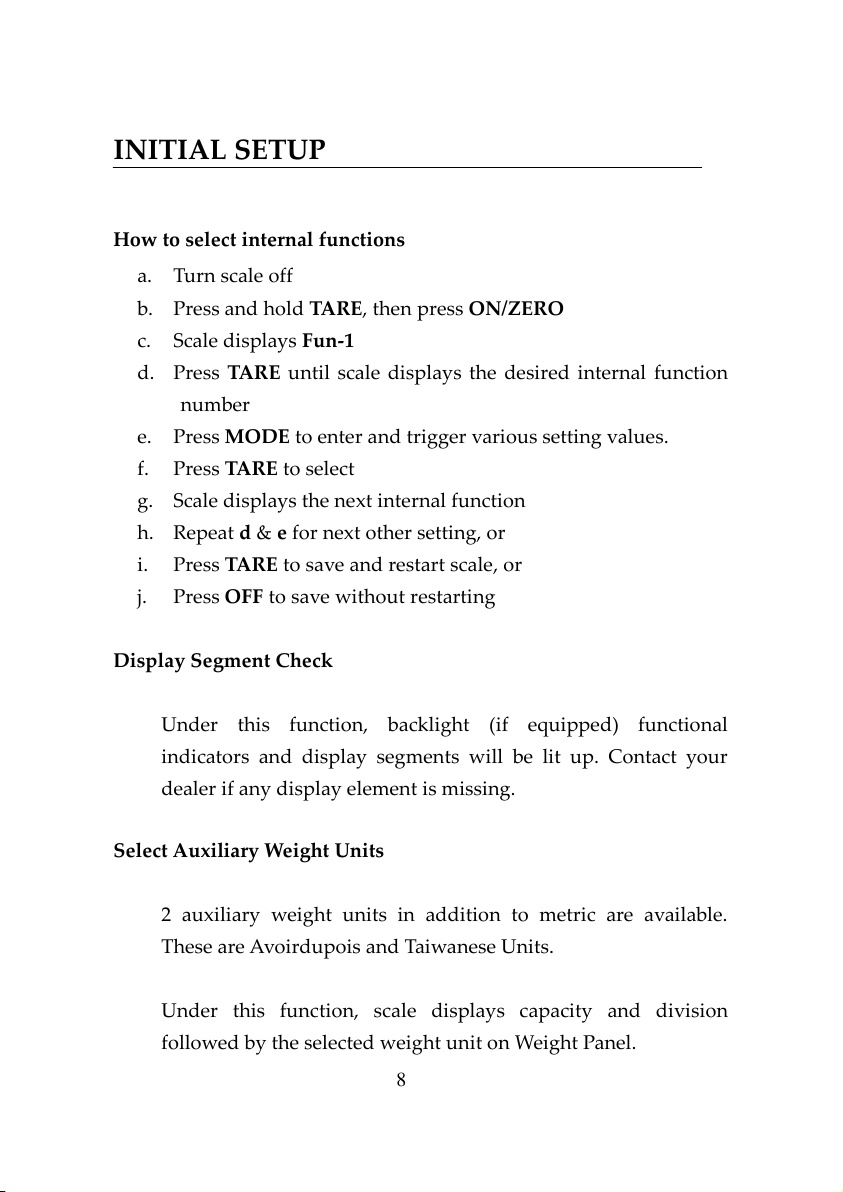

INITIAL SETUP
How to select internal functions
a. Turn scale off
b. Press and hold TARE, then press ON/ZERO
c. Scale displays Fun-1
d. Press TARE until scale displays the desired internal function
number
e. Press MODE to enter and trigger various setting values.
f. Press TARE to select
g. Scale displays the next internal function
h. Repeat d &e for next other setting, or
i. Press TARE to save and restart scale, or
j. Press OFF to save without restarting
Display Segment Check
Under this function, backlight (if equipped) functional
indicators and display segments will be lit up. Contact your
dealer if any display element is missing.
Select Auxiliary Weight Units
2 auxiliary weight units in addition to metric are available.
These are Avoirdupois and Taiwanese Units.
Under this function, scale displays capacity and division
followed by the selected weight unit on Weight Panel.

9

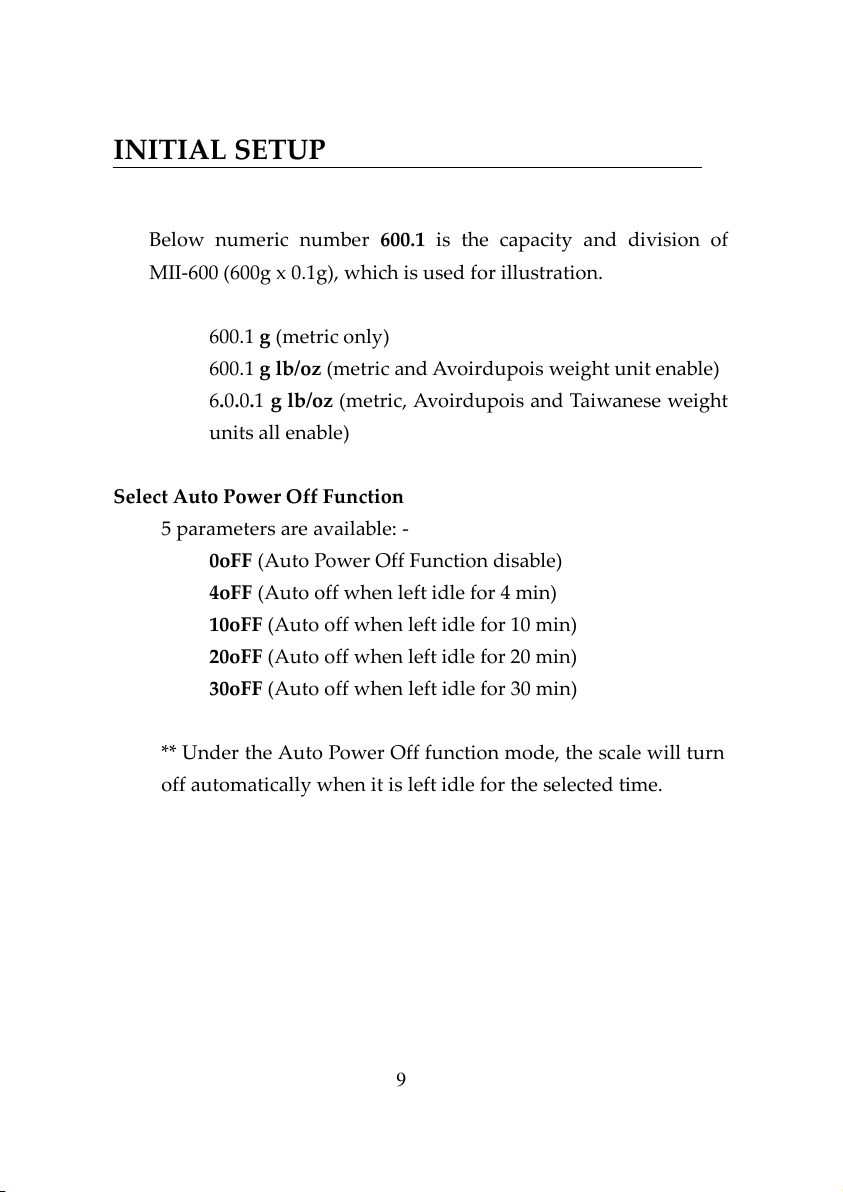

INITIAL SETUP
Below numeric number 600.1 is the capacity and division of
MII-600 (600g x 0.1g), which is used for illustration.
600.1 g (metric only)
600.1 g lb/oz (metric and Avoirdupois weight unit enable)
6.0.0.1 g lb/oz (metric, Avoirdupois and Taiwanese weight
units all enable)
Select Auto Power Off Function
5 parameters are available: -
0oFF (Auto Power Off Function disable)
4oFF (Auto off when left idle for 4 min)
10oFF (Auto off when left idle for 10 min)
20oFF (Auto off when left idle for 20 min)
30oFF (Auto off when left idle for 30 min)
** Under the Auto Power Off function mode, the scale will turn
off automatically when it is left idle for the selected time.

10
INITIAL SETUP
Select Digital Motion Filtering Function
3 parameters are available:
Filt.0 (filtering function disable)
Filt.1 (filter 1)
Filt.2 (filter 2)
Use digital motion filtering function when the operation
environment is subject to disturbances like vibration, wind flow,
etc. Select higher filter values for worse environments. Filt2
gives the slowest response compared with other 2 parameters.
Select Auto Tare Function
2 parameters are available:
Tr-On (Auto Tare Function enable)
Tr-OFF (Auto Tare Function disable)
Under the Auto Tare Function, the first load applied to scale
will be treated as a container and will be tared off automatically.

11

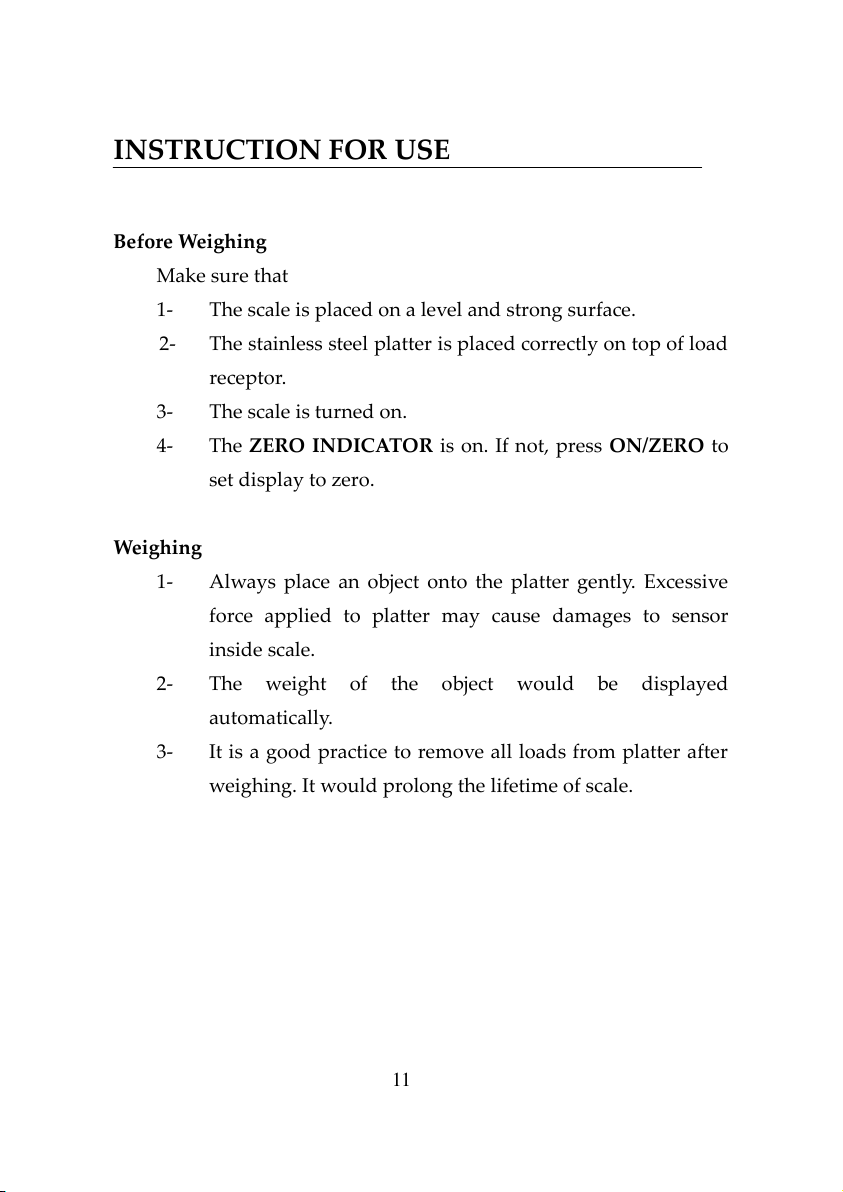

INSTRUCTION FOR USE
Before Weighing
Make sure that
1- The scale is placed on a level and strong surface.
2- The stainless steel platter is placed correctly on top of load
receptor.
3- The scale is turned on.
4- The ZERO INDICATOR is on. If not, press ON/ZERO to
set display to zero.
Weighing
1- Always place an object onto the platter gently. Excessive
force applied to platter may cause damages to sensor
inside scale.
2- The weight of the object would be displayed
automatically.
3- It is a good practice to remove all loads from platter after
weighing. It would prolong the lifetime of scale.

12
INSTRUCTION FOR USE
Selecting Weight Unit
Press MODE to shift among various weight units (gram, lb/oz
and Taiwanese) with or without backlight if required. Refer to
page 8 for internal setting procedures.
The weight unit (used before power off) would be employed
when the scale is turned on again.
Set Display Value to Zero when Unloaded
Press ON/ZERO to set weight displayed to zero when unloaded.
Refer to SPECIFICATIONS for maximum zero range.
Tare off the Weight of a Container
When a container is used, follow the below steps to tare off the
weight of it and to obtain a net weight result.
a. Remove all loads away from platter
b. Make sure that zero weight and the ZERO INDICATOR
appear. If not, press ON/ZERO to set it to zero weight.
c. Place the container on the platter.
d. Press TARE.

13

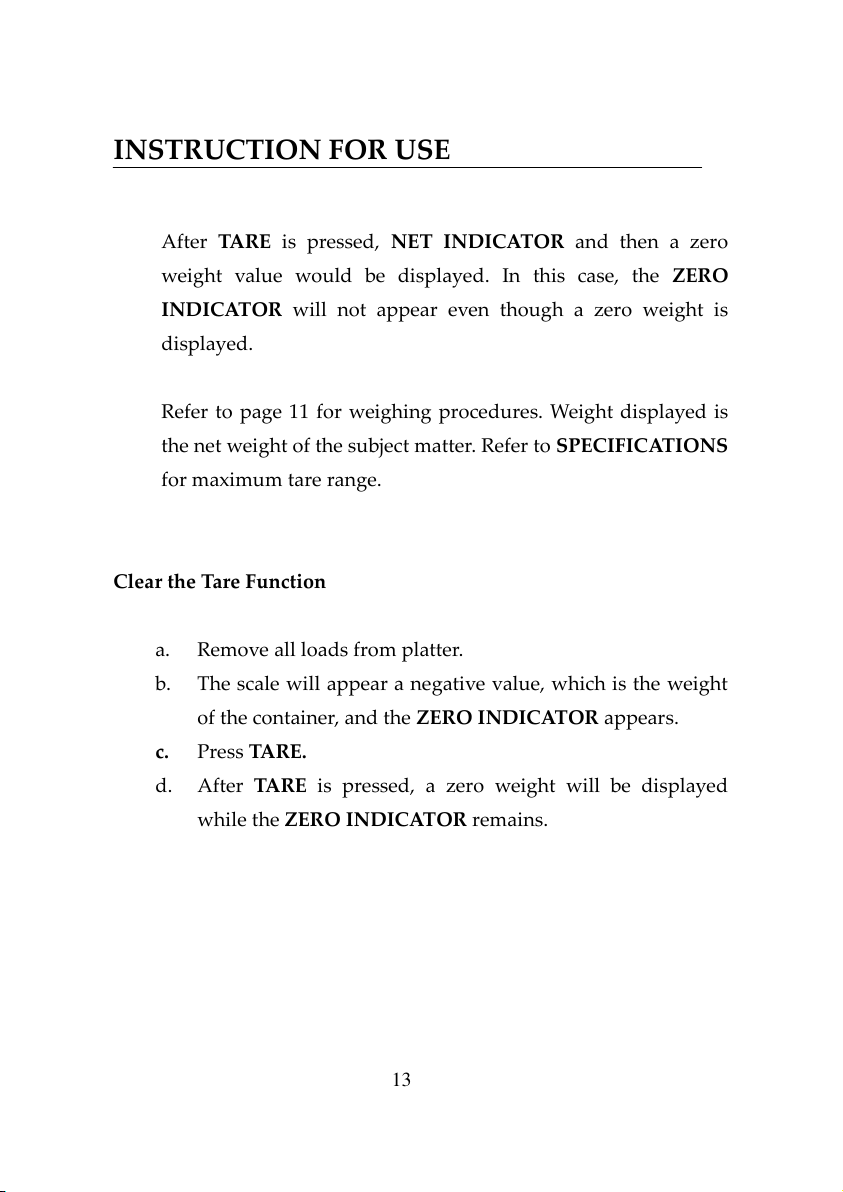

INSTRUCTION FOR USE
After TARE is pressed, NET INDICATOR and then a zero
weight value would be displayed. In this case, the ZERO
INDICATOR will not appear even though a zero weight is
displayed.
Refer to page 11 for weighing procedures. Weight displayed is
the net weight of the subject matter. Refer to SPECIFICATIONS
for maximum tare range.
Clear the Tare Function
a. Remove all loads from platter.
b. The scale will appear a negative value, which is the weight
of the container, and the ZERO INDICATOR appears.
c. Press TARE.
d. After TARE is pressed, a zero weight will be displayed
while the ZERO INDICATOR remains.

14
INSTRUCTION FOR USE

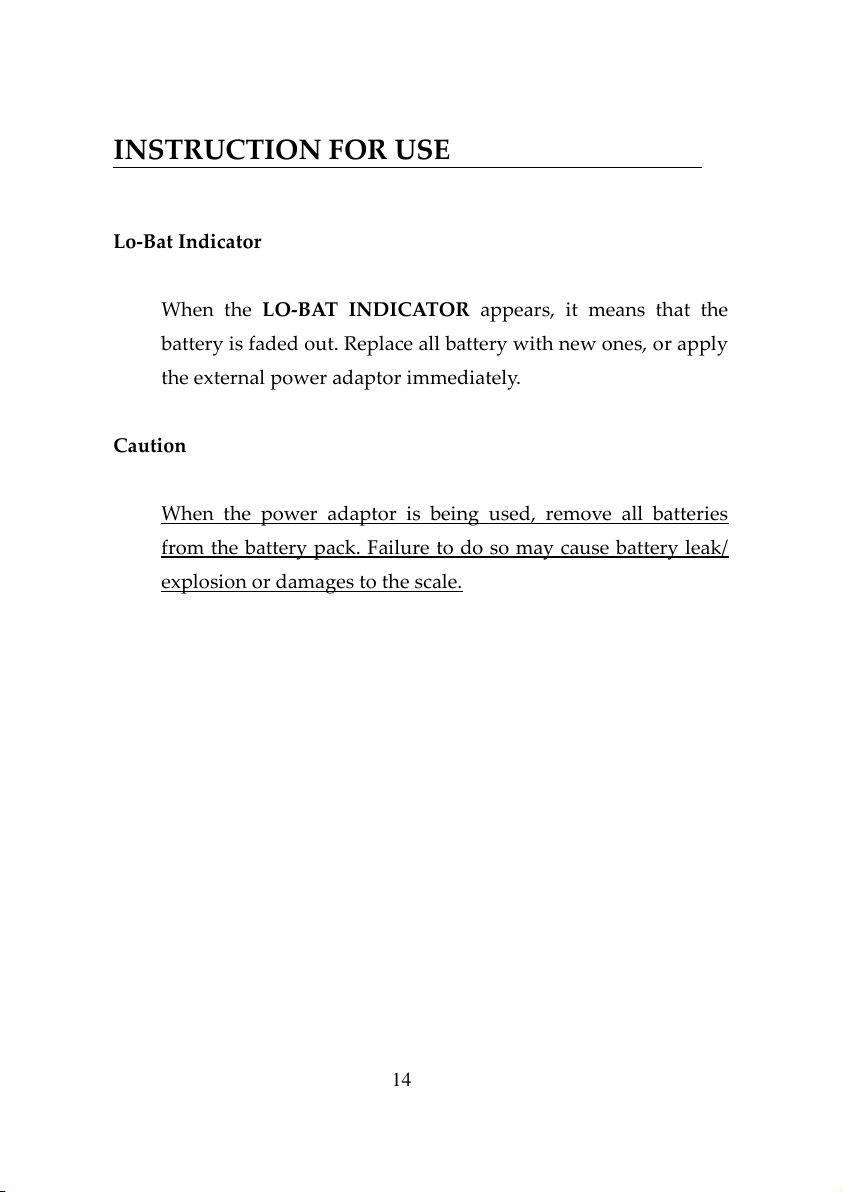

Lo-Bat Indicator
When the LO-BAT INDICATOR appears, it means that the
battery is faded out. Replace all battery with new ones, or apply
the external power adaptor immediately.
Caution
When the power adaptor is being used, remove all batteries
from the battery pack. Failure to do so may cause battery leak/
explosion or damages to the scale.

15

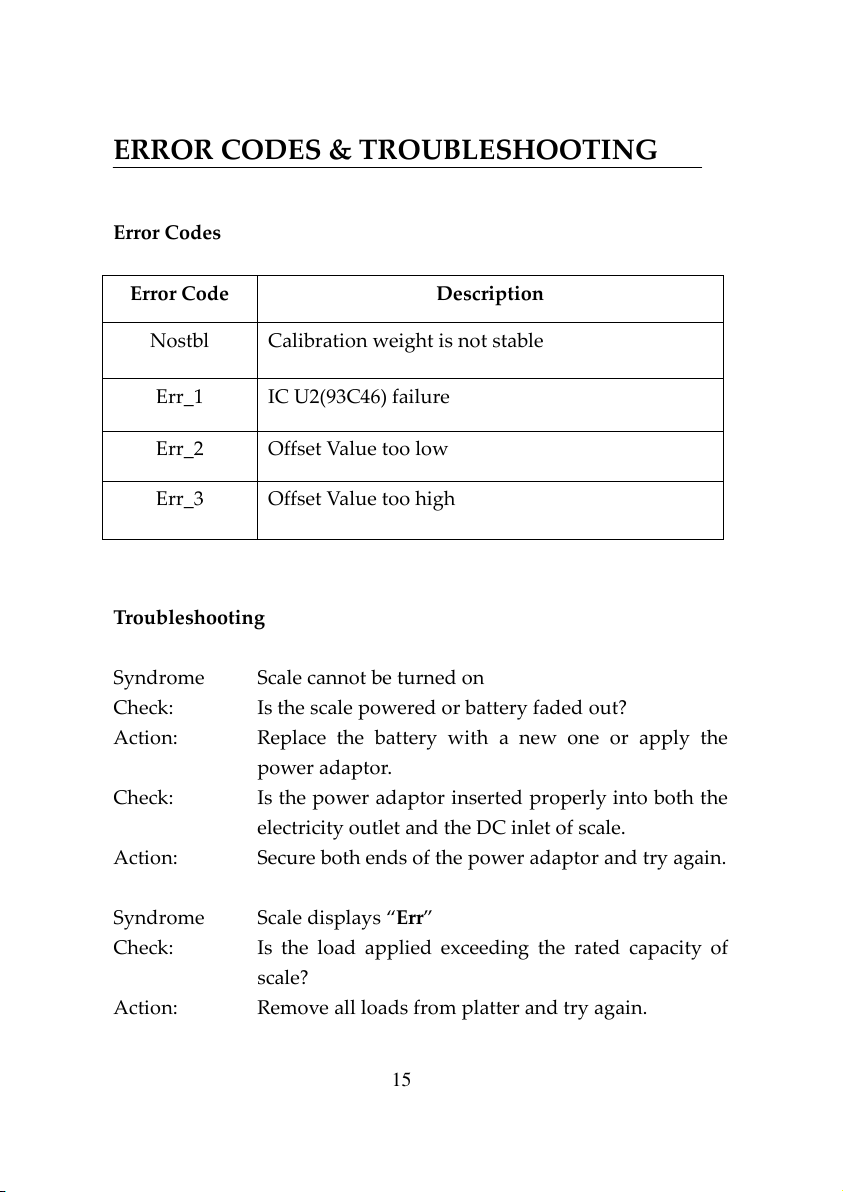

ERROR CODES & TROUBLESHOOTING
Error Codes
Error Code
Description
Nostbl
Calibration weight is not stable
Err_1
IC U2(93C46) failure
Err_2
Offset Value too low
Err_3
Offset Value too high
Troubleshooting
Syndrome Scale cannot be turned on
Check: Is the scale powered or battery faded out?
Action: Replace the battery with a new one or apply the
power adaptor.
Check: Is the power adaptor inserted properly into both the
electricity outlet and the DC inlet of scale.
Action: Secure both ends of the power adaptor and try again.
Syndrome Scale displays “Err”
Check: Is the load applied exceeding the rated capacity of
scale?
Action: Remove all loads from platter and try again.

16
ERROR CODES & TROUBLESHOOTING
Syndrome Scale turned off automatically
Is the AUTO POWER OFF FUNCTION being
employed?
Refer to page 9 in the Select Auto Power Off
Function to disable the Auto Power Off Function.
Check: Is the LO-BAT INDICATOR on?
Action: Replace the battery with a new one, or apply the
power adaptor immediately.
Syndrome Weighing result is not accurate
Check: Is the scale placed in a level condition?
Action: Relocate the scale to obtain a level condition.
Check: Is the scale affected by airflow, vibration or RFI?
Action: Place the scale away from all disturbances.
Check: Is the scale calibrated correctly?
Action: Contact your dealer.
Check: Is the correct weight unit employed?
Action: Refer to page 12 to select the correct weight unit.

17

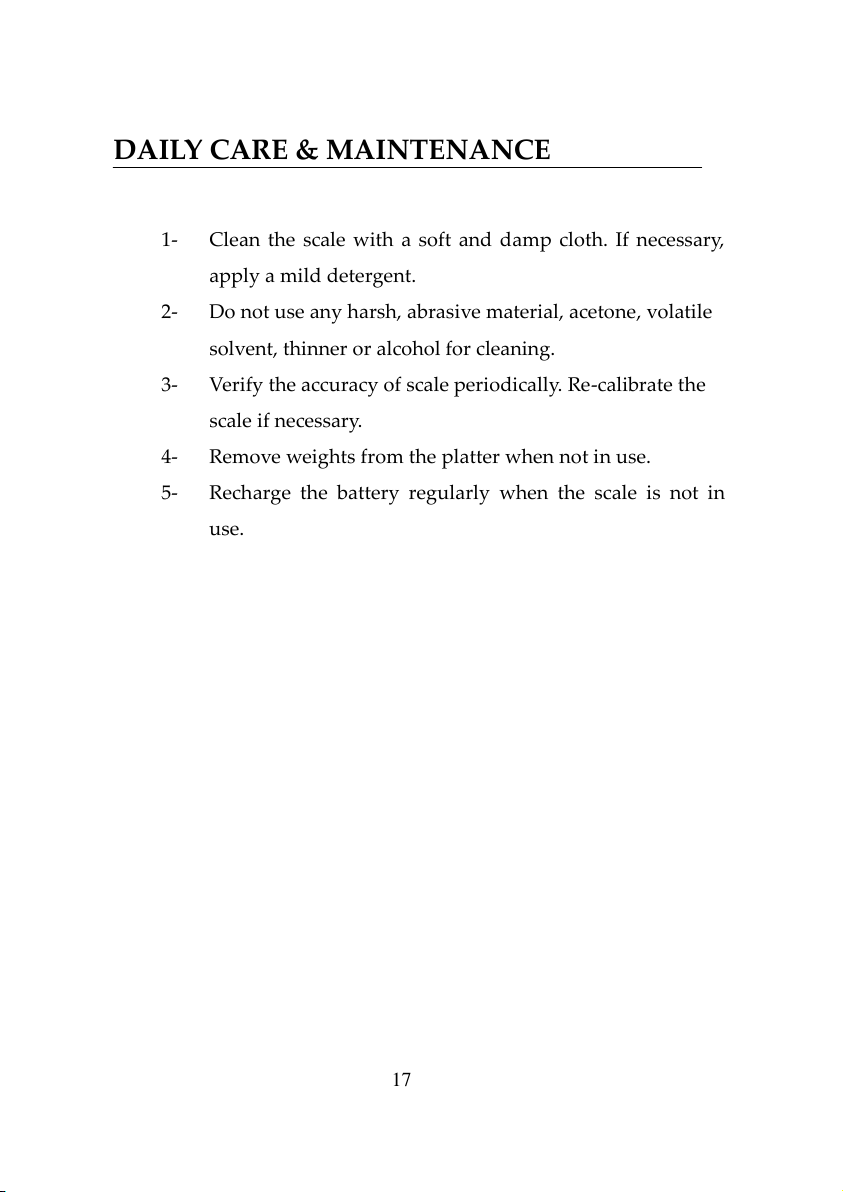

DAILY CARE & MAINTENANCE
1- Clean the scale with a soft and damp cloth. If necessary,
apply a mild detergent.
2- Do not use any harsh, abrasive material, acetone, volatile
solvent, thinner or alcohol for cleaning.
3- Verify the accuracy of scale periodically. Re-calibrate the
scale if necessary.
4- Remove weights from the platter when not in use.
5- Recharge the battery regularly when the scale is not in
use.
