Universal 75015 User manual

Universal
Eight Station PLUS
Corner Gym
MODEL NUMBER
75015 OWNER’S MANUAL

2
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
Congratulations on purchasing your
Universal Eight Station PLUS Corner Gym
With this product in your home, you have everything you need to start your own workout program to tone and firm the muscle
groupsofyourupperandlowerbody. Thisisvitalforallofus,regardlessofage, sex, or fitness level, andregardlessofweather
yourprimary goal is toning, healthmaintenance, or more energy fordaily activities.
Proper exercise, including a low fat diet, strength training and aerobic exercise, tones and conditions the muscles we use
everyday to stand, walk, lift, and turn. It can actually transform our body composition by reducing body fat and increasing the
proportionofleanmuscle in our bodies.
Besuretoreadthrough this Owner’sManual Carefully.
It is the authoritative source of information about your Universal Eight Station PLUS Corner Gym.
Universal Fitness™ assumesnoresponsibilityforpersonalinjuryorpropertydamagesustainedbyorthrough theuseofthis
product.
Retainthe manual forfuturereference.
Table of Contents:
ImportantSafety Instructions and General Maintenance…………………3
CommentsorQuestionsandBeforeYouBegin …………………………. 4
PartsList…………………………………………..…….....………....……..5
Hardware Illustrations...................................................................6 - 7
Parts Illustrations.......................................................................8 - 10
AssemblyInstructions……………………………………...….………11-32
Warranty………………………………………………………………....…..35
Owner’sPurchaseRecord…………………………..……………BackCover

3
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
Know your heart rate and / or pulse, and your physician recommended target heart rate training
zone.
Proper medical clearance is recommended for anyone beginning and exercise program especially
if you are over 35 years of age or suffer from heart respiratory problems.
Warmup beforeany exerciseprograms with8minutes ofaerobic activity.
Wearcomfortable clothes thatallow freedom ofmovement andthatare nottightor restricting.
Wear comfortable shoes made of good support with nonslip soles.
Breathe naturally, never holding your breath during an exercise.
Perform exercises consistently with proper technique and pass through a full range of motion.
Avoidovertraining. Youshould beableto carryon aconversationwhile exercising.
After an exercise session, cool down with slow stretching, cycling or walking.
Thismachineshould notbeused byornear children.
Handicapped or disabled people must have medical approval before using this machine and should
beunderclose supervisionwhenusing any exerciseequipment.
Use this machine only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
Only one person at a time should use this machine.
Do not put hands, feet, or any foreign objects on or near this machine when in use by others.
Always use this machine on a level surface.
Never operate the machine if the machine is not functioning properly.
Start exercise slowly and gradually increase the amount of resistance.
If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, stop exer-
ciseat onceand consult aphysician immediately.
Usecautionno topinchfingers orhandsin movingpartswhen usingtheunit.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this machine.
KEEP THESE INSTRUCTIONS
CAUTION:
Exercise of a strenuous nature, as is customarily done on this equipment,
shouldnot beundertakenwithout firstconsultinga physician.No specific health
claimsare madeor impliedas theyrelate tothe equipment.
Keepcables, pulleysand guiderods free ofdirt, dustor anybuild-up toprevent dragorbinding.
Wipecushionsclean aftereachworkout.
Tightenhardware onceevery sixmonths.
1.
2.
3.
General Maintenance

4
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
Comments or Questions?
Dear customer,
Congratulations on your purchase of the Universal Eight Station PLUS Corner Gym.
We’re sure that you will be completely satisfied with the product and we invite your comments so that we can hear
about your success.
Pleasewriteorcall at the address or phone numbers listed below,with any comments or questions you may have.
Service and Parts - Toll free number: 1-800-521-6233 Monday through Friday-8:00 am to 4:30 PM Central Time
Fax: [phone]
E-mail: [email protected]
Website: www.universal-fitness.com
Universal Fitness™
A Division of FFA Corp.
Customer Service Department
100TubbAve.
West Point, MS 39773
Ordering Missing or Defective Parts
When ordering parts, always provide the following information:
1. NAME,MAILINGADDRESSAND TELEPHONENUMBER
2. DATE OF PURCHASE
3. WHERE PRODUCT IS PURCHSED (NAME OF RETAIL STORE,CITY)
4. MODELNUMBER (75015)
5. PART ORDER NUMBER AND DESCRIPTION
All details depicted in this Owner’s Manual, and of the product itself, are subject to change without notice.
Before you begin
1. FIND YOUR TOOLS: You need two adjustable crescent wrenchs and one rubber mallet. These tools are
NOT included in the carton.
2. LOCATE YOUR WORK OUT AREA: For your safety and convenience, you must assemble the
unit exactly where it is to be used, so that you will not have to move it once the assembly is complete.
Allow ample space for the unit and space for the spotter to stand. The area must have adequate
lighting and ventilation. If the area is within living quarters, protect the carpet or floor with a large mat
prior to assembly.
3. GET A HELPER: It is recommended that two adults assemble the product. All persons involved in the
assembly should be in good health, and exercise great caution while manipulatingheavy metal objects.
Keep children away during assembly.
4. IDENIFY YOUR HARDWARE: To identify a piece of hardware by physical size, use the scales
provided on page 5, on back of hardware or metric ruler. To remove hardware from hardware card cut
boxes out of the back.
5. TIGHTEN ALL BOLTS BY HAND FIRST: Do not tighten any bolts until the entire unit is assembled.
Initially,all bolts should only be hand-tightened.Onceall parts are in place, begin tighteningthebolts at the
top of the unit first, and work your way down to the floor.
6. INSTALLING FOAM ROLLS and GRIPS: Liquid soap applied to inside of FOAM ROLLS and GRIPS
then outside of TUBES will help FOAM ROLLS and GRIPS slide on easier. When soap dries, the FOAM
ROLLS and GRIPS will stay in place.

5
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
PARTS LIST
1 04477 RIGHTBASE BEAM
2 04478 LEFT BASE BEAM
3 04479 PULLEY BRACKET PLATE
4 04480 FOAM ROLL (BIG)
5 04481 RIGHTVERTICAL FRAME
6 04482 CENTER VERTICALFRAME
7 04483 LEFTVERTICAL FRAME
8 04484 GUIDE ROD
9 04485 SHROUD
10 04486 LEFT TOP CROSS FRAME
11 04487 RIGHT TOP CROSS FRAME
12 04488 LEGEXTENSION
13 04489 CURLFRAME
14 04490 PRESS BAR
15 04491 SEAT SUPPORT FRAME
16 04492 SUPPORT BEAM
17 04493 LEFTSEAT CUSHION FRAME
18 04494 CONNECT FRAME
19 04495 FOOT PLATE EXTENSION
20 04496 FOOT PLATE
21 04497 PRESS COLUMN
22 04498 PRESS ARM
23 04499 RIGHT PRESS HANDLE
24 04500 LEFT PRESS HANDLE
25 04501 BUTTERFLYEXTENSION
26 04502 RIGHTBUTTERFLY
27 04503 LEFT BUTTERFLY
28 04504 CENTER FRAME
29 04505 TOP CENTER FRAME
30 04506 LAT BAR
31 04507 CURL BAR
32 04508 FOAM ROD
33 04509 DOUBLE PULLEY BRACKET
34 04510 DOUBLE PULLEY BRACKET
35 04511 SINGLE PULLEY BRACKET
36 04512 CONNECT PLATE
37 04513 “U” LOCK
38 04514 SELECTION ROD
39 04515 BACKCUSHION
40 04516 SEAT CUSHION
41 04517 CURLCUSHION
42 04518 PULLEY
43 04519 1” ROUND END PLUG
44 04520 2” ROUND END PLUG
45 04521 50mm SQUARE END PLUG
46 04522 45mm SQUARE END PLUG
47 04523 RECTANGLEPLUG(20X40)
48 04524 50mm x 45mm BUSHING
Item Part No. Description Qty. 49 04525 SQUARE SPACER (50x50)
50 04526 2”ROUND BUSHING
51 04527 HANDGRIP
52 04528 ROUND BUMPER
53 04529 SQUARE BUMPER
54 04530 FOAM ROLL
55 04531 FOAMGRIP(LONG)
56 04532 FOAMGRIP
57 04533 ANKLE STRAP
58 04534 DOUBLE STRAP
59 04535 PT-1 POP PIN
60 04536 HOOK
61 04537 CHAIN
62 04538 WEIGHT SELECTIONPIN
63 04539 LOWER CABLE (SHORT)
64 04540 BUTTERFLY CABLE
65 04541 UPPER CABLE (LONG)
66 04542 WEIGHT CABLE
67 04543 f19x215 PRESS BAR SHAFT
68 04544 f19x150 PRESS BAR SHAFT
69 04545 3/8” X 7” HEX BOLT
70 NONE
71 04546 3/8” X 4-3/8” HEX BOLT
72 04547 3/8” X 4-1/8” HEX BOLT
73 04548 3/8” X 4” HEX BOLT
74 04549 3/8” X 3-1/2” HEX BOLT
75 04550 3/8” X 3-5/8” HEX BOLT
76 04551 3/8” X 3-1/4” HEX BOLT
77 04552 3/8” X 3” HEX BOLT
78 04553 3/8” X 2-3/4” HEX BOLT
79 04554 3/8” X 2-1/2” HEX BOLT
80 04555 3/8” X 2” HEX BOLT
81 04556 5/16” X 1” HEX BOLT
82 04557 3/8” X 3/4” HEX BOLT
83 04558 M10 X 25mm SCREW
84 04559 5/16” X 2-1/2” HEX BOLT
85 04560 5/16” LOCKNUT
86 04561 3/8” LOCKNUT
87 04562 5/8” LOCKNUT
88 04563 5/8” WASHER
89 04564 5/16” WASHER
90 04565 3/8” WASHER
91 04566 3/4”OIL BUSHING
92 04567 12mmBUSHING
93 04568 24mmBUSHING
94 04569 7/16” X 1-1/2” ALLEN SCREW
95 04570 STOP PLATE
96 04571 WEIGHTPLATE
1
2
4
4
3
4
2
2
1
1
1
7
3
1
1
1
1
1
1
1
1
1
4
4
2
1
5
17
7
2
22
2
30
3
2
4
65
6
6
8
161
10
2
2
1
1
1
1
1
2
2
1
1
1
2
1
1
1
1
1
1
1
2
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
2
2
1
2
2
1
1
2
2
1
30
10
6
18
3
6
2
Item Part No. Description Qty.

6
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com

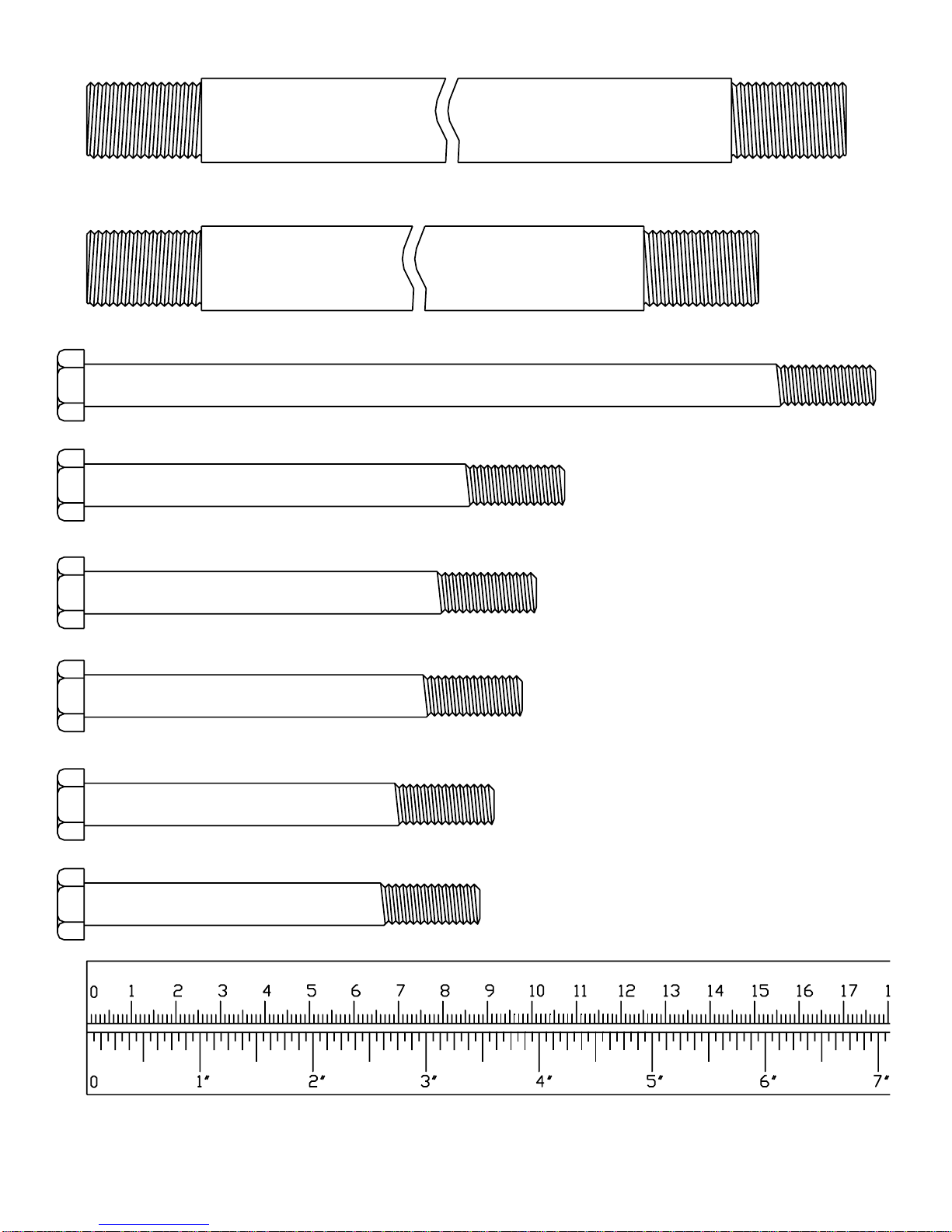

HARDWARE - 1
(75) 3/8" X 3-5/8" HEX BOLT
mm
(74) 3/8" X 3-1/2" HEX BOLT
(73) 3/8" X 4" HEX BOLT
(72) 3/8" X 4-1/8" HEX BOLT
(71) 3/8" X 4-3/8" HEX BOLT
(69) 3/8" X 7" HEX BOLT
(70) NONE
(67) 19 x150 PRESS BAR SHAFT
(68) 19 x 215 PRESS BAR SHAFT

7
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
(83) M10 X 25 SCREW
(94) 7/16" X 1-1/2" ALLEN SCREW
(82) 3/8" X 3/4" HEX BOLT
(81) 5/16" X 1" HEX BOLT
mm
(93) 24
BUSHING
(92) 12
BUSHING
(91) 3/4" OIL BUSHING
(90) 3/8"
WASHER
(89) 5/16"
WASHER
(80) 3/8" X 2" HEX BOLT
(79) 3/8" X 2-1/2" HEX BOLT
(78) 3/8" X 2-3/4" HEX BOLT
(77) 3/8" X 3" HEX BOLT
(76) 3/8" X 3-1/4" HEX BOLT
(88) 5/8" WASHER
(86) 3/8"
LOCKNUT
(87) 5/8" LOCKNUT
(85) 5/16 "
LOCKNUT
(84) 5/16" X 2-1/2" HEX BOLT
HARDWARE - 2

8
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com

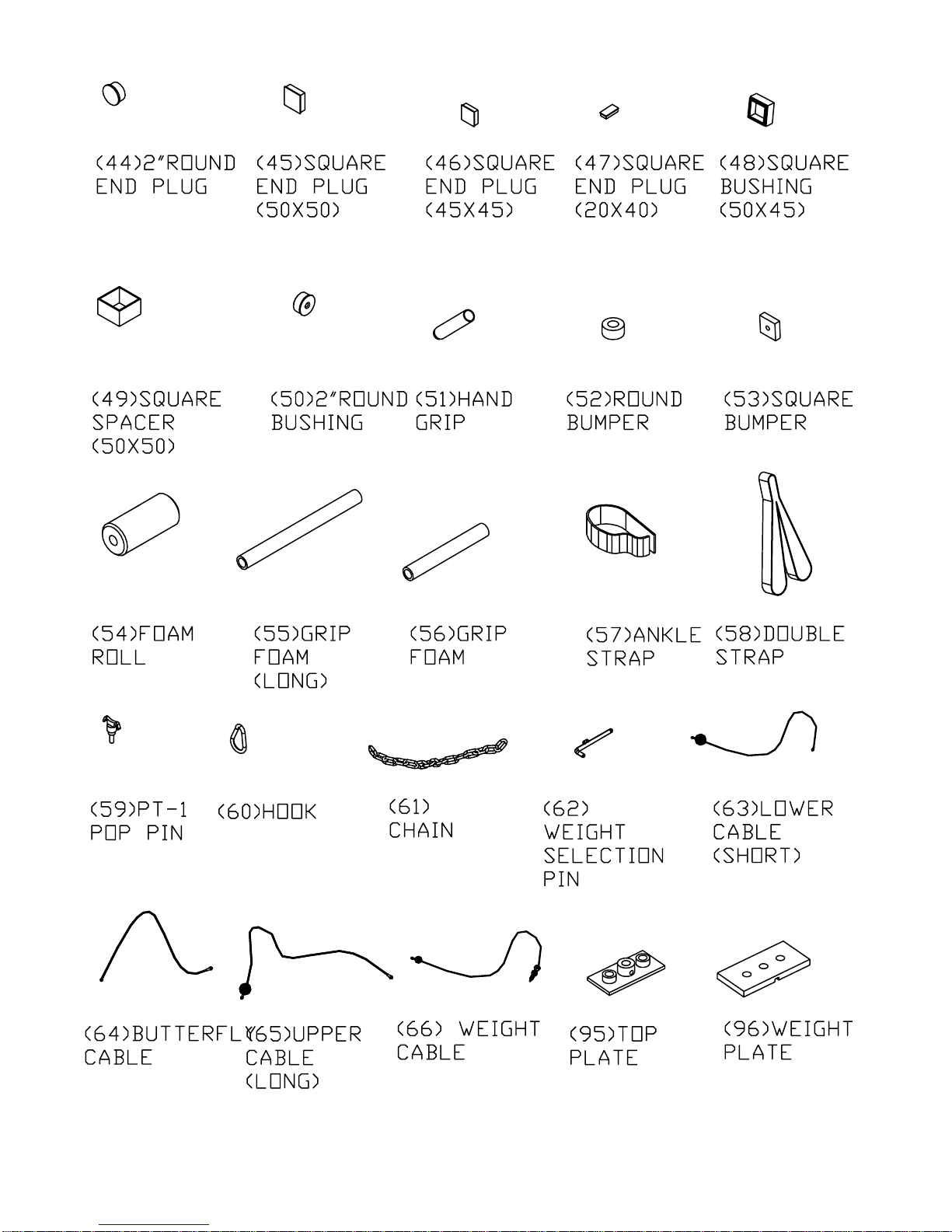

PARTS ILLUSTRATIONS - 1

9
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
PARTS ILLUSTRATIONS - 2

10
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
PARTS ILLUSTRATIONS - 3

11
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com

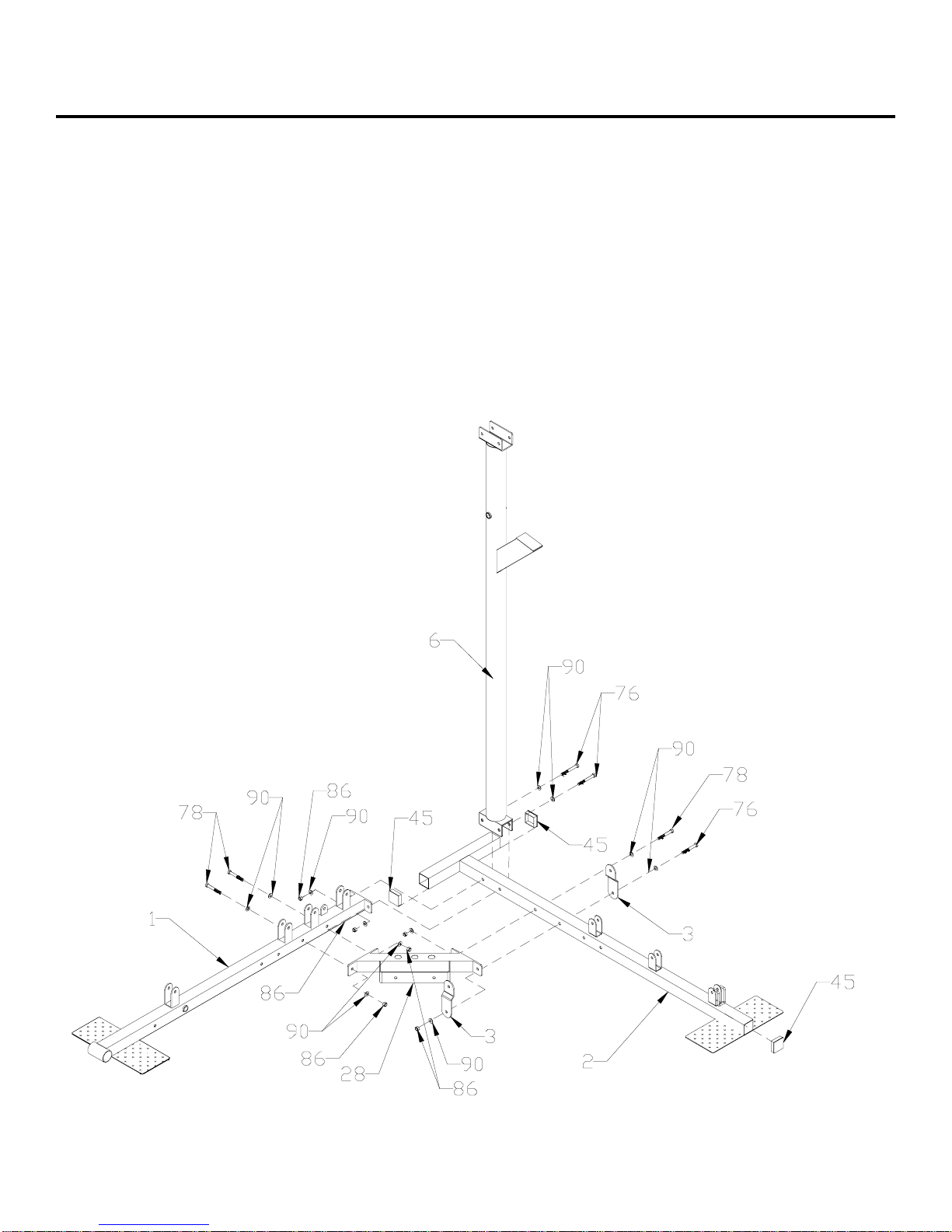

FIGURE 1
IMPORTANT
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING
FIGURE1
Step 1.
Step 2.
Step 3.
Step 4.
Step 5.
Push three 50mm SQUARE END PLUGS (45) onto LEFT BASE BEAM (2).
Place CENTER VERTICAL FRAME (6) over last set of holes in LEFT BASE BEAM (2) and attach RIGHT BASE
BEAM (1) and CENTER VERTICAL FRAME to LEFT BASE BEAM with 3/8” x 3-5/8” HEX BOLTS (76), 3/8” WASH-
ERS(90) and 3/8” LOCKNUTS(86).
AttachCENTER FRAME(28)toRIGHT BASE BEAM(1)with 3/8” x2-3/4”HEX BOLTS(78),3/8” WASHERS(90)and
3/8”LOCKNUTS(86).
AttachCENTER FRAME (28), at the inside holes, to the LEFTBASEBEAM(2)with3/8”x 2-3/4” HEX BOLTS (78), 3/
8”WASHERS (90) and 3/8” LOCKNUTS (86).
Attach CENTER FRAME (28) and PULLEY BRACKET PLATES (3), at outside holes, to the LEFT BASE BEAM (2)
with3/8”x3-5/8”HEXBOLTS(76),3/8”WASHERS(90)and3/8”LOCKNUTS(86).
NOTE:The short end of the PULLEY BRACKET
PLATES must be facing up as shown.

12
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
FIGURE2
Step 6.
Step 7.
AttachRIGHT VERTICALFRAME(5)toRIGHTBASE BEAM (1) with 3/8” x 3” HEX BOLTS (77), 3/8” WASHERS(90)
and3/8” LOCKNUTS(86).
AttachLEFT VERTICALFRAME (7)toLEFT BASE BEAM(2)with 3/8” x3”HEX BOLTS (77), 3/8”WASHERS(90) and
3/8”LOCKNUTS(86).
FIGURE 2

13
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com

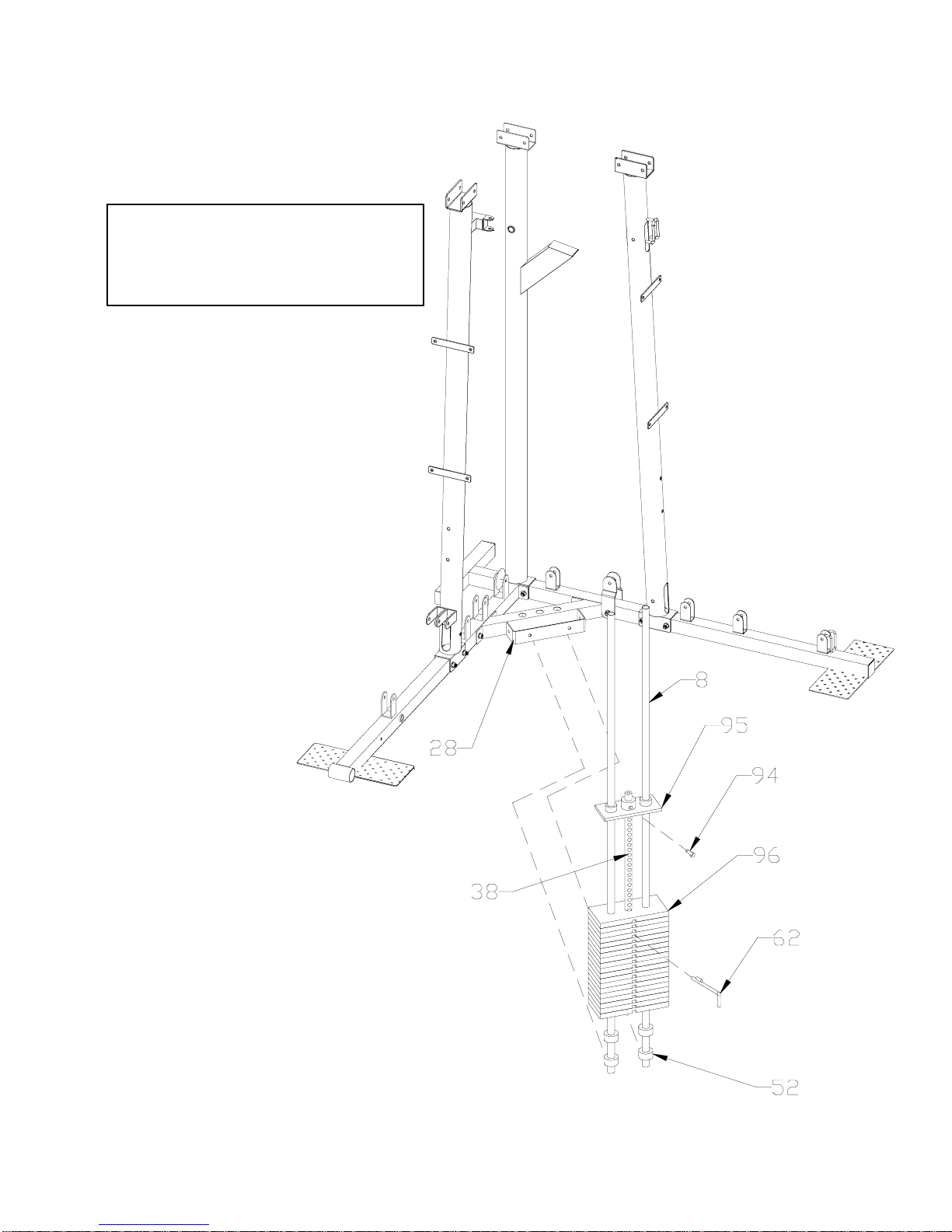

FIGURE3
Step 8.
Step 9.
Step 10.
Step 11.
Step 12.
Step 13.
SlidetwoROUNDBUMPERS(52)ontooneendofeachGUIDEROD(8).
FIGURE 3
Insert the GUIDE RODS (8) into the large
outside holes in the CENTER FRAME (28)
with ROUND BUMBERS (52) resting on
CENTERFRAME.
IMPORTANT: LoadingtheWEIGHTPLATES
(96)willrequiretwopeople.One to hold the
GUIDERODS(8) steadywhiletheotherper-
son slides the WEIGHT PLATES down the
GUIDERODS.
With the SLOTS facing out and on the bot-
tom as shown, slide the WEIGHT PLATES
(96),oneatatime,downthe GUIDE RODS
(8).
Insert the SELECTION ROD (38) into the
centerholeoftheTOPPLATE (95) and fas-
tenattheendholewith7/16”x1-1/2”ALLEN
SCREW(94).
SlideTOPPLATE (95) down GUIDE RODS
(8)sothatSELECTION ROD(38)slides into
thecenterholeoftheWEIGHTPLATES(96).
InsertWEIGHTSELECTIONPIN(62)through
SLOT in WEIGHT PLATE (96) and through
SELECTIONROD(38).

14
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com

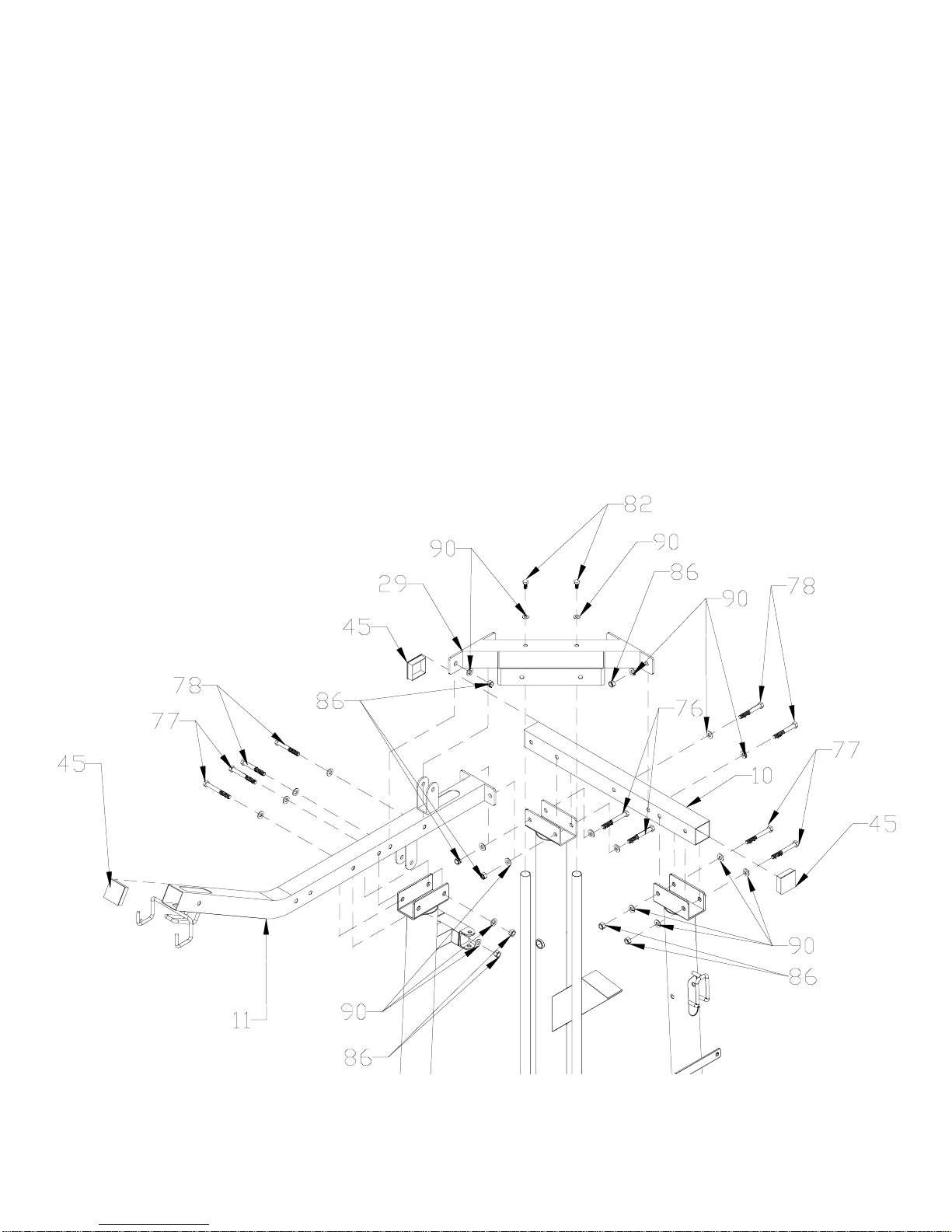

FIGURE 4
FIGURE4
Step14.
Step15.
Step16.
Step17.
Step18.
Step19.
Push 50mm SQUARE END PLUGS (45) into ends of LEFT TOP CROSS FRAME (10) and RIGHT TOP CROSS
FRAME(11).
AttachLEFTTOPCROSS FRAME (10) to LEFT VERTICALFRAME (7) with 3/8” x 3” HEX BOLTS(77),3/8”WASH-
ERS(90) and 3/8” LOCKNUTS(86).
Attach RIGHT TOP CROSS FRAME (11) to RIGHT VERTICAL FRAME (5) with 3/8” x 3” HEX BOLTS (77), 3/8”
WASHERS(90) and 3/8” LOCKNUTS (86).
Attach TOP CROSS FRAMES (10 LEFT & 11 RIGHT) to CENTER VERTICAL FRAME (6) with 3/8” x 3-1/4” HEX
BOLTS (76), 3/8” WASHERS(90)and3/8”LOCKNUTS(86).
Slidethe TOPCENTER FRAME(29)down over theGUIDERODS (8) andfastenwith 3/8”x3/4”HEX BOLTS (82)and
3/8”WASHERS(90).
AttachTOPCENTER FRAME (29) to the LEFT TOPCROSS FRAME (10) and the RIGHT TOPCROSS FRAME (11)
with3/8”x2-3/4”HEXBOLTS (78), 3/8” WASHERS(90) and 3/8” LOCKNUTS (86).

15
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com

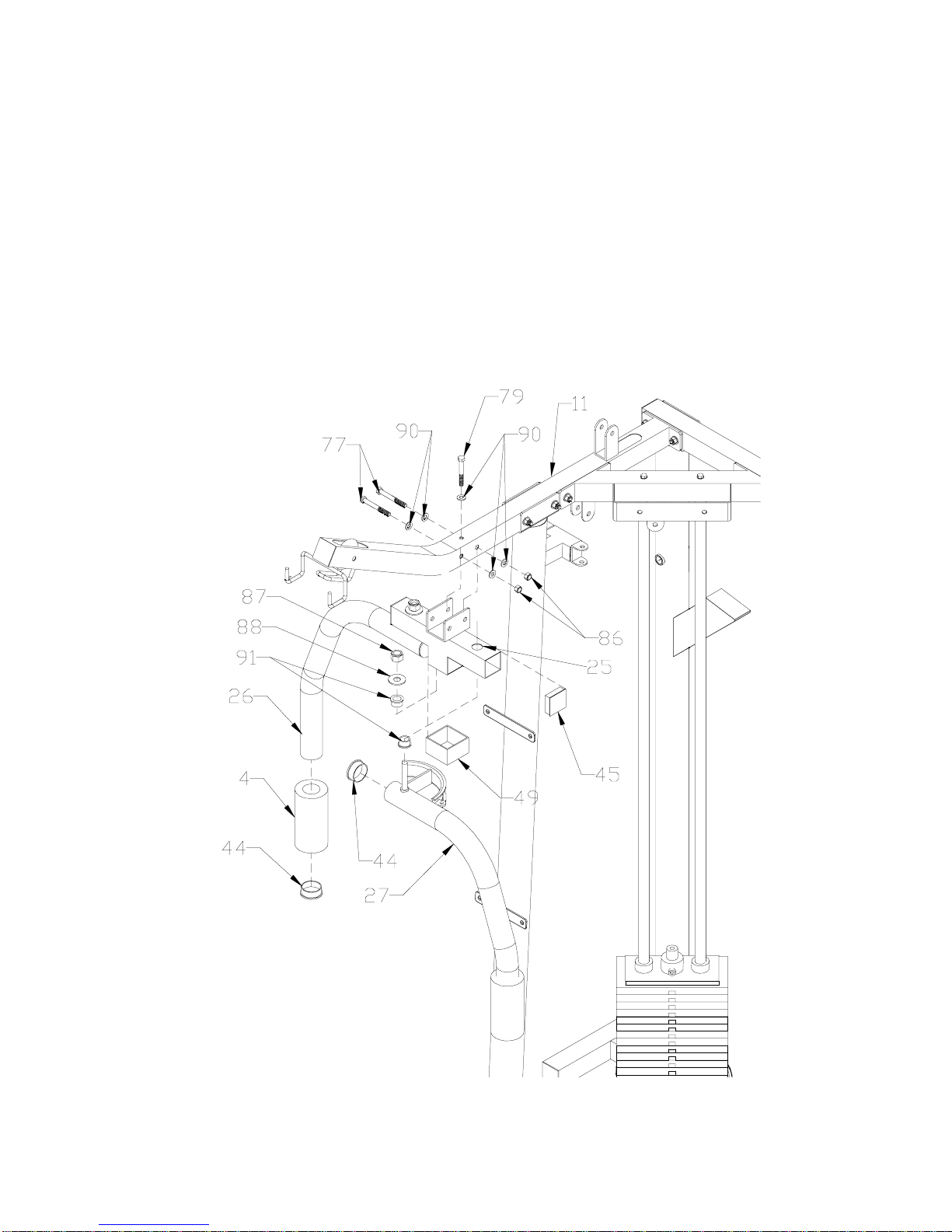

FIGURE5
Step 20.
Step 21.
Step 22.
Step 23.
Step 24.
Step 25.
Push50mmSQUAREENDPLUGS(45)intoeachsideofBUTTERFLYEXTENSION(25)and50mmSQUARESPACER
(49)over shortend.
Attach BUTTERFLY EXTENSION (25) to RIGHT TOP CROSS FRAME (11) with 3/8” x 3” HEX BOLTS (77), 3/8”
WASHERS(90) and 3/8” LOCKNUTS (86).
Threada3/8”x 2-1/2” HEX BOLT (79) and3/8”WASHERdown through RIGHTTOPCROSS FRAME (11) into BUT-
TERFLYEXTENSION(25)and tighten.
Push2” ROUND END PLUGS(44)intoeach end of RIGHTBUTTERFLY(26)andLEFT BUTTERFLY (27).
Usingliquidsoap, push a BIG FOAM ROLL (4) over end of BUTTERFLYS (26 RIGHT & 27 LEFT) until flush with end.
Attach BUTTERFLYS (26 RIGHT & 27 LEFT) to BUTTERFLY EXTENSION (25) with 3/4” OIL BUSHINGS (91), 5/8”
WASHERS(88) and 5/8” LOCKNUTS (87).
NOTE:DO NOTovertighten.BUTTERFLYSmust pivotfreely.
FIGURE 5

16
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
FIGURE6
Step 26.
Step 27.
Step 28.
Step 29.
Step 30.
Step 31.
Step 32.
Step 33.
Step 34.
Thread a 5/8” LOCKNUT (87) onto one end only of 19 x 215 PRESS BAR SHAFT (67) until flush with end.
Pushfour3/4” OIL BUSHINGS (91) into PRESS COLUMN (21).
Place a 5/8” WASHER (88) onto 19 x 215 PRESS BAR SHAFT (67) and slide up against 5/8” LOCKNUT (87).
Insert19 x 215 PRESS BARSHAFT(67)through PRESS COLUMN (21) andRIGHTBASEBEAM (1) and fasten with
5/8”WASHER (88) and 5/8” LOCKNUT (87).
AttachPRESS ARM (22),withbracketsfacing inward as shown,toPRESSCOLUMN (21) using 3/8”x3” HEX BOLTS
(77),3/8” WASHERS (90) and 3/8” LOCKNUTS (86).
Pushthree50mmSQUARE END PLUGS (45)
intoPRESSHANDLES(23RIGHT&24 LEFT).
FIGURE 6
Push 1” ROUND END PLUGS (43) into
PRESSHANDLES(23RIGHT&24 LEFT).
AttachPRESS HANDLES (23RIGHT&24
LEFT) to PRESS ARM (22) with 3/8” x 3”
HEXBOLTS(77),3/8” WASHERS(90) and
3/8”LOCKNUTS(86).
Using liquid soap, slide LONG FOAM
GRIPS (55) onto PRESS HANDLES (23
RIGHT&24LEFT)until flush with end.

17
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
BLANK PAGE

18
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com

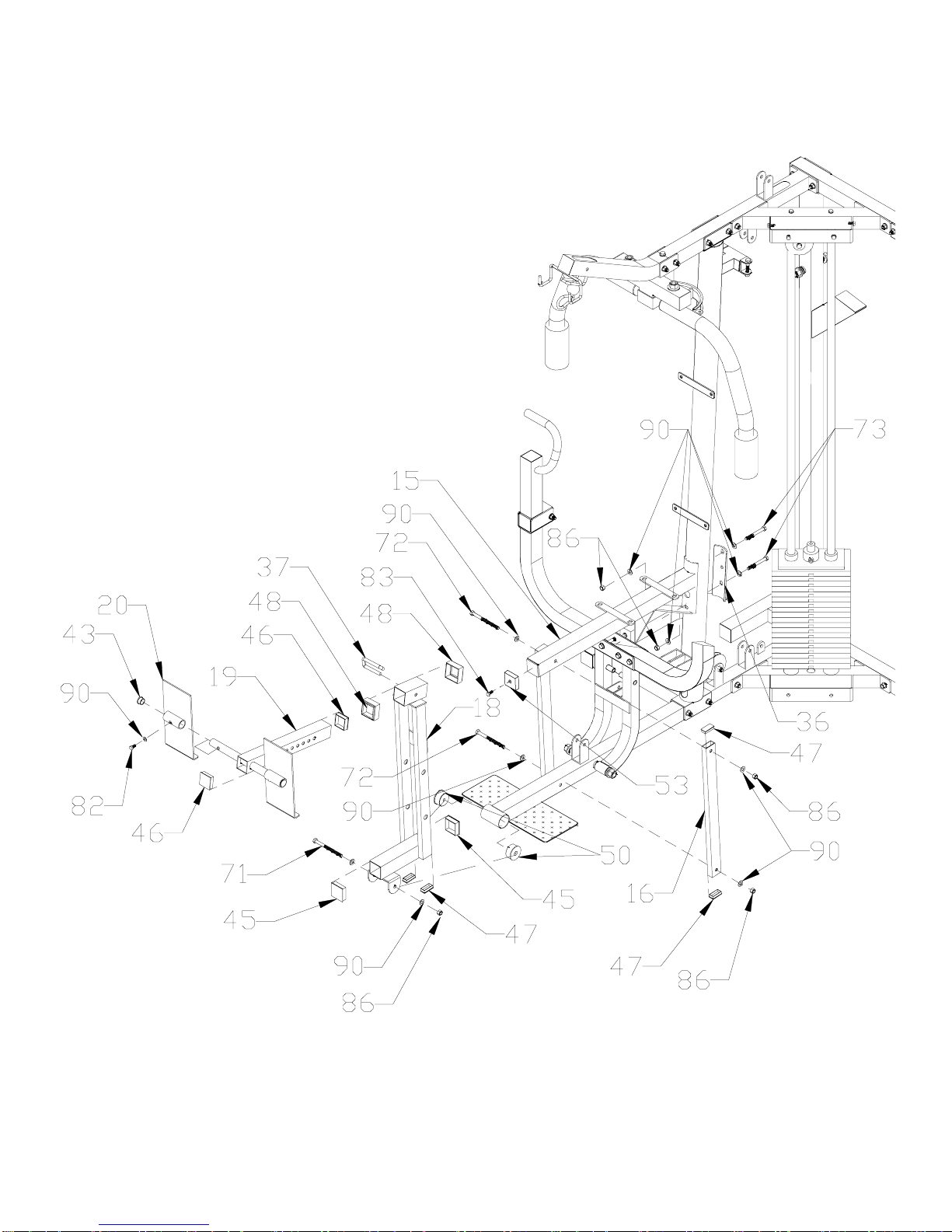

FIGURE7
Step 35.
Step 36.
Step 37.
Step 38.
Step 39.
Step 40.
Step 41.
Step 42.
Step 43.
Attach SQUARE BUMPER (53) to the end of SEAT SUPPORT FRAME (15) with M10 x 25mm SCREW (83).
Attach SEAT SUPPORT FRAME (15) to RIGHT VERTICAL FRAME (5) with 3/8” x 4” HEX BOLTS (73), 3/8” WASH-
ERS(90), CONNECT PLATE (36)and3/8” LOCKNUTS (86).
Push 20mm x 40 RECTANGLE PLUGS (47) into ends of SUPPORT BEAMS (16) and attach SUPPORT BEAMS to
SEAT SUPPORTFRAME (15) and RIGHT BASE BEAM (1) with3/8”x4-1/8”HEXBOLTS (72), 3/8” WASHERS(90)
and3/8” LOCKNUTS(86).
Push2”ROUND BUSHINGS (50) into each side of RIGHTBASEBEAM (1).
Pushtwo 50mm SQUAREENDPLUGS(45) and four20mmx40 RECTANGLEPLUGS (47) intoCONNECTFRAME
(18).
AttachCONNECT FRAME(18)toRIGHT BASEBEAM(1)with 3/8”x4-3/8”HEX BOLT (71),3/8”WASHERS (90)and
3/8”LOCKNUT(86).
Slide50mmx45mmBUSHINGS (48) over each end of guide tube at top of CONNECT FRAME(18).
Push45mmSQUARE ENDPLUGS (46)intoendsofFOOTPLATEEXTENSION(19)andinsertFOOTPLATEEXTEN-
SIONthrough50mm x 45mm BUSHINGS (48) and lockatdesired position with “U” LOCK (37).
SlideFOOTPLATES (20) onto FOOT PLATEEXTENSION (19)and fastenwith 3/8” x3/4” HEXBOLTS (82) and 3/8”
WASHERS(90).
NOTE:DO NOTovertighten.FOOTPLATESmust pivot freely.

19
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
FIGURE 7

20
DONOTTAKEorSENDPRODUCTBACKtowherethisproductwaspurchased.PleasecontactUniversalFitness/FFA Corp.
formissingordefective parts at one of the following: Phone [phone] or Fax [phone] or E-mail at
[email protected]. Mailing address: Universal Fitness/FFA Corp. - 100 Tubb Ave. West
PointMS 39773. Websight www.universal-fitness.com
FIGURE8
Step 44.
Step 45.
Step 46.
Attach SQUARE BUMPER (53) to the end of LEFT SEAT CUSHION FRAME (17) with M10 x 25mm SCREW (83).
Attach LEFT SEAT CUSHION FRAME (17) to LEFT VERTICAL FRAME (7) with 3/8” x 4” HEX BOLTS (73), 3/8”
WASHERS(90),CONNECT PLATE(36)and 3/8” LOCKNUTS (86).
Pushtwo50mmSQUARE ENDPLUGS (45)intoendsofLEG EXTENSION(12)andattachLEG EXTENSIONtoLEFT
SEATCUSHIONFRAME(17)with3/8”x3”HEXBOLT (77), 3/8” WASHERS(90)and3/8”LOCKNUT(86).
Step 47.
Step 48.
Step 49.
Push1” ROUND ENDPLUGS(43)into ends of bothFOAM
RODS(32).
Using liquid soap, slide one FOAM ROLL (54) onto end of
both FOAM RODS (32) until flush with end.
SlideFOAMRODS(32)intoLEFT SEATCUSHIONFRAME
(17)andLEGEXTENSION(12)then, usingliquidsoap,slide
otherFOAM ROLLS ontoFOAMRODS until flushwithend.
FIGURE 8
