Universal PowerPak 1000 User manual

OWNER’S MANUAL
Model No. 79110
SerialNumber:
DateofPurchase:
PlaceofPurchase:
Rev.B 10/14/03

2
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856orFax1-662-495-5038orE-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
Congratulations on purchasing your
Universal®Gym Equipment PowerPak®1000
With this product in your home, you have everything you need to start your own workout program to tone and firm the muscle
groupsofyourupperandlower body.This isvitalfor all ofus,regardless of age,sex,or fitness level,andregardless of whether
yourprimarygoalistoning,healthmaintenance,ormoreenergyfordailyactivities.
Properexercise, including alow fat diet,strength training andaerobicexercise, tones andconditions the muscleswe use every
day to stand, walk, lift, and turn. It can actually transform our body composition by reducing body fat and increasing the
proportionof lean muscle in our bodies.
Besure to read through this owner’smanual carefully.
It is the authoritative source of information about your Universal®Gym Equipment PowerPak®1000.
Universal®GymEquipment assumesno responsibilityfor personalinjury orpropertydamage sustainedby orthrough theuse
of this product.
Retainthis manualforfuture reference.
Table of Contents:
ImportantSafety InstructionsandGeneral Maintenance…………………3
Comments or Questions; Before You Begin …………….........…………. 4
Parts List…………………………………………..…….......…....…….. 5 - 6
AssemblyInstructions…………………………………….....….………8 - 18
Warranty………………………………………………………………....…..19
Owner’sPurchaseRecord…………………………..……………Back Cover

3
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
Knowyourheartrateand/ or pulse, and yourphysicianrecommendedtargetheartrate training zone.
Proper medical clearance is recommended for anyone beginning an exercise program, especially if
youareover 35 yearsof age or sufferfrom heart orrespiratory problems.
Warm up before anyexercise program with8 minutes of aerobicactivity.
Wearcomfortableclothesthat allow freedom of movementandthatare not tight orrestricting.
Wearcomfortableshoes with goodsupport and nonslip soles.
Breathenaturally,never holding yourbreathduringanexercise.
Performexercisesconsistentlywithpropertechnique and pass through a fullrangeofmotion.
Avoidover training. Youshouldbe able to carryona conversation while exercising.
Afteranexercisesession, cool down withslowstretching,cycling or walking.
Thismachineshouldnotbeused by or near children.
Handicapped or disabled people must have medical approval before using this machine and should
beunderclosesupervisionwhenusinganyexercise equipment.
Use this machine only for its intended use as described in this manual. Do not use attachments not
recommendedbythe manufacturer.
Onlyonepersonata time should use this machine.
Donotputhands, feet or anyforeignobjects on or nearthismachine when in usebyothers.
Alwaysusethismachineonalevelsurface.
Neveroperatethemachineifthe machine is not functioningproperly.
Startexerciseslowlyandgraduallyincreasethe amount of resistance.
If you experience dizziness, nausea, chest pain or any other abnormal symptoms, stop exercising at
onceandconsultaphysicianimmediately.
Usecautionnottopinch fingers or hands in movingpartswhenusingthis unit.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this machine.
KEEP THESE INSTRUCTIONS
CAUTION: Exerciseofa strenuous nature, asiscustomarilydoneonthisequipment,should
notbeundertaken without firstconsultinga physician. Nospecifichealth claims
aremade or impliedas they relateto the equipment.
Keepcables, pulleys and guiderods free ofdirt, dust orany build-up toprevent drag or binding.
Wipecushionscleanaftereachworkout.
Tightenhardwareonce everysixmonths.
1.
2.
3.
General Maintenance

4
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
Comments or Questions?
Dear customer,
Congratulations on your purchase of the Universal®Gym Equipment PowerPak®1000.
We’re sure that you will be completely satisfied with the product and we invite your comments so that we can hear
about your success.
Pleasewrite or call at the address orphone numbers listedbelow, withany comments orquestions you may have.
Service and Parts - Toll free number: 1-800-472-9856 Monday through Friday-8:00 am to 5:00 PM CST
Fax: [phone]
Website: www.universalgymequipment.com
Universal® Gym Equipment
A Division of FFA Corp.
Customer Service Department
100Tubb Ave.
West Point, MS 39773
Ordering Missing or Defective Parts
When ordering parts, always provide the following information:
1. NAME,MAILINGADDRESS ANDTELEPHONENUMBER
2. DATE OF PURCHASE
3. WHERE PRODUCT WAS PURCHASED (NAME OF RETAIL STORE, CITY)
4. MODELNUMBER (79110)
5. PART ORDER NUMBER AND DESCRIPTION
All details depicted in this owner’s manual, and of the product itself, are subject to change without notice.
Before you begin
E-mail: [email protected]
FIND YOUR TOOLS: You need two adjustable crescent wrenchs, one set of allen wrenches and one
rubber mallet. These tools are NOT included in the carton.
LOCATE YOUR WORK OUT AREA: For your safety and convenience, you must assemble the unit
exactly where it is to be used, so that you will not have to move it once the assembly is complete. Allow
ample space for the unit and space for the spotter to stand. The area must have adequate lighting and
ventilation. If the area is within living quarters, protect the carpet or floor with a large mat prior to assembly.
GET A HELPER: It is recommended that two adults assemble the product. All persons involved in the
assembly should be in good health and exercise great caution while manipulating heavy metal objects.
Keep children away during assembly.
IDENTIFY YOUR HARDWARE: To identify a piece of hardware by physical size, use the rule provided on
page 6.
TIGHTEN ALL BOLTS BY HAND FIRST: Do not tighten any bolts until the entire unit is assembled.
Initially, allbolts shouldonly be hand-tightened.Once allparts are inplace, begintightening the boltsat the
top of the unit first, and work your way down to the floor.
INSTALLING FOAM ROLLS: Liquid soap applied to inside of foam rolls and outside of tubes will help
foam pads slide on easier. When soap dries, the foam pads will stay in place.
1.
2.
3.
4.
5.
6.

5
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
PARTS LIST
No. Description Part No. Qty.
1 Base Frame 1
2 FrontUpright 1
3 Top Frame 1
4 RearUpright 1
5 Weight Frame 1
6 Weight Top Base 1
7 Press Support 1
8 Press Arm 1
9 1” Press Arm Axle 1
10 Rear Stabilizer 1
11 AdjustableTube 1
12 Leg Extension 1
13 Adjustable Back Arm 1
14 Roller Handle Bar 2
15 Seat Arm 1
16 AdjustableSeat Tube 1
17 FloatingPulley Block 1
18 Back Support 1
19 Roller Bracket 1
20 Bolster 2
21 Lat Bar 1
22 Selector Rod 1
23 Curl Bar 1
24 AbStrap 1
25 HandStrap 1
26 AnkleStrap 1
27 GuideRod 2
28 Weight Shroud 2
29 BearingHousing 2
30 Weight Plate -
- - Box of (4) 10lb Weights 79004 1
- - Box of (5) 10lb Weights 79005 3
- - Weight Label Set 05244 1
31 TopPlate 1
32 Selector Pin 1
33 SnapHook 1
34 LinkChain 4
35 Back Pad 1
36 Seat Pad 1
37 Foam Pad 4
38 Binding of Weight Shroud 4
39 Top Cable 1
40 AbCable 1
05349
05350
05351
05352
05353
05354
05355
05356
05357
05358
05359
05360
05361
05362
05363
05364
05365
05366
05367
05368
05369
05370
05371
05372
05373
05374
05375
05376
05377
05378
05379
05380
05381
05382
05383
05384
05385
05386
05387
05388

6
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
PARTS LIST
No. Description Part No. Qty.
41 1” x 145L Hand Grip 2
42-----------------------------
43 1” x 300L Foam Tube 2
44 1/2” Leg Axle (Longer) 1
45 - - - - - - - - - - - - -
46 HookPlate 2
47 Collar 4
47A Sealing 4
48 Rubber Donut 2
49 Leg Extension Stopper 1
50 Pulley 16
51 50mm x 75mm End Plug 7
51A 25mm x 50mm End Plug 1
52 45mm Square Plug 1
53 2” Round End Plug 2
54 1/2” Cap for Nut 2
55 Cap for Bolster 4
56 Plastic Guide Rod Holder 4
57 3/8” Bushing 22
58 1/2” Steel Bushing 8
59 Spring Knob 2
60 Pop Pin 2
61 AdjustableStopper 1
62 Top Plate Bolt 1
63 5/16” x 1/2” Hex Head Bolt 4
64 1/2” x 4-1/4” Hex Head Bolt 4
65 1/2” x 3-1/2” Hex Head Bolt 4
66 1/2” x 3-1/4” Hex Head Bolt 1
67 1/2” x 3” Hex Head Bolt 2
68 1/2” x 1-3/4” Hex Head Bolt 4
69 - - - - - - - - - - - - -
70 3/8” x 3” Hex Head Bolt 15
71 3/8” x 2-1/2” Hex Head Bolt 1
72 3/8” x 1-3/4” Hex Head Bolt 4
73 3/8” x 1-3/4” Hex Head Bolt (All) 2
74 3/8” x 1” Hex Head Bolt (All) 2
75 5/16” x 1/2” Hex Head Bolt (All) 4
76 3/8” x 5/8” Hex Head Bolt 1
77 5/16” x 5/8 Hex Head Bolt 2
78 5/16” x 5/8” Hex Head Bolt 4
79 5/16” x 3/8” Hex Head Bolt 3
80 5/16”Nut 4
81 5/16” Spring Washer 2
82 1/2” Washer 42
83 3/8” Washer 30
84 5/16” Washer 6
85 1/2”Nylon Nut 23
86 3/8”Nylon Nut 20
87 MarqueLogo Plate 2
88 Spacer 2
89 5/16” Washer (Larger) 05612 4 89
05389
--------- -
05468
05392
- - - - -
05393
05394
05395
05396
05397
05398
05399
05415
05416
05417
05418
05419
05420
05422
05423
05424
05425
05426
05427
05428
05429
02260
05432
05433
05434
- - - - -
02262
05436
05478
05472
05439
05440
05441
05442
05443
05444
05445
05446
13001290
05448
05449
05450
02270
05452
05453

7
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
IMPORTANT
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING

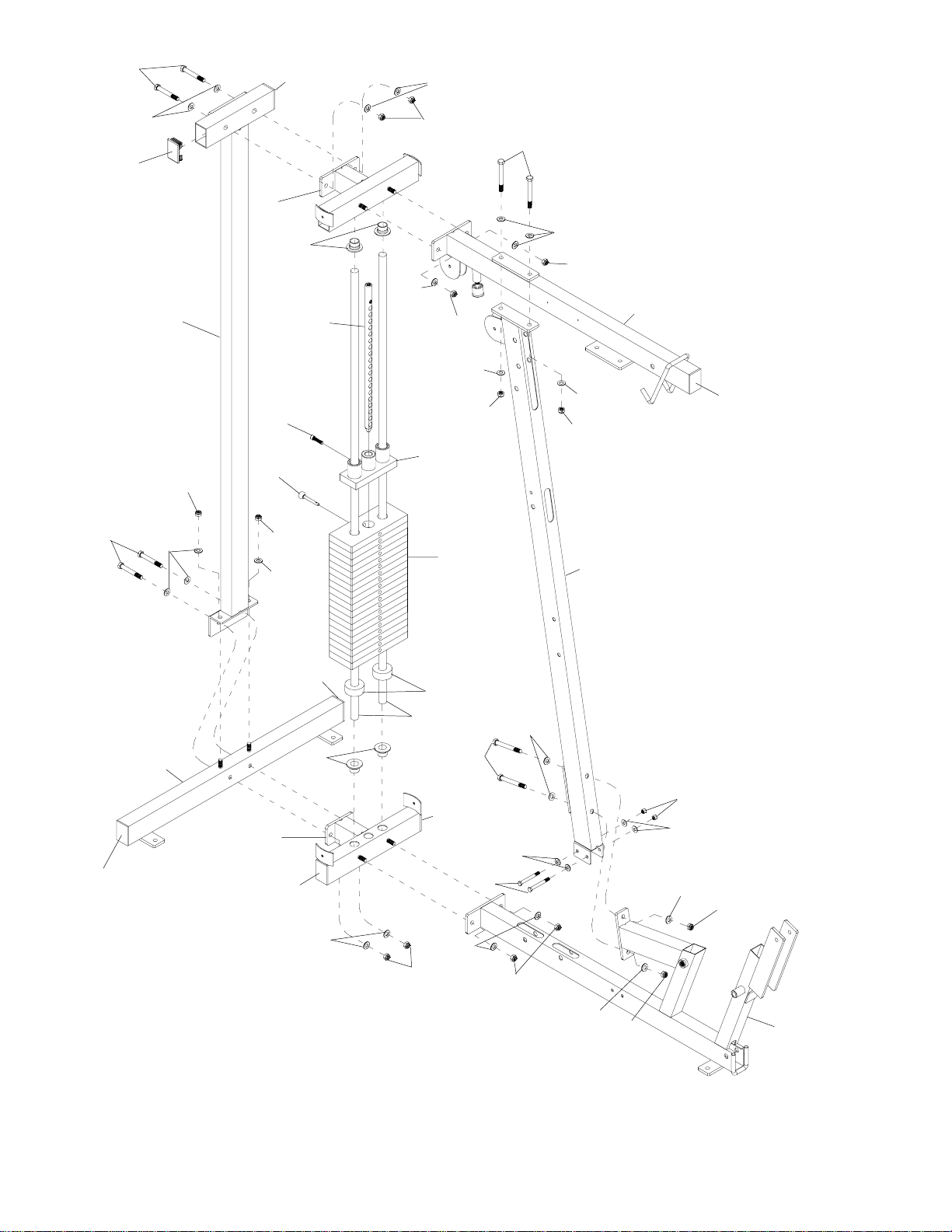

FIGURE1
Step 1.
Step 2.
Step 3.
Step 4.
Step 5.
Step 6.
Step 7.
Push 50mm x 75mm END PLUGS (51) into ends of TOP FRAME (3), REAR UPRIGHT (4), WEIGHT BASE (6) and
REARSTABILIZER(10).
AttachREAR UPRIGHT (4) andWEIGHTBASE (6) to REARSTABILIZER(10) with 1/2” x3-1/2” HEX HEAD BOLTS
(65),1/2” WASHERS (82) and1/2”NYLON NUTS (85).
Attach BASE FRAME (1) to WEIGHT BASE (6) with 1/2” WASHERS (82) and 1/2” NYLON NUTS (85).
Pushtwo PLASTIC GUIDE ROD HOLDERS (56)intoouterholes in WEIGHT BASE (6) andWEIGHTFRAME (5).
SlideaRUBBER DOUGHNUT(48) about3”ontooneend ofeach GUIDEROD(27)andinsert intoWEIGHT BASE(6).
Slidethe WEIGHTS (30), one at a time, down the GUIDE RODS (27).
Insert the SELECTOR ROD (22) through the center hole of the TOP WEIGHT (31) and fasten through top hole of
SELECTOR RODwithTOPPLATEBOLT (62).
IMPORTANT: Loading the WEIGHT PLATES (30) will require two people. One to hold the GUIDE RODS (27)
steadywhile the other person slides the WEIGHT PLATES down the GUIDE RODS.
Step 8.
Step 9.
Step10.
Step11.
Step12.
Step13.
Step14.
Step15.
SlideTOP WEIGHT(31)down GUIDE RODS(27) and insertSE-
LECTORPIN(22)throughdesiredWEIGHT(30)andSELECTOR
ROD(22).
SlideWEIGHT FRAME (5)downonto GUIDE RODS(27)and at-
tachto REARUPRIGHT(4) with 1/2”x 3-1/2” HEXHEAD BOLTS
(65),1/2” WASHERS (82) and1/2”NYLON NUTS (85).
Attach FRONT UPRIGHT (2) to BASE FRAME (1) at two loca-
tions.Fastenatupperlocationwith1/2”x4-1/4”HEXHEADBOLTS
(64),1/2” WASHERS(82)and 1/2”NYLONNUTS (85).Fasten at
lowerlocation with 3/8”x 3” HEXHEADBOLTS(70), 3/8” WASH-
ERS(83) and 3/8”NYLON NUTS (86).
AttachTOP FRAME (3)to WEIGHT FRAME(5)with 1/2” WASH-
ERS(82) and 1/2”NYLON NUTS (85).
AttachTOP FRAME (3) toFRONTSUPPORT (2) with 1/2” x4-1/
4”HEXHEADBOLTS (64),1/2” WASHERS (82)and1/2”NYLON
NUTS(85).
FIGURE1 DETAIL
Pealbacking fromWEIGHT LABEL“2” andapply tofirstWEIGHT
PLATE (30) 1/2” to left of hole as shown.
Pealbacking from WEIGHT LABEL “1” andapplyto TOP PLATE
(31)directly above WEIGHT LABEL“2”as shown.
Continueappling WEIGHT LABELS “3” through“19”to WEIGHT
PLATES (30) 1/2” to left of hole as shown. FIGURE 1 DETAIL
31
30
1/2”
WEIGHT
LABELS

8
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
FIGURE 1
65
82
51
4
64
3
56
62
32 31
30
48
22
5
10 86
64
83
70
51 82
85
82
85
85
82
56
27
82
82
85
85
2
65 82
82
85
85
51
51
51
82
85 85
1
82
82 85
82 85
83
82
651
51

9
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com

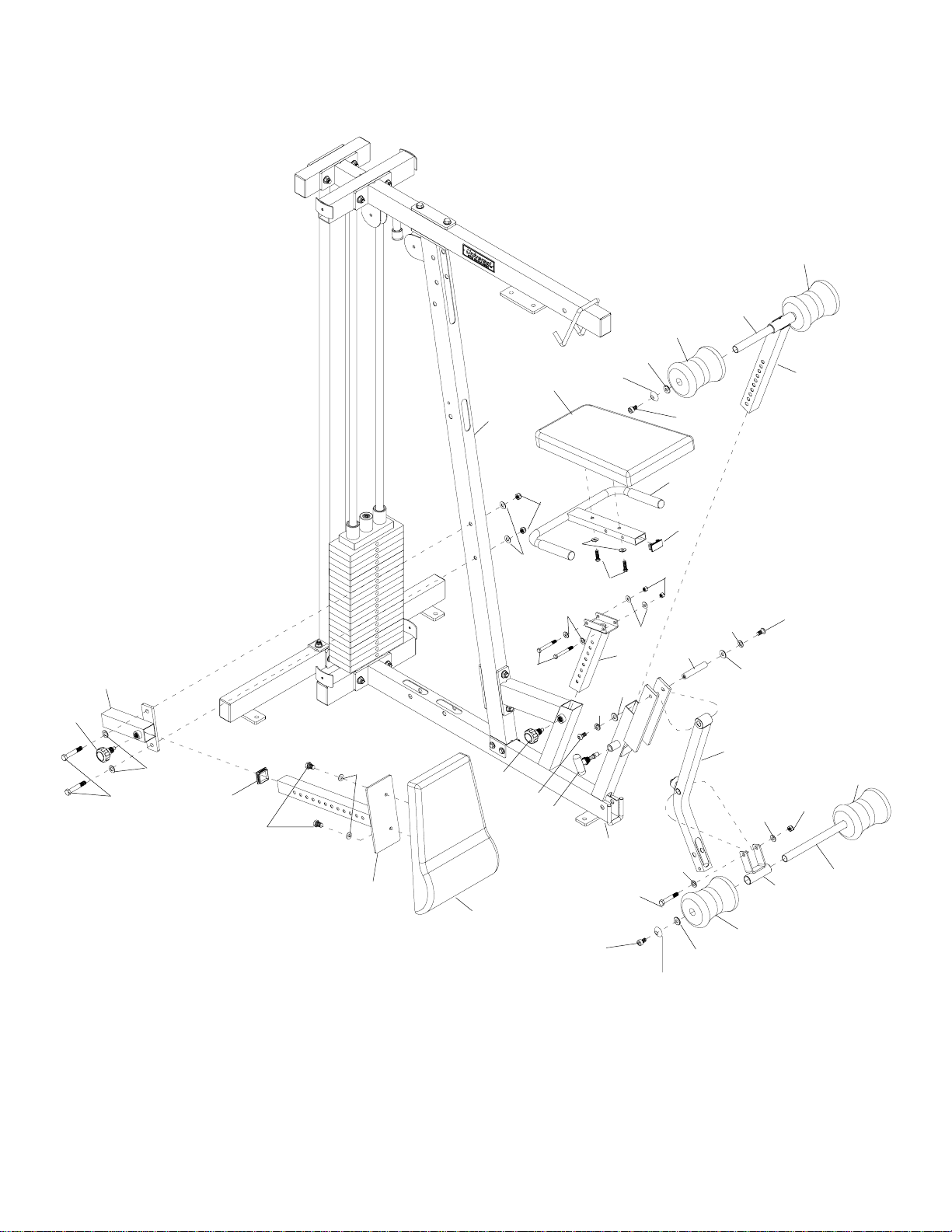

FIGURE2
Step16.
Step17.
Step18.
Step19.
Step20.
Step21.
Step22.
Step23.
Step24.
Step25.
Step26.
Step27.
Step28.
Step29.
Step30.
Step31.
Push45mm SQUARE PLUGS (52) into end of ADJUSTABLE BACK ARM (13).
ThreadSPRINGKNOB (59) and POP PIN (60) into BASE FRAME (1) as shown.
Slide one FOAM PAD (37) onto end of each BOLSTER (20) and lock in place with 5/16” WASHER (LARGER) (89),
CAPFOR BOLSTER (55) and5/16”x 1/2” INNER HEXHEADBOLT (63).
Insertone BOLSTER(20)through ADJUSTABLE TUBE(11)and slide onother FOAM PAD (37) andlock in placewith
5/16”WASHER(LARGER) (89),CAPFOR BOLSTER (55) and 5/16”x1/2” INNER HEX HEAD BOLT (63).
Pullout on POP PIN(60) and insert ADJUSTABLE TUBE (11)intoBASE FRAME (1)andrelease POP PIN atdesired
position to lock in place.
AttachLEG EXTENSION (12) toBASEFRAME (1) with 5/16” x5/8”INNER HEX BOLTS (77), 5/16” SPRINGWASH-
ERS(81), 5/16” WASHERS (84) and 1/2” LEG AXLE (44).
AttachROLLERBRACKET(19)toLEGEXTENSION(12)with1/2”x3-1/4”HEX HEADBOLT(66),1/2”WASHER(82)
and1/2” NYLONNUT (85).
InsertBOLSTER (20)through ROLLERBRACKET (19)andslideonother FOAMPAD(37)and lockinplace with5/16”
WASHER (LARGER) (89), CAPFORBOLSTER (55) and 5/16”x1/2” INNER HEX HEAD BOLT(63).
Push 25mm x 50mm END PLUG (51A) into SEAT ARM (15).
Attach SEAT PAD (36) to SEAT ARM (15) with 3/8” x 1-3/4” HEX HEAD BOLT (73) and 3/8” WASHERS (83).
AttachADJUSTABLESEAT TUBE (16) to SEAT ARM (15) with3/8”x 3” HEX HEAD BOLT (70), 3/8” WASHERS (83)
and3/8” NYLONNUTS (86).
Pullout on SPRINGKNOB(59), insert ADJUSTABLE SEAT TUBE(16) and releaseSPRINGKNOB at desiredheight
to lock in place.
AttachBACK SUPPORT(18)to FRONTUPRIGHT(2) with1/2” x3”HEX HEADBOLTS(67),1/2”WASHERS(82)and
1/2”NYLONNUTS(85).
ThreadSPRING KNOB (59) intoBACK SUPPORT (18) asshown.
AttachBACK PAD(35) to ADJUSTABLE BACK ARM (13) with 3/8”x1” HEX HEAD BOLTS (74) and 3/8” WASHERS
(83).
Pull out on SPRING KNOB (59) in BACK SUPPORT (18) and insert ADJUSTABLE BACK ARM (13) into BACK
SUPPORT and release SPRING KNOB at desired position to lock in place.

10
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
FIGURE 2
37
20
11
55
63
36
15
51A
77
81
85
44
86
83
70 16
73
1
12
19
37
83
83
82
66
84
84
60
82
37
37
55
63
81
77
59
59
18
82
67 52
74
83
13
35
82
85
2
20
89
89

11
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com

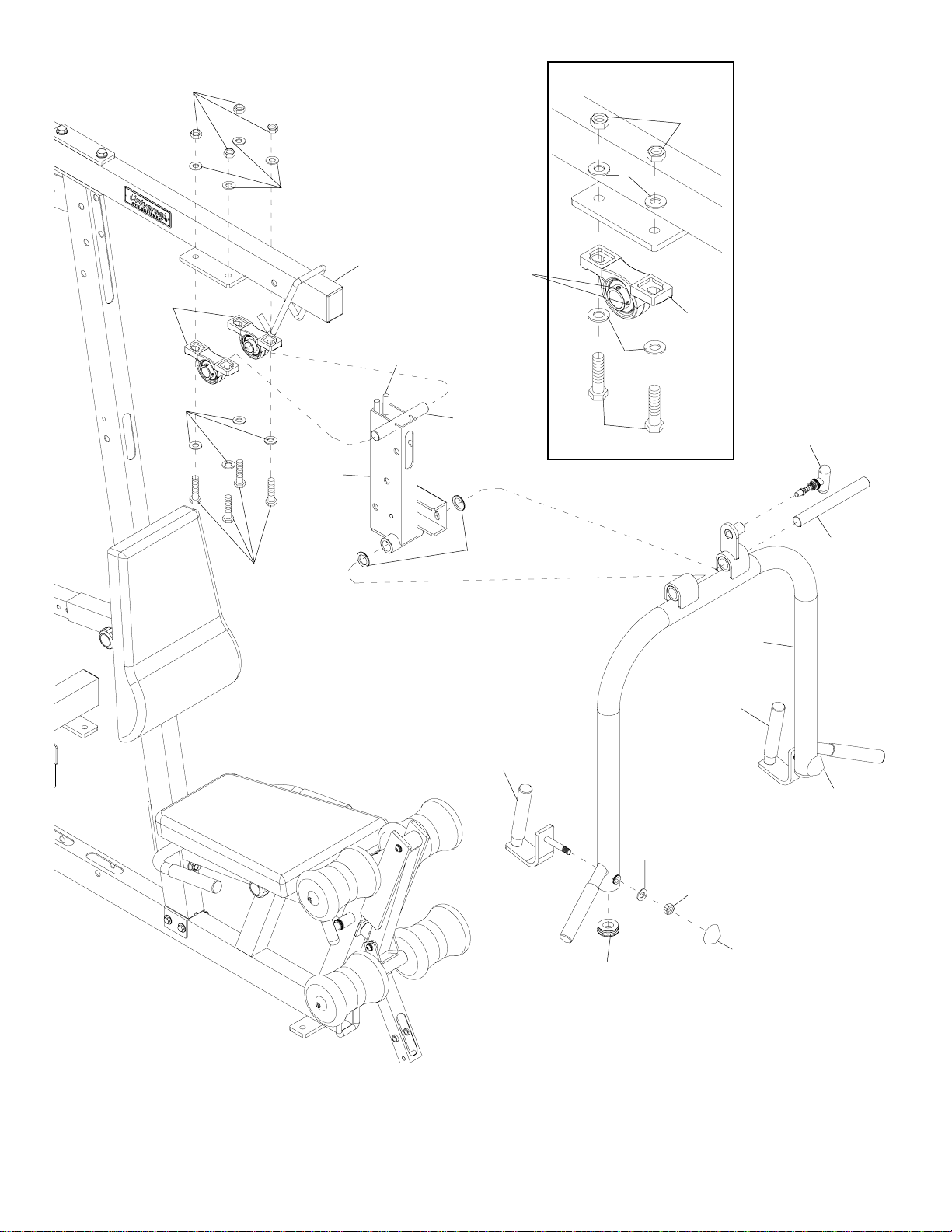

FIGURE3
Step 32.
Step 33.
Step 34.
Step 35.
Step 36.
Step 37.
Step 38.
ThreadPOPPIN (60) into PRESS ARM (8).
Push 2” ROUND END PLUGS (53) into ends of PRESS ARM (8).
InsertROLLER HANDLE BARS(14)into PRESS ARM(8)and fasten with1/2”NYLON NUT (85),1/2”WASHER (82)
and1/2” CAP FOR NUT(54).
Attachone BEARING HOUSING (29) to TOPFRAME (3) with 1/2” x 1-3/4” HEXHEADBOLTS (68), 1/2” WASHERS
(82)and 1/2”NYLONNUTS (85).SeeDETAIL.
WithPINS torearinsert axle ofPRESS SUPPORT (7)into mounted BEARINGHOUSING(29). SlideotherBEARING
HOUSING onto axle and attach to TOP FRAME (3) with 1/2” x 1-3/4” HEX HEAD BOLTS (68), 1/2” WASHERS (82)
and1/2” NYLON NUTS (85). Using anallenwrench, tighten SET SCREWS inbothBEARING HOUSINGS.
Attach PRESS ARM (8) to PRESS SUPPORT (7) with 1” PRESS ARM AXLE (9) and SPACERS (88).
Pull out on POP PIN (60), swing PRESS ARM (8) to desired position and release POP PIN to lock in place.
IMPORTANT: The BEARINGHOUSHINGS(29) have SETSCREWSon one side.TheBEARING
HOUSINGS must bemountedwiththe SET SCREWS to theoutside as shown in DETAIL.

12
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
FIGURE 3
85
82
3
68
PIN
7
88
60
9
8
14
53
82
85
54
82 AXLE
14
54
29
DETAIL
29
82
82
85
68
SET
SCREWS

13
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
FIGURE4
Step 39.
Step 40.
Step 41.
Step 42.
Step 43.
Step 44.
Step 45.
Step 46.
Step 47.
Step 48.
Step 49.
Step 50.
NOTE: TheTOPCABLE (39) has an adjustment bolt at one end.
T1
PlaceTOP CABLE (39) in grooveofPULLEY (50), with HOOK endfacingfront, insert into bottom ofTOPFRAME (3)
andfasten with 3/8”x 3” HEX HEADBOLT (70), 3/8”WASHER (83), 3/8”BUSHINGS (57) and3/8”NYLON NUT (86).
Insertadjustmentbolt of TOP CABLE (39) through slot in PRESS SUPPORT (7) and slot in FRONT SUPPORT(2).
T2
PlaceTOP CABLE (39) in groove of PULLEY (50) and attachattophole in PRESS SUPPORT (7) with 3/8” x 3” HEX
HEADBOLT(70), 3/8” WASHER(83),3/8” BUSHINGS (57) and3/8” NYLON NUT (86).
T3
PlaceTOP CABLE (39) in groove of PULLEY (50)andattachat top hole in FRONT SUPPORT (2) with3/8”x 3” HEX
HEADBOLT(70), 3/8” WASHER(83),3/8” BUSHINGS (57) and3/8” NYLON NUT (86).
T4
PlaceTOPCABLE (39)in grooveof PULLEY(50)andattachat centerhole inPRESS SUPPORT(7)with3/8”x 3”HEX
HEADBOLT(70), 3/8” WASHER(83),3/8” BUSHINGS (57) and3/8” NYLON NUT (86).
T5
PlaceTOPCABLE (39)in grooveofPULLEY(50)and attachat centerholeinFRONTSUPPORT (2)with 3/8”x3”HEX
HEADBOLT(70), 3/8” WASHER(83),3/8” BUSHINGS (57) and3/8” NYLON NUT (86).
T6
Place TOP CABLE (39) in groove of PULLEY (50) and attach at bottom hole in PRESS SUPPORT (7) with 3/8” x 3”
HEXHEAD BOLT (70),3/8”WASHER(83), 3/8”BUSHINGS(57) and 3/8”NYLONNUT (85).
T7
Place TOP CABLE (39) in groove of PULLEY (50) and attach at bottom hole in FRONT SUPPORT (2) with 3/8” x 3”
HEXHEAD BOLT (70),3/8”WASHER(83), 3/8”BUSHINGS(57) and 3/8”NYLONNUT (85).
T8
Place TOP CABLE (39) in groove of PULLEY (50) and attach at bracket on FRONT SUPPORT (2) with 3/8” x 1-3/4”
HEXHEAD BOLT(72)and 3/8”NYLON NUT(86).
T9
Place TOP CABLE (39) in groove of PULLEY (50) and attach to FLOATING PULLEY BLOCK (17) with 3/8” x 1-3/4”
HEXHEAD BOLT(72)and 3/8”NYLON NUT(86).
T10
PlaceTOP CABLE (39) in grooveofPULLEY (50) and attach atbracketon WEIGHT TOP FRAME (5)with3/8” x 1-3/
4”HEX HEADBOLT(72) and3/8”NYLON NUT(86).
T11
Thread adjustment bolt of TOP CABLE (39) into SELECTOR ROD (22) about 3 or 4 turns and lock by tightening nut
againstSELECTOR ROD.

14
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
39
T1
T11
T8, T10
T3, T4, T5, T6
T2, T7
T9
386
83
57
50
ADJUSTMENT
BOLT
57
83
70
86
83
57
50
57
83
70
86
83
57
50
57
83
70
50
50
86 72
86
17
72
39
31
22
T1
T2
T4
T6
T3
T5
T7
T8
T10
T11
T9
17
3
7
2
FIGURE 4

15
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
FIGURE5
Step51
Step 52.
Step 53.
Step 54.
Step 55.
Step 56.
NOTE: The AB CABLE (40) has a hook on each end.
A1
Insert AB CABLE (40) through slot in LEG EXTENSION (12). With AB CABLE in groove on bottom of PULLEY (50),
attachPULLEY to LEG EXTENSION with 3/8”x2-1/2” HEX HEAD BOLT (71),3/8”WASHERS(83) and 3/8”NYLON
NUT(86).
A2
Insert AB CABLE (40) into front of BASE FRAME (1), push until you can pull it up through rear slot in BASE FRAME.
With AB CABLE in groove on bottom of PULLEY (50), attach PULLEY to BASE FRAME with 3/8” x 3” HEX HEAD
BOLT(70), 3/8” WASHERS (83),3/8”BUSHINGS (57) and 3/8”NYLONNUT (86).
A3
WithAB CABLE (40) in groove onbottomof PULLEY (50), attach PULLEY inrearslot of slot in BASE FRAMEwith3/
8”x 3” HEX HEAD BOLT(70),3/8” WASHERS(83), 3/8”BUSHINGS(57) and 3/8” NYLON NUT (86).
A4
Place AB CABLE (40) in groove of PULLEY (50) and attach at desired location in FLOATING PULLEY BLOCK (17)
with3/8” x 1-3/4”HEXHEAD BOLT(72) and 38”NYLON NUT (86).
A5
WithABCABLE(40)ingrooveonbottomofPULLEY (50), attach PULLEY in front slot in BASE FRAME (1) with 3/8”
x3” HEX HEAD BOLT(70),3/8” WASHERS(83), 3/8” BUSHINGS (57) and3/8”NYLON NUT (86).
A6
InsertAB CABLE (40)through slot in FRONTSUPPORT (2). WithABCABLE in grooveontop of PULLEY(50) attach
PULLEYtoFRONTSUPPORTwith3/8” x3” HEXHEAD BOLT(70),3/8” WASHERS(83),3/8”BUSHINGS (57)and 3/
8”NYLONNUT (86).

16
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
40
17
50 50
50
50
50
71 83
12
83
86
50
A1 A2
A3 A4
A5
A6
70
83 83
86
57
57
57
57
83
83
70
86
86
72
17
70 83
57 57
83 86
A1
A2
A3 A5
A6
A4
70
83
83
57 57
86
2
1
12
FIGURE 5

17
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
FIGURE 6
38
28
28
84
75
84
75 6
517
ADJUSTMENT
BOLT
39
21
21
40 34
33
25
26
23
FIGURE6
Step 57.
Step 58.
Step 59.
Step 60.
Step 61.
Step 62.
PushBINDING OFWEIGHTSHROUD (38) completelyonto
edgesofWEIGHTSHROUDS (28).
AttachWEIGHT SHROUDS (28) to WEIGHT TOPFRAME(5) and WEIGHT BASE (6)
with5/16”x 1/2” HEX HEAD BOLTS (75) and 5/16” WASHERS(84).
NOTE: Thefollowingaccessorys can be used at different locations on the unit.
Thelocations shown are the most common. See your exercise chart for furtherinformation.
Attach the LAT BAR (21) to the hook on the TOP CABLE (39).
Attach the AB STRAP (24) to the hook on the upper end of the AB CABLE (40).
Attach either the ANKLE STRAP (26), HAND STRAP (25) or CURL BAR (23) to the hook at the lower end of the AB
CABLE(40) with SNAP HOOK(33)and LINK CHAIN (34).
Over time the cables will need to be adjusted to remove excess slack. This can be done by first adjusting location of
PULLEY (50) in FLOATING PULLEY BLOCK (17). Then if only a slight amount of adjustment is needed thread the
cable adjustment bolt into the SELECTION ROD (22) until the slack has been removed and then tighten locking nut
againstSELECTIONROD.

18
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
Universal®Gym Equipment Lifetime Limited Warranty
Universal®GymEquipment (adivision ofFFAcquisition Corp.)warrants totheoriginal ownerof thisUniversal®GymEquipment
PowerPak®1000, the following components to be free from defects in material and workmanship for the period specified.To
establish warranty rights, the purchaser must retain the bill of sale. This warranty is only valid if the equipment is purchased
froman authorizedUniversal®GymEquipmentdealer.
Defective parts will be repaired or replaced at the option of Universal®Gym Equipment. All labor is the responsibility of the
owner.
Warranty Period (begins at date of purchase)
COMPONENT PERIOD COMPONENT PERIOD
Frame Lifetime Bushing/Bearings Lifetime
Weight Plates Lifetime Cable/Pulleys Lifetime
FoamRolls Lifetime Seats and Back Cushions Lifetime
All other Lifetime
EXCEPTIONS AND CONDITIONS
Failures due to improper assembly, neglect, alteration or modification, damage, misuse, repairs other than by an Universal
AuthorizedService Center or lack ofmaintenance(see Owners Manual) are notcoveredby this warranty. This warranty does
not cover damages sustained during shipment or transportation of equipment. Any damage in transit should be filed with the
carrier.
Please note that it is our policy to replace components and not entire machines or assemblies. We may also first attempt to
repairstructural componentstomake themfunctionalas designed,theresult ofwhichmay bevisible.Repair oftheproducts as
providedunder this warranty is the exclusiveremedyofthe customer.
Thecoated steel frame is rust-resistant in most settings. However, rusting/corrosion isoutsidethe scope of the warranty. We
recommend that if this machine is to be installed in high humidity areas (like outdoors, near a pool or by a hot tub, etc.), the
ownerapply anautomotivewax to delaythe onset ofcorrosion. Sweat, cleaner,bodylotions and sunlightcan be corrosiveand
arethe responsibility of the owner.
Universal®Gym Equipment shall not be responsible for injury, loss of use of the Universal®Gym Equipment product, or any
inconvenience,loss of damageto personal property, whether directorindirect, and incidentalor consequential damages. This
warranty and all warranties that may be implied under state law, including but not limited to warranties of merchantability and
warranties of fitness for any purpose, expire with transfer of ownership from the original owner. Any implied warranty of mer-
chantability or fitness for any particular purpose shall be limited for one year.
Replacement and Repair Expenses
Universal®GymEquipment willprepay forshipmentof replacement/repairparts toowner by standardground transportation as
longas itfallsunder the“warrantyof theproduct”. Allother costarethe responsibilityofthe ownerofthe machine(forexample:
laborcharges for service, removal, reinstallation or shipping/handling/delivery charges for returningcomponentto Universal®
GymEquipment).
How To Make A Warranty-Covered Claim
Should your machine require warranty service, please first contact the Universal®Gym Equipment Authorized Dealer from
whichyou purchased this machine. Yourdealer may offeryou assistanceinmaking the warranty claimor may be aUniversal®
GymEquipment Authorized ServiceCenter. Before contactingeitheryour dealer orUniversal®GymEquipment,pleasedo the
following:
1.Refer to the parts list in your owners manual to help identify the part numbers of the part/component in question.
2.Writedown the serial number (located on the frame).
3.Haveavailable a copy of your dealer’sbillof sale (with date of purchaseindicated).
Ifyour dealerisunable tohelp you, pleaseuse the followingnumber to contactUniversal®Gym Equipment aboutyour warranty
claim:1-800-472-9856 (US) betweenthe hoursof 8:00amand 5:00pm (CST).Orwrite toUniversal®Gym Equipment(aDivision
of FF Acquisition Corp.), Attn.: Customer Service-Parts P O Box 1296 West Point, MS 39773.

19
Please contact Universal®Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856or Fax [phone] or E-mailat [email protected].Mailing
address: Universal®Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
BLANK PAGE

WARRANTYREGISTRATION
Congratulations on purchasing a top quality Universal Gym Equipment product. TO AC-
TIVATE YOUR WARRANTY PLEASE COMPLETE AND SUBMIT THIS FORM TO:
Universal Gym Equipment
Attn: Warranty Activation/Customer Service
100 Tubb Avenue
West Point, MS 39773
Your warranty registration will be kept on file, allowing us to serve you to the level of your
expectations. You may also contact our customer service via email at
[email protected] or via phone at 1-800-472-9856.
Last Name ______________________________________________________
First Name ______________________________________
Phone ______________________________________
Email ______________________________________
MailingAddress ______________________________________
City ______________________________________
State ______________________________________
Zip Code ______________________________________
Model ______________________________________
SerialNumber ______________________________________
Purchase Date ______________________________________
Place of Purchase ______________________________________
At Universal Gym Equipment we’re constantly striving to improve. Your feedback is im-
portant to us and is always welcome. We ask that you answer the following questions
regarding your Universal Gym Equipment purchase. And as a way of saying thank you for
your feedback, we will offer an exclusive Universal Gym Equipment t-shirt to you free of
charge.
Why did you choose this Universal Gym Equipment product? (Check all that apply)
[] Design / appearance []Quality [] Features [] Value [] Price
[] UGE’s Reputation []Warranty [] Web page
[] Dealer assistance [] Other -
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
What other brands did you consider purchasing?
____________________________________________
How long did you research gym equipment prior to making your purchase decision?
[] less than 2 weeks [] 2 – 4 weeks [] 4 – 6 weeks [] over 6 weeks
How did you research gym equipment prior to making your purchase? (Check all that apply)
[]internet [] in-store visits []television [] newspapers [] fitness magazines
Please indicate your shirt size. Small [ ] med [ ] large [ ] x-large [ ] xx large [ ]
You may also order additional t-shirts for $20.00 each + shipping & handling.
