Univex Sprizza User manual

Automatic Pizza Spinner
Cold System “Sprizza”
OPERATOR’S MANUAL
Persons under age 18 are not permitted to operate or have accessibility to
operate this equipment per U.S. Dept. Of Labor Employment Standards
Administration Fact Sheet No. ESA913.
SLPZ 40 REV A
PAGE 1

Welcome to Univex
Thank you for purchasing this Univex Product.
Your new SPRIZZA pizza spinner has been designed with advanced performance and safety
features that make it an excellent addition to your food preparation equipment. Like all
Univex mixers, slicers, meat grinders and accessories, this pizza spinner is engineered to
provide years of reliable service.
If you have any questions concerning the operation of this unit, or if we can be of further
assistance, please call our Customer Service Department for the location of your nearest
service representative.
Univex Customer Service:
USA& Canada 800-258-6358
International 603-893-6191
Or visit us on-line at www.univexcorp.com under service agents.
Safety is our top priority
READ AND MAKE SURE THAT YOU UNDERSTAND THE INSTRUCTIONS AND
SAFETY WARNINGS IN THIS BOOKLET BEFORE ATTEMPTING TO OPERATE THIS
MIXER OR ATTACHMENTS.
NEVER PUT FINGERS OR HANDS UNDERNEATH CARPETS WHILE THE MIXER IS
OPERATING OR SERIOUS INJURY COULD RESULT.
NEVER ATTEMPT TO CLEAR THE MACHINE WITHOUT SHUTTING THE POWER OFF
AND DISCONNECTING THE ELECTRICAL POWER SUPPLY.
PAGE 2

TABLE OF CONTENTS
DESCRIPTION PAGE
TABLE OF CONTENTS . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
LIST OF ILLUSTRATIONS . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
OVERALL VIEW OF THE MACHINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
CHOOSING THE RIGHT LOCATION FOR YOUR PIZZA SPINNER . . . . . . . . . . . 5
OPERATING THE AUTOMATIC PIZZA SPINNER . . . . . . . . . . . . . . . . . . . . . . . . . 6
SETTING THE DIGITAL CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 / 7
CLEANING YOUR MIXER . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . 8
OPERATOR’S PREVENTIVE MAINTENANCE . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 8
TROUBLE SHOOTING GUIDE . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .. . . . . . . . 9
MIXER DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . BACK COVER
LIST OF ILLUSTRATIONS
FIGURE 1 OVERALL VIEW OF THE AUTOMATIC SPRIZZA. . . . . . . . . . . . . . . . . . . 4
FIGURE 2 CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
FIGURE 3 DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
PAGE 3

OVERALL VIEW OF THE SPRIZZA
FIGURE 1
1. UPPER COVER
2. PROGRAMMABLE CONTROL PANEL
3. UPPER SPINNER SYSTEM
4. OPENING HANDLE
5. OPERATING BUTTONS
6. MAIN POWER SWITCH
7. FELT/POLYPROPYLENE CARPETS
PAGE 4

CHOOSING THE RIGHT LOCATION FOR YOUR NEW PIZZA SPINNER
When selecting the best location for the machine, it is helpful to consider the following:
• Where is the best location for the operator, both for saving steps and easy viewing?
• Is this a good location for product flow as in:
• Easy to get dough underneath the machine?
• Destination of the pizza disk after spinning?
• Is there existing electrical service at this location?
• Does this location provide easy access for cleaning and service?
• Check to be sure that your Pizza-Spinner with attachments does not extend out into
heavy traffic areas.
• If stands and / or portable equipment are to be used along side of your pizza-spinner,
can they be moved easily to and from it?
IMPORTANT ELECTRICAL SERVICE INFORMATION
Electrical wiring instructions are found in the wiring diagram (Figures 2A thru 2C) on pages
13 through 15. Before making electrical connections, CHECK the specifications on the
nameplate to make sure that they agree with the available electrical service.
This Pizza Spinner will not operate unless start bottons are “both” pressed and lower
carpet is properly closed.
The Spinner will automatically stop if one of those buttons are not pressed or lower plate
is opened.
PAGE 5

OPERATING THE AUTOMATIC PIZZA SPINNER
Your Univex Automatic Pizza-Spinner is designed to meet the pizza demand for an
efficient, dependable appliance. It should give unfailing performance over a period of years
when operated and maintained according to the instructions contained herein.
Note: Noise emissions for this Spinner are below 70db (A).
Close and secure the lower dish before proceeding.
Warning: Never put hands, spoons, utensils or other objects between the 2 carpets
while the Spinner is operating!
INSTRUCTIONS FOR USE
Figure 2
PAGE 6

USING THE PIZZA SPINNER
After you turn on the main power switch (posted on right side) , you will see the frontal LCD
display on. The upper line shows the Program Number (from 1 to 19) . The lower line shows
“Pressure” and “Time” set for that program. Use buttons “+” or “-“ to move through the
programs. Anytime you change program number, you will see below “P” and “T” set for it.
Setting programs:
Press “+” or “-“ to choose the program number you would like to set. Pressing “SET”
button, you will see the program number blinking. Now press “OK” button and the cursor
goes blinking on “P”. Using “+” and “-“ to choose the final thickness : from 10 (thicker) to
0.5 (thinner) . Then press “OK” to pass setting “T” (spinning time). Use “+” and “-“ to set
wheels spinning time in seconds (from 1 to 10 ).
Suggestion:
There is always a relationship between “P” and “T”. Much high is the dough weight, much
high must be “P” and much low must be “T”. For example : with dough ball weight around
23 Oz or more, “P” should not be less then 3 or 4 and “T” not more then 2 . As well with
dough ball weight around 7 Oz or less , “P” should not more then 1.5 and “T” not less then
4 seconds. These are just general suggestions to explain how weight, “P” and “T” are
involved in final shape and diameter.
ATTENTION: The lower round plate must be closed for the Pizza-Spinner to work.
Otherwise the machine will not run.
PAGE 7

CLEANING YOUR PIZZA SPINNER
Consistent use of the following procedures will ensure that your Pizza-spinner is in
optimum operating condition.
• Warning: disconnect the electrical power supply before cleaning.
• Wash the body of the Pizza-Spinner, vwith warm water and mild soap.
• Avoid excess water in the area of the frontal control panel
• Do not rinse the Pizza-Spinner with a hose.
• Do not use abrasive pads to wash the Pizza-Spinner.
• Dry the Pizza-Spinner thoroughly with a soft cloth.
• Never wahs the Felt or Polypropylene carpets. Use soft brush or air pressure to clean
them from flour
OPERATOR’S PREVENTIVE MAINTENANCE
For best long-term performance, operators should follow this simple practices:
• Do not cover the Pizza-Spinner with a plastic bag, as this traps humidity inside the mixer.
PAGE 8

TROUBLE-SHOOTING GUIDE
TROUBLE
POSSIBLE CAUSE
REMEDY
1. PIZZA SPINNER WILL
NOT OPERATE
1.1 ELECTRICAL SERVICE DOWN.
1.1 CHECK ELECTRICAL SERVICE. REPLACE
FUSEOR RESET CIRCUIT BREAKER AS
NECESSARY
1.2 BURNED SWITCH CONTACTS.
1.2 REPLACE OR CLEAN CONTACTS.*
1.3 MAIN POWER SWITCH NOT TURNED
ON
1.3 TURN MAIN POWER SWITCH ON
1.4 BURNED OUT MOTOR
1.4 REMOVE, TEST, REPAIR OR REPLACE*
1.5 LOWER PLATE NOT CLOSED
1.5 CLOSE COMPLETELY LOWER PLATE
1.6 EMERGENCY STOP BUTTON NOT
TURNED ON
1.6 TURN EMERGENCY BUTTON ON
2. PIZZA SPINNER RUNS
BUT WHEELS WILL NOT
TURN.
2.1 BROKEN OR SLIPPING BELT
2.1 TIGHTEN OR REPLACE. *
2.2 BROKEN PULLEY
2.2 REPLACE. *
3. ALL THE LIGHTS ARE
ON BUT PIZZA SPINNER
WILL NOT OPERATE
3.1 THE THERMAL PROBE STOPPED THE
MOTORS BECAUSE THE DOUGH WAS TOO
STIFF, OR THE SPINNING TIME TOO LONG
3.1 WAIT 20 MINUTES FOR THE MOTORS
TEMPERATURE TO GO DOWN AND PRESS
START BUTTON TO CONTINUE
* REMEDIES DESIGNATED WITH AN * REQUIRE THE SERVICE OF AN AUTHORIZED SERVICE AGENT
PAGE 9

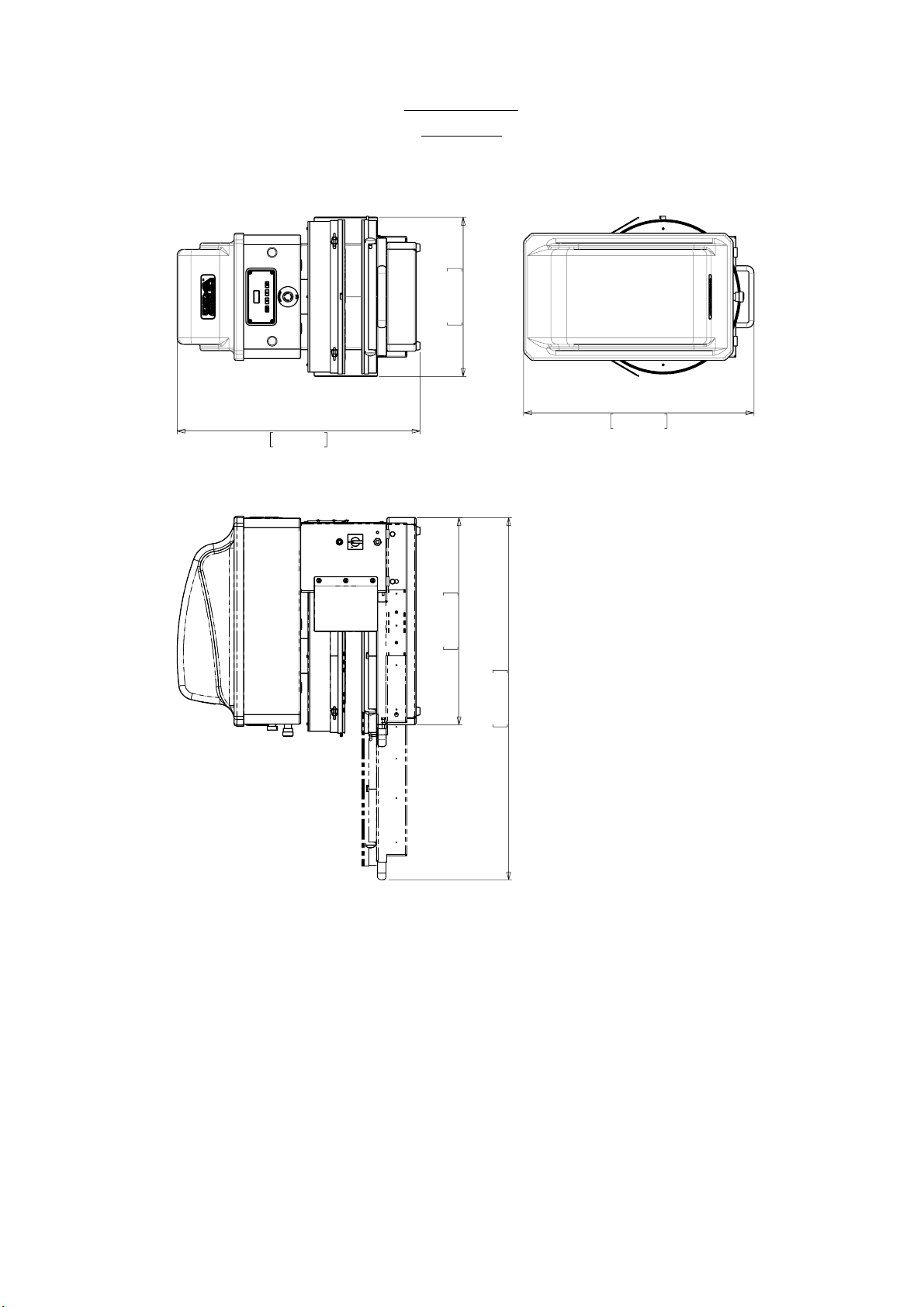

Dimensions
Figure 3
PAGE 10
768
30,217
502
19,782
654
25,748
1144
45,039
728
28,661
SPRIZZA A
U
TOMA TI CA
AUTOMATI C SPRIZZA Tensione 

2
2
0
/ 50 Hz

1 p
h
Volt 115/60 Hz 1 ph Peso 






















1
1
0

k
g
Weight 220 lb Potenza 














1
,
1

K
w
Power 1,5 Cv

3 Old Rockingham Road, Salem, N.H. 03079-2140 Telephone -603-893-6191 Fax [phone]
TOLL FREE ORDERING FAX [phone]
PAGE 11
Warranty
The Univex Automatic Pizza Spinner carries a One-Year, on-site,
parts and labor warranty against any defects in materials or
workmanship.
The one-year period begins on the date of purchase by the end user
and remains in full effect provided the unit is used properly and in
accordance with our operators manual.
Any work to be performed under this warranty must be performed
between the hours of 8:00 a.m. and 5:00 p.m. local time, Monday
through Friday. Univex will not cover overtime charges of any kind.
Please call the Univex Warranty Service Department at
[phone] or [phone] to report any warranty claims
before arranging repair or attempting to return the unit to Univex
Corporation.
Damages incurred in transit or incurred because of installation error,
accident, alteration or misuse are not covered. Transit damages
should be reported to the carrier immediately.
Univex will not be liable for any consequential, compensatory,
incidental or special damages.
