Up-shine Lighting UP-DB18-1600-40W User guide

Technical Application
Guide for UP-SHINE
LED Batten Light
UP-DB18-1600-40W

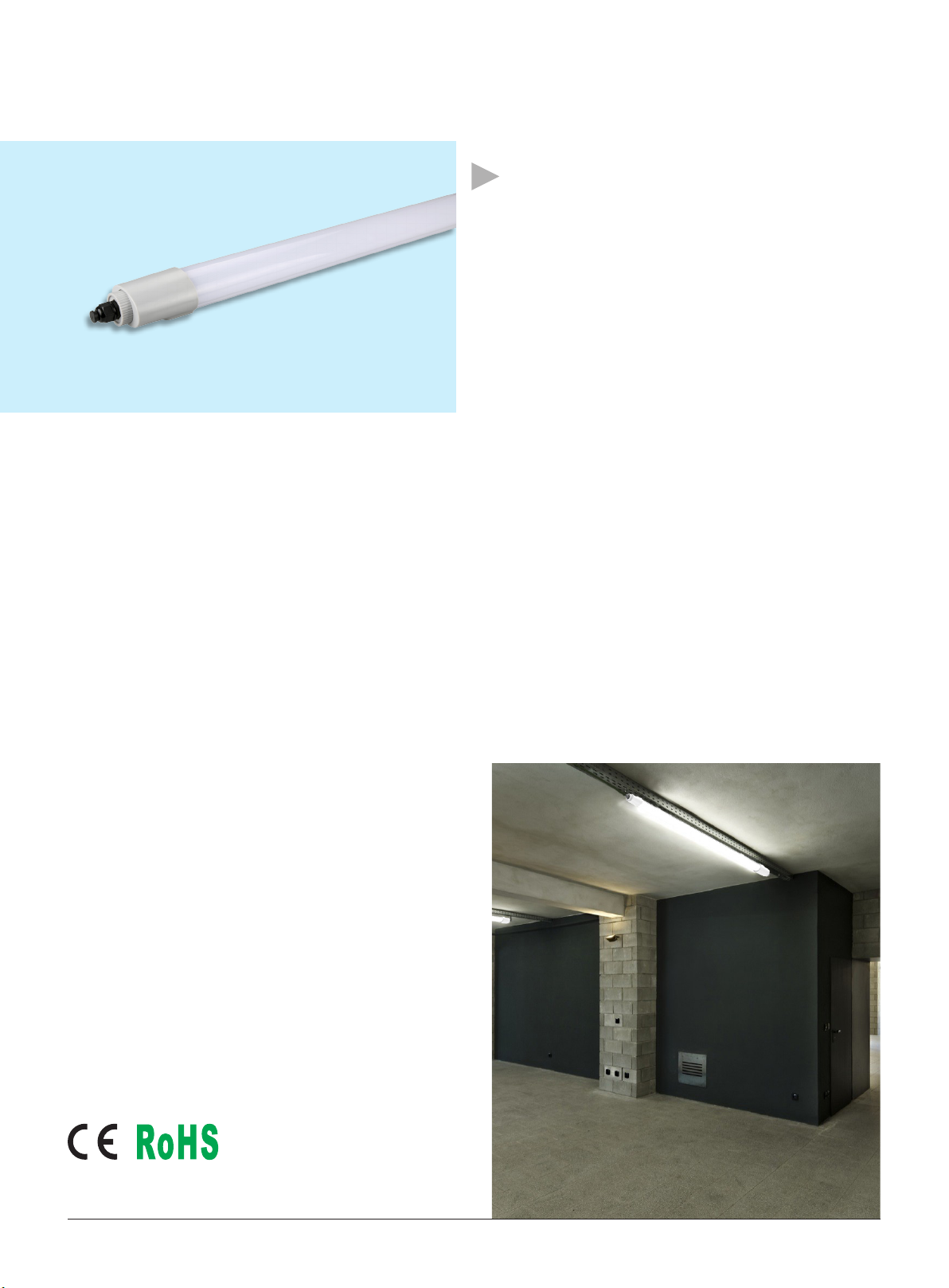

DB18 is a high quality LED batten with high
luminous efficacy 115lm/w. With a reliable and
robust housing structure (IK10 & IP66), this
maximizes the endurance and contributes to
its long lifetime. With its flexible installation
accessories, it can be used in a wide variety
of applications. Three size in length (700mm
1300mm 1600mm), and various lumens
package, let it to be ideal replacement for
traditional fluorescent batten.
Introduction
www.upshine.com [email protected]
Features
1. LED batten light IP66, compact design and suitable for both indoor and outdoor applications.
2. Input voltage: 100Vac -277Vac, suitable for all the markets.
3. Elegant outlook with rearwards-directed light to illuminate the ceiling.
5. Colour rendering index (CRI): Ra > 80
6. Impact protection: IK10
7. LED service life: approx. 50,000 hours @L80/B10 25°C.
8. End caps: made of shockproof polycarbonate (PC).
9. Extruded PC opal diffuser with inner prisms and UV resistant, providing homogenous light distribution.
10. Flexible installation through sliding mounting bracket. Ideal for luminaire replacement.
11. Providing through-wiring for further luminaires (safety class II) connection.
12. Tool free mains cable installation on both sides through twist lock fastener cover at both sides.
Application notes
•IP66 for indoor and outdoor use
•The lamp must be installed by professional
electrician
•Ensure the power supply is switched off before
fitting this product
•Do not touch the lamp when in use
•Keep away from hot steam and corrosive gas
Applications
Car parks, warehouses, workshops, underground
areas.
Certificate
SAA

Fixture Compatibility
Rated
Wattage
Electrical
Classification
Ingress
Protection
Operating
Temp
Operating
Humidity
Storage
Temp
40W ⅡIP66 -20oC~45oC 0~90% -20oC~65oC
Driver data Main Power
Input rated Voltage AC100-277V
Frequency 50/60Hz
Input Voltage AC90-305V
Efficiency ≥86%
Total load Wattage 40W±5%
Power Factor ≥0.9
Rated input current ≤0.45A
Full load output Voltage DC65-75V
Rated output current 260mA*2
Output current range (260mA*2)±5%
Power tolerance ±5%
Current output tolerance ±5%
Short circuit protection PASS
Over voltage protection PASS
Over temperature protection PASS
THD ≤20%
Withstand voltage —

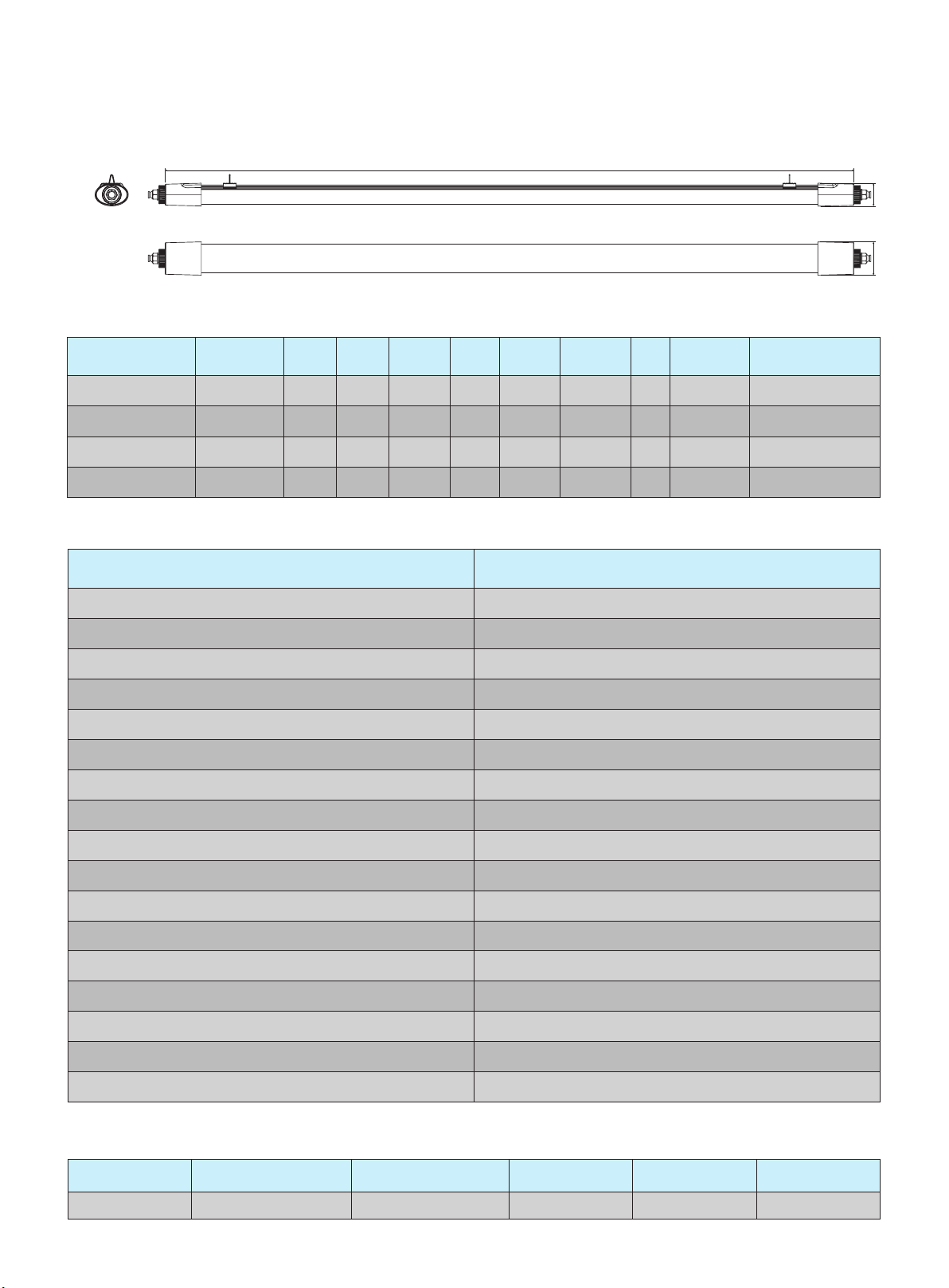

Technical Specifications
Model Voltage Power Power
Factor
Lumen
(±5%)
Beam
angle CCT Lifespan CRI Dimmable Dimension
UP-DB18-1600-40W AC100-277V 40W ≥0.9 4080 140o3000K 50000h ≥80 No 1600*78*53.5mm
UP-DB18-1600-40W AC100-277V 40W ≥0.9 4520 140o4000K 50000h ≥80 No 1600*78*53.5mm
UP-DB18-1600-40W AC100-277V 40W ≥0.9 4680 140o5000K 50000h ≥80 No 1600*78*53.5mm
UP-DB18-1600-40W AC100-277V 40W ≥0.9 4520 140o5700K 50000h ≥80 No 1600*78*53.5mm
Driver data Sheet
www.upshine.com [email protected]
1600
53.578
Product Information

Photometric Diagram
Spectral Distribution
Polar intensity diagram
Polar intensity diagram Polar intensity diagram
Polar intensity diagramBeam diagram
Beam diagram Beam diagram
Beam diagramCartesian intensity diagram
Cartesian intensity diagram Cartesian intensity diagram
Cartesian intensity diagram
UNIT: cd
AVERAGE BEAM ANGLE(50%): 131.2 DEG
-/+180
-120
-90
-30
120
90
30
0
200
400
600
800
1000
0
UNIT: cd
AVERAGE BEAM ANGLE(50%): 131.0 DEG
-/+180
-120
-90
-30
120
90
30
0
300
600
900
1200
1500
0
UNIT: cd
AVERAGE BEAM ANGLE(50%): 130.7 DEG
-/+180
-120
-90
-30
120
90
30
0
300
600
900
1200
1500
0
UNIT: cd
AVERAGE BEAM ANGLE(50%): 131.4 DEG
-/+180
-120
-90
-30
120
90
30
0
300
600
900
1200
1500
0
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
10
9
8
7
6
5
4
3
2
1
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
15.0
13.5
12.0
10.5
9.0
7.5
6.0
4.5
3.0
1.5
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
15.0
13.5
12.0
10.5
9.0
7.5
6.0
4.5
3.0
1.5
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
15.0
13.5
12.0
10.5
9.0
7.5
6.0
4.5
3.0
1.5
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Height Eavg, Emax Angle: 110.70deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 2043 lm
Height Eavg, Emax Angle: 109.14deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 2274 lm
Height Eavg, Emax Angle: 110.02deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 2270 lm
Height Eavg, Emax Angle: 109.89deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 1098 lm
380 500 600 700 800 380 500 600 700 800
380 500 600 700 800380 500 600 700 800
Wavelength(nm) Wavelength(nm)
Wavelength(nm)Wavelength(nm)
Max=7798 [1.0=20000] Max=7530 [1.0=20000]
Max=5808 [1.0=20000]Max=9472 [1.0=20000]
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0.37 SDCM F4000K
x=0.3801 y=0.3808
5700K
4000K3000K
5000K 5700K
3000K 4000K
5000K
www.upshine.com [email protected]
5.69 SDCM F5700K
x=0.3234 y=0.3444
3.20 SDCM F3000K
x=0.4427 y=0.3996
1.25 SDCM F5000K
x=0.3483 y=0.3619

Polar Diagram Comparison
AVERAGE BEAM ANGLE (50%): 130.7DEG
UNIT: cd
C0/180, 156.9 deg
C30/210, 139.3 deg
C60/240, 116.9 deg
C90/270, 109.9 deg
300
600
900
1200
1500
0O
180O
150O -150O
120O -120O
90O -90O
60O -60O
30O
-30O
0
Temperature (oC)
The driver lifespan is based on capacitor working temperature.
IC
Capacitor
MOS
PCB
LED
Fitting
Environmental temperature
90
80
70
60
50
40
30
20
10
0
11:13:13 11:31:10 11:49:10 12:07:10 12:25:10 12:43:10 13:01:10 13:19:10 13:37:10 13:55:10 14:13:10 14:31:10 14:49:10 15:07:10 15:43:10 16:01:10 16:19:10 16:37:10
Time
Driver lifetime & LED light decay rate
90000
80000
70000
60000
50000
40000
30000
20000
10000
0
65oC 75oC 85oC 95oC 105oC
Lifetime (hours)
Capacitor Tc (oC)
Driver Lifetime LED Light Decay Rate
% Luminous Flux
FLUX
△U'V'
110%
105%
100%
95%
90%
85%
80%
75%
70%
0.0040
0.0035
0.0030
0.0025
0.0020
0.0015
0.0010
0.0005
0.0000
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
LifeTime (hours)
Temperature
●The testing is operated at 25°C
●The lifetime of capacitor, minimum of 5,000 hours if operated at 105°C, will be doubled whenever the temperature drops 10°C
●The highest withstand temperature of IC, MOS could be 120°C
●The highest withstand temperature of LED junction temperature is 150°C
www.upshine.com [email protected]

Installation 1
Installation 2
www.upshine.com [email protected]
Step1 Step2
L
N
Step3
BLUE
BROWNL =
N =
Step4
Step1 Step2
Put the LED batten back until it is stuck by clips.
Knock 2pcs plastic anchors into ceiling. Fastening the clips on the ceiling.
Open the end cap, put the wires through the
hole, connect the terminal block (Brown to L,
Blue to N), tighten the end cap to prevent the
water into the lamp.
Knock 2pcs plastic anchors into ceiling, fix the wire regulating
device on ceiling.
Put the hook through metal plate, embed the metal plate in the slot
of the lamp body.
100-130V
12 26 UP-DB18-1600-40W
200-277V
Linkable luminaries Qty
ART-NR

Packaging Information
SIZE(CM) N.W/pc
(KGS) G.W.(KGS) Q'TY(PCS)
Carton 181.5*23*19.5 1 8 6
CTNS Q'TY(PCS) VOLUME(CBM)
20'' standard
container 338 2028 28
40'' standard
container 678 4068 56
www.upshine.com [email protected] Phone: [phone]
Add: 2nd building Dingfeng High-Tech Zone, Fuyuan 1st road, Fu Yong Sub-district, Bao'an, Shenzhen China
Step3
L
N
Step4
BLUE
BROWNL =
N =
Adjust the length of suspending wires on same level, turn on the
light.
Hanging the lamp to the suspending wires.
Open the end cap, put the wires through the
hole, connect the terminal block (Brown to L,
Blue to N), tighten the end cap to prevent the
water into the lamp.
