UPC 5600 User manual

PARTS LIST
Revised 01/28/15 Page 1of 4
UPC 5600 56 Pocket Spinner
PART Quantity Reference
Screws 16 H
Card Divider Clips 28 J
Header Clip 1K
Push Clips (Optional) 8L
PART Quantity Reference
Corner Posts 4A
Inserts 4B
Base 1C
Top Plate 1D
Wire Assembly Helper 1E
Card Racks 28 F
H LKJ
Pin on one
end only
ASSEMBLY INSTRUCTIONS
B
A
CD
EF
PARTS LISTPARTS LIST
PARTS BAG
Finished Display
TOOLS REQUIRED: #2 Phillips Screwdriver

Page 2 of 4
Pin
Corner Panel
Insert
Pin
Important! Install optional casters to base prior to
assembly of fixture, and remove bumper feet prior to
caster attachment.

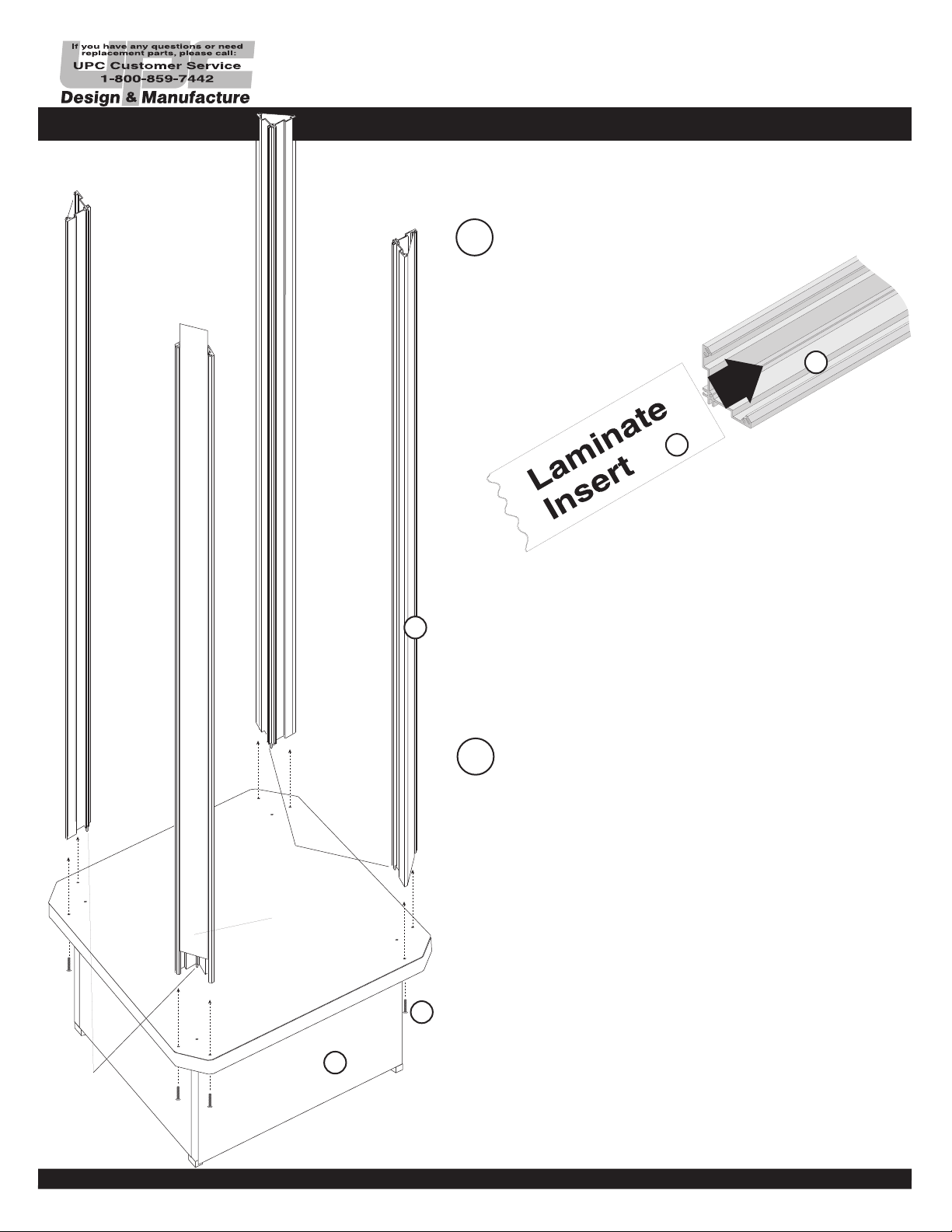

Attach the four Corner Posts (A), pin ends
down, to Base (C), using Screws (H). Slide
the Corner Panel Inserts upwards to view
Screw placement in Corner Posts (A).
Note: If you are installing Corner Pockets (card wings)
please proceed with the instructions enclosed with
that product now.
Corner Pockets and Laminate Inserts cannot be
installed simultaneously.
Install a Laminate Insert into each Corner Post
before assembling the Fixture.
B
A
C
A
H
ASSEMBLY
1
2

Page 3 of 4
Figure 2
Figure 1
Figure 3
Insert Assembly Helper (D),
into top of the Corner Posts
(A). Be sure wire goes into
center holes. (see Fig.1).
Peel off protective masking
on racks.
Insert Racks (E), into narrow
slots of the Corner Post (A)
(see Fig. 2). Be sure tabs of
the bottom Racks enter slots
in the upper Racks. (see Fig.
3).
ASSEMBLY
3

Page 4 of 4
Without removing the Wire Assembly
Helper (E), install Top Plate (D), over slots
on top of Racks (F), and attach with
Screws (H).
Note: Do not remove helper.
NOTE: There are different header styles that are available, please follow the appropriate instructions.
Remove masking from the adhesive
strip on the underside of the Header
Clip (K). Place Header Clip (K) onto
the center of the Top Plate (D) and
insert signage into Header Clip (K).
Assemble Header (G) with Push
Clips (L). Set Header (G) into slots on
top of Top Plate (D).
A B
ASSEMBLY
4
