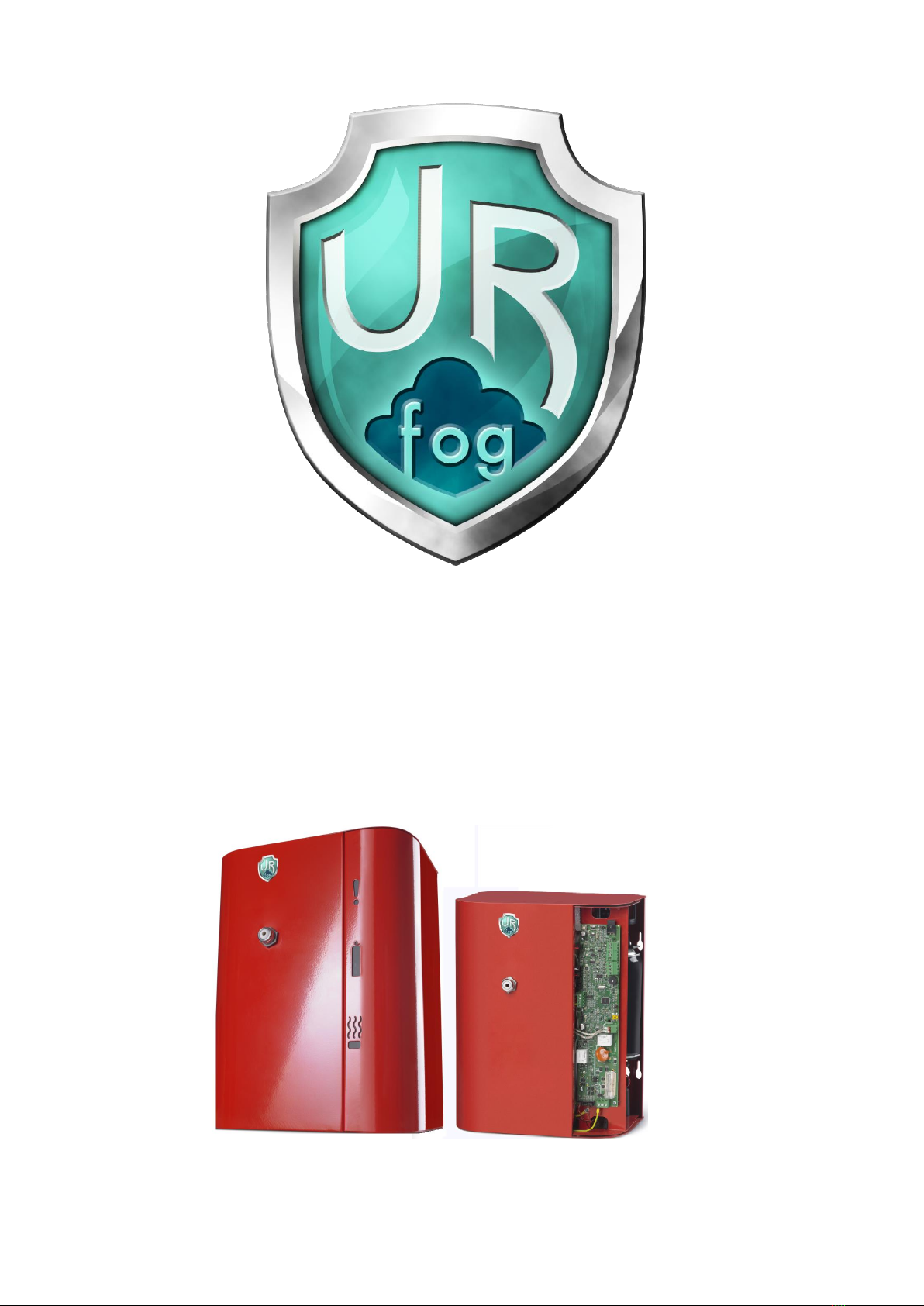

UR FOG FAST 02 Guide

Installation and use manual models FAST 02 e FAST 03 rev 1.0.0 October 2013 Page 1 di 19
INSTALLATION AND USE
MANUAL
mod. FAST 02 e FAST 03
ENGLISH MANUAL

Installation and use manual models FAST 02 e FAST 03 rev 1.0.0 October 2013 Page 2 di 19
1Package contents ….………………………………………………………………………………………………………….… page 2
2Introduction to the product ……………………………………………………………………………………………………………...…. page 3
3Conditions of use and warnings………………………………………………………………………………………..…………….. Page 3
4Installations tips of fogging systems –recommendations …………………………………………….. page 4
5How to activate the system ………………………………………………………………………………………… page 5
6Technical specifications ………………………………………………………………………………………………………………………… page 6
7Electricity supply …………………………………………………………………………………………………………….. page 6
8Battery power ……………………………………………………………………………………………………………………………… page 7
9Description and input and output connections…………………………………………………………………………..…… page 7

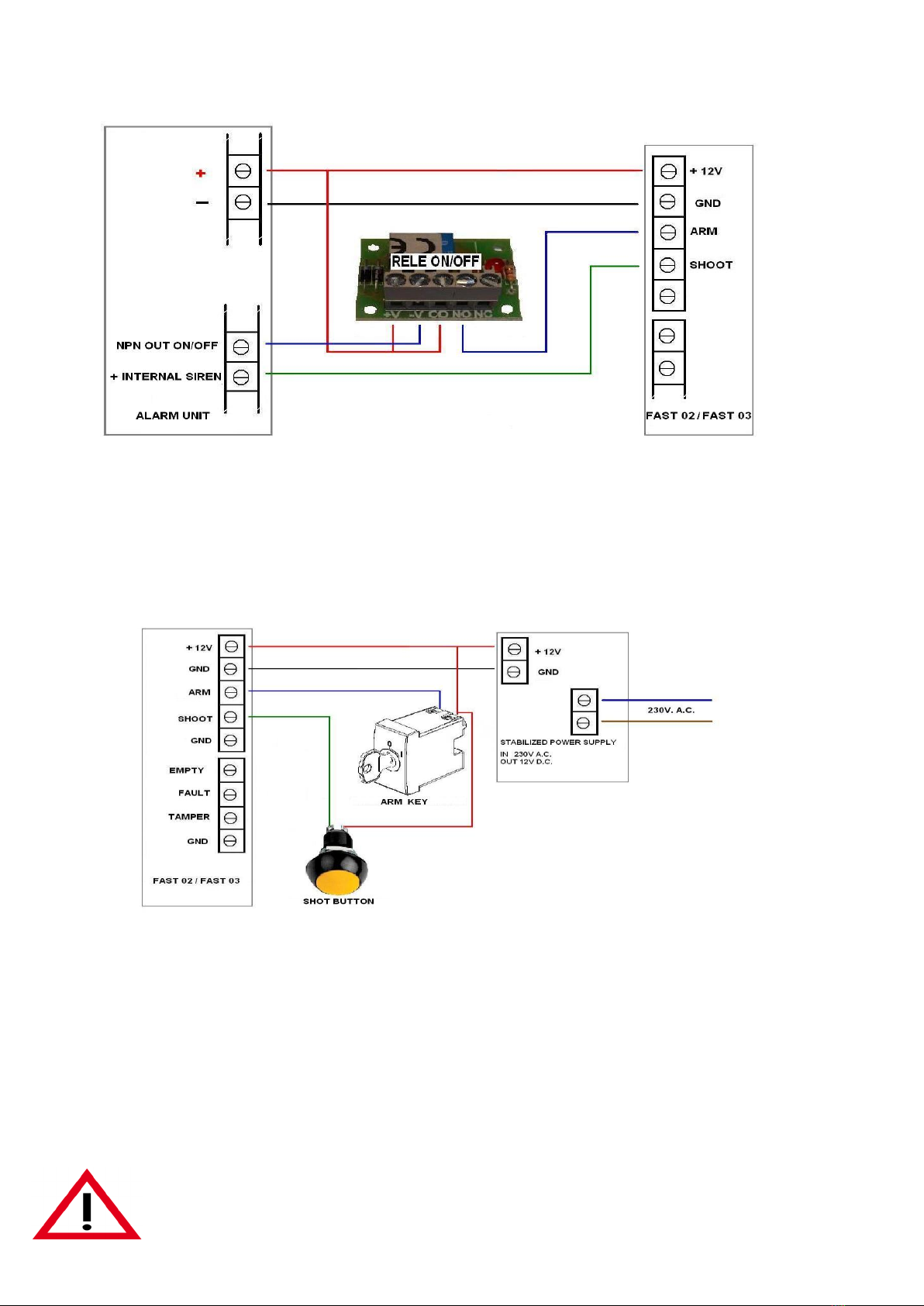

10 Connection examples ……………………………………………………………………………………………………………………..… page 8
11 Meaning of front LEDs……………………………………………………………………………………………………………..……… page 11
12 Setting shooting time and fog flow direction…………………………………………………………. page 12

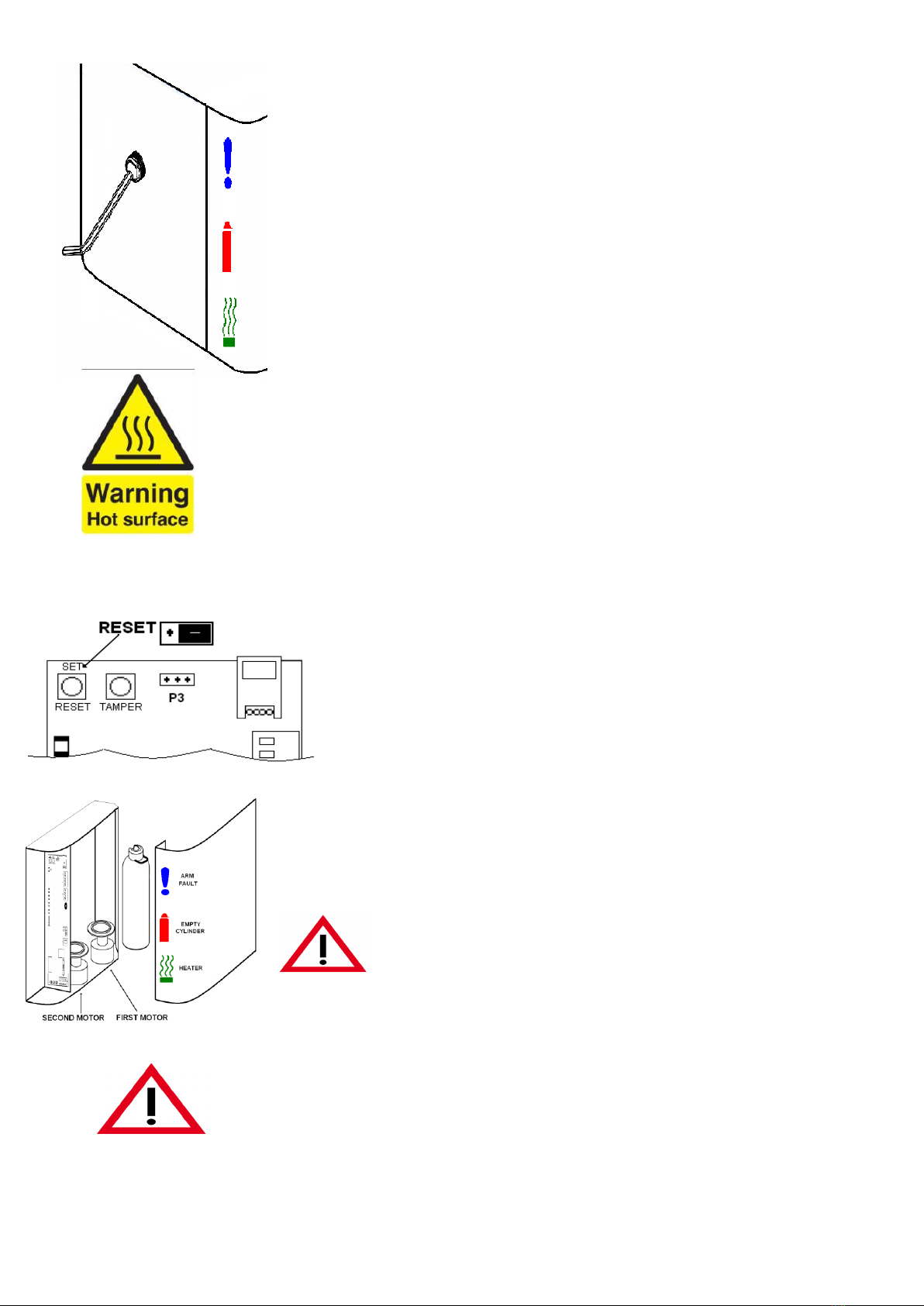

13 Installation, exchange and cylinders reset…………………………………………………………………………………………… page 13
14 Maintenance………………………………………………………………………………………………………………………………………… page 14
15 Defects and possible solutions…………………………………………………………………………………………………………………… page 16
16 WARRANTY ……………………………………………………………………………………………………………………………………………….. page 17
The conditions of use will be accepted automatically breaking the security labels on the product.
1PACKAGE CONTENTS
Inside the package you will find:
1. The machine FAST 02 or FAST 03,
2. 1 fog fluid charged cylinder for the model FAST 03 1C or two cylinders for the models FAST 03 2C and FAST 02 2C.
3. A label to indicate device presence.
4. Installation and use manual.

Installation and use manual models FAST 02 e FAST 03 rev 1.0.0 October 2013 Page 3 di 19
2INTRODUCTION TO THE PRODUCT
Thank you for purchasing UR Fog product.
The large patented technological innovations such as the liquid injection system, the not returnable cylinders, the fact
that they don’t need to charge and they are also one-use, the ecological and economic system for the complete
emptying of the cylinders, together with the heating system, all of them make the FAST fog generators the best fog
devices with the best performance in the security market.
- Reliable There are not high pressure pumps that loose fluid or tend to stop working
There are not high pressure pumps that must be tested periodically
UR Fog doubble cylinders technology is a guarantee of working in any condition
- Competitive Complete use of cylinders liquid avoiding any waste of liquid thanks to pressure control
low power consumption
Fast and powerful
- Simple Easy to install machines and also
Can be integrated to any existing alarm system
Inside there are 2 cylinders included (mod. FAST 03 1C –1 cylinder )
3 CONDITIONS OF USE AND WARNINGS
The fog generated by UR Fog does not create particular problems or injuries for a human being for a short stay in a
fogged room if the system is used according to the manufacturer’s recommendations. Generated fog is stated as safe
for people and animals from an authorized international certification company and is proved that do not leave any
residual. UR Fog FAST 02 and 03 are certified respecting European laws and regulations. Any certifications required in
specific countries are on the responsibility of the distributor of the specific country. The documents related to
certifications can be requested by mail to [email protected]. It is not guaranteed by the manufacturer the use of UR
Fog system in the presence of objects that may be damaged anyway in contact with substances based on glycol, water
and alcohol. Any employee or worker that may be exposed to fog must be advised in advance and must be verified if
there can be any allergy to the defined above substances. At the date of printing of this manual it has never been
pointed out any problem related to any allergy. UR Fog is anyway not responsible for any damage or condition of use
that has not been required by any specific written request, and specifically approved, prior to the installation of its
products. For fog fluid please refer to UR Fog fluid safety data sheet published on the website and carefully read it at
www.urfog.com. Contact a doctor if for any reason you swallow fog fluid or if after contact with eyes or skin you have
any kind of reaction, anyway wash it immediately with water and soap. Do never stay for a long time in a room filled
with fog. Do not use charged cylinders that are not the ones suggested by UR Fog and never try to recharge them, they
are made for a single use. Follow your national rules for the dispose of empty cylinders. Keep UR Fog cylinders out of
reach of baby and animals. The nozzle may be hot and touching it may cause burns. Do not look directly into the
nozzle. Do never use UR Fog for any purpose that is not related to protection from thief or robbery (the choice of the
conditions of use in case of robbery will be suggested by your security consultant).
Do never use different fog fluids or add any other substance into the cylinders. Do not use or keep in charge UR Fog
machine in vehicles and do never transport UR Fog before 24 hours it has been shut off. During transport it must be
not armed.

Installation and use manual models FAST 02 e FAST 03 rev 1.0.0 October 2013 Page 4 di 19
4INSTALLATION TIPS OF FOGGING SYSTEMS - RECOMMENDATIONS
Please observe the following instructions for mounting UR Fog:
1. The machine must be installed avoiding to block escape routes.
2. Verify the fog does not limit the visibility near: stairs, landing, moving objects that may
cause: falls down, injuries or any damage to persons.
3. Do not look directly into the nozzle. Do not add any other substance into the cylinders.
4. The nozzle may reach high temperatures, touch it may cause burns.
5. When UR Fog produces fog avoid staying less than 1 meter from the machine.
6. When UR Fog is armed avoid staying less than 50 cm from the nozzle.
7. Before tests of UR Fog, remember to report it in advance to the firefighters in your area to avoid false alarms.
8. Remember to put warning labels about the presence of UR Fog on the windows.
9. Report its installation to the firefighters in your area and eventually to other institutions if needed.
10. It is necessary to add an external switch to separate the fog generator from the alarm system and it should be activated
before the maintenance to avoid that input tests, for example, can activate the fog generator.
11. Never direct the fog jet towards an object or a wall less than 2 meters, if it is possible increase suggested minimum distance.
Thanks to the power of the jet, UR Fog reaches and exceeds more than 10 meters away for first 3 seconds from the point
where the machine is installed.
12. Setting the shooting time interval between the minimum and maximum shown in the time table, avoid doing “overshooting”
even if the produced fog is dry and generally doesn’t leave residue. A shot that goes far beyond the recommended seconds
can create residue problems in the room.
13. UR Fog continues to be effective for up to 2 hours without main power 220V thanks to the insulation system that maintains
long-temperature in the heating system.
14. Install at height of about 2,5 meters not to let be reached to avoid possible tampering.
15. Install with a maximum inclination of 20°.
16. Do not move the machine when it is still hot.
17. The main body of UR Fog FAST 02 and Fast 03 that has the heating system closed inside a metal frame, should not be opened
unless from specific and authorized service centers. For no reason open and touch insulation before 24 hours UR Fog has
been shut off. The internal part may reach really high temperature.
18. Do not activate the UR Fog machine before the installation is not completed.
19. Insert the cylinders as the last procedure and verify the the anti-tampering function.
20. When the installation is finished, test always the system.
21. From the moment of UR Fog activation, it is necessary at least one hour to reach the minimum temperature need for the fog
shoot.
22. Install UR Fog avoiding an obstacle in front area which can prevent spread of the fog.
23. The external temperature of UR Fog can change from the enviromental temperature to 50 °C.
24. Request to UR Fog or its distributors to take part in courses for installers to ensure optimal installation of the equipment.

Installation and use manual models FAST 02 e FAST 03 rev 1.0.0 October 2013 Page 5 di 19
5 HOW TO ACTIVATE THE SYSTEM
It is always recommended to affix the Fast 02 or Fast 03 on a wall also when it is on a flat surface.
Verify always that the bracket or the support surface are suitable for the weight of the machine.
It is suggested not to install the machine behind walls in a limited close area without a specific
ventilation to prevent a possible overheating.
After removing the machine from the package, unscrew the two screws that stop the right side panel and revome it.
Inside it is possible to see the front part of the electronic circuit, later called as PCB.
On the side you can see two cylinders (one for Fast 03 1C) placed on the cylinder plate.
It is necessary to take away the cylinders to remove the blocks placed in the upper part of the cylinders, they
are only used to avoid the risk of disharge of the liquid during the transport.
On the rear of cabinet you have to remove precutted wholes on metal case choosing the proper ones after deciding
straight or corner installation
The round precutted wholes are instead to be used for cables that should go in or out of the machine.

Installation and use manual models FAST 02 e FAST 03 rev 1.0.0 October 2013 Page 6 di 19
6TECHNICAL SPECIFICATIONS
FAST A 03 1C TS
FAST A 03 2C TS
FAST A 02 2C TS
Weight without cylinders and
battery
10 Kg
11 Kg
14,7 Kg
Fog emission in a single shoot
300 m³
300 m³
600 m³
Total emission capacity
600 m³
1200 m³
1500 m³
Cyliders capacity
1 x 400 ml
2 x 400 ml
2 x 500ml
Work time without main power
2 hours 30 minutes
2 hours 30 minutes
2 hours 30 minutes
Thermocouples
2
2
2
Max power on heating system
500W
500W
500W
Heating time
40 minutes
40 minutes
60 minutes
Average power consumption
40W
40W
45W
Maximum consume at 12V
230 mA after shooting
60 mA stand-by
230 mA after shooting
60 mA stand-by
230 mA after shooting
60 mA stand-by
Average batteries lifetime
12 months with 10 shoots
12 months with 10 shoots
12 months with 10 shoots
Door anti tampering
Micro switch
Micro switch
Micro switch
Anti-tear off or anti-shift
Accelerometer
Accelerometer
Accelerometer
7ELECTRICITY SUPPLY
Power 220V supplies energy only to the heating system. Electronic card and the motors of the cylinders are
supllied from the alarm system and batteries.
The heating element is of 1KW, at the very beginning power consumption is about 500W and in some
minutes it goes down reaching average consumption which is about 40W - 60W.
Do not use: inverter or UPS unless you have the certainty that they generate a proper sine
wave, but not rebuilt.
- The max current to be considered for the system is 4A
- The connection to the electricity grid 230V must be performed by a qualified technician.
- Connect the equipment to the electricity grid only after you have completed the installation.
- It is necessary to connect the ground terminal.
PLEASE NOTE THAT, AS ALL POWERED EQUIPMENT FROM THE SUPPLY REQUIRING INSTALLATION,
IT IS SUBJECT TO COMPLIANCE RULES OF THE COUNTRY IN WHICH IT IS INSTALLED
For section and types of wires, fuses, suitability of materials to installation sites etc..
1Ground connection for heat exchanger and cabinet
2Ground connection
3Neutral 220V
4Phase 220V
IF YOU NEED TO REPLACE THE FUSE, USE THE ONE WITH EXACTLY THE SAME
SPECIFICATIONS. IF ANY DOUBT, ASK YOUR AUTHORIZED DEALER

Installation and use manual models FAST 02 e FAST 03 rev 1.0.0 October 2013 Page 7 di 19
8BATTERY POWER
The batteries are intended to maintain the efficiency of the electronic card, allowing the fog emission even in absence
of power supply from the electricity grid, until the heating system has a sufficient temperature.
The batteries also have the purpose of activating the motors that rise up plates with cylinders, even if
it is available the main power supply or 12V from the alarm system.
Without batteries, with dead batteries, rechargeable or poor quality ones, motors do not pise up
plates that push cylinders.
For this reason it is important:
- To use only high quality alkaline batteries
- To replace them within the expiry date
-Anyway to replace them every 12 month
- When Fast 02 / Fast 03 report the signal of battery low (paragraph 11 and 14)
- Battery case test to any action (paragraph 14)
After inserting the batteries, it is important to check they are in a good contact with the battery case to
guarantee the proper functioning. Describtion of how make tests is in paragraph 14.
9DESCRIPTION OF INPUT AND OUTPUT CONNECTIONS
INPUTS
1+ 12V Power input
2GND Power input
In these inputs is necessary to provide a stable supply, between 11V and 14V DC from the alarm
control panel or from an external 12V power supply.
This power is necessary to the operation of the LED and for the logic of operation.
In the absence of voltage on this input, the logic part continue to operate, but not the heater.For
about 2 hours and 30 minutes, or until the temperature of the heat exchanger (heating system)
allows, Fast 02 or Fast03 may produce fog.
The maximum current drawn from UR Fog on this input is 230 mA.
3ARM Arming input
Connecting this input to positive, Fast 02 or 03 is armed, blue frontal led is switched on and when the
machine reaches proper temperature it means that it is ready for shooting.
In case of alarm, opening ARM input, the fog emission stops immediately, even if it has not spent the
setting time.

Installation and use manual models FAST 02 e FAST 03 rev 1.0.0 October 2013 Page 8 di 19
4SHOOTS shooting input.
Putting this input to positive, if Fast 02 or 03 is hot and armed, starts fog emission for the set time (see programming
section shooting time)
5GND Negative reference connected to terminal 1
OUTPUTS
6EMPTY Output empty cylinder
This output (NPN Open Collector) closes towards negative direction when at least one of the two
cylinders is empty.
7Fault Fault output
This output (NPN Open Collector) closes towards negative when there is a serious malfunction ( such
as batteries expired, fault of power supply or temperature control fault), which compromises the
functioning of the device and which requires a technical action
8 Tamper Tamper output
This output (NPN Open Collector) closes towards negative direction when you open the door cylinders
or when the accelerometer detects a sudden movement (such as the detachment from the wall)
9 GND Negative reference connected to terminal 1
To comply with the requirements of the reference standard EN50131-8
Remember, it is necessary to connect all three outputs to an alarm central or an
electronic panel that can see all those information in real time and take proper action.
In order to avoid accidental activation with subsequent fog emission, the inputs are in
"negative security", for this reason the disconnection of a wire does not cause
activation.
So it is necessary to check carefully the reliability of connections and protect the cables
to the control panel to avoid the risk of accidental damages.
10 CONNECTION EXAMPLE
The diagrams and examples below are intended only to a "better understanding" the operation of
the inputs / outputs. None of the diagrams below represents the "single scheme to perform" as, in
respect of the reference standard EN50131-8, there are precise indications and only using all inputs
and outputs on the PCB it is possible to respect the standard.
If UR Fog is used as "ANTI-ROBBERY" device, it is necessary a careful assessment of the risks by a
security consultant.
A Example of connection UR Fog inputs with outputs of a central anti-theft standard
B Example of connection for anti-robbery use with external power supply
C Example of connection of the UR Fog outputs to drive LEDs and / or relays
D Example of connection of the UR Fog outputs with inputs of an antitheft normally opened
E Example of connection of the UR Fog outputs with balanced inputs of an antitheft

Installation and use manual models FAST 02 e FAST 03 rev 1.0.0 October 2013 Page 9 di 19
A- Example of inputs connection UR Fog with outputs of a central alarm
In the diagram above the control panel, as example, provides to UR Fog power supply between 11 and 14V DC 250 mA
max.
The ON/OFF output of this power plant is an Open Collector NPN opened when the system is off and it is closed stably
to negative for all the time in which the system still lit.
The alarm output of the plant is normally open and becomes positive during the alarm time.
B- Example of UR Fog connection with external power supply for anti-robbery use
In the diagram above Ur Fog is powered by an external power supply.
When Fast 02 or 03 is used with an external power supply in case of power failure, the machine will not be
able to shoot. For this reason, when the anti-robbery function must be guaranteed in the absence of power, it
is needed to add a rechargeable battery with a capacity of 1.2 Ah 12V in parallel to the output of power
supply.
The arming key is important, as required by law, to allow you to disarm the device when not in use and maintenance.
The shooting button, when the machine is armed, starts the fog emission immediately after pushing the button with
time already set in advance.
To stop the fog emission before the set time, turn the key to disarm the machine.
For safety reasons and to avoid false fog emissions in power, when Fast02 or Fast 03 is
armed, it becomes operative only after 20".

Installation and use manual models FAST 02 e FAST 03 rev 1.0.0 October 2013 Page 10 di 19
After this time, the fog emission is instantaneous.
C- Example of outputs connection to drive LEDs or RELAY
when a cylinder is empty, DL EMPTY will switch on
when there is a fault DL FAULT will switch on
when you open the cylinders door, in addition to DL TAMPER the relay switch
power max applicable on the outputs 100mA
D- Example of connection of UR Fog outputs with opened inputs of an alarm system
The UR Fog outputs are normally opened and connected with input zones of the alarm control panel normally
opened
According to the diagram above:
when there is an empty cylinder the entrance area L3 will detect an alarm;
if a failure occurs or the batteries run down, L2 detects an alarm;
when you open the door of the cylinders, L1 detects an alarm
