UR FOG FAST 03 1C PRO PLUS Guide

FAST
PRO PLUS
FAST 03 1C PRO PLUS
FAST 03 2C PRO PLUS
FAST 02 2C PRO PLUS
INSTALLATION AND USE MANUAL
Installation and use manual models FAST PRO PLUS 120 v/230 v rev. 22/08/2021 page 1 of 23
ENGLISH MANUAL

WARNING!!
All UR FOG fogging systems should only be used with UR FOG-branded fluids.
It is strictly forbidden to use any fluid not previously authorized in writing by UR FOG srl.
01 PACKAGE CONTENT
Inside the package you will find:

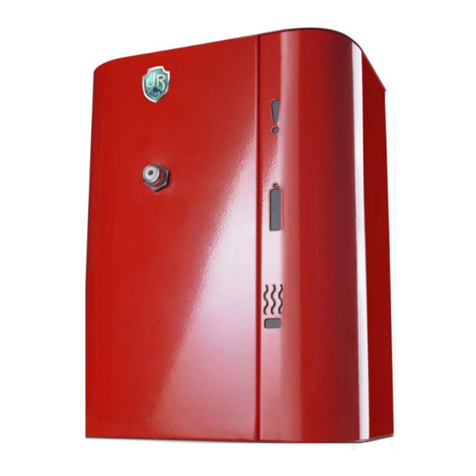

1. The machine FAST PRO PLUS.
2. 1 or 2 fog cylinders of 600 ml each.
3. A label to indicate the device presence.
4. Installation and use manual.
01 Package contents page 2
02 Introduction of the product page 3
03 Conditions of use and warnings page 3
04 Installations tips for fogging systems page 4
05 Technical specifications page 5
06 How to activate the system page 6
07 Mains power and power supply connections page 7
08 Description of input and output connections page 8
09 Connection examples page 10
10 Front LEDS Meaning page 14
11 Shooting time settings and fog flow direction page 14
12 Nozzle tamper page 16
13 Installation, exchange and cylinders reset page 17
14 Maintenance page 17
15 Reset from fault conditions (BLUE and RED LEDS) page 19
16 Faults and possible solution page 20
17 Warranty page 22
18 Maintenance page 23
The conditions of use will be automatically accepted by breaking the security labels on the product.
SUMMARY
2

02 INTRODUCTION OF THE PRODUCT
Thank you for purchasing UR Fog product.
he great patented technological innovations such as the liquid injection system, the disposable cylinders,
the fact that they don’t need to be refilled, the ecological and economic system for the complete emptying of the cylinders,
together with the heating system, all of them make the PRO PLUS fog generators the best fog devices with the best
performance in the security market.
- Reliable: There are no high pressure pumps which lose fluid or tend to stop working.
There are no high pressure pumps that must be tested periodically.
Double cylinders technology is guaranteed to work in any condition.
- Competitive: Complete use of cylinders liquid avoiding any waste of liquid thanks to pressure control.
Low power consumption. Fast and powerful.
- Simple: Machine easy to install and able to be integrated to any existing alarm system.
03 CONDITIONS OF USE AND WARNINGS
The fog generated by UR Fog does not create particular problems or injuries for a human being for a short stay in a fogged
room if the system is used according to the manufacturer’s recommendations.
Generated fog is certified as safe for people and animals from an authorized international certification company and is proved
that it does not leave any residual.
UR Fog systems are certified respecting European laws and regulations.
Any certifications required in specific countries are a responsibility of the distributor of that specific country.
The documents related to certifications can be requested by mail to [email protected].
It is not guaranteed by the manufacturer the use of UR Fog system in the presence of objects that may be damaged anyway
by the contact with substances based on glycol, water and alcohol.
Any employee or worker that may be exposed to fog must be warned in advance and must be checked for any allergy to the
substances listed above.
At the date of printing of this manual it has never been pointed out any problem related to any allergy.
UR Fog is in no way responsible for any damage or condition of use that has not been required and specifically approved by
any specific written request prior to the installation of its products.
For fog fluid please refer to UR Fog fluid safety data sheet published on the website and carefully read it at
www.urfog.com.
Contact a doctor if for any reason you swallow fog fluid or if after contact with eyes or skin you have any kind of reaction,
and in any case wash it immediately with water and soap.
Do never stay for a long time in a room filled with fog.
Do not use charged cylinders that are not the ones suggested by UR Fog and never try to recharge them,
they are made for a single use.
Follow your national rules for the dispose of empty cylinders. Keep UR Fog cylinders out of reach of babies and animals.
The nozzle may be hot and touching it may cause burns.
Do not look directly into the nozzle.
Never use UR Fog products for any purpose that is not related to protection from thief or robbery (the choice of the conditions
of use in case of robbery will be suggested by your security consultant).
Never use different fog fluids or add any other substance into the cylinders.
Do not use or keep charged UR Fog machines in vehicles and do never transport UR Fog before 24 hours since it has been
shut off. During transport it must be not armed.
3

04 INSTALLATION TIPS FOR FOGGING SYSTEMS
Please observe the following instructions for installing UR Fog:
1. The machine must be installed avoiding to obstruct escape routes.
2. Verify the fog does not limit the visibility near: stairs, landings, moving objects that may cause:
falls down, injuries or any damage to persons.
3. Do not look directly into the nozzle. Do not add any other substance into the cylinders.
4. The nozzle may reach high temperatures, touch it may cause burns.
5. When UR Fog produces fog avoid staying closer than 1 meter from the machine.
6. When UR Fog is armed avoid staying closer than 50 cm from the nozzle.
7. Before testing UR Fog, remember to report it in advance to the firefighters in your area to avoid false alarms.
8. Remember to put warning labels about the presence of UR Fog on the windows.
9. Report its installation to the firefighters in your area and eventually to other institutions if needed.
10. It is necessary to add an external switch to separate the fog generator from the alarm system and it should be
activated before the maintenance to avoid that input tests, for example, can activate the fog generator.
11. Never direct the fog jet towards an object or a wall less than 2 meters away and if possible increase the suggested
minimum distance. Thanks to the power of the jet, UR Fog reaches and exceeds more than 10 meters away
in the first 3 seconds from the point where the machine is installed.
12. Setting the shooting time interval between the minimum and maximum shown in the time table, avoid “overshooting”
even if the produced fog is dry and generally doesn’t leave residue. A shot that goes far beyond the recommended
seconds can create a residue problems in the room.
13. UR Fog continues to be effective for up to 2 hours without 220V and 110V main power thanks to the insulation system
which maintains the temperature in the heating system.
14. Install at an height of about 2,5 meters not to let it be reached, avoiding possible tampering.
15. Install with a maximum inclination of 20°.
16. Do not move the machine when it is still hot.
17. The main body of UR Fog, which has the heating system enclosed inside a metal frame, should not be opened unless
by specific and authorized service centers. Do not open and touch for any reason the insulation before 24 hours
UR Fog has been shut off. The internal part may reach really high temperature.
18. Do not activate the UR Fog machine before the installation is completed.
19. Insert the cylinders as the last procedure and verify the anti-tampering function.
20. When the installation is finished, always test the system.
21. From the moment of UR Fog activation, at least one hour is necessary to reach the minimum temperature needed for
the fog shooting.
22. Install UR Fog avoiding any obstacles in front of it which can prevent the spreading of the fog.
23. The external temperature of UR Fog can change from room temperature to 50 °C.
24. The tip of a stranded conductor should not be soft-soldered where the conductor is subjected to contact pressure.
25. The UR Fog machine should not be exposed to water spray or dripping.
26. Request to UR Fog or its distributors to take part in courses for installers to ensure the optimal installation
of the equipment.
4

05 TECHNICAL SPECIFICATIONS
In 1C version, the “empty” signal doesn’t mean only that the cylinder is empty,
but also warns you that the system is in reserve.
For this reason is very important to make the “reset” only when you actually
exchange the cylinder, or you will lose the seconds counting. (See paragraph 13)
Weight without tanks and battery
Max fog emission in a single shot
Total fog emission capacity
Fog tanks capacity
Working time without mains power
Max power on heating system
Average power consumption “during
heating”
Heating time
Maximum consume at 12 V
Maximum power consumption at 12 V
Average batteries lifetime
Door tamper
Anti-tear off and anti-shift
11,8 Kg
200 m3
1200 m3(1C) - 2400 m3(2C)
2 x 600 ml (1 x 600 ml in 1C version)
about 2 hours
300 W
270 W
about 50 minutes
42 W
500 mA
Pb 2 Ah 12V
Tamper screw
Accelerometer
15,0 Kg
400 m3
2400 m3
2 x 600 ml
about 2 hours
300 W
270 W
about 90 minutes
45 W
500 mA
Pb 2 Ah 12V
Tamper screw
Accelerometer
*Industrial standard as from other
manufacturers FAST 03 PRO PLUS FAST 02 PRO PLUS
-Loosened ferrule can cause dropping
-Do not disconnect the machine immediately after the shot
-Change battery every 2 years
-Change the cylinder as soon as the “empty” signal appears
WARNING:
5

06 HOW TO ACTIVATE THE SYSTEM
It is always recommended to fix the fog generator to a wall even when it is placed on a flat surface.
The optional bracket, mainly recommended for ceiling installation, can also simplify standard installation,
by allowing to use back holes for the passage of cables. Remember to use the fixing screw placed in the
cylinders compartment. Always verify that the bracket or the support surface are suitable for the weight
of the machine. It is suggested not to install the machine behind walls in a limited closed area without a
specific ventilation, in order to prevent a possible overheating.
CAUTION: to avoid injuries please securely fix the fogging machine to the wall according to the
installation instructions.
In case of installation behind a wall, it is possible to request a nozzle extension of 7 cm.
The cylinders supplied with the equipment are intended to be used only for a vertical (standard)
installation. In case of horizontal installation, please refer to your authorized reseller/distributor
to get the appropriate cylinders.I’s necessary to insert the cylinders with the black plastic plug.
To open the additional compartment in the lower part, it is necessary to remove cylinders compartment’s door and take off
the frontal shell, unscrew and remove the screws below. The screw in lower left part of cylinders compartment’s door is
longer than the others and its removal activates the tamper output.
TUBE FOR CABLES TO INSERT IN THE TERMINALS
After removing the machine from the package, unscrew the two screws that stop the right side panel and
remove it. Remove tamper screw and shell screws from inside.
At this point it is possible to remove frontal shell and see electronic circuit, from here on called PCB.
The screw in lower left part of cylinders compartment’s door is longer than the others and its removal activates
the tamper output. After the screw has been positioned correctly, the machine emits 4 beeps and deactivate
tamper output.
unthreading screw
6

07 MAINS POWER AND POWER SUPPLY CONNECTIONS
230V and 110V power source supplies energy only to the heating system. The electronic board and the cylinder’s pump are
supplied from the alarm system and batteries. The heating element is of 300W, at the very beginning power consumption is
about 270W and in some minutes it goes down reaching average consumption is about 37W - 42W.
Power supply mains connections
Mains power
Ground connection
Battery holder
(battery not included)
1
2
3
4
3
4
1
2
- The battery is necessary to use the system in a safe way.
The battery is recharged by power supply coming from J6 PIN + -.
- The placing of the lead-acid battery 2 Ah 12 V is in the case under
the heat exchanger.
- In order to accede to the battery case is necessary to remove
the frontal cover and the 2 locking screws.
- In case of a brackage of the battery fuse, use exclusively 1 A fuses.
Do not use inverter or UPS if you are not sure that they generate a true sine wave, not a rebuilt one.
Ask please to the UPS manifacturer the correspondance of such features before proceeding with
the connection.
he max current to be considered for the system is 4A
-The connection to the 230V and 110V electricity grid must be performed by a qualified technician.
-Connect the equipment to the electricity grid only after you have completed the installation.
- It is necessary to connect the ground terminal.
- The system must be connected to the mains trough on automatic switch
(automatic switch, curie C, with Ih= 10 A and Idif= 30 mA,...) with breching
capacity based on the assumed fault current of the fogging system in the sampling point.
PLEASE NOTE THAT, AS ALL POWERED EQUIPMENT FROM THE ELECTRICITY GRID REQUIRING INSTALLATION,
IT IS SUBJECT TO COMPLIANCE WITH RULES OF THE COUNTRY IN WHICH IT IS INSTALLED
For section and types of wires, fuses, suitability of materials to installation sites etc..
1
3
IF YOU NEED TO REPLACE THE FUSE, USE ONLY FUSE WITH THE FOLLOWING SPECIFICATIONS:
CERAMIC BODY FILLED WITH QUARTZ, REF. STD. EN60127-2-3/DIN41660 3,15AH (EXAMPLE OMEGA GT520231)
7

While connecting the machine to the mains power, it is
raccomended to never disconnect existing ground cable.
The fact of disconnecting or modifing existing cables voids the
warranty and can cause troubles or accidents related to the
temperature control.
Connect ground cable from the system to the screw on the
metal sheet.
INPUTS
+ +12V power input
- GND power input
ARM Arming input
SHOOT Shooting input
- GND
OUTPUTS
EMPTY Empty cylinder output
FAULT Fault output
TAMPER Tamper output
CONFIRM Shot confirmation output
PIR SENSOR VALIDATION INPUT
P+ +12V for PIR power supply
P- GND for PIR power supply / COM. PIR
PV N.C. PIR
+
-
V
J6
Serial bus
RS232
12V power input
INPUTS
OUTPUTS
Shooting seconds setting
Cylinders reset
Door tamper
PIR SENSOR
VALIDATION INPUT
08 DESCRIPTION OF INPUT AND OUTPUT CONNECTIONS
8

Remember, it is necessary to connect all three outputs to an alarm central or an electronic panel that
can see all those information in real time and take proper action.
In order to avoid accidental activation with subsequent fog emission, the inputs are in “negative
security”, for this reason the disconnection of a wire does not cause activation.
So it is necessary to check carefully the reliability of connections and protect the cables to the control
panel to avoid the risk of accidental damages.
JUMPER W4: if closed, it activates external PIR.
JUMPER W3: reserved for diagnostic, DO NOT USE!
JUMPER W2: if closed, it activates antirobbery function (instant shot through antirobbery button).
JUMPER W1: if closed, it activates the serial port to use additional boards, like LAN board (not relay board).
INPUTS
+ 12V Power input
The power supply is connected to those inputs.
INPUT SIGNALS
ABy connecting this input to positive, FAST PRO PLUS is armed, blue frontal LED is switched on and when
the machine reaches proper temperature it means that it is ready for shooting.
SPutting this input to positive, if FAST PRO PLUS is hot and armed, starts fog emission for the set time
In case of alarm, opening ARM input, the fog emission stops immediately, even if the time set wasn’t reached.
VALIDATION INPUT
In order to validate this input, it’s necessary to insert the jumper W4 with the unit switched OFF.
This input automatically generates AND function with input S.
If any input receives the shooting command, the generator doesn’t emit fog if within 1 minute doesn’t receive the command
also from the second input.
P+ Output positive to give power to a validation sensor or a remote control receiver, max 300 mA.
P- Output negative to give power to a validation sensor or a remote control receiver, max 300 mA.
PV Validation input. It’s possible to connect to this input a validation sensor with a contact normally closed conncted
to the terminal P-.
The PV input can be connected to external devices such as PIR or door sensors and behaves as an additional firing validation
input. When the PV function is active, by closing the W4 jumper, the emission of fog will be possible ONLY if the SHOOT and PV
commands have both been received, in any order, in a time interval not exceeding 60 seconds. After the shooting in these
conditions both inputs will be inhibited for 2 minutes to avoid false activations.
OUTPUTS
EThis output (NPN Open Collector) closes towards negative direction when the cylinder is empty.This output (NPN open
collector) closes towards negative when the fogging machine emitted fog for at least 100’’ or when the cylinder is empty.
The signal is activated by a sensor that detects the absence of liquid just while shooting.
The empty cylinder signal is deactivated only making the RESET (see paragraph 13). For this reasons, if the cylinder is not
inserted, or there is an empty cylinder inside, FAST PRO PLUS will detect it just after a shot.
FThis output (NPN Open Collector) closes towards negative when there is a malfunction (such as batteries expired, fault of
power supply or temperature control fault), which compromises the functioning of the device and which requires a technical
action. Fault signal due to supply absence has a delay of 20 minutes.
TThis output (NPN Open Collector) closes towards negative direction when you open the cylinder door or when the
accelerometer detects a sudden movement (such as the detachment from the wall).
CThis output (NPN open collector) closes towards negative only after that the system has emitted fog for the set time.
If the emission of fog is interrupted (if there is an interruption of ARM command, if the glycol finishes, if there is not thermal
autonomy anymore) this output will not change its status.
9

INPUTS
+ 12V Power input
The power supply is connected to those inputs.
INPUT SIGNALS
ABy connecting this input to positive, FAST PRO PLUS is armed, blue frontal LED is switched on and when
the machine reaches proper temperature it means that it is ready for shooting.
SPutting this input to positive, if FAST PRO PLUS is hot and armed, starts fog emission for the set time
In case of alarm, opening ARM input, the fog emission stops immediately, even if the time set wasn’t reached.
VALIDATION INPUT
In order to validate this input, it’s necessary to insert the jumper W4 with the unit switched OFF.
This input automatically generates AND function with input S.
If any input receives the shooting command, the generator doesn’t emit fog if within 1 minute doesn’t receive the command
also from the second input.
P+ Output positive to give power to a validation sensor or a remote control receiver, max 300 mA.
P- Output negative to give power to a validation sensor or a remote control receiver, max 300 mA.
PV Validation input. It’s possible to connect to this input a validation sensor with a contact normally closed conncted
to the terminal P-.
The PV input can be connected to external devices such as PIR or door sensors and behaves as an additional firing validation
input. When the PV function is active, by closing the W4 jumper, the emission of fog will be possible ONLY if the SHOOT and PV
commands have both been received, in any order, in a time interval not exceeding 60 seconds. After the shooting in these
conditions both inputs will be inhibited for 2 minutes to avoid false activations.
OUTPUTS
EThis output (NPN Open Collector) closes towards negative direction when the cylinder is empty.This output (NPN open
collector) closes towards negative when the fogging machine emitted fog for at least 100’’ or when the cylinder is empty.
The signal is activated by a sensor that detects the absence of liquid just while shooting.
The empty cylinder signal is deactivated only making the RESET (see paragraph 13). For this reasons, if the cylinder is not
inserted, or there is an empty cylinder inside, FAST PRO PLUS will detect it just after a shot.
FThis output (NPN Open Collector) closes towards negative when there is a malfunction (such as batteries expired, fault of
power supply or temperature control fault), which compromises the functioning of the device and which requires a technical
action. Fault signal due to supply absence has a delay of 20 minutes.
TThis output (NPN Open Collector) closes towards negative direction when you open the cylinder door or when the
accelerometer detects a sudden movement (such as the detachment from the wall).
CThis output (NPN open collector) closes towards negative only after that the system has emitted fog for the set time.
If the emission of fog is interrupted (if there is an interruption of ARM command, if the glycol finishes, if there is not thermal
autonomy anymore) this output will not change its status.
A Example of connection of FAST PRO PLUS inputs with outputs of a standard alarm system
BExample of connection of FAST PRO PLUS inputs to an alarm with relay outputs
CExample of connection of FAST PRO PLUS inputs with outputs of an alarm with open collector outputs
DExample of connection of FAST PRO PLUS outputs to drive LEDS and / or relays
EExample of connection of FAST PRO PLUS outputs with inputs of an alarm normally opened
FExample of connection of FAST PRO PLUS outputs with balanced inputs of an antitheft
GExample of connection of FAST PRO PLUS outputs with antirobbery connection.
H Example of connection of FAST PRO PLUS outputs with relay board.
A - Example of connection of FAST PRO PLUS inputs with outputs of a standard alarm system
09 CONNECTION EXAMPLES
The diagrams and examples below are intended only for a “better understanding” of the
operation of the inputs / outputs. None of the diagrams below represents the “single scheme
to perform” as, in respect of the reference standard EN50131-8, there are precise indications
and only using all inputs and outputs on the PCB it is possible to abide by the standard.
In the diagram above the control panel, as example, provides to UR Fog power supply between 11 and 14V DC 250 mA max.
The ON/OFF output of this alarm is an Open Collector NPN opened when the system is off and it is stably closed to negative as
long as the system turned on.
The alarm output of the alarm is normally open and becomes positive during the alarm time.
PUMP PRO PLUS
+ 12V
GND
ARM
SHOOT
GND
CENTRAL ALARM
OC NPN OUT ON/OFF
+ INTERNAL SIREN
+
+ 12V OUT
10
