UrbanFire UF-2 User manual

Page 1 of 22
WARNING: If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury, or loss of life.
For your safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
What to do if you smell gas

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your building.

Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.

If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
URBAN FIRE -2-
Propane / Natural Gas
Outdoor Gas Fireplace
Installation and Operating Instructions
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING: For Outdoor Use Only.
Retain this manual for future reference
Certified by the CSA
(Canadian Standards Association)
CSA 4.96 U.S. (3rd Ed.),
Outdoor Gas Fireplace
CGA CR97-003

Page 2 of 22
Table of Contents
INTRODUCTION....................................................................................
Specifications .........................................................................................
3
Dimensions & Installation Codes ............................................................
4
General Safety .......................................................................................
5
OPERATION..........................................................................................
Lighting Instructions ...............................................................................
6
LP Gas Safety Information .....................................................................
7
LP Gas Cylinder Connection...................................................................
8
Leak Testing ..........................................................................................
9
INSTALLATION ....................................................................................
Installation & Safety Notes .....................................................................
10
Initial Firing .............................................................................................
11
Minimum Clearances .............................................................................
11
Installation and Tank Assembly ..............................................................
12
Glass Placement ....................................................................................
13
Natural Gas Conversion….….………………………………………………
14 & 15
MAINTENANCE.....................................................................................
Maintenance Safety ................................................................................
16
Recommended Service .........................................................................
16
Burner Cleaning ....................................................................................
16
Trouble Shooting ....................................................................................
17

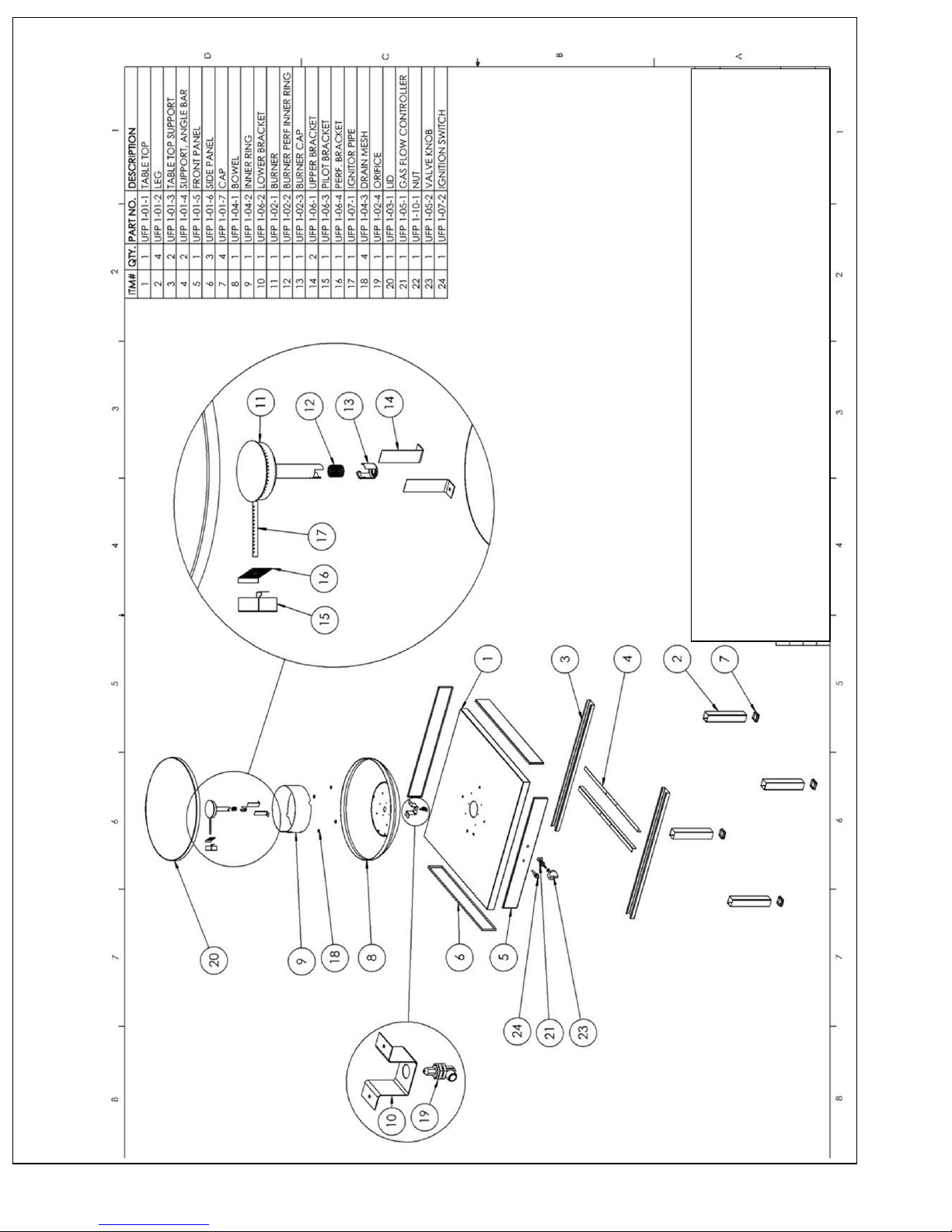

Replacement Parts .................................................................................
18
Warranty ...............................................................................................
19 & 20
Urban Fire Corp.
103 South Belair Drive
Woodbridge, Ontario,
L4H 2N4
Canada 1-888-337-4989

Page 3 of 22
1.0 INTRODUCTION
1.1 SPECIFICATIONS
TABLE 1
ITEM
PROPANE (LPG)
NATURAL GAS
INPUT: Hi
60,000 Btu/h (17.60kW)
60,000 Btu/h (17.60 kW)
INPUT: Lo
30,000 Btu/hr (8.79 kW)
30,000 Btu/hr (8.79 kW)
MAXIMUM GAS INLET
SUPPLY PRESSURE:
Minimum LPG
11” w.c. (2.74 kPa)
Minimum NG
7” w.c (1.744 kPa)
AIR SHUTTER
SETTING
Adjustable from fully closed
to fully open
Adjustable from fully closed
to fully open
ORIFICE SIZE: @ 0-2000’
# 42 LPG
#30 NG
Clearances to combustibles
Sides:
Floor:
Ceiling:
36” (91.44 cm)
0*
72” (183 cm)
36” (91.44 cm)
0*
72” (183 cm)
* Urban Fire -2- can be placed on a combustible base.

Page 4 of 22
APPLIANCE DIMENSIONS
Figure 1
URBAN FIRE -2-
INSTALLATION CODES
Installation must conform to local codes or in the absence of local codes, installation
must conform to the National Fuel Gas Code, ANSI Z233. 1, or the current CAN/CGA
B149.05 Installation Codes. In the state of Massachusetts, this product can only be
installed by a licensed plumber or a licensed gas fitter. Failure to comply will void the
warranty.
36” W x 36” L x 16.5” H
The appliance and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of
1/2 psi
(3.5 kPa).
The appliance must be isolated from the gas supply piping system by closing its individual
manual shutoff valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than
1/2 psi (3.5 kPa).

Page 5 of 22
GENERAL SAFETY
 Solid fuels shall not be burned in this fireplace.
 Keep the appliance area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
 Inspect the burner prior to each use, if the burner is damaged it must be replaced prior to use.
NOTE: Use only with burner part# UFP 1-02-1
 Inspect the pilot prior to each use, if the pilot is damaged, plugged or does not light, replace
damaged components prior to use.
 Do not use this appliance if any part has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of the control system and
any gas control which has been under water.
 Do not locate the gas supply hose in a pathway where people may trip over it or in areas
where the hose may be subjected to accidental damage.
Children and adults should be alerted to the hazards of high surface temperature and
should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the area of the
appliance. Keep cover of the fireplace secured on the appliance when not it use
to prevent children from playing, touching or eating the tempered glass.
Clothing or other flammable material should not be hung from the appliance or
placed near the appliance.
Any guard or other protective device removed for servicing the appliance must be
replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person. The appliance
should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required as necessary. It is imperative that control
compartments, burners and circulating air passageways of the appliance be kept
clean.

Page 6 of 22
WARNING: Cover must be removed when burner is in operation.
This appliance is equipped with a battery operated electric ignitor. Be
aware and look for proof of ignition spark. If there is no ignition spark
replace battery or light pilot manually.
2. Check all connections for leaks
( see page 9 for instructions on leak
testing).
3. Rotate the control knob to 12 o’clock
to locate pilot. Depress control knob to
release gas to the pilot. While
depressing the control knob, press the
igniter button with the other hand,
listen for a clicking sound and watch for
ignition flame in pilot box.
5. Slowly turn control knob towards 9
o’clock for desired flame height ( see
image below)

Page 7 of 22
The specific size of cylinder(s) to be used with this gas fireplace is
recommended not to be below or exceed 20 lbs. (9 kg) capacity. Ensure
cylinder is secured, upright, on a level non-combustible base.
If a larger TC or DOT cylinder is to be used. Ensure that the cylinder is safely
secured, upright on a non-combustible base, located a minimum of 10ft from
the fireplace and in a ventilated space.
Do not place a propane cylinder for use with this appliance on a non-
combustible base - even snow. Snow around the base of the cylinder foot
ring could melt and the cylinder could fall over delivering liquid propane to
the unit.
Do not connect, activate or disconnect this fireplace to a propane cylinder
anytime while consuming alcohol. Failure to do so could result in fire causing
bodily harm or loss of life.
Inspect the hose assembly for
damage prior to each use. If the
hose is damaged or there are signs
of excessive abrasion or wear
replace the hose.
Use only the pressure regulator and
hose assembly supplied with the
appliance. Replace the regulator hose
assembly only with part number UFP
LP12-08 these are available only from
approved dealer -OR- Urban Fire.

Page 8 of 22
LP GAS CYLINDER INSTALLATION
Tank Stabilizer
The LP cylinder must include a collar to protect the cylinder valve.
The cylinder supply system must be arranged for vapor withdrawal. This appliance uses a “Type 1”
cylinder connection device. See above for proper connection instructions.
When disconnecting and removing the gas cylinder, from the appliance, always be sure to adhere to
the following items:
Check that the gas control valve on the appliance, as well as on the cylinder are turned off before
disconnecting the gas line from the cylinder.
Never smoke or have an open flame in the vicinity of the gas appliance or gas cylinder.
When connection a new gas supply cylinder, be sure to tighten all connections and leak test
the connections with a soapy water solution.
Figure 1
LP GAS CYLINDER CONNECTION

Page 9 of 22
How to Leak Test Your Appliance
 Mix a solution of liquid soap and water in a small container. 50% soap and 50% water.
 Make sure that the gas supply is turned on. For LP gas appliances make sure that the valve on
the gas cylinder is turned on.
 Ensure that the gas control valve on the appliance is in the “OFF” position. (3 o’clock).
 Use a spray bottle or a small brush and liberally apply the solution to the gas line and to each
connection.
 If bubbles form this means that there is a leak is present.
 Tighten any connections that may be loose and leak test again.
 If no more leaks are found use the appliance.
 If leaks persist and cannot be stopped turn off the gas supply and contact your distributor or local
gas service technician for assistance.
 To check for leaks on the hose, soak cloth with soap and water solution. Rub gas line hose
from end to end. If bubbles appear, identify leak and replace hose before next use.
WARNING: Do not use an open flame to test for gas leaks.

Page 10 of 22
BATTERY & GLASS INSTALLATION

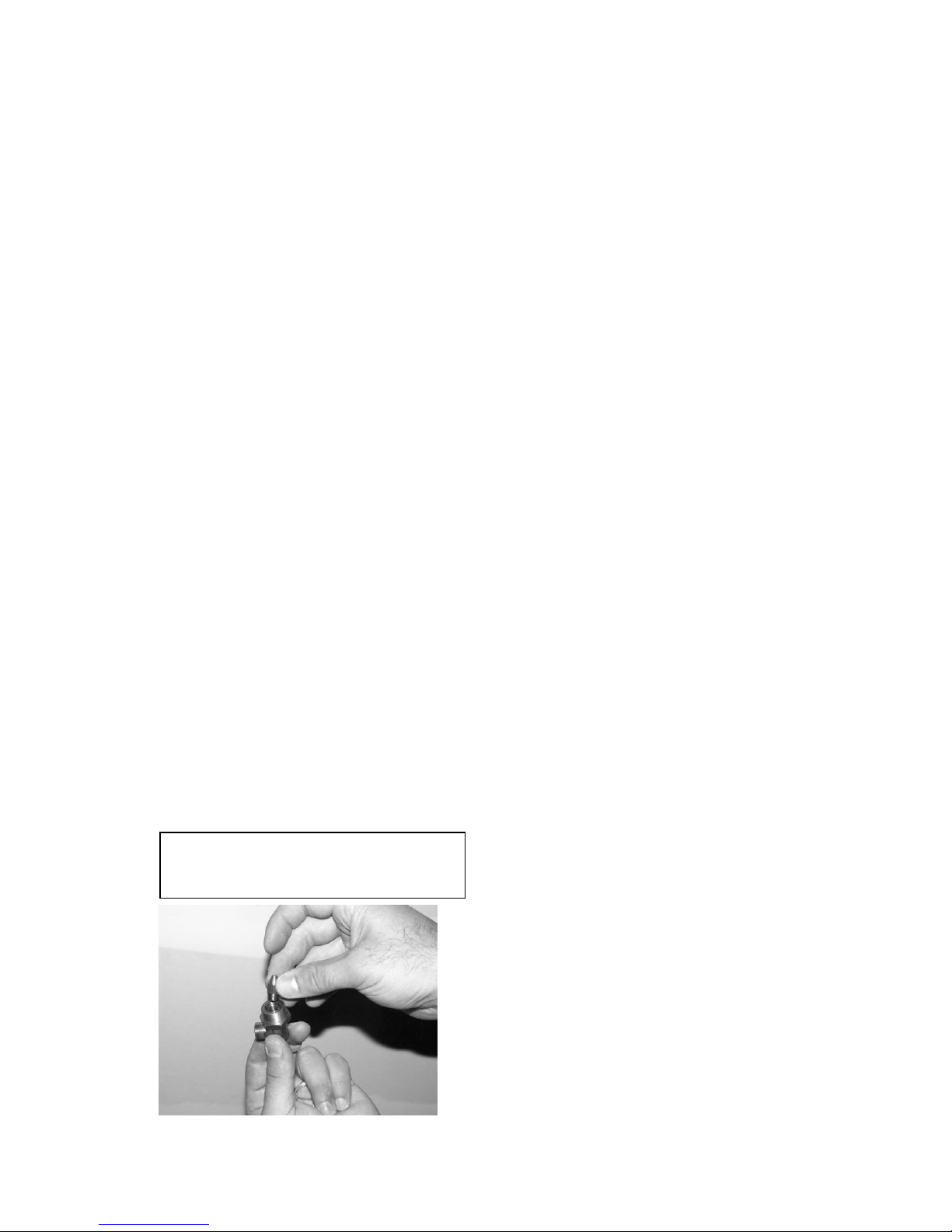

BATTERY INSTRUCTIONS:
INSERT AAA BATTERY INTO IGNITER BY UN-SCREWING, BY HAND, COUNTER CLOCKWISE THE CONTROL
BUTTON. INSERT BATTERY (NOTE DIRECTION IS CRITICAL AND IMPRINTED ON THE INNER IGNITOR). POSITIVE
(MALE END) SHOULD FACE YOU. SCREW BACK ON CONTROL BOTTON AND DEPRESS.
YOU WILL HEAR A SPARK AT THE PILOT.
IF YOU DO NOT HEAR A SPARK;
A) CHECK IF BATTERY DIRECTION IS REVERSED.
B) CHECK AND ENSURE BATTERY STRENGTH.
C) CHECK WIRE ON BACK OF IGNITER (ORANGE WIRE) IS ATTACHED AT BACK OF IGNITER.
URBAN FIRE GLASS:
NOTE: ENSURE TO SPREAD GLASS OVER THE BURNER AND INNER RING.
YOU SHOULD NOT SEE THE BURNER OR INNER RING.
ENSURE GLASS IS AWAY FROM PILOT COVER SO THE PILOT CAN BREATH.
NOTE: OTHER COLOURS ARE AVAILABLE TO MATCH YOUR DÉCOR. PLEASE VISIT WWW.URBANFIRE.CA TO SEE
ALL COLOURS AVAILABLE. YOU WILL REQUIRE 25LBS OF GLASS TO CHANGE YOUR COLOUR OF YOUR
FIREPLACE GLASS.
INSTALLATION & SAFETY NOTES
Read all instructions before starting installation and follow them carefully during installation to ensure maximum
benefit and safety. Failure to follow these instructions will void your warranty and may present a fire hazard.
See the warranty at the back of this manual for disclaimers regarding improper installation. This outdoor
fireplace and its components are tested and safe when installed in accordance with this installation manual.
UNPACKING
Please check the appliance carefully for any damaged or missing components. Report any problems to your
dealer within 30 days of purchase.
MINIMUM CLEARANCES
The minimum clearance to combustibles for the sides and the top is 36” (914 mm). This
outdoor fireplace is suitable for installation on a combustible surface.
Clearances are in accordance with local installation codes and the requirements of the gas supplier.

Page 11 of 22
INITIAL FIRING
When lit for the first time, the appliance may emit an odor resulting from evaporation of paint and lubricants
used in the manufacturing process. This is normal and will subside after the unit has run for an hour or so.
MANIFOLD PRESSURE REGULATOR ADJUSTMENT
The manifold pressure regulator controls gas input and flame height, and is pre-adjusted at the factory.
No further adjustment is required.
PRIMARY AIR ADJUSTMENT
Aeration is factory set but may need adjustment for altitude or movement during shipping. The adjustment
for the air shutter is found on the mixing tube which is located underneath your appliance. Loosen the screw
which holds the aeration adjustment shutter in place and rotate the adjustment shutter to increase or
decrease primary air (see below) and tighten the screw. Increasing the primary air will cause the flame to
appear more transparent and blue. Decreasing the primary air will cause the flames to appear more yellow or
orange. Evaluate the aeration only after the unit has warmed up approximately 15 minutes. If the unit
shows signs of carbon build up increasing the primary air should alleviate this problem.
Caution: Parts requiring adjustment during operation may be hot.
Aeration adjustment is important for the correct functioning of the appliance. Carbon build up, flame lifting or
any malfunction due to improper aeration adjustment during installation is not covered under the factory
warranty.

Page 12 of 22
INSTALLATION & TANK ASSEMBLY
Carefully unpack all the items from the box. Urban Fire comes fully
assembled.
Place the table outside in final position. There must be a minimum of
12 inches of clearance from the bowl to any combustibles. The table
and bowl should not get hot. NOTE: For your safety, do touch the fire
glass that has had flame impingement. You will get a serious burn.
Place the table on a level base.
When using propane place cylinder upright inside the tank holder
supplied. (SEE ABOVE) Tank should be secure and pressed into the
tank holder for safety.

Ensure propane gas hose and tank is positioned away from foot traffic.
Connect propane hose to cylinder.
NOTE: THIS IMAGE IS FOR SAFETY PURPOSES ONLY TO SHOW THE
HOSE LENGTH, TANK RETENTION DEVICE AND RECOMMENDED
PROPANE TANK SIZE FOR PROPANE INSTALLATIONS.
When using propane and for décor purposes we recommend feeding
the gas hose under an outdoor carpet to hide the propane hose and
reduce any tripping on the gas line.
To hide the tank, place the propane tank in the retention device and
place behind a couch or side table. For longer operation time on
propane for serious users, we recommend a 30lb or 40lb propane
tank.

Page 13 of 22

Page 14 of 22
4. Remove orifice by removing support
nut attached to bracket.
5. Remove LPG orifice tip and replace
with NG (larger opening) orifice tip.
6. Reattach converted orifice to
supporting bracket with nut. Leak check
with a soap and water solution.
1. Using two adjustable wrenches
disconnect propane hose, 3/8 flare
fitting and propane pilot regulator as
shown above. Using gas pipe
compound, attach Natural Gas pilot
regulator and 3/8 flare fitting.
3. Underneath the unit, unscrew the
brass nut holding the orifice.

Page 15 of 22
7. Take protective cover box off of the pilot assembly by
removing the mounting screws located on the top side of
the pilot assembly. This will allow you to access the pilot
assembly. Take an adjustable wrench and loosen the pilot
flame counter clockwise. This will allow you access to the
pilots’ orifice. 8. Slide tab to Natural Gas position (slightly
larger hole). Re-fasten pilot flame with wrench clockwise.
Soap check.

Page 16 of 22
MAINTENANCE
MAINTENANCE SAFETY
Turn off the gas to the main burner and allow the fireplace to cool for 30 minutes before
servicing.
Service and repair should be done by a qualified service person. The appliance should be inspected
before use and at least annually by a qualified service technician. It is important that the access door
compartment and burner be kept clean to provide for adequate combustion and ventilation airflow.
Do not substitute materials or use components other than factory supplied.
RECOMMENDED SERVICE
Visually check the burner flame occasionally.
Have the appliance inspected annually by a professional service technician.
Clean the appliance regularly.
.

Page 17 of 22
TROUBLE SHOOTING
SYMPTOM
POSSIBLE CAUSE
CORRECTIVE ACTION
Pilot will not light after
repeated triggering of the
ignition button
1.
No Spark at Pilot
1.
Ensure AAA Battery is inserted correctly.
Ensure AAA Battery has power.
2.
Poor connections at ignition
electrode
2.
Reconnect ORANGE wire at the back of
the igniter it may be off or loose
3.
Broken ceramic cover on
ignition electrode
3.
Replace pilot assembly
4.
Pilot wont light
4.
Remove glass around pilot cover
5.
Defective igniter
5.
Replace igniter
6.
Blocked Pilot - cannot hear gas
6.
Clean dirt or rust from pilot –or-
replace pilot
7.
Whistle noise from pilot
7.
Ensure pilot is converted to correct
gas.
8.
Unit shuts off sporadically after
hearing a CLICK noise
8.
Loosen (copper) thermocouple line
and retighten hand tight with ¼ turn
B. No gas or low gas pressure
1.
Gas line shut off
1.
Turn on shut-off valves
2.
Air in gas lines
2.
Purge gas lines
3.
Gas lines may not be
connected
3.
Connect all gas lines
4.
Low pressure may be caused
by bent line
4.
Check for a kinked line
Burner will not light
A. Valve / Switches
1.
Valve control off
1.
Turn to “ON” position
2.
Blockage at the burner (line,
orifice, or ports)
2.
Check and clean

Page 18 of 22
URBAN FIRE -2- Replacement Parts
When requesting service or replacement parts for your unit, please provide model name and serial number. All parts listed above may be ordered from an authorized dealer -or- by calling Urban Fire
customer service at 1-888-337-4989 x 3.

Page 19 of 20
Please register your product
immediately at www.urbanfire.ca or
call 1-888-337-4989 x 3

Page 20 of 20
