urmet domus 1093 Series User manual

DS1093-132C
Mod.
1093
H.264 WITH HDMI NVR
NVR Boost 2.0 Series
8CH Ref. 1093/908H
32CH Ref. 1093/932H
8CH POE Ref. 1093/908HP
16CH POE Ref. 1093/916HP
32CH POE Ref. 1093/932HP
USER MANUAL INSTRUCTIONS

DS1093-132C 2
TABLE OF CONTENTS
1General information ..................................................................................................................................5
1.1 Product description....................................................................................................................5
1.1.1 General features...........................................................................................................................................5
1.2 Opening the box ........................................................................................................................6
1.2.1 Contents of the box.......................................................................................................................................6
1.3 Warnings ...................................................................................................................................7
1.3.1 Power............................................................................................................................................................7
1.3.2 Safety precautions ........................................................................................................................................7
1.3.3 Installation precautions .................................................................................................................................7
1.3.4 Cleaning the device ......................................................................................................................................7
1.3.5 Hard disk.......................................................................................................................................................7
1.3.6 Image recording............................................................................................................................................7
1.3.7 Privacy and Copyright...................................................................................................................................7
1.3.8 Software upgrades........................................................................................................................................7
1.3.9 Firmware upgrades.......................................................................................................................................8
1.3.10 Network installation.......................................................................................................................................8
1.3.11 Network connection ......................................................................................................................................8
1.4 NVR Front Panel .......................................................................................................................8
1.4.1 Ref. 1093/908H-932H-908HP-916HP...........................................................................................................8
1.4.2 Ref. 1093/932HP ..........................................................................................................................................9
1.5 NVR Rear Panel........................................................................................................................9
1.5.1 Ref. 1093/908H-932H...................................................................................................................................9
1.5.2 Ref. 1093/908HP-916HP ............................................................................................................................10
1.5.3 Ref. 1093/932HP ........................................................................................................................................10
1.5.4 RS485/Sensor/Alarm port functions............................................................................................................11
1.6 Remote Controller .................................................................................................................. 11
1.7 Mouse Operation.................................................................................................................... 12
1.8 HDD installation...................................................................................................................... 12
1.9 Web Camera and Monitor Connection................................................................................... 12
1.10 Power Supply Connection...................................................................................................... 12
2NVR Boot Up........................................................................................................................................... 13
2.1 NVR System Initialization....................................................................................................... 13
2.2 Startup Wizard........................................................................................................................ 13
2.3 Configuring IP Cameras......................................................................................................... 14
3NVR Menu................................................................................................................................................ 16
3.1 Pop-up Menu.......................................................................................................................... 16
3.2 NVR Menu Guide ................................................................................................................... 17
3.3 NVR Main Menu ..................................................................................................................... 18
3.4 Display.................................................................................................................................... 18
3.4.1 IP Camera...................................................................................................................................................18
3.4.2 RTSP function.............................................................................................................................................19
3.4.3 IP Camera Setup ........................................................................................................................................20
3.4.4 Output.........................................................................................................................................................20
3.4.5 Image Control .............................................................................................................................................21
3.4.6 Privacy Zone...............................................................................................................................................21
3.5 Record.................................................................................................................................... 22
3.5.1 Rec Parameters..........................................................................................................................................22
3.5.2 Schedule.....................................................................................................................................................22
3.6 Search .................................................................................................................................... 23
3.6.1 Record Search............................................................................................................................................23
3.6.2 Event Search ..............................................................................................................................................24
3.6.3 Log Search .................................................................................................................................................25
3.6.4 Play Backup Files .......................................................................................................................................25
3.7 Network .................................................................................................................................. 27
3.7.1 Network.......................................................................................................................................................27
3.7.2 Main Stream/ Sub Stream/ Mobile Stream..................................................................................................27
3.7.3 E-Mail..........................................................................................................................................................28
3.7.4 DDNS..........................................................................................................................................................28
3.7.5 Urmet DDNS Account Setup.......................................................................................................................29
3.7.6 RTSP..........................................................................................................................................................30
3.7.7 Switch.........................................................................................................................................................31
ENGLISH

DS1093-132C 3
3.8 Alarm ...................................................................................................................................... 32
3.8.1 Motion.........................................................................................................................................................32
3.8.2 Alarm ..........................................................................................................................................................33
3.9 Device..................................................................................................................................... 34
3.9.1 HDD............................................................................................................................................................34
3.9.2 Cloud Storage.............................................................................................................................................34
3.10 System.................................................................................................................................... 35
3.10.1 General.......................................................................................................................................................35
3.10.2 DST ............................................................................................................................................................35
3.10.3 NTP ............................................................................................................................................................35
3.10.4 Users ..........................................................................................................................................................36
3.10.5 Info..............................................................................................................................................................36
3.10.6 Channel Info ...............................................................................................................................................37
3.11 Advanced................................................................................................................................ 37
3.11.1 Maintain......................................................................................................................................................37
3.11.2 Events.........................................................................................................................................................38
3.12 PTZ Control ............................................................................................................................ 38
3.12.1 Cruise Set...................................................................................................................................................38
3.13 Menu Lock.............................................................................................................................. 39
3.14 Split Mode............................................................................................................................... 39
3.15 Stream Switch ........................................................................................................................ 39
3.16 View Effect.............................................................................................................................. 39
3.17 Start Sequence....................................................................................................................... 39
3.18 Mute........................................................................................................................................ 39
3.19 Start Cruise............................................................................................................................. 39
3.20 Playback................................................................................................................................. 39
4Web Application Manager ..................................................................................................................... 40
4.1 ActiveX control download and installation.............................................................................. 40
4.2 Web Interface NVR Accessing via IP Address, URL or Urmet DDNS Account..................... 41
4.3 Live Interface.......................................................................................................................... 41
4.3.1 Menu Bar....................................................................................................................................................42
4.3.2 Live Display ................................................................................................................................................42
4.3.3 Video Control..............................................................................................................................................42
4.3.4 PTZ Control ................................................................................................................................................43
4.4 Playback................................................................................................................................. 43
4.4.1 Record Search............................................................................................................................................44
4.4.2 Playback Control.........................................................................................................................................44
4.5 Parameter Setting................................................................................................................... 46
4.5.1 Display........................................................................................................................................................46
4.5.2 Record........................................................................................................................................................48
4.5.3 Network.......................................................................................................................................................50
4.5.4 Alarm ..........................................................................................................................................................52
4.5.5 Device.........................................................................................................................................................53
4.5.6 System........................................................................................................................................................54
4.5.7 Advanced....................................................................................................................................................55
4.6 Local Setting........................................................................................................................... 57
4.7 Logout..................................................................................................................................... 57
5Mobile Software...................................................................................................................................... 58
5.1 Smartphone Device................................................................................................................ 58
5.1.1 Urmet iUVS Software Mobile ......................................................................................................................58
5.2 Tablet Device.......................................................................................................................... 62
5.2.1 Urmet IUVSpad and iUVStab Mobile ..........................................................................................................62
5.3 P2P Function.......................................................................................................................... 66
61093/908H - 1093/932H Specifications (Pal Format) ........................................................................... 69
71093/908HP - 1093/916HP –1093/932HP Specifications (Pal Format) .............................................. 70
8Maximum recording time with 2000GB hard disk............................................................................... 71
8.1 Ref. 1093/908H –1093/932H –1093/908HP –1093/916HP –1093/932HP........................ 71
9Appendix ................................................................................................................................................. 74
9.1 Record Alarm setting.............................................................................................................. 74

DS1093-132C 4
9.2 Active X installation ................................................................................................................ 74
9.3 FAQ ........................................................................................................................................ 76
9.4 Usage Maintenance................................................................................................................ 76

DS1093-132C 5
1 GENERAL INFORMATION
This document describes how to install and use the URMET NVR Boost 2.0 Series ref. 1093/908H –ref. 1093/932H - ref.
1093/908HP –ref. 1093/916HP –ref. 1093/932HP.
Read this manual which contains information for correct, safe use carefully.
Keep this manual at hand so that you can refer to it when needed.
1.1 PRODUCT DESCRIPTION
The URMET S.p.A. product is a net video recorder capable of recording from several IP cameras to internal hard disk.
1.1.1 GENERAL FEATURES
Triplex mode (recording, play and network transmission at the same time)
H. 264 video compression, with 1080P resolution
Windows Graphical interface; embedded real-time Linux 2.6 Operation System
Recording in 1080P Resolution
Multiple or single recording
HDMI/ VGA Output
User friendly Menu
Multiple operation modes (Preview, record, playback, backup, network surveillance and mobile phone monitoring)
Main Stream, Sub Stream and Mobile stream network transmission
Configuration with the Urmet DDNS Account ID via Internet Explorer, Mobile, Client Software
P2P function only for Mobile use and Urmet UVS Client Software
ADPCM audio compression
Remote control (via browser and via Urmet UVS Client Software)
Remote control through mobile
Supports Zoom in/out and sequence function
Alarm management
Multiple alarm recording
Alarm notification through email
Auto-maintenance mode
Backup on USB 2.0 in front Panel (flash drive or hard disk)
Rear USB 2.0 and 3.0 ports for Backup, upgrade and mouse operation
Rear e-SATA Port for Backup only for Ref. 1093/932HP
Loading and saving NVR settings using USB stick
Remote Control
Multilanguage OSD
Software Mobile for the following Platforms: iOS (Iphone and iPad), Android (Smartphone and Tablet)
Watermark
Syncronous Playback for NVR 8/16/32 ch. Models

DS1093-132C 6
Here follow a Summarize about the most Features:
1.2 OPENING THE BOX
Check that the packing and the contents are not visibly damaged. Contact the retailer immediately if parts are either
missing or damaged. Do not attempt to use the device in this case. Send the product back in its original packing if it is
damaged.
1.2.1 CONTENTS OF THE BOX
NVR
Quick Guide
CD containing Urmet software and user manuals
Mouse
IR remote control, (included 2 batteries size AAA)
Brackets for installation in a rack (only for Ref. 1093/932HP)
Screws and bolts for rack mounting (only for Ref. 1093/932HP)
Power adapter for Ref. 1093/908H, Ref. 1093/932H, Ref. 1093/908HP, Ref. 1093/916HP
Shuko plug (2 Shuko plugs only for Ref. 1093/932HP)
Italian plug (2 Italian plugs only for Ref. 1093/932HP)
IMPORTANT NOTE
Accessories may be changed without prior notice.
Function
Brief and Description
Real time
monitoring
Double video output with monitor, VGA virtual output port or HDMI Output; Support
CMS Client Software and MP live surveillance and also support zoom in/out, auto
sequence and PIP display.
Record
H.264 video compression format; record quality/resolution/frame rate adjustable,
multiple record modes (Always, Scheduled, Manual, Alarm (if available), Motion
detection and remote record)
Record storage
Support SATA large capacity HDD and save real-time record image to HDD.
Playback
Support NVR single CH and multiple CH Search/Playback of recorded files.
Backup
Support NVR backup via USB flash drive, removable drive, Recorder and network.
Alarm Setting
Supports HDD & video input alarm management and external alarm signal inputs.
Network
operation
Supports remote surveillance by authority users to increase system security.
Mouse
Operation
Supports Mouse operation for faster menu navigation.
PTZ Control
Supports PTZ camera operations through RS-485.

DS1093-132C 7
1.3 WARNINGS
1.3.1 POWER
Check mains rating before plugging the power unit in.
Do not pull the cable to unplug the device.
Switch the device off before unplugging power unit. This operation must not be performed when the NVR is
recording, playing or from the configuration menu. Stop recordings and playback in progress before
disconnecting power from the device to prevent damaging the hard disk beyond repair.
1.3.2 SAFETY PRECAUTIONS
Keep the device away from rain and humidity to prevent risk of fire and electrocution. Do not introduce material
(solid or liquid) inside. If this should accidentally occur, disconnect the device from the mains and have it
inspected by qualified personnel.
Never open the device. In all cases, contact a qualified personnel or authorised service centre for repairs.
Keep the device away from children, to prevent accidental damage.
Do not touch the device with wet hands to prevent electrical shock or mechanical damage.
Do not use the device if it should fall or the external casing is damaged. Risk of electrocution if the device is used
in such conditions. Contact the retailer or authorised installer.
1.3.3 INSTALLATION PRECAUTIONS
To prevent overheating the device, arrange it in a position allowing the flow of air through the slots in the casing.
Ensure at least 5 cm of free space when installing inside a rack. For the same reason, do not install sources of
heat, such as radiators or hot air ducts. Keep away from direct sunlight. Do not install in areas subject to
excessive dust, mechanical vibrations or shocks.
Do not arrange this device on an unstable surface, such as a tottering or slanted table. The device could fall
causing injury or mechanical failures.
Do not install the device in a place where it could be exposed to humidity or water. Do not direct a jet of water
onto the device: risk of fire, electrocution or mechanical failure.
Stop using the device if water or other material should penetrate inside: risk of fire and electrocution. Contact the
retailer or authorised installer.
Do not place heavy or heat generating objects on top of the device: this could damage the casing and/or increase
internal temperature causing faults.
Do not cover the device with a cloth while it is running to prevent deforming the external casing and overheating
the internal parts: risk of fire, electrocution and mechanical failure.
Keep magnets and magnetised objects away from the device to prevent faults.
Do not use the device in presence of smoke, vapour, humidity, dust or intense vibrations.
Wait for a while before operating a device immediately after transporting it from a cold place to a warm place and
vice versa. Wait on average for three hours: this will allow the device to adapt to the new ambient (temperature,
humidity, etc.).
1.3.4 CLEANING THE DEVICE
Rub delicately with a dry cloth to remove dust and dirt.
Dip the cloth in neutral detergent if dirt cannot be eliminated with a dry cloth alone.
Do not use volatile liquids (such as petrol, alcohol, solvents, etc.) or chemically treated clothes to clean the
device to prevent deformation, deterioration or scratches to the paint finish.
1.3.5 HARD DISK
The hard disk installed in this device is sensitive to shocks, differences in temperature and vibrations. Disrespect
of these precautions can compromise correct operation of the device and cause loss of data stored on the hard
disk.
If repairs are required, it is advisable to backup all important data before taking the device to the service centre.
URMET S.p.A. is not liable for loss of stored data.
The addition of a hard disk must be performed by qualified technical personnel or by contacting the technical
assistance service.
1.3.6 IMAGE RECORDING
This device was designed to record images, not as a burglar alarm. URMET S.p.A. cannot be held liable for loss
or damage following theft sustained by the user.
Make a test recording before using the device to make sure that is working correctly. Please note that URMET
S.p.A. is not liable for loss of stored data consequent to loss or damage caused by incorrect observation
installation, use, improper use or malfunctioning of the device.
This device contains precision electronic components. Protect the device from shocks to ensure correct recording
of images.
1.3.7 PRIVACY AND COPYRIGHT
The NVR (Net video recorder) Boost Series is a device for CCTV systems. Recording of imagines is subject to
the laws in force in your country. Recording of images protected by copyright is forbidden.
Product users shall be responsible for checking and respecting all local rules and regulations concerning
monitoring and recording video signals. The manufacturing SHALL NOT BE LIABLE for use of this product not in
compliance with the laws in force.
1.3.8 SOFTWARE UPGRADES
Regularly check the specific section of the manufacturer’s web site at http://www.urmet.it for software upgrades.

DS1093-132C 8
1.3.9 FIRMWARE UPGRADES
Periodically check the URMET S.p.A. Customer Service Technical Area for firmware upgrades.
1.3.10 NETWORK INSTALLATION
The factory default IP address of the NVR is DHCP.
Using the NVR Network OSD Menu, assign the NVR an IP address which hasn't been assigned to other devices
in order to prevent any network conflict.
After assigning a proper IP address to the NVR, it can be connected to the Network.
1.3.11 NETWORK CONNECTION
When connecting to a remote PC (using Client Software or I.E.), remember that all video channels used by the
PC correspond to a “unicast” type connection (TCP, RTP,UDP etc).
The NVR is capable of supporting up to 3 “unicast” connections, connected in TCP, RTP, UDP.

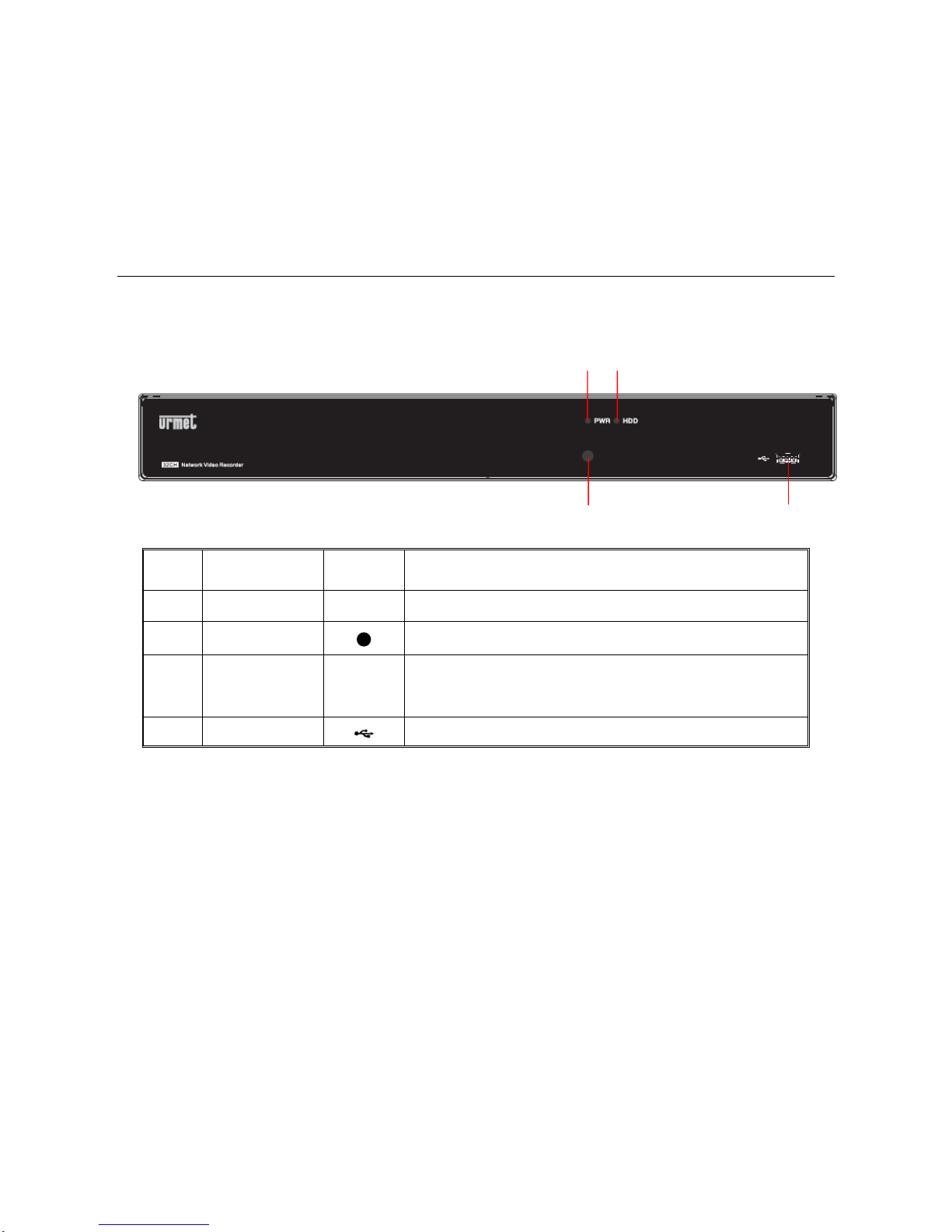

1.4 NVR FRONT PANEL
1.4.1 REF. 1093/908H-932H-908HP-916HP
P.S NVR is short for Network Video Recorder.
Item
Key title or
Indicator
Remark
Indicator Function & Description
1
Power Indicator
PWR
If the “Green” indicator is on, NVR is getting power normally.
2
IR Receiver
Receive IR signal from Remote Controller.
3
HDD Indicator
HDD
If the “Red” indicator flashes, the hard drive is being read or
written to. If the indicator is always on, it means the hard disk is
abnormal, unformatted or has no recording files.
4
USB
USB port
1
3
2
4

DS1093-132C 9
1.4.2 REF. 1093/932HP
Item
Key title or
Indicator
Remark
Indicator Function & Description
1
Power Indicator
PWR
If the “Green” indicator is on, NVR is getting power normally.
2
IR Receiver
Receive IR signal from Remote Controller.
3
HDD Indicator
HDD
If the “Red” indicator flashes, the hard drive is being read or
written to. If the indicator is always on, it means the hard disk is
abnormal, unformatted or has no recording files.
4
USB
USB port
1.5 NVR REAR PANEL
1.5.1 REF. 1093/908H-932H
Item
Physical Port
Connection Method
1
Power switch
Startup and shutdown
2
Power port
Connect the attached power supply
3
Sensor/Alarm
Connect to sensor or alarming device
4
USB Port
Connect USB devices, such as USB mouse
5
USB Port 3.0
Connect USB devices till to 3.0, such as Backup and Upgrade Firmware
6
HDMI Port
HDMI high definition port
7
VGA Port
Connect to VGA monitor, such as PC monitor
8
Audio Output
Audio signal output, RCA interface
9
LAN Port
Network input interface of the router/Connect to web camera.
5
6
4
9
3
2
1
8
7
4
1
3
2
4

DS1093-132C 10
1.5.2 REF. 1093/908HP-916HP
1.5.3 REF. 1093/932HP
Item
Physical Port
Connection Method
1
Power switch
Startup and shutdown
2
Power port
Connect the attached power supply
3
Sensor/Alarm
Connect to sensor or alarming device
4
USB Port
Connect USB devices, such as USB mouse
5
USB Port 3.0
Connect USB devices till to 3.0, such as Backup and Upgrade Firmware
6
HDMI Port
HDMI high definition port
7
VGA Port
Connect to VGA monitor, such as PC monitor
8
Audio Output
Audio signal output, RCA interface
9
WAN Port
Network input interface of the router/Connect to web camera.
10
LAN Port
LAN network interface, support POE, can supply power to the camera.
Item
Physical Port
Connection Method
1
Power ports
Connect the attached power supply at 100÷240 Vac, 50÷60Hz
2
Power switches
Startup and shutdown
3
Sensor/Alarm
Connect to sensor or alarming device
4
e-SATA Port
Connect SATA devices for Backup
5
USB Port 3.0
Connect USB devices till to 3.0, such as Backup and Upgrade Firmware
6
HDMI Port
HDMI high definition port
7
VGA Port
Connect to VGA monitor, such as PC monitor
8
Audio Output
Audio signal output, RCA interface
9
USB Port
Connect USB devices, such as USB mouse
10
WAN Port
Network input interface of the router/Connect to web camera.
11
LAN Port
LAN network interface, support POE, can supply power to the camera.
5
2
1
3
4
6
7
8
9
10
1
5
3
8
9
11
7
4
6
10
2
