UROVO SR5600 User manual

SR5600
[USER GUIDE]
[F.2021.07.12].2
Bluetooth Ring Scanner

Revision History
Change
Date
Description
Author
-2
2021.06.15
First version
Liang Wang
-1
2021.07.12
Initial Release
Nolan Luo
0
2021.07.15
Version 1.0 Revision
Nolan Luo
1
2021.07.29
Version 1.1 Revision
Nolan Luo
2
2021.08.08
Version 1.2 Revision
Add prefix/suffix setting
Barcode type
Bluetooth name modifying
Nolan Luo
3
2021.09.05
Version 1.2.1
Command controlling
Nolan Luo
4
2021.09.11
Version 1.2.1-WB
Aim/Character ID setting
Turn off/on all indicators
Character ID Confirmation
Nolan Luo

Index
Revision History................................................................................................................................... 2
1. Getting Started................................................................................................................................ 1
1.1 Introduction...........................................................................................................................1
1.2 Unpacking..............................................................................................................................1
1.3 Configuration Features..........................................................................................................1
1.4 LED Status Indications........................................................................................................... 2
1.5 Buzzer, vibration status......................................................................................................... 3
1.6 Battery installation instructions............................................................................................3
1.7 Trigger Assembly................................................................................................................... 4
1.7.1 Installation instructions..............................................................................................4
1.7.2 Adjust finger strap......................................................................................................4
1.8 Direct Charger installation instructions................................................................................ 5
1.8.1 Powering ON/OFF...................................................................................................... 5
1.9 Bluetooth Communications.................................................................................................. 6
1.9.1 Introduction................................................................................................................6
1.9.2 Bluetooth Connection Modes....................................................................................6
1.9.3 Pairing Mode.............................................................................................................. 7
1.9.4 Bluetooth Name Modifying....................................................................................... 7
1.10 Command Controlling in SPP Mode....................................................................................7
1.10.1 Indicator Controlling................................................................................................ 8
1.10.2 Trigger Controlling..................................................................................................11
1.10.3 Trigger Button Controlling......................................................................................11
1.10.4 Turn off all indications............................................................................................12
1.11 AIM/CharcterID Output.................................................................................................... 13
2. Setup..............................................................................................................................................14
2.1. HID Bluetooth Connection to iOS/iPad/iPhone.................................................................14
2.2 HID Bluetooth Connection to Android................................................................................14
2.3 HID Bluetooth Connection to Windows..............................................................................15
2.4 Power Save.......................................................................................................................... 18
2.5 Delay 01~10 ms to send (HID).............................................................................................18
2.6 Inquiry................................................................................................................................. 18
2.6.1 Inquiry Firmware version......................................................................................... 18
2.6.2 Inquiry Bluetooth MAC............................................................................................ 19
2.6.2 Inquiry Bluetooth Name.......................................................................................... 19
2.7 Restore Factory Setting....................................................................................................... 19
2.8. Indicators & Beeper setting................................................................................................20
2.8.1. Power on alarming.................................................................................................. 20
2.8.2. LED indicator(decode).............................................................................................20
2.8.3. Beeper setting(decode)...........................................................................................21
2.8.4. Duration...................................................................................................................21
2.8.5. Volume Level........................................................................................................... 21
2.8.6 Vibrate Setting (decode).......................................................................................... 22
2.8.7 Turn off all indications..............................................................................................22

3. Scanner Setting..............................................................................................................................23
3.1. Scanning Type.....................................................................................................................23
3.2. Illumination&Aiming setting.............................................................................................. 23
3.3. Illumination level................................................................................................................24
3.4. Suffix&Prefix.......................................................................................................................25
4. Symbologies...................................................................................................................................28
Code 39......................................................................................................................................28
Code 39 Full ASCII..............................................................................................................29
PDF417.......................................................................................................................................30
Data Matrix................................................................................................................................30
Interleaved 2 of 5...................................................................................................................... 31
MaxiCode...................................................................................................................................31
UPC/EAN....................................................................................................................................31
Code 93......................................................................................................................................32
Code 11......................................................................................................................................33
Matrix 2 of 5.............................................................................................................................. 35
NEC 2of 5................................................................................................................................... 35
Hanxincode................................................................................................................................36
GridMatrix................................................................................................................................. 36
Aztec Code.................................................................................................................................37
MicroPDF417.............................................................................................................................37
MSI/PLESSEY..............................................................................................................................38
Dotcode..................................................................................................................................... 38
Standard 2 of 5.......................................................................................................................... 39
CodaBlock_F.............................................................................................................................. 40
CodaBlock_A..............................................................................................................................40
GS1 DataBar-14......................................................................................................................... 41
Codabar..................................................................................................................................... 42
Code 2 of 5................................................................................................................................ 42
Trioptic.......................................................................................................................................43
postnet...................................................................................................................................... 43
China Post..................................................................................................................................48
OCR............................................................................................................................................ 49
Decoding............................................................................................................................49
OCR Pattern....................................................................................................................... 50
OCR Fonts.......................................................................................................................... 51
OCR Character................................................................................................................... 52
OCR Character length : 00~FF........................................................................................... 53
5.Programming Reference.................................................................................................................54
Linear Symbologies........................................................................................................... 54
2D Symbologies.................................................................................................................54
Postal Symbologies............................................................................................................55

1
1. Getting Started
1.1 Introduction
This chapter describes the features of the SR5600 Ring Scanner and explains
how to install and charge the battery, capture data and reset the SR5600.
1.2 Unpacking
Carefully remove all protective material from around the equipment and save
the shipping container for later storage and shipping.
After opening the shipping box, inspect the contents. You should have received
the following:
SR5600
Battery
Simple Operation Guide
USB Cable
Power adaptor
Direct Charger
Inspect the equipment for damage. If you are missing any equipment or if you
find any damaged equipment, contact Support immediately. See Website:
http://en.urovo.com or local agent.
1.3 Configuration Features
Figure 1 SR5600 Trigger Configuration Features

2
1.4 LED Status Indications
Status light
Description
Red indicator light is always on
Trigger button hold or charging
Red indicator light flashes once
Setup failure
Red indicator blinking twice
Alarming/Scanning when Bluetooth is not
connected
Green indicator light flashes once
Scan bar code successfully
Green indicator light is always on
Battery fully charged
Blue indicator light keeps flashing
Bluetooth enters pairing mode
Blue indicator solid on
Successful Bluetooth connection

3
1.5 Buzzer, vibration status
Buzzer, vibration status
Description
Start-up sound + no vibration
Startup
One long buzz + vibration
Shutdown
One short buzz + vibration
Successful decoding
Two short buzz + no vibration
The battery is set successfully, the Bluetooth is
connected successfully, and the Bluetooth is
disconnected
One long buzz + no vibration
Setup failure
Four short beeps + vibration
Alarming/Scanning when Bluetooth is not
connected
1.6 Battery installation instructions
Align the battery with the top of the SR5600 and insert it into the battery compartment.
Slide the battery all the way into the SR5600 locking slot to ensure that the battery matches
with SR5600.

4
1.7 Trigger Assembly
1.7.1 Installation instructions
Align one end of the SR5600 lock catch and push the other end down until it clicks into
place.
The trigger assembly can be installed as required. The following figure 1 is for the right finger,
and figure 2 is for the left finger. Press the sliding buckle to remove the ring.
1.7.2 Adjust finger strap

5
1.8 Direct Charger installation instructions
Insert the bottom of the SR5600 into the charger until it clips into place. Connect the Type-C
interface at the end of the charger with the USB cable and Power adaptor. Normal charging
starts when the indicator light indicates that the red light is always on.
1.8.1 Powering ON/OFF
Long-press the power button for 2 second to boot, for 3 second to turn off.

6
1.9 Bluetooth Communications
1.9.1 Introduction
This chapter provides information about the modes of operation and features available or
Bluetooth communication between Ring Scanner and hosts. The chapter also includes the
parameters necessary to configure the SR5600.
Scan a factory barcode to return all features to default values. See page10.
Scan a version barcode to check the version number of the scanner. See page10.
1.9.2 Bluetooth Connection Modes
The SR5600 Ring Scanner can connect to a host computer using the following Bluetooth
modes, scan to switch the connection mode you need:
Human Interface Device(*HID MODE)
Serial Port Profile(SPP MODE)
Low Energy(BLE MODE)

7
1.9.3 Pairing Mode
Scan the following barcode to enter the pairing mode or release the connection.
1.9.4 Bluetooth Name Modifying
Generate the barcode to change the Bluetooth name, value = $BT#SETSSID=M
M: Bluetooth name of Ring Scanner SR5600.
1.10 Command Controlling in SPP Mode
This setting enable can make scanner being control by HEX code.
Function
Item
Parameter
Description
%4006M%
SPP Control
00
Disable
01
Enable

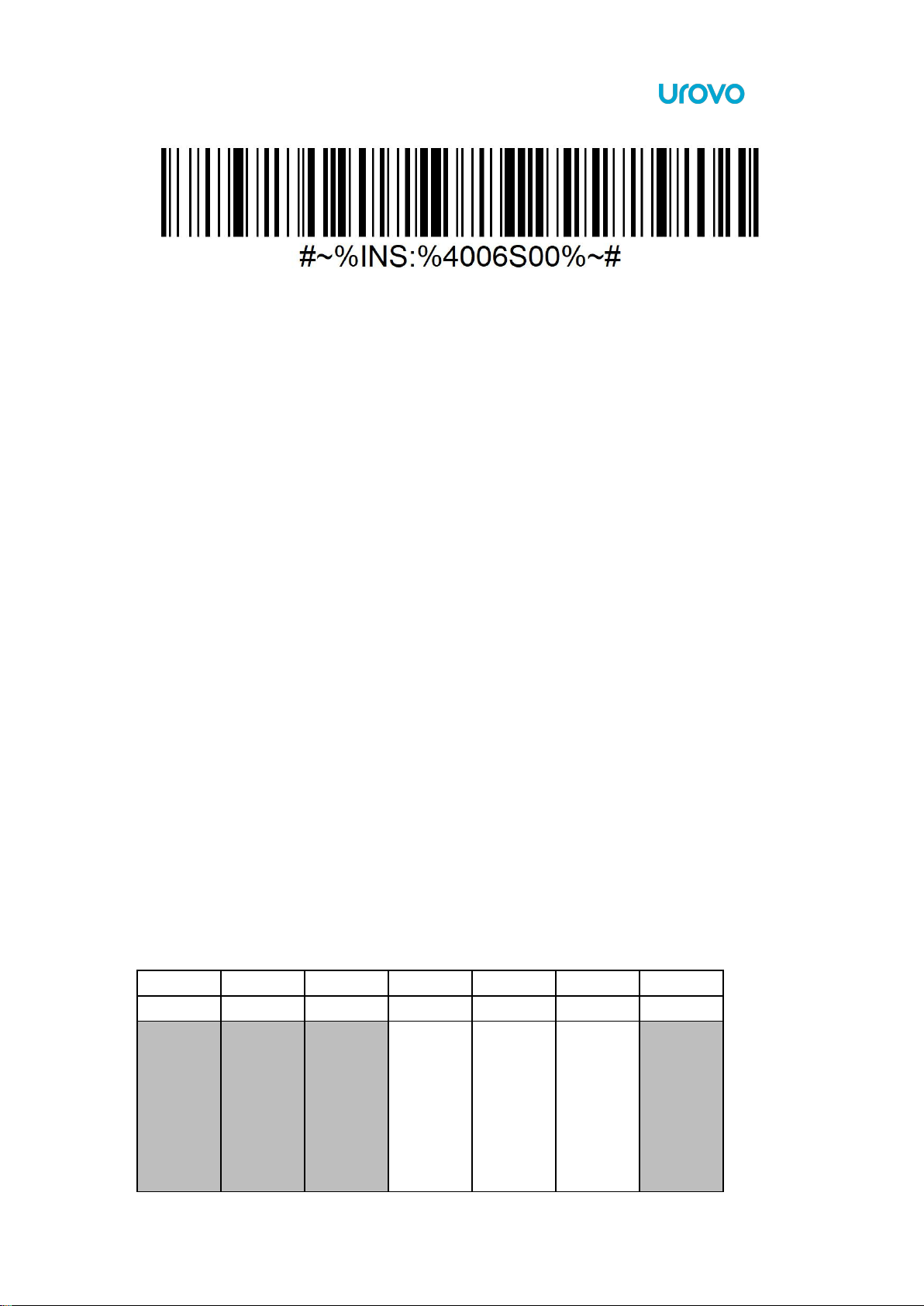

Scan the following barcode to enable command controlling .

8
Scan the following barcode to enable command controlling .(HEX: AA 04 40 06 00 42 BB )
1.10.1 Indicator Controlling
Make sure the scanner in SPP Mode and enable the SPP Controlling Mode, then you can send
HEX code to control LEDs / Beeper / Vibrate to respond as you wish.
Format 1:
AA (Start)
04 (Length of instructs)
C8 (Code/default)
SUM (R:0x01，G:0x02，B:0x04，BUZZ:0x08, Vibrate:0x10)
00~01 (OFF/ON)
XOR (XOR result)Can be count by XOR tool or HEX Calculate.
BB (END)
For example.
Red LED Command(1 times):
HEX.
ON: AA 04 C8 01 01 CC BB
OFF: AA 04 C8 01 00 CD BB
Start
length
value 1
value 2
value 3
XOR
End
AA
0x04
0xC8
0x01
0x01
CC
BB
AA
04
C8
R:0x01，
G:0x02，
B:0x04，
BUZZ:0x
08,
Vibrate
:0x10
00:OFF
01:ON
XOR(len
gth,
C8,valu
e2,
value 3)
BB

9
Green LED Command(1 times):
HEX.
ON: AA 04 C8 02 01 CF BB
OFF: AA 04 C8 02 00 CE BB
Start
length
value 1
value 2
value 3
XOR
End
AA
04
C8
02
01
CF
BB
0xAA
0x04
0xC8
R:0x01，
G:0x02，
B:0x04，
BUZZ:0x
08,
Vibrate
:0x10
0x00:OFF
0x01:ON
XOR(len
gth,
C8,valu
e2,
value
3)
0xBB
Beeper Command(1 times)
ON: AA 04 C8 08 01 C5 BB
OFF: AA 04 C8 08 00 C4 BB
Start
length
value 1
value 2
value 3
XOR
End
AA
04
C8
08
01
C5
BB
0xAA
0x04
0xC8
R:0x01，
G:0x02，
B:0x04，
BUZZ:0x
08,
Vibrate
:0x10
00:OFF
01:ON
XOR(len
gth,
C8,valu
e2,
value 3)
0xBB
Vibrate Command(1 times)
HEX.
ON: AA 04 C8 10 01 DD BB
OFF: AA 04 C8 10 00 DC BB
Start
length
value 1
value 2
value 3
XOR
End
AA
0x04
0xC8
0x10
01
CC
BB
0xAA
0x04
0xC8
R:0x01，
G:0x02，
B:0x04，
BUZZ:0x
08,
Vibrate
:0x10
0x00:OFF
0x01:ON
XOR(le
ngth,
C8,val
ue2,
value
3)
0xBB

10
Format 2:
AA (Start)
06 (Length of instructs)
C0 (Code/default)
SUM (R:0x01，G:0x02，B:0x04，BUZZ:0x08, Vibrate:0x10)
00~FF (Blink/beep/vibrate times)
01~FE (Duration)*10ms
02~FF (Interval time)*10ms
XOR (XOR result)Can be count by XOR tool or HEX Calculate.
BB (END)
Example 1
HEX. AA 06 C0 08 03 0A 14 D3 BB(Means Beeping 3times totally, 100ms duration and wait 200ms
between each beep).
Start
length
value 1
value 2
value 3
value 4
value 5
XOR
End
AA
06
C0
0x08
03
0A
14
D3
BB
0xAA
0x06
0xC0
R:0x01，
G:0x02，
B:0x04，
BUZZ:0x08,
Vibrate:0x10
times
Duration
*10ms
Interval
times*10
ms
XOR
(length
,value1
, value
2,value
3,value
4,value
5)
0xBB
Example 2(Parallel)
HEX. AA 06 C0 0A 03 C8 C8 CF BB (Means Green led &Beeper reaction 3times totally, 2 seconds
duration and wait 2second between each flash).
Start
length
value 1
value 2
value 3
value 4
value 5
XOR
End
AA
06
C0
0A
03
C8
C8
CF
BB
0xAA
0x06
0xC0
R:0x01，
G:0x02，
B:0x04，
BUZZ:0x08,
Vibrate:0x10
SUM=0x02+0x0
8=0x0A
times
Duration
*10ms
Interval
times*10
ms
XOR
(length
,value1
, value
2,value
3,value
4,value
5)
0xBB
Example 3(Parallel)
HEX. AA 06 C0 1A 03 64 C8 73 BB (Means Green led &Beeper&Vibrator reaction at the same

11
time, 3times totally, 1 seconds duration and wait 2second between each reaction).
Start
length
value 1
value 2
value 3
value 4
value 5
XOR
End
AA
06
C0
1A
03
64
C8
73
BB
0xAA
0x06
0xC0
R:0x01，
G:0x02，
B:0x04，
BUZZ:0x08,
Vibrate:0x10
SUM=0x02+0x0
8+0x10=0x1A
times
Duration
*10ms
Interval
times*10
ms
XOR
(length
,value1
, value
2,value
3,value
4,value
5)
0xBB
Example 4(Queue)
HEX. AA 06 C0 10 01 1E 00 C9 BB AA 06 C0 08 03 0A 14 D3 BB(Means Beeping 3times totally,
100ms duration and wait 200ms between each beep)+ vibrate 1 times before beeping
Start
length
value 1
value 2
value 3
value 4
value 5
XOR
End
AA
06
C0
10
01
1E
00
C9
BB
AA
06
C0
08
03
0A
14
D3
BB
0xAA
06
0xC0
R:0x01，
G:0x02，
B:0x04，
BUZZ:0x08,
Vibrate:0x10
times
Duration
*10ms
Interval
times*10
ms
XOR
(length
,value1
, value
2,value
3,value
4,value
5)
0xBB
1.10.2 Trigger Controlling
Trigger ON:
HEX: AA 02 B1 B3 BB
Trigger OFF:
HEX: AA 02 B0 B2 BB
1.10.3 Trigger Button Controlling
Disable Trigger Button:
HEX: AA 02 A0 A2 BB
Enable Trigger Button:
HEX: AA 02 A1 A3 BB

12
1.10.4 Turn off all indications
Disable all indications:
HEX: AA 04 01 07 01 03 BB
Enable default indications:
HEX: AA 04 01 07 00 02 BB

13
1.11 AIM/CharcterID Output
Scan the following barcode to receive the barcode type in front of barcode data. The barcode
type corresponding format refer to ISO-IEC 15424-2008 and page 53 Programming references.
Scan the following barcode to disable the AIM / Character ID Output.
(HEX: AA 04 50 01 00 55 BB )
Scan the following barcode to enable the AIM Code Output. (HEX: AA 04 50 01 01 54 BB )
Scan the following barcode to disable the AIM Output. (HEX: AA 04 50 01 02 57 BB )
Function
Item
Parameter
Description
%5001M%
None
00
Disable
AIM Code Output
01
Enable
Character ID
02*
Enable

14
2. Setup
HID Setup
2.1. HID Bluetooth Connection to iOS/iPad/iPhone
1. Scan the barcode ‘Pairing Mode’ into connectable status.
2. Scan the HID MODE Barcode from this chapter.
3.Select Settings > General > Bluetooth(iOS)
4. Turn the iOS Bluetooth ON.
5. Select Bluetooth Settings and choose SR5600 from the list of discovered devices. The SR5600
displays as SR5600 - xxxx, where xxxx is the The last four digits of the Mac address.
2.2 HID Bluetooth Connection to Android
1. Scan the barcode ‘Pairing Mode’ into connectable status.
2. Scan the HID MODE barcode from this chapter.
3.Select Settings > Bluetooth(Android)
4. Turn the Android Bluetooth ON.
5 Select Bluetooth Settings and choose SR5600 from the list of discovered devices. The RS5100
displays as SR5600 - xxxxxx, where xxxxxx is the serial number.
User-friendly operation-connect:
*Make sure the Android’s NFC is on and Ring Scanner is power on, Tap NFC to quick pair.
*Scan a QRCODE(Bluetooth MAC of urovo ’s U2 wearable devices) to quick pair and connect.

15
2.3 HID Bluetooth Connection to Windows
To start the connection process aim the SR5600 at about 7" (18 cm) away from the computer
screen and scan the barcode of the Pairing Mode.
The SR5600 Scan LEDs start flashing blue indicating that the SR5600 is attempting to establish
connection with the computer. The following notifications display upon successful connection.
1. Scan the barcode ‘Pairing Mode’ into connectable status.
2. Scan the HID MODE barcode from this chapter.
3.
4.

16
5.Default PIN code is 0000.
