US SAWS VSG-10 User manual
Operating Manual
VSG - 10
Toll Free 1-866-987-7297
www.ussaws.com
3702 West Central Avenue
Santa Ana, CA 92704
11 High Street
Sufeld, CT 06078
8004B East Broadway Avenue
Tampa, FL 33619
VSG - 10 2
Table of Contents
Symbols & Labels 3
Safety 4
Assembly 5
Operation 6
Troubleshooting 9
Maintenance 10
Accessories 11
Parts 12
Introduction
This manual outlines the maintenance and operation of the 10” Variable Speed Grinder.
This is a professional tool and is intended for use by trained and experienced operators.
To get maximum benet from your tool and to ensure maximum safety, be sure to read this manual
thoroughly. You should also periodically review safety instructions.
If you have any questions regarding this tool, please call our customer service department at
(866) 987-7297
Specications
Part Number SX61000
Capacity 3 or 6 Diamond Segments
Electrical Requirements 115 V 15 AMP
Motor 115 V 2.5 HP
Dimensions 51” L x 19” W x 39” H
Weight 175 lbs
Revision Date: 10/1/2016
VSG - 10 3
Symbols & Labels
THE FOLLOWING SYMBOLS AND DEFINITIONS ARE FOUND THROUGHOUT THIS
MANUAL AND ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR
UNSAFE PRACTICES.
A potentially hazardous situation exists which, if not
avoided, could result in death or serious injury.
A potentially hazardous situation exists which, if not
avoided, may result in minor or moderate injury or
property damage.
A potentially hazardous situation exists which, if not
avoided, may result in product or property damage.
THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN THIS MANUAL OR ON THE TOOL.
Read the operator’s manual carefully and understand the
contents before you use this equipment.
Always wear a protective helmet
WARNING
IMPORTANT
CAUTION
Always wear protective glasses or full face protection
Always wear hearing protection
Always use ground fault protection
Always wear breathing protection
VSG - 10 4
Safety
General Safety Precautions
• Do not operate machine unless you have read the operations and maintenance manual carefully.
Read any additional instructions included from other manufacturers and organizations such as
Honda and the Masonry and Concrete Saw Manufacturers Institute. Learn the applications and
limitations as well as the specic potential hazards related to this tool.
• Do not operate this machine unless you have received operational and maintenance training from
a US SAWS representative or from an authorized distributor for US SAWS.
• Observe all applicable local, state, and federal safety regulations. Wear OSHA approved foot
protection.
• Observe all applicable local, state, and federal safety regulations. Wear OSHA approved safety
glasses.
• Breathable silica may be generated by use of this product. Silica can cause severe and permanent
lung damage, cancer, and other serious diseases. Do not breathe the dust. Do not rely on your
sign or smell to determine if the dust is in the air. Silica may be in the air without a visible dust
cloud. If air monitoring equipment for silica is not provided by your employer at your work site, you
MUST wear appropriate respiratory protection when using or servicing the machine. Consult your
employer and OSHA regarding the appropriate respiratory system.
• Observe all applicable local, state, and federal safety regulations. Wear OSHA approved hearing
protection.
• Do not wear loose clothing or jewelry that can be caught in moving parts. Wear protective hair
covering to contain long hair. Keep hair away from motor air vent. Rubber gloves and non-skid
footwear are recommended when working outdoors.
• Do not expose machine to rain. Do not use machine in wet conditions. Keep work area well lit.
When working at an elevated location, pay attention to articles and persons below.
• Do not operate machine while under the inuence of drugs, alcohol or any medication.
• Do not operate machine with parts missing or improperly mounted.
• Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect machine operation. A guard, power switch, or other part that is
damaged should be properly repaired or replaced by an authorized service center unless indicated
elsewhere in this instruction manual. Do not operate machine if dead man lever or engine on/off
switch does not function properly.
• Never touch moving parts such as blades, belts, and others.
• Stop using the machine immediately if any abnormalities are observed during operation. Examples
of abnormalities include unusual noise or vibration.
• When replacing a component part with a new one, use only the same type and quality of new part.
Never attempt to repair a machine if you are unfamiliar with proper procedures and techniques
required.
• Do not modify machine from its original design without written permission from the manufacturer.
Non-authorized modications could lead to serious injury or death and void warranty.
• Refer to this operations and maintenance manual as well as any additional instructions included
from other manufacturers and organizations such as Honda and Concrete Saw Manufacturers
Institute. Never permit anyone to operate the machine without proper instruction.
VSG - 10 5

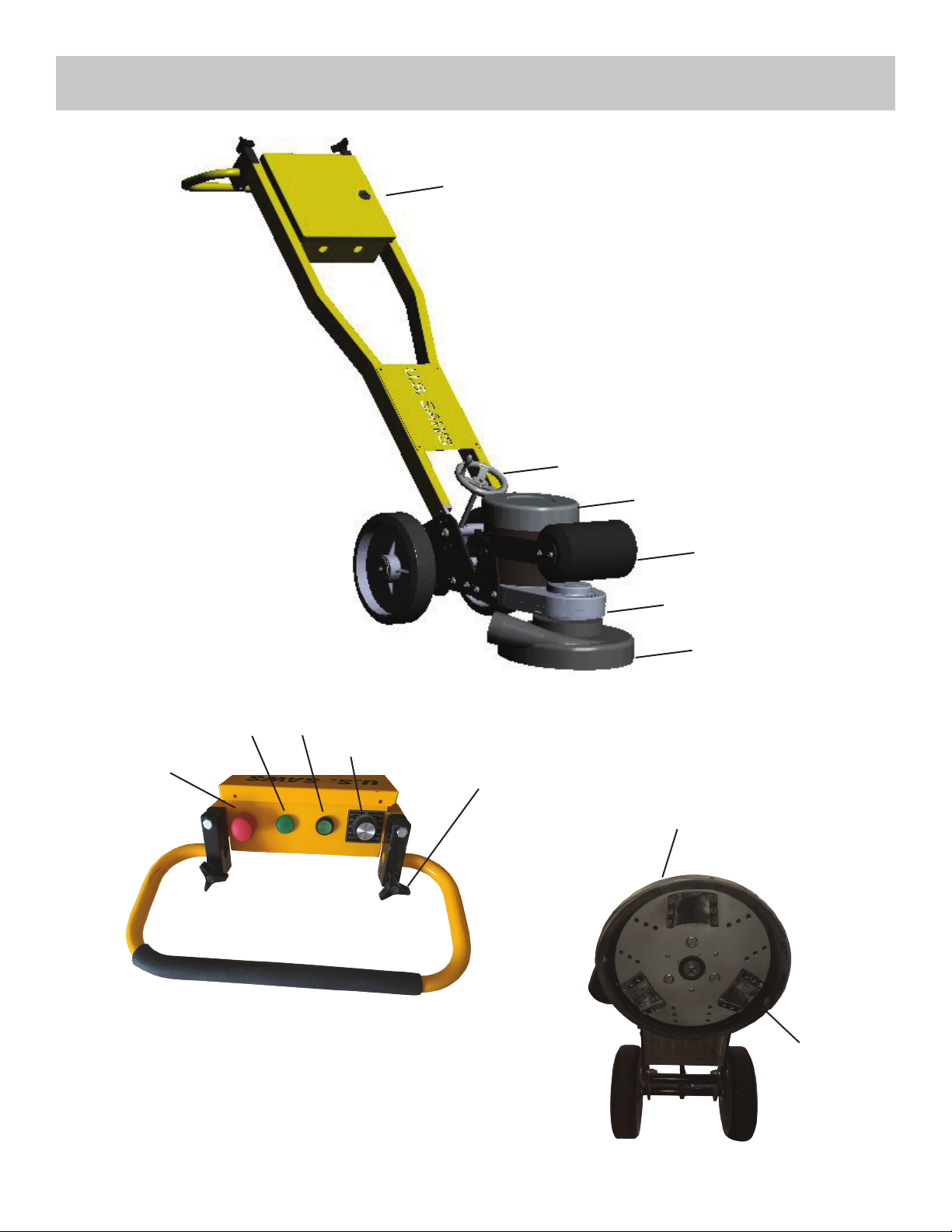

Assembly
Electrical Box
Levelling Handle
Adjustable Grinding
Weight
Electric Motor
Gearbox
Grinding Shroud
Fast Change
Grinding Plate
Handle
Adjustment
Knob
Speed Control
Start Button
“ON” Indicator Light
Emergency
Stop Button
Fast Change
Diamond Holder
VSG - 10 6

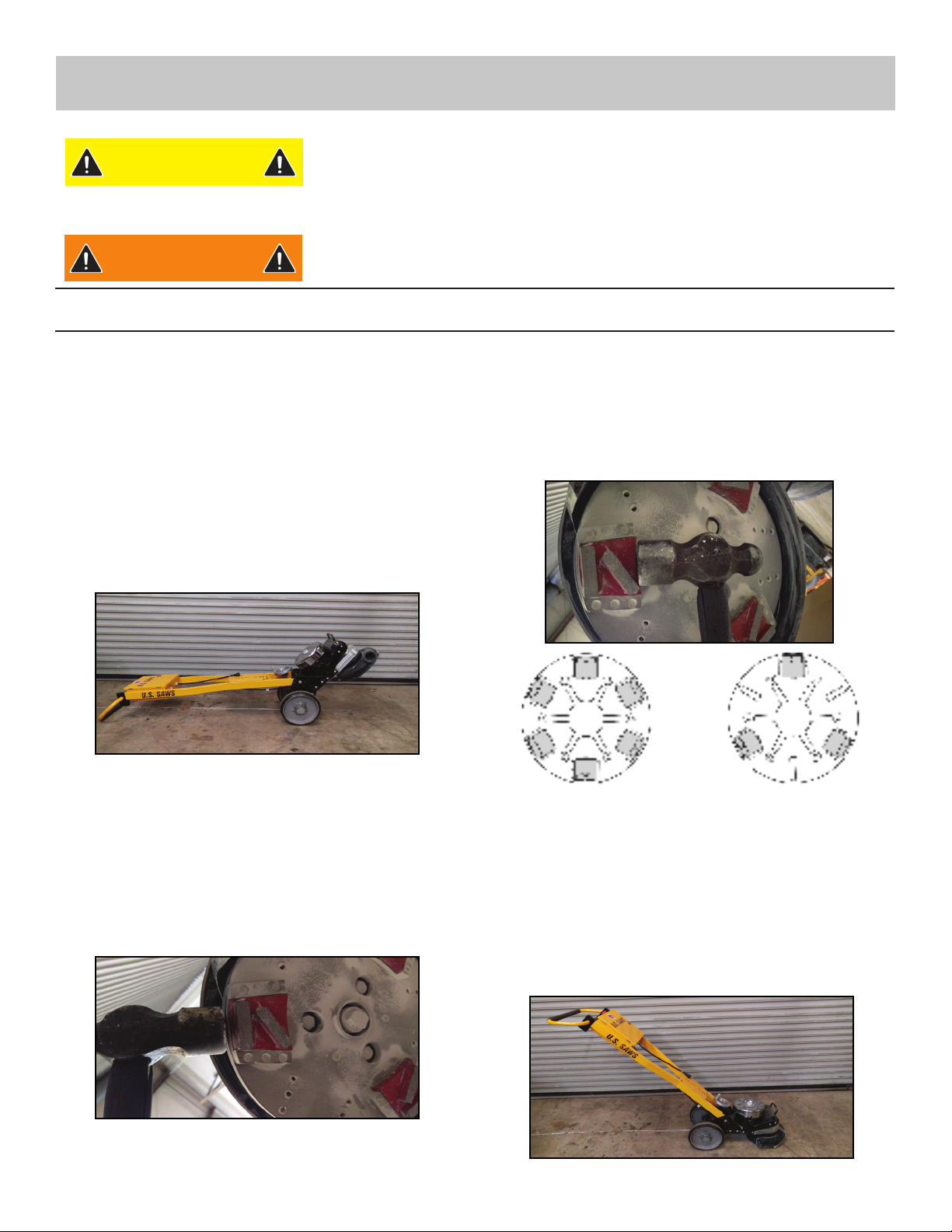

Operation
Use a hammer to remove the diamond
segments
Step 1
Push down on the handle to lift the
head off the ground and gently tip the
machine back and lay it down
Step 2
Step 3
Turn off the machine and disconnect it
from the power source
THE FOLLOWING SYMBOLS AND DEFINITIONS ARE FOUND THROUGHOUT THIS
MANUAL AND ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR
UNSAFE PRACTICES.
A potentially hazardous situation exists which, if not
avoided, could result in death or serious injury.
A potentially hazardous situation exists which, if not
avoided, may result in minor or moderate injury or
property damage.
A potentially hazardous situation exists which, if not
avoided, may result in product or property damage.
THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN THIS MANUAL OR ON THE TOOL.
Read the operator’s manual carefully and understand the
contents before you use this equipment.
Always wear a protective helmet
WARNING
IMPORTANT
CAUTION
Always wear protective glasses or full face protection
Always wear hearing protection
Always use ground fault protection
Always wear breathing protection
Be sure to read the entire owners manual carefully and completely and make sure you
understand the instructions before using the machine.
This machine is designed for surface removal of glues, adhesive residues, putty and
similar materials from concrete oors; as well as grinding and levelling concrete oors.
THE FOLLOWING SYMBOLS AND DEFINITIONS ARE FOUND THROUGHOUT THIS
MANUAL AND ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR
UNSAFE PRACTICES.
A potentially hazardous situation exists which, if not
avoided, could result in death or serious injury.
A potentially hazardous situation exists which, if not
avoided, may result in minor or moderate injury or
property damage.
A potentially hazardous situation exists which, if not
avoided, may result in product or property damage.
THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN THIS MANUAL OR ON THE TOOL.
Read the operator’s manual carefully and understand the
contents before you use this equipment.
Always wear a protective helmet
WARNING
IMPORTANT
CAUTION
Always wear protective glasses or full face protection
Always wear hearing protection
Always use ground fault protection
Always wear breathing protection
Operating this machine without the appropriate training may cause serious personal
injury and or monetary damages.
Installing the diamonds
Always wear gloves when changing
or removing diamonds, they may
become very hot during use.
Step 4
Once the diamond segments have
been attached, carefully stand the
machine back up - listening for
segments falling off
Step 5
Insert new diamonds into the slots
and lightly tap diamond inserts with
a hammer towards the outside of the
plate
Full Set Half Set
Optional Standard
VSG - 10 7
Operation
THE FOLLOWING SYMBOLS AND DEFINITIONS ARE FOUND THROUGHOUT THIS
MANUAL AND ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR
UNSAFE PRACTICES.
A potentially hazardous situation exists which, if not
avoided, could result in death or serious injury.
A potentially hazardous situation exists which, if not
avoided, may result in minor or moderate injury or
property damage.
A potentially hazardous situation exists which, if not
avoided, may result in product or property damage.
THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN THIS MANUAL OR ON THE TOOL.
Read the operator’s manual carefully and understand the
contents before you use this equipment.
Always wear a protective helmet
WARNING
IMPORTANT
CAUTION
Always wear protective glasses or full face protection
Always wear hearing protection
Always use ground fault protection
Always wear breathing protection
Never use damaged cables
Position the machine in the work area
Starting and Stopping
Start
Step 1
Be sure that the diamonds are rmly
attached
Step 2
Connect the vacuum to the machine
Step 3
Step 4
Set the handlebar to a comfortable
working height
Plug the machine in to a power source
Step 5
Turn on the vacuum
Step 6
Reduce the pressure between the
grinding plate and the surface you are
grinding by pressing down on the handle
Step 7
Press the start button to start the
machine
Step 8
Push the stop button to turn the
machine off
Stop
Step 1
Keep the grinding plate in contact with
the oor when stopping, this will help
bring the plate to a complete stop more
quickly
Step 2
Do not lift the grinding plate off the
oor when stopping. This can cause
excess debris and dust to y in the
air.
Pull the safety switch out to the “Run”
position
Step 9
The green indicator light will
illuminate when the motor has
operating power, the motor can
be on but not moving if the speed
control is set to “0”
VSG - 10 8
Operation
Never use damaged cables
Levelling the Machine
THE FOLLOWING SYMBOLS AND DEFINITIONS ARE FOUND THROUGHOUT THIS
MANUAL AND ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR
UNSAFE PRACTICES.
A potentially hazardous situation exists which, if not
avoided, could result in death or serious injury.
A potentially hazardous situation exists which, if not
avoided, may result in minor or moderate injury or
property damage.
A potentially hazardous situation exists which, if not
avoided, may result in product or property damage.
THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN THIS MANUAL OR ON THE TOOL.
Read the operator’s manual carefully and understand the
contents before you use this equipment.
Always wear a protective helmet
WARNING
IMPORTANT
CAUTION
Always wear protective glasses or full face protection
Always wear hearing protection
Always use ground fault protection
Always wear breathing protection
Place the machine on the surface you will be working on.
With the machine OFF, push the front of the machine from side to side. If the grinding
plate is “rolling” on the surface, the machine needs levelling.
If it is rolling on the front of the plate, turn the carriage adjustment wheel counter
clockwise until the grinding plate is at on the surface.
Test the machine by briey (less than 1 second) touching the grinding plate to the
surface while the machine is on at a low speed.
Stop the machine and inspect the mark it made on the surface.
Keep adjusting until all tooling hits the surface at the same time.
The machine will need periodic adjustment as the diamonds wear.
Changing out to a different set of diamonds or switching to polishing pads will also
require readjustment.
THE MACHINE WILL OPERATE SMOOTHLY AND EASILY WHEN PROPERLY LEVELLED.
IF IT PULLS HARD TO ONE SIDE, IT NEEDS ADJUSTMENT.
Levelling the grinding plates is critical to creating a good prole
VSG - 10 9
Check the power supply and the cables to be sure that they are not damaged.
Check that the emergency stop button is not pressed.
Troubleshooting
The machine will not run
Machine is too hard to hold onto - Tracks left or right
Not enough diamonds under the machine - Usually accompanied by high current
draw from the motor. (If grinding thick glue or soft oors, too few diamonds under the
machine will greatly increase the load on the grinder and the operator)
Increase the number of diamonds to reduce the load.
See “Levelling the Machine” on page 8
Diamonds may not be installed correctly or have different heights. Check to ensure
that all diamonds are tted correctly and are the same segment height.
Machine is jumping around
The machine suddenly stops
Check the circuit breaker of the power source the machine is plugged into. Reset the
breaker if tripped. If the circuit was not tripped, check the VSG-10’s electrical panel.
The VSG-10 is equipped with a circuit breaker inside the electrical panel. Unplug the
machine from its power source. Open the elctrical panel and check the breaker to
see if it is tripped. If it is tripped, remove the weight and try grinding again.
THE FOLLOWING SYMBOLS AND DEFINITIONS ARE FOUND THROUGHOUT THIS
MANUAL AND ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR
UNSAFE PRACTICES.
A potentially hazardous situation exists which, if not
avoided, could result in death or serious injury.
A potentially hazardous situation exists which, if not
avoided, may result in minor or moderate injury or
property damage.
A potentially hazardous situation exists which, if not
avoided, may result in product or property damage.
THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN THIS MANUAL OR ON THE TOOL.
Read the operator’s manual carefully and understand the
contents before you use this equipment.
Always wear a protective helmet
WARNING
IMPORTANT
CAUTION
Always wear protective glasses or full face protection
Always wear hearing protection
Always use ground fault protection
Always wear breathing protection
Never use damaged cables
Control Panel Tripped Breaker Ready Breaker
VSG - 10 10
Maintenance
If used and cleaned correctly this is an extremely low-maintenance machine
Cleaning
Always clean the machine at the end of a work day.
Do not use a pressure washer to clean this machine.
Keep the cooling air vents clean and clear to insure that the machine is cooling
correctly.
Check the rubber grinding plate coupler pads every month and replace if necessary
Grinding Plate Coupler Pads
Electrical Feed
Check that the cord ,and any extension cords used,are intact and in good working
condition.
Never use the machine if the cord is damaged. Use an authorized service technician
for repair.
Shroud
Make sure that the shroud is intact, clean, and that it seals to the oor.
Replace damaged shroud as needed.
THE FOLLOWING SYMBOLS AND DEFINITIONS ARE FOUND THROUGHOUT THIS
MANUAL AND ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR
UNSAFE PRACTICES.
A potentially hazardous situation exists which, if not
avoided, could result in death or serious injury.
A potentially hazardous situation exists which, if not
avoided, may result in minor or moderate injury or
property damage.
A potentially hazardous situation exists which, if not
avoided, may result in product or property damage.
THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN THIS MANUAL OR ON THE TOOL.
Read the operator’s manual carefully and understand the
contents before you use this equipment.
Always wear a protective helmet
WARNING
IMPORTANT
CAUTION
Always wear protective glasses or full face protection
Always wear hearing protection
Always use ground fault protection
Always wear breathing protection
Never use damaged cables
THE FOLLOWING SYMBOLS AND DEFINITIONS ARE FOUND THROUGHOUT THIS
MANUAL AND ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR
UNSAFE PRACTICES.
A potentially hazardous situation exists which, if not
avoided, could result in death or serious injury.
A potentially hazardous situation exists which, if not
avoided, may result in minor or moderate injury or
property damage.
A potentially hazardous situation exists which, if not
avoided, may result in product or property damage.
THE FOLLOWING SYMBOLS & LABELS MAY BE FOUND IN THIS MANUAL OR ON THE TOOL.
Read the operator’s manual carefully and understand the
contents before you use this equipment.
Always wear a protective helmet
WARNING
IMPORTANT
CAUTION
Always wear protective glasses or full face protection
Always wear hearing protection
Always use ground fault protection
Always wear breathing protection
Always unplug the machine before beginning any cleaning or
maintenance.
VSG - 10 11
Accessories
Description Specication Part Number
Double Segment 18 Grit For Aggressive Grinding DWN2R18FC
Double Segment 30/40 Grit For General Grinding DWN2R30FC
Double Segment 60/80 Grit For Smooth Grinding DWN2R60FC
Double Segment 120/150 Grit For Pre-Polishing DWN2R120FC
PCD Two Segment For Removal of Coatings PWNQRRFC
Diamonds come in a variety of grits for various tasks. PCDs are for
removing coatings or glue. Many variable on the job will determine
which tooling to use.
Diamonds
Description Part Number
3” 50 Grit Resin Pad VPN03050
3” 100 Grit Resin Pad VPN03100
3” 200 Grit Resin Pad VPN03200
3” 400 Grit Resin Pad VPN03400
3” 800 Grit Resin Pad VPN03800
3” 1500 Grit Resin Pad VPN031500
3” 3000 Grit Resin Pad VPN033000
Velcro Fast Change Resin Holder VFCRH3
Polishing pads can be used for polishing concrete, marble,
and terrazzo
Polishing Pads
VSG - 10 12
11
1
3
6
6
9 8
4
5
2
7
10
14
12
13 -INSTALL 5/16 RIVET NUT
ITEM NO.
PART NUMBER
DESCRIPTION
QTY
1
SX61143
US SAWS PLATE
1
2
SX61149
LOOP HANDLE W/ PAINT
1
3
SX61150
ELECTRICAL BOX
1
4
SX61151
TOP HANDLE CLAMP
2
5
SX61153
BOTTOM HANDLE CLAMP
2
6
SX61160
ARM W/ PAINT
2
7
US31117-1
5/16-18X3/4 HEX HEAD BOLT
2
8
US31152-01
3/8-24X1-1/4 SOCKET HEAD BOLT
2
9
US31176
3/8-24X1-3/4 HEX HEAD BOLT
2
10
US31320-2
5/16 WASHER
6
11
US75200-6
8-32 THUMB SCREW
2
12
US31110-5
5/16 RIVET NUT
2
13
US31131-01
8-32 RIVET NUT
2
14
US31176-1
3/8-24X5/8 HEX HEAD BOLT
4
DO NOT SCALE DRAWING
SHEET 1 OF 1
8/8/16
DV
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
1/64
ANGULAR: MACH
.5
BEND
.5
TWO PLACE DECIMAL
.01
THREE PLACE DECIMAL
.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
US SAWS
. ANY REPRODUCTION IN PART
OR AS A WHOLE WITHOUT THE WRITTEN
PERMISSION OF
US SAWS
IS PROHIBITED.
5
4
3
2
1
VSG-10 ARM
ASSEMBLY
Parts
VSG - 10 13

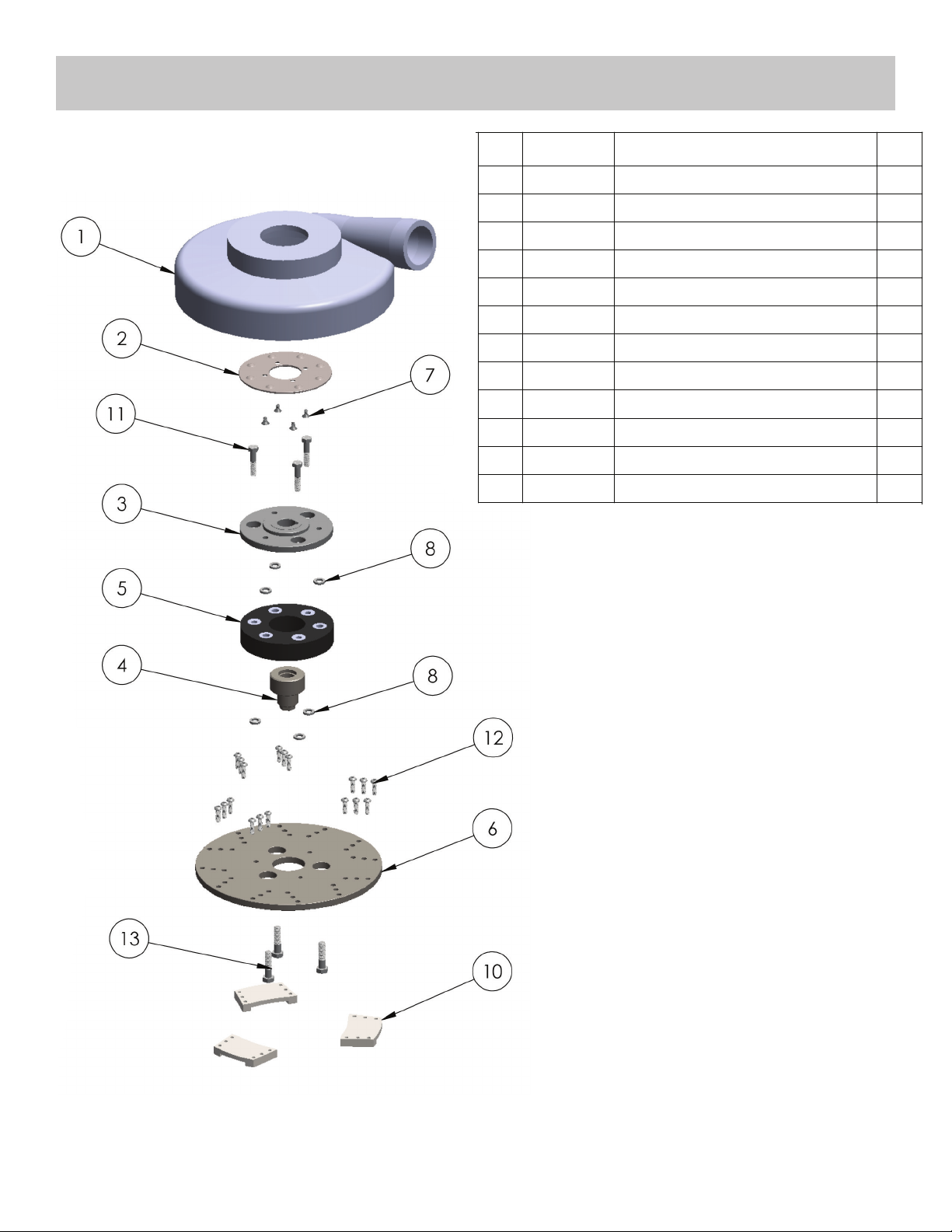

Parts
1
7
11
8
5
4
12
6
13
10
3
2
8
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY.
1
SX65820
10" VSG Shroud
1
2
SX61120-1
10" SHROUD WASHER
1
3
SX61121
5" DRIVE FLANGE 1
4
SX61122
OUTPUT SHAFT NUT
1
5
SX61123
POLYURETHANE DRIVE BUSHING
1
6
SX61124
10" STEEL GRINDING DISC PLATE
1
7
US31060-4
10-24 X 3/8 FLAT HEAD SCREW
4
8
US32060
3/8 ID SHIM WASHER
6
11
US31110-5
5/16-18 X 1-1/2" HEX HEAD SCREW
3
12
US31261
M6 X 20mm BUTTON HEAD SCREW
18
13
US31156-1
3/8-16 X 1-3/4 HEX HEAD SCREW
3
10
FCHOLDER
FAST CHANGE HOLDER
3
WEIGHT:
A
Grinding Disc
Assembly
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
COMMENTS:
SHEET 1 OF 1
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
DATE
NAME
NEXT ASSY
USED ON
APPLICATION
REV.
A
DWG. NO.
SIZE
SCALE:1:16
SX61000
PROPRIETARY AND CONFIDENTIAL
Table of contents
Other US SAWS Grinder manuals
