USASPEC PA20-TOY User manual

OWNER'S
MANUAL
TECH. SUPPORT
[phone]
9 AM ~ 4 PM PST
MON ~ FRI
4p _0615
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
to Toyota / Lexus car stereo Interface
with song title display
to Toyota / Lexus car stereo Interface
with song title display
iPod
PA20-TOY
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor

Thank you for purchasing product. This manual describes the functions and operation
of PA20-TOY interface for Toyota cars. Please read this manual before installing the product
to your vehicle.
Section 1. ABOUT YOUR INTERFACE PA15-TOY
This interface connects an directly to your Toyota audio system. Its on-board software
translates commands from your Toyota CD changer controls into commands that the
understands. This interface enables the to take the place of a Toyota CD changer and provides
the following benefits:
Directs the 's audio output to Toyota vehicle audio system for optimal sound quality
playback.
Controls the via vehicle's radio and steering wheel controls.
Charges the 's internal battery, and charging stops automatically at one hour after is
paused. goes to sleep mode when charging stops.
-2-
!!IMPORTANT!!
It is strongly recommended that the unit is installed in an accessible location, so that it can
later be easily reset or upgraded.
Eject ALL CDs from the built-in CDP player or CD changer before installation or
disconnect the power to radio!!!
sells its products through authorized dealers so we can insure customers will
receive proper services from the dealers. reserves the right to offer technical
support or warranty only on products purchased through authorized accounts.
It is strongly recommended that buy product from sellers who provide
dedicated phone contact support. will not provie technical support or warranty
for purchases made through any unauthorized internet sellers.
SAFETY NOTE: You should always give full attention to driving. Do not operate in
such a way that distracts you while you are driving.
!!CAUTION!!
In general, has not been designed to withstand temperature extremes in automobiles.
Please consult your Owner's Manual regarding acceptable operation and storage
temperatures.
Do not disassemble or alter the cable and interface box.
Make the connections correctly.
Do not cut away the wire sheath or use the power for other equipments.
Do not install in locations which might hinder vehicle operation or create hazards for vehicle
occupants.
Having the wiring and installation done by professionals.
Arrange wiring so it is not crimped or pinched.
Do not use this product for purposes other than stated for the vehicle.
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
Compatibility
Future firmware updates for your may affect the features and functions described in this
owner's manual.
CompatibilityCompatibility
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
This interface is capable to co-exist with either in-dash CD changer or a Toyota slave CD changer
in your car stereo system.
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor

Artist name and song title can be displayed on radios equipped with a "TEXT" button or
"TITLE"
a touch key on navigation screen. Text display is supported in Hybrid Mode and
-3-
Text Display of Song information
Playlist Mode. Track search by artist, song title or album from radio is NOT supported.
Section 2. HYBRID MODE, DIRECT MODE and AUX OPTION
Applications
PA15-TOYis applicable to the following Toyota vehicles:
4Runner
Avalon
Camry
Corolla, Echo
Fj Cruiser
Highlander
Land Cruiser
Matrix
MR2, Celica
Prius
RAV4
Scion all models
Sequoia
Sienna
Solara
Tacoma
Yaris
98-08
98-08
98-08
98-08
07-08
01-08
98-08
05-08
98-04
04-08
98-08
98-08
98-08
98-08
98-08
07-08
PA15-TOYprovides three ways to control your through the car radio, namely Hybrid Mode
and Direct Mode.
* verified the published radio and vehicle application to the best of our ability. Due to
uncontrollable factors, can not 100% guarantee every published application. These
fartors include variables such as, anomalies within a factory radio, factory radio heretofore
unknown to and partial model year changes.
Tundra
To display TEXT information of song on some of the Tundra, Avalon and Solara
radio, PA20-TOY should be configured to the SAT port of radio. Please see the DIP switch
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
NOTE 1:
table in section 2-5 of this manual.
Only when PA20-TOY is configured to SAT port, it requires a cable adaptor to work
with factory insatlled SAT receiver.
NOTE 2:
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
@ 626-3363836 to order
98-02 Sienna requires cable adaptor CAS-TLC to retain the steering wheel control
NOTE 3:
01-03 Lan Cruiser requires cable adaptor CAS-TLC for installtion.
NOTE 4:
PA20-TOYis applicable to the following Lexus vehicles:
ES 300/330/350
GS 300/350/430/450
GX 470
02-03 (requires CAS-LEX cable )
04-08
02-03 (requires CAS-LEX cable )
04-08
03-08
IS 250/300/350
LX 470
RS 300/330/350/400H
01-05 (requires CAS-LEX cable )
06-08
04-08
01-03 NAV only(requires CAS-LEX cable)
04-08
Playlist Mode Between Playlist Mode and Hybrid Mode, only one of them will
be activated automatically by PA20-TOY depends on the model or type of
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
call
of radio.
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
Package Contents
PA1-TOY contains one each of PA20-TOY interface adaptor, CAS-TYi, CAS-TA, and CB-PA100
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
98-08
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004
Edited by Foxit PDF Editor

-4-
2-1 Direct Mode:Search and select music on directly just as you would in portable use.
The music will play back through your car stereo. Use the track up/down, fast forward, and
reverse buttons on your radio to control music playback. DISC #8 is dedicated to Direct Mode
use.Use your in Direct Mode by selecting DISC #8 with disc up or button on radio.
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
If the playback of a Playlist is manually interrupted by using the 's key pad, and a song
or music in a new category is played, the interface module memorizes the last played track
number of the new category. "New category" means file, or folder, or Playlist, or artist, etc.
which is different from the Playlist being played. When you return to the same DISC on radio
later, the interface module will use the "memorized" track number (note: just the track number,
not the last played song in the new category) to playback the Playlist related to this DISC.
When the is connected to the interface module, the will take approximately 30
seconds to complete its external control mode configuration. During this period of time, the
screen's display will continue change until the configuration is completed.
2-2 Hybird Mode:Operate and control the like it is a CD changer. This mode allows you
to access up to six playlists on the . The instructions for playlist creation and playback
controls are in Section 5 of this manual. Additionally, while in Hybrid Mode, the key pads
on can be operated directly as if it were in Direct Mode.
iTouch, iPhone and G3 s are
NOT applicable to Hybrid Mode.
2-3 Playlist Mode: Access the Playlists on in the same way as it is in Hybrid Mode. However,
screen will only display " K to discnnect" or "Attached to accessory" and, keypads
's 's
are not function.
OK
2-4 RCA AUX INPUT
Besides , PA20-TOY also can connect a second audio source to radio. Connecting the
second audio source to the RCA jack labeled
setting the DIP switch at the side of this adaptor should be at ON position. When radio
is in CD mode, AUX input is accessed at CD9-1.
#1
AUX INPUT.
AUX input is enabled by
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
#1
#1
#2 &
ON
ON
ON
Enabel RCA AUX input
OFF
#3
#4
&
ON
OFF
Disabel RCA AUX input
To display TEXT on or
radio thru " SAT " band
Tundra
Swicth 2 , 3 4 are unrelated to this function
&
# # #
Swicth 2 , 3 4 are unrelated to this function
&
# # #
Display text on radilo has " TEXT" or " TITLE" button
Access iPod with SAT/AM button and use radios
CD button for functions.
Switch setting Function Remark
#2 &
ON #3
#4
&
ON
OFF
#2 &
ON #3
#4
&
OFF
OFF
#2 &#3
#4
&
OFFOFF
Solara
To display TEXT on radio
( w / tape player ) thru " SAT " band
Avalon
To display TEXT on radio
( w / o tape player ) thru " SAT " band
Avalon
Access iPod with SAT/AM button and use radios
CD button for functions.
Access iPod with SAT/AM button and use radios
CD button for functions.
To access iPod with CD or DISC button on
Toyota or Lexus radio
2-5
DIP Switch setting summaries
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor

At......
radio plays......
#1
DISC
#2
DISC
#3
DISC
#4
DISC
#5
DISC
#6
DISC
#
DISC
#
DISC
#
DISC
7
8
77
88
7
999
and it is in......
Remark
1st Playlist
2nd Playlist
3rd Playlist
4th Playlist
5th Playlist
6th Playlist
All Songs on iPod
AUX Input
If DIP switch is set
#1
to ON
All Songs
( no text display ) Direct Mode
Hybrid or playlist Mode
( depends on iPod model )
Hybrid or playlist Mode
( depends on iPod model )
Hybrid or playlist Mode
( depends on iPod model )
Hybrid or playlist Mode
( depends on iPod model )
Hybrid or playlist Mode
( depends on iPod model )
Hybrid or playlist Mode
( depends on iPod model )
Hybrid or playlist Mode
( depends on iPod model )
2-6
Summary of iPod Model vs. Operating Modes
NOTE: To those iPod models whlch support , DISC 8 or is
Hybird Mode Direct Mode
#
skipped or omitted by PA20-TOY automatically.
-5-
Section 3.
Step 1- Remove radio from the dash.
Step 2- Plug the round din plug of the CAS-TYi to PA20-TOY interface adapter box where it is
labeled "RADIO"
Step 3- Plug the other end of CAS-TYi cable to the receptor at back of radio. (For some of recent
year models, plug CAS-TAto the back of radio and connect CAS-TYi to the other end of
CAS-TA.)
Step 4-a- Connect the audio output of your auxiliary devices to AUX input jack on PA20-TOY
adapter box if the additional AUX option is selected by setting the DIP swich#1 to "ON"
position.
Step 4-b- Set the DIP switch #2, #3 and #4 according to the table in Section 2-5.
Step 5- Plug CB-PA100 cable to PA20-TOY adaptor box where it is labeled " "
Step 6- Reinstall radio to the dash.

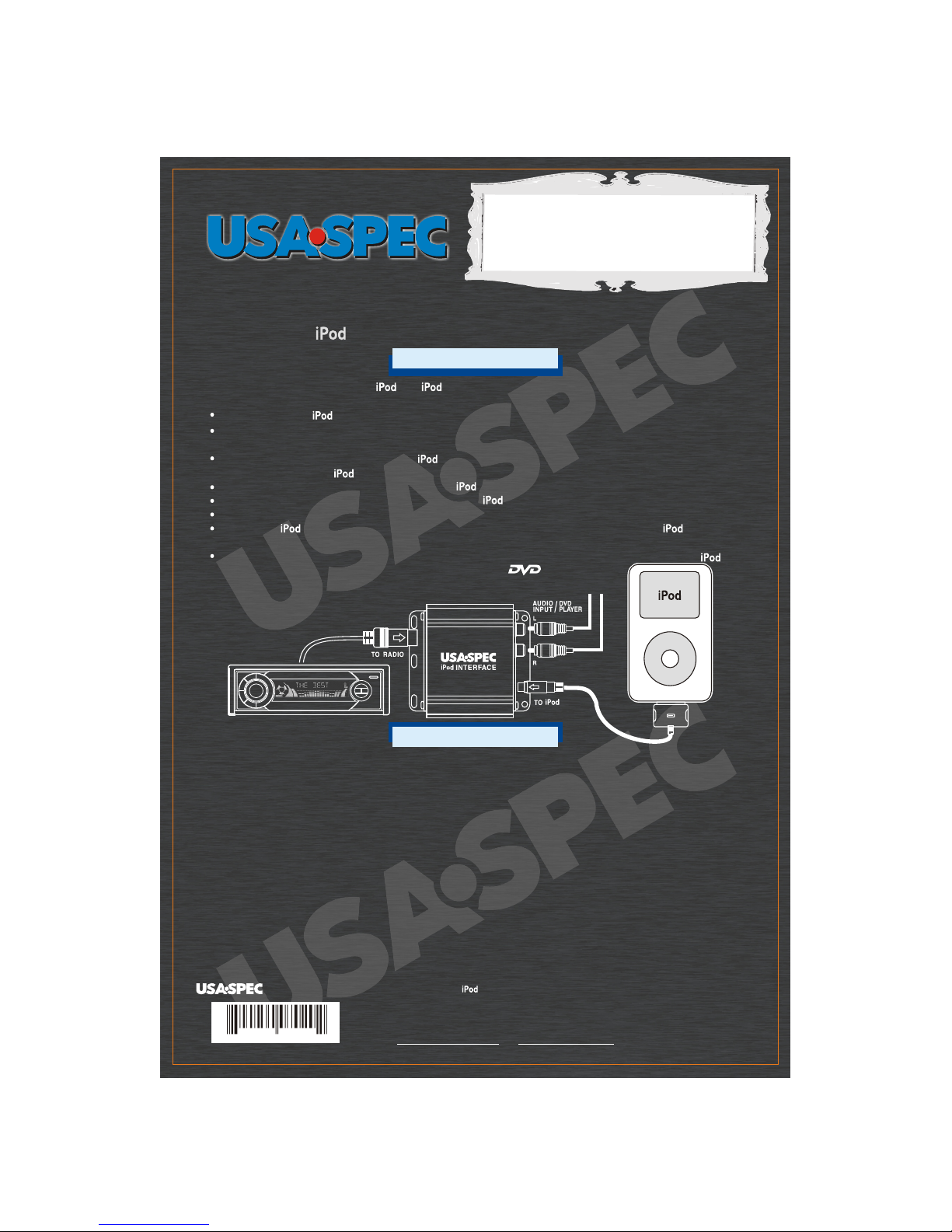

WIRE CONNECTION
8
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004
Edited by Foxit PDF Editor

CONNECT
TO RADIO
TO RADIO
TO iPod
Player or Satellite Receiver
CB-PA100
CAS-TYi
CAS-TA
WARNING!!
Use only the connection cable which comes with PA20-TOY interface adaptor.
Connection cables from other sources may look similar, but they may damage your .
FRONT VIEW
REAR VIEW
4-POSITION DIP SWITCH
ON: when switch is at
bottom position
Section 4.
5-1 Connecting to the interface
After connect to PA20-TOY, will take a few moments to get into the external control
mode. During the initializtion, screen may shitf or change continuously for approximately
Section 5. CONNECTING & PLAYING of
25 seconds
-6-
00
( Blank on purpose )
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004
Edited by Foxit PDF Editor

For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
5-2 Select mode on Toyota radio
Press the AUX or DISC button on radio repeatedly until "CD 7-x" appears on the radio display
(x is the track number of "Now Playing" song on ). This display confirms that mode
has been completely synchronized and activated. Synchronization timing varies according to the
number of Playlists on your .
If was playing previously before radio or ACC power was OFF, and the was not
disconnected, playback resumes from where it was stopped.
5-3 Disconnecting from the interface
If your is disconnected during playback in mode, the radio will automatically switch to
AM/FM mode.
After disconnecting, screen changes from the external control mode screen back to the normal
menu. Press and hold the Play/Pause button on may get the normal menu back faster.
5-4 Playback of songs on
All audio tracks on your will be played at disc 7. Track order is determined by the default
order on your . Selecting disc 1 to disc 6 on radio will allow playback of 6 Playlists on
If was playing any of its Playlist right before the connection, the same Playlist will continue
to play and repeated at disc 7 and will switch to "All" after the last track in this playlist is
played
5-5 Selecting a Playlist
Press DISC UP ( ) or DISC DOWN ( ) button to select a Playlist. The selected Playlist will
begin playing and the Playlist number and track number will be displayed. In rare cases, this may
take up to few seconds for the completion of synchronization.
After playing the last song in the current Playlist, playback will start again from the first track of
this Playlist.
Playlist naming
When is connected to your radio via PA20-TOY interface adapter, the adapter scans all
available Playlists on and look for designated Toyota Playlists which are created for direct
access with the DISC controls on Toyota radio. The designated Toyota Playlists are related to
DISC number in the following manner:
DISC 1: TOYOTA1...
DISC 2: TOYOTA2...
DISC 3: TOYOTA3...
DISC 4: TOYOTA4...
DISC 5: TOYOTA5...
DISC 7: ALL SONGS on
The naming of designated Toyota Playlists in iTune for PA20-TOY interface must be exactly as
shown. Toyota must be in capital letters and there can be no spaces between Toyota text and number.
However, you may add any text after the correct naming of a Playlist. (i.e. Toyota1-Jazz,
Toyota3_Favorite3 are acceptable Playlist names for PA20-TOY interface.)
DISC 6: TOYOTA6...
-7-
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor

For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
If no designated Toyota Playlists are created, PA20-TOY adapter automatically relates to the
first five Playlists on to DISC number 1 to 6 regardless Playlist naming.
If less than six designated Toyota Playlists are created, PA20-TOY adapter automatically fills
up the rest of DISC numbers beginning with the first available Playlist on .
Example: if only three designated Toyota1, Toyota3 and Toyota5 Playlists are created, the disc
number on radio will be:
DISC 1: Toyota1...
st
DISC 2: (1 available Playlsit on )
DISC 3: Toyota3...
nd
DISC 4: (2 available Playlist on )
DISC 5: Toyota5...
The interface does not recognize a Playlists that contains no audio tracks regardless of Playlist
naming. The interface also does not recognize the "On-The-Go" Playlist on your .
5-6 Playback function controls
You can control playback with several functions. These functions are generally cancelled when
you press select radio buttons; disconnect the , or POWER OFF the radio or ACC.
SCAN
Press the scan button, each track in the current Playlist play for 10 seconds. If SCAN is pressed
at DISC 6, it will play all songs in for 10 seconds each.
Random (Shuffle)
Press the "RDM" random button, songs and Playlist will playback in random order.
Some radio models use the "P scan" button to activate random mode.
Repeat
Repeat of a song being played is not supported.
nd
DISC 6: (3 available Playlist on )
Track Up/Down
Press the "NEXT" button to advance to the next track in the Playlist. Press the "PREV" button to
go to the beginning of the track that is being played. Press the track down button twice to go to
the previous track.
If the track up or track down buttons is pressed quickly in repetition, the track numbers displayed
may change unevenly. You may also hear short bits of audio during repeated presses of track up
and track down buttons.
If your Toyota radio currently displays a maximum of two digits for track number. Track
number 100 will be displayed as 01, track 101as 02, track 102 as 03...
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
-8-
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004
Edited by Foxit PDF Editor

For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
Note: , mini, nano, photo, video and iTune are registered trade marks
of Apple Computer, Inc.
Toyota Motor Corporation.
Design and specifications are subject to change without notice.
Toyota and Lexus are registered trade mark of
Changing source to AM/FM, CD, Cassette
When a source other then the is selected on radio, the will pause.
- 9 -
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
XM is a registered trade mark of XM Satellite Radio Inc.
Fast Track search ( X10 )
Presses the fast forwardd or fast reverse button ( , ) , it will advance or retreat through
the tracks in the Playlist in inelemnet of 10 (i, e, 04, 14, 24......). When the end of the Playlist is
reached, the search will stop at track 1, and the continue by increments of 10 (i, e, 19, 29, 1, 11.....)
When PA20-TOY is configured to SAT port. press on Fast Forward button starts the 10 track
jump and requires a second on the FF button to stop the track jump, To stop the fast retreal,
a second press on Fast Rewind button is required.
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor

For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
-10-
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
LIMITED WARRANTY
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor

-11-
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor

PA20-TOY is applicable to following Toyota models :
CAR AUDIO
Player or
Satellite Receiver
LTI Enterprises, Inc. 167 Mason Way, Unit A2. City of Industry, CA91746
www.usaspec.com or www.usaspec.net Tel[phone]
PLAY, CONTROL & CHARGE
Your through Toyota Car Stereo System!
4Runner
Avalon
Camry
Corolla, Echo
F j Cruiser
Highlander
Land Cruiser
Matrix
MR2, Celica
Prius
RAV4
Scion all models
Sequoia, Taundra
Sienna
Solara
Tacoma
Yaris
98-08
98-08
98-08
98-08
07-08
01-08
98-08
05-08
98-04
04-08
98-08
98-08
98-08
98-08
98-08
07-08
KEY FEATRES
8 2
24254 07020
APPLICATIONS
This interface connects an or mini directly to your Toyota audio system with
following benefits :
Connect directly 's audio output to Toyota vehicle audio system for optimal sound quality playback.
Playlist Mode: Select songs and Playlists on with CD changer button on radio.
Direct Mode: Search and select songs directly on .
Maintain current Playlist when switching from portable to in-car use.
Charge the battery while playing, charging automatically ends at one hour after is paused
to prevent car battery drain.
Plus-DVD player, Satellite radio or other audio device can be used in conjunction with the
through Aux Audio Input jack.
Display artist name and song title on rdios equipped with TEXT button. (
For application to earlier than 2005 Lexus vehicles, a cable adaptor is required. Please contact
@ 626-3363836 for detail.
Playlist and songs on can be accessed either by using radio's CD change button,
to Toyota / Lexus car stereo Interface
with song title display
Tundna 07-08
Hybrid Mode:
(This features is supported
in Playlist Mode and Hybrid Mode.)
Toyota and Lexus are registered trade mark of Toyota MotorCorporation.
is a registered trade mark of Apple C omputer I nc.
X M is aregistered trade mark of X M Satellite R adio I nc.
)
as well as by using 's clik wheel.
PA20-TOY is applicable to following Lexus models:
ES 300/330/350
GS 300/350/430/450
02-03(requires CAS-LEX cable)
04-08
ES 300/330/350
01-05 (requires CAS-LEX cable)
06-08
01-05(requires CAS-LEX cable)
06-08
ES 300/330/350
01-03 NAV only(requires CAS-LEX cable)
04-08
GX 470 LX 470
03-08 04-08
to Toyota / Lexus car stereo Interface
with song title display
iPod
PA20-TOY
For Evaluation Only.
Copyright (c) by Foxit Software Company, 2004 - 2007
Edited by Foxit PDF Editor
