Dear customer,
Thank you for purchasing our product. Please read the following
instructions carefully before first use and keep this user manual
for future reference. Pay particular attention to the safety
instructions. If you have any questions or comments about the
device, please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00
Prague 7, www.alza.cz

4
Thanks for your investment and trust in E-K2
Extendable Tripod Video Kit.
As always, USKEYVISION focus on smartphone filmmaking,
vlogging gears innovation, which you can enjoy premium product
experience from the very beginning.
Shoot, edit, and upload on the go! USKEYVISION E-K2 Extendable
Tripod Video Kit is just launched in time. This E-K2 vlogging
microphone video light combo kit is designed for personal
photography studios for Vloggers YouTubers, and content
creators who want to take smartphone filmmaking to the next
level.
USKEYVISION E-K2 Smartphone Video Kit is born for vlogging on
your phones. Say goodbye to complicated, expensive filming
setups. This smartphone kit effortlessly levels up your video,
whether you are starting a YouTube channel, doing an interview,
or off capturing your latest travels. The E-K2 video kit is so
lightweight and compact in hand, making it ideal for any on-the-
go content creator. Youtubers, vloggers, journalist, live-streamers,
and smartphone filmmakers all love it. It’s also great for anyone
who just wants to improve the video quality of your home
photography or videography with your family and friends.
Why is it so good? This E-K2 extendable tripod video kit will not
only improve your videography performance with much more
stability with the help of a 22cm extendable tripod but also the
real boost will be in your sound. The included UVM-X cardioid
microphone significantly improves your audio recording,
delivering a crisp and clear audio experience, while blocking out

5
peripheral environmental noise with the foam and furry
windshield.
Features
Compact Design
Lightweight and portable to pack. Perfect for the YouTube
beginner and vlogger, smartphone filmmaker, journalist, or
traveler to meet the different video scenarios.
Universal Cardioid Microphone
The UVM-X directional cardioid microphone produces a high-
quality audio recording performance even in the background
noise environment. It is well compatible with all smartphones,
DSLRs, iPads, tablets, audio recorders, and more camera
accessories at one time.
Sturdy and Durable Support
The extendable tripod is made of durable ABS plastic to give your
smartphone the support of horizontal and vertical shooting. No
matter in your TikTok or Livestream, you are ready to change the
phone mounting angle in your phone videos.
Versatile Setup
Simple installation. Just attach the adjustable tripod when you
need it or remove it and go handheld when you don’t. A mini ball
head can be rotated at any desired angle of your phone and
camera videography. You can also use this kit with your GoPro,
Osmo Action, and mirrorless with handholding and standing on
the ground.

6
Video Light and Extendable Tripod included in the
Kit
The E-K2 video light provides soft and natural lighting for your
vlogging and live-streaming. The E-K2 tripod can be handheld as a
grip. The tripod is built from durable ABS plastic to give your
phone the support it needs when shooting selfie photos and
videos. The extendable tripod supports up to 4.4 lbs and the
built-in extension rod can be extended from 22cm to 39 cm, so
you can use it fully with your camera, smartphone, mirrorless,
GoPro, and action cameras.
Product Overview
1. UVM-X Microphone
2. Action camera adapter
3. Video Light
4. Tripod Ballhead
5. 1/4inch Thread Hole
6. Cold-shoe
7. Extension Rod
8. Phone Holder Clip
9. Windscreen
10. Foam
11. Shock Mount
12. USB-C Charging Cable
13. Case Bag
14. Remote Control

7

8
What’s the difference between audio cables in this E-
K2?
3.5 mm to TRRS connector cable
•For smartphone, tablet, PC computer or MacBook.
3.5 mm to TRS connector cable
•For cameras, camcorders, audio recorders, and other
audio/video recording devices.
NOTES: The lighting-3.5mm headphone jack adapter cable for
iPhone and the USB-C-3.5mm headphone jack adapter cable are
not included in this package.

9
Specifications of UVM-X Microphone
Polar Pattern
Super Cardioid
Frequency Response
40HZ ~ 20KHZ
Signal to Noise Ratio
76db
Sensitivity
48.0db (F=1KHZ, S.P.L=1Pa
0db=1V/Pa)
Maximum SPL
110db
Audio Output
3.5mm
Dimension
Φ20.2mm x 65mm
Weight
37.7g
Power Requirements
No battery required
Polar Pattern
Frequency

10
How to Use Extendable Tripod
1. Pull out the ball head from the extendable tripod.
If you need to shoot from a different height, the tripod can be
flexibly extended by pulling the tripod ball head. The extension
methods are shown below.
How to Mount the Phone
Mode A: Handheld Mode
Take out
the tripod
Set the phone
clamp vertically
and lock the
ballhead
Unfold
phone
clamp
Install the
phone

11
Install the video
light
Install the
microphone
Install is done
Mode B: Horizontal and Vertical Mode
Take out
the tripod
Remove and
install the phone
clip with a 1/4inch
screw in the clip
middle
Lock
Unfold
phone
clamp

12
Install the
phone
Install the
video light
Install the
microphone
Unfold the
tripod and
freely switch
between
horizontal and
vertical
shooting
modes.
Mount the UVM-X Microphone with Smartphone
a) Plug the TRRS cable into the audio jack of your
smartphone.
Notes: If your iPhone, iPad or smartphone is equipped with USB-C
or Lighting Jack, please separately purchase a certified USB-C or
Lighting to 3.5mm Headphone Adapter Cable (Not Included).
b) Open the audio-only mode, or video APP, and begin
recording.

13
How to Install GoPro
Take out the
tripod
Set the phone
clamp vertically
Lock
Remove and
install the
smartphone
clamp and the
rubber mat is
facing up.
Install the GoPro
adapter
Install GoPro

14
How to Install the Camera
Take out the
tripod
Set the
phone
clamp
vertically
Lock
Remove and
install the
smartphone
clamp and the
rubber mat is
facing up.
Install the camera
Install the video
light
Install the
microphone

15
Bluetooth Remote Control Instructions
Parameters
Basic Parameters
Model
BT-2
Chip model
YC1098X
Size specification
Length x Width x Height:
38.5x28x11.5mm
Weight
6.5g (battery included)
Functional Features
Support iOS 11.4.1 and most
Android 5.1.1 and above
Photography Technique
Button
Power supply
Built-in 3.0V/1632 button cell
battery
Technical parameters
Bluetooth version
Bluetooth 4.2 BLE
Bluetooth protocol
HCI
Working voltage
3.0V (button battery)
Operating current
Key current 2.5mA Primary
hibernation 0.5mA
(connected without
operation), Secondary
hibernation 2uA
Effective distance
Effective distance: the
farthest remote control
distance up to 10 meters
ISM frequency band
2400MHz—2483.5MHz

16
Operation
Power on:
Toggle the switch to ON position, the remote control will enter
the power-on mode.
1. When you use it for the first time, this remote control will
automatically enter the pairing state after powering on.
2. When using again, the remote control will automatically
connect back to the previous phone after powering-on, and
automatically the pairing state after failing to connect back.
Power off:
Toggle the switch to OFF position, the remote control will enter
the power-off mode.
Hand Rope Hole
Status Indicator
On/Off Button

17

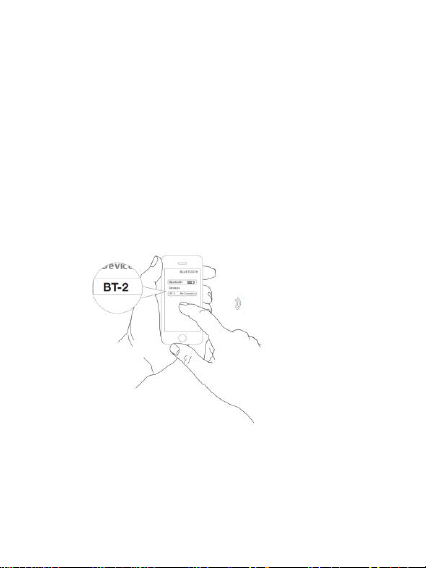

Bluetooth Connection
Bluetooth Pairing
In the pairing mode, the green light is slow flashing, find the
setting on your phone and open Bluetooth, click to search for “BT-
2” mode to connect, the light will be of when it shows connected.
Photo Taking
After successful Bluetooth pairing, open the camera function on
your smartphone and press the photo button on the remote
control to take photos.
10 meter effective
distance varies by
environment

18
Notes:
1. After powering on, the remote control will automatically
connect back to the last connected phone before power-off
(Bluetooth is on), no need to search for Bluetooth pairing
again. If it failed, the remote control would automatically
enter the pairing mode and automatically enter into
hibernation mode after the pairing timeout.
2. If you need to connect other Bluetooth devices, you need
to turn off the Bluetooth of the last connected smartphone
before remote control’s power off.

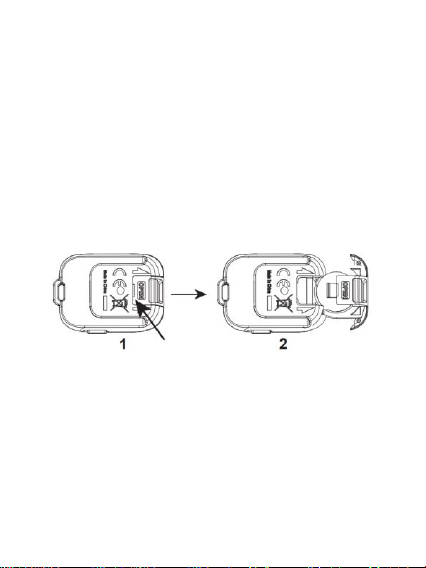

Battery Replacement
Open the battery box to the right as shown in Figure 1 to the
state of Figure 2 to replace the battery.
Notes:
Low voltage state: after power on, below 2.1V green light does
not light up, below 1.9V shutdown, below 2.1 V button, the green
light does not light up.

19
Hibernation state: After 5 minutes of standby without operation,
it will enter into hibernation mode.
We reserve all the rights to explain the printing errors in this user
guide, inconsistency with the lates information, software, and
product upgrades at any time. These changes will be made
without notice and will be directly complied into new version of
the user guide.
Warranty Conditions
A new product purchased in the Alza.cz sales network is
guaranteed for 2 years. If you need repair or other services
during the warranty period, contact the product seller directly,
you must provide the original proof of purchase with the date of
purchase.
The following are considered to be a conflict with the
warranty conditions, for which the claimed claim may not be
recognized:
•Using the product for any purpose other than that for
which the product is intended or failing to follow the
instructions for maintenance, operation, and service of the
product.
•Damage to the product by a natural disaster, the
intervention of an unauthorized person or mechanically
through the fault of the buyer (e.g., during transport,
cleaning by inappropriate means, etc.).

20
•Natural wear and aging of consumables or components
during use (such as batteries, etc.).
•Exposure to adverse external influences, such as sunlight
and other radiation or electromagnetic fields, fluid
intrusion, object intrusion, mains overvoltage, electrostatic
discharge voltage (including lightning), faulty supply or
input voltage and inappropriate polarity of this voltage,
chemical processes such as used power supplies, etc.
•If anyone has made modifications, modifications,
alterations to the design or adaptation to change or extend
the functions of the product compared to the purchased
design or use of non-original components.
