Dear customer,
Thank you for purchasing our product. Please read the following
instructions carefully before first use and keep this user manual
for future reference. Pay particular attention to the safety
instructions. If you have any questions or comments about the
device, please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00
Praha 7, www.alza.cz

4

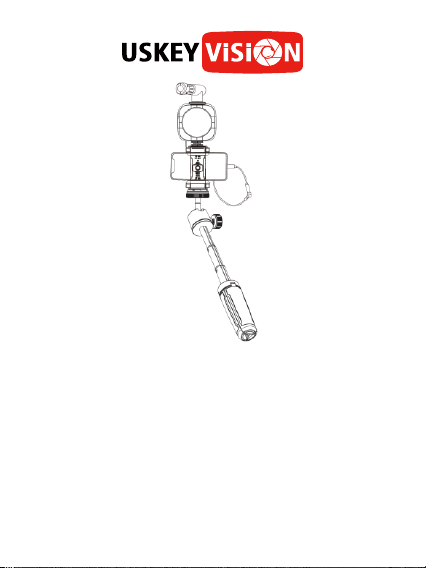

Thank you for your investment and trust in E-Nano vlog kit with
light and microphone.
Shoot, edit and upload on the go! USKEYVISION E-Nano
smartphone vlogging kit is designed as a portable studio for
vloggers and content creators who want to take their smartphone
filmmaking to the next level.
USKEYVISION E-Nano vlog kit is made for vlogging on your
phones. Say goodbye to complicated, expensive filmmaking
setups. This smartphone kit effortlessly levels up your video,
whether you’re starting a YouTube channel, doing an interview, or
out capturing your latest travels. The E-Nano combo is light-
weight and compact in hand, making it ideal for any on-the-go
content creator. YouTubers, vloggers, journalists, live streamers,
and smartphone filmmakers will love it. It’s also great for anyone
who just wants to improve the quality of their photos or videos
with family and friends.
The real game-changer is the boost your video will receive –
E-Nano vlogging kit gives your video more stability and better
sound thanks to the BSM-1 microphone. Included microphone
significantly improves your audio record, delivering crisp and
clear audio experience, while blocking out peripheral
environmental noise.

5
Features
Compact Design
Lightweight and easy to pack. Perfect for the on-the-go vlogger,
smartphone filmmaker, journalist or traveller.
Universal Cardioid Microphone
The BSM-1 directional microphone delivers high-quality audio and
is well compatible with all smartphones, DSLRs, tablets, audio
recorders and more camera accessories at one time.
Sturdy and Durable Support
The tripod and ball head are built from durable ABS to give your
phone the support and different angles for your needs.
Versatile Setup
Simply attach the adjustable tripod when you need it or remove it
and go handheld when you don’t. It also comes with a mini ball
head to rotate and angle your phone.
Light, Tripod and Extension Monopod Included
The light provides a soft and natural lighting for your vlogging.
Tripod can be handheld as a grip. The tripod is built from durable
ABS plastic to give your phone the support it needs when
shooting videos. The tripod supports up to 5kg and the extension
rod extends from 13cm to 31cm, so you can use it with your
camera as well.

6

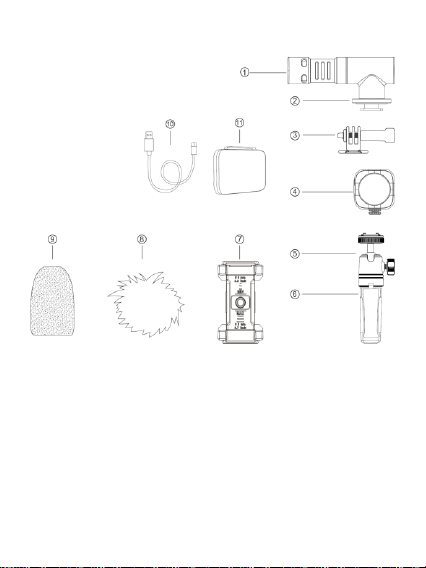

Package List
1. BSM-1 microphone
2. Shock mount
3. Action camera
adapter
4. Video light
5. Tripod ballhead
6. Extension rod
7. Phone holder clip
8. Windscreen
9. Foam
10. USB-C charging
cable
11. Carrying bag

7
3.5mm TRRS connector cable –
(for smartphone, tablet, PC or MacBook)
3.5mm TRS connector cable –(for cameras, camcorders, audio
recorders and other audio/video recording devices)
BSM-1 Microphone Specifications
Polar Pattern
Super Cardioid
Frequency Response
40Hz ~ 20 kHz
Signal to Noise Ratio
76db
Sensitivity
48db
(F = 1kHz, SPL = 1Pa 0db = 1V/Pa)
Maximum SPL
110db
Audio Output
3.5mm
Size
ф20.2mm × 90mm
Weight
48.6g
Power Requirements
No battery required

8
Microphone Polar Pattern
How to Use Tripod Ballhead
Turn the ballhead locking screw counter-clockwise, then adjust
the upper part to your desired position. Turn the locking screw
clockwise to tighten the ballhead.






 
  
  
  
  
 
 
 
 
 
 
 
   
 
Frequency
1000 Hz

9
How to Set Tripod to Different Height
If you need to shoot from a different height, the monopod can be
flexibly extended by pulling the tripod ballhead. The extension
methods are shown below.

10

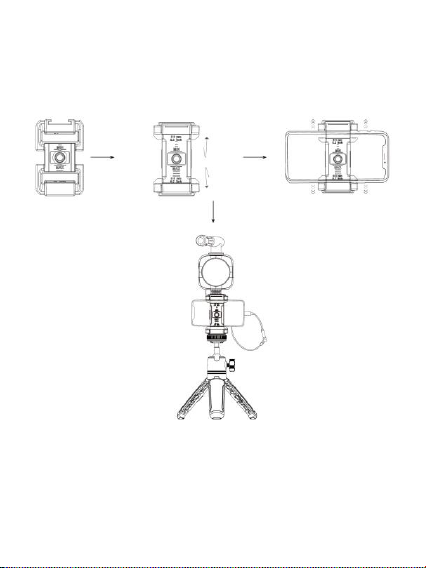

Quick Setup Guide
1. Install the phone clamp on the ballhead’s cold-shoe base.
2. Install the light on the phone clamp.
3. Install the microphone on the top of the video light.
