Preface
Read this user manual carefully before using this product. Pictures shown in this manual
is for reference only, different model and specifications are subject to real product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till February, 2021. In the constant effort
to improve our product, we reserve the right to make functions or parameters changes
without notice or obligation. Please refer to the dealers for the latest details.
All product function is valid till February 25, 2021.
Trademarks
Product model and logo are trademarks of U.T.E. electronic GmbH & Co. KG.
Any other trademarks mentioned in this manual are acknowledged as the properties of
the trademark owner. No part of this publication may be copied or reproduced without
the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG www.ute.de
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
⚫Unpack the equipment carefully and save the original box and packing material for
possible future shipment
⚫Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
⚫Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
⚫Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
⚫Refer all servicing to qualified service personnel.
⚫To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
⚫Do not put any heavy items on the extension cable in case of extrusion.
⚫Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
⚫Install the device in a place with fine ventilation to avoid damage caused by
overheat.
⚫Keep the module away from liquids.
⚫Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
⚫Do not twist or pull by force ends of the optical cable. It can cause malfunction.
⚫Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
⚫Unplug the power cord when left unused for a long period of time.
⚫Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG www.ute.de
Table of Contents
1. Product Introduction....................................................................................................1
1.1 Introduction to 4K60 18G HDMI 2.0 Extender Set UHCE-70XL ........................1
1.2 Features ............................................................................................................1
1.3 Package Contents.............................................................................................1
2. Panel Description of UHCE-70XL...............................................................................2
2.1 4K60 18G HDMI 2.0 Transmitter (UHCE-70XLT) ..............................................2
2.2 4K60 18G HDMI 2.0 Receiver (UHCE-70XLR)..................................................3
3. System Connection.....................................................................................................4
3.1 Usage Precautions............................................................................................4
3.2 System Diagram UHCE-70XL ...........................................................................4
3.3 Connection Procedure.......................................................................................5
3.4 System Application............................................................................................5
3.5 Twisted Pair Cable Connection..........................................................................6
4. Specification ...............................................................................................................7
5. Panel Drawing ............................................................................................................8
6. Troubleshooting & Maintenance .................................................................................9
7. After-sales Service....................................................................................................10

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG 1 www.ute.de
1. Product Introduction
1.1 Introduction to 4K60 18G HDMI 2.0 Extender Set UHCE-70XL
The 4K60 18G HDMI 2.0 Extender UHCE-70XL is a cost-effective point-to-point
extender set for HDMI 2.0 and IR signals; this kit supports 4K/UHD video @60 Hz with
4:4:4 Chroma sampling, as well as HDMI data rates up to 18 Gbps, HDCP 2.2 compliant.
It provides HDMI transmission up to 70 meters (230 feet) for 4K@60Hz 4:4:4 or
80 meters (262 feet) for 1080p, over single CAT5e/6 cable.
It supports video resolution down-scaling, the 4K input can be automatically downscale
to 1080p output for compatibility with 1080p display.
1.2 Features
⚫Supports HDMI 2.0, up to 4K@60Hz 4:4:4, HDR 10, 18G, HDCP 2.2.
⚫Extends 4K HDMI signal up to 70m (230 ft) and 1080p HDMI signal up to 80m (262 ft)
over a single CAT5e/6 cable
⚫HDMI loop out on transmitter
⚫Bi-directional IR pass-through
⚫Supports video resolution down-scaling, the 4K input can be automatically degraded
to 1080p output on receiver for compatibility with legacy 1080p display device
⚫Features visually lossless compression with no latency
⚫Smart EDID management
⚫Compact design, easy to install and simple to operate
1.3 Package Contents
➢1 x UHCE-70XLT: 4K60 Transmitter
➢1 x UHCE-70XLR: 4K60 Receiver
➢1 x Power Adaptor (12V DC 1A)
➢1 x User manual
➢1 x IR Receiver
➢1 x IR Emitter
➢2 x Velcro Tape
Notes:
•Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.
•Please contact your dealer immediately if any damage or defect in the in the
components is found.

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG 2 www.ute.de
2. Panel Description of UHCE-70XL
2.1 4K60 18G HDMI 2.0 Transmitter (UHCE-70XLT)

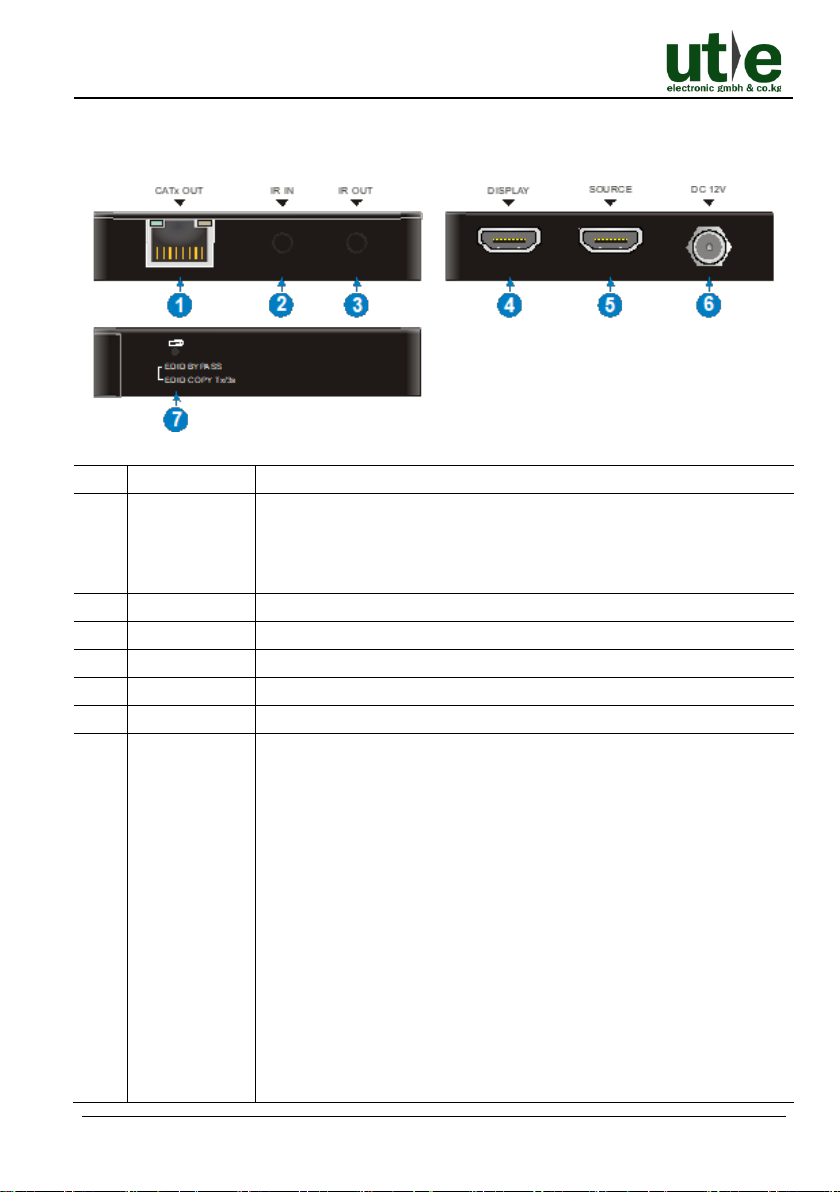

Figure 2-1 UHCE-70XLT (4K60 18G HDMI2.0Transmitter)
No.
Name
Description
①
CATx OUT
RJ45 port to connect the CATx IN port of receiver by CATx cable.
It supports 12V PoC to power the receiver. The orange LED
illuminates when there is a valid HDMI signal input. The green
LED illuminates when power is applied.
②
IR IN
3.5mm mini jack to connect IR receiver for IR pass-through.
③
IR OUT
3.5mm mini jack to connect IR emitter for IR pass-through.
④
DISPLAY
Type-A female HDMI port to connect HDMI display device.
⑤
SOURCE
Type-A female HDMI port to connect HDMI source device.
⑥
DC 12V
DC connector for the power adapter connection.
⑦
EDID
Management
•EDID BYPASS: Press the button with paper clip or other
sharp tool to learn the EDID from the remote display
connected to the Receiver’s HDMI out.
•EDID COPY Tx/3s: Press and hold the button for 3 seconds
to copy the EDID from the local display connected to the
Transmitter’s HDMI out.
•DEFAULT: Factory default, the source device learns EDID
from the TV which has the lowest resolution. Press and hold
the button while the product is in turned-off period, and then
release the button after 6 seconds of power on can restore
the default setting.
Note: If the standard resolution of the local display is lower
than the receiver‘s, the unit will output the video with the
lower resolution to ensure video can be shown on both
displays.

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG 3 www.ute.de
2.2 4K60 18G HDMI 2.0 Receiver (UHCE-70XLR)
Figure 2-2 UHCE-70XLR (4K60 18G HDMI2.0 Receiver)
No.
Name
Description
①
DISPLAY
Type-A female HDMI port to connect HDMI display device.
②
CATx IN
RJ45 port to connect the CATx OUT port of transmitter by CATx
cable. It supports 12V PoC and the receiver can be powered
from the transmitter.
The orange LED illuminates when there is a valid HDMI signal
input.
The green LED illuminates when power is applied.
③
IR IN
3.5mm mini jack to connect IR receiver for IR pass-through.
④
IR OUT
3.5mm mini jack to connect IR emitter for IR pass-through.
Note: Pictures shown in this manual are only for reference.

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG 4 www.ute.de
3. System Connection
3.1 Usage Precautions
•Make sure all components and accessories included before installation.
•System should be installed in a clean environment and has a prop temperature and
humidity.
•All of the power switches, plugs, sockets and power cords should be insulated and
safety.
•All devices should be connected before power on.
•Use shielded straight-thru CAT5e/ CAT6 cable with TIA/EIAT568B terminations for
good transmission effect.
3.2 System Diagram UHCE-70XL
The following figure shows a typical application that can be realized with
4K60 18G HDMI 2.0 Cost-effective Extender Set over CAT5e/CAT6 UHCE-70XL:
Figure 3-1 Connection and System Diagram
IR Emitter Blu-Ray Remote
IR
Receiver
Bedroom TV4K Blu-Ray
Tx Rx
Living Room TV
Power:
IR:
HDMI:
Catx:

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG 5 www.ute.de
3.3 Connection Procedure
Step1.Connect HDMI source (e.g. Blue-ray, DVD, PS4, Laptop, …) to SOURCE port of
transmitter with HDMI cable.
Step2.Connect local HDMI displayer (e.g. HDTV, Projector, …) to DISPLAY port
(HDMI Loop-Out) of transmitter with HDMI cable
Step3.Connect CATx OUT port of transmitter and CATx IN port of receiver with single
CAT5e/ CAT6 cable.
Step4.Connect HDMI displayer (e.g. HDTV, Projector, …) to DISPLAY port of receiver
with HDMI cable.
Step5.Both transmitter and receiver have “IR IN”and “IR OUT”Port.
When one end is used as an IR receiver, the signal sent from the end can only be
transmitted via the other end.
For example: When “IR IN” of transmitter connects with an IR receiver, the IR
emitter must connect to “IR OUT”of receiver.
Step6.Connect DC 12V port of transmitter with DC12V power adaptor.
Notes:
•When connecting to 4K sources, make sure the HDMI cables are compliant with
HDMI2.0 to ensure reliable transmission.
•Note that the CATx cable length should not be less than 15 meters for best
video output.
3.4 System Application
The 4K60 18G HDMI2.0 Extender Set UHCE-70XL has a good application in various
occasions, such as home theater and home entertainment etc.

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG 6 www.ute.de
3.5 Twisted Pair Cable Connection
The twisted pair used in this extender MUST be a straight-through cable.
Note: Cable connectors MUST be metal one, the shielded layer of cable MUST be
connected to the connector’s metal shell, to make a better transmission.
TIA/EIA T568A
TIA/EIA T568B
Pin
Cable color
Pin
Cable color
1
green white
1
orange white
2
green
2
orange
3
orange white
3
green white
4
blue
4
blue
5
blue white
5
blue white
6
orange
6
green
7
brown white
7
brown white
8
brown
8
brown
1st
Ground
4--5
1st
Ground
4--5
2nd
Ground
3--6
2nd
Ground
1--2
3rd
Group
1--2
3rd
Group
3--6
4th
Group
7--8
4th
Group
7--8

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG 7 www.ute.de
4. Specification
Model
Spec
Transmitter
(UHCE-70XLT)
Receiver
(UHCE-70XLR)
Input
Input Signal
1 HDMI &1 IR
1 CATx IN & 1 IR,
Input Connector
1 HDMI female
(19-pin type-A),
1 3.5mm mini jack
1 RJ-45,
1 3.5mm mini jack
Output
Output Signal
1 CATx OUT, 1 HDMI, 1 IR
1 HDMI, 1 IR
Output Connector
1 RJ-45,
1 HDMI female
(19-pin type-A),
1 3.5mm mini jack
1 HDMI female
(19-pin type-A),
1 3.5mm mini jack
General
Video Resolution
Up to 4K@60Hz 4:4:4, HDR 10
HDMI Audio Format
Supports LPCM 2ch, LPCM 5.1ch, LPCM 7.1ch,
Dolby Digital 2ch, Dolby Digital 5.1ch, DTS 2ch,
DTS 5.1ch, DTS 96/24 5.1ch.
Transmission Distance
4K≤ 70 meters (230ft) / 1080p ≤ 80 meters (262ft)
Bandwidth
18Gbps
HDMI Version
HDMI 2.0
HDCP Version
HDCP 2.2. compliant
The HDCP of output follows the HDCP version of display
device.
EDID
Smart EDID management
Power Supply
Input: 100VAC~240VAC, 50/60Hz
Output: DC 12V, 1A
Power Consumption
4 W (max.)
Operation Temperature
-5 ~ 55℃
Storage Temperature
-25 ~ 70℃
Humidity
10% ~ 90%
Dimension (W*H*D)
80mm x 16.8mm x 80mm
80mm x 16.8mm x 80mm
Net Weight
70g
70g
Notes:
•Note that the CATx cable length should not be less than 15 meters for best
video output.
•The UHCE-70XL does not support HBR audio.

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG 8 www.ute.de
5. Panel Drawing
Note: Pictures shown in this manual are only for reference.

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG 9 www.ute.de
6. Troubleshooting & Maintenance
⚫No image on display:
⚫Ensure that the display device has been set to the correct input.
⚫Ensure that the HDMI cables used for both the source/transmitter and the
receiver/display are properly connected and are working. Test the HDMI cables
directly from a source to display and ensure their operation.
⚫Ensure that the CAT5e/CAT6a cable has not been damaged and that it has been
terminated correctly with T568A or T568B on both ends. A temporary length of
CAT5e/Cat6 can be used for testing to ensure that the devices are all compatible
and working properly.
⚫Ensure proper grounding of the power supply.
⚫Color lose or poor picture quality:
⚫Ensure that the HDMI cables used for both the source and transmitter and the
receiver and display are properly connected and are of good quality. Test the
HDMI cables directly from a source to display and ensure their picture quality.
⚫Ensure proper grounding of the power supply.
⚫If the static becomes stronger or picture quality becomes worse when connecting
the video connectors, this may be due to improper grounding.
⚫Check the grounding and make sure all the components are properly grounded
to a common ground. Improper grounding may cause damage to the receiver.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support ([email protected]).

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG 10 www.ute.de
7. After-sales Service
If there appear some problems when running the 4K60 18G HMDI2.0 Cost-effective
Extender Set over CAT5e/CAT6 UHCE-70XL, please check and deal with the problems
referring to this user manual. Any transport costs are borne by the users during the
warranty.
The return of a product to our Customer Service implies the full agreement of the terms
and conditions hereinafter. There terms and conditions may be changed without prior
notice.
1) Product Limited Warranty: We warrants that its products will be free from defects
in materials and workmanship for two years, which starts from the first day you buy
this product (The purchase invoice shall prevail).
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence
that the unit is within the Warranty period must be presented to obtain warranty
service.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized dealer only.
3) What the warranty does not cover (Warranty Exclusion)
▪Warranty expiration.
▪Factory applied serial number has been altered or removed from the product.
▪Damage, deterioration or malfunction caused by:
•Normal wear and tear.
•Use of supplies or parts not meeting our specifications.
•No certificate or invoice as the proof of warranty.
•The product model showed on the warranty card does not match with the model
of the product for repairing or had been altered.
•Damage caused by force majeure.
•Servicing not authorized by distributor.
•Any other causes which does not relate to a product defect.
▪Shipping fees, installation or labor charges for installation or setup of the product.
4) Documentation: Customer Service will accept defective product(s) in the scope of
warranty coverage at the sole condition that the defeat has been clearly defined, and
upon reception of the documents or copy of invoice, indicating the date of purchase,
the type of product, the serial number, and the name of dealer.

UHCE-70XL: 18G HDMI 2.0 Extender Set over CAT5e/6
U.T.E. electronic GmbH & Co. KG 11 www.ute.de
5) Technical Support: Email to our after-sales department or make a call, please
inform us the following information about your cases.
⚫Product version and name.
⚫Detailed failure situations.
⚫The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local dealer
or our customer support ([email protected]).

U.T.E. electronic GmbH & Co. KG
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: www.ute.de
