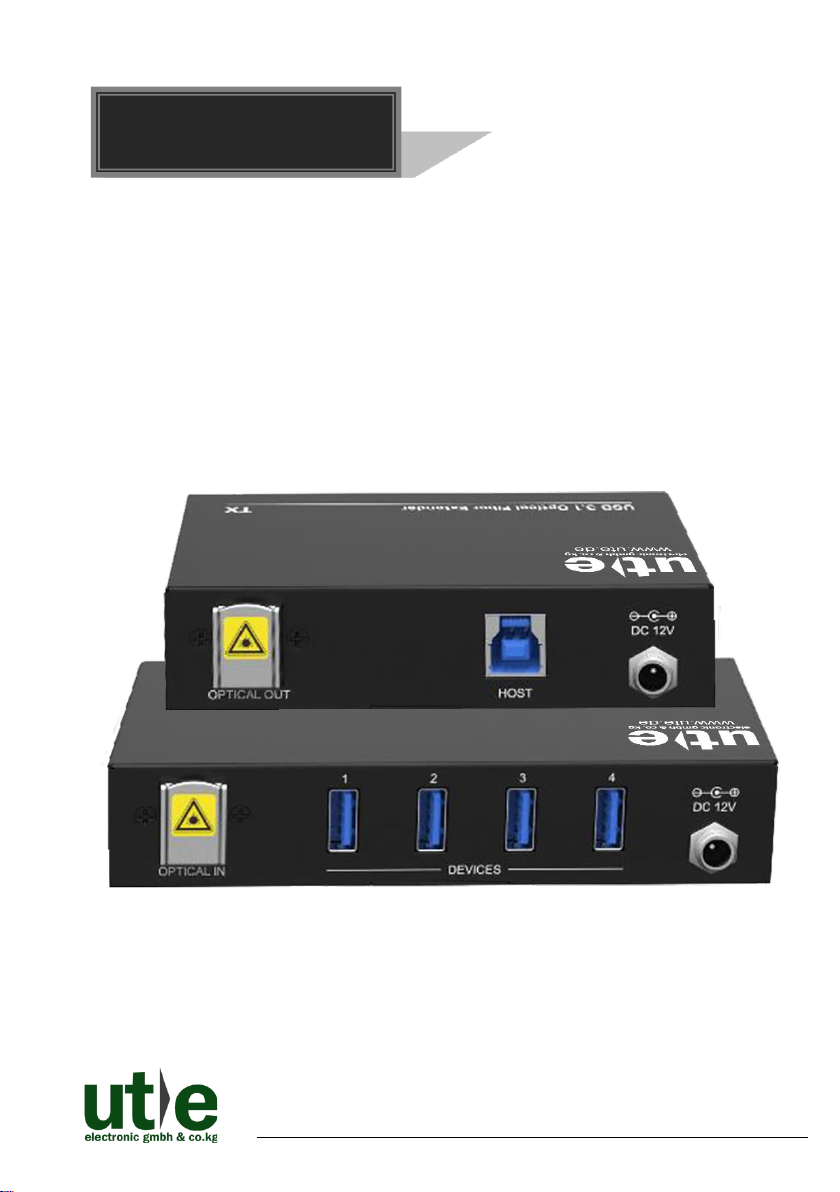

1. Product Introduction
The 4-Port USB 3.1 Optical Fiber Extender Set UTE-FOUB30 consists of a local unit
and a remote unit.
UTE-FOUB30 uses optical fiber conversion technology to realize the optical fiber
transmission of USB3.2 Gen 1x1/ USB2.0/ USB1.1 signals. When used for long-
distance transmission of USB3.1 signals, the data rate can up to 5Gbps, and the non-
real-time transmission distance can be up to 300m and the real-time transmission
distance can up to 100m by using single-mode or multi-mode fiber.
When used for long-distance transmission of USB2.0or USB1.1, the non-real-time
transmission distance can up to 10km and the real-time transmission can up to 6km by
using single-mode fiber, or the transmission distance can up to 500m by using multi-
mode fiber.
The extender adopts metal enclosure and has four mounting holes for easy installation.
It has an integrated USB 3.2 Gen 1x1 hub with four ports and supports Plug-and-Play
(PnP), no need to install driver is required.
This product adopts advanced optical fiber transmission technology to ensure good
anti-electromagnetic interference ability.
1.1. Features
⚫Compatible with USB3.2 Gen 1x1 (formerly known as USB3.1 Gen 1 or USB3.0)/
USB2.0 and USB1.1.
⚫USB3.2 Gen 1x1/ USB3.1 Gen1 data rate is 5Gbps.
⚫USB2.0 data rate is 480Mbps, USB1.1 data rate is 12Mbps.
⚫Integrated USB 3.1 hub with four ports, support all USB 3.1, 2.0, 1.1 devices.
⚫Transmits audio and video signal over Single-mode Fiber or OM3 multi-mode fiber.
⚫1x LC Fiber connector.
⚫Supports the technology of converting USB3.1 to optical fiber without delay.
⚫External DC 12V power supply.
⚫Strong anti-interference ability.
⚫Plug and Play - no driver installation required

UTE-FOUB30: 4-Port USB 3.1 Optical Fiber Extender Set
U.T.E. electronic GmbH & Co. KG 2 www.ute.de
1.2. Packing List
⚫1x Local Unit
⚫1x Remote Unit
⚫2x TX Mounting Ears with 2 Screws
⚫2x RX Mounting Ears with 2 Screws
⚫2x Power Adapter (12V DC 1.25A)
⚫1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

UTE-FOUB30: 4-Port USB 3.1 Optical Fiber Extender Set
U.T.E. electronic GmbH & Co. KG 3 www.ute.de
2. System Connection
2.1. Usage Precaution
⚫Make sure all components and accessories included before installation.
⚫System should be installed in a clean environment with proper temperature and
humidity.
⚫All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
⚫All devices should be connected before power on.
2.2. System Diagram UTE-FOUB30

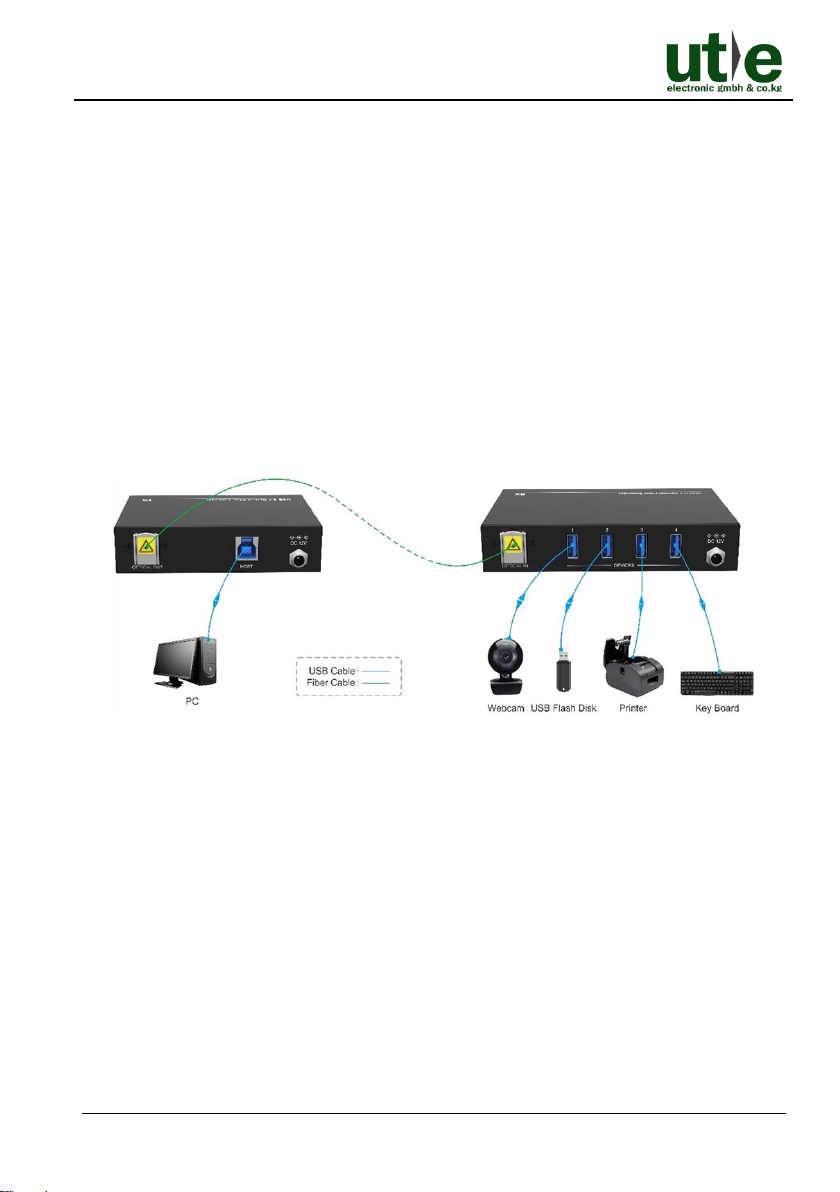

The following diagrams illustrates typical input and output connections that can be
utilized with the USB 3.1 Optical Fiber Extender UTE-FOUB30.
2.3. Application
•Machine vision
•Security monitoring
•Date storage
•Video conference
•Medical equipment system

UTE-FOUB30: 4-Port USB 3.1 Optical Fiber Extender Set
U.T.E. electronic GmbH & Co. KG 4 www.ute.de
3. Technical Specification
UTE-FOUB30T
(Local Unit)
UTE-FOUB30R
(Remote Unit)
Interfaces
USB Interface
(1) USB3.0 type-B male
connector
(4) USB3.0 type-A female
connector
Fiber Interface
(1) LC
(1) LC
USB Standard
Supported USB
standard
USB3.2 Gen1x1 (also known as USB3.1 Gen1 or USB3.0)
Backward compatible with USB 2.0 and USB 1.1
Supported USB
data rate
USB3.1 GEN1: 5Gbps
USB2.0: 480Mbps
USB1.1: 12Mbps
Distance
USB3.1 Gen1
Single-mode fiber or OM3 multi-mode fiber:
Non-real-time transmission: 300m
Real-time transmission: 100m
USB2.0/1.1
Single-mode fiber:
Non-real-time transmission:10km
Real-time transmission:6km
OM3 multi-mode fiber: 500m
Control Connector
(4) Type-A USB 2.0,
(1) Type-B USB 2.0,
(1) 2-pin DIP switch,
(2) 3.5mm jacks,
(1) 3-pin terminal block,
(1) RJ45
(4) Type-A USB 2.0,
(1) Type-B USB 2.0,
(2) 3-pin DIP switch,
(2) 3.5mm jacks,
(1) 3-pin terminal block,
(1) RJ45
General
Operation
Temperature
-10 to +60℃(+50° to +140°F)
Storage Temperature
-45 to +85℃(-49° to +185°F)
Operating Humidity
20% to 80% relative humidity, non-condensing
Storage Humidity
10% to 80% relative humidity
Power Supply
(External PS)
Input:100V~240V AC;
Output:12V DC
Input:100V~240V AC;
Output:12V DC
Enclosure Material
Metal
Dimension (W*D*H)
135mm x 75mm x 26mm
160mm x 85mm x 26mm
Installation
4 mounting holes for fixing
4 mounting holes for fixing

UTE-FOUB30: 4-Port USB 3.1 Optical Fiber Extender Set
U.T.E. electronic GmbH & Co. KG 5 www.ute.de
