UTE X2-1616 User manual

www.ute.de
X2-1616
Modular 16x16 Matrix Switcher
All Rights Reserved
Version: X2-1616_2015V2.5
User Manual

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG www.ute.de
Preface
Read this user manual carefully before using this product. Pictures shown in this
manual is for reference only, different model and specifications are subject to real
product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till August 2015. Any changes of
functions and parameters since then will be informed separately. Please refer to the
dealers for the latest details.
All product function is valid till 2015-8-3.
Trademarks
Product model and logo are trademarks of U.T.E. electronic GmbH & Co. KG.
Any other trademarks mentioned in this manual are acknowledged as the properties
of the trademark owner. No part of this publication may be copied or reproduced
without the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. It has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a
commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG www.ute.de
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG www.ute.de
Table of Contents
1. Introduction ................................................................................................................. 1
1.1. About X2-1616 ................................................................................................. 1
1.2. Features ........................................................................................................... 1
1.2.1. X2 signal card (changeable cards) ......................................................... 2
1.3. Package List ..................................................................................................... 2
2. Panel Description ........................................................................................................ 3
2.1. X2-1616 ............................................................................................................ 3
2.1.1. Front Panel ............................................................................................. 3
2.1.2. Rear Panel.............................................................................................. 4
2.2. Changeable Cards ............................................................................................ 4
2.2.1. X2-4I-DV & X2-4O-DV ............................................................................ 4
2.2.2. X2-4I-DS & X2-4O-DS ............................................................................ 6
2.2.3. X2-4I-HD & X2-4O-HD ............................................................................ 7
2.2.4. X2-4I-HS & X2-4O-HS ............................................................................ 8
2.2.5. X2-4I-VG & X2-4O-VG ............................................................................ 8
2.2.6. X2-4I-VA ................................................................................................ 10
2.2.7. X2-4I-SD & X2-4O-SD .......................................................................... 10
2.2.8. X2-4I-SS ............................................................................................... 11
2.2.9. X2-4I-TP & X2-4O-TP ........................................................................... 11
2.2.10. X2-4I-UH & X2-4O-UH ........................................................................ 12
2.2.11. X2-4I-UF & X2-4O-UF ........................................................................ 13
2.2.12. X2-4I-BT & X2-4O-BT ......................................................................... 14
3. System Connection ................................................................................................... 15
3.1. Usage Precautions ......................................................................................... 15
3.2. Connection Diagram ....................................................................................... 15
3.3. Application ...................................................................................................... 15
4. Control Operations .................................................................................................... 16
4.1. Front Panel Button control .............................................................................. 16
4.2. IR Remote control ........................................................................................... 17
4.3. RS232 Control ................................................................................................ 17

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG www.ute.de
4.3.1. Connection of RS232 Communication Port .......................................... 17
4.3.2. RS232 Communication Commands ..................................................... 18
4.4. TCP/IP Control (Optional) ............................................................................... 28
4.4.1. Control Modes ...................................................................................... 28
4.4.2. Control X2-1616 via TCP/IP communication software .......................... 29
4.4.3. TCP/IP Configuration ............................................................................ 30
5. Specification ............................................................................................................. 32
5.1. Main Unit ........................................................................................................ 32
5.2. Changeable Cards .......................................................................................... 32
5.2.1. X2-4I-DV & X2-4O-DV .......................................................................... 32
5.2.2. X2-4I-DS & X2-4O-DS .......................................................................... 33
5.2.3. X2-4I-HD & X2-4O-HD .......................................................................... 33
5.2.4. X2-4I-HS & X2-4O-HS .......................................................................... 34
5.2.5. X2-4I-VG & X2-4O-VG .......................................................................... 34
5.2.6. X2-4I-VA ................................................................................................ 35
5.2.7. X2-4I-SD & X2-4O-SD .......................................................................... 35
5.2.8. X2-4I-SS .............................................................................................. 36
5.2.9. X2-4I-TP & X2-4O-TP ........................................................................... 36
5.2.10. X2-4I-UH & X2-4O-UH ........................................................................ 36
5.2.11. X2-4I-UF & X2-4O-UF ........................................................................ 37
5.2.12. X2-4I-BT & X2-4O-BT ......................................................................... 38
6. Troubleshooting & Maintenance ............................................................................... 40
7. After-sales Service .................................................................................................... 42

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 1 www.ute.de
1. Introduction
1.1. About X2-1616
The X2-1616 is a high-performance video and audio modular matrix switcher
supporting max 16 input signal sources and 16 output display synchronously. It
supports different video signals with cross switching. Every video or audio signal is
transmitted and switched independently to decrease signal attenuation.
X2-1616 supports various changeable cards including HMDI, DVI, VGA, SDI and
HDBaseT etc. Users can choose to insert different signal card for different application.
X2-1616 boasts power off memory and audio signal can be switched separately or
jointly with video signal. It has 1 RS232 port and 1 optional TCP/IP port for convenient
control from third-party.
With its flexible design, X2-1616 can be used for different project and tend to be an
all-in-one solution. It is the combo solution for multimedia conference rooms, control
rooms, broadcasting rooms, shopping center etc. It will handle all the audiovisual
management, including the switching, driving, scaling etc.
1.2. Features
Modular chassis with configurable I/O slots, ranging from 4x4 to 16x16.
Various I/O cards, includes HDMI, HDBaseT, SD/HD/3G-SDI, DVI and VGA cards
(Compatible with YUV, YC & CVBS.) to configure any matrix.
Truly cross-point switching, any input to any output, regardless signal format.
Support HDMI1.4a, support 3D.
Integrated HDBaseT technology.
Controllable via button, RS232 & optional TCP/IP, also compatible with 3rd parties
control.
HDCP compliant.
LCD display.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 2 www.ute.de
1.2.1. X2signal card (changeable cards)
X2-1616 supports multiple signal cards as listed in the following charts:
Input Cards
Spec
Models
Inputs
Signal Format
X2-4I-HD
4
HDMI
X2-4I-HS
4
HDMI& analog audio
X2-4I-DV
4
DVI
X2-4I-DS
4
DVI, HDMI, VGA, AV,
YPbPr
X2-4I-VG
4
VGA
X2-4I-VA
4
VGA& analog audio
X2-4I-SD
4 inputs& LOOP
SDI
X2-4I-SS
4 inputs& LOOP
SDI
X2-4I-TP
4
HDMI TP, IR, RS232
X2-4I-UH
4
HDMI& analog Audio
X2-4I-UF
4
Optical Fiber
X2-4I-BT
4
HDBT, RS232, Audio
Output Cards
Spec
Models
Outputs
Signal Format
X2-4O-HD
4
HDMI
X2-4O-HS
4
HDMI& analog audio
X2-4O-DV
4
DVI
X2-4O-DS
4
DVI, HDMI, VGA, AV,
YPbPr
X2-4O-VG
4 VGA& Stereo
audio
VGA, analog audio
X2-4O-SD
4 outputs& LOOP
SDI
X2-4O-TP
4
HDMI TP, IR, RS232
X2-4O-UH
4
HDMI& analog Audio
X2-4O-UF
4
Optical Fiber
X2-4O-BT
4
HDBT, RS232, Audio
1.3. Package List
1 x Power Cord
4 x Plastic cushions
1 x X2-1616: Modular Matrix Chassis
1 x IR remote (Not include battery)
1 x RS232 cable 1 x User manual
Notes: Confirm all the accessories are included, if not, please contact with the
dealers.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 3 www.ute.de
2. Panel Description
2.1. X2-1616
2.1.1. Front Panel
Figure 2- 1 Front Panel of X21616
No.
Name
Description
①
IR
IR sensor, receive IR signal sent from IR remote
②
Power
indicator
Illuminate red once powered on
③
LCD
screen
Display real-time operation status
④
INPUTS
Back-lit buttons for input selection, ranges from 0~ 9, 16 selectable
channels in total.
⑤
OUTPUTS
Back-lit buttons for output selection, ranges from 0 ~ 9, 16
selectable channels in total.
⑥
MENU
AV: transfer video and audio signal synchronously
‚: division button, to divide the output channels when switching to
more than one channel.
UNDO: Undo button, to resume to the status before the command
just performed.
ENTER: confirm switching operation. Operation will not be
executed by the matrix without confirmation.
ALL: select all input/output channel
THROUGH: To transfer the signals directly to the corresponding
output channels.
: Backspace button, to backspace the last press.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 4 www.ute.de
2.1.2. Rear Panel
Figure 2- 2 Rear Panel of X2-1616
No.
Name
Description
①
INPUTS
Input signal card slots, 4 in total
②
OUTPUTS
Output signal card slots, 4 in total
③
Power
switch
Switch between AC110V and AC230V to access different power
④
TCP/IP
(Optional) Used for TCP/IP control port
⑤
RS232
Serial control port, connect with RS232 port of control device.
⑥
Power
ports
Connect with household alternating current power, including one
redundant power.
Note: There are only 4 input and 4 output slots for X2-1616, which enables only 4
input cards and 4 output cards to be installed on X2-1616. The input/output cards
can be changed based on your requests and supports hot plug and play.
2.2. Changeable Cards
X2-1616 supports expansion through various changeable input/ output cards of
different signals including DVI, HDMI, VGA, twisted pair, SDI etc. Here is a brief
introduction to the changeable cards.
2.2.1. X2-4I-DV& X2-4O-DV
DVI signal card. (Please check the specification from 5.2.1)
It is fully compatible with HDMI1.3 and HDCP, but not supporting analogy signal.
It is embedded EDID management technology, supporting DDC.
X2-4I-DV: input card, maximum four input signal. Input signal can pass to output
device through X2-4O-DV or other kinds of output cards.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 5 www.ute.de
X2-4O-DV: output card, maximum four output signal, output signals from X2-4I-DV,
or other kinds of input cards.
Pin Layout of the DVI-I connector (Dual-Link). (Female)
Pin
Function
Pin
Function
1
T.M.D.S.Data2-
13
T.M.D.S.Data3+
2
T.M.D.S.Data2+
14
+5V Power
3
T.M.D.S. Data
2/4 Shield
15
Ground (return for
+5V,
Hsync and Vsync)
4
T.M.D.S. Data 4-
16
Hot Plug Detect
5
T.M.D.S. Data
4+
17
T.M.D.S. Data 0-
6
DDC Clock
18
T.M.D.S. Data 0+
7
DDC Data
19
T.M.D.S. Data 0/5
Shield
8
Analog Vertical
Sync
20
T.M.D.S.Data5-
9
T.M.D.S.Data1-
21
T.M.D.S.Data5+
10
T.M.D.S.Data1+
22
T.M.D.S. Clock
Shield
11
T.M.D.S.Data1/3
Shield
23
T.M.D. S. Clock +
12
T.M.D.S.Data3-
13
T.M.D.S.Data3+
C1
RED
C2
Analog Green
C3
Analog Blue
C4
Horizontal Sync
Analog
C5
GND
Note: Pin C1~C5 are not used in X2-4I-DV & X2-4O-DV.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 6 www.ute.de
2.2.2. X2-4I-DS & X2-4O-DS
Seamless DVI signal card. (Please check the specification from 5.2.2)
It is fully compatible with HDMI1.3 & HDCP, and supports seamless transmission for
high-definition DVI, HDMI, VGA, AV, YPbPr signals. Signal format can be modified via
RS232 commands.
It boasts embedded EDID management (only for HDMI/ DVI signal), supporting DDC.
X2-4I-DS: seamless input card, maximum four input signal. It can automatically
identify the format of input signal. Input signal can pass to output device through
X2-4O-DS, or other kinds of output cards.
X2-4O-DS: seamless output card, maximum four output signal. Automatically
recognize output signal (HDMI/ DVI), and output resolution is adjustable. Output
signal can come from X2-4I-DS, or from other kinds of input cards. It supports off
memory for resolution, signal format, HDCP compliant status.
Note:
1. When X2-4O-DS works with input cards except X2-4I-DS, to ensure reliable
seamless output, adjust the input signals to any one of the following 5 resolutions:
1024x768, 1280x720, 1600x1200, 1920x1080, 1920x1200.
2. Before using X2-4O-DS, upgrade the front-board and backboard of X2-1616. Seek
technical assistant from our technical supporters.
3. DVI interfaces on the signal card are same with the interfaces on X2-4I-DV &
X2-4O-DV. Pin C1~C5 are used in X2-4I-DS & X2-4O-DS.
When connecting to VGA, YPbPr or C-VIDEO signal, insert converting cables
according to specific pin definitions (see the figures below):
DVI- C-VIDEO:
Pin
Signal
C1
Yellow
C5
GND
Other pins are unused.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 7 www.ute.de
DVI- YPbPr:
Pin
Signal
Pin
Signal
C1
RED
C2
GREEN
C3
BLUE
C5
GND
Other pins are unused.
DVI- VGA (female):
Pin
Signal
Pin
Signal
C1
RED
C2
GND
C3
GREEN
C4
Horizontal Sync
Analog
8
Vertical Sync Analog
Other pins are unused.
2.2.3. X2-4I-HD& X2-4O-HD
HDMI signal card. (Please check the specification from 5.2.3)
It boasts embedded EDID management, and supports DDC. It’s also compliant with
DVI signal & HDCP.
X2-4I-HD: input card, maximum four input signal. Input signal can pass to output
device through X2-4O-HD, or other kinds of output cards.
X2-4O-HD: output card, maximum four output signal, output signals from X2-4I-HD,
or other kinds of input cards.
Pin layout of the HDMI connectors (female).
No.
Signal
No.
Signal
1
TMDS Data 2+
20
SHELL
2
TMDS Data 2
Shield
19
Hot Plug Detect
3
TMDS Data 2-
18
+5V Power
4
TMDS Data 1+
17
Ground
5
TMDS Data 1
Shield
16
DDC Data

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 8 www.ute.de
6
TMDS Data 1-
15
DDC Clock
7
TMDS Data 0+
14
No Connect
8
TMDS Data 0
Shield
13
CEC
9
TMDS Data 0-
12
TMDS Clock-
10
TMDS Clock+
11
TMDS Clock
Shield
2.2.4. X2-4I-HS & X2-4O-HS
Seamless HDMI signal card with auxiliary audio port (Please check the specification
from 5.2.4)
It boasts seamless switch that provides real-time audio& video switching; support
HDMI1.3& HDCP1.2, compliant with DVI signal;
HDMI embeded audio and auxiliary stereo audio supports PCM format, audio source
selectable via designed command (default: HDMI embeded audio);
Built in scaler handles various resolution, output resolution adjustable via command.
X2-4I-HS: input card, maximum four input signal. Input signal can pass to output
device through X2-4O-HS, or other kinds of output cards.
X2-4O-HS: output card, maximum four output signal, output signals from X2-4I-HS,
or other kinds of input cards.
HDMI connectors of X2-4I-HS & X2-4O-HS are same with the X2-4I-HD & X2-4O-HD.
Note: When X2-4O-HS works with input cards except X2-4I-HS, to ensure reliable
seamless output, adjust all the input signals to the same designed resolution:
1024x768, 1280x720, 1600x1200, 1920x1080, or 1920x1200.
2.2.5. X2-4I-VG& X2-4O-VG
VGA signal card. (Please check the specification from 5.2.5)
Scale all inputs to 1080p or 1920x1200
The bandwidth is up to 350MHz (-3dB);
Input signal can be VGA (RGBHV), YPbPr, S-video, C-video or CVBS;

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 9 www.ute.de
Output card only supports VGA output
X2-4I-VG: input card, maximum four input signal, support VGA (RGBHV), YPbPr, S-
video, C-video& CVBS. Input signal can pass to output device through any kinds of
output cards.
X2-4O-VG: output card, maximum four VGA output signal and 4 stereo audio
outputs, output video signal from X2-4I-VG, or other kinds of input cards, and output
audio signal from the audio of the input signal.

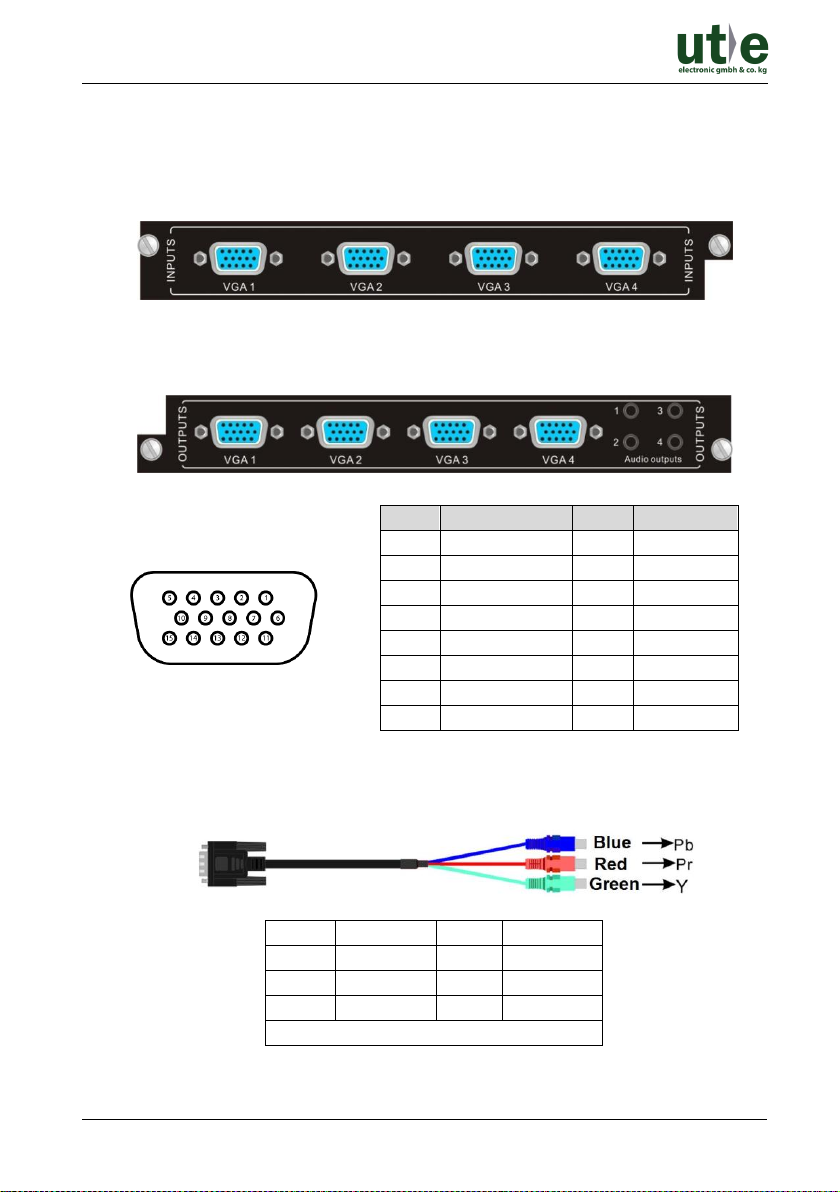

Pin layout of the VGA connectors (female):
Pin
Signal
Pin
Signal
1
RED
9
KEY/PWR
2
GREEN
10
GND
3
BLUE
11
ID0/RES
4
ID2/RES
12
ID1/SDA
5
GND
13
HSync
6
RED_RTN
14
VSync
7
GREEN_RTN
15
ID3/SCL
8
BLUE_RTN
When connecting to YPbPr or C-VIDEO signal, insert converting cables according to
specific pin definitions (see the figures below):
VGA- YPbPr:
Pin
Signal
Pin
Signal
1
RED
6
GND
2
GREEN
7
GND
3
BLUE
8
GND
Other pins are not used.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 10 www.ute.de
VGA- C-VIDEO:
Pin
Signal
Pin
Signal
1
RED
6
GND
7
GND
8
GND
Other pins are not used.
2.2.6. X2-4I-VA
VGA signal card. (Please check the specification from 5.2.6)
Scale all inputs to 1080p or 1920x1200;
Input signal can be VGA (RGBHV), YPbPr, S-video, C-video or CVBS;
4 stereo audio inputs.
X2-4I-VA: input card, maximum four VGA inputs and four stereo audio inputs. Input
signal can pass to output device through any kinds of output cards.
The VGA connector and source connection are same with the X2-4I-VG.
2.2.7. X2-4I-SD& X2-4O-SD
SDI signal card. (Please check the specification from 5.2.7)
It is compatible with different SDI signal formats, including SD/HD/3G-SDI (adaptive)
Every port has loop output for local monitoring.
X2-4I-SD: input card, maximum four input signal. Input signal can pass to output
device through X2-4O-SD, or other kinds of output cards.
X2-4O-SD: output card, maximum four output signal, output signals from X2-4I-SD,
or other kinds of input cards.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 11 www.ute.de
The BNC connector is shown as the figure below.
Sleeve ( )
Tip (+)
BNC Connector
2.2.8. X2-4I-SS
Seamless SDI signal card (Please check the specification from 5.2.8)
It is compatible with different SDI signal formats, including SD/HD/3G-SDI (adaptive),
support seamless transmission for high-definition signal up to 1080p;
Auto-detect input resolution and scale to 1080p@60Hz (default resolution, adjustable
via command);
Every port has loop output for local monitoring.
X2-4I-SS: input card, maximum four input signal. Input signal can pass to output
device through X2-4O-SD, or other kinds of output cards.
BNC connectors are same with X2-4I-SD & X2-4O-SD’s.
2.2.9. X2-4I-TP& X2-4O-TP
Twisted pair card (HDMI/DVI extender). (Please check the specification from 5.2.9)
Support HDTV, compatible with HDMI1.3 and HDCP
X2-4I-TP: input card, maximum input four HDMI TP signal. Input signal can pass to
output device through X2-4O-TP, or other kinds of output cards, need to work with
HD-70XT.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 12 www.ute.de
X2-4O-TP: output card, maximum output four HDMI TP signal, output signals from
X2-4I-TP, or other kinds of input cards, need to work with HD-70XR.
How the indicators work:
Color
Definition
Status
Yellow
Power Indicator
Blink once powered on;
Turn off when there is no power.
Green
Link Indicator
Light when the port is connected with
CAT5e/6;
Turn off when there is no connection.
Pin layout of the HDBT connector:
Pin
Color
1
orange white
2
orange
3
green white
4
blue
5
blue white
6
green
7
brown white
8
brown
1st Group
4--5
2nd Group
1--2
3rd Group
3--6
4th Group
7--8
Notice: Cable connectors MUST be metal one, and the shielded layer of cable MUST
be connected to the connector’s metal shell, to well share the grounding.
2.2.10. X2-4I-UH& X2-4O-UH
4K HDMI signal card. (Please check the specification from 5.2.10)
Support HDMI 1.4a& HDCP 1.4 compliance; Compatible with DVI signal; Support
high-definition HDMI source up to 4kx2k, 1080p 3D compliance;
Provide auxiliary audio port as supplement to HDMI embedded audio, audio source
selectable via command “AUDIO[X]I[Z].”, [X] stands for output port, [Z] stands for
audio source (0 is for HDMI embedded audio, 1 is for analog audio)

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 13 www.ute.de
It also boasts embedded EDID management.
X2-4I-UH: input card, maximum four input signal. Input signal can pass to output
device through X2-4O-UH, or other kinds of output cards.
Note: When matching with output cards that do not support 4kx2k, adjust the input
resolution to 1080p to enable reliable output.
X2-4O-UH: output card, maximum four output signal, output signals from X2-4I-UH,
or other kinds of input cards, HDCP compliant status settable via RS232 command
The HDMI connector is same with X2-4I-HD& X2-4O-HD’s.
2.2.11. X2-4I-UF & X2-4O-UF
4K optical signal card. (Please check the specification from 5.2.11)
Work with single-mode/ multi-mode module to realize long-distance optical fiber
transmission, support multi-mode transmission up to 300m and single mode
transmission up to 1km.
High bandwidth: 10.2Gbps; Compliant with HDMI 1.4, capable to transmit 4K×2K&
1080P 3D (max) signals;
X2-4I-UF: input card with indicators, maximum four input signal, corresponding
indicator illuminates green when there is input signal. Input signal can pass to
output device through X2-4O-UF, or pass through other kinds of output cards.
X2-4O-UF: output card with indicators, maximum four output signal, output signals
from X2-4I-UF, or other kinds of input cards; corresponding indicator illuminates
green when there is output signal.

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 14 www.ute.de
Note:
1. Use the X2-4I-UF/ X2-4O-UF with optical fiber transmitter/ receiver.
2. Multi-mode transmission may include the following cases:
Single-mode optical fiber module & Multi-mode optical fiber cable Multi-mode
optical fiber module& Multi-mode optical fiber cable
3. Before using X2-4I-UF & X2-4O-UF, upgrade the front-board and backboard of
X2-1616. Seek technical assistant from our technical supporters.
2.2.12. X2-4I-BT& X2-4O-BT
4K Twisted pair card (Please check the specification from 5.2.12)
Support HDTV, compatible with HDBT 1.0, HDMI1.4a& HDCP1.4; Wide resolution
range from 480p~ 4kx2k, 1080p 3D compliant; Extend HDBT signal up to 70m at
1080p or 40m at 4k; Bi-directional RS232 transmission on single cable; Audio source
selectable via corresponding command; Auxiliary audio ports support stereo signal.
It also boasts embedded EDID management.
X2-4I-BT: input card, maximum input four HDBT signal. Input signal can pass to
output device through X2-4O-BT, or other kinds of output cards, need to work with
HDBT transmitter (e.g. HD-70XT).
Note: When matching with output cards that do not support 4kx2k, adjust the input
resolution to 1080p to enable reliable output.
X2-4O-BT: output card, maximum output four HDBT signal, output signals from X2-4I-
BT, or other kinds of input cards, need to work with HDBT receiver (e.g. HD-70XR).
The indicators and pin layout is the same with X2-4I-TP & X2-4O-TP’s. Refer to 2.2.9
X2-4I-TP& X2-4O-TP for detailed information

X2-1616: Modular 16x16 Matrix Switcher
U.T.E. electronic GmbH & Co. KG 15 www.ute.de
3. System Connection
3.1. Usage Precautions
1) System should be installed in a clean environment and has a prop temperature
and humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safe.
3) All devices should be connected before power on.
3.2. Connection Diagram
Figure 3- 1 System Diagram
Note: All the input/output signal cards don’t support hot-plug while input& output ports
on the cards support hot-plug.
3.3. Application
X2 series has a good application in various occasions, such as radio & television,
multi-media meeting room, big screen displaying, television education and command
& control center etc.
