UTEPO UTP3-VEPOC01 User manual

Left view

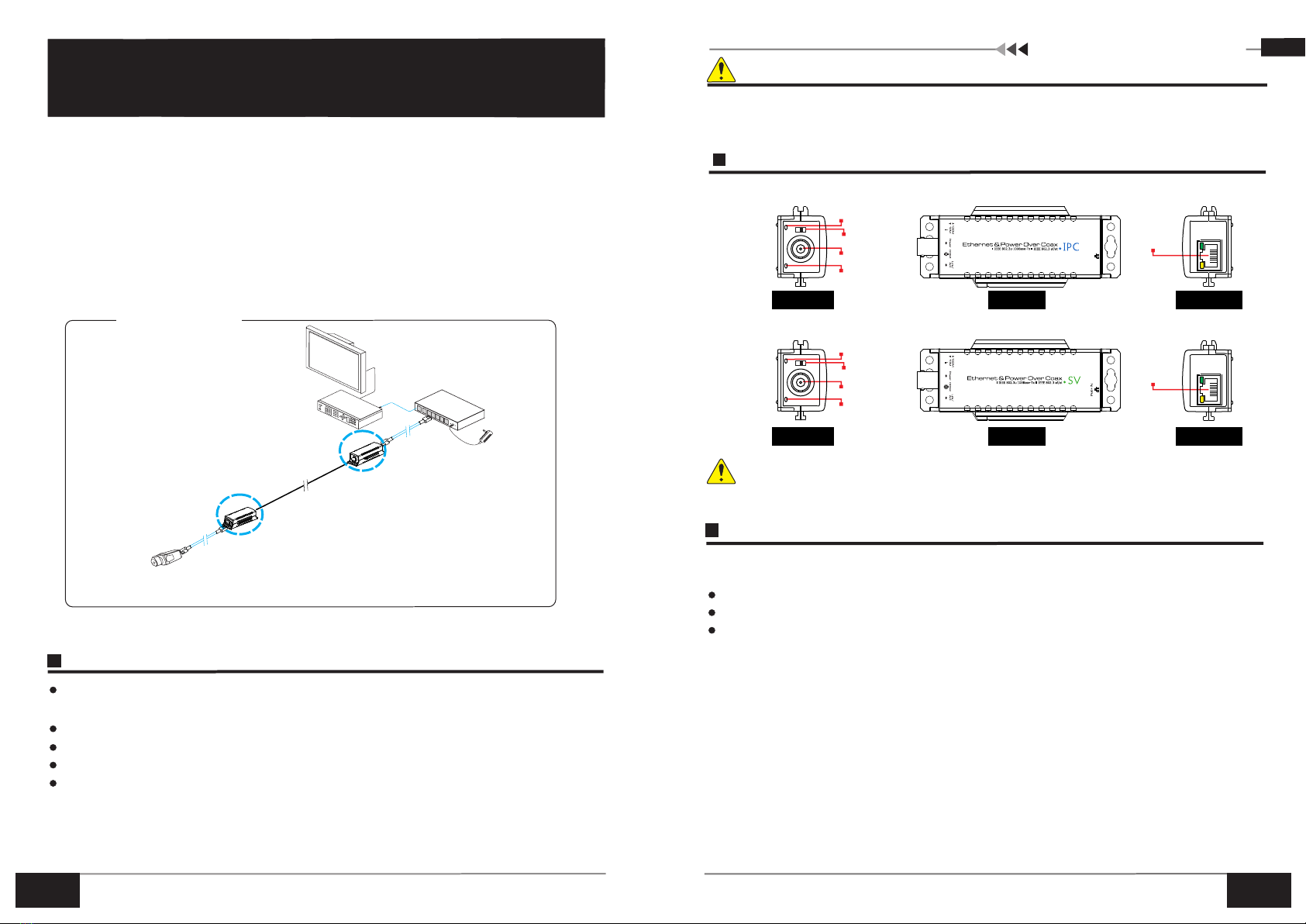

Panel Diagram
Please follow installation steps as below:
Please check the following items before installation, if anything missing, please contact the
dealer .
Ethernet Extender( SV unit ) 1 PC
Ethernet Extender( IPC unit ) 1 PC
User Manual 1 PC
1) Turn off the power of all related devices before the installation, otherwise the device would
be damaged;
2) SV unit:The RJ45 port is connected with PoE switch(PSE device) by cat5E/6, and the
Coax port is connected by coaxial cable;
3) IPC unit:The RJ45 port is connected with PoE camera(PD device) by cat5E/6, and the
Coax port is connected by coaxial cable;
5) Check if the installation is correct and device is good, make sure all the connection is
reliable and power up the system;
6) Make sure the network is working.
Features
Using a single coaxial cable to transmit bidirectional Ethernet signals and power, the
transmission distance of up to 300m (100Mbps) ,500m(10Mbps);
Support , IEEE 802.3u, IEEE 802.3af, IEEE 802.3at standard;IEEE802.3
Differential mode 4KV lightning protection design, greatly improving equipment stability;
Plug and play, no other software and transfer agreement needed;
Built-in splicing slot, with magnet and hanger, unique and integrated design, splicing,
desktop and wall-mounted installations available, which suits in all kinds of engineering
installation.
PoE Ethernet Extender
User Manual
Notice
12
1) Please use RG59 or above coaxial cable and Cat5e/6 cable to reach the longest
transmission distance;
2) Please use the standard coaxial connector to avoid abnormal display.
Installation steps
Application
IPC Unit
SV-Unit
PoE IP Camera
LCD
NVR
PoE Switch
RG59
Coaxial cable
300m
Cat5e/6
PoE Ethernet Extender
IPC Unit Device
SV Unit Device
Right view
Left view Top view
Coax port
Input Power LED
Coax Link/Act LED
POE OUT
POE OUT
Mode
Output Power LED
Mode
Right view
Top view
POE IN
Up to 300 m eters
Up to 300 m eters
The product is an Ethernet extender which can transfer Ethernet signal and power by UTP
cable or coaxial cable. It consists of SV unit and IPC unit. This product is specially designed
to meet the power supply in the long-distance HD IP transmission and accord with IEEE
802.3af and IEEE 802.3at standard. This device can transfer the Ethernet signal and power
up to 300m through the coaxial cable, But network latency is less than 20us.The structure
designing of built-in splicing slot on both sides and magnetic attraction as well as hanger on
the bottom enables multiple installation methods of splicing, adsorption , and wall-
mounting.So it is a cost-effective choice for the HD network surveillance system,
transmission and application of the IOT, as well as upgrading and renovating projects.
Coax port
Coax Link/Act LED
100Mbps mode: the IPC and SV unit’s Mode switch must at the 100M;
10Mbps mode: the IPC and SV unit’s Mode switch must at the 10M;
If the IPC unit and SV unit are not the same mode status,they can not work!

Item
Description
Power
Power Supply
SV unit: Powered by PSE device;
IPC unit: Powered by coax from SV unit
Connetor
Port
BNC, RJ45
Transmission distance
UTP cable:0~100m;
Coaxial cable：0-300m(Recommend)
Media
RG 59 or above coaxial cable & Cat5e/6
Network
Switch
Network standard
IEEE802.3,IEEE802.3u、 IEEE802.3a、IEEE802.3b
Status
indication
Power indication
Yellow on: Power connection is OK
Data indication
Green on: Data connection is OK
RJ45 indication
Green flicker: Data transmission is OK;
Yellow on:Power is OK
Mode
10Mbps
100Mbps
Camera-side and server-side speed dial switch must
be set to 10M or 100M at the same time, the network
signal transmission distance can reach 300 meters
Protection
ESD
Level III Contact discharge
Level III Air discharge
Execute：IEC61000-4-2
Surge protection
4KV Execute：IEC61000-4-5
Operating
Environment
Work temperature
0℃~40℃
Storage temperature
-40℃~85℃
Humidity(Non-condensin)
0~95%
Mechanics
Dimension（L×W×H）
113mm mmX45.5 X29mm
Material
ABS
Color
Black
Weight
SV unit: 58g
IPC unit: 58g
Specification
PoE Ethernet Extender
34
The specification parameter as below can match SV unit and IPC unit
Network cable collating
The UTP cable can be embeded
through the splicing slot under space
Coaxial cable
UTP cable
The Etnernet cable can be embeded
through the splicing slot under space
The connected direction
for coaxial cable
PoE Ethernet Extender
连接 接口
连接 接口
Troubleshooting
If any trouble in installation, please follow these steps:
连接 接口
Please make sure you have followed the instruction to install the device;
Please confirm if the RJ45 cable order is in accordance with the EIA/TIA568A or 568B
industry standards;
The transmission distance depends on the signal source and cable quality, please do
not exceed the maximum transmission distance;
Please replace a failure device with a proper one to check if the device is broken;
If the problem still exists, please contact the dealer.
Installation method
1.Wall-Mounting type 2.Splicing type
(Optional component, you
need buy them if necessary)
3.Magnetic attraction type
Magnetic attraction
at both bottom sides.
Splicing direction
Specifications are subject to change without prior notice.
Table1: The coax cable length and PoE power output
Coax length(m)
Rate(Mbps)
PoE power output(W)
100
100
20.0
200
100
17.5
300
100
15.2
400
10
12.7
500
10
10.3
