UTIFORM HD 50/07 User manual

HD 50/07
www.utiform.com departamento.té[email protected] Tlfn.+34 96 570 29 82 Fax. [phone]www.utiform.com departamento.té[email protected] Tlfn.+34 96 570 29 82 Fax. [phone]
INSTRUCCIONES
Instruction bookInstruction book Betriebsanleitung
Manuel d' instructionsManuel d' instructions

Floor Screed Machine HD 50 1
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
INTRODUCTION
Dear Customer:
Please read this instruction manual carefully prior to using your HD 50/07 and make sure that you
are familiar with the operation and handling of the machine. Avoid handling errors and damage to, or loss of
material.
This machine is the result of the very latest technical developments and complies with all general standards in
force and EC regulations. You will notice the EC symbol on the machine and also the Conformance Declaration
included in this instruction book.
Should the machine break down, or in the event of a replacement request, or if you wish to contact the Technical
Service, please contact your vendor or the dealer directly.
In order to avoid breakdowns caused by faulty or bad quality replacement or wearing parts, and so that you do
not run the risk of losing the “Manufacturer’s Guarantee”, we advise you only to use original spare parts and
wearing parts.
Please complete the details below so that you will know the most important features of your machine and you
will always have them on hand should you need to order spare parts. You will find the technical specifications
on the machine name plate.
HD 50/07
Machine no.
Year of construction
Diesel motor
Compressor
....................…………….......................
....................…………….......................
Type..............................……………......
Serial no...........................………….…..
Type..............................……………......
Serial no. ..........................………….…..
We reserve the right to make any technical amendments required to improve the machine although
they may not be included in this manual
UTIFORM wishes you every success with your new machine.

Floor Screed Machine HD 50 2
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
1. About this manual …..…………………….....4
2. Basic Safety
instructions………………………...………..…..4
2.1 Obligations …………….........…………….....4
2.2 Guarantee and liability……………………….5
2.3 Correct use ……………………….…………..5
2.4 Protective devices .……………….…………..6
2.5 Safety measures during normal operation……6
2.6 Service and maintenance, prevention of
breakdowns ………………..…………....6
2.7 Mechanical changes to the machine …….…...6
2.8 Cleaning the machine ….........................….....7
2.9 Safety regulations for moveable compressors..7
3. Transport …………………...……………....9
3.1 Special safety indications …………………..9

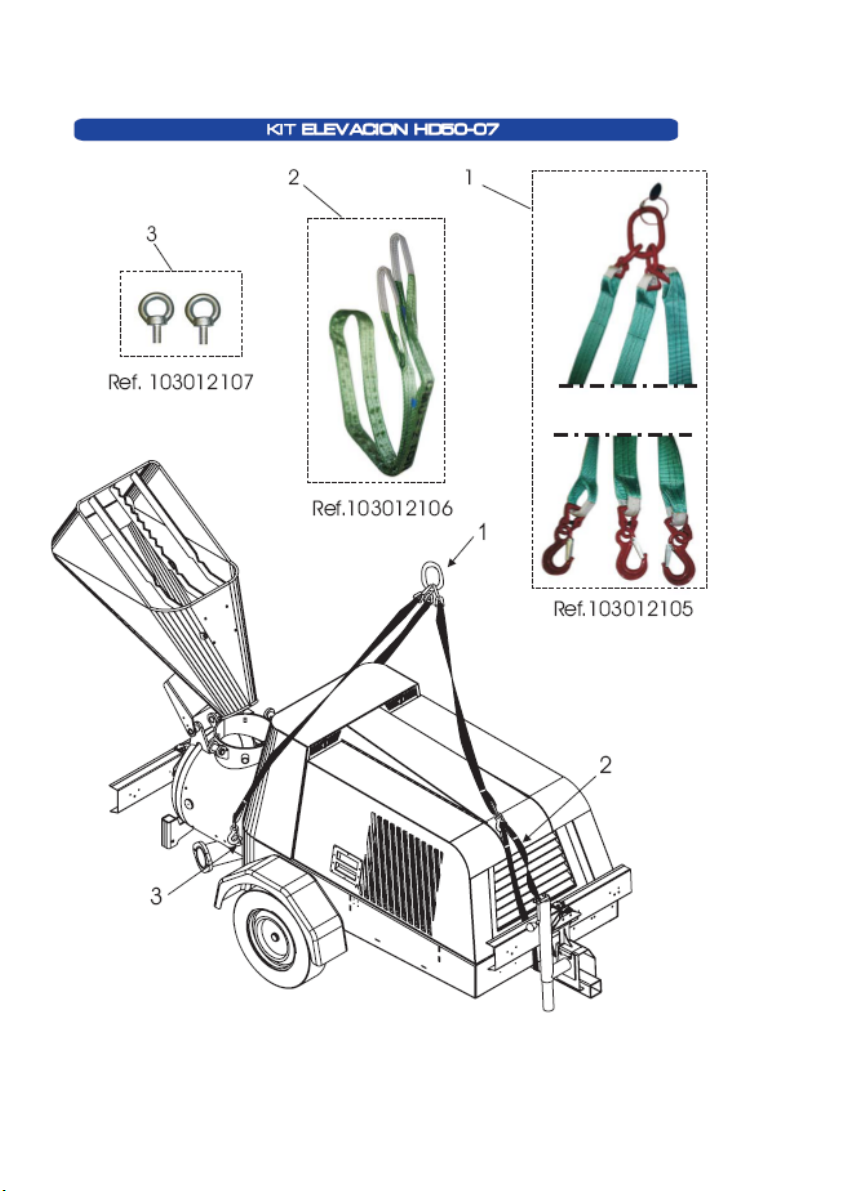

3.2 Transport by crane ………………………….9

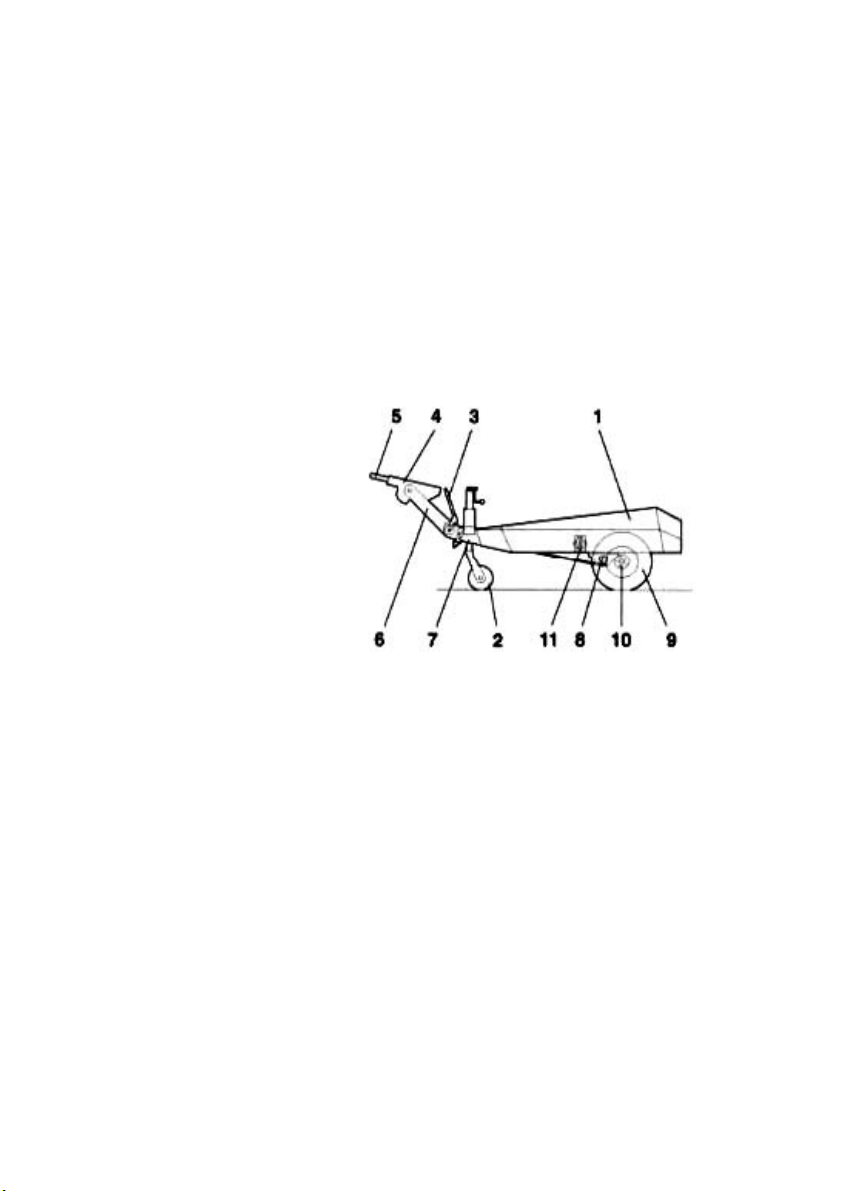

3.3 Towing elements..…..……………….……...11
3.3.1 Main chassis……………….…..……....11
3.3.2 Jockey wheel…....……………………..11
3.3.3 Hand brake or parking brake………......12
3.3.4 Retention device……………..………...12
3.3.5 Coupling head ball ………………........12
3.3.6 Middle part of tow bar ………………...12
3.3.7 Tow shaft…………………………........12
3.3.8 Suspension axle ………….…………....12
3.3.9 Pneumatic wheels..………….…………13
3.3.10 Inertia brake....………….………….…13
3.3.11 Brake support and blocks……..…...…13

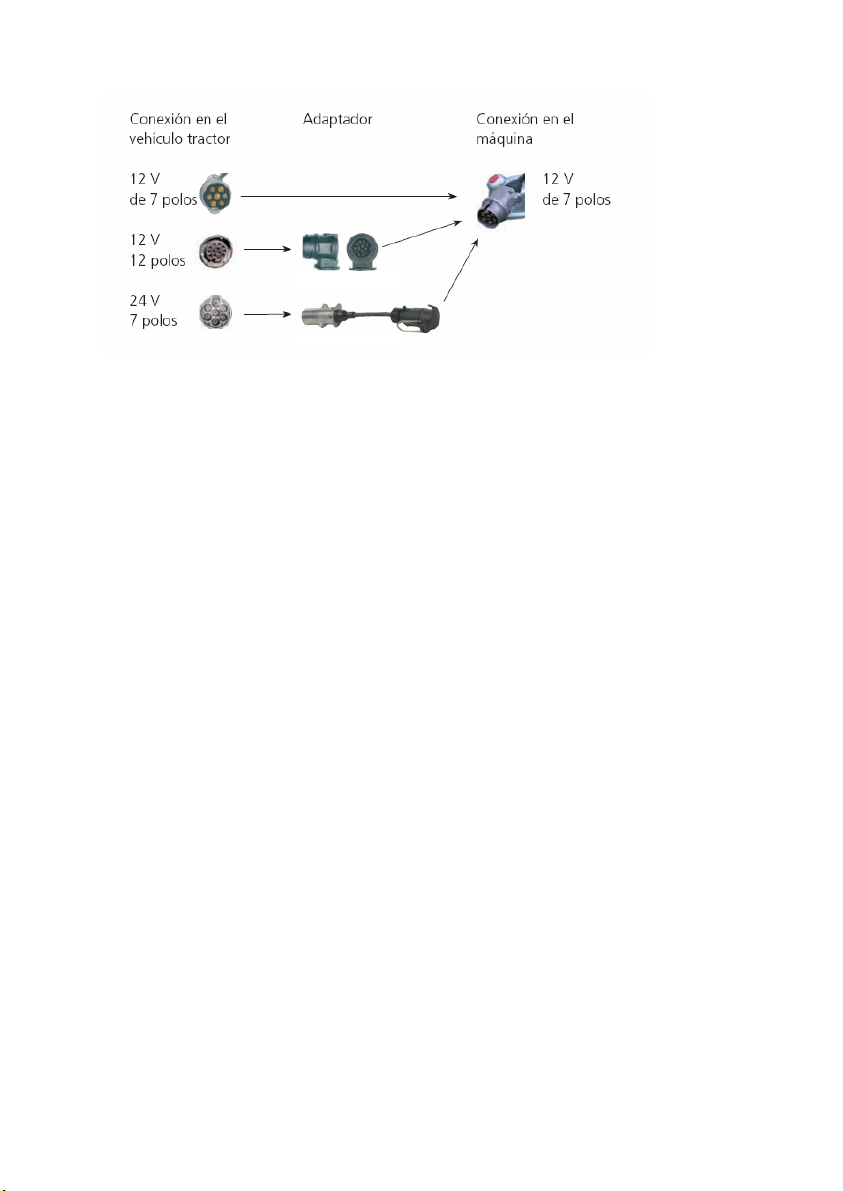

3.3.12 Trailer lighting system .......……….…13
3.5 Preparation for transport….…………………14
3.6 Trailer transport ………………………...…..14
3.7 Lorry Transport …………………...………..14

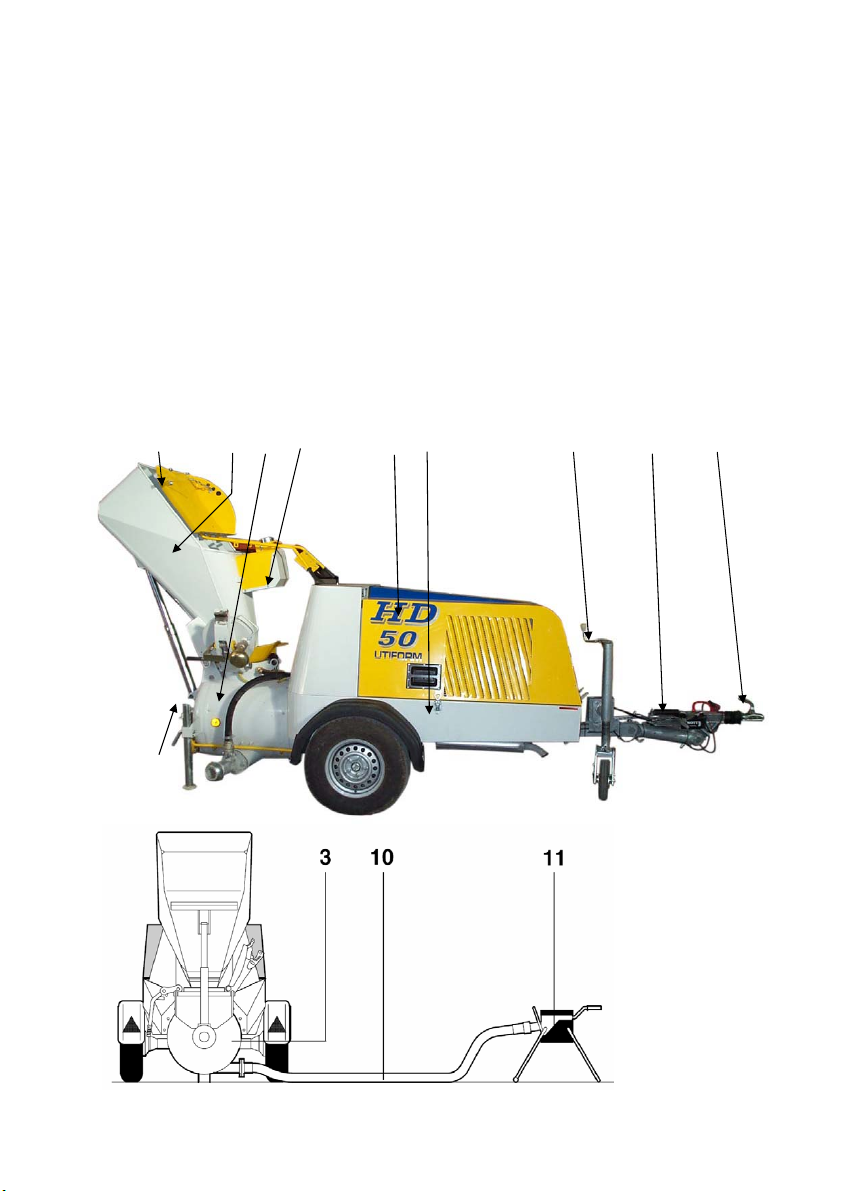

4. Description of the machine…………….…..15
4.1 Technical specifications…………….………16
4.2 Standard equipment…………………….…..16
5. Service elements……………………….…....17
5.1 Control panel...........….………………….....18
5.1.1 Air pressure gauge..........…..………...18
5.1.2 Thermo contact temperature air-oil
mix.18
5.1.3 Operation hour counter..…………........18
5.1.4 Term .........................................…......18
5.1.5 Motor lubrication pressure switch ........18
5.1.6 Motor oil Temperature ........…...…….18
5.1.7 Battery charge light.............………......18
5.1.8 Excessive air pressure...............…........18
5.1.9 Diesel Reserve ...........................….......19
5.1.10 Mixer tank grille.......…………….......20
5.1.11 Contact switch ...............……….........20
5.1.12 Starter knob ..........……………......20
5.1.13 Empty load switch...…..........….…..20
5.1.14 Emergency stop .................…….....20
5.2 Electrical diagram …..........………..….......20
6. Preparation for operation…..…………....20
6.1 Safety indications …………………….….20
6.2 Transport hoses and couplings…………...21
6.3 Operation in closed areas.………………...22
6.4 Prior to start up....…………………………22
7. Operation …………………..………..…….22
7.1 Safety indications………………….…...…22
7.2 Safety indications in normal operation ..... 23
7.2.1 Pressure vessel ………………………23
7.2.2 Safety valve………...…………..…....23
7.2.3 Accident prevention ………...…….....23
7.3 Check prior to start up………………….…24
7.3.1 Machine safety systems……………...24
7.4 Mixing …………………………………....25
7.5 Transport ………………..………………..25
7.5.1 Correct transport pressure …….……..26
7.6 Automatic lubrication ………..…...............27
7.7 Feed hopper………..…................………...27
7.8 Loading shovel ………………...................27
7.9 Remote control….............................….......28
7.10 End of work………………………..….....29
7.11 Faults in transport of material ……..….....30
7.12 Faults in road transport ……………….....31
7.13 Winter operation……......………………..31

Floor Screed Machine HD 50 3
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
8. Compressor ……………………....………..32
8.1 General description ………………………...33
8.2 Coupling ……………………………....……33
8.3 Compressor ....................................................33
8.4 Construction details of the compressor ….....34
8.5 Operating diagram …………..….........….....35
8.6 Unit Operation....................………………....35
8.6.1 Air Circuit ...........….............................35
8.6.2 Oil Circuit ...…................…….............35
8.6.3 Returned low grain size material
circuit……………………………….….35
8.6.4 Motor oil circuit ..................…….......35
8.7 Operating Instructions...............………….....36
8.7.1 Instructions for start up of dry charged
batteries................................…………………....37
8.7.2 Start up..................................................37
8.7.3 During functioning................………....37
8.7.4 Stoppage of the compressor .........……....37
8.8 Temperatures and correct pressures ....….....38
8.8.1 Working temperatures ......…………....38
8.8.2 Working pressure ...........………...…...38
9. Maintenance ………………………………...38
9.1 Safety indications for maintenance and
repair……………………………………38
9.2 Safety Indications for using tools …………..38
9.3 Machine safety indications ………………....39
9.4 Battery safety indications .......………….......39
9.5 Daily lubricating points…………..…………40
9.6 Weekly lubrication points ………..………...40
9.7 Six monthly lubrication points..……..……..41
9.8 Automatic lubrication centre ….…………....41
9.9 Preventive maintenance – summary table ....41
9.10 Unit maintenance....................…………......43
9.10.1 General ................................…….......43
9.10.2 Check safety devices .........……………...43
9.10.3 Check safety valve ……………….....43
9.10.4 Change compressor .......………….....43
9.10.5 Motor oil change.......…………….... 44
9.10.6 Motor oil aspiration and/or compressor
filter....……………................................ .44
9.10.6.1 Cleaning Instructions ......…....45
9.10.7 Air-oil filter separator .................…...45
9.10.7.1 Check the state of the filter
separator.............…….…….......45
9.10.7.2 Dismantling and assembly of the filter
separator...........................………………….....46
9.10.8 Oil filter ..........................…….......... 46
9.10.9 Air and oil radiator..............……….......46
9.10.10 Motor .............................................46
9.11 Additional maintenance every 8 hours of
operation or on a daily basis. …………...........46
9.12 Additional maintenance every 40 hours of
work or on a weekly basis. …………………..47
9.13 Additional maintenance every 500 hours of
operation or six monthly intervals …………..47
9.14 Additional maintenance every 1000 hours
of operation or once yearly …………………..47
9.15 Lighting………………………………....48
9.16 Tires and chassis ………………….…....48
10.Lubricants ……………………………….48
11.Location of faults or breakdown………..49
12.Storage …………………………………....51
12.1 Conservation of motors and compressors .51
12.2 Operations prior to stoppage …................52
14. Declaration of EC conformance………...53
15. Safety checklist ……….......……………...54
16. List of maintenance jobs ………………..55
17. Spare part order form…………………..56

Floor Screed Machine HD 50 4
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
1 About this manual
This instruction manual is divided into the following main chapters and deals with the two main units: the
machine and the motor compressor.
• Instructions
• Safety indications
• Technical specifications
• Maintenance
Safety precautions are indicated at the start of every section and /or contained in tables.
These handling and maintenance instructions should always be available in the workplace. All the
instructions should be read, understood and carried out prior to starting the machine.
2 Basic safety instructions
This manual contains the main guidelines for handling the HD-50/07 machine with total safety. Very important
points are indicated with a special symbol. These mean:
WARNING: This symbol means that there is direct risk to life and health due to
mechanical effects.
WARNING: This symbol means that there is direct risk to life and health due to electrical power.
WARNING: Maintenance and service work BE CAREFUL!
2.1 Obligations
The instruction manual should always be kept nearby the machine. In addition to the manual, the local
regulations on accident prevention and environmental protection should also be on hand and consulted.
In addition the regulations of the country where the machine is to be used should be taken into account.
All the safety and hazard indications on the machine should be
legible and should be renewed when required.
This Floor Screed Machine should only be used:
• in accordance with the terms for use
• in technically safe and adequate conditions
Breakdowns which affect safety of the machine or persons handling it should be resolved immediately.

Floor Screed Machine HD 50 5
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
2.2 Guarantee and responsibility
In general, the “general conditions of sale of the machine” are those which prevail and are which are
made available to the purchaser when finalizing the machine contract. In the event of any damage to persons or
materials, these shall be excluded from liability or guarantee if they are attributable to the following causes:
• inadequate use of the machine
• Inappropriate assembly, operation, handling and maintenance of the machine.
• failure to take into account the manual instructions on transport, storage, assembly, start up,
operation and maintenance ( that is, with particular reference to the 1st inspection carried out
following 50 operation hours. All work shall be carried out in an authorized workshop or by
Utiform’s Technical Services Dept).
• own changes made to construction
• insufficient attention paid to machine parts subject to wear,
• Inadequate repairs (only use original Utiform spare parts or parts authorized by the
manufacturer).
For safety reasons, only original Utiform spare parts or parts authorized by the manufacturer should be
used.
In the event of any questions or queries regarding the machine, all the registered information should be
provided, and this is also the case when making orders for spare parts, therefore, the following should be
provided:
• machine type and model
• serial number
When carrying out maintenance work, it is essential to ensure cleanliness at all times, particularly in
support and sealing surfaces, which can be subject to considerable damage as a result of dirt.
The duration and reliability of this machine depends on adequate operation and maintenance.
2.3 Correct use
The HD-50/07 is a pneumatic transporter with a mixing vessel suitable for all known mixes of
screed, mortar and cement up to 16 mm of granulation.
It may be used for plastic materials such as cement screed, anhydrite screed, light concrete, mortar, clay
and straw mix, humus,flameproof material, granulated bulk material, such as cement, sand and coarse sand with
a grain of up to 16 mm.
The use of any other materials is only possible following prior agreement and consultation with the
manufacturer.
Any unsuitable use of the machine is prohibited. Correct use includes:
• taking onto account the indications of the instruction manual and
• complying with inspection and maintenance work

Floor Screed Machine HD 50 6
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
2.4 Protective Devices
Prior to starting up the machine, all the safety devices must be prepared to function. The protective grills
are a fixed safety device and can never be removed while the machine is functioning. The HD-50/07 machine
fulfils all the requirements of European safety standards for construction machinery.
Never put your hand through
the safety grill !
2.5 Safety measures in normal operation
Only start the machine when all the protective devices are fully functioning. Ensure prior to connection
that no one is in any danger.
Check at least on a daily basis, the machine and all its accessories, such as the transport pipes, and the
automatic outlet tripod to ensure that there is no external damage and that the protective devices are in place.
Above all, check the transport pipes for breakages, dents or damage to the material.
Check for wear, correct functioning, breakages or possible indication of damage to the transport pipes,
or at least every 3 months all the transport pipes should be changed along with their couplings.
2.6 Service and maintenance, prevention of breakdowns
• Carry out any adjustments, required maintenance and inspection work within the specific term.
Flexible rubber pipes with their couplings are subject to natural wear, through rubbing and ageing. A
specialist should check (at least every 3 months) that they are in good condition and change them if
necessary. This process should be noted on the checklist provided for this purpose.
• In all maintenance, inspection and repair work, ensure that the machine is not connected to the
electrical power and in particular that it is not accidentally reconnected by pressing the connection
switch.
• Place a warning sign to prevent any accidental connection.
• Check helicoidal combinations released during adjustment. Check protective functions and
devices when maintenance work is complete.
2.7 Mechanical changes to the machine
DO NOT carry out, without the manufacturer’s prior authorization, any changes in the installation or
any alteration to the machine. This also applies to welding of supporting parts. All changes require the
manufacturer’s written authorization. All reforms require the written authorization of the manufacturer,
UTIFORM.
Any parts which are not in perfect condition should be changed immediately. Use only original spare
parts and wearing parts.
Using parts which are not original means that there is no guarantee that they have been built and
manufactured in a safe and resistant manner, and therefore the machine guarantee is from that moment invalid.

Floor Screed Machine HD 50 7
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
2.8 Cleaning the machine.
It is important to keep the machine free of encrusted dirt, and therefore biological machine conservation
liquid should be used to protect from corrosion and separation.
Under no circumstances should you use diesel fuel for cleaning and care of the machine, since it may
cause irreparable damage, above all to plastic seals and parts.
Use and remove the substances and materials used, in particular:
• in any work carried out in lubrication systems and devices and
• in cleaning with solvents.
2.9 Safety regulations for towed machines
General safety indications
1. The person who activates the machine is responsible for keeping it in a state of safe operation.
2. Use only oils and grease and lubricants recommended and authorized by UTIFORM. Bear in mind that
the lubricants chosen should comply with all safety regulations particularly in respect of fire hazard, due
to oil or explosions and the possibility of formation or transformation of dangerous gases.
3. The person responsible for the machine should ensure due compliance with all regulations with respect to
the handling, maintenance of the machines and tools.
4. Maintenance, servicing and repair work should only be carried out by qualified personnel if necessary
under the guidance of a person specially trained in this work.
5. If there is any suspicion or indication that a part in the machine interior has overheated, the machine
should be disconnected. Under no circumstances should you open the control caps before the machine has
cooled down sufficiently, in order to avoid the machine catching fire when the oil vapors mix with
oxygen.
6. All maintenance work should be carried out when the machine is stopped.
7. Prior to dismantling any pressurized part, disconnect the compressor or all the equipment pressure
sources and release pressure from the whole system. In addition, all valves should have a sign stating
“work in progress" on the machine "do not open.”
8. Prior to starting repair work, ensure that the installation cannot be connected either through
carelessness or accident. As a further safety measure, place a warning notice on the starter device
stating “Machine repair in progress, do not connect”.
In installations using diesel, the battery should be dismantled or insulating covers should be placed over
the clamps
If the installation is electric, the main switch should be off and all the safety devices should be
deactivated. Place a warning sign on the short circuit box or the main switch stating “Machine repair in
progress, do not connect”.
9. Limit values (pressure, temperature, revolution adjustment etc. ) should be clearly marked.
10 Never activate machines or tools which are either over or under their limit values (pressure,
temperature, number of revolutions, etc.)
11 Keep an operation log, noting operation data and maintenance work carried out.
12. The HD-50/07should be kept clean at all times, that is, free from oil and other residue and dust.

Floor Screed Machine HD 50 8
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
13. Control and clean regularly heat transmission surfaces (cooling blades, intermediate cooler, water
jackets etc.) so as to avoid temperature rise.
14. Carefully check all regulation and safety devices to ensure optimum operation. These must never be out
of service.
15. Avoid damaging safety valves and other pressure reducing devices. Be careful in particular with dirt
from the cement, fine sand or accumulated fibre, which could affect the operation of the devices.
16. Regularly check the pressure and temperature indicators. If acceptable limits are exceeded they should
be changed.
17. Use only original Utiform replacement parts.
18. In order to check the perfect state of the safety devices, you should follow the steps indicated in the
maintenance plan in the instruction manual.
19 DO NOT use flammable solvents, combustible Diesel or carbon tetrachloride to clean parts. Apply safety
measures for protection against noxious vapor from cleaning products.
20. Take extreme care when cleaning during repair work. Avoid dirt by covering parts and openings with a
clean cloth or masking tape.
21. Protect the motor, alternator, air filter, electrical components, regulation devices etc. against damp when
steam cleaning.
22. If you have to carry out work on a machine which causes heat, flames or sparks, the nearby
components should be protected with anti-inflammatory material.
23. Never check the inside of the machine, a pressure vessel etc. using a light with a flame.
24. Place the traction bar and the axle(s) in safe position in moveable machines, if you are working
underneath, or remove a wheel. DO NOT rely on jacks.
25. Prior to dismantling or servicing a HD50/07, motor or any other machine, ensure that all moving parts
weighing over than 15 kg cannot roll or move in any way.
26. When you have finished the repair work, always check that no tools, loose parts or cleaning rags have
been left on top of the machine, on the drive motor or on any other activating mechanism.
Check the direction of the rotation of the electrical motors at every start up and after every change in
connections or electrical repairs, to ensure optimum effect of the oil pump and the ventilator

Floor Screed Machine HD 50 9
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
3 Transport
3.1 Special safety indications
• If there is a machine change on site, the mixing and transport tanks should be empty and the machine parts
should not be pressurized.
• Only use an appropriate transport or traction vehicle with sufficient towing load and support.
• Correctly attach the hook to the traction vehicle.
• For safety reasons the trailer should only be moved by two people. Make sure there is always another person
at hand to help.
• If the machines are new or the wheels have just been changed, retighten the screws of the wheels after
travelling a few miles with the rotation moment marked.
3.2 Crane Transport
When moving a machine from site with a crane, the machine has to be attached at two points on his
back and a point at its front. View recommended lifting kit fromUtiform.
- Remove or attach all loose parts which could fall when the machine is lifted.
- A technical expert should remain close to the crane driver or should be in contact with him by megaphone.
- Then hang the machine on the crane.
- For raising the machine, use hoisting equipment and machinery with the appropriate capacity.
- Check beforehand that this equipment has been serviced and approved according to local security
regulations.
- If the machine or machine parts are lifted using one or several hoisting openings, loading hooks and shackles
should be used. Do not place cables, chains or ropes directly in the hoisting openings.
- Never use bent loading hooks etc. and attach them in such a way that they are always subject to force in
alignment with the axis of the load support.
- In this case a beam may be placed between the hoist and the load. Also two hoists may be used, bearing in
mind that these cannot be inclined at an angle of more than 30º against the vertical. The support capacity of a
hoist diminishes if the lifting force is not vertical.
- In all cases attach the machine in such a way that it can be vertically lifted and cannot rotate or overturn.
- Be careful with the load and do not work too fast. Acceleration and deceleration should be within reasonable
limits.
- Do not leave the load hanging in the hoist.
- Ensure that no one is in the danger zone surrounding the load.

Floor Screed Machine HD 50 10
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
LIFTING UP KIT HD50-07

Floor Screed Machine HD 50 11
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
3.3 Towing items
All work of adjustment to or assembly of transport elements shall only be carried out by the vehicle manufacturer or
authorized personnel.
Obviously, welding work should not be carried out on any part of the trailer.
In winter, transport elements should be washed with water after road transport, particularly if there is salt on
the road.
Regularly remove any encrusted dirt from the suspension axle.
The identity plaques of the trailer elements should be kept in perfect state as they should always be legible.
This way, when repairing or ordering spare parts, it is always possible to provide the manufacturer with the
specifications and details stamped on the identification plate.
1Main chassis
2Jockey wheel (according to model)
3Hand brake (according to model)
4Retention device (according to version)
5Head of the coupling ball or pin
6Middle part of the tow bar
7Tow shaft
8Suspension axle
9Pneumatic wheels
10 Inertia brake (according to version)
11 Support and brake blocks
3.3.1 Main chassis
The main chassis is specially constructed with quality steel which provides excellent stability for the
machine in operation.
3.3.2 Jockey wheel
This support wheel does not require any particular maintenance.
Turn upwards, lift and check the support wheel while the machine is in operation. To place it in working position,
turn the support wheel downwards until the chassis is in horizontal position. The transfer wheel can only be placed
upwards by the support protective device when it is in unloaded state. This procedure is initiated manually.
Deployment is automatic. In the folding position the transfer wheel blocks on its own.

Floor Screed Machine HD 50 12
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
3.3.3 Hand brake or parking brake
Hand brake which is supported by elastic gas suspension serves to safely park the machine. When the chassis
goes backwards the hand brake automatically adjusts.
- Handling the model with elastic suspension using gas: pull the hand brake until in neutral.
- To release the brake, the handle should be replaced in zero position passing through neutral.
- Handling the model with spring cylinder; pull the handbrake up to the last ratchet.
3.3.4 Retention device
When the traction vehicle brakes, or goes downhill, the traction bar is introduced, the brake responds
according to the size of the force of the trailer shaft.
Also when moving in reverse, the brake responds at first. Since the brake drum moves backwards, the effect
of the brake is almost eliminated. When adjusting the retention device, ensure that it is parallel to the main trailer
shaft. If not, the brakes will not function.
.
3.3.5 Coupling head ball or pin
The chassis is prepared depending on the option chosen for transport by car (ball) or by lorry (pin).
National regulations of the countries where the machine is to be transported should be observed.
3.3.6 Middle part of tow bar
The middle part is the connection between the retention device and the tow shaft.
3.3.7 Tow shaft
The tow shaft has a regulator. This means that the height for the transport coupling can be easily and
conveniently regulated.
Before every journey check the safety of the towing bar regulator.
• Bear in mind that when regulating the height of the retention device it is parallel to the towing bar.
Check that the toothed heads are correctly fitted together and that the attachment handle is properly
tightened, and that the safety ring is correctly inserted. If not, there is no guarantee that the brakes will work.
• If there is a ring as traction device, check that the traction vehicle’s blocking system is properly
fitted. If it has a head, check that this is correctly coupled on the ball of the traction vehicle.
• Change the height only in flat areas.
• Secure the machine with the brake block to stop it rolling, then release the handbrake.
If a specific height is maintained for long periods, the toothed head coupling may rust and deteriorate,
therefore regular cleaning of the toothed coupling is recommended.
Periodic maintenance work should be carried out on these elements checking the state of the toothed heads
and the threads, rivets and attachment handles. If a part appears to be excessively worn, it should be replaced.
WARNING! The safety ring is absolutely essential. It must be replaced in the event of loss or wear. Check the
state of the brake cable of the inertia coupling, and the safety cable.
3.3.8 Suspension axle
The suspension axle does not need maintenance and cannot be lubricated as the grease may attack the rubber
elements.

Floor Screed Machine HD 50 13
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
Do not carry out welding work on the axle.
3.3.9 Pneumatic Wheels
When changing the wheel, ensure that the correct axle housing corresponds to the wheel couplings.
• Tighten the ball screws with the turning moment marked
• The tires should correspond with the axle specifications.
3.3.10 Inertia brake
Only have brakes repaired in an authorized garage and only use original parts
The wheel brakes fulfill the regulations on toxic substances and EU regulations.
3.3.11 Brake supports and blocks
Fix the wheels with both brake blocks, both on flat surfaces as well as on slopes to prevent the vehicle from
rolling.
3.3.12 Trailer lights system
The light bar is available in the version for 7 pole plug from 12 V and 24 V. This light system is assembled
as follows:
• Take the light bar and place it at the back of the machine, attaching it with the two spring pins
designed for the purpose.
• Take the lighting cable with its normalized pug for the lighting bar, and connect to the 7 port base on
the side of the machine.
• Connect the plug to the front of the trailer in the area of the tow shaft and connect it to the traction
vehicle.
• For dismantling carry out the process in reverse.
If a 12 V traction vehicle is used, the cable may be immediately connected to the vehicle.
If a 24 V traction vehicle is used, a 12 V to 24 V adaptor is required (consult us providing item reference)
If driving a vehicle with a EURO plug, 12 V to EURO adaptor is required (consult us providing item
reference)

Floor Screed Machine HD 50 14
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
3.4 Preparation for transport
• Completely empty the mixing vessel.
• Check the tire pressure.
• Regulate the height of the coupling head.
• Release the hand brake.
• Couple the trailer to the traction vehicle
• Raise the jockey wheel and then bend it.
• Attach the brake safety cable.
• Check the cover block, the closures, and the flap on the control panel.
• Secure the locks, to protect against vandalism and theft.
• For road transport the machine should have a working light bar.
3.5 Trailer Transport
For road transport the following should be taken into account:
• Respect the national traffic regulations of the country where the trailer is driven.
• Take documentation and traffic permit for the trailer.
3.6 Lorry Transport
Use only one transport vehicle with sufficient load capacity for the total weight of the machine.
Immediately after loading the machine, stabilize it and attach it in such a way that it cannot come loose. Use
appropriate belts for this purpose, the blocks at the front of the machine, and activate the parking brake, depending
on the model of machine.
Secure any moving parts such as the top of the vessel and the transport pipes.
Transport of a machine without belts is prohibited.
Do not forget to remove the transport safety device key, before the next time the machine is transported.

Floor Screed Machine HD 50 15
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
4 Description of the machine
Machine model with Feed Hopper and Shovel.
1 Shovel (according to model)
2 Feed hopper (according to model)
3 Mixing vessel or pressure vessel
4 Shovel Support (according to model)
5 Soundproof housing
6 Main chassis
7 Jockey wheel (according to model)
8Hand brake (according to model)
9Retention device (according to model)
10 Transport hose (accessories)
11 Material reception tripod (accessories)
1 2 3 4 5 6 7 8 9
5 3 2 4 1
7 6

Floor Screed Machine HD 50 16
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
4.1 Technical specifications
4.1 Engineering data
Machine type................................................ HD 50/07 HD 50/07 T HD 50/07 T/P
Feed Motor Power 36 Kw.
Fuel Gas – Oil
Effective air volume 4’6 m/h3. (*)
Useful capacity of the vessel 200 litres.
Theoretical transport performance 4 m/h3 5 m/h3 6 m/h3 (*)
Transport height 30 floors (*)
Transport Distance e 160 metres (*)
Machine type...................................... HD 50/07 plus HD 50/07 T plus HD 50/07 T/P plus
Feed Motor Power 46,5 Kw.
Fuel Gas – Oil
Effective air volume 5’5 m/h3. (*)
Useful capacity of the vessel 200 lts.
Theoretical transport performance 4,5 m/h3 5,5 m/h3 6,5 m/h3 (*)
Transport height 50 floors (*)
Transport Distance e 180 metros (*)
Total Load height (mm) 900 420 420
Length (mm) 4630 5050 5050
Width (mm) 1650 1650 1650
Total height (mm) 1470 2300 2300
Weight (Kg) 1820 1880 1920
(*) Depending on the type of material, consistency and dosage meter
4.2 Standard equipment
- Centralized greasing centre
- Radio frequency remote control, with battery and charger.
- Accessory box (greaser, adjustment spanners, rubber balls etc)
- 40 (20+20) meters of transport pipe 65 mm c/ coupling
- 1 EC conformance Certificate
- 1 12 month guarantee.
- 1 Instruction book and list of machine parts
4.3 Optional equipment
- 20 metros de manguera transporte 65 mm c/ acoplamiento double, ref. 38312
- 20 metros de manguera transporte 65 mm c/ acoplamiento tripod, ref. 38314
- Tripod receiver material outlet (check outlet)

Floor Screed Machine HD 50 17
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
5 Service elements
1Control panel
2Pressure gauge
3Ball valves
3a Vessel ball valves
3b Material outlet ball valves
4Emergency switch
5Hydraulic distributor level, hopper activator (according to model)
6Radio frequency remote control, loading shovel activator (according to model)
1 4 2 3a 3b 6 5
5.1 Control Panel
The motor compressor has the requisite safety devices to guarantee correct operation, while guarding against
breakdowns produced by anomalous work situations.
In case of stoppage, failure is indicated in the instrument panel. Details of the safety devices are indicated
below:
5.1.1 Air pressure meter (PT)
Indicates work pressure of the unit. It is situated inside the machine on the gas-oil tank.

Floor Screed Machine HD 50 18
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
5.1.2 Thermo contact temperature air-oil mix (TM)
Stops the machine if it reaches over 110ºC in the compressor drive, indicating the fault via the pilot light L1
of the electrical panel.
When the unit is working on full load, the correct operating temperature is 60 to 65ºC plus the ambient
temperature.
Maximum ambient temperature is considered to be between 40 and 45ºC, depending on the work
load.
It is not possible to restart the unit until the L3 pilot light goes out.
5.1.3 Hour counter (H)
Indicates the number of hours the unit has worked and serves for checking when maintenance and regular
servicing is due.
5.1.4 Hot wire
Protects the installation from short circuits in the electrical system. It is restarted manually. Regulation is set
at 20A.
5.1.5 Motor oil Pressure switch (P)
Measures the pressure of the oil in the motor and if this does not exceed a specific value, it stops cutting
power to the solenoid (SOL) and this is indicated in the L3 light on the electrical panel.
5.1.6 Temperature motor oil (T). Thermo contact
Stops the unit when the motor oil temperature is excessive. This is indicated by the L1 light on the electrical
panel.
5.1.7 Battery charge light.
Indicates that the battery charging system is working correctly. It should be off when the motor is working.
The L5 light on the panel should light up when the contact is activated and the motor is off. When the motor
starts up the L5 light should go off.
5.1.8 Excess air pressure
All the equipment has a safety valve (SV) located in the air-oil tank, tarred at a 10% more than the maximum
work pressure of the equipment, and able to evacuate all the flow produced by the compressor.

Floor Screed Machine HD 50 19
www.utiform.com departamento.té[email protected] Tfno. + 34 96 570 29 82 Fax: + 34 96 570 29 83
5.1.9 Diesel reserve
The L4 light on the electrical panel lights up when the diesel level reaches reserve tank. The machine will
not stop but it is advisable to fill with diesel.
