Utilitech Pro SE1019-WH3-02LF0-U User manual

LED MOTION ACTIVATED
FLOOD LIGHT
ITEM #0460794, 0459228
MODEL #SE1019-WH3-02LF0-U,
SE1019-TBZ-02LF0-U
Utilitech & UT Design® are registered trademarks
of LF, LLC. All Rights Reserved.
Français p. 8
Español p. 15
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-994-4148, 8 a.m. - 6 p.m., EST, Monday - Thursday,
8 a.m. - 5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
Lowes.com
AB13443
1

Silicone Cap
Qty. 2

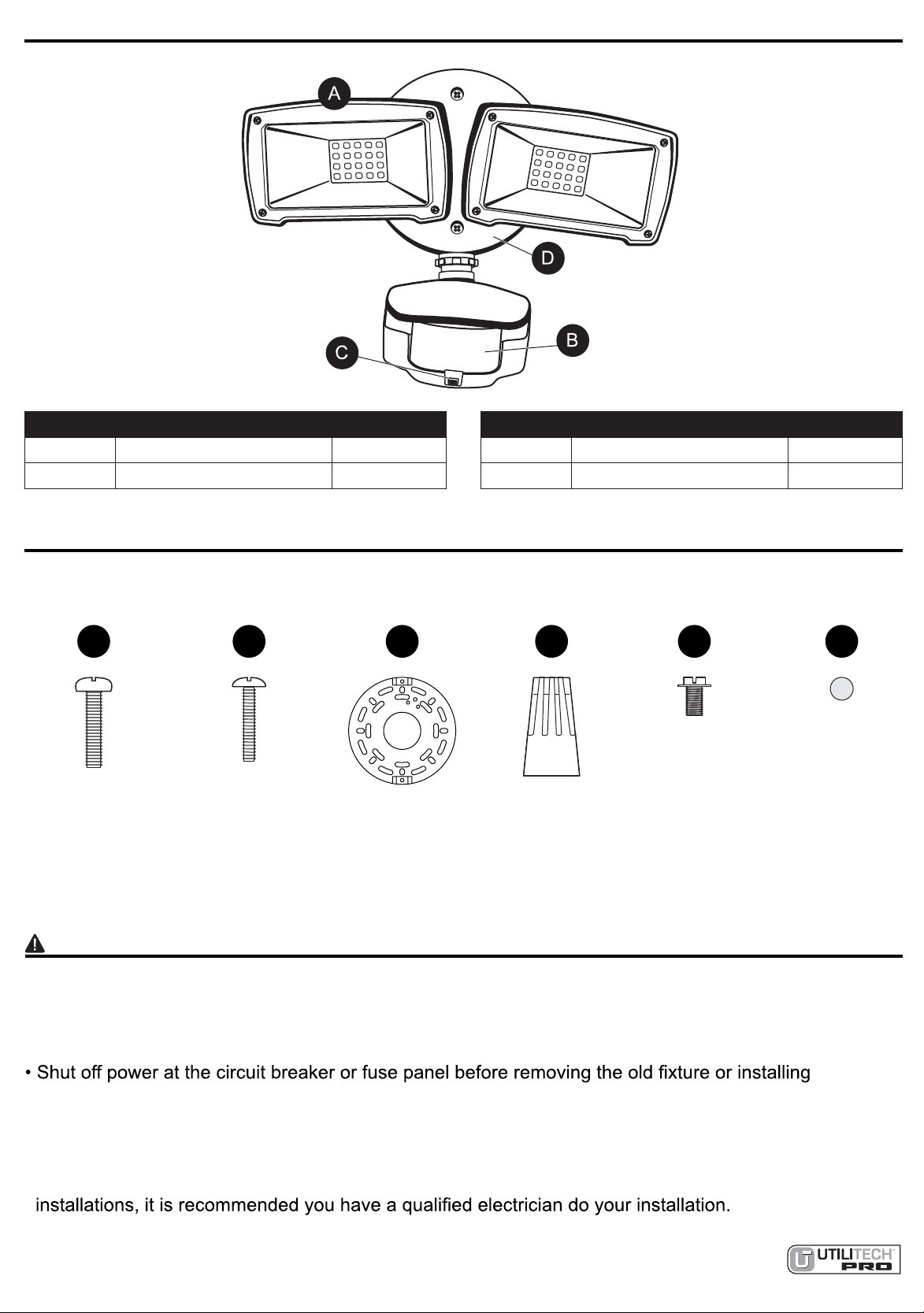

PACKAGE CONTENTS
Machine Screw
Qty. 4
AA
Note: Hardware shown actual size.
Machine Screw
Qty. 2
BB
Mounting Bracket
(Not shown
to size)
Qty. 1
CC
Wire Nut
Qty. 3
DD
Grounding Screw
Qty. 1
EE FF
SAFETY INFORMATION
Please read and understand this entire manual before attemting to assemble, operate or install the
product. SAVE THESE INSTRUCTIONS IN A LOCATION CLOSE TO YOUR LIGHT FIXTURE SO
YOU CAN REFER TO THEM AT A LATER TIME.
the new one.
• DO NOT USE THIS FIXTURE WITH A DIMMING CIRCUIT. If you currently have dimmer controls, you
will need to remove them and replace them with regular electrical switches. If you have a three-way
dimmer, you will have to replace it with a regular three-way switch. If you are unfamiliar with electrical
WARNING
CAUTION
HARDWARE CONTENTS
PARTS DESCRIPTION QUANTITY
A Fixture 1
B Dusk-to-Dawn Sensor 1
PARTS DESCRIPTION QUANTITY
C Motion Sensor 1
D Wall Plate 1
Lowes.com
2

Lowes.com

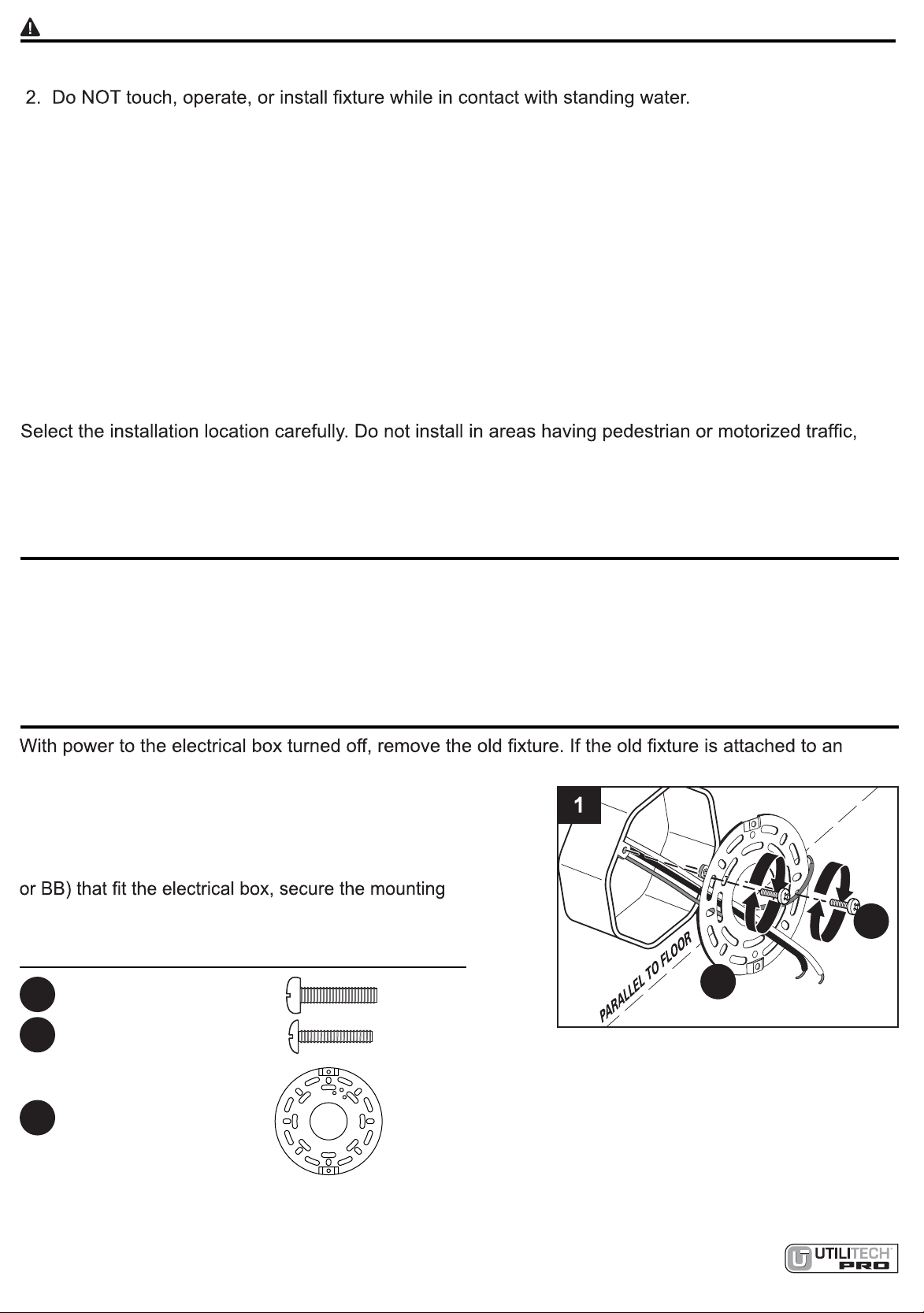

SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. Turn power OFF before installing or servicing.
3. Do NOT remove the protective LED lens.
4. Do NOT look directly at lighted LEDs for any length of time.
5. Do NOT leave bare wires exposed outside the wall canopy enclosure.
6. Electrical requirements: 120 V AC, 60 Hz. Minimum 90° supply conductors.
7. Suitable for wall or eave mounting onto recessed electrical boxes rated for wet locations. Not
suitable for ground mount installations or surface mounted electrical boxes.
8. Do NOT allow the sensor head to touch the LED light head housing. Maintain at least a 1 in.
spacing between the LED heads and the sensor head.
9. For proper operation and protection against water damage, the motion sensor adjustment controls
MUST be facing downward.
10. Do NOT mount below 5 ft.
11. Do not mount near other light sources that can compromise the dusk to dawn sensor.
12. This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
pools or bodies of water, or trees/bushes that move in the wind. All of these will trigger the motion
sensor security light and may be disruptive to the intended operation of the light. Do NOT install near
other sources of light. The other light sources can fool the dusk to dawn sensor into thinking it is daylight.
Before beginning installation of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to install the
product.
Estimated Assembly Time: 45 minutes.
Tools Required for Assembly (not included): Phillips screwdriver and silicone caulking.
PREPARATION

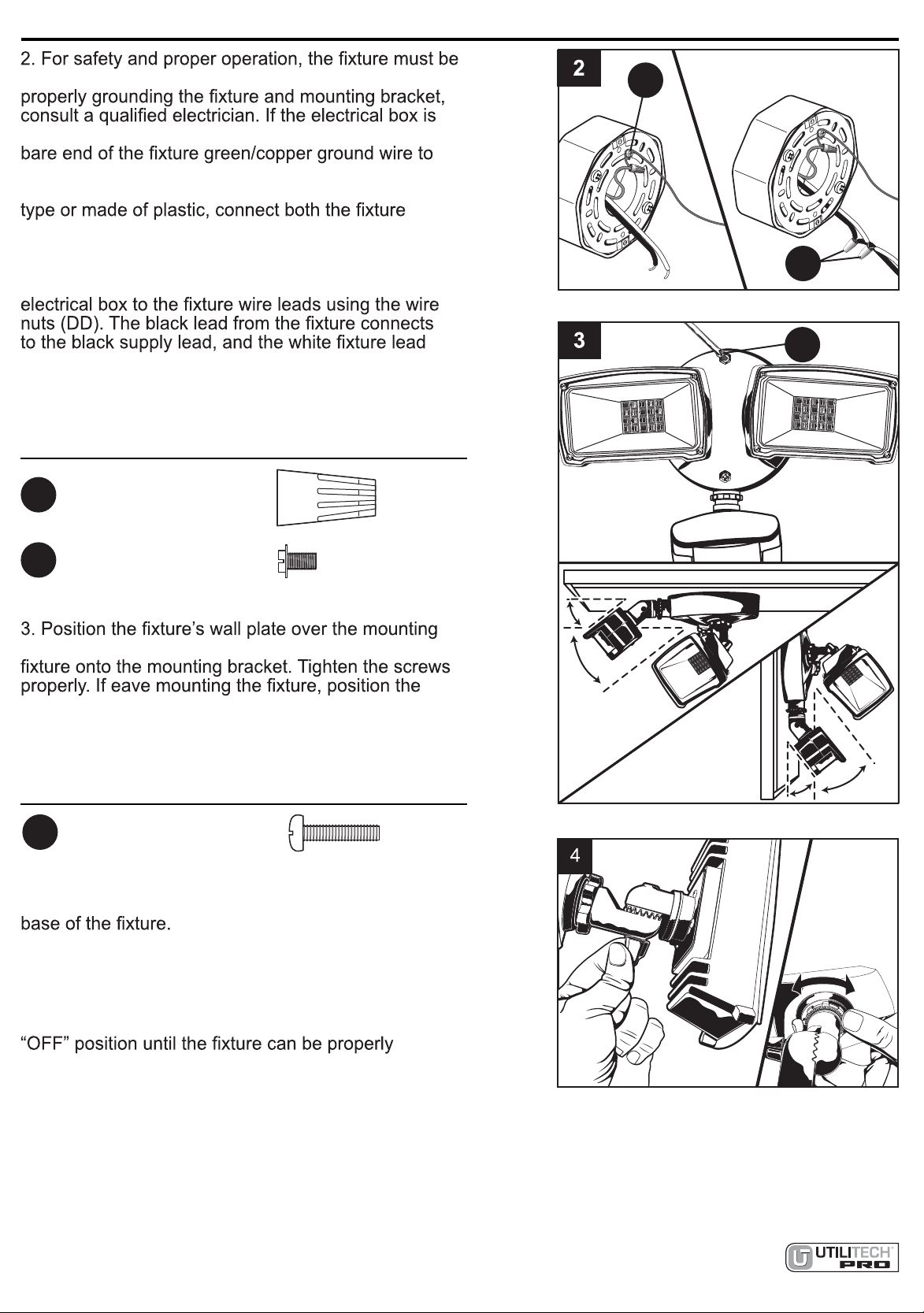

ASSEMBLY AND INSTALLATION INSTRUCTIONS
Hardware Used
electrical box that has more than two wire leads, mark the wires to keep track of the correct ones to use.
Machine Screws x 2
AA
1. Trace the supply wires through the large center
opening of the mounting bracket (CC). Place the
mounting bracket over the electrical box, making sure
that the threaded mounting hole offsets are at the 12
and 6 o’clock position. Using the machine screws (AA
bracket to the electrical box.
Mounting Bracket x 1
CC
BB
AA
CC
3

ASSEMBLY AND INSTALLATION INSTRUCTIONS
Hardware Used
Wire Nut x 3
DD
properly grounded. If unfamiliar with the methods for
made of metal and is already grounded, secure the
the mounting bracket using the green grounding
screw (EE). If the electrical box is a non-grounded
green/copper ground wire AND the green/copper
ground wire inside the electrical box to the mounting
bracket using the green grounding screw. Once
properly grounded, connect the supply leads from the
connects to the white supply lead. Tighten the wire
nuts properly to prevent the wires from coming loose.
If unsure of the tightness, secure the wire nuts using
electrical tape.
Grounding Screw x 1
EE
bracket. Use the machine screws (AA) to secure the
sensor head with the adjustment controls and drain
holes facing downward to prevent water damage.
The position of the sensor head should not exceed
45 degrees from horizontal.
Hardware Used
5. Restore power to the electrical box at the circuit
breaker or fuse panel. Make sure the wall switch
that controls the electrical box is still in the
checked for operation.
Lowes.com
4. Each light head can be adjusted at the arm and
Machine Screws x 2
AA
DD
EE
AA
4
45°
45°
45°
45°

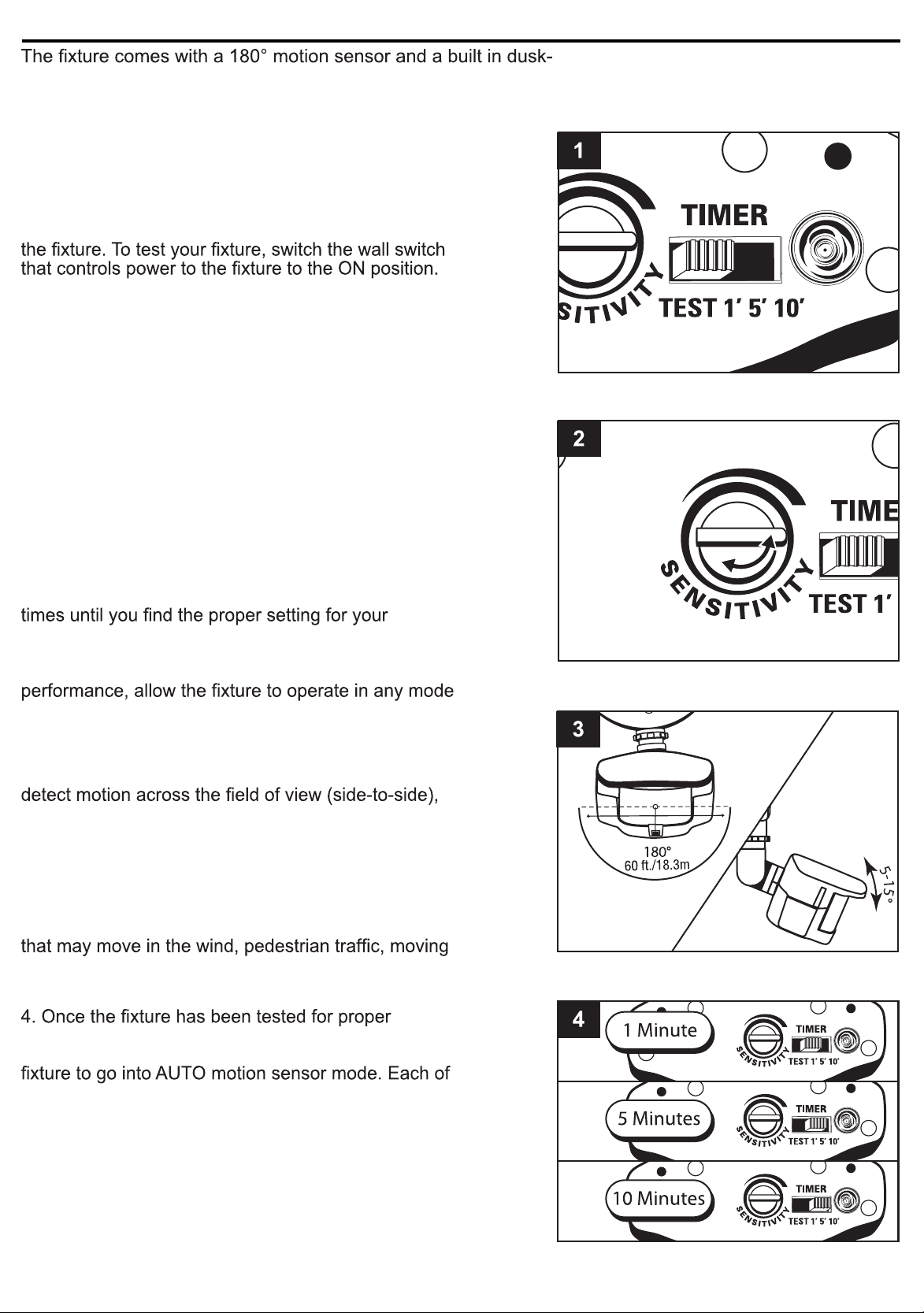

OPERATING INSTRUCTIONS
to-dawn sensor. The dusk-to-dawn
sensor disables the motion detector during daylight hours and only allows the motion sensor to activate
the light after dark. The security light will not activate during daylight hours regardless of whether it sees
motion or not.
1. The slide switch on the bottom surface of the motion
sensor has four settings:
TEST-1-5-10
In the “TEST” position, the motion sensor will turn
the lights on for 40 seconds after power is applied to
The lights will come on for 40 seconds regardless
of whether there is motion or not, and regardless of
whether it is day or night. Leave the slide switch in the
“TEST” setting and adjust the sensitivity by crossing in
the path of the sensor. The light will come on only if it
senses movement. Once movement stops, it will turn
off in 5 seconds.
2. There is also a rotary knob on the bottom of the
motion sensor labeled:
SENSITIVITY
Rotating this knob clockwise raises the sensitivity of
the motion sensor for up to 60 ft. of distance.
Rotating the knob counterclockwise lowers the
sensitivity down to as close as 5 ft. It may be
necessary to adjust the “SENSITIVITY” knob several
particular installation. NOTE: The higher sensitivity
level for longer distances (up to 60 ft.) increases the
likelihood of false triggering. For maximum range
(with power) for at least 48 hours.
3. The 180° coverage of the motion sensor is
measured side to side. Therefore, the sensor will better
rather than motion coming straight at the sensor
(in-and-out). Adjust the motion sensor head so that it
sees motion moving across the coverage area. Make
sure the sensor head is positioned with the front lens
facing slightly downward (5°-15° angle) to prevent
water accumulation on the sensor head. Do not aim
the motion sensor at a body of water, bushes or plants
cars, etc., as this will trigger the motion sensor.
operation and sensitivity, move the switch to the “1,
5, or 10” position. Each of these positions allows the
these settings indicates the time frame that the light
will remain on after detecting motion. If set for the “1”
setting, the lights will come on for 1 minute after
detecting motion, and then will go off and return to the
AUTO motion sensor mode. When set for “5”, the lights
will remain on for 5 minutes after detecting motion. If
set for “10”, the lights will remain on for 10 minutes
after detecting motion. If motion is continuously
detected during the lights’ “ON” cycle, the lights will
remain on until the motion ceases.
5

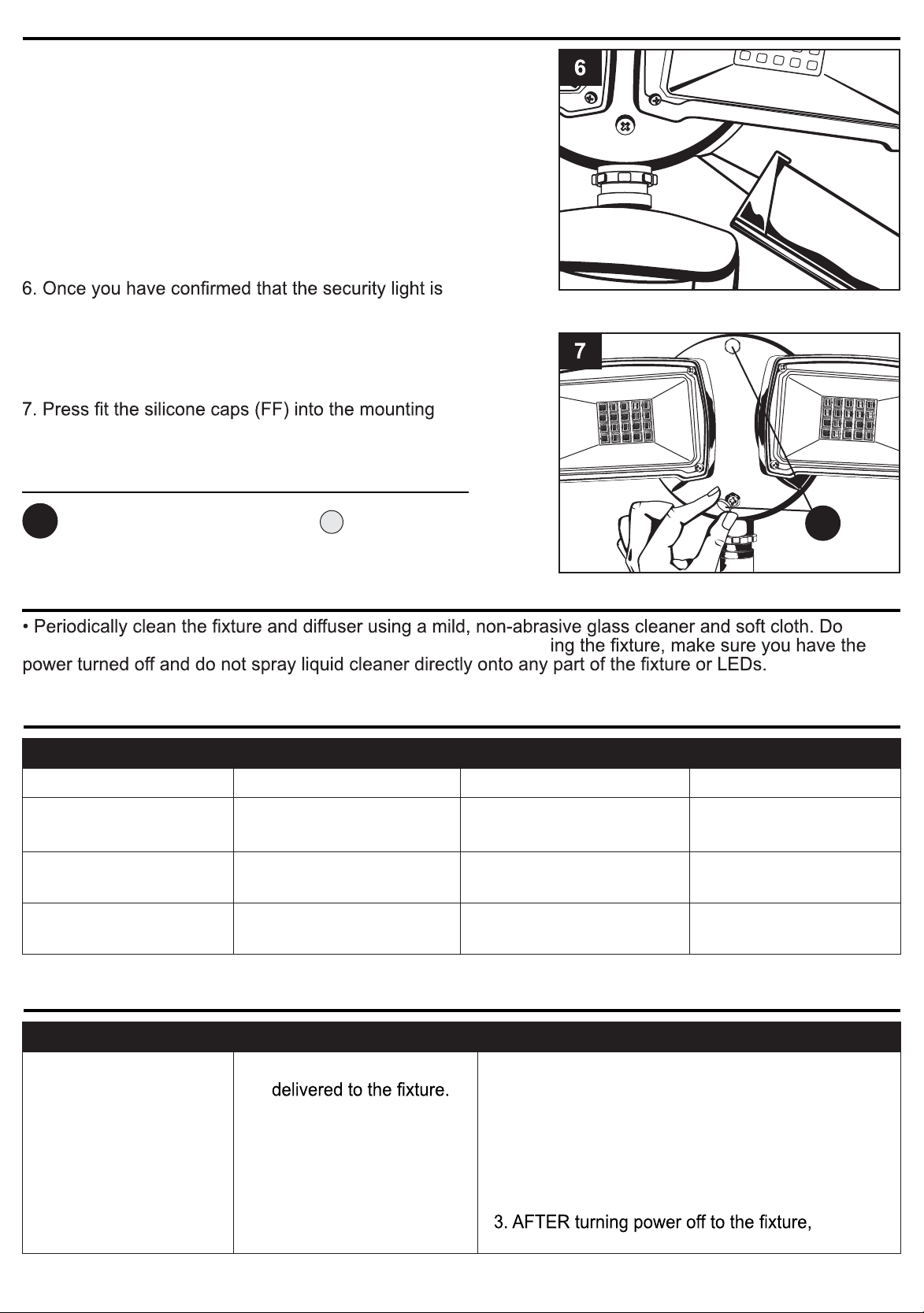

OPERATING INSTRUCTIONS
5. To be able to manually turn on the security light from
inside your home, toggle the wall light switch OFF and
ON within 2 seconds. The security light will turn on and
stay on for approximately 8 hours, or until the dusk-
to-dawn sensor detects light in the morning. Once the
dusk-to-dawn sensor detects light, the manual “ON”
mode will automatically go back to its original settings
of the AUTO motion sensor mode. At any point while in
manual “ON” mode, return to the AUTO motion sensor
mode by toggling the wall light switch OFF and ON
again within 2 seconds.
working properly, apply a small bead of silicone
caulking (not included) around the perimeter of the
rear housing cover to prevent water seepage into the
electrical compartment.
screw openings to prevent water seepage into the
housing.
Hardware Used
Silicone Caps x 2
FF
CARE AND MAINTENANCE
NOT
use solvents or cleaners containing abrasive agents. When clean
SECURITY LIGHT OPERATION
MODE SLIDE SWITCH WALL SWITCH SENSITIVITY A
Test Mode Test Turn on Any setting
AUTO Motion Sensor 1, 5, or 10 Minutes ON Any setting
Mode
Manual “ON” Mode 1, 5, or 10 Minutes Toggle OFF and ON Any setting
within 2 seconds
Return to AUTO Motion 1, 5, or 10 Minutes Toggle OFF and ON Any setting
Sensor Mode within 2 seconds
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A
Light does not come on 1. No power is being 1. Check that circuit breaker and/or wall
at night when motion switch power is on.
is detected.
2. Another light source is 2. Turn off surrounding lights and/or re-aim
causing the security light the sensor head.
to think it is daylight.
3. Wiring inside electrical
came loose. reconnect any loose wiring.
FF
6

WARRANTY
of (3) years from the date of original purchase by the consumer. We will repair or replace (at our option) the unit
in the original color and style if available, or in a similar color and style if the original item has been discontinued,
application where it is on 24 hours per day, but is used in a residential environment for 3 - 5 hours per day.
Defective units must be properly packed and returned to the manufacturer with a letter of explanation and your
original purchase receipt showing date of purchase. Call 1-866-994-4148 to obtain a return authorization number
and an address where to ship your defective product. Note: No C.O.D. shipments will be accepted. The liability of
The manufacturer will
not be liable for any other loss, damage, or injury which is caused by the product. This limitation upon the liability
of the manufacturer includes any loss, damage, or injury which is (I) to person or property or otherwise; (II)
incidental or consequential in nature; (III) based upon theories of warranty, contract, negligence, strict liability,
tort, or otherwise; or (IV) directly, or indirectly
related to the sale, use, or repair of the product. This warranty
Printed in China
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A
Security light comes 1. Dusk-to-dawn sensor is
on during the day. a shaded area and is
fooled into thinking it mounted in an area that does not allow enough
is nighttime. light to enter the sensor. Relocate security light.
2. Dusk-to-dawn sensor 2. If under warranty, contact Customer Service.
is faulty.
Security light cycles ON 1. Dusk-to-dawn sensor is 1. Change position of light head aim light
and OFF continuously.
from the security light.
2. Put a small piece of black electrical tape over
the Dusk-to-dawn sensor control.
3. Relocate security light to a different location
Security light comes 1. Light is sensing motion 1. Make sure the sensor is not picking up moving
on for no apparent in the detection zone.
reason at night.
2. Test the motion sensor by covering up the front
curved lens with cardboard to block the view. If
the light turns off then something in the
detection zone is triggering the sensor.
Reposition the motion sensor or change the
sensitivity (distance) of the sensor.
Lowes.com
Utilitech & UT Design® are registered
trademarks of LF, LLC. All Rights Reserved.
7
