UV-technik EVG UVT 2x 100-200 W User manual

UV-Technik Speziallampen GmbH, Gewerbegebiet Ost 6, 98704 Wolfsberg
Stand: 07.07.2016
Operating Manual
Electronic Power Supply
EVG UVT 2x 100-200 W 1.2-2.1 A
EVG UVT 2x 150-320 W 1.5-2.1 A
EVG UVT 2x 150-320 W 1.8-2.9 A

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
page 2 of 17 subject to change without notice operating manual EVG UVT 200-480W
Imprint
All rights reserved
©Copyright by UV-Technik Speziallampen GmbH
Gewerbegebiet Ost 6
98704 Wolfsberg/ OT Wümbach
Printed in Germany, Mai 2016
No parts of this operating manual may be reproduced in any form without the prior written permission of
the UV-Technik Speziallampen GmbH. If any part of this user’s manual is reproduced, stored in a retrieval
system or transmitted in any form or by any means without obtaining the prior written permission of the
UV-Technik Speziallampen GmbH, this will be considered as an infringement of the copyright and legal
action will be taken. We reserve the right to effect technical changes for the improvement of the
equipment described herein or to raise the safety standard of the said equipment without prior notice.
Responsible for the content: UV-Technik Speziallampen GmbH
Layout: UV-Technik Speziallampen GmbH

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
operating manual EVG UVT 200-480W subject to change without noticepage 3 of 17
Summary description: Electronic power supplies EVG UVT 2x 100-320 W
Table of contents
Warning notes and symbols in the operating instructions...........................................................4
1 Device and function description.............................................................................................5
2 Safety instructions.................................................................................................................6
General information ................................................................................................................................... 6
Appropriate use.......................................................................................................................................... 6
Staff obligation ........................................................................................................................................... 6
Hazards from handling the equipment ...................................................................................................... 7
Warranty and liability................................................................................................................................. 7
Organizational measures............................................................................................................................ 7
Informal safety measures........................................................................................................................... 8
Danger due to electricity ............................................................................................................................ 8
Service, maintenance, remedying faults .................................................................................................... 8
3 Transport, storage, delivery...................................................................................................9
4 Order data for equipment......................................................................................................9
Equipment .................................................................................................................................................. 9
5 Repair ...................................................................................................................................9
6 Faults ..................................................................................................................................10
General information ................................................................................................................................. 10
Status indication / fault list...................................................................................................................... 10
7 Technical data .....................................................................................................................11
Product description ................................................................................................................................. 11
Performance data.................................................................................................................................... 11
General data, mains connection ............................................................................................................. 11
Characteristics ......................................................................................................................................... 11
Adjustment of lamp current .................................................................................................................... 11
Monitoring circuitry................................................................................................................................. 12
Status indication - generally .................................................................................................................... 12
Installation instructions ........................................................................................................................... 12
Status output ........................................................................................................................................... 12
Wire length / cabling ............................................................................................................................... 12
Connectors............................................................................................................................................... 12
Compliance with standards ..................................................................................................................... 12
8 Technical documentation ....................................................................................................13

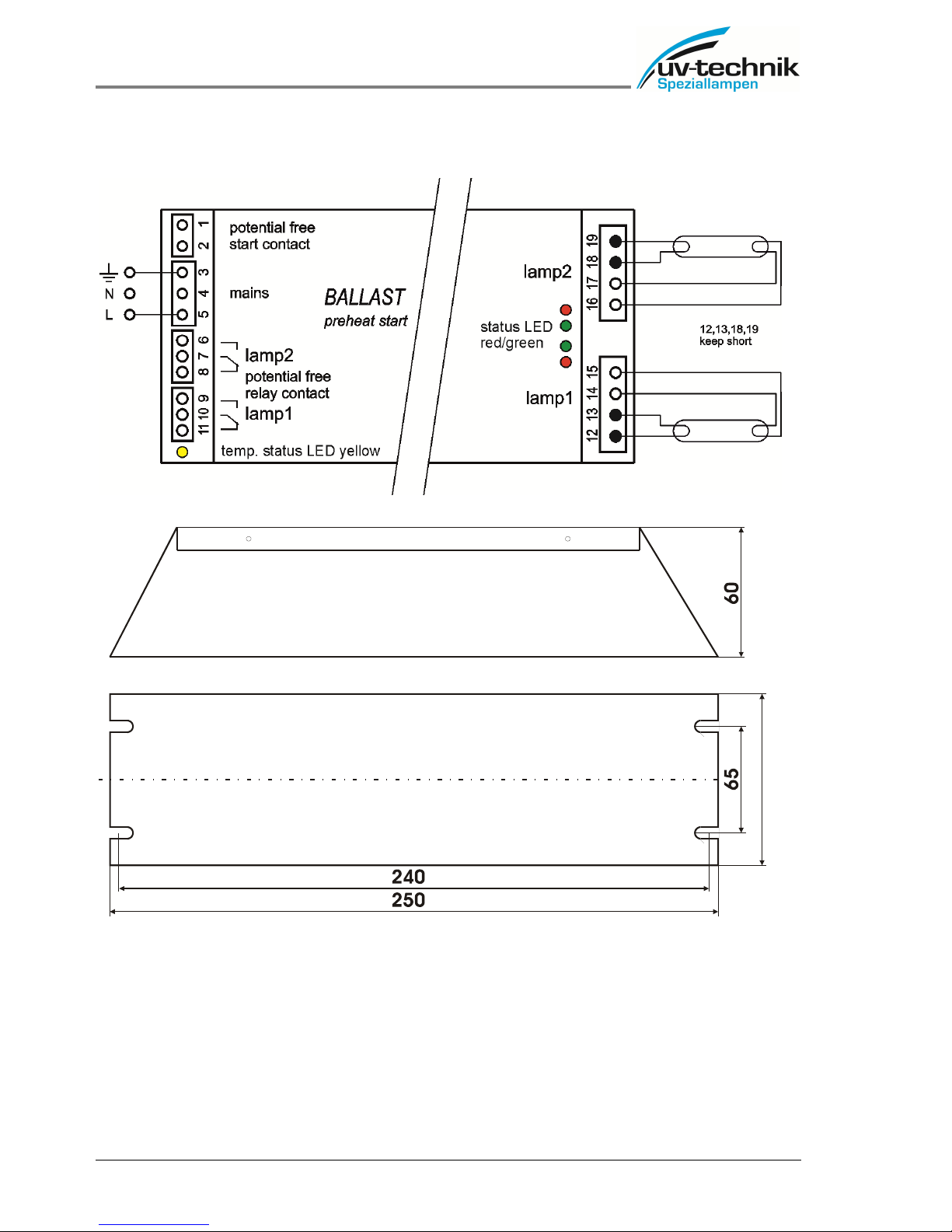

Terminal diagram..................................................................................................................................... 13
Dimensional drawing ............................................................................................................................... 13
9 Installation instructions.......................................................................................................14

General sales and delivery conditions
page 4 of 17
Warning notes and
symbols
These operating i
nstructions describe the
operation and its uses. The safety and warning notices explain the safe, proper handling of the device.
You will find the symbols listed below next to all safety and warning instructions in these operating
instructions where there is dange
possible danger.
Observe these notes closely and be especially careful in these cases in order to preclude accidents.
DANGER!
The signal word
not avoided, death or very severe injuries
property is possible.
WARNING!
The signal word
death or very severe injuries
possible.
CAUTION!
The signal word
slight injury
/ damage to health
The symbols used in these operating instructions have the following meaning:
This symbol warns of a hazard area.
This symbol warns of a hot surface
This symbol war
The two followin
g symbols are used to address practices for optimal operation and/or prevention o
damage to the equipment. These
signal words ATTENTION and
ATTENTION!
This symbol wi
th signal word is found at those
be observed so that damage or destruction of the equipment is prevented
NOTE!
This
symbol is found next to notes, tips on operation and useful
General sales and delivery conditions
of UV-Technik Speziallampen GmbH are valid. Provision of the
manual is mandatory
subject to change without notice
symbols
in the operating instructions
nstructions describe the
singled flamed electronic power s
upply
operation and its uses. The safety and warning notices explain the safe, proper handling of the device.
You will find the symbols listed below next to all safety and warning instructions in these operating
instructions where there is dange
r to life and limb.
An additional signal word indicates the severity of a
Observe these notes closely and be especially careful in these cases in order to preclude accidents.
The signal word
marks
a danger with high risk or
an
immediately threatening danger. If it is
not avoided, death or very severe injuries
/ damage to health
will result. Damage to
property is possible.
The signal word
marks
a danger with medium risk or dangerous situation
death or very severe injuries
/ damage to health
could result. Damage to property is
The signal word
marks
a danger with low risk or
marks a possible danger. If it is not avoided,
/ damage to health
could be possible. Da
mage to property is possible.
The symbols used in these operating instructions have the following meaning:
This symbol warns of a hazard area.
This symbol warns of a hot surface
.
ns of hazardous electrical voltage.
g symbols are used to address practices for optimal operation and/or prevention o
damage to the equipment. These
information are not related to hazardous situations. Additionally, the
NOTE! are used.
th signal word is found at those
places in the operating instructions which must
be observed so that damage or destruction of the equipment is prevented
symbol is found next to notes, tips on operation and useful
information
manual is mandatory
.
operating manual EVG UVT 200-480W
upply
of the EVG UVT series, its
operation and its uses. The safety and warning notices explain the safe, proper handling of the device.
You will find the symbols listed below next to all safety and warning instructions in these operating
An additional signal word indicates the severity of a
Observe these notes closely and be especially careful in these cases in order to preclude accidents.
immediately threatening danger. If it is
will result. Damage to
a danger with medium risk or dangerous situation
. If it is not avoided,
could result. Damage to property is
marks a possible danger. If it is not avoided,
mage to property is possible.
The symbols used in these operating instructions have the following meaning:
g symbols are used to address practices for optimal operation and/or prevention o
f
information are not related to hazardous situations. Additionally, the
places in the operating instructions which must
be observed so that damage or destruction of the equipment is prevented
.
information
.

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
operating manual EVG UVT 200-480W subject to change without noticepage 5 of 17
1Device and function description
The EVG UVT is a microprocessor-based electronic power supply for two UV low pressure lamps. It is
available in two sizes for wattages from 2x 100-200W and 2x 150-320 W. It allows to operate all UV low
pressure lamps in a power range from 200 W up to 480 W with lamp currents from 1.2 A up to 2.1 A. A
rotary switch with 10 positions enables the selection of diverse lamp parameters. All commercially
available lamps are covered with the standard types described like follows.
The EVG UVT is designated for medium size installations. The two-channel design minimizes the costs per
lamp. The two-flamed unit comes by default with an input for remote control. Via an external 10-230 V
AC/DC signal a remote control can be realized easily. The function provides the possibility for switching
block by block. Especially in bigger installations will that minimize switching peaks, can reduce the risk of
EMC disturbances and shall be used to vary the power according to the requirements. Hence the function
replaces the dimming function, available at our single-flamed ballast types. The total numbers of ballasts in
the application have to be apportioned to the phases. The function is active at positions 5-9 of the rotary
switch. For switch positions 0-4 the switching on occurs by applying the mains voltage.
A microprocessor controls and monitors the device and the connected lamps in order to prevent damages
during operation. Breakdowns are displayed via potential-free contact per lamp/channel. Simultaneously
LEDs show the status and the type of failure. Both lamps run independent from each other. So the failure
of one lamp do not provoke the breakdown of the second lamp. The permanent operation with only one
lamp must be avoided if the allowed minimal input power will be undercut.
The EVG UVT contains no internal fan and must be mounted upright with the mains clamps below. With
unhindered convection, proper heat dissipation is guaranteed up to ambient temperatures of 40°C.
Criterion for the correct cooling is the tc-point temperature of 50°C at the case cover. To avoid damages by
overheating, the EVG UVT must be forced cooled in case of exceeding that threshold or if the mounting
position is deviant. Units for power range of 2x 150-320W are equipped with an additional yellow LED,
which provides a premonition for overheating. The blinking of that yellow LED indicates that a permanent
operation causes losses in life time. Still higher temperatures provoke a shutdown.
The EVG UVT is designated for integration into switch cabinet and switch boxes. The connection of the unit
is realized by pluggable spring clamps and provides so the preassembling of the cables.
The EVG UVT offers the following essential advantages:
·compact design, low weight, little cabling effort
·two independent lamp channels
·constant power output over the entire input voltage range
·high frequency operation eliminates flickering of cathodes and raises the UV-efficiency
·integrated remote control function to minimize EMC disturbances, resp. for remote switching
·mains voltage range permits use in Europe at 230 V AC and America at 208 V AC
·rotary switch for adjustment of lamp types and enabling the remote control function
·failure display by potential free contact and blink code
·pre heating and gentle ignition to extend lamp life time
·high efficiency operation with additional cutoff of filament heating during operation
·potential-free connection of external LEDs possible, LED supply integrated for easy application
·integrated in rush current limiter
·tailor made programming of special lamps within the power range possible
·RS485 control as option

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
page 6 of 17 subject to change without notice operating manual EVG UVT 200-480W
2Safety instructions
General information
A sound knowledge of all basic safety regulations is essential to ensure safe and fault-free operation of the
EVG UVT.
This operating manual contains all important safety regulations to ensure safe operation of the equipment.
This operating manual, and in particular the safety instructions, must be observed by all persons working
with the equipment.
In addition, all relevant rules and accident prevention regulations relating to the operation site must be
observed. In regular intervals, the operator will check that all personnel are observing the safety
regulations.
Appropriate use
EVG UVT is a microprocessor-based electronic power supply for UV low pressure lamps.
Any other use or use above and beyond these terms is defined as inappropriate and is thus dangerous.
The operator may only operate the equipment as stipulated by the operating instructions in this manual.
The following are further conditions for appropriate use:
·the observance of all points listed in this user manual
·compliance with the general and specific safety instructions in this user manual
·compliance with the relevant accident prevention regulations
A
TTENTION
!
UV-Technik Speziallampen GmbH is not liable for damage resulting from inappropriate use of
the equipment.
Staff obligation
Before commencing work, all persons entrusted with work to be performed on the EVG UVT undertake the
following:
·to observe the safety at work and accident prevention regulations
·to read the chapter on safety and the warnings printed in this manual and to observe them at all
times while using the equipment

General sales and delivery conditions
of UV
operating manual EVG UVT 200-480W
Hazards from handling the equipment
The EVG UVT
has been manufactured in accorda
the recognized rules of safety technology.
The equipment may only be used under the following conditions
·
it is used for the purpose for which it was constructed
·in a condition in
which the equipm
DANGER!
–
HAZARDOUS ELECTRICAL VOLTAGE
Switch off the main switch and the main contactor before working on the connections of the
power on the power supply or the UV lamp, e.g. for a lamp replacement
the
danger of an electric shock.
Reason: During operation, the UV lamp is switched off by semicond
does not
correspond to a safe separation from the mains supply according to VDE! Residual
voltages!
Attention: Danger of life!
Warranty and liability
The General sales and delivery conditions of
have received these terms, at the latest upon signing the contract. The UV
not liable for any damage
to persons or property arising
·i
nappropriate use of the EVG UVT
·
incorrect assembly, commissioning and operation of the EV
·
operation of the EVG UVT with faulty and/or non functioni
·
non observance of the instructions given in the user’s manua
transport, storage, assembly, commissioning, operation and servicin
·unauthorized
alterations to the construction of the EVG UVT
·re
pairs which are carried out incorrectly
·
catastrophes, the action of foreign bodies or acts of God
·
damages or losses orginated from the use or a defect of the EVG UVT
Organizational measures
All safety devices on the equipment must be tested for correct
work and at each shift change. Look for external signs of damage.
of UV
-Technik Speziallampen GmbH are valid. Provision of the
manual is mandatory
subject to change without notice
Hazards from handling the equipment
has been manufactured in accorda
nce with the very latest state-of-the-
art technology and
the recognized rules of safety technology.
The equipment may only be used under the following conditions
:
it is used for the purpose for which it was constructed
which the equipm
ent complies with all safety technology requirements
HAZARDOUS ELECTRICAL VOLTAGE
!
Switch off the main switch and the main contactor before working on the connections of the
power on the power supply or the UV lamp, e.g. for a lamp replacement
, in order
danger of an electric shock.
Reason: During operation, the UV lamp is switched off by semicond
uctor components. This
correspond to a safe separation from the mains supply according to VDE! Residual
The General sales and delivery conditions of
UV-Technik Speziallampen GmbH apply
. The operator will
have received these terms, at the latest upon signing the contract. The UV
-
Technik Speziallampen GmbH is
to persons or property arising
from any one or more of the following:
nappropriate use of the EVG UVT
incorrect assembly, commissioning and operation of the EV
G UVT
operation of the EVG UVT with faulty and/or non functioni
ng safety and
protection device
non observance of the instructions given in the user’s manua
l with reference to the safety,
transport, storage, assembly, commissioning, operation and servicin
g of the device
alterations to the construction of the EVG UVT
pairs which are carried out incorrectly
catastrophes, the action of foreign bodies or acts of God
damages or losses orginated from the use or a defect of the EVG UVT
All safety devices on the equipment must be tested for correct
functioning regularly, prior to
work and at each shift change. Look for external signs of damage.
manual is mandatory
.
page 7 of 17
art technology and
ent complies with all safety technology requirements
Switch off the main switch and the main contactor before working on the connections of the
, in order
to eliminate
uctor components. This
correspond to a safe separation from the mains supply according to VDE! Residual
. The operator will
Technik Speziallampen GmbH is
from any one or more of the following:
protection device
l with reference to the safety,
g of the device
functioning regularly, prior to
carrying out

General sales and delivery conditions
page 8 of 17
Informal safety measures
In addition to this user
manual, the generally and locally applicable accident prevention and environmental
protectio
n regulations must be made available and observed.
Danger due to electricity
DANGER! –
HAZARDOUS ELECTRICAL VOLTAGE
There is a danger causes
The electrical components of the EVG UVT must be inspected
Before commencing work:
·check all
equipment components for external signs of damage
·
check that all electric cables
Loose connections must be tightened and damaged wiring replaced immediately.
Service, maintenance,
remedying faults
In the unlikely event of faults occurring on the EVG
UVT, the chapter ‘Faults’ offers information on the
causes of the fault and possible remedial action.
In the unlikely event of faults occurring which
cannot be remedied by any of the p
listed, please contact our customer service
department.
No chan
ges may be made to the EVG UVT, no
fittings may be added or conversions carrie
without obtaining the prior permission of the U
Technik Speziallampen GmbH.
WARN
ING
!
No repairs or changes to the equipment other than those described in this manual may be
carried out.
General sales and delivery conditions
of UV-Technik Speziallampen GmbH are valid. Provision of the
manual is mandatory
subject to change without notice
manual, the generally and locally applicable accident prevention and environmental
n regulations must be made available and observed.
HAZARDOUS ELECTRICAL VOLTAGE
!
There is a danger causes
by direct or indirect contact with electricity!
The electrical components of the EVG UVT must be inspected
regularly.
equipment components for external signs of damage
check that all electric cables
are in perfect condition
Loose connections must be tightened and damaged wiring replaced immediately.
remedying faults
In the unlikely event of faults occurring on the EVG
UVT, the chapter ‘Faults’ offers information on the
causes of the fault and possible remedial action.
In the unlikely event of faults occurring which
cannot be remedied by any of the p
rocedures
listed, please contact our customer service
ges may be made to the EVG UVT, no
fittings may be added or conversions carrie
d out
without obtaining the prior permission of the U
V-
In the event of claim
s under the warranty, for our
repair and spare parts service, please contact:
UV-Technik Speziall
ampen GmbH
Gewerbegebiet Ost 6
98704 Wolfsberg/
OT Wümbach
Tel.: 0049 - 36785 -
520 0
Fax: 0049 - 36785 -
520 21
E-Mail:
[email protected]om
Website:
www.uvtechnik.com
No repairs or changes to the equipment other than those described in this manual may be
manual is mandatory
.
operating manual EVG UVT 200-480W
manual, the generally and locally applicable accident prevention and environmental
by direct or indirect contact with electricity!
Loose connections must be tightened and damaged wiring replaced immediately.
s under the warranty, for our
repair and spare parts service, please contact:
ampen GmbH
OT Wümbach
520 0
520 21
[e-mail]
www.uvtechnik.com
No repairs or changes to the equipment other than those described in this manual may be

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
operating manual EVG UVT 200-480W subject to change without noticepage 9 of 17
3Transport, storage, delivery
Das EVG UVT will be delivered in an appropriate packing.
Any damage detected must be documented at once and reported immediately to your specialist dealer or
directly to the UV-Technik Speziallampen GmbH.
NOTE!
Packing material must be disposed of in an environment friendly way or re-used if possible.
We would recommend that the packing material be kept to protect the equipment if it needs
to be shipped onward or otherwise transported.
4Order data for equipment
Order equipment from:
UV-Technik Speziallampen GmbH
Gewerbegebiet Ost 6
98704 Wolfsberg/ OT Wümbach
Tel.: 0049 - 36785 - 520 0
Fax: 0049 - 36785 - 520 21
E-Mail: [email protected]m
Equipment
Description
A
rticle/ O
rder Number
flexib
l
e adjustable
p
reset
EVG UVT 2x 100
-
200 W 1,2
-
2,1 A
203 02000 xxxx
203 02010
–
203 02019 xxxx
EVG UVT 2x 150
-
320 W
1,5
-
2,1 A
203 02100 xxxx
203 02110
–
203 02119 xxxx
EVG UVT 2x 150
-
320 W
1,8
-
2,9
A
203 02200 xxxx
203 02210
–
203 02219 xxxx
The sales and distribution department of the UV-Technik Speziallampen GmbH provide you advice
regarding the correct equipment for the used lamp type and clarity in detail the differences.
5Repair
Should the EVG UVT be damaged or defective in any way, you have to send the unit back UV-Technik
Speziallampen GmbH for testing and/or repair!
By opening the unit or by breaking the unit’s inspection seal, you lose any warranty claim!

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
page 10 of 17 subject to change without notice operating manual EVG UVT 200-480W
6Faults
General information
The following fault lists contain information on
faults which may occur on the EVG UVT, possible
causes and tips on how to remedy the fault.
If a fault occurs on your equipment and cannot be
remedied by following these instructions, contact
the customer service department of the UV-Technik
Speziallampen GmbH.
Contact addr
ess
:
UV-Technik Speziallampen GmbH
Gewerbegebiet Ost 6
98704 Wolfsberg/ OT Wümbach
Tel.: 0049 - 36785 - 520 0
Fax: 0049 - 36785 - 520 21
E-Mail: [email protected]m
The EVG UVT switches of the lamp in case of a breakdown or failure. The failure status is indicated with the
potential-free contact and additonally with a blinking code of the red LED. The failure status is maintained
until switching off the mains voltage. Only by switching off the mains voltage, it is possible to reset the
failure status. After having eliminated the failure cause and carried out a reset, you can start again the EVG
UVT.
Fault list
ballast status failure
contact
LED
red
LED
green description possible causes
start / pre heating off on blink ballast in pre heating
start / ignition off on on ignition of the ballast
normal operation on off on system lamp/ballast ok
start condition not
fulfilled off steady
blink
steady
blink ballast is waiting for start
- mains under- or overvoltage
- start at over temperature
- no lamp
- lamp plug disconnected or cable break
temperature failure off blink
1x off
cut off by persisting
over temperature,
tc-temperature exceeded,
too high ambient temp.
- insufficient heat dissipation
- wrong installation position
- housing / cabinet too small
- cabinet fan (cooling) out of order
mains undervoltage off blink
2x off cut off by persisting undervoltage - mains voltage below threshold
mains overvoltage off blink
3x off cut off by persisting overvoltage - mains voltage exceed threshold
incorrect lamp voltage off blink
4x off
cut off by monitoring
of the lamp voltage
lamp voltage abnormal
(too high or too low)
- wrong lamp type for parameter set
- lamp at end of life time (rectifier effect)
- deactivated lamp during operation
- dimming below power threshold
- start with deactivated lamp
overcurrent at half bridge
during operation off blink 5x off
cut off by overcurrent
at the half bridge
(abnormal operation)
- ignition not possible/successful
- too long cable
- defective/wrong lamp
- defective contact or short circuit in
the lamp cabling during operation
overcurrent at half bridge
during pre heating off blink 6x off
cut off by overcurrent
at the half bridge
(abnormal operation)
- lamp cabling failure
- short circuit in the lamp cabling
- start without lamp
to count the numbers of blinking, please count the dark phases or rising edges, e.g.: 12345

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
operating manual EVG UVT 200-480W subject to change without noticepage 11 of 17
7Technical data
Product description
main features intended use
ballast with pre heating
cut off of pre heating current in operation
lamps and current adjustable in 5 steps
by default with remote control input
with limiter of in rush current
external potential-free status LED connectable
for all applications with Amalgam UV lamps
for water and air applications
for applications with many switches
for installation in cabinets
suitable for many lamps of various manufactures / suppliers
Performance data
* The minimal lamp power of the connected lamp(s) must not be undercut. The total power of the connected lamp(s) +approx. 10% power loss
must be within the stated limit. Please note that the lamp power depends from its operation conditions.
Attention: The lamp name is not a save information regading the lamp power. Please gather the correct values from the lamp data sheet.
General data, mains connection
mains electricity supply (terminal 3-5) 187…253 V AC (208/230 ± 10%), 50/60 Hz
power factor > 0.95 non-dimmed
efficiency > 0.9 non-dimmed
operating frequency approx. 28…70 kHz
in rush current Î < 40 A after 30 µs / Î < 30 A after 300 µs
relay contacts (terminal 6-8, 9-11)1 changer
maximal load 5 A, 250 V AC / 5 A, 24 V DC ohmic load
recommended minimal load ≥ 12 V DC / 10 mA
remote input (terminal 1/2)10-230 V AC/DC galvanically isolated
(to be used for switching of groups in big installations via remote control)
standby current approx. 2 W
status output (RJ45)galvanically isolated connection for 4 external LED for external 12 V DC
leakage current to PE max. 5 mA (typically 3.5 mA)
Characteristics
lamp types on request
ignition with 12 sec pre heating (current adjustable with code switch)
lamp current and pre heat ranges 10 steps adjustable within the power range of the ballast
Adjustment of lamp current
adjustment by turning the code switch
on top of the ballast
Please ask your supplier for the correct adjustment.
No warranty for damages caused by incompatible lamps
or wrong adjustments!
internal start (start with applying mains voltage) 0-4: adjustable lamp currents according table performance data
remote start (start via remote input signal) 5-9: adjustable lamp currents according table performance data
switching of the lamp current parameters must be carried out before voltage application;
switching during operation will not be detected
EVG UVT 2x 100-200W 2x 150-320W 2x 150-320W
article number 203 020xx xxxx 203 021xx xxxx 203 022xx xxxx
mains input power* min. /max. 220 W / 450 W 330 W / 700 W 330 W / 700 W
output power / lamp wattage 100…200 W 150…320 W 150…320 W
variable lamp current range (±10%) 1,2 / 1,5 / 1,8 / 2,0 / 2,1 A 1,5 / 1,8 / 2,0 / 2,1 A 1,8 / 2,0 / 2,1 / 2,5 / 2,9 A

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
page 12 of 17 subject to change without notice operating manual EVG UVT 200-480W
Monitoring circuitry
mains voltage monitoring cut off in case of persisting under- or overvoltage
temperature monitoring cut off in case of persisting over temperature
lamp presence check
filament check
prevention of ignition if lamp is not connected or
if a wrong filament is indentified
short circuit of lamp wires immediate cut off
lamp failure (see possible causes at status indication) cut off
Status indication - generally
operation indicator LED green normal operation
trouble indicator LED red failure by cut off
potential free contact (failure contact)
relay / changer (terminal 6-8, 9-11)
relay on (6-7 closed, 9-10 open)
relay off (7-8 open, 10-11 closed)
normal operation
no mains / no lamp ignition / failure

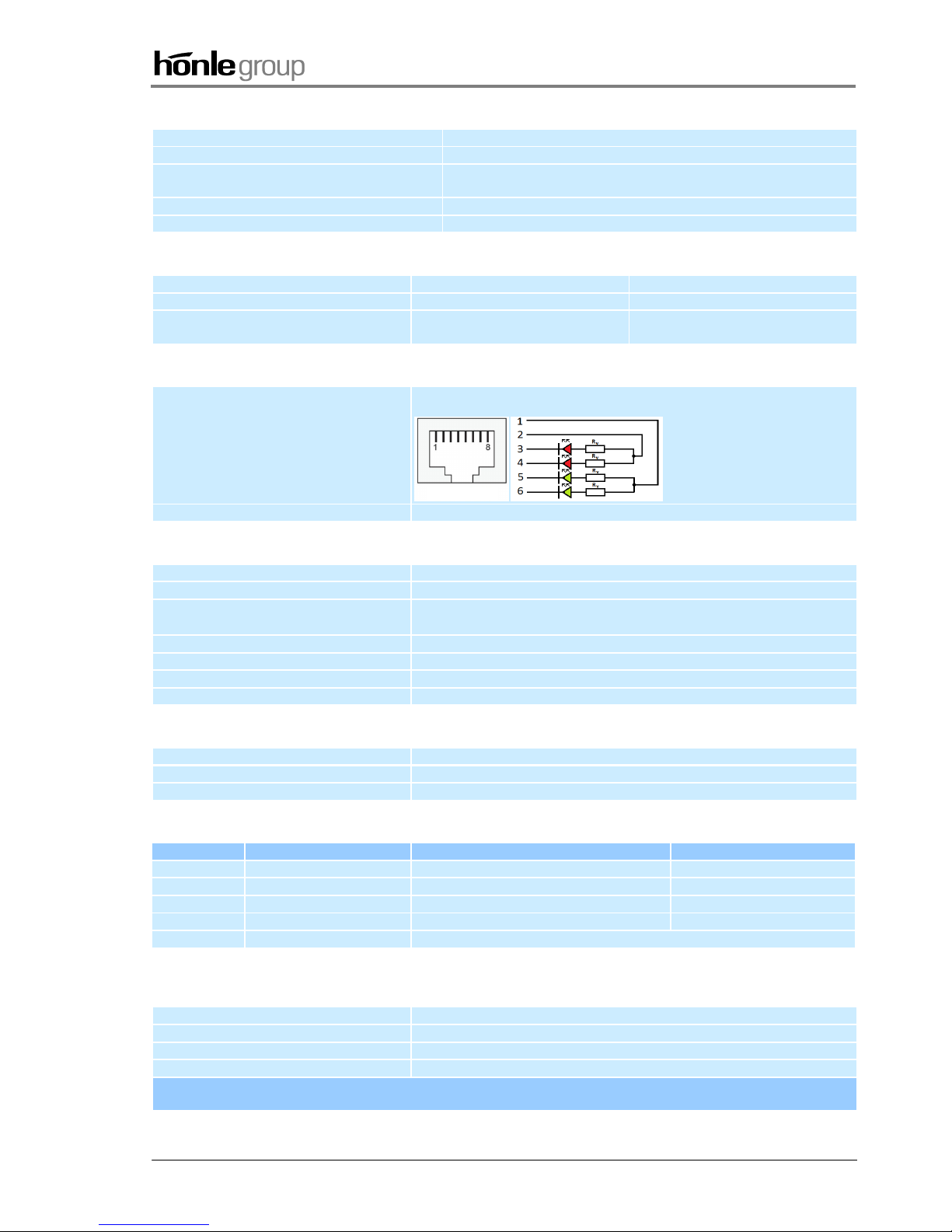

Status output
external LED status indication (RJ45)
supplied via internal 12 V DC
(output short-circuit protected)
galvanically isolated connection of 2 external LEDs per lamp channel
series resistor must be calculated according to the LED current, minimal 600 Ohm
1: +12V
2: +12V
3: GND LED red channel 1
4: GND LED red channel 2
5: GND LED green channel 1
6: GND LED green channel 2
optional possibilities (RJ45, terminal 20)RS485 interface
Installation instructions
designed for installation in electrical cabinets
IP protection class IP20
size of housing (w x d x h)
borehole spacing 240 mm
250 x 105 x 60 mm (2x 100-200W)
250 x 150 x 60 mm (2x 150-320W)
mounting position vertical (mains supply connector downside for optimal heat dissipation)
ambient temperature ta= 0...40°C
relative humidity max. 80% non condensing
temperature at tc - point tc= 50°C max. at housing (forced cooling necessary if exceeded)
Wire length / cabling
allowed wire length to 5 m (longer cable possible, depending from cable capacity and laying)
allowed cable capacity max. 750 pF/m
shielded wire allowed yes (Attention: Connect shield only at one side, avoid ground loops!)
Connectors
clamp connector for allowed stranded wire gauge with ferrule allowed rigid wire gauge
1, 2 remote input Ø: 0.25...1.0 mm² / 30-17 AWG 0.2-1.5 mm² / 32-16AWG
3..5 mains Ø: 0.75...1.5 mm² / 18-16 AWG 0.75-2.5 mm² / 18-11AWG
6..8, 9..11 relay contacts Ø: 0.25...1.0 mm² / 30-17 AWG 0.2-1.5 mm² / 32-16AWG
12..15, 16..19 lamps Ø: 0.75...1.5 mm² / 18-16 AWG 0.75-2.5 mm² / 18-11AWG
20 (RJ45) output (LED/485)* optionally: accessory cable 1 m, with RJ45 plug
* only active in ballast types with flexible adjustment
Compliance with standards
Safety EN 61347-2-3
EMC limits for harmonic current emissions EN 61000-3-2
EMC radio interference suppression EN 55011 class A1
EMC immunity EN 61547
The stated EMC standards apply only to single ballast and for cable length < 3 m. Since the ballast is a part of an installation it
needs in most cases an extra EMC approval of the whole device and necessarily additional measures to reduce disturbances.
RJ45 connector

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
operating manual EVG UVT 200-480W subject to change without noticepage 13 of 17
8Technical documentation
Terminal diagram
Dimensional drawing
depth EVG UVT 2x 100-200W: 105 mm
depth EVG UVT 2x 150-320W: 150 mm
External status
-
LED only
available in types
203 xxx01 xxxx, with
flexible adjustment
105 / 150

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
page 14 of 17 subject to change without notice operating manual EVG UVT 200-480W
9Installation instructions
Point of installation
The EVG UVT must be installed and operated only in a dry, chemically and bioligically inactive environment.
Installation in vibrating parts of the system is not allowed. Hints regarding IP protection have to be
observed. The EVG UVT must be mounted upright at a grounded mounting base, which absorbs and
removes ideally the emitted heat partly. For the installation, suitable fixing screws have to be selected. It is
necessary to ensure that a distance between the screw and the printed ciruit board of at least of 3 mm is
kept. In no case, wide flat screw heads may be used, which protrude below the PCB (danger of short ciruit!).
The EVG UVT and its cabeling should be mounted separatelly from other components of the installation if
possible. That is especially important for control, signal or sensor cables with its low voltages/currents.
Connection / cabling
The EVG UVT must be connected according the terminal diagram and the front sticker. The ballast is
equipped with spring tension terminals, suitable as well for stranded wires as for rigid cables. The possible
wire gauges are spezified in the technical data. Length of the stripped insulation or ferrules must be chosen
according to the size of the terminals. The connection must be tight. Otherwise short ciruits, wrong or
loose connections could cause disfunctions and damages.
Cabeling of lamps
Each lamp must be connected to the EVG UVT with an individual cable. It is not allowed to bundle several
lamp cables into a multi-core cable. Cable connections to the lamp may not be disconnected during
operation. By no means install additonal components into the lamp supply cable, such as relays, switches,
ignitors or capacitors. The number of the clamping points in the lamp cable should be reduced to a
minimum, if possible any additional clamping should be avoided. Designated clamps and connectors must
be checked carefully, not only rearding electrical data but necessarily also relating to temperature and
environmental conditions. Clamp contacts must be protected against corrosion. Sparks at corroded clamps
could cause disfunctions or breakdown of the EVG UVT and imply fire hazard.
Because of the high frequency supply, lamp cables emitts disturbances. Hence never install mains supply
cables or control cables parallel to lamp cables. To minimize EMC disturbances, lamp cables must be kept
as short as possible. Do not exceed the maximal lenght or cable capacity specified in the technical data. It is
allowed to use shielded cables to reduce interferences. But note thus increases the cable capacity.
Installing lamp cables in parallel as well as at metallic surfaces or cable ducts raise also the capacity. The
sum of all parasitic capacities detune the oscillator circuit in the EVG UVT and can cause ignition problems
and a deviant lamp current.
Mains supply cabling
The mains supply cabling must have a low impedance and the installation of the power cable has to be
such that interferences by the emission of lamp cables are minimized. Mains supply cables must be kept
short and should not be installed parallel to the lamp cables or directly along the ballast housings.
Intersections with lamp cables should be avoided where possible. If absolutely necessary, such crossings
shall be made in right angles and a certain distance. Unavoidable noise interferences must be filtered with
appropriate measures. Basically, the interference avoidance is preferable to interference elimination.

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
operating manual EVG UVT 200-480W subject to change without noticepage 15 of 17
0
10000
20000
30000
40000
50000
60000
70000
80000
90000
100000
70 80 90 100 110
life time h
temperature of electrolytic capacitor in°C
Grounding
A clean earth potential and a proper grounding with an adequate cable cross section are the preconditions
for compliance with the EMC standards. Only if this is guaranteed, high frequecy disturbances can be
derived an thus prevented. Therefore, always connect all grounding terminals. Ground the mounting base
plate. Do not forget to ground the cabinet door. Use toothed washers for a reliable contacting of painted
surfaces/housings. Avoid ground loops.
Additional notes for cabling
Any damage to the cables must be avoided. Cable penetrations through housings shall have no burrs and
must be adequate insulated. The same applies to edges touched by the cable. Use cable glands and bent
protections and consider the allowed bending radiuses. The cable specification must comply with the
environmental conditions on site. If necessary, special cables need to be used (e.g. waterproof, oil- or
flame-resistant, etc.). Should cables be exposed to UV radiation or to ozone, generated by UV lamps, they
must be insulated with Teflon (PTFE) or fibre glass. All other materials are not sufficiently UV-stable and
need therefore to be protected in an appropriate manner.
Temperature behaviour
The lifetime of an electronic device is determined by the error rate of the electronic components of which
it consists. Generally spoken, the higher the temperature, the higher the error rate, the shorter the lifespan.
In the EVG UVT, the electrolytic capacitor is the lifespan-determining component (see chart). We use only
premium-quality capacitors of the highest temperature
stability. In compliance with the installation
instructions as well as the maximum housing
temperature, a lifetime of at least 50,000 hours is
expected. That a temperature change of 10K doubles
or halves the life of the capacitor can be seen as rough
calculation. Please make sure that the specified
maximum case temperature is not exceeded even in
extreme operation (worst case). If you measure the
temperature contact-free, please make sure that the
correction factor for the measured surface is adjusted correctly. Otherwise, significant measurement errors
may occur.
A sufficiently large cabinet should be chosen. The contained air must be able to circulate. If possible, use
sheet metal housings. In comparison, plastic and stainless steel are the worse heat conductors. Also with
regards to the shielding of electromagnetic radiation caused by the ballasts, the sheet metal is the best
choice. When calculating the size of the cabinet according to the specified loss, do not forget to add the
loss of other build in components. Assemble the ballasts if possible in the lower part of the cabinet, as it is
cooler. The distance between the EVG UVT must be at least 1 cm. Do not restrict the air convection with
other fixtures or installation channels. If you need to assemble the devices above each other, please note
that their operation is influenced by heat generation. The maximum case temperature must not be
exceeded even for the upper unit. Avoid the input of heat from the outside. Assemble a roof for shading
the control box for example. Decouple warm lamp housings from the ballast housings. Otherwise, it is of
course beneficial to couple thermally cold equipment (e.g. reactor with cold water) to the cabinet of the
EVG UVT. Turn on active cooling when overheating threatens. Wait long enough while doing temperature
tests to reach the thermal balance of the ballasts. This can take up to several hours. Try to keep the case

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
page 16 of 17 subject to change without notice operating manual EVG UVT 200-480W
temperature of ballasts for most of the time below the maximum allowable temperature (approx. 10K less).
Hence, you will achieve a longer lifetime and better operating safety.
Switching
When switching the EVG UVT on an inrush current pulse of very short duration arises by the up-charge of
the integral storage capacitor for the internal power supply. So choose the fuses out not only by the
indicated operating currents, but also by the impact load. If possible, use slow-blow fuses. The same
applies to the ground fault circuit interrupter (GFCI), which is triggered either by the high temporary inrush
current or a low continuous current. Here, the leakage currents arise on the interference suppression
capacitors of the EVG UVT. If allowed, please install a surge resistant, short-delayed GFCI protection switch
with 30 mA. Should the maximum possible number of EPS be exceeded for fuse or GFCI, you must group
them wisely. Pay attention to the uniform load of the phases.
Please avoid repeated switch-off and on cycles of electronic ballasts. Wait at least 10 seconds after shut
down before the next switching. In extreme switching loads you should check with the service of the UV-
Technik Speziallampen GmbH first, if the selected device is suitable for your application.
If a failure is indicated, the EVG UVT needs to cutoff from the mains voltage. Thus will reset the failure
status and internal counters. After having eliminated the failure cause, you can start again the EVG UVT.
The restart after a power failure will be carried out automatically.
Monitoring
Besides the usual operation LEDs, the EVG UVT are equipped with a potential free signal output per
chanel/lamp, which notifies the proper function of the unit. This output is a relay that switches once the
lamp is in operation. This relay output can be used for displaying/signalising or switching functions. Please
note the specified values in the data sheets for the contact load. Inductive or capacitive loads have to be
avoided. In addition to the maximum allowable load, the minimum load must be considered in particular.
Since relay contacts are cleaned by the sparks resulting from switching, the permanent operation with too
low power or too low voltage can cause contact problems. Especially keep this in mind, when the signal
contacts are to be connected directly to a PLC, where only 5 V and a few mA are present in the
communication circuit. Avoid, if possible, a series of signal contacts. If this is unavoidable, please make
signal rings with just as few devices. In this case, select voltages/currents in the signal circuit, which are
significantly above the allowed minimum values.
In addition to the relay outlet, the flexible adjustable types of the EVG UVT have the possibility to connect
additional operation LEDs directly. This function is useful, if the ballast operation must be displayed in the
front panel of the control box. The EVG UVT delivers 12 V DC supply for the connected LEDs. Please note
that the LEDs have to be equipped with a series resistor. The specified current of the LEDs of 20 mA must
not be exceeded. Please calulate the series resistor accordingly (minimal 600 Ohm) or related to the actual
LED-current.
Dimming
The EVG UVT have by default no dimming function. Please never try to dim the EVG UVT by changing the
mains supply voltage. The integral PFC regulates fluctuations in the supply voltage, so that there is no
influence on the output power. Mains voltages out of specification cutoff the ballast and may cause
damages.

General sales and delivery conditions of UV-Technik Speziallampen GmbH are valid. Provision of the manual is mandatory.
operating manual EVG UVT 200-480W subject to change without noticepage 17 of 17
Electromagnetic compatibility
The EVG UVT comply with the standards mentioned in the technical data and the CE declaration. As a part
of a system, other/further rules may be valid. It is the responsibility of the manufacturer/installer or
generally the operator to check the complete system according to the relevant rules. If several ballasts
build in a unit, generally additional measures can be necessary to eliminate interferences.
Beside the observance of the thresholds of the supply voltage, the mains suppl may not loaded with
distortions, burst and surge disturbances. If the mains quality is unknown, the installation of filters and
overvoltage/lightning protectors is recommended. An undisturbed supply is the precondition for a failure-
free operation.
In addition to the known technical contexts, all given instructions of this document are based on our
experiences. We take no guarantee of completeness and correctness.
