UVPLUS UVP502R User manual

Intelligent PowerPro UV Disinfection Wand
UVP502R
14.8V/5200 mAh x 2
Li-ion IP20
440x341x140mm 5.83kg
3.5h 4-5h
254nm UVC Average Irradiance:
19590μW/cm²
Max 40W
Output
Input
Wavelength
20 V 5A
Work light specifications
24W UVC bulb Effective range
<5cm

Product Features:
ĄHigh power UVC disinfection, able to kill 99.9% of bacteria and virus on the surface or articles
within 1 to 2 seconds
ĄDuring disinfection, distance sensor will start automatically. If detecting the distance between the
light source of disinfection light head and the surface of articles to be disinfected exceeds 4cm, it
will display a reminder on the screen
ĄColor LCD screen can display the information e.g. distance reminder, bulb life counter, and state of
charge etc. in real time
ĄRechargeable battery pack is designed to be carried easily
Handle
Master switch
24W UVC tube
Distance sensor
Power cable Battery pack
Color LCD screen

Operation Instruction:
1. Press power switch to on position and will turn on the LCD display.
2. Pressing and hold the pushbutton on the handle to turn on the UVC bulbs and start UVC disinfection,
display will show “ ” on the screen and automatically activate the distance sensor.
3. If any time during disinfecting, the distance between the device to surface of objects exceeds 4cm,
a reminder will display “ ” on the screen and start flashing to remind the user that effective
distance has been exceeded.
4. Release the pushbutton on the handle to turn off UVC bulbs and display “ ”
will show on the screen.
5. The battery power indicator will display the bar “ ” in red when battery power is lower than 20%,
charging will be necessary as soon as possible.
6. The “ ” on the screen is the working time counter of UVC lamp bulb, need to replace the UVC lamp
tube after bulb working hours has reached 9,000 hours. If the hours counter exceeds 9000 hours, the
text will become red “ ”and a warning sign will appear“Mercury lamp life exceeded,please replace
the bulb with a new one, and then click the pushbutton ten times continuously to reset hours counter of
the lamp bulb.”.
7. After bulbs have been replaced, short press the push button ten times to reset the bulb hours to zero.
8. Please ensure that either master switch is turned off or power cable is disconnected from battery pack
to start charging of batteries
67$
67$ 0/
PGG
N

①
②

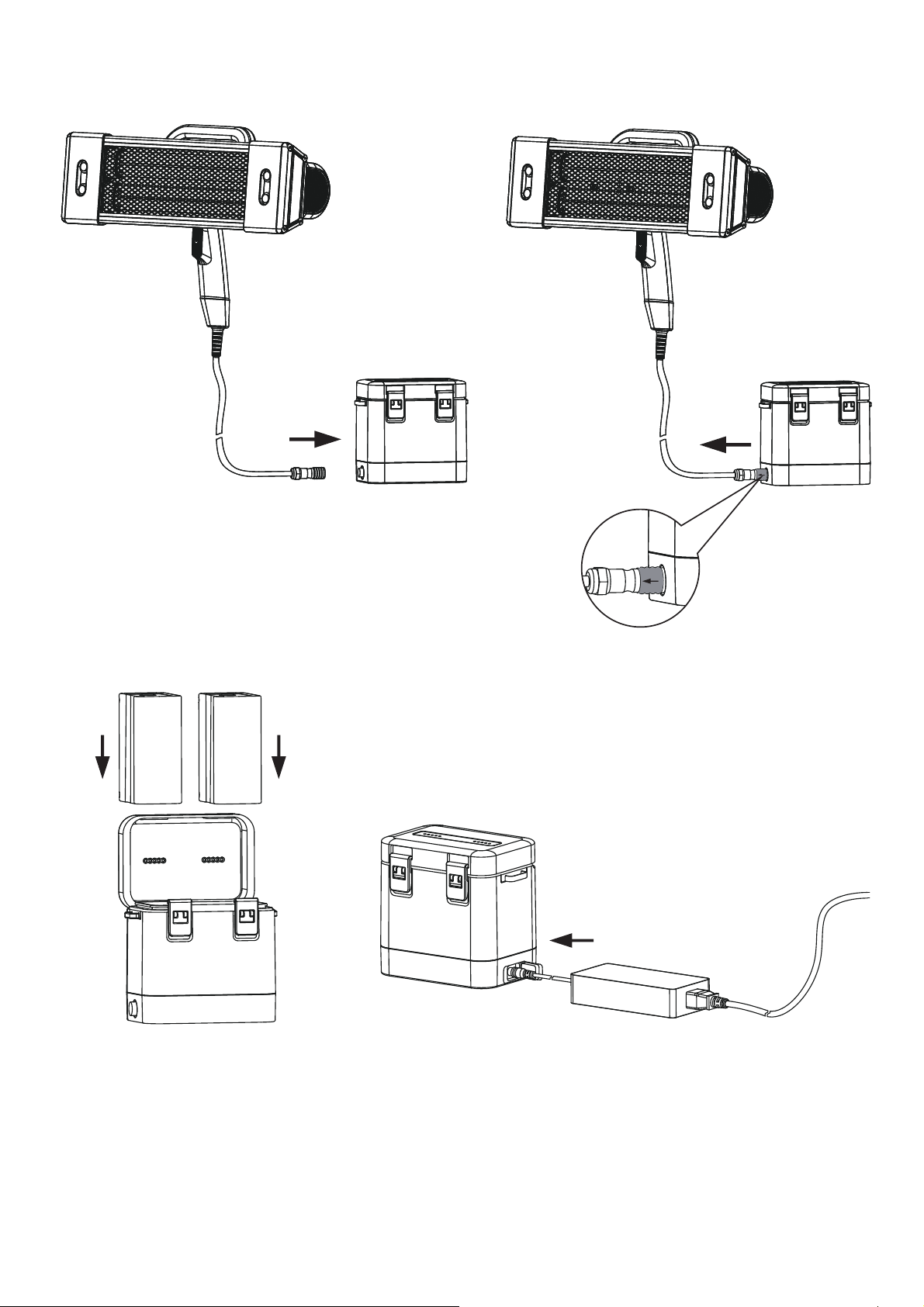

ƔInsert the battery packs
into the charging base,
per this orientation
ƔTo charge the battery packs, remove this dc cover and plug
the chargers connector into the charging port of the base
and plug the other end of the charger into an AC socket
ƔTo power the device, plug the cable connector
into the corresponding connector on the
charging base
ƔTo disconnect device connector from the
charging base, hold and pull back outer
layer (1) and pull connector out from
charging base (2)

CAUTION:
SAFETY WARNING:
Ą Please read and understand this user manual before use, to ensure that the product is safely and
properly used
Ą Our Company shall not be liable for product damage and other injuries caused by improper use or
failure to follow this User Manual
Ą Strictly forbid any children 0-12 years old to use this product. Users should carefully select places
without children before use and ensure that children do not touch the product
Ą Avoid the risk of electric shock during use
Ą The use of this product in gas, flammable and explosive substances, and heat source environments is
prohibited
Ą Don’t use wet hand/s in operating the product. Please keep the operating environment dry
Ą Do not remove, repair and alter the product by oneself. Repairs and battery replacements can only be
carried out by authorized service providers and manufacturers, and repair and replacement of
batteries by authorized service providers and personnel other than manufacturers may result in injury.
Replacing the battery with the wrong model is a risk of explosion
Ą Use the product only at specified voltages and frequencies
Ą UV Light Hazard. Harmful to bare skin and eyes. Can cause temporary or permanent loss of vision.
Never look at the bulbs while illuminated. Any exposed skin must not be exposed to UV light
Ą When using the device to disinfect, the user must wear protective eyewear that is using resin based
material as well as has blue light filter in place. Non transparent gloves, at least 1mm thick, must also
be worn during disinfection operation
UVC-Equipment Damage Hazard.
Ą  Ultraviolet light can cause color shift or structural degradation of plastic materials
Ą  Ultraviolet light can cause color shift or structural degradation of resin materials
Ą  Ultraviolet light can cause color shift or structural degradation of leatherwear
Ą  Ultraviolet light can cause color shift or structural degradation of organic compounds materials

Warranty:
Two-year warranty (The battery and accessory shall not belong to the scope of warranty).
As for the product damage caused by the improper usage or the operation of not complying with this User Manual, our
company will not undertake the corresponding responsibilities.
NOTES:
Ą The design of this product based on IEC 62471:2006 Photobiological safety of lamps and lamp systems
and other international standards
Ą This product utilizes UVC bulbs to emit UV-C rays with peak value wave length at 254nm to disinfect
Ą Ultraviolet tube is a relatively tight and fragile electronic component, users should avoid the impact on
the product resulting in product failure.
To ensure effective disinfection:
Ą Whether UV light can effective disinfect depends on the amount of exposure received by the
disinfection object, which depends on the radiation power of the UV light source, the distance of the
disinfection object from the UV light source, and the duration of the exposure to UV light.
Ą When killing common microorganisms, the irradiated dose should reach 10,000 uW/cm²;
100,000 uW/cm²is the recommended dose to kill bacterial spores. The radiation dose should not be
less than 100,000 uW/cm²when the target microorganism for disinfection is unknown.
Ą According to the radiation intensity of the UV light source of this product and the general distance of
the UV light source from the irradiated object, it is recommended that:
1 In order to achieve the radiation dose of 10,000 uW/cm²to meet the general needs of daily use, the
exposure time should be at least 0.5 seconds (given the surface of the disinfected object is no more
than 5cm away from the UVC source);
2 In order to achieve the radiation dose of 100,000 uW/cm²to meet the needs of the professional
environment, the exposure time should be at least 5 seconds (given the surface of the disinfected
object is no more than 5cm away from the UVC source);
Reminder of UVC’s adverse effect:
Ą Ultraviolet light has the effect of accelerating aging on most substances. In order to ensure maximum
service life, this product is designed with uv-resistant materials.
Ą In order to examine the accelerated aging effect of ultraviolet light on the substance, the six different
leather materials and color samples were treated for 15 minutes, a total of 50 times, using a dose of
3000 uW/cm². The results showed that the more brightly colored leather samples produced a slight
fade. The same conditions were tested on stainless steel, aluminum, gold-plated PIN needles, silicone,
make-up cotton, cotton and ABS plastics, and no significant effect was found.
MERCURY NOTICE:
This device contains mercury in the sealed ultraviolet bulb(s). Do not place your used bulb(s) in the trash.
Dispose of properly Broken Bulb Cleanup. Do not use a household vacuum. Sweep debris into a plastic bag
and dispose of properly. Contact your local waste management authority for instructions regarding
recycling and the proper disposal of old bulb(s).
Breakable Glass Hazard. Can cause personal injury. Be careful when inserting bulb(s) into lamp base. Wear
protective gloves when handling bulb(s).
Equipment maintenance, please contact professional after-sales service stores or professionals

V1/WXF
AEC Lighting Solutions Co., Ltd
Add.: 2548 Bao’an Highway, Jiading District, Shanghai 201801, China
Tel.: [phone]
www.aeclight-reel.com
www.uvpluss.com
+J
Breakable Glass Hazard. Can cause personal injury. Be careful when insert-
ing bulb(s) into lamp base. Wear protective gloves when handling bulb(s).
WARNING UV-C emitted from this product.
Avoid eye and skin exposure to unshielded product.
Follow installation instructions and user manual.
