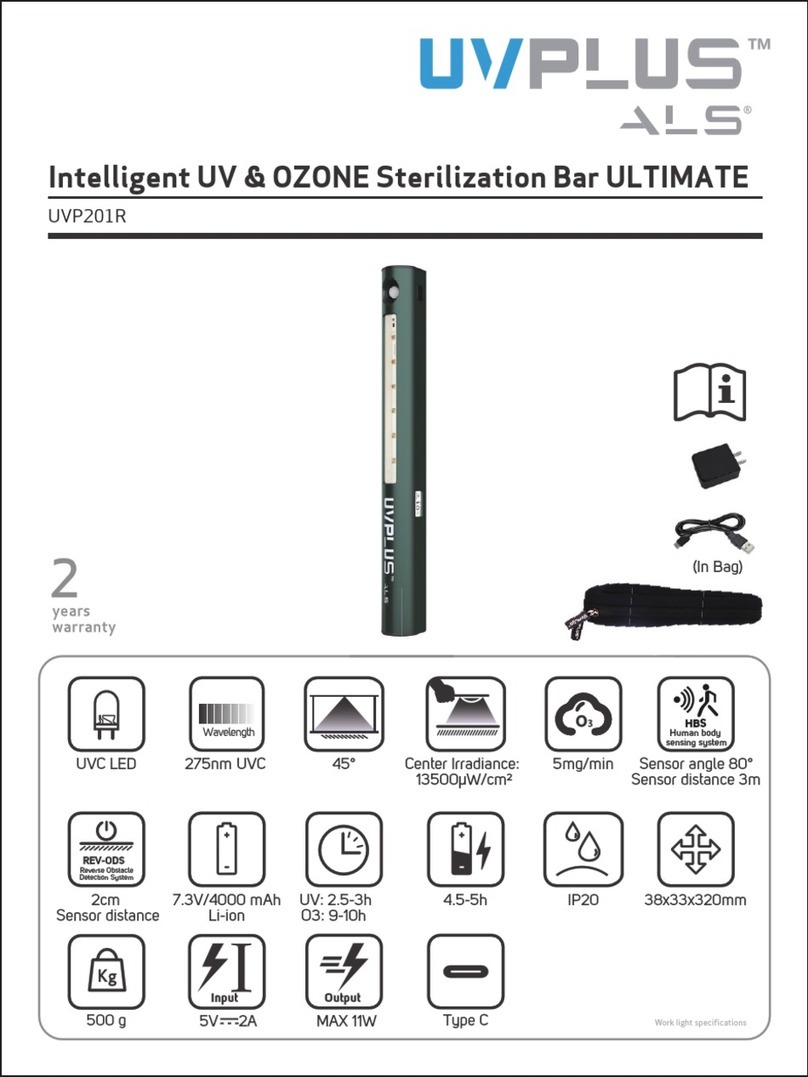

UVPLUS UVP201R User manual

UVP201R
IP20 38x33x320mm
500 g
4.5-5h
UVC LED 45° 5mg/min
Type C
MAX 11W
275nm UVC
Intelligent UV & OZONE Disinfection Bar ULTIMATE
Center Irradiance:
13500μW/cm² Sensor angle 80° Sensor distance 3m
REV-ODS
Reverse Obstacle
Detection System
2cm
Sensor distance
HBS
Human body
sensing system
7.3V/4000 mAh
Li-ion UV: 2.5-3h O3: 9-10h
Input Output
5V 2A Work light specifications
(In Bag)
UVC Light germicidal system intends for use in general purpose

REV-ODS
sensor
UVC LED
Color LCD screen
Type C charging port
Switch of fixed mode
3M adhesive+magnet
(for the fixed mode)
Thermal infrared
body sensor
Switch of
hand-held mode
Magnet
Work indicator
Ozone generator
• Dual-effect disinfection combination, fully reflects the high efficiency of ULTRAVIOLET disinfection and 360° no blind
angle of OZONE disinfection
• A multi-purpose machine that not only can be used independently by hand held, but also used in the confined space
by being fixed with 3M adhesive and magnet accessories
• During the hand-held using, REV-ODS intelligent Reverse Obstacle Detection System will start automatically. If
detecting the distance between the light source of disinfection light head and the surface of articles to be disinfected
exceeds 2cm, it will automatically stop the disinfection work, and reach the safe energy-efficient effects
• In case of disinfecting the surface of articles by independently hand-held using, it is usually able to kill
98.56%-99.99% bacteria and virus on the surface or articles within 3 seconds
• During the fixed-mode using, ozone disinfection has two steps, weak ozone and strong ozone. Weak ozone step is
designed to eliminate odor and formaldehyde in non-confined space, e.g. shoe cabinet, wardrobe. Strong ozone step
is applicable to the disinfection in confined space, e.g. storage box, suitcase. Strong ozone will take 1 hour to kill
99.9% bacteria in the confined space of 0.2m³
• During the fixed-mode use, HBS intelligent Human Body Sensing system will start automatically, and it will
automatically stop the disinfection work if it senses and detects there are people moving around, ensuring user safety
and reliability
• During the fixed-mode using, the disinfection bar has the memory function. After starting each time, the screen will
display the working mode for the last time
• Color LCD screen can display the information e.g. disinfection mode, disinfection time and state of charge etc. in real
time
• Type-C charging, portable and durable
Product Features:
Schematic Diagram of Product:

I. In handheld mode, there are “handheld manual" mode and “handheld automatic" mode:
1. “handheld manual” mode
• In any state, long press the hand-held mode switch for more than 1.5 seconds without releasing your
hand, enter the hand-held manual mode
• The UVC LEDs start to work directly, the screen displays “ ", and it will be turned off directly after
releasing the handheld mode switch
• In this mode, the fixed mode switch is invalid
2. "handheld automatic" mode
• In the light-off or fixed mode, double-click the handheld mode switch to enter the handheld automatic
mode
• The preset time for this mode is 60 minutes
• If the object being disinfected is not detected by the REV-ODS system (the sensing distance will be
slightly different depending on the surface of the object), the disinfection work will be automatically
suspended. The “ " on the screen is displayed without flashing, “ " icon disappeared, the
purple icon “ " will be changed to black icon “ ", If the REV-ODS system does not detect the
disinfected object for 2 minutes, it will automatically shut down, saving energy and protecting the
environment.
• If the REV-ODS system detects the disinfected object, it will automatically resume the disinfection
work, The “ " on the screen is displayed with flashing, and icon “ " appears, the black icon
“ " will be changed to purple icon “ ".
• Short press or double-click the handheld mode switch during the work process to directly shut down,
the fixed mode switch is invalid
• When the icon “ " disappears on the screen and the time is displayed as a green number 0: if you
do nothing, it will automatically shut down after 30 seconds, saving energy and protecting the
environment; if you short press or long press the handheld mode switch, you can also shut down the
light.
II. Fixed Usage of Disinfection Bar. (Available to select the ULTRAVIOLET mode or OZONE mode for
disinfection).
1. Short press the switch of fixed mode “ ” to start up. Meanwhile, the intelligent HBS system will
automatically start. It will automatically switch off after 30 seconds if not performing any operation for
the energy conservation and environment protection.
2. Short press the switch of fixed mode “ ” again to select the disinfection mode: ultraviolet
disinfection for 10 minutes (the screen displays “ ” ), ultraviolet disinfection for 20 minutes (the
screen displays “ ” ), ozone disinfection for 70 minutes (the screen displays “ ” ).
3. During ultraviolet mode, long press, long press the switch of fixed mode “ ” for 1.5 seconds, and
the device will enter to the 30-second preparation phase, and the screen will display “ ” (without
flashing). During ozone mode, long press the switch of fixed mode “ ” for 1.5 seconds to choose
weak ozone step (intermittent work), for 5 seconds to choose strong ozone step (uninterrupted work,
screen will display “ ” ), after the selection, device will enter to the 30-second preparation phase.
• If the intelligent HBS system doesn’t detect any person, the disinfection bar starts to disinfect after the
30-second preparation phase, and “ ” on the screen starts to flash. It will start to count down,
“ ” , “ ” or “ ” will respectively change to “ ” , “ ” or “ ”
• If the intelligent HBS system detects the person, the screen will display “ ” , “ ” will display
no flash and the disinfection bar stops the work; After continuing for 2 minutes, the disinfection
Operation Instruction:
UVC
UVC
UVC

SAFETY WARNING:
1. Please read and understand this user manual before use, to ensure that the product is safely and
properly used
2. Our Company shall not be liable for product damage and other injuries caused by improper use or
failure to follow this User Manual.
3. Strictly forbid any children 0-12 years old to use this product. Users should carefully select places
without children before use and ensure that children do not touch the product.
4. Avoid the risk of electric shock during use.
5. The use of this product in gas, flammable and explosive substances, and heat source environments is
prohibited.
6. Don’t use wet hands in operating the product. Please keep the operating environment dry
7. Do not remove, repair and alter the product by oneself. Repairs and battery replacements can only be
carried out by authorized service providers and manufacturers, and repair and replacement of batteries
by authorized service providers and personnel other than manufacturers may result in injury. Replacing
the battery with the wrong model is a risk of explosion
8. Use the product only at specified voltages and frequencies
9. UV Light Hazard. Harmful to bare skin and eyes. Can cause temporary or permanent loss of vision.
Never look at the bulbs while illuminated. Any exposed skin must not be exposed to UV light
CAUTION:
UVC-Equipment Damage Hazard.
1. Ultraviolet light can cause color shift or structural degradation of plastic materials
2. Ultraviolet light can cause color shift or structural degradation of resin materials
3. Ultraviolet light can cause color shift or structural degradation of leatherwear
4. Ultraviolet light can cause color shift or structural degradation of organic compounds materials
OZONE-Equipment Damage Hazard.
1. OZONE can cause color shift or structural degradation of plastic materials
2. OZONE can cause color shift or structural degradation of resin materials
3. OZONE can cause color shift or structural degradation of leatherwear
4. OZONE can cause color shift or structural degradation of organic compounds materials
5. High concentrations of ozone for a long time can cause electronic products function damage
bar will automatically switch off
4. During the fixed-mode usage, the ozone disinfection will automatically stop after working for 60
minutes, and automatically start the ultraviolet UVC to perform the ozonolysis for 10 minutes.
5. If “ ” on the screen disappears and the time displays the green number 0, the disinfection work is
completed. It will switch off after 30 seconds if not performing any operation for the energy
conservation and environment protection.
6. If the battery level is lower than 20% and the battery is displayed in red “ ” , it is required to
charge as soon as possible to avoid that the remaining battery power is insufficient to finish one
complete disinfection.
7. Long press the fixed-mode switch “ ” during the disinfection to shut down.
8. During the fixed-mode using, the disinfection bar has the memory function. After starting each time,

NOTES:
1. The design of this product based on IEC 62471:2006 Photobiological safety of lamps and lamp
systems and other international standards
2. This product utilizes the ultraviolet rays LED , which emits UV-C rays with peak value wave length at
275nm to disinfect
3. Ultraviolet LED is a relatively tight and fragile electronic component, users should avoid the impact on
the product resulting in product failure.
4. The user is recommended to wear resin-based protective eyewear when using UVC mode.
5. The user is recommended to wear non-transparent protective gloves with material thickness greater
than 1mm when using the UVC mode.
6. The design of this product is according to Code of Federal Regulations Title 21, Volume 8 by US FDA,
California Code of Regulations Title 17 Public Health, and IEC 62368-1[4] 7.3 and other international
standards
7. According to code of federal Regulations Title 21, Volume 8, ozone is a toxic gas, according to the FDA.
Although ozone has been reported to have adverse physiological effects on the central nervous
system, heart and vision, its main physiological effect is to stimulate the mucous membranes.
Inhalation of ozone causes enough irritation to the lungs, leading to pulmonary edema. The onset of
pulmonary edema is usually delayed by several hours after exposure; As the hazards of ozone are
widely understood, people pay full attention to the use of ozone.
8. At Ozone concentrations of 0.02PPM (0.04mg/m³), ozone can be smelled by people with acute
olfactory senses, at 0.15PPM (0.32mg/m³), ozone can be smelled by the general population, at
1-10PPM (2.14 - 21.4mg/m³) ozone has reached the "stimulus range", and can be clearly smelled, at
10PPM (21.4mg/m³) ozone has reached the "toxic range" or more "poisonous range". The odor of
ozone is not a reliable warning indicator due to the possibility of olfactory fatigue
9. Long term occupied enclosed spaces, such as houses, apartments, hospitals and offices, should have
ozone volumes below 0.1mg/m³ (0.05PPM). The ozone concentration in the workplace, i.e.
occupational exposure limit, is 0.1PPM
10. The amount of space used by the equipment used to place and use this device should not be less than
20m³ to ensure that the ozone remaining in the equipment has sufficient space to be decomposed to a
safe level when the cabinet door is opened
11. When opening the equipment for ozone disinfection, make sure that the equipment is in a well
ventilated environment. If the equipment cannot be ensured to be in a well-ventilated environment,
only open the cabinet door at least 30 minutes after an ozone disinfection session has finished
12. Ozone is unstable, breaks down rapidly at high temperatures, slowly breaks down to (oxygen) at room
temperature, has a half-life of about 16 minutes in 1% of ozone solution and about 25 minutes in the
air.
13. Pure ozone, if receives impact or friction, will explode and decompose. High concentrations of ozone
when heated is also prone to explosion. But as long as care is taken, such accidents are rather rare.
Ozone should not have high concentrations of flammable and explosive gases at the disinfection site
when it is used for air disinfection.
14. The user use 3M8514 welding protection mask (or equal grade protection masks) when use ozone to
disinfect, and can process ozone protection which at 10 times occupation touch limit potency under
1PPM
15. This product set enough safety device to guarantee the safety of users. The daily item to item check is
the necessary condition to guarantee that safety use the equipment. Please process item to item check
according to the requirements in the specification, need stop use the equipment immediately once

found the problem.
16. Because of the instability of ozone, ultraviolet light accelerates the decomposition of ozone and
converts it back to oxygen. After the ozone work is completed, the equipment switches to UV mode to
quickly reduce the ozone concentration in the equipment. The user must never open the cabinet doors
before the device has completed the ozone disinfection operation (before the end of the timer
countdown in the monitor)
17. Users are advised to equip users with ozone concentration detection instruments to regularly detect
whether the leaked ozone value of the equipment exceeds the safe value: long term populated
enclosed spaces, such as houses, apartments, hospitals and offices, ozone must be less than 0.1PPM in
English. If ozone leakage value is found to have exceeded the above standard, the equipment must be
immediately stopped.
To guarantee the disinfect effect of UVC:
1. Whether UV light can effective disinfect depends on the amount of exposure received by the
disinfection object, which depends on the radiation power of the UV light source, the distance of the
disinfection object from the UV light source, and the duration of the exposure to UV light.
2. When killing common microorganisms, the irradiated dose should reach 10,000 μW/cm²; 100,000 μ
W/cm² is the recommended dose to kill bacterial spores. The radiation dose should not be less than
100,000 μW/cm² when the target microorganism for disinfection is unknown.
3. According to the radiation intensity of the UV light source of this product and the general distance of
the UV light source from the irradiated object, it is recommended that:
• In order to achieve the radiation dose of 10,000 μW/cm² to meet the general needs of daily use, the
exposure time should be at least above 1-4 seconds
• In order to achieve the radiation dose of 100,000 μW/cm² to meet the needs of the professional
environment, the exposure time should be at least above 500 seconds
To guarantee the ozone disinfect effect:
1. Ozone can kill bacterial reproductions, viruses, fungi, etc., and can destroy botulinum toxin. In order for
ozone to be effective as a disinfectant, its concentration must be much higher than that that can be
safely tolerated by humans and animals. Ozone has a powerful killing effect on microorganisms in the
air, and at the same time has the odor-removal characteristics, 30minutes of 20mg/m³ (9.35PPM)
concentration of ozone in a sealed environments can achieve disinfection effect. Ozone on the surface
of the items of the microorganism also has a killing effect, requiring 60mg/m³ (28.04PPM), relative
humidity of 70%, and exposure of 60 minutes to 120 minutes, to achieve disinfection effect.
2. If the equipment is stopped in the middle of the operation, the disinfection effect cannot be guaranteed,
a new disinfection session from the start will be necessary.
The reminding of damage about the disinfect objects:
1. The effects of ozone on a variety of substances vary considerably. Glass, stainless steel, butyl rubber,
silicone, polycarbonate, and ABS plastics are better at ozone resistance, but nylon, zinc,
glass-fibre-added plastics, and natural materials such as natural rubber and leather, are less resistant to
ozone.
2. In order to ensure the service life, this product is designed with ozone-resistant materials.
3. In order to examine the accelerated aging effect of ozone on substances, the substance was tested for

60 minutes at a time using ozone concentrations of 35PPM.
4. After 10 tests of six different leather material colors samples, the results show color fading and
hardening of the material, especially the brighter samples, whose fading was more pronounced
5. The same conditions were tested on stainless steel, aluminum, gold-plated PIN needles, silicone,
cotton pads, cotton and ABS plastics, and no significant decomposition was found
6. It is recommended to avoid ozone disinfection of brightly colored leather, silk and other items. Some
highly aged items, such as natural rubber, are also recommended to not undergo ozone disinfection.
Since ozone has an oxidative effect on most metals, users should not use ozone disinfection on
electronic products to avoid ozone damage to devices containing metal substances, such as circuit
boards in electronic products.
Equipment maintenance, please contact professional after-sales service stores or professionals

V1/HJ
WARNING HARMFUL OZONE may be created by this product.
Follow installation and operating instructions.
WARNING UV-C emitted from this product.
Avoid eye and skin exposure to unshielded product.
Follow installation instructions and user manual.
www.uvpluss.com
AEC Lighting Solutions Co., Ltd
Add.: 2548 Bao’an Highway, Jiading District, Shanghai 201801, China
Tel.: [phone]
www.aeclight-reel.com
