Godrej UV CASE User manual

UV CASE
+
Antivirus Case
Meet
Quick, reliable &
safe sanitization for
all your belongings
Conformity Certificate
Kills 99.9% Viruses*
Successfully tested at CSIR
(ICMR approved laboratory)
Quick Start Guide

Unboxing the Godrej UV Case
Important Instructions
Know your product
Operation
Precaution during placement
Precaution during maintenance
Do’s and Don'ts
Specifications
Trouble shooting
FAQ
Information on E- waste and handling management
Disclaimer
Warranty
TABLE OF CONTENT
1
2
3
6
10
14
14
15
18
24
26
28
30
31

I come with the following things:
UNBOXING THE GODREJ UV CASE
UV CASE
UV Cabinet
WARRANTY
CARD
Warranty Card
USER
MANUAL
User Manual
2

Here’s what you need to know before we begin:
1. Do not look at the UV lamps directly in case the Godrej UV Case is switched on.
2. The UV Case must be installed in a dry place.
3. Refrain from using the case if found damaged during transit.
4. Improper electrical installation increases the risk of electrical shock. Check
the earthing before you plug in the UV Case.
5. Do not modify/ alter the design of the product.
6. Clean the UV case once in a month as dust can lower the UV output.
7. Ensure that the position of the UV lamp is not altered while cleaning.
8. Use a sponge or a soft cloth to clean the product.
9. Carefully read the maintenance instructions before removing the lamp from the
UV case.
10. Do not touch the lamp unless it has to be replaced.
11. Do not blow air directly into the lamp.
IMPORTANT INSTRUCTIONS:
3

12. Keep out of reach of children.
13. Do not tamper with the door lock of the product.
14. Do not place anything on the case.
15. Do not pour hot water/ any other hot liquid on the surface of the product.
16. Do not touch the lamps immediately after switching off the product as
the high temperature of the lamp can cause severe burns if touched.
17. Do not operate the UV case control panel with wet hands.
Do not keep corrosive objects in the UV case.
Do not throw the accessories in a dustbin; dispose of them
in an eco-friendly manner.
In case of fire, unplug the Godrej UV Case & use a CO based
2
fire extinguisher. Do not use water for extinguishing electrical
fires. Contact the local authorities immediately if the fire is not
under control.
4

In case of any problem, please contact our
call center - 18002099955 or write to us at [email protected].
5

KNOW YOUR GODREJ UV CASE
Fuse protection
All around reflecting
surface on internal walls
Top opening provision
UV-C lamp
Knob for opening/
closing
6

KNOW YOUR GODREJ UV CASE
UV CASE
Inside the case
2 UV lamps on topside
2 UV lamps at bottom
UV process end
indicator with buzzer Power On/Off button
Front opening provision
Protection fuse
on the backside wall
Knob for opening/closing
7

KNOW YOUR GODREJ UV CASE
Inside the case
3 UV lamps on topside
3 UV lamps at bottom
UV process end
indicator with buzzer
Power On/Off button
Front opening provision
Protection fuse
on the backside wall
Knob for opening/closing
UV CASE
Programmable timer
8

I’m a quick and reliable way to sanitize all your belongings using UVC irradiation
to disinfect any type of surface which may be contaminated by the COVID-19 virus.
My accurate build and design ensure UV energy on each point on the items placed
inside the chamber.
AND I COME IN THREE SIZES, CATERING
TO DIFFERENT NEEDS!
UV CASE
UV CASE
UV CASE
15L UV Case 30L UV Case
54L UV Case 9

Wonder how I work? Here’s more in detail about my functions:
OPERATIONAL DESCRIPTION
Model : UV Case 15L
Sanitisation time: 12 minutes
Loading capacity on tray - 2kg
Manually controlled
1. Connect the case to the AC mains. The On/Off switch on the control panel
makes the operation easier.
3. Close the lid and switch on the UV case.
2. Pull the knob to open the lid and put your objects like mobile phone, watches,
keys etc. inside the cabinet.
4. For best result, the recommended sanitisation time is 12 minutes.
5. Switch off the case after 12 mins.
UV CASE
10

Wonder how I work? Here’s more in detail about my functions:
1. Connect the case to the AC mains. The On/Off switch on the control panel make
the operation easier.
3. Pull the knob to open the lid and put your objects like mobile phones, watches,
keys etc. inside the cabinet.
2. The UV Case has an in-built analog timer with the default time set to 5 minutes.
4. Close the lid and switch on the UV Case.
6. It is recommended to switch off the case using the power button before
opening the lid.
5. After 5 minutes, the UV Case switches off automatically. A beep is heard to notify
the user about the successful sanitization.
OPERATIONAL DESCRIPTION
Model : UV Case 30L
Sanitisation time: 5 minutes
Loading capacity on tray - 3kg
Analog timer
UV CASE
11

Wonder how I work? Here’s more in detail about my functions:
OPERATIONAL DESCRIPTION
Model : UV Case 54L
Sanitisation time: 5 minutes
Loading Capacity on tray - 5Kg
Programmable timer
1. Connect the case to the AC mains. The programmable timer panel is located next
to the On/Off switch on the control panel.
2. The programmable time is set to 5 minutes by default. To reprogram the
sanitization time, simply press ‘+’ or ‘-’ button and set your customized time.
(Time can be set between 0.01 sec to 999 hrs)
6. For best results, the recommended sanitisation time is 5 minutes.
3. Pull the knob to open the lid and put your objects like mobile phones, watches,
keys etc. inside the cabinet. You can place multiple objects at once; ensure that
they are not kept on one another.
5. After 5 minutes, the UV Case switches off automatically. A beep is heard to notify
the user about the successful sanitization.
4. Close the lid and switch on the UV Case.
UV CASE
12

There is an auto cut-off for safety purposes. If the user opens the lid during the
sanitization process, the UV lamp goes off automatically.
NOTE
13

Here’s what you need to keep in mind while installing the UV Case:
INSTALLATION/PLACEMENT
1. Always keep the UV Case over a proper levelled surface.
2. Ensure that all 4 base supports touch the surface properly.
3. Improper electrical installation increases the risk of an electrical shock.
Check the earthing before you plug in the UV case.
4. Keep out of reach from children.
Here are tips to maintain the UV case:

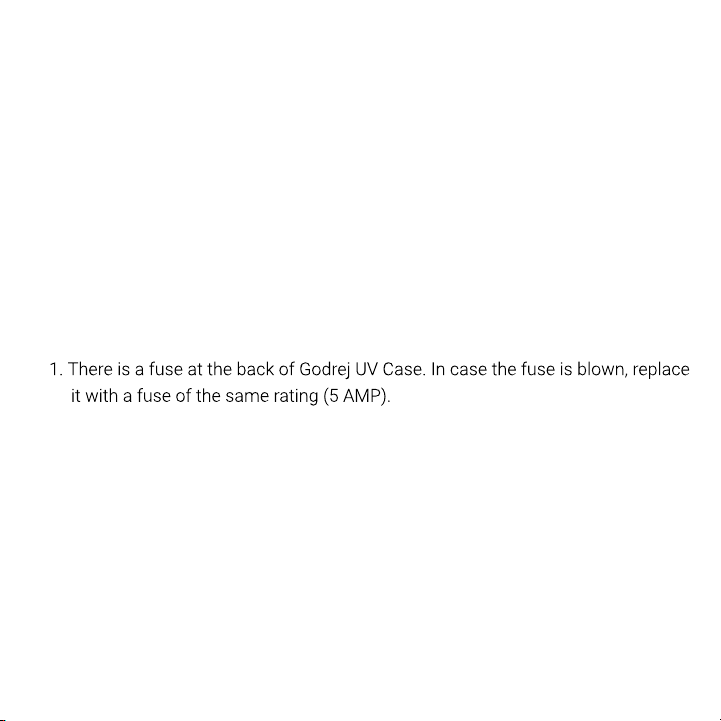

MAINTENANCE
2. The shelf life of the UV lamp is 11,000 hours post which the lamp should be
replaced.
3. Always replace the faulty UV lamp with a certified lamp of the following
specifications only:
- Operating voltage: 230 V AC
- Wattage: 11W
- UV radiation: 253.7nm
4. Switch off the main power supply to remove the lamp from the product. Hold the
lamp that needs to be replaced and rotate it clockwise to pull it out gently.
5. Clean the case regularly for its consistent performance. 14

DO’S & DONT’S
15

1. Should be repaired/ serviced by qualified personnel only.
2. Should be placed on a levelled surface.
3. The case has multiple switches/ indicators. Avoid tampering with
them.
4. Maintain the case in a clean condition.
5. Dispose off the replaced UV lamp in an eco-friendly manner.
6. Ensure the power socket is disconnected before cleaning the UV Case.
7. Ensure proper earthing practices before connecting the UV Case to the
mains.
DO’S
16

1. Do not try to operate the UV Case with the lid open. Do not tamper with the
safety lock of the lid.
2. Do not place the product on the edge of a surface.
3. Do not operate the UV Case if it is damaged. Ensure there is no damage
to the lid, hinges and the safety lock.
4. Do not place medicines inside the UV Case as it may be adversely affected
by the UV exposure.
5. Avoid eye contact with the UV lamp when the product is switched on.
6. Do not place batteries inside the UV case
7. Maintain the UV Case in a clean condition to avoid performance deterioration.
DON'T’S
17

SPECIFICATIONS - UV Case 15L
Operating Principle
Short wave UV-C radiation (peak at
253.7 nm) based disinfecting of
surfaces from germs, bacteria & viruses
External Dimensions: HxWxD (mm)
Internal Dimensions-Usable: HxWxD (mm)
Internal Usable Volume (Approximate Litres)
Weight (Kg)
Housing
Recommended Sanitisation Time (Approx Min)
UV-C Lights: Wattage/Tube (W)
UV-C Lights: Wattage-Total (W)
127.6 X 427.8 X 382.4
124 X 326 X 380
15
8
Rugged & durable mild steel(MS) powder
coated housing. Safe from UV leakage.
Produced as per highest & consistent
QA/QC norms
12
11
22
18

UV-C Lights: Life /Tube (Hours)
Lid Opening
Cycle Time
Audio Visual Alarm
Auto UV-C Cut - off Safety Switch
Electrical Specifications
Warranty
SPECIFICATIONS - UV Case 15L
11000
Ergonomic top opening design
Manual control
NA
Yes
Supply Voltage 220 V ~ 240V
Supply Current 5A
Operating Frequency 47 ~ 53 Hz
1 year standard product warranty**
19
