When using your telephone equipment, basic safety precautions should always
befollowedtoreducetheriskoffire,electricshockandinjurytopersons,including
the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid
or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water (for example, near a bath tub, kitchen
sink, or swimming pool).
5. Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage.
6. Slots and openings in the Handset and Base Unit are provided for
ventilation. To protect it from overheating, these openings must not be
blocked by placing the product on a bed, sofa, rug, or other similar
surface. This product should never be placed near or over a radiator
or heat register. This product should not be placed in a built-in installation
where proper ventilation is not provided.
7. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not install this product
where the cord might be damaged by anyone walking on it.
9. Never push objects of any kind into this product through holes and slots
in the Handset and Base Unit as they may touch dangerous voltage points
or short out parts that could result in a risk of fire or electric shock. Never
spill liquid of any kind on the product.
10. To reduce the risk of electric shock, do not disassemble this product,
but take it to an authorized service facility. Opening or removing cabinet
parts other than specified access doors may expose you to dangerous
voltages or other risks. Incorrect reassembling can cause electric shock
when the appliance is subsequently used.
11. Do not overload wall outlets and extension cords as this can result in
the risk of fire or electric shock.
Important Safety Instructions

2
12. Unplug this product from the wall outlet and refer servicing to an
authorized service facility under the following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions, because improper adjustment of other controls
may result in damage and will often require extensive work by an
authorized technician to restore the product to normal operation.
E. If the product has been dropped and the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
13. Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVETHESE INSTRUCTIONS
Important Safety Instructions

3
The 2655 is an advanced cordless telephone that operates in the 2.4 GHz
frequency range.
This manual is designed to familiarize you with the 2655 cordless telephone.
Introduction
IMPORTANT
Please record the Base ID code (BS ID) printed on the underside of the
2655 Base in the space below. Please be certain to include all 15 digits/
characters.
Base ID#

4
5. Battery Pack
6. Belt Clip
7. User's Manual
1. Base Unit
2. Handset
3. AC Power Adapter
4. Telephone Cord
Handset
Base Unit
Battery Pack Belt Clip
Telephone Cord
AC Power Adapter
Parts Check List

5
The Handset Layout
1. Antenna
2. Message Waiting Indicator
3. Earpiece
4. Headset Jack (2.5mm)
5. Scroll Keys
6. On/Flash
7. Dialing Key (0 - 9, *, #)
8. HandsfreeSpeakerphone
9. LCD Display
10. Select
11. Off/Clear
12. Intercom
13. Billed Services
14. Microphone
1
3
4
5
6
7
8
10
11
14
2
12
13

6

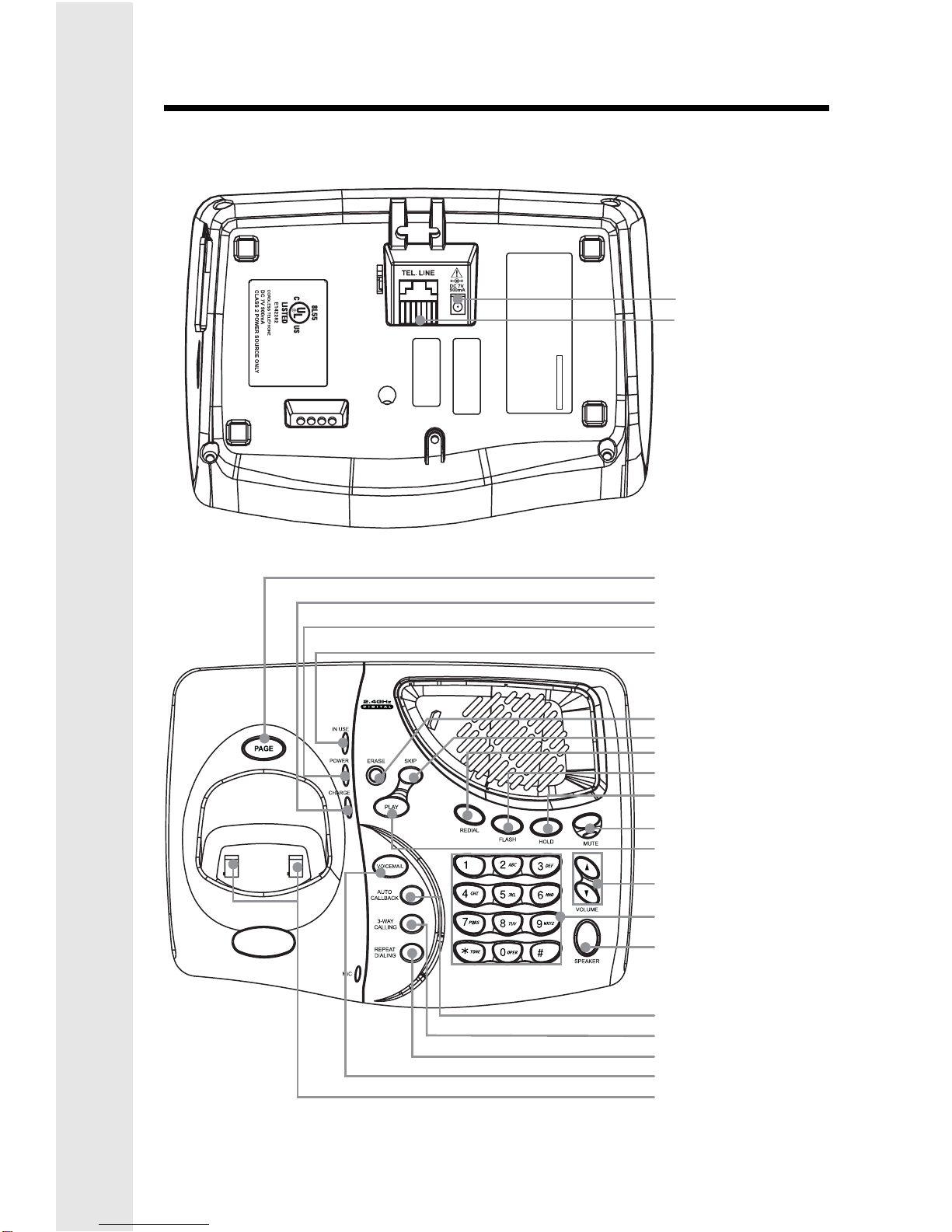

The Base Unit Layout
Page Key
Charge Indicator
Power Indicator
In Use Indicator
Erase Key
Skip Key
Redial Key
Flash Key
Hold Key
Mute Key
Play Key
Volume Keys
Dialing Keys (0 - , *, #)
Speaker Key
Auto Callback Key
3-Way Calling Key
Repeat Dialling Key
Voicemail Key
Charging Contacts
Phone Cord Jack
AC Power Jack
COMPLIES WTH 47 CFR PART 68
REGISTRATION NO.: EW7 CHN-34723-WI-E RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C/RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MA NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT AN INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MA CAUSE UNDESIRED OPERATION. PRIVAC OF COMMUNICATIONS MA NOT BE ENSURED WHEN USING THIS PHONE.
FCC ID: EW780-5001-00
HAC
MODEL : 2652 MANUFACTURED IN CHINA

7
To AC outlet
To telephone
jack
To telephone
socket outlet
To AC power
jack
COMPLIES WTH 47 CFR PART 68
REGISTRATION NO.: EW7 CHN-34723-WI-E
RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C/RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MA NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT AN INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MA CAUSE UNDESIRED OPERATION. PRIVAC OF COMMUNICATIONS MA NOT BE ENSURED WHEN USING THIS PHONE.
FCC ID: EW780-5001-00
HAC
MODEL : 2652 MANUFACTURED IN CHINA

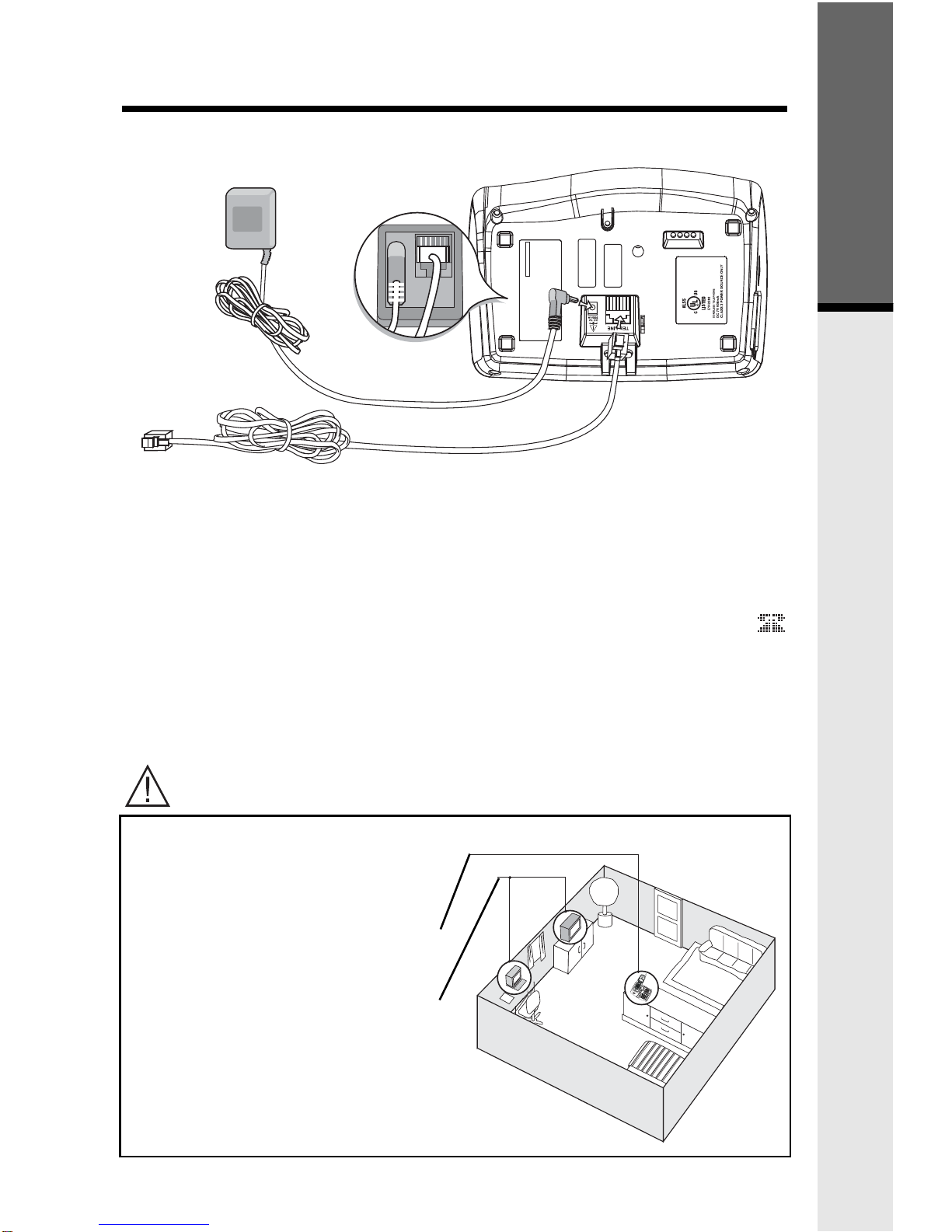

Setup
Plug the AC power adapter into an electrical outlet, and the DC connector
into the back of the Base Unit.
Connecting to phone line
Plug one end of the telephone line cord into the jack on the back of the Base
Unit. Plug the other end of this cord into the wall jack.
Checking for dial tone
After the battery is charged press ON on the Handset. The Phone icon
will appear on the Handset display, and you will hear dial tone. If not, see
In Case of Difficulty.
Tone/Pulse selection
See BASE SETTINGS for details.
CAUTION: Use only the power supply provided with your 2655 Unit.
IMPORTANT:
For best performance the 2655
should be installed as follows:
In an elevated location, in the center
of the room, with no obstructions
nearby.
In a location that is away from other
electricalappliancessuchasmicrowave
ovens, personal computers, or
televisions.
Getting Started

8
Follow the steps below:
1. Remove battery compartment
cover by pressing on the indent
and sliding downward.
2. Place the new battery pack in
the Handset with the metal
contacts aligned with the charge
contacts in the battery
compartment.
3. Replace the battery
compartment cover by sliding it
upwards.
4. If the new battery pack is not
already charged, place the
Handset in the Base Unit, or a
charging stand, and allow it to
charge for 10-12 hours. After
initial charge, a maintenance
charge of 8 hours should be
sufficient.
Installation of Battery Pack in Handset
Getting Started

9
Spare Battery Charger/Power Backup Function
CAUTION: TO
REDUCE RISK OF FIRE,
USE ON Y VTECH
80-5017-00-00
CAUTION: TO
REDUCE RISK OF FIRE,
USE ON Y VTECH
80-5017-00-00
BATTERY
INSTA
THIS
SIDE UP
2
CAUTION: TO
REDUCE RISK OF FIRE,
USE ON Y VTECH
80-5017-00-00
CAUTION: TO
REDUCE RISK OF FIRE,
USE ON Y VTECH
80-5017-00-00
BATTERY
INSTA
THIS
SIDE UP
3
1
COMPLIES WTH 47 CFR PART 68
REGISTRATION NO.: EW7 CHN-34723-WI-E RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C/RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MA NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT AN INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MA CAUSE UNDESIRED OPERATION. PRIVAC OF COMMUNICATIONS MA NOT BE ENSURED WHEN USING THIS PHONE.
FCC ID: EW780-5001-00
HAC
MODEL : 2652 MANUFACTURED IN CHINA
1. Open the spare battery charger
by pressing the release button,
located on the right-hand side
of the Base Unit. A drawer will
open to reveal the spare battery
compartment.
2. Place a battery pack in the
drawerwiththechargecontacts
facing up and to the left.
3. Push the drawer closed.
The spare battery takes 24 hours to
fully charge a drained battery.
Getting Started
The 2655 can use the spare battery in the Base Unit to provide operational
backup in the event of a power failure. With a fully charged battery pack in
the spare battery charger, you will still be able to place and receive calls from
the Handset for up to 3 hours.
The spare battery pack can also be used to replace a drained Handset battery,
ensuring uninterrupted use.
A spare battery can be purchased from most retail stores that carry
electronic equipment.
NOTE:
When using the 2655 during Power Backup mode, audio quality may be
compromised due to reduced Power availability. The Base Unit can't be used
when in power backup mode.

10
Getting Started
Charging Of Handset Battery Pack
The Handset of your 2655 cordless telephone is powered by a rechargeable
battery pack. It charges automatically whenever the Handset is in the Base
Unit.
You should charge the battery pack for 12 hours when you first receive
your phone. You'll know the battery pack needs charging when:
CAUTION: to reduce the risk of fire or injury to persons by
battery, read and follow these instructions.
1. Use only the appropriate type and size battery pack specified in the
instruction manual provided for this product.
2. Do not dispose of the battery pack in a fire. The cell may explode. Check
with State and local codes for possible special disposal instructions.
3. Do not open or mutilate the battery pack. Released electrolyte is corrosive
and may cause damage to the eyes or skin. It may be toxic if swallowed.
4. Exercise care in handling battery in order not to short the battery with
conducting materials such as rings, bracelets, and keys. The battery or
conductor may overheat and cause burns.
5. Charge the battery pack provided with or identified for use with this
product only in accordance with the instructions and limitations specified
in theinstruction manual.
6. Observe proper polarity orientation between the battery pack and battery
charger.
• The low battery message is
displayed:
• The Handset seems completely
dead, the LCD is completely
clear and does not activate
when you press the keys.

11
Handset Icons
Icon Description
Line In Use indicator
On steady with no number next to it when a parallel set is
in use.
Onsteadywithoneormorenumbersnexttoit,indicatingwhich
extensions are using the line. For example, 12 indicates
that Handset 1 and Handset 2 are on an outside call.
Intercom indicator
On steady with the extension numbers currently on an
intercom call. For example, 02 indicates that the Base and
Handset 2 are on an intercom call.
Battery indicator
Cycles (Low, Medium, and High) when Handset battery is
charging.
Flashes when a low battery condition is detected.
Mute indicator
On steady when the Handset microphone is muted.
Hold indicator
On steady when the line is on hold.
Range Extender indicator
On steady when the Range Extender is on.
Handset Registration indicator
is displayed when a Handset is either not registered, or
is searching for a Base Unit.
M
H
E
Handset and Base Indicators
Basic Operation

12
HandsetLEDs
LED
Message
Waiting
BaseLEDs
LED
VOICEMAIL
Power
In Use
Charge
Mute
Speaker
Description
• Flashes to indicate that you have new messages in your
voicemail. Service must be subscribed to through your
local telephone company.
Description
• Flashes to indicate that you have new messages in your
voicemail. Service must be subscribed to through your
local telephone company.
• Lights when Base unit is receiving power from wall outlet.
• Flashes when unit is in Power Backup mode.
• Lights when line is being used by any Handset of the 2655
system.
• Flashes when another telephone on the same line
(parallel extension) is in use.
• Flashes following ringing cadence while the phone is ringing.
• Lights whenever the Handset is placed in the Base Unit
charging cradle.
• Flashes briefly when put a spare battery in the spare
battery compartment.
• Lights when Base microphone is muted.
• Flashes when HOLD function is activated.
• Lights when Base speaker is in use.
Handset and Base Indicators
Basic Operation

13
The 2655 has an advanced design
that uses a menu structure and soft
keys to access all of the built-in
features.
Example of the idle mode display:
Soft Menu Functions
RDL (Redial)
Press RDL to display the last 5 telephone numbers dialed. The number on
top line is the most recent number dialed.
• Use the scroll keys to select the desired number.
• To dial the number, you can simply press the ON or HANDSFREE key.
To Save Redial to Memory:
Use the scroll keys to select the desired number. Then press SELECT. Press
SAVE. Use the steps from 3 to 5 of To Store a Number/Name.
To Erase Redial:
Use the scroll keys to select the desired number. Then press SELECT. Press
ERASE.
MENU
With the Handset in the idle (OFF) mode, press the MENU key to access the
following options:
• CALLS LOG (CALLER ID)
• NAME AND NUMBER ANNOUNCE
• HANDSET SETTINGS
• RANGE EXTENDER
• TONE/PULSE
• REGISTER (Both Handsets previously registered to the Base Unit at the
factory.)
• VOICEMAIL SETUP
Use the scroll keys to select the desired option, then press OK.
Basic Operation

14
From the idle (OFF) mode, press
MENU, use the scroll
keystoselectCALLSLOG,thenpress
OK. The Caller ID information of the
most recently received call will be
displayed.
To scroll to other records, use the
scroll keys.
To dial the number displayed, you can
simply press the ON or HANDSFREE
key.
You can also press the CID key to
access the following options (DEL,
OPT#, SAVE):
Calls Log (Caller ID)
DEL: Select this option to delete THIS or ALL records in Caller ID memory.
OPT#: Select this option to display up to four possible dialing strings of
the number stored in Caller ID memory. If a number is provided in
the Caller ID data, the possible options to choose from will be either
7, 8, 10, or 11 digits. For example, if the original number in Caller
ID menory was 808-880-8808, then the display options will be:
Use the
keystomakeselection,and
then press DIAL, ON or
HANDSFREE to dial the
number.
123-4567
1-123-4567
555-123-4567
1-555-123-4567
SAVE: Select this option to save the displayed Caller ID record into
Phonebook Memory. Only Caller ID records with telephone
numbers can be saved into Phonebook Memory. If you need to
modify the number after saving, see To Edit a Name or a Number.
Caller ID - Call Waiting ID
Your 2655 is capable of displaying the name and/or number of the party calling
before you answer the phone (Caller ID). It is also capable of displaying Caller ID
information in conjunction with a Call Waiting alert signal (Call Waiting Caller ID).
With Call Waiting Caller ID, the Caller ID data is displayed so you can decide whether
to answer the incoming call, or continue with your current conversation.
NOTES ABOUT CALLER ID & CALL WAITING CALLER ID
Theseare subscription services, provided by mostregional telephone service
providers. You must subscribe to these services to get the benefits of these
features. If you do not subscribe to Caller ID services, you can still use
your 2655 and the other features it offers.
Due to regional incompatibilities, Caller ID information may not be available
for every call you receive. In addition, the calling party may intentionally
block their name and phone number from being sent.
Basic Operation
555-123-4567
555-123-4567

15
Handset Settings
From the Handset Settings menu you can select the following options to modify:
• RINGER VOLUME
Select this option to adjust the ringer volume. Use the /scroll keys
to adjust the volume up or down. The Handset will display a graphic
indicator of the selected volume setting. Press OK to confirm your selection
and return to the Handset Settings menu.
• RINGER MELODY
Select this option to adjust the ringer melody or tone. Use the /
scroll keys to select from the six available tones. Press SAVE to confirm
your selection and return to the Handset Settings menu.
• LOW BATT TONE
Select this option to turn the Low Battery warning tone ON or OFF. Press
the OFF or ON soft keys, to make your selection. Press OK to confirm your
selection and return to the Handset Settings menu. When set to ON, the
Handset will emit a warning tone when a Low Battery condition is
detected.
• RANGE TONE
Select this option to turn the Out of Range warning tone ON or OFF. Press
the OFF or ON soft keys, to make your selection. Press OK to confirm your
selection and return to the Handset Settings menu. When set to ON, the
Handset will emit a warning tone whenever the Handset is taken out of
range of the Base.
• KEYPAD TONE
Select this option to turn the Keypad tones ON or OFF. Press the OFF
or ON softkeys to make your selection. PressOK toconfirm your selection
and return to the Handset Settings menu. When set to ON, the Handset
will emit a beep whenever a key is pressed.
• CONTRAST
Select this option to adjust the contrast level of the Handset display. Use
the /scroll keys to make your selection. The Handset display will
automatically adjust as you make your selection. Press OK to confirm your
selection and return to the Handset Settings menu.
• LANGUAGE
Select this option to change the display to appear in English, Spanish
or French. Use the /scroll keys to select language, then press OK
to confirm your choice.
Basic Operation

16
Range Extender
Your 2655 has an enhanced feature that is designed to improve performance.
This feature is useful if you are using your 2655 in an area with excessive
interference or you require a moderate increase in operating range. The Range
Extender feature can help to improve both the sound quality and range. Actual
range will depend on your environment.
To select the Range Extender setting, follow these steps:
• In the idle (OFF) mode, press MENU
and use the scroll keys to select
RANGE EXTENDER, then press OK.
• There are 3 option settings in the
RANGEEXTENDERmenu:
1. Select OFF to disable RANGE
EXTENDER.
2. Select ON to enable RANGE
EXTENDER. An "E" icon will
appear in the upper left corner
of Handset display, indicating
thatRANGEEXTENDERisON.
3. Select AUTO to allow your
2652 to automatically monitor
the signal strength between
the Handset and Base Unit, and activate whenever necessary. With
this option selected, your 2652 may occassionally enable or disable
theRANGEEXTENDERfeature.
• Use the scroll keys to select the desired setting, and then press OK to
confirm the selection.
Note: When Range Extender mode is enabled, your 2655 will consume more
battery power. That means the standby and talk time of your Handset
will be shorter.
TONE/PULSE
ANNOUNCE CID
Basic Operation

17
The 2655 can store up to 50 numbers with names in memory. Each memory
location can hold up to 32 digits for the number for the number and up to
16 characters for the name.
When prompted to ENTER NAME, use the digit keys to 'spell' the name. Each
press of a particular key causes characters to be displayed in the following order:
MEM (Memory)
Number Key
1
2
3
4
5
6
7
8
9
0
#
Characters (in order)
& ' , . 1
A B C a b c 2
D E F d e f 3
G H I g h i 4
J K L j k l 5
M N O m n o 6
P Q R S p q r s 7
T U V t u v 8
W X Y Z w x y z 9
0
#
*
*
Basic Operation

18

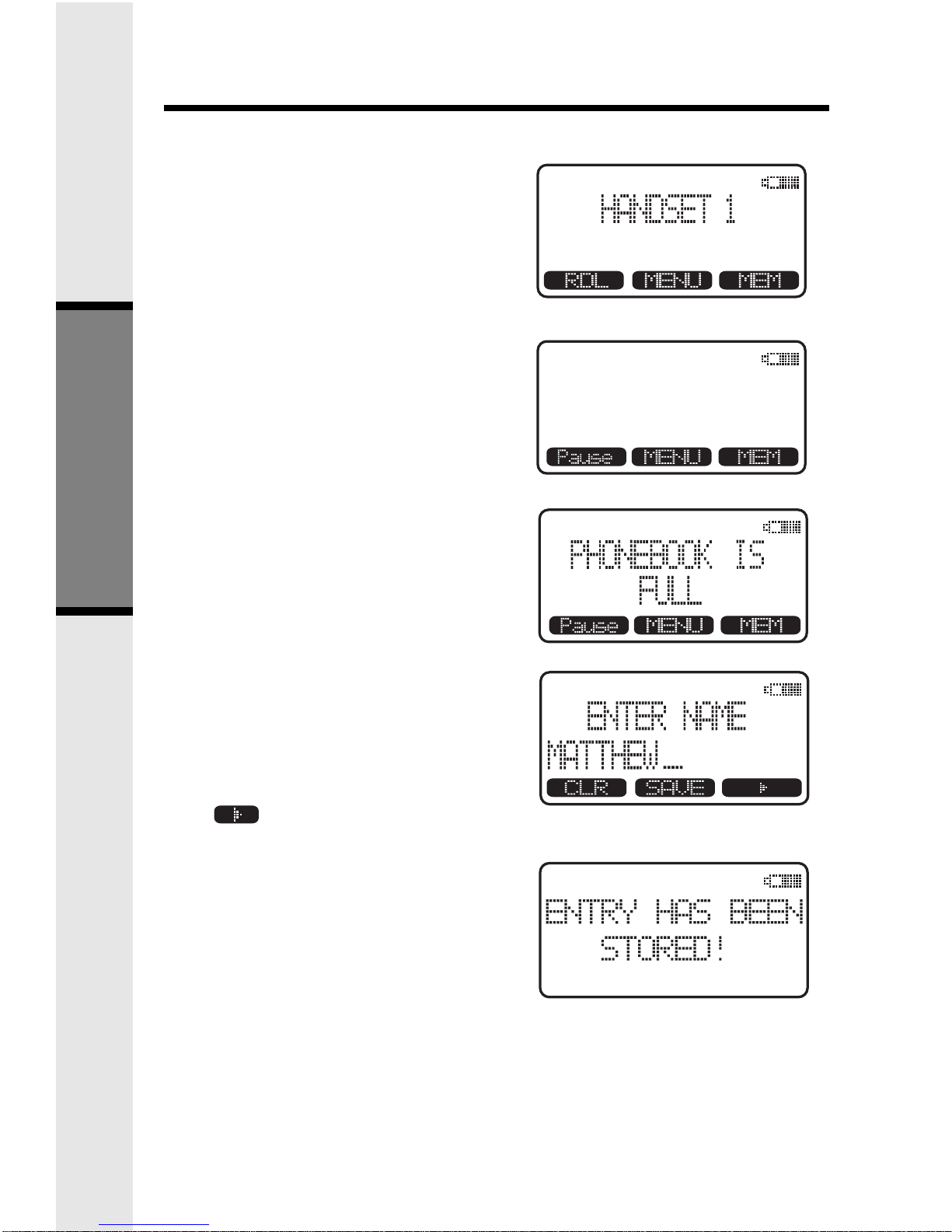

To Store a Number/Name:
• Starting from the idle screen,
enter the number you want to
store in memory..
• Be sure to include long distance
codes and pauses (using the
Pause softkey) if necessary.
Press OFF to correct if you
make mistake. Press the MEM
softkey.
NOTE: If the memory is full the
Handset will display
PHONEBOOK IS FULL and
exit to the pre-dial mode
without saving the entry.
• You will then be prompted to
ENTER NAME. Use the digit
keys to 'spell' the name. If you
make a mistake, press the CLR
softkey. To enter a space press
. When finished, press
SAVE.
• If there is space available in
memory, the entry will be saved
and the Handset will display
RECORD ANNOUNCE CID?
• If you want to record a Talking
CID announcement, please
followthestepsinRecordaNew
Name and Number Announce
NewPhonebookEntryonpage
32. If not, press and hold OFF.
MEM (Memory)
123 4567
Basic Operation

19
ToSearchForandDialaNumber/
Name:
• Starting from the idle screen,
presstheMEM softkeytoreview
memory contents.
• Using the
softkeys scroll through the
memorycontentsinalphabetical
order.
Or, you can press the FIND
softkey, enter the first few
chararcters of the name. If you
make a mistake, press the CLR
softkey. Press FIND to search.
The closest match, in
alphabetical order, will be
displayed.
• Once you find the entry you
want, simply press ON or
HANDSFREEtodialthenumber.
To Delete a Number/Name:
• Using steps 1 and 2 in To
SearchForandDialaNumber/
Name, locate the entry you
want to delete.
• Press the EDIT softkey. The
Handset will display:
MEM (Memory)
ANDREW_
ANDREW
123-4567
ANDREW
123-4567
ANDREW
123-4567
RECORD
ANDREW
123-4567
Basic Operation

20

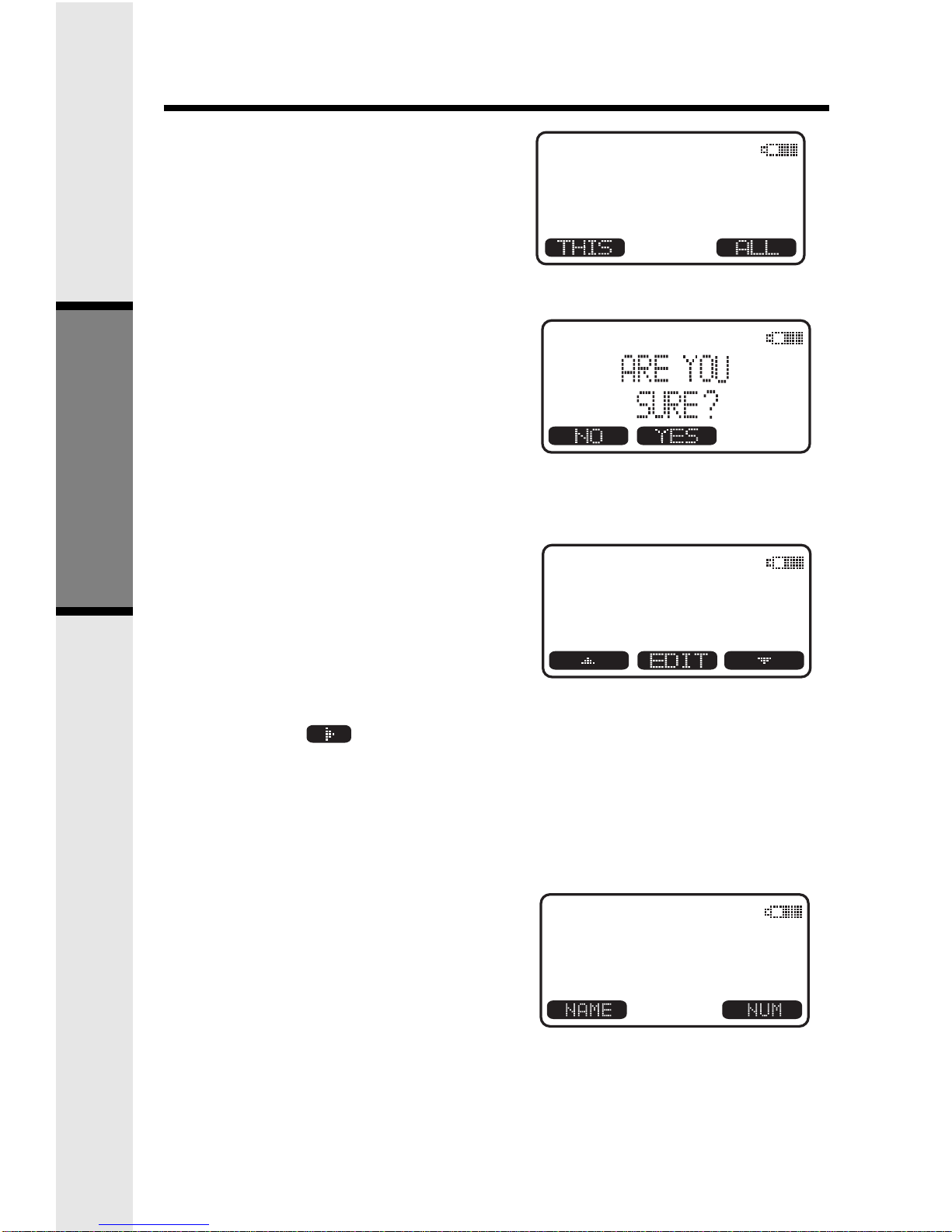

• Press the DEL softkey. The
Handset will display:
• To delete the displayed records,
pressTHIS.Todeleteallrecords,
press ALL.
• If you press ALL, The screen
will display: ARE YOU SURE?
• To confirm the deletion of all
records, press YES. To exit
without deleting press NO.
To Edit a Name or a Number
• Using steps 1 and 2 in To
SearchForandDialaNumber/
Name, locate the entry you
want to edit.
• Press the EDIT softkey twice.
Then choose NAME or NUM.
• Using the softkey move
the cursor to the character you
want to edit and then enter the
corrections as needed. Press
MORE access DEL, BACK and
Pause (when edit a name,
SPACE)function.Whenfinished
press the SAVE softkey. To exit
without saving press OFF.
• When finished the Handset will
display the edited entry.
MEM (Memory)
ANDREW
123-4567
ANDREW SMITH
555-123-4567
ANDREW SMITH
555-123-4567
Basic Operation
