V-ZUG CoinSystem 1 User manual

2
1
Operating instructions
CoinSystem 1&2
Cashier system

Thank you for choosing to buy one of our products. Your appliance is made to high
standards and is easy to use. Nevertheless, please take the time to read these operating
instructions in order to familiarize yourself with the appliance and get the best use out of
it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifications
for the purpose of the further development of the appliances is reserved.
Validity
These operating instructions apply to:
Model designation Model number Type
CoinSystem1 245 COS 1
CoinSystem2 246 COS 2
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6302 Zug, 2022
2

3
Contents
1 Safety precautions 4
1.1 Symbols used......................................................... 4
1.2 General safety precautions.................................. 4
1.3 Appliance-specific safety precautions ............... 4
1.4 Instructions for use................................................ 5
2 Your appliance 6
2.1 Appliance description ........................................... 6
2.2 Appliance design................................................... 6
3 Operation 7
3.1 Inserting coins........................................................ 7
3.2 Emptying the coin box.......................................... 8
3.3 Deleting credit ........................................................ 8
3.4 Totaliser ................................................................... 8
4 Calculation 9
4.1 Preface to the calculation .................................... 9
4.2 Individual calculation...........................................10
5 Settings 11
5.1 Instructions for settings ......................................11
5.2 Parameters............................................................12
5.3 Key to parameters...............................................13
6 Technical data 15
6.1 Dimensions ...........................................................15
6.2 Electrical connections.........................................16
6.3 Spare parts ...........................................................16
6.4 Replacement key.................................................16
7 Disposal 16
Index 17
8 Notes 18
9 Service & Support 19

4
1 Safety precautions
1.1 Symbols used
Denotes important safety precau-
tions.
Failure to observe said precautions
can result in injury or in damage to
the appliance or fittings!
Information and precautions that
should be observed.
Information on disposal
Information about the Operating In-
structions
▸ Indicates step-by-step instructions.
–Describes how the appliance reacts
to the steps taken.
▪Indicates a list.
1.2 General safety precautions
▪Read the operating instruc-
tions before using the appli-
ance for the first time.
▪This appliance can be used
by children aged 8 and above
and by persons with reduced
physical, sensory or mental
capabilities, or lack of experi-
ence and/or knowledge,
provided they are supervised
or have been instructed on
the safe use of the appliance
and have understood the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainten-
ance shall not be undertaken
by children without supervi-
sion.
▪If an appliance is not
equipped with a mains cable
and a plug or other means for
disconnecting from the mains
with a contact opening on
each pole complying with the
conditions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical install-
ation in accordance with the
installation regulations.
▪If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
turer or its Customer Services
or a similarly qualified person
in order to avoid hazard.
1.3 Appliance-specific safety
precautions
▪Only use this appliance when
supplied by a voltage source
that 1) is not controlled by an
external device, such as a
time switch, timer or device,
that regularly switches the
voltage on and off, and 2) is
not affected by a Mit-
tagssperre or midday power
shut-off during the relevant

1 Safety precautions
5
period, or 3) is switched by a
CoinSystem 1 or CoinSystem
2 cashier system from V-ZUG
Ltd into which you have inser-
ted sufficient money for the
drying programme you have
selected to finish, or 4) is
switched by a CardSystem 1,
CardSystem 2 or VESTA
cashier system from V-ZUG
Ltd which has sufficient credit
for the drying programme se-
lected to finish.
1.4 Instructions for use
Before using for the first time
▪The appliance must be installed and
connected to the electricity supply in
accordance with the separate installa-
tion instructions. Have a qualified fitter/
electrician carry out the necessary
work.
▪Dispose of the packaging material in
accordance with local regulations.
▪Make the desired user settings.
Correct use
▪The appliance is designed for collecting
the costs of operating a washing ma-
chine or tumble dryer. No liability is as-
sumed for any damage caused by im-
proper or incorrect use.
▪Retain these operating instructions for
future reference. If you sell the appli-
ance or pass it on to a third party,
please ensure these operating instruc-
tions accompany the appliance, to-
gether with the installation instructions.
In this way, the new owners can inform
themselves about how to use the appli-
ance correctly and read the pertinent
safety precautions.
Services and support
▪If the appliance is not working properly
or in case a repair is needed, follow the
instructions given in the «Service & Sup-
port» section. Please contact our Cus-
tomer Services if necessary.
▪Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its Cus-
tomer Services or a similarly qualified
person. Repairs if carried out incorrectly
may cause serious injury, damage to
the appliance and fittings, as well as af-
fect the functioning of the appliance.
▪Any work carried out by an unauthor-
ized service provider as well as the use
of spare parts other than the original
spare parts void the obligations under
the warranty.
Children in the household
▪Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren and animals. Danger of suffoca-
tion! Keep packaging material away
from children and animals.
▪The appliance is designed for use by
adults who are familiar with the content
of these operating instructions. Children
may not always be aware of the danger
involved in using electrical appliances.
Ensure proper supervision and do not
allow children to play with the appliance
– there is a danger that children could
hurt themselves.
Note on use
▪If the appliance is visibly damaged, do
not use it. Contact our Customer Ser-
vices.
▪Do not spray the appliance with water.
Do not use a steam cleaner.
▪If the mains cable of the appliance is
damaged, it must be replaced by Cus-
tomer Services to avoid any danger.

2 Your appliance
2.1 Appliance description
The cashier system controls the power supply to the connected appliance based on the
amount entered. The length of time that electricity is consumed is then measured and
charged. Enough coins (CHF / EUR) or tokens have to be inserted for a complete wash
or drying programme.
The appliance does not always debit the same amount of money for the same
wash or drying programmes, as the length of time that electricity is used, depends
on various factors (load, amount and temperature of water, voltage, etc.).
Recommendations for use
The appliance does not give change. If operated with coins, it is recommended that a ba-
sic amount e.g. (CHF / EUR) be inserted. This ensures that the longest possible
programme runs correctly. At the end of the wash day, the user makes the amount up to
again.
The maximum credit possible is .

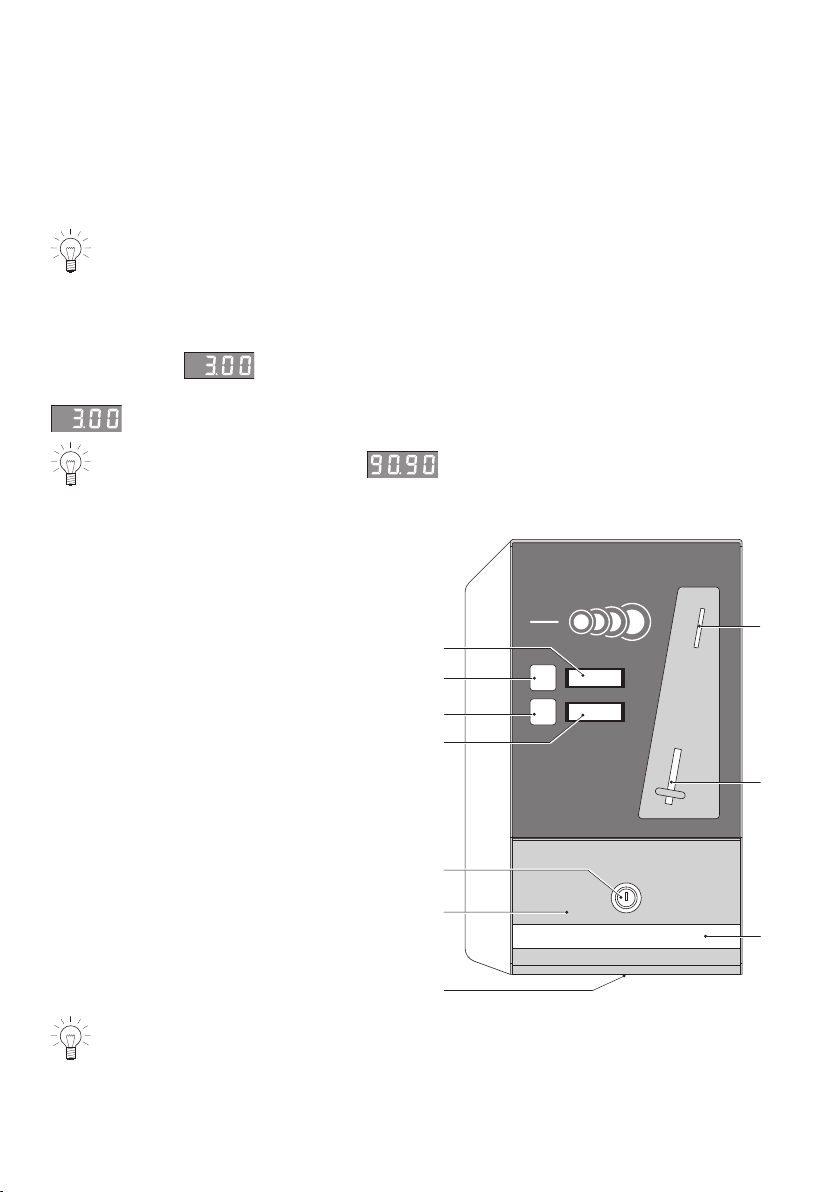

2.2 Appliance design
1 Display for appliance 1
2 Selection button for appliance 1*
3 Selection button for appliance 2*
4 Display for appliance 2*
5 Lock for coin box
6 Coin box cover
7 Identification plate (underside of appli-
ance)
8 Coin/token slot
9 Return slot
10 Labelling strip
2
1
2
1
3
4
5
7
8
9
6
10
Features depend on the model.
* Not applicable to model 245
6

3 Operation
Settings buttons
▸ Open the coin box cover.
–The settings buttons are located
above the coin box. Features depend
on the model.
1 Settings button «+»
2 Settings button «–»
3 Enter/Exit the settings at
«SET»
1 2 3
Display messages
When using for the first time, a short system test is carried out automatically.
–The current software version, e.g. / , is shown in the display.
–If the credit is zero, is shown in the display.
–If the decimal point is flashing in the display, power is being consumed by the ap-
pliance and being deducted from the credit.
–If the credit falls below the warning threshold, then this alternates with
in the display. The appliance switches off automatically when the credit
has run out.
–When the coin box is full, is shown in the display.
3 Operation
3.1 Inserting coins
Enough coins have to be inserted for a complete drying programme.
Model 245
▸ The coins are inserted in the coin/token slot.
–The current credit is shown in the display.
Model 246
▸ Select required appliance.
–The display with the current credit flashes for 5 seconds.
7

3 Operation
▸ Insert the coins while the display is flashing.
–The current credit is shown in the display.
3.2 Emptying the coin box
Coins accepted by the coin validator drop into the coin box. It can hold approximately
400 coins. If a coin is not validated, it automatically drops into the return slot.
▸ Use the key to remove the coin box
cover 1.
▸ Remove the coin box 2, empty it and
then put it back.
▸ As a check, read off the totaliser.
▸ Put the coin box cover 1 back and lock.
12
3.3 Deleting credit
Example: You have a credit of and would like to delete it.
▸ Press the «+» and «–» settings buttons at the same time for about 6 seconds.
–The deleting process is shown in the display: / / /
/ .
–The credit is deleted.
3.4 Totaliser
All the coins that have been inserted can be shown in the display.
▸ Press the «–» settings button for about 3 seconds.
–The total is shown in the display.
Model 245
If the total is greater than , the «+» settings button can be used to show the
«100s» and the «–» settings button can be used to show the «1s».
Model 246
The «100s» are shown in the display for appliance 1 and the «1s» are shown in the dis-
play for appliance 2. Example: the total amount given by the totaliser is 237.30.
–is shown in the display for appliance 1.
–is shown in the display for appliance 2.
▸ To exit, press the «SET» button for about 3 seconds.
The display also changes if:
▪a settings button is not pressed for one minute,
▪a coin is inserted,
▪or an appliance is selected (model 246).
8

4 Calculation
4 Calculation
4.1 Preface to the calculation
The costs which are calculated for the appliance are based on the operating costs of the
washing machine or tumble dryer connected. The operating costs comprise the costs of
the electricity and water consumed as well as of the maintenance costs.
Operating costs
The following calculations are based on the example of an 8kg washing machine and
the Eco programme eco40-60.
The values indicated below are average values. These can vary (depending on
local electricity tariffs and water rates as well as maintenance costs) greatly.
Electricity costs
Electricity
consumption
× Electricity tariff = Costs
0.62kWh × 0.25CHF/kWh = CHF0.155
Water costs (incl. waste water)
Water consumption × Water rate = Costs
45litres = 0.045m3× 3.76CHF/m3= CHF0.169
Annual maintenance costs (5-12 parties)
WM1 maintenance + COS2
maintenance
= Total
maintenance
÷ Wash cycles = Costs
CHF280 + CHF100 = CHF380 ÷ 600 = CHF0.633
Operating costs CHF0.957
Operating costs per programme
Operating costs × Per hour ÷ Programme duration = Charge
CHF0.957 × 60mins ÷ 218mins = 0.26CHF/hr
In the absence of any individual components of the calculation, we recommend a
charge of CHF 0.90 per hour for washing and CHF 1.20 per hour for drying.
1WM: Washing machine
2COS: CoinSystem
9

4 Calculation
4.2 Individual calculation
Item
You will need the following details:
▪Electricity consumption3.............. kWh From the operating instructions
▪Water consumption3 (1m³ =
1000 litres)
................. m³ From the operating instructions
▪Programme duration3......... hr ......... From the operating instructions
▪Electricity tariff per kWh (incl.
peak and low tariffs)
..............CHF Ask local electricity supplier
▪Water rate per m³ (incl. waste
water)
..............CHF Ask local electricity supplier
▪Annual maintenance costs ..............CHF
▪Number of wash cycles per
year
........................ Approx. 150–200 per year and
household
Operating costs
Electricity costs
Electricity
consumption
× Electricity tariff = Costs
…………kWh × …………CHF/kWh = CHF…………
Water costs (incl. waste water)
Water
consumption
× Water rate = Costs
…………m3× …………CHF/m3= CHF…………
Annual maintenance costs (5-12 parties)
WM/TD4
maintenance
+ COS5
maintenance
= Total
maintenance
÷ Wash cycles = Costs
CHF………… + CHF………… = CHF………… ÷ …………… = CHF…………
Operating costs CHF…………
3The calculation should be based on the example of the most frequently used pro-
gramme and carried out separately for each appliance. The charge is higher for
shorter programmes.
4WM/TD: Washing machine / Tumble dryer
5COS: CoinSystem
10

5 Settings
Operating costs per programme
Operating costs × Per hour ÷ Programme duration = Charge
CHF………… × 60mins ÷ …………mins = ………CHF/hr
In the absence of any individual components of the calculation, we recommend a
charge of CHF 0.90 per hour for washing and CHF 1.20 per hour for drying.
5 Settings
5.1 Instructions for settings
Different settings (parameters) can be set for the appliance. This is described below for
both models.
▸ Press the «SET» settings button for about 3 seconds.
–In the display (model 245) appears
–In the displays (model 246) appears
▸ Touch the «+» or «–» settings buttons to toggle between the parameters.
▸ Touch the «SET» settings button to select a parameter.
▸ Use the «+» or «–» settings buttons to change the value.
▸ Touch the «SET» settings button to save the value.
–The setting is saved.
▸ To exit, press the «SET» settings button for about 3 seconds.
It is possible to exit the settings without saving if:
▪a settings button is not pressed for one minute,
▪a coin is inserted,
▪or an appliance is selected (model 246).
Example: With the setting for token operation, the parameters to (CHF
and EUR) are not visible.
11

5 Settings
5.2 Parameters
The parameters are set at the factory as follows:
Parameter Unit Setting range Factory setting Your setting
0 or 1 1
hrs:mins 0:01 to 4:00 1:00
CHF 0:00 to 99:90 0.90
hrs:mins 0:01 to 4:00 1:00
CHF 0:00 to 99:90 0.90
A 0:10 to 1:00 0.2
A 0:0 to 1:0
mins:secs 0:00 to 5:00 5:00
0 or 1 1
hrs:mins 0:01 to 4:00 1:00
CHF 0:00 to 99:90 1.20
hrs:mins 0:01 to 4:00 1:00
CHF 0:00 to 99:90 1.20
A 0:10 to 1:00 0.2
A 0:0 to 1:0
0:00 to 5:00 5:00
mins:secs 0 or 1 0
CHF 0:00 to 99:90 0.10
CHF 0:00 to 99:90 0.20
CHF 0:00 to 99:90 0.50
CHF 0:00 to 99:90 1.00
CHF 0:00 to 99:90 2.00
EUR 0:00 to 99:90 0.00
EUR 0:00 to 99:90 0.00
EUR 0:00 to 99:90 0.00
12

5 Settings
Parameter Unit Setting range Factory setting Your setting
EUR 0:00 to 99:90 0.00
Token 0:00 to 99:90 0.40
5.3 Key to parameters
Model 245 and model 246 (appliance 1)
Parameter Function Description
Operating mode for appli-
ance1
For setting the operating mode to time-de-
pendent (0) or consumption-dependent (1)
operation
Unit for time-dependent
operation for appliance1
Unit of time for appliance 1 «time-depend-
ent» operating mode. Defines the length of
time (e.g. 1 hour) during which the tariff in
P13 is valid.
Tariff for time-dependent
operation for appliance1
Tariff for appliance 1 «time-dependent» op-
erating mode. Debit for (e.g. 1 hour) wash-
ing/drying according to time defined in
P12.
Unit for consumption-de-
pendent operation for ap-
pliance1
Unit of time for appliance1 «consumption-
dependent» operating mode. Defines the
length of time (e.g. 1 hour) during which
the tariff in P15 is valid.
Tariff for consumption-de-
pendent operation for ap-
pliance1
Tariff for appliance 1 «consumption-de-
pendent» operating mode. Debit for (e.g. 1
hour) washing/drying according to time
defined in P14.
Current response
threshold for appliance1
Current response threshold for appliance1
«consumption-dependent» operating mode.
Changing the current response threshold
determines the level of power consumption
from which the debiting begins.
Power display for appli-
ance1
Shows the power being consumed. This
parameter cannot be changed. If a value
greater than 1.0 A is measured, is
displayed.
13

5 Settings
Parameter Function Description
Shut-off delay time for ap-
pliance1
Depending on the washing machine or
tumble dryer connected, there are pauses
during a programme sequence (gaps in the
power being supplied). As soon as there is
a gap that is greater than the set shut-off
delay time (end of programme), debiting
stops.
Model 246 (appliance 2)
Parameter Function Description
Operating mode for appli-
ance2
For setting the operating mode to time-de-
pendent (0) or consumption-dependent (1)
operation
Unit for time-dependent
operation for appliance2
Unit of time for appliance 1 «time-depend-
ent» operating mode. Defines the length of
time (e.g. 1 hour) during which the tariff in
P33 is valid.
Tariff for time-dependent
operation for appliance2
Tariff for appliance 1 «time-dependent» op-
erating mode. Debit for (e.g. 1 hour) wash-
ing/drying according to time defined in
P32.
Unit for consumption-de-
pendent operation for ap-
pliance2
Unit of time for appliance1 «consumption-
dependent» operating mode. Defines the
length of time (e.g. 1 hour) during which
the tariff in P35 is valid.
Tariff for consumption-de-
pendent operation for ap-
pliance2
Tariff for appliance 2 «consumption-de-
pendent» operating mode. Debit for (e.g. 1
hour) washing/drying according to time
defined in P34.
Current response
threshold for appliance2
Current response threshold for appliance 2
«consumption-dependent» operating mode.
Changing the current response threshold
determines the level of power consumption
from which the debiting begins.
Power display for appli-
ance2
Shows the power being consumed. This
parameter cannot be changed. If a value
greater than 1.0 A is measured, is
displayed.
Shut-off delay time for ap-
pliance2
Depending on the washing machine or
tumble dryer connected, there are pauses
during a programme sequence (gaps in the
power being supplied). As soon as there is
a gap that is greater than the set shut-off
delay time (end of programme), debiting
stops.
14

6 Technical data
General parameters
Parameter Function Description
Coin/Token operation For setting CHF/EUR (0) or tokens (1)
Value CHF 0.10 Defines the value of 0.10 CHF 0.10 = 10
rappen
Value CHF 0.20 Defines the value of 0.20 CHF 0.20 = 20
rappen
Value CHF 0.50 Defines the value of 0.50 CHF 0.50 = 50
rappen
Value CHF 1.00 Defines the value of 1.00 CHF 1.00 = 1
Swiss franc
Value CHF 2.00 Defines the value of 2.00 CHF 2.00 = 2
Swiss francs
Value EUR 0.10 Defines the value of 0.10 or 0.15 EUR 0.10
= 10 cents or 15 rappen
Value EUR 0.20 Defines the value of 0.20 or 0.30 EUR 0.20
= 20 cents or 30 rappen
Value EUR 0.50 Defines the value of 0.50 or 0.75 EUR 0.50
= 50 cents or 75 rappen
Value EUR 1.00 Defines the value of 1.00 or 1.50 EUR 1.00
= 1 EUR or 1.50 Swiss francs
Value token Defines the value of a token to be e.g. 0.40
token = 40 rappen
Initializing the system Hold down the «+» and «–» settings buttons
for about 6 seconds. The values of all para-
meters are restored to the factory settings.
Any settings that have been made will be
lost.
Software version Shows the current software version.
If the value of the parameters 51 to 60 is set at 0.00, the corresponding coin/
token will not be accepted.
6 Technical data
6.1 Dimensions
Model 245 Model 246
Width: 17cm 17cm
Height: 32cm 32cm
Depth: 17cm 17cm
Weight: 4.8kg 5kg
15

7 Disposal
6.2 Electrical connections
Model 245 Model 246
Switching capacity: 400 V 3N~ max. 16 A 2 × 400 V 3N~ max. 16 A
Own consumption: < 10 VA < 12 VA
6.3 Spare parts
Coin box W9.0044
Tokens (set of 50) W9.1034
Coin box cover including key W9.0016
Labelling strips, various J245.16
Labelling strips, Swiss francs J245.17
Protection for labelling strips W9.0034
6.4 Replacement key
If the key were to get lost, a replacement key can be ordered using the key code. In this
case, contact our Customer Services.
7 Disposal
7.1 Packaging
Never allow children to play with packaging material due to the danger of injury or
suffocation. Store the packaging material in a safe location or dispose of it in an
environmentally-friendly way.
7.2 Safety
Render the appliance unusable to prevent accidents caused by improper use (e.g.
through children playing):
▸ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried
out by a qualified electrician. Then cut the mains cable off flush with the appliance.
7.3 Disposal
▪ The «crossed‐out wheeled bin» symbol requires the separate collection of waste
electrical and electronic equipment (WEEE). Such equipment can contain hazardous,
environmentally harmful materials.
▪These appliances are to be handed over to a designated collection point for the recyc-
ling of electrical and electronic equipment and must not be disposed of with unsorted
household waste. And in this way, you will be helping to protect resources and the en-
vironment.
▪For more information, please contact the local authorities.
16

Index
A
Appliance
Disposal......................................................... 16
Appliance description ........................................ 6
Appliance design ................................................ 6
D
Deleting credit ..................................................... 8
Dimensions ....................................................... 15
Disposal............................................................. 16
E
Electrical connections..................................... 16
Emptying the coin box ....................................... 8
G
General parameters ........................................ 15
I
Inserting coins ..................................................... 7
Model 245........................................................7
Model 246........................................................7
Instructions for settings................................... 11
Instructions for use ............................................. 5
K
Key to parameters ........................................... 13
M
Model designation .............................................. 2
N
Notes.................................................................. 18
P
Parameters........................................................ 12
Preface to the calculation.................................. 9
Q
Queries .............................................................. 19
R
Recommendations for use................................ 6
Replacement key ............................................. 16
S
Safety
Before using for the first time.......................5
Children in the home .....................................5
Correct use ......................................................5
Note on use .....................................................5
Safety warnings
General .............................................................4
Service & Support............................................ 19
Service agreement........................................... 19
Settings .............................................................. 11
Settings buttons .................................................. 7
Spare parts ....................................................... 16
Symbols................................................................ 4
T
Technical data .................................................. 15
Totaliser ................................................................ 8
Model 245........................................................8
Model 246........................................................8
Type....................................................................... 2
V
Validity................................................................... 2
Y
Your appliance .................................................... 6
17

18
8 Notes

9 Service & Support
The «Trouble-shooting» section gives you valuable tips on how to deal with minor
malfunctions yourself, saving you the time and trouble of calling out a service tech-
nician and any cost that goes along with it.
Information on the V-ZUG warranty can be found at www.vzug.com →Service
→Warranty information. Please read this information carefully.
Please register your V-ZUG appliance straightaway:
▪online at www.vzug.com →Service →Online warranty registration or
▪using the enclosed registration card.
This will allow you to take advantage of the best possible support in the event of a fault
in the appliance during the guarantee period. You will require the serial number (SN) and
appliance designation to register your appliance. You will find them on the identification
plate of your appliance.
My appliance information:
SN: __________________________ Appliance: ______________________________
Please have this appliance information to hand when contacting V-ZUG. Thank you.
Your repair order
Call the free service number 0800 850 850 to contact your nearest
V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish.
General queries, accessories and service agreement
V-ZUG will be happy to help you with any general administrative or technical queries, to
accept your orders for accessories and spare parts and to inform you about our pro-
gressive service agreements. You can contact us by calling tel. [phone] or by
going to our website at www.vzug.com.
19

Please first read the safety precautions in the operating instructions!
1
1
V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug
Tel. [phone], Fax [phone]
[email protected], www.vzug.com
Service Centre: Tel. [phone]
1185717-02
