V-ZUG System drawer 60-144 User manual

Installation instructions
System drawer 60-144
J620.113-0
12.8.09 ITH
1
These installation instructions apply to the model: 620
Identification plate
ARemove the drawer. The identification plate is located on the inside of the appliance.
1. Fix a bracket set 60 W(not included in the scope of delivery) for an
appliance located above or below.

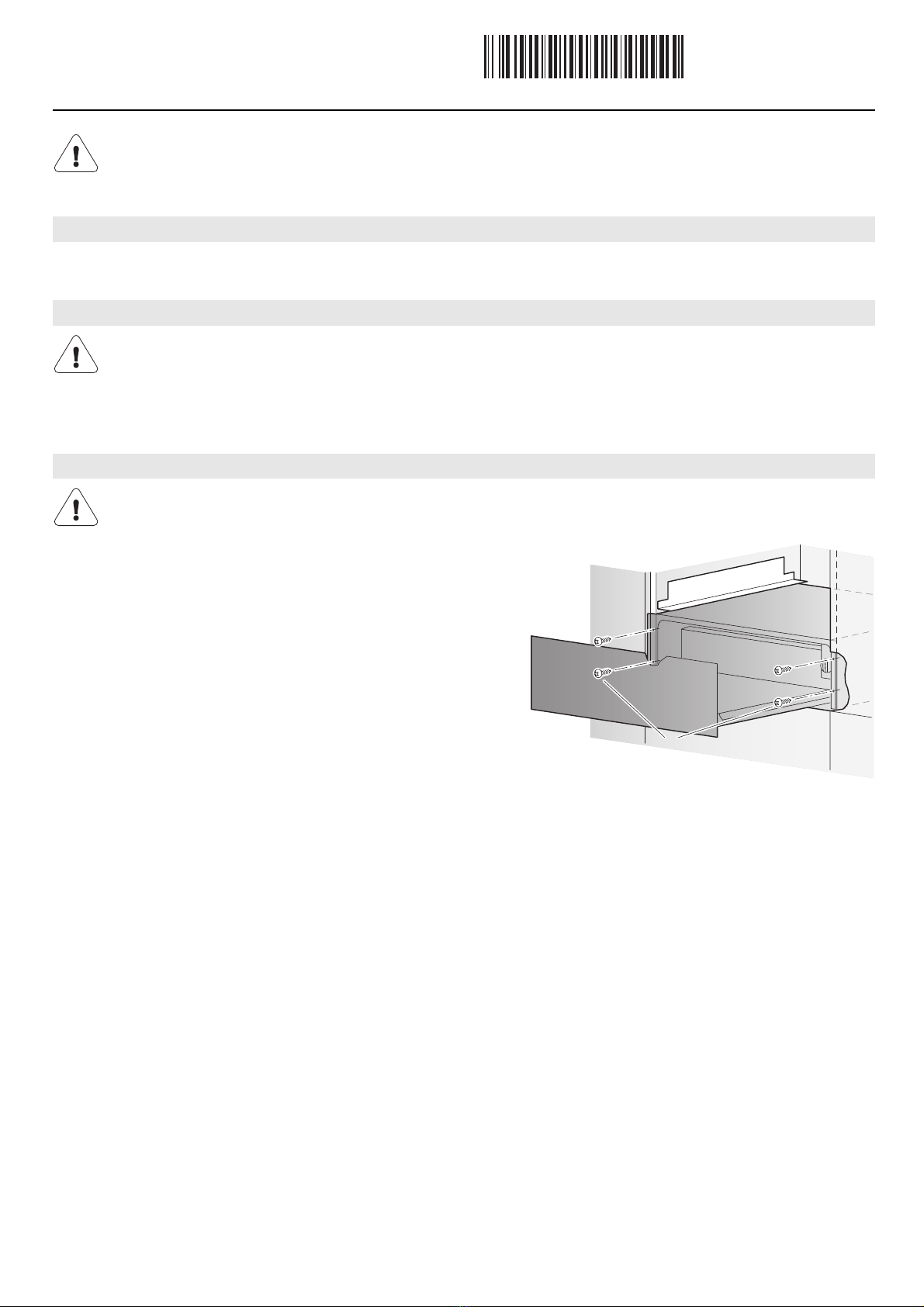

2. Carefully slide appliance into the niche until it is flush with the front
of the cabinet.
3. Open the drawer and fix in place from the front, using the 4 supplied
screws S.
The appliance should be installed by qualified personnel only. Each step must be carried out and checked in full in the order
specified.
Validity
General notes
If fitting in flammable material, the guidelines and standards for low voltage installations and for the fire protection must be
strictly observed.
Installation
The drawer must be secured by 4 screws to prevent tipping.
S
W

Installation instructions
System drawer 60-144
J620.113-0
12.8.09 ITH
2
Built-in solo
Installation combinations
If a second appliance is installed in the same niche (above or below), you should use bracket set 60 Wto support the upper
appliance.
Below a oven
min. 550
144
560–568
596
547
142
600
560–568
50
594144
738
W
X
W
450144
594
50
560–568
min. 550
X
min. 550
Detail X
594 / 450
Niche
598 / 454
Appliance
