V-ZUG Coin System 1 User manual

V-ZUG LTD
Cashier system
Coin System 1&2
2
1
Operating instructions

Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarize yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make tech-
nical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Model Type Product range
Coin System 1 COS 1 245
Coin System 2 COS 2 246
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2014
2

Contents
1Safety precautions 4
1.1 Symbols used ......................................................................................... 4
1.2 General safety precautions .................................................................. 5
2Instructions for use 7
2.1 Before using for the first time .............................................................. 7
2.2 Correct use .............................................................................................. 7
2.3 Children in the household .................................................................... 7
2.4 Note on use ............................................................................................. 8
3Disposal 9
4Your appliance 10
4.1 Appliance description ............................................................................ 10
4.2 Appliance design ................................................................................... 11
4.3 Inserting coins ......................................................................................... 13
4.4 Emptying the coin box .......................................................................... 13
4.5 Deleting credit ......................................................................................... 14
4.6 Totaliser .................................................................................................... 14
5Calculation 15
5.1 Preface to the calculation ..................................................................... 15
5.2 Individual calculations ........................................................................... 16
6Settings 18
6.1 Instructions for settings ......................................................................... 18
6.2 Parameters .............................................................................................. 19
6.3 Key to parameters .................................................................................. 21
7Technical data 27
7.1 Dimensions .............................................................................................. 27
7.2 Electrical connections ........................................................................... 27
7.3 Spare parts .............................................................................................. 27
7.4 Replacement key .................................................................................... 27
Index 29
9Repair service 31
3

1Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in
damage to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
•Indicates a list.
4

1.2 General safety precautions
•Read the operating instructions before using
the appliance for the first time!
•This appliance can be used by children aged
8 and above and by persons with reduced
physical, sensory or mental capabilities, or
lack of experience and/or knowledge,
provided they are supervised or have been
instructed on the safe use of the appliance
and have understood the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
undertaken by children without supervision.
1 Safety precautions
5

•If an appliance is not equipped with a mains
cable and a plug or other means for discon-
necting from the mains with a contact opening
on each pole complying with the conditions of
overvoltage category III for full isolation, an
isolating device must be incorporated into the
permanently installed electrical installation in
accordance with the installation regulations.
•If the mains cable of this appliance is
damaged, it must be replaced by the manu-
facturer or its Customer Services or a similarly
qualified person in order to avoid hazard.
1 Safety precautions
6

2Instructions for use
2.1 Before using for the first time
•The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
•Dispose of the packaging material in accordance with local regulations.
•Make the required user settings.
2.2 Correct use
•The appliance is designed for collecting the costs of operating a washing
machine or tumble dryer. No liability is assumed for any damage caused by
improper or incorrect use.
•Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its
Customer Services or a similarly qualified person. Repairs carried out incor-
rectly could cause serious injury or damage to the appliance and fittings as
well as affect the functioning of the appliance. If the appliance is not
working properly or in the case of a repair order, follow the instructions
given in the 'Repair service' section. Please contact our Customer Services
if necessary.
•Keep these operating instructions in a safe place for future reference. If you
sell the appliance or pass it on to a third party, please ensure these oper-
ating instructions accompany the appliance. In this way, the new owner can
inform themselves about how to use the appliance correctly and take the
relevant safety precautions.
2.3 Children in the household
•Packaging material (e.g. plastic, polystyrene) can be dangerous for children.
Danger of suffocation! Keep packaging material away from children.
•The appliance is designed for use by adults who are familiar with these
operating instructions. Children are often unable to recognise the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance.
7

2.4 Note on use
•If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
•Do not spray the appliance with water. Do not use a steam cleaner.
•If the mains cable of the appliance is damaged, it must be replaced by
Customer Services to avoid any danger.
2 Instructions for use
8

3Disposal
Packaging
•All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
•Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
•Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
•Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
•Remove or disable the lock on the appliance door.
Disposal
•The old appliance should not be discarded as worthless rubbish. If
disposed of correctly, the raw materials can be recovered for recycling.
•The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
•The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recy-
cling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
9

4Your appliance
4.1 Appliance description
The cashier system controls the power supply to the connected appliance
based on the amount entered. The length of time that electricity is consumed
is then measured and charged. Enough coins (CHF / EUR) or tokens have to
be inserted for a complete wash or drying programme.
The appliance does not always debit the same amount of money for
the same wash or drying programmes, as the length of time that elec-
tricity is used, depends on various factors (load, amount and tempera-
ture of water, voltage, etc.).
Recommendations for use
The appliance does not give change. If operated with coins, it is recom-
mended that a basic amount e.g. (CHF / EUR) be inserted. This
ensures that the longest possible programme runs correctly. At the end of the
wash day, the user makes the amount up to again.
The maximum credit possible is .
10

4.2 Appliance design
1Display for appliance 1
2Selection button for appliance 1*
3Selection button for appliance 2*
4Display for appliance 2*
5Lock for coin box
6Coin box cover
7Identification plate (underside of
appliance)
8Coin/token slot
9Return slot
10 Labelling strip
2
1
2
1
3
4
5
7
8
9
6
10
Features depend on the model.
* Not applicable to model 245
4 Your appliance
11

Settings buttons
Open the coin box cover.
– The settings buttons are located
above the coin box. Features
depend on the model.
1Settings button «+»
2Settings button «–»
3Enter/Exit the settings at
«SET»
1 2 3
Display messages
When using for the first time, a short system test is carried out automatically.
– The current software version, e.g. / , is shown in the
display.
– If the credit is zero, is shown in the display.
– If the decimal point is flashing in the display, power is being consumed
by the appliance and being deducted from the credit.
– If the credit falls below the warning threshold, then this
alternates with in the display. The appliance switches off
automatically when the credit has run out.
– When the coin box is full, is shown in the display.
4 Your appliance
12

4.3 Inserting coins
Model 245
The coins are inserted in the coin/token slot.
– The current credit is shown in the display.
Model 246
Select required appliance.
– The display with the current credit flashes for 5
seconds.
Insert the coins while the display is flashing.
– The current credit is shown in the display.
4.4 Emptying the coin box
Coins accepted by the coin validator drop into the coin box. It can hold
approximately 400 coins. If a coin is not validated, it automatically drops into
the return slot.
Use the key to remove the coin box
cover 1.
Remove the coin box 2, empty it and
then put it back.
As a check, read off the totaliser.
Put the coin box cover 1back and
lock.
12
4 Your appliance
13

4.5 Deleting credit
Example: You have a credit of and would like to delete it.
Press the «+» and «–» settings buttons at the same time for about 6
seconds.
– The deleting process is shown in the display: / /
/ / .
– The credit is deleted.
4.6 Totaliser
All the coins that have been inserted can be shown in the display.
Press the «–» settings button for about 3 seconds.
– The total is shown in the display.
Model 245
If the total is greater than , the «+» settings button can be used to
show the «100s» and the «–» settings button can be used to show the «1s».
Model 246
The «100s» are shown in the display for appliance 1 and the «1s» are shown
in the display for appliance 2. Example: the total amount given by the totaliser
is 237.30.
– is shown in the display for appliance 1.
– is shown in the display for appliance 2.
To exit, press the «SET» button for about 3 seconds.
The display also changes if:
•a settings button is not pressed for one minute,
•a coin is inserted,
•or an appliance is selected (model 246).
4 Your appliance
14

5Calculation
5.1 Preface to the calculation
The costs which are calculated for the appliance are based on the operating
costs of the washing machine or tumble dryer connected. The operating costs
comprise the costs of the electricity and water consumed as well as of any
service subscription.
Example calculation for a washing machine with a 6 kg load capacity
The values indicated below are average values. These can (depending
on local electricity and water rates as well as subscription costs) vary
greatly.
Basis: Coloureds 60 °C without a pre-wash
Electricity costs
Electricity consumption Electricity tariff Electricity costs
1.4 kWh × CHF/kWh 0.25 = CHF 0.35
Water costs (incl. waste water)
Water consumption Water rate Water costs
70 litres = 0.07 m3×CHF/m33.76 = CHF 0.23
Subscription costs (per year with 5 to 12 parties)
Service subscription (WM *
CS)
No. wash cycles Subscription costs
CHF 232.00 + 83.00 =
CHF 315.00
÷ 600 = CHF 0.56
15

Total operating costs per programme (duration 70 mins.) CHF 1.14
Operating
costs
Per hour Programme duration
CHF 1.14 × 60 mins. ÷ 76 mins. = CHF/hr 0.90
In the absence of any individual components of the calculation, we recom-
mend a sum of CHF 0.90 per hour for washing and CHF 1.20 per hour for
drying.
5.2 Individual calculations
You will need the following details:
Electricity consumption* .............. kWh From the operating
instructions
Water consumption* (1m³ = 1000
litres)
................. m³ From the operating
instructions
Programme duration* ......... h ......... From the operating
instructions
Electricity tariff per kWh (incl. peak
and low tariffs)
CHF ............. Ask local electricity
supplier
Water rate per m³ (incl. waste water) CHF ............. Ask local electricity
supplier
Annual service costs CHF CHF ............. See service agreement
Number of wash cycles per year ...................... Approx. 150–200 per
year and household
* The calculation should be based on the example of the most frequently used
programme and carried out separately for each appliance. Ideally, select the
main programme «Coloureds 60°C» without a pre-wash for the washing
machine and the «Standard dry» programme for the tumble dryer.
Electricity costs
Electricity consumption Electricity tariff Electricity costs
kWh…… × CHF/kWh .......... = CHF..........
5 Calculation
16

Water costs (incl. waste water)
Water consumption Water rate Water costs
…….m3×CHF/m3…… = CHF .............
Subscription costs (per year with 5 to 12 parties)
Service subscription (WM *
CS)
No. wash cycles Subscription costs
costs
CHF…… + …… = CHF …… ÷ …… = CHF ......
Total operating costs per programme (duration 70 mins.) CHF 1.18
Operating
costs
Per hour Programme duration
CHF ............. × 60 mins. ÷ …….mins. = CHF/hr ……
5 Calculation
17

6Settings
6.1 Instructions for settings
Different settings (parameters) can be set for the appliance. This is described
below for both models.
Press the «SET» button for about 3 seconds.
– appears in the display (model 245).
– appears in the displays (model 246).
Press the «+» or the «–» settings buttons to toggle between the parameters.
Press the «SET» button to select a parameter.
Use the «+» or «–» buttons to change the value.
Press the «SET» button to save the value.
– The setting is saved.
To exit, press the «SET» button for about 3 seconds.
It is possible to exit the settings without saving if:
•a settings button is not pressed for one minute,
•a coin is inserted,
•or an appliance is selected (model 246).
Example: With the setting for token operation, the parameters to
(CHF and EUR) are not visible.
18

6.2 Parameters
The parameters are set at the factory as follows:

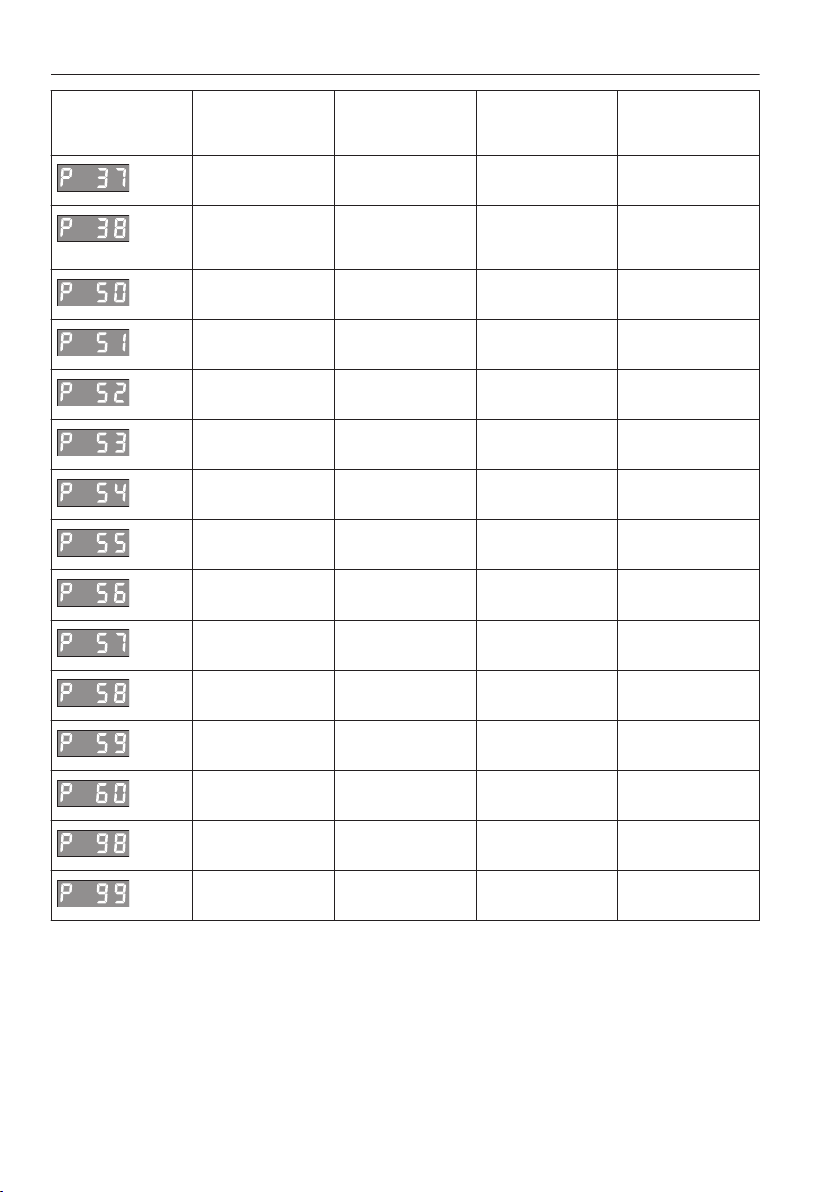

Parameter Unit Setting range Factory
setting
Your setting
0 or 1 1
hrs:mins 0:01 to 4:00 01:00
CHF 0:00 to 99:90 0.90
hrs:mins 0:01 to 4:00 01:00
CHF 0:00 to 99:90 0.90
A 00:10 to
01:00
0.2
A 0:0 to 1:0
mins:secs 00:00 to
05:00
05:00
0 or 1 1
hrs:mins 0:01 to 4:00 01:00
CHF 0:00 to 99:90 1.20
hrs:mins 0:01 to 4:00 01:00
CHF 0:00 to 99:90 1.20
A 00:10 to
01:00
0.2
6 Settings
19

Parameter Unit Setting range Factory
setting
Your setting
A0:0 to 1:0
00:00 to
05:00
05:00
mins:secs 0 or 1 0
CHF 0:00 to 99:90 0.10
CHF 0:00 to 99:90 0.20
CHF 0:00 to 99:90 0.50
CHF 0:00 to 99:90 1.00
CHF 0:00 to 99:90 2.00
EUR 0:00 to 99:90 0.00
EUR 0:00 to 99:90 0.00
EUR 0:00 to 99:90 0.00
EUR 0:00 to 99:90 0.00
Token 0:00 to 99:90 0.40
6 Settings
20
