Vacmaster EasyClean SCA0801 User manual

1
2
3
4
5
6
7
8
9
10
11
14 15
12 13

4
GB
TABLE OF CONTENTS
SECTION PAGE
Symbols ........................................................................................................................................... 4
Safety Information ............................................................................................................................ 5
Unpacking and Product Features..................................................................................................... 7
Assembly ......................................................................................................................................... 7
Operation ......................................................................................................................................... 8
Maintenance................................................................................................................................... 10
Troubleshooting...............................................................................................................................11
Technical Data ................................................................................................................................ 12
Recycling and Disposal .................................................................................................................. 12
SYMBOLS
Caution.
Read instruction manual. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Appliance in which protection against electric shock does not rely
on basic insulation only but in which additional safety precautions
are provided, such as double insulation or reinforced insulation,
there being no provision for protective earthing or reliance upon
installation conditions.
Do not dispose of electrical equipment in domestic waste.
IPX4 Protection against penetration of dust, protection against vertical
water drips.
Thank you for purchasing this Vacmaster® carpet spot cleaner. Feel condent that with Vacmaster®
you are obtaining a high-quality product that is engineered for optimal performance. This carpet
spot cleaner is suitable for use with liquid materials.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

5
GB
SAFETY INFORMATION
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE
USING THIS PORTABLE CARPET SPOT CLEANER.
When using the equipment, a few safety precautions must be
observed to avoid injuries and damage. Please read the complete
operating manual with due care. Keep this manual in a safe
place so that the information is always available. If you give
the equipment to any other person, give them these operating
instructions as well. We cannot accept any liability for damage or
accidents which arise due to a failure to follow these instructions
and the safety information.
• Never leave the appliance switched on unattended, if you leave
the work area, switch the appliance off or unplug it from the
power supply.
• Do not vacuum or use this carpet cleaner near ammable
liquids, gases or explosive vapours like gasoline or other fuels,
lighter uids, cleaners, oil-based paints, natural gas, hydrogen,
or explosive dusts like coal dust, magnesium dust, grain dust
or gun power. Sparks inside the motor can ignite ammable
vapours or dust.
• This carpet cleaner is not suitable for the vacuuming of asbestos
or asbestos dust.
• Do not vacuum anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
• Ensure the hose and connections are always pointed away from
the users face, hair, ears and eyes during operation and never
direct the nozzle towards persons or animals.
• Clear the working area of any items or possessions that you do
not wish to be vacuumed before operation.
• Keep cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on the cord. To unplug, grasp the plug,
not the cord.
• Do not use with damaged cord, plug or other parts.
• Do not pull or carry by cord, use cord as handle, close a door on
cord, or pull cord around sharp edges or corners.

6
GB
• Do not handle the plug or carpet cleaner with wet hands.
• To reduce the risk of health hazards from vapours or dusts, do
not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not allow to be used as a toy. Close attention is necessary
when used by or near children.
• Unplug from power supply when not in use and before carrying
out maintenance.
• Do not cover the ventilation openings. Do not vacuum with any
ventilation openings blocked; keep free of dust, lint, hair or
anything that may reduce air ow.
• Keep hair, loose clothing, ngers, all parts of body away from
openings and moving parts.
• If the supply cord is damaged, it must be replaced by the
manufacturer, a qualied service agent or similarly qualied
persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of
the appliance in a safe way and understanding the hazards
involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children
without supervision.
• Use extra care when cleaning on stairs. To avoid personal injury
or damage, and to prevent the cleaner from falling, always place
cleaner at bottom of stairs or on oor. Do not place cleaner on
stairs or furniture, as it may result in injury or damage.
• For additional protection: It is recommended that this carpet
cleaner can be used in conjunction with residual current device
(RCD) with a rated residual current of 30mA or less.
• If foam or liquid escapes from the machine, switch off
immediately.
• Check the oat valve regularly to ensure it is moving freely and
examine it for signs of damage.
• Besides the operating instructions and the binding accident
prevention regulations valid in the country of use, observe
recognised regulations for safety and proper use.

7
GB
NOTE: A Phillips screwdriver is required.

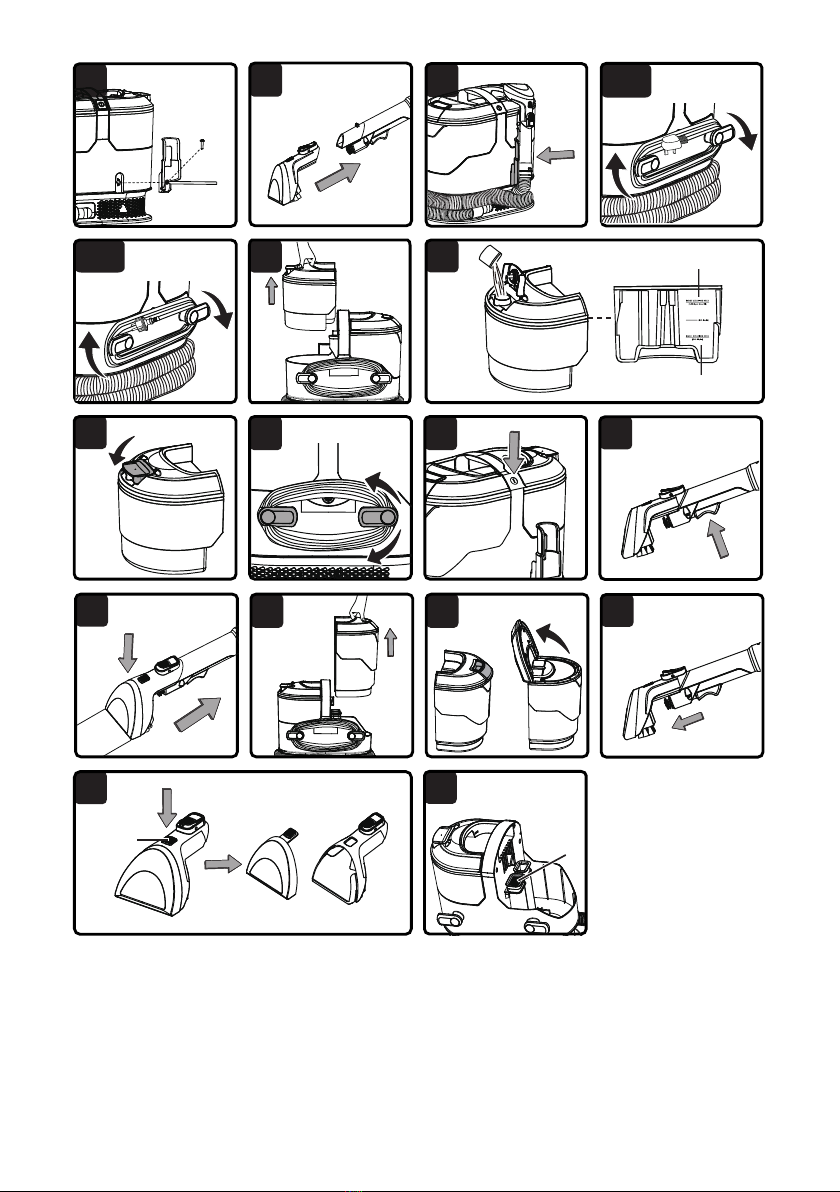

1. Loosen the pre-attached screw located on the hose storage clip. Secure the hose storage clip onto
the carpet cleaner body with the supplied screw (Fig. 1).
2. Select the preferred attachment and slide it onto the end of the suction hose until it clicks into
place (Fig. 2).
To remove: Press the tool release button and pull away the attachment.
NOTE: Clip the suction hose with the tool attached into the hose storage clip when not in use
(Fig. 3).
3. Wrap the power cord loosely around the quick release cord hooks (Fig. 4).
• Before starting work, the operating staff must be informed on
- use of the carpet cleaner,
- risks associated with the material to be picked up,
- safe disposal of the picked up material.

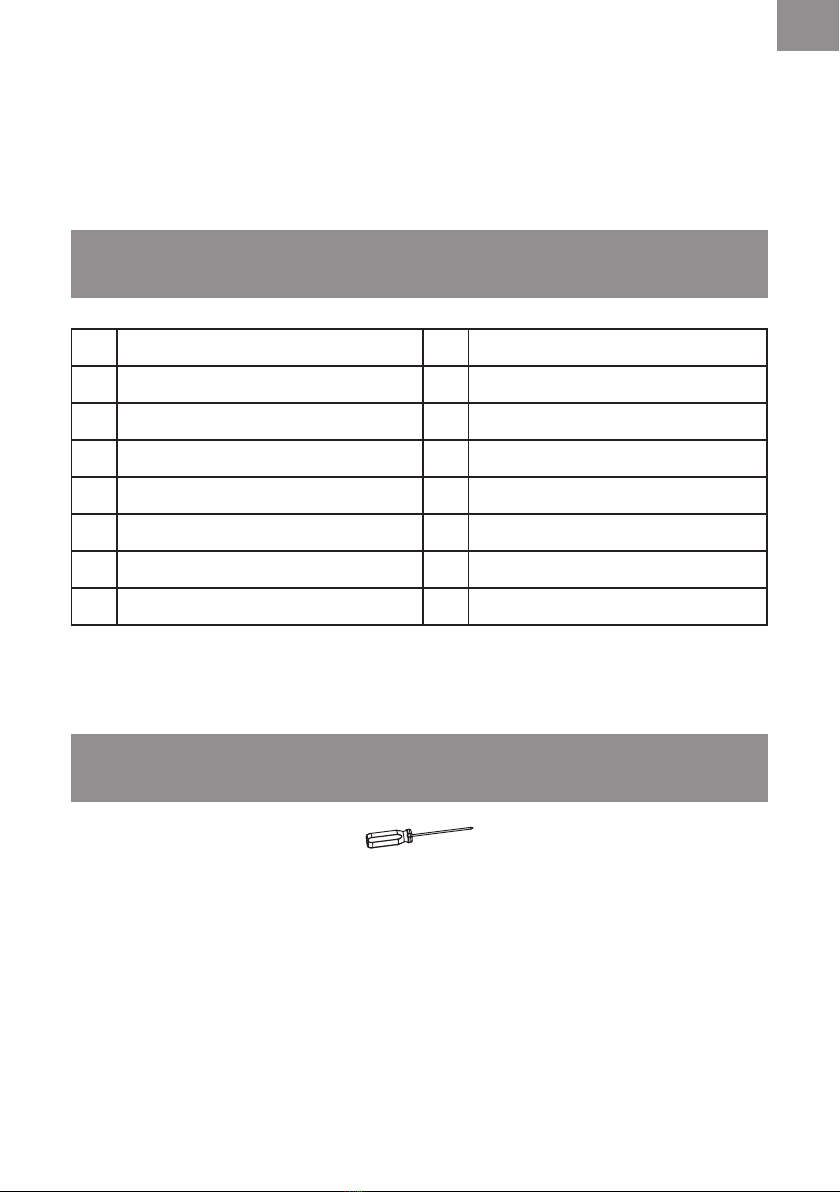

1 Power Button 9 Power Cord Hooks
2 Tool Release Button 10 Clean Water Tank
3 Hose Storage Clip 11 Clean Water Inlet Cap
4 Suction Hose 12 Tough Stain Nozzle
5Dirty Water Tank 13 Wide Path Nozzle
6 Dirty Water Tank Cover Release 14 Carpet Solution
7Carry Handle 15 Instruction Manual
8 Power Cord
UNPACKING AND PRODUCT FEATURES
ASSEMBLY

8
GB
OPERATION
1. Filling The Clean Water Tank
1) Remove the clean water tank from the side of the unit (Fig. 5).
2) Open the clean water inlet cap. Fill with warm water (Max 40°C) and solution. Ensure the
correct proportion of water and carpet cleaning solution is used by referring to the solution label
(Fig. 6).
SMALL CLEANING AREA - 0.8L Liquid (
1
)
LARGE CLEANING AREA - 2.5L Liquid (
2
)
Do not exceed lling the clean water tank over the maximum ll line indicated on the clean
water tank.
CAUTION: Do not ll with water above 40°C.
NOTE: A 236ml bottle of solution is provided with this carpet cleaner. Ensure the solution and
water are mixed correctly. Once Sample bottle is depleted, the solution can be replaced with a
high-quality carpet solution.
CAUTION: The carpet solution can cause serious skin and eye irritation. Wash
affected area cautiously with water for several minutes. If irritation persists, seek
medical attention immediately. Individuals with sensitive skin should wear rubber
gloves. Wash hands thoroughly after use. Do not ingest. Keep out of reach of
children.
3) Secure the tank inlet cap back into place (Fig. 7).
4) Slide the clean water tank back onto the unit.
2. Using Your Machine
IMPORTANT: Before using the carpet cleaner, thoroughly vacuum the area to be cleaned. Always
test a small hidden area for colorfastness and pile distortion.
Test Colorfastness - Gently rub surface with a dampened white cloth containing cleaning solution.
Wait 10 minutes and check for color removal with a white paper towel. If color changes, do not
use.
NOTE: To prevent staining, please use plastic, wax paper or aluminum foil to protect wood or
metal surfaces from possible water spray.
To protect the wooden oors underneath rugs or carpet, place protective material (e.g. plastic)
underneath them before cleaning.
NOTE: Always refer to and follow the manufactures care guidelines before using carpet cleaning
solution and carpet spot cleaner.
1) Unwrap the hose. Select the preferred attachment and make sure it is attached securely.
Tough Stain Nozzle: For cleaning carpets, rugs, upholstery and hard-to-reach surfaces.
Wide Path Nozzle: For cleaning stairs and larger areas.

9
GB
2) Turn the quick release cord hooks to release the power cord (Fig. 8).
3) Plug the power cord into a power outlet.
WARNING: If any abnormality/failure occurs, stop using the product immediately and
disconnect the power plug.
4) Press the power button to turn the carpet cleaner on (Fig. 9).
5) For spills, rst collect any excess liquid before using water/solution. Place the cleaning nozzle
towards the front of the spill and slowly pull backwards over the area.
6) To dispense cleaning solution, hold the tool about 2.5 cm over the area to be cleaned. Squeeze
the spray trigger to release a mix of water and cleaning solution (Fig. 10).
7) Release the trigger and use the brush on the nozzle to agitate cleaning area by scrubbing.
8) To lift away the stain, tilt the nozzle to make contact with surface and pull the tool backward
slowly to vacuum up excess dirty liquids. Repeat as necessary (Fig. 11).
NOTE: Ensure the nozzle is in contact with the surface, over or under tilting may result in poor pick
up.
9) Once you have completed cleaning, press the power button and unplug the power cord.
CAUTION: THERMAL PROTECTOR
This carpet cleaner is equipped with thermal protector which automatically protects the
machine should it overheat. When the thermal protector activates, the attached nozzle will
stop spraying.
To reset thermal protector: Turn the carpet cleaner off and unplug the power cord from the
outlet to allow the carpet cleaner to cool for approximately 30 minutes.
Empty the dirty water tank and check for any obstructions if necessary.
3. Emptying Dirty Water Tank
WARNING: Always unplug power cord from electrical outlet before performing any service
on carpet cleaner.
Empty the dirty water tank when the dirty liquid reaches the "Max Fill" line and there is a loss in
suction. During normal use, debris may accumulate in the dirty water tank. To keep the carpet
cleaner functioning properly, rinse out the dirty water tank with clean water after each use and
leave to air dry before retting.
1) Remove the dirty water tank from the side of the unit (Fig. 12).
2) Release the dirty water tank cover to open (Fig. 13).
3) Empty the tank into a sink or toilet. Rinse the tank thoroughly with clean water. Allow the tank to
air dry before reinstalling. DO NOT wash in the dishwasher. DO NOT install damp.
4) Close the tank cover and secure the release latch.
5) Reinstall the dirty water tank back into the unit.
WARNING: The motor noise changes to a higher pitch when the dirty water tank is full
or blocked. Stop the vacuum immediately and empty the dirty water tank.

10
GB
WARNING: Remove the power cord from the power supply before carrying out any
maintenance.
1. Cleaning Exterior
1) Turn off and unplug carpet cleaner.
2) To clean exterior, or to reduce static electricity and dust build-up, wipe outer surface with a
clean, damp and soft cloth. Wipe dry after cleaning.
2. Cleaning Nozzle and Attachments
It is recommended to clean attachments with water after each use.
1) Press the tool release button to remove the attachment from the hose (Fig. 14).
2) Press the cover release button (
3
) on the nozzle to remove the cover (Fig. 15).
3) Rinse thoroughly with clean water. Allow the parts to dry before reinstalling. DO NOT wash in
the dishwasher. DO NOT install whist still damp.
4) Reinstall the nozzle cover and the insert back into place until a click is heard.
3. Cleaning the Filter Grill
1) Remove the dirty water tank from the side of the unit.
2) Remove any dirt and debris from the lter grill (
4
) as shown (Fig. 16).
4. Storage
WARNING: Wrapping the power cord too tightly puts stress on the cord and could cause
damage. A damaged cord is an electrical shock hazard and could cause personal injury or
damage.
1) Replace suction hose and attachments in storage position.
2) Wrap the power cord loosely around the cord hooks. Attach plug retainer clip onto the power
cord.
3) Empty the clean water tank (if necessary). Rinse it out before replacing on the unit. Open the
clean water tank cap to allow it to air dry.
4) Empty the dirty water tank then rinse, clean and dry before placing back on the unit.
5) Store the carpet cleaner in a dry and cool indoor area.
MAINTENANCE

11
GB
TROUBLESHOOTING
WARNING: To reduce the risk of electric shock, unplug before troubleshooting.
PROBLEM POSSIBLE CAUSE SOLUTION
The cleaner is not
operational.
Unplugged at power outlet. Plug in rmly to suitable power outlet.
Defective power outlet.
Check with a good appliance. Be sure
the power cord plug is fully plugged
into an electrical outlet.
The motor is damaged.
Have the damaged part checked by
qualied personnel or contact the
after sales helpline.
Poor pick-up
performance.
Dirty water tank is not installed
correctly.
Check the dirty water tank for correct
installation. Ensure it is installed in
place.
Dirty water tank is full. Empty the dirty water tank.
The suction hose is clogged. Clean the hose.
Float value is activated. Empty the dirty water tank.
Water escapes
from the cleaner.
Dirty water tank is full. Empty the dirty water tank.
Dirty water tank is not installed
correctly.
Check the dirty water tank for correct
installation. Ensure it is installed in
place.
Clean water tank is not installed
correctly.
Check the clean water tank for correct
installation. Ensure it is installed in
place.
No solution
spraying out.
Clean water tank is empty. Fill the clean water tank.
Clean water tank is not installed
correctly.
Check the clean water tank for correct
installation. Ensure it is installed in
place.
The cleaner is overheated.
Unplug the power cord and let the
cleaner cool down for 30 minutes.
Restart the cleaner. If the problem
persists, contact the after sales
helpline.

12
GB
PROBLEM POSSIBLE CAUSE SOLUTION
Hose nozzle will
not spray after
lling the clean
water tank.
Air is trapped in the pump and
hose.
Turn on the cleaner. If hose does not
spray, prime the pump by lowering
the hose down to the oor and hold
the trigger for up to 1 minute.
Motor noise
becomes high-
pitched.
Dirty water tank is full. Empty the dirty water tank.
The suction hose is clogged. Clean the hose.
The oat in the dirty water tank
has been activated. Empty and clean the dirty water tank.
TECHNICAL DATA
RECYCLING AND DISPOSAL
Model Number SCA0801
Motor 220-240V ~ 50-60Hz
Power Input 800W
Clean Capacity 2.5L
Net Weight 4.6kg
This marking indicates that this product should not be disposed with other household
wastes. The machine must be delivered in rigid packaging to avoid damage during
transportation. The packaging and the machine itself are manufactured from recyclable
materials and should be disposed of accordingly.

8 9
4-1
6
7
5
4-2
3
10
15
16
2
12 13
11 14
③④
1
②
①

SCA0801
Suzhou Cleva Electric Appliance Co., Ltd.
No.8 Ting Rong Street
Suzhou Industrial Park, Suzhou
Jiangsu Province, China
www.cleva-europe.com
Made in P.R.C
