Vacmaster UC0101 User manual

Use & Care Guide
MODEL NO. UC0101
Bagless Upright Vacuum Cleaner
www.vacmaster.com
Cleva North America, Inc.
Greenville, SC 29607
Made in China
[phone]

-2-
SECTION
Important Safety Instructions...................................................................................................................
Warranty..................................................................................................................................................
Technical Data.........................................................................................................................................
Getting To Know Your Vacuum................................................................................................................
General Assembly Instructions...............................................................................................................
Operating Instructions............................................................................................................................
Maintaining Your Vacuum.......................................................................................................................
Troubleshooting.....................................................................................................................................
3
4
4
5
7
11
17
27
TABLE OF CONTENTS
PAGE
Thank you for purchasing this Vacmaster®vacuum cleaner. With it you are
obtaining a high quality product that is engineered for optimal performance.
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual and your sales check (receipt) in a safe place for future
reference.

-3-
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
Failure to follow the warnings and instructions may result in electric shock, re
and/or serious injury.
WARNING–To reduce the risk of re, electric shock, or injury:
• Do not leave appliance when plugged in. Unplug from outlet when not in use
and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or
near children.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should,
has been dropped, damaged, left outdoors, or dropped into water, return it to a
service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull
cord around sharp edges or corners. Do not run appliance over cord. Keep cord
away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep
free of dust, lint, hair, and anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings and
moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or
use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches,
or hot ashes.
• Do not use without lters in place.
SAVE THESE INSTRUCTIONS
Household use only

-4-
FOR ONE YEAR from the date of sale, this product is warranted against defects
in material or workmanship when it is assembled, operated and maintained
according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the web page:
www.vacmaster.com or call [phone].
• This warranty does not cover lters or belt, which are expendable parts that
can wear out from normal use within the warranty period.
• This warranty is void if this product is ever used for other than private household
purposes.
• This warranty gives you specic legal rights, and you may also have other
rights which vary from state to state.
TECHNICAL DATA
Bagless Upright Vacuum Cleaner
Model: UC0101
Rated Voltage: 120V AC
Rated Frequency: 60Hz
Nominal Current: 10A
WARRANTY
TECHNICAL DATA

-5-
GETTING TO KNOW YOUR VACUUM
Handle
Hose Storage
Connection Hose
Floor Nozzle
Release Button
On/Off Button
Crevice Tool
Extension Wand
Screws (5)
Screw Bolt (Pre-installed)
Nut (Pre-installed)
Lower Cord Hook
Accessory Storage
Lower Locking Notch
Hose
Dust Cup
Release Button
Carrying Handle
Dust Cup
Lid Latch
Dust Cup
Height Adjust
Selector
Floor
Nozzle
Floor/Tools
Selector
Power Cord
Primary Filter
Pre-lter
Upper Locking Notch
Upper Cord Hook
Dusting Brush

-6-
Replacement Parts
Available online at www.vacmaster.com or call [phone].
Item Part No.
Primary Filter 571003122
Belt 571003165
Crevice Tool 571003111
Dusting Brush 571003112
Extension Wand 571003110
Hose 571003109
Screws (5) 571003116
Screw Bolt 571003114
Nut 571003106

-7-

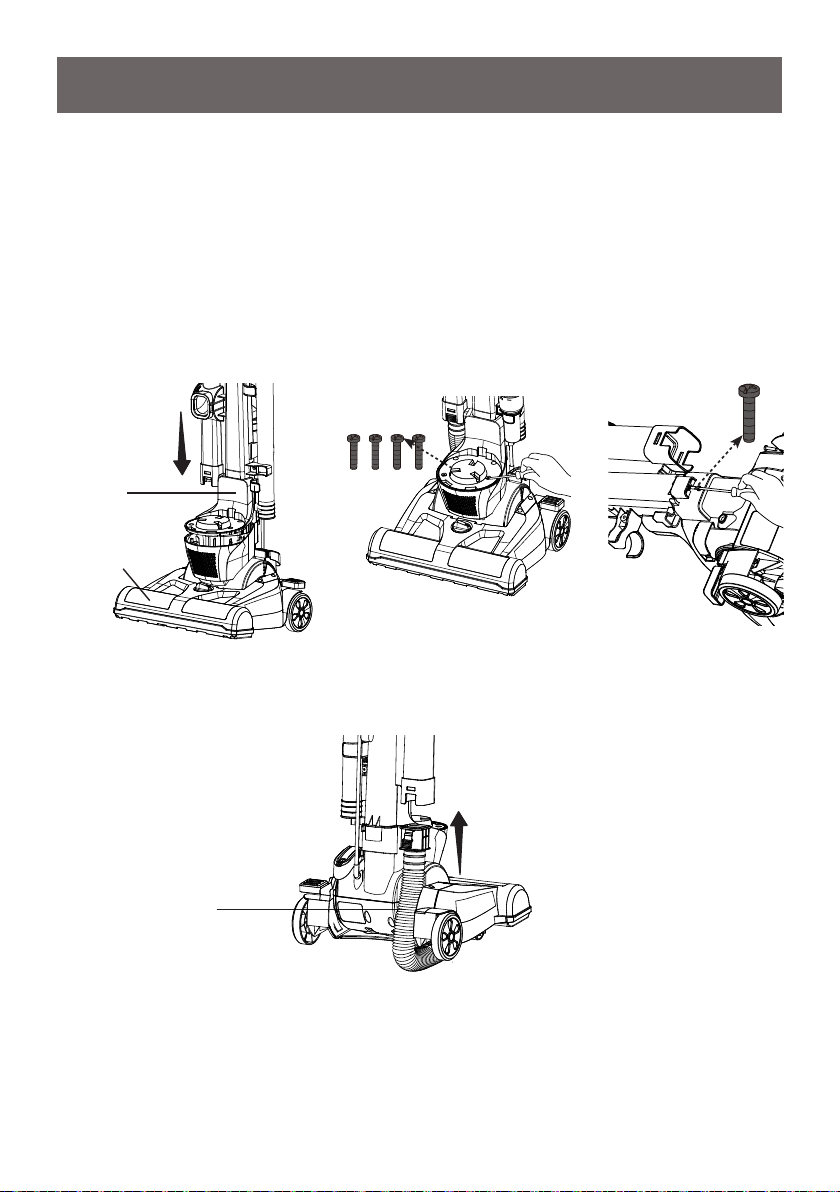

1. Insert the main body into the oor nozzle and secure with screws provided.
Insert four screws into the front of the main body, and insert one screw into the
back of the main body.
Note: Make sure all screws are installed into place correctly. If the screws are not
installed or not fully tightened, this may impact the performance of the vacuum
cleaner and may cause personal injury or damage. Do not over-tighten the
screws.
2. Insert the connection hose into the main body until you hear a click.
GENERAL ASSEMBLY INSTRUCTIONS
3. There is a screw bolt and nut pre-installed into the top of the main body. You
need to remove the bolt before installing the handle into the main body.
Assembly Instructions
Main Body
Connection Hose
Floor Nozzle

-8-
5. Install the hose into the main body. Insert the other end of the hose into the
hose storage and x into place.
4. Insert the handle into the main body and secure with one screw bolt provided.
Hose
Screw Bolt
Nut
Screw Bolt
Handle
1
3
2

-9-
6. Insert the dust cup into the slots on the bottom of the main body, then press
the dust cup into locked slot and click into place.
7. Insert the dusting brush onto the accessory storage located on the back of
the main body. Make sure the extension wand is inserted into the accessory
storages located on the side of the main body as shown. Note, the crevice tool
ts inside the extension wand for storage convenience.
Crevice Tool
Dusting Brush
Extension Wand
Dust Cup

-10-
9. Lock power cord plug onto the power cord.
WARNING
Wrapping the cord too tightly with excessive stress on the cord may cause cord
damage. A damaged cord is an electrical shock hazard and could cause personal
injury or damage.

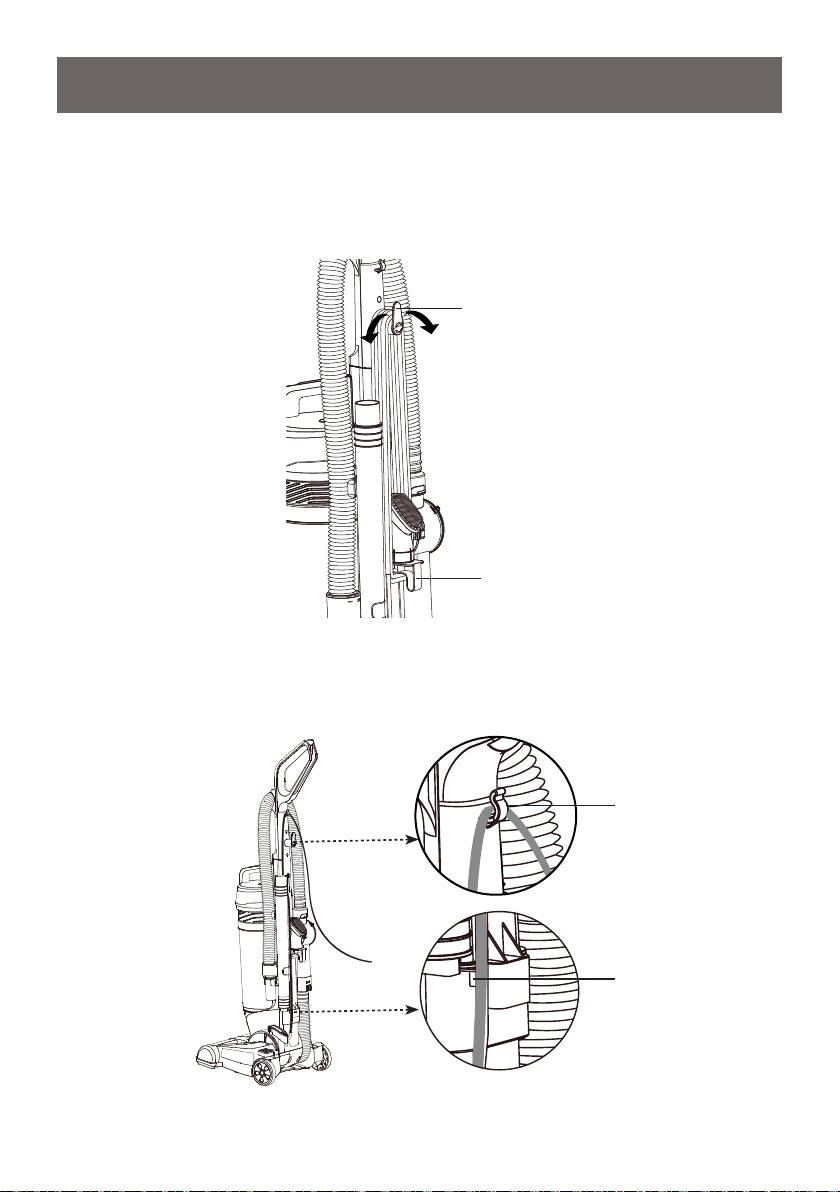

8. Make sure the upper cord hook is in the upright position as shown. Wrap the
power cord loosely around the upper and lower cord hooks.
Upper Cord Hook
Lower Cord Hook
Power Cord Plug
Power Cord

-11-
OPERATING INSTRUCTIONS
Using Your Upright Vacuum Cleaner
Note: Make sure the vacuum cleaner is completely assembled and the dust cup
is empty before using. Do not operate vacuum cleaner without lters in place.
1. Turn the upper cord hook to either side to release the power cord.
2. Detach the power cord plug from the power cord.
3. Be sure the power cord is locked into the upper locking notch and the lower
locking notch as shown. This will help manage the power cord when operating
the vacuum cleaner.
Upper Cord Hook
Upper Locking Notch
Lower Cord Hook
Lower Locking Notch

-12-
Note: Lock the power cord into the lower locking notch rst and then lock it into
the upper locking notch to avoid damaging the power cord.
4. Plug the power cord plug into an outlet located near the oor.
5. When vacuuming oors, verify that the oor/tools selector is in the “FLOOR”
position.
6. Release the oor nozzle by placing foot on the oor nozzle release button and
pulling back on handle to change the handle position.
WARNING

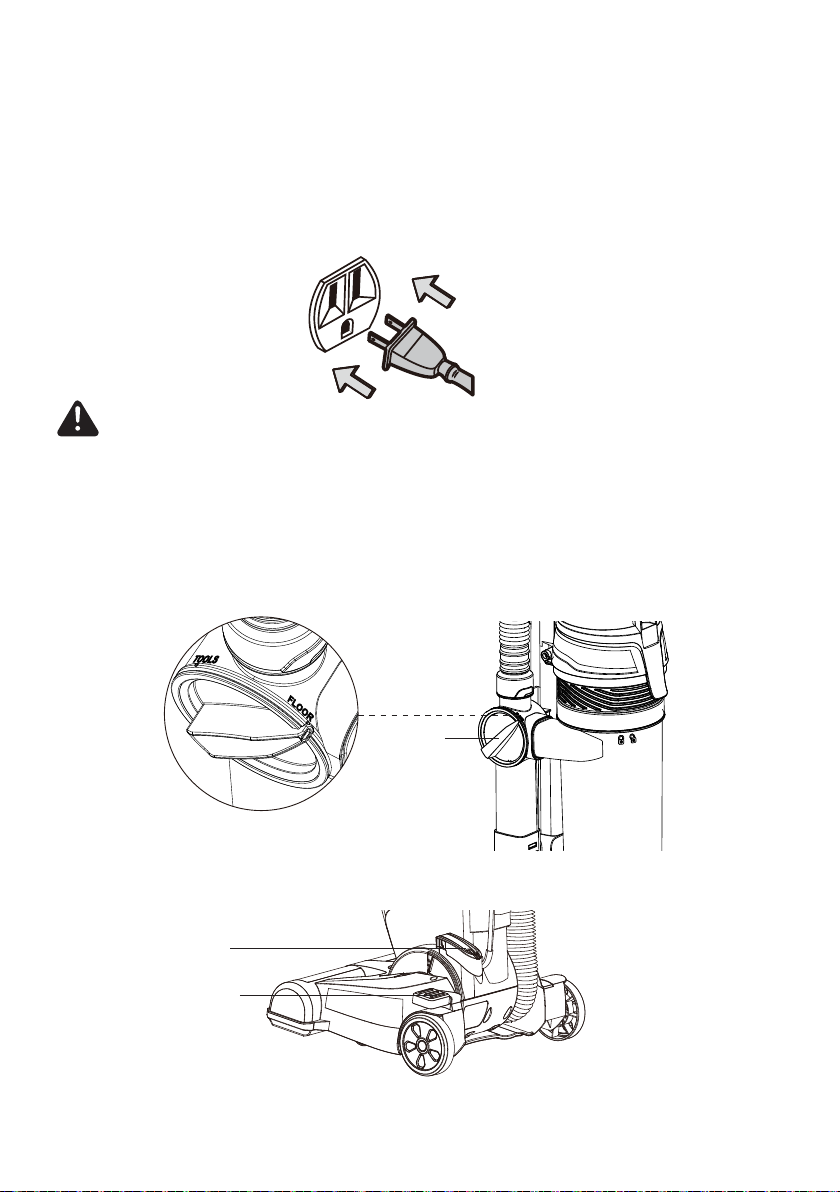

To reduce the risk of electric shock, this appliance has a polarized plug (one blade
is wider than the other). This plug will t in a polarized outlet only one way. If the
plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a
qualied electrician to install the proper outlet. Do not change the plug in any way.
Floor/Tools
Selector
On/Off Button
Floor Nozzle
Release Button

-13-
7. Press the on/off button to turn the vacuum cleaner on.
8. Once you have completed vacuuming, press the on/off button, return the
handle to the upright position and unplug the power cord plug from the outlet.
Pile Height Selection and Settings

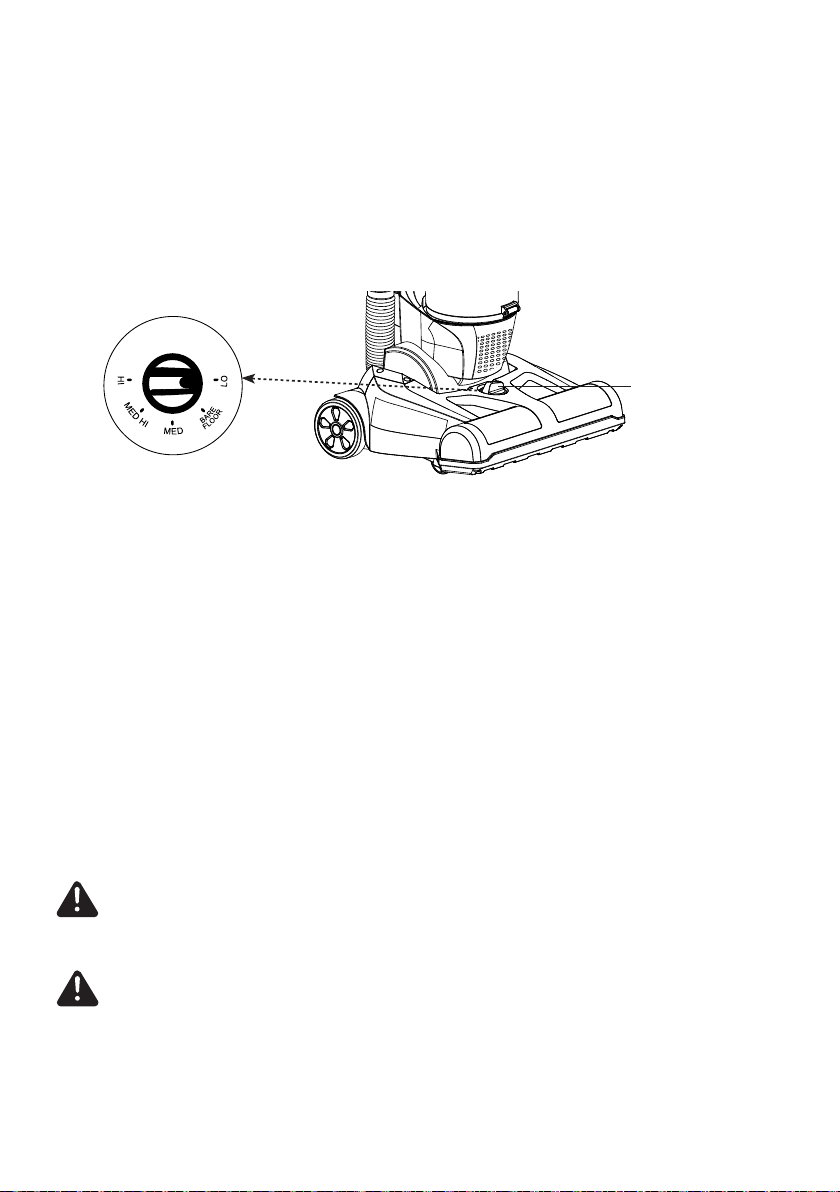

Select a pile height setting by turning the height adjust selector located on the
oor nozzle.
Suggested Pile Height Settings
There are ve (5) pile height settings on the vacuum cleaner. For best deep down
cleaning of low pile carpet, use the LO setting. However, you may need to raise
the height to make some jobs easier, such as scatter rugs and some deep pile
carpets.
Suggested settings are:
LO – Low pile carpet
BARE FLOOR – Bare oor
MED – Medium pile carpet
MED HI – Medium to deep pile
HI – Shag, deep pile, or scatter rugs
CAUTION
Incorrect setting may damage oor.
Height Adjust Selector
CAUTION
Do not allow the vacuum cleaner to remain in one spot for any length of time
when the brush roll is turning. Damage to carpet may occur.

-14-
Using Your Vacuum Cleaner with Accessories
1. Place vacuum cleaner in the upright locked position.
2. Rotate the oor/tools selector from the “FLOOR” position to the “TOOLS”
position until you hear a click.
CAUTION
Moving parts! To reduce the risk of personal injury, DO NOT touch the brush roll
in the oor nozzle when the vacuum is on. Contacting the brush roll while it is
rotating can cause injuries. Always turn off before performing maintenance or
servicing. Use caution when operating near children.
Floor/Tools
Selector

-15-
4. Insert the hose into the smaller end of the extension wand.
3. Release the hose from the main body.
5. Choose the desired accessories and insert into the larger end of the extension
wand.
Note: You can also choose to use your vacuum cleaner by inserting the crevice
tool or the dusting brush directly into the hose.
1
3
2

-16-
6. Plug the power cord plug into an outlet located near the oor.
7. Press the on/off button to turn the vacuum cleaner on.
8. Once you have completed vacuuming, press the on/off button, return the
handle to the upright position and unplug the power cord plug from the outlet.
Note: Remember to rotate the oor/tools selector back to the “FLOOR” position
for standard vacuuming sessions.
Storing Your Vacuum
1. Ensure the hose is locked into place and the accessories are stored on-board.
2. Gather the cord and wrap it loosely around the upper and lower cord hooks.
Lock the power cord plug onto the power cord.
3. Store the vacuum cleaner in a dry, indoor area, on the oor with the handle
locked in the upright position.
CAUTION
When using accessories, be careful not to overextend the hose when reaching to
avoid tipping the vacuum over.
CAUTION
DO NOT pull the vacuum cleaner around the room by the hose. Property damage
or personal injury could result.

-17-
2. Remove any clogs that might be located in the suction port or lter port area.
Note: Use dry cloth to clean the outside of the unit. Do not allow any kind of liquid
to enter the unit. Wash the extension wand, crevice tool, and the dusting brush in
warm soapy water, rinse and air dry. Do not clean in dishwasher.

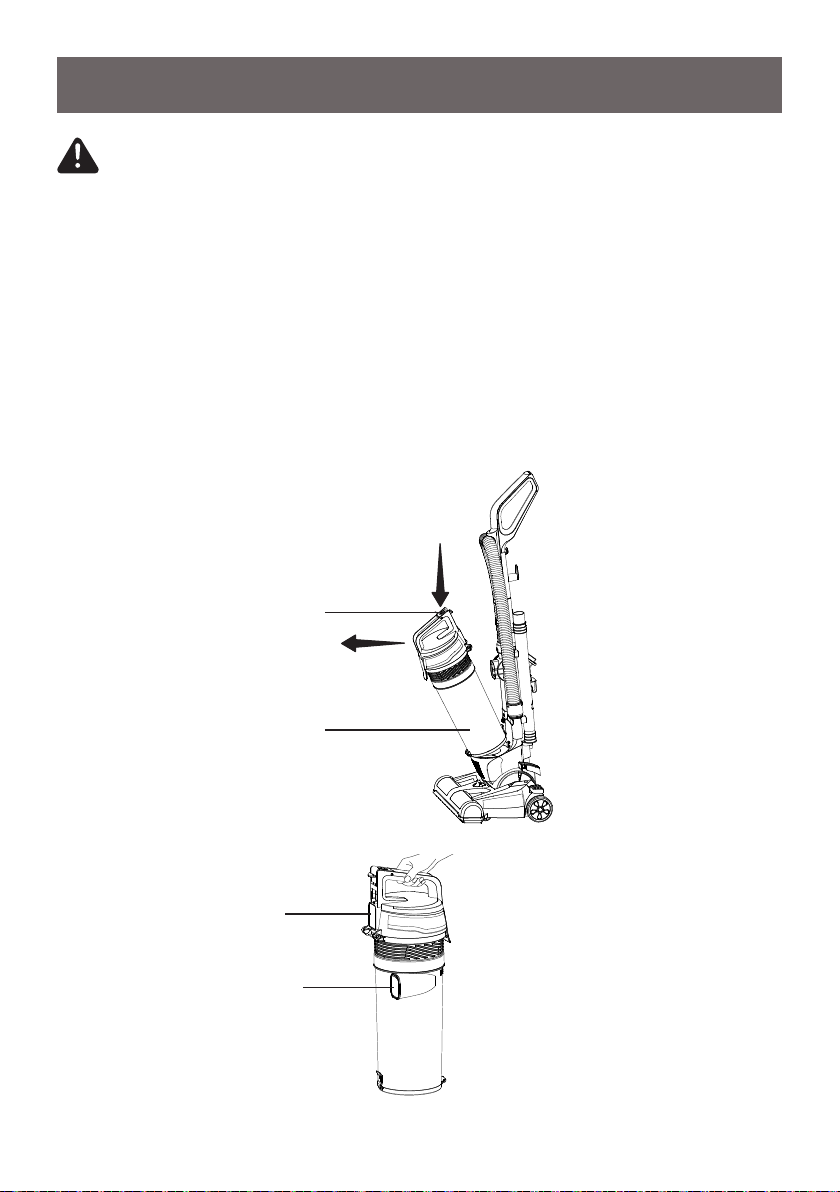

Emptying the Dust Cup
Note: For best performance, empty dust cup after every use. Never operate
vacuum cleaner without dust cup and lters in place.

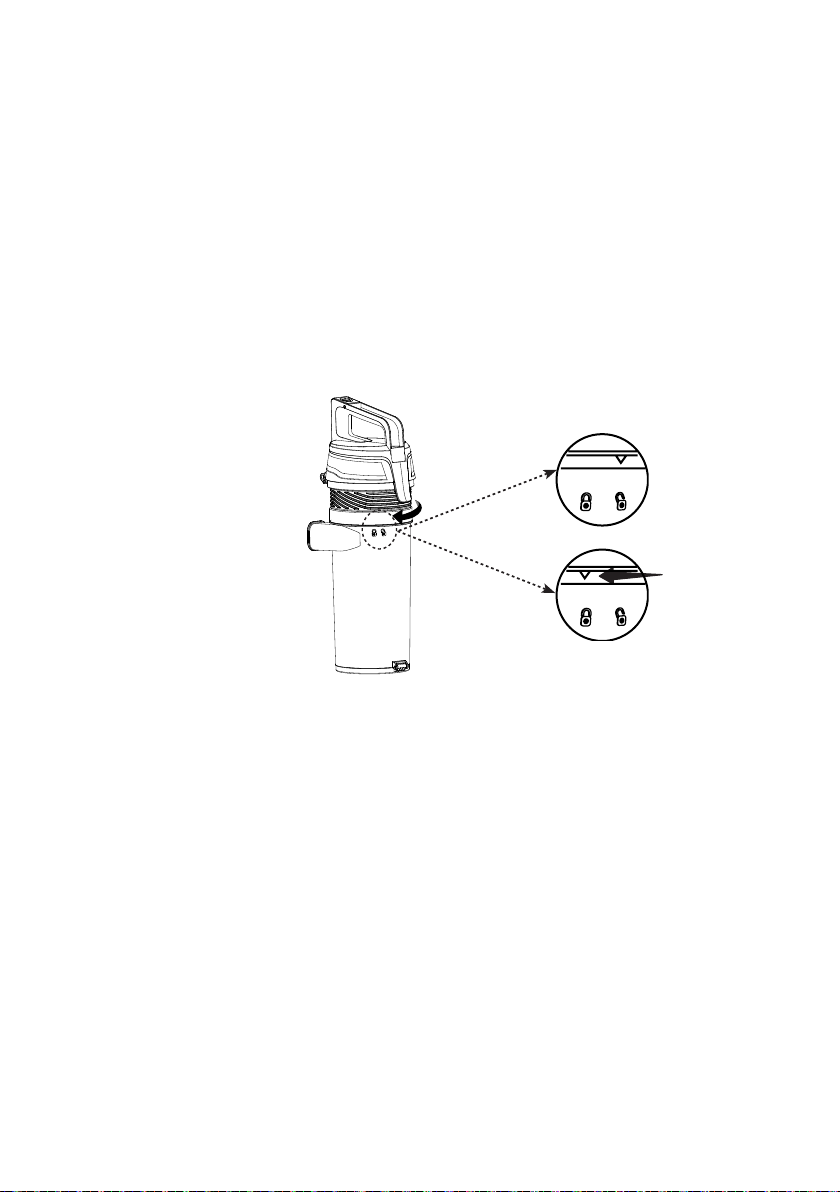

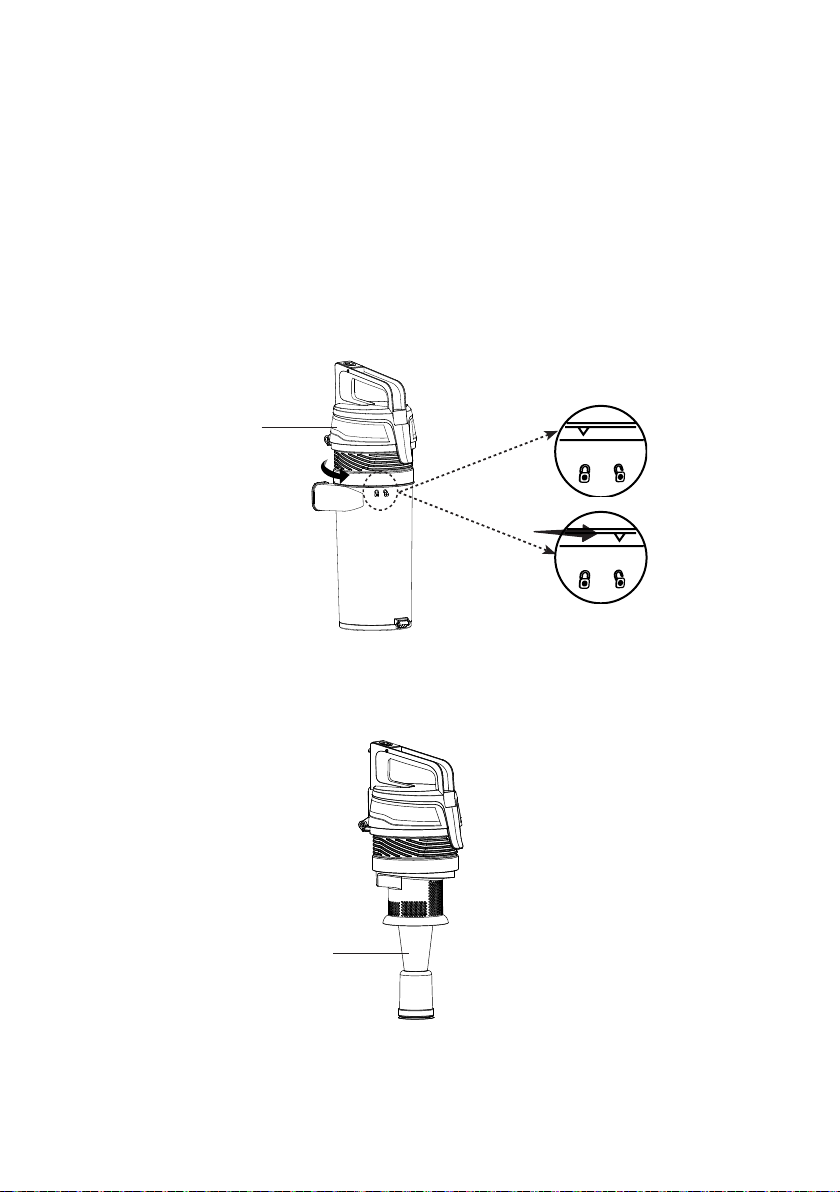

1. Press the dust cup release button to remove the dust cup from the main body.
MAINTAINING YOUR VACUUM
CAUTION
To reduce the risk of shock, disconnect the power cord and turn off before
performing any service or maintenance.
Dust Cup
Dust Cup Release Button
Filter Port
Suction Port
1
2

-18-

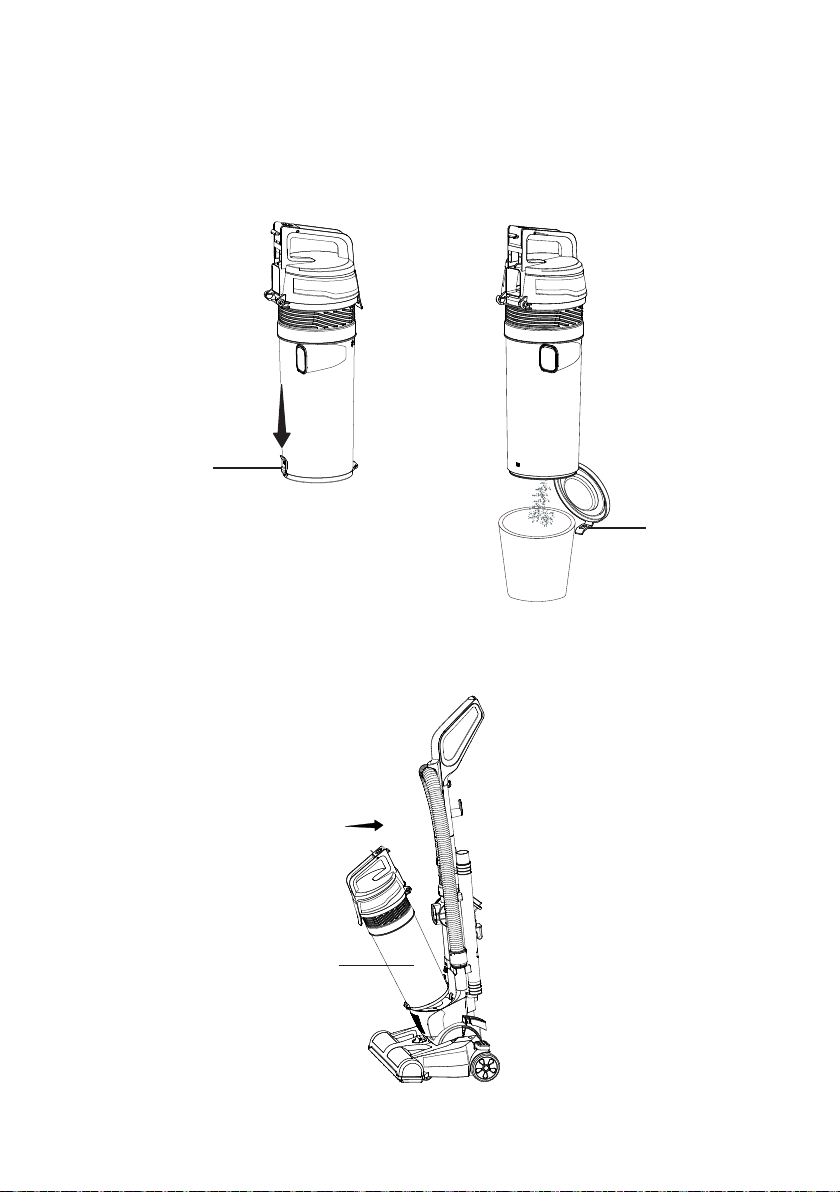

3. Position dust cup area of vacuum over a waste receptacle. Press down on the
dust release latch to open dust cup lid and allow contents to drop into waste
receptacle.
4. Shake the dust cup to release any debris that might hang in the pre-lter.
5. Reinstall and insert the dust cup into the slots on the bottom of the main body,
then press the dust cup into locked slot and click into place.
Dust Release Latch
Dust Release Latch
Dust Cup

-19-
Cleaning the Pre-Filter
The pre-lter is located inside the dust cup. Check the pre-lter frequently and
clean when dirty.
NOTE: Make sure the dust cup is free of any debris before opening.
1. Remove the dust cup as outlined in the Emptying the Dust Cup.
2. Rotate the dust cup lid assembly counterclockwise until marks align to the
unlocked position as shown below.
Dust Cup Lid
Pre-lter
3. Clean off hair and other debris wrapped around the pre-lter. Clean the pre-
lter by gently tapping over a trash container. Tap on several sides to ensure
best cleaning.

-20-
4. If necessary, rinse the pre-lter with cold water only. Do not use detergent or
soap. Set the pre-lter aside and allow to air dry for 24 hours.
Do not wash in the dishwasher. Do not install damp.
IMPORTANT:
The lters must dry completely before reuse.
5. Reinstall the lower portion of the dust cup by aligning marks to the locked position
as shown below.
6. Rotate the dust cup lid assembly clockwise until marks align as shown above
in LOCKED.
7. Reinstall the dust cup into the main body. See installation instructions in the
Emptying the Dust Cup.
Cleaning the Primary Filter
The primary lter is located inside the dust cup lid.
It is recommended to clean the primary lter with cold water at least once a
month. Check the primary lter frequently and clean when dirty.
