Vacmaster RESPIRA UC0501 User manual

Use & Care Guide
Manuel D'entretien Et D'utilisation
Manual de Uso Y Cuidado
Model No / Référence de Modèle / N° de Modelo.
UC0501
Bagless Upright Vacuum Cleaner / Aspirateur Vertical
Sans Sac / Aspiradora de Pie Sin Bolsa
www.amazon.com
Distributed By / Distribué Par / Distribuido Por:
Suzhou Cleva Electric Appliance Co., Ltd.
No.8 Ting Rong Street
Suzhou Industrial Park, Suzhou
Jiangsu Province, China
Made in China

-2-
SECTION
Important Safety Instructions...................................................................................................................
Warranty..................................................................................................................................................
Technical Data.........................................................................................................................................
Getting To Know Your Vacuum................................................................................................................
General Assembly Instructions...............................................................................................................
Operating Instructions............................................................................................................................
Maintaining Your Vacuum.......................................................................................................................
Troubleshooting.....................................................................................................................................
3
4
4
5
7
10
16
27
TABLE OF CONTENTS
PAGE
Thank you for purchasing this Vacmaster®vacuum cleaner. With it you are
obtaining a high-quality product that is engineered for optimal performance.
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual and your sales check (receipt) in a safe place for future
reference.

-3-
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
Failure to follow the warnings and instructions may result in electric shock, re
and/or serious injury.
WARNING - To reduce the risk of re, electric shock, or injury:
• Do not leave appliance when plugged in. Unplug from outlet when not in use
and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or
near children.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should,
has been dropped, damaged, left outdoors, or dropped into water, contact with
customer service.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull
cord around sharp edges or corners. Do not run appliance over cord. Keep cord
away from heated surfaces.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any objects into openings. Do not use with any opening blocked;
keep free of dust, lint, hair, and anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings and
moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or
use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches,
or hot ashes.
• Do not use without the lter in place.
SAVE THESE INSTRUCTIONS
Household use only

-4-
FOR ONE YEAR from the date of sale, this product is warranted against defects
in material or workmanship when it is assembled, operated and maintained
according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the web page:
www.vacmaster.com or call 1-866-384-8432.
• This warranty does not cover lters or belt, which are expendable parts that
can wear out from normal use within the warranty period.
• This warranty is void if this product is ever used for other than private household
purposes.
• This warranty gives you specic legal rights, and you may also have other
rights which vary from state to state.
TECHNICAL DATA
Bagless Upright Vacuum Cleaner
Model: UC0501
Rated Voltage: 120V AC
Rated Frequency: 60Hz
Nominal Current: 7.5A
WARRANTY
TECHNICAL DATA

-5-
Hose Storage
Connection
Hose
Upper Hose
Connection
Lower Hose
Connection
Lower Cord Hook
Power
Cord
Handle
Accessory
Storage
Dust Cup
Release Button
Carrying Handle
Dust Cup
Lid Latch
Dust Cup
Floor Nozzle
Hose Release
Latch
Upper Cord
Hook
3-in-1
Combination
Tool
Wand Release
Button
Hose
Wand

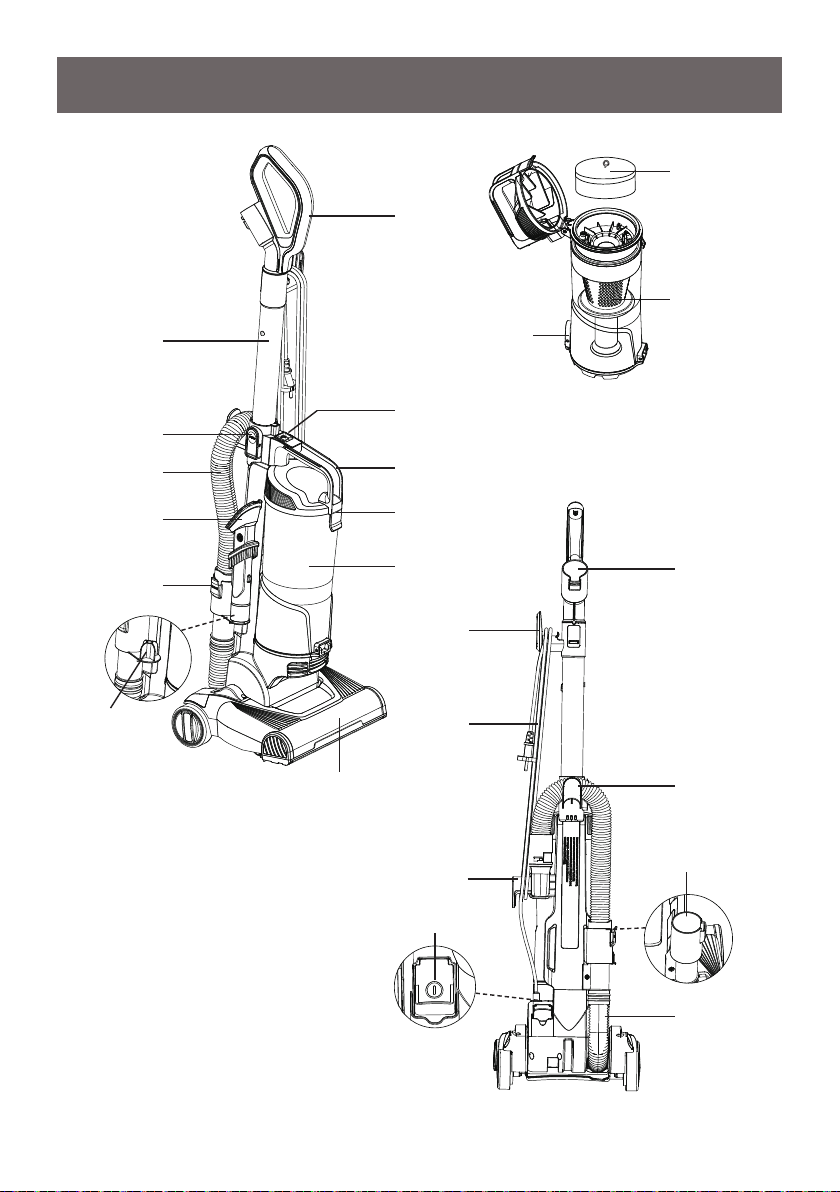

GETTING TO KNOW YOUR VACUUM
Power Button
Dust Release
Button
Felt Filter &
Primary Filter
Pre-lter

-6-
Replacement Parts
Available online at www.vacmaster.com or call 1-866-384-8432.
Item Part No.
Felt Filter & Primary Filter 571029102
Foam Filter 571029103
Belt 571029105
Brushroll 571029104
Hose 571029101
3-in-1 Combination Tool 571029106

-7-
Lower Hose Connection
12
4
3

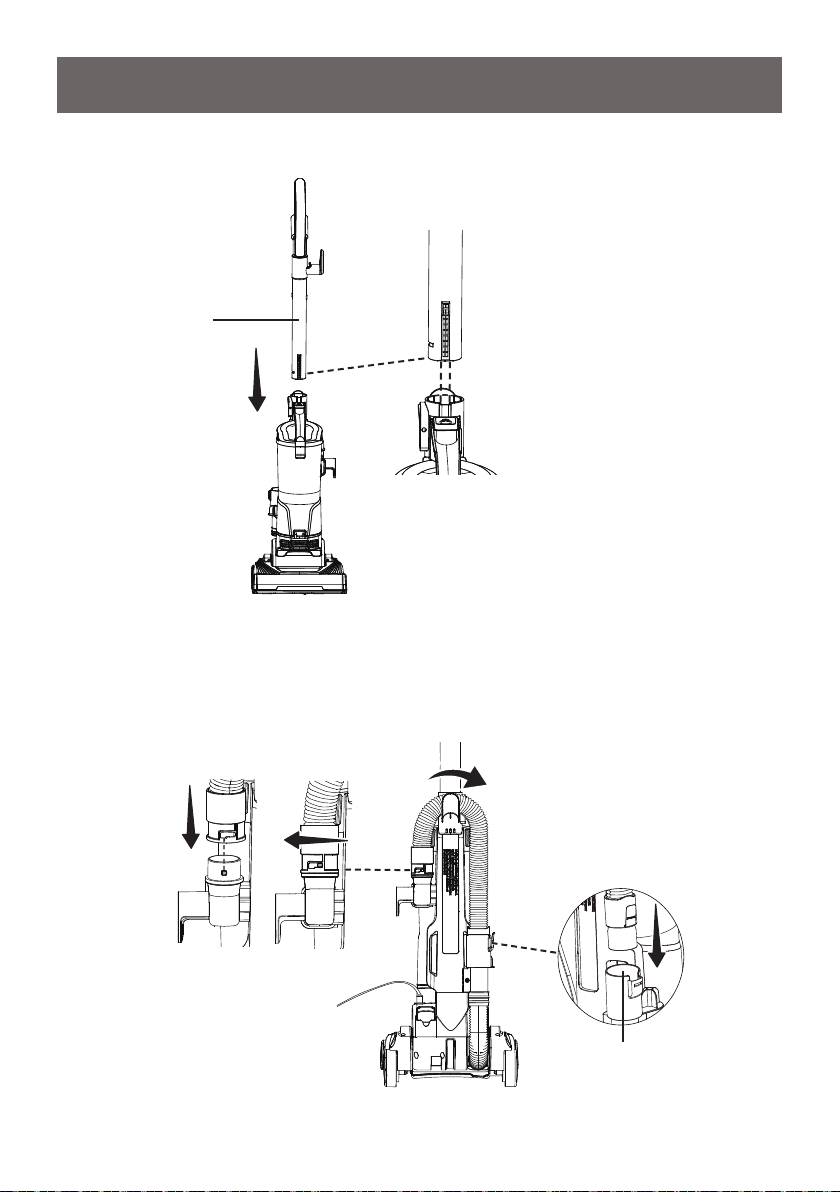

2. Install the hose onto the main body. Align the locking end of the hose with the
main body as shown, and lock the end of the hose by rotating to the left. Then
run the hose over the hose storage. Insert the other end of the hose into the
lower hose connection as shown until you hear a ‘click’.
GENERAL ASSEMBLY INSTRUCTIONS
1. Insert the wand into the main body until you hear a ‘click’.
Wand

-8-
3. Insert the combination tool onto the accessory storage as shown.
4. Make sure the upper cord hook is in the upright position as shown. Wrap the
power cord loosely around the upper and lower cord hooks.
Upper Cord Hook
Lower Cord Hook
3-in-1 Combination
Tool

-9-
5. Lock power cord plug onto the power cord.
WARNING
Wrapping the cord too tightly with excessive stress on the cord may cause cord
damage. A damaged cord is an electrical shock hazard and could cause personal
injury or damage.
Power Cord Plug
Power Cord

-10-
OPERATING INSTRUCTIONS
Using Your Upright Vacuum Cleaner
NOTE: Make sure the vacuum cleaner is completely assembled and the dust cup
is empty before using. Do not operate vacuum cleaner without lters in place.
1. Turn the upper cord hook to either side to release the power cord.
2. Detach the power cord plug from the power cord.
3. Be sure the power cord is locked into the upper locking notch as shown. This
will help manage the power cord when operating the vacuum cleaner.
4. Plug the power cord into an outlet located near the oor.
Upper Locking Notch

-11-
WARNING
To reduce the risk of electric shock, this appliance has a polarized plug (one blade
is wider than the other). This plug will t in a polarized outlet only one way. If the
plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a
qualied electrician to install the proper outlet. Do not change the plug in any way.

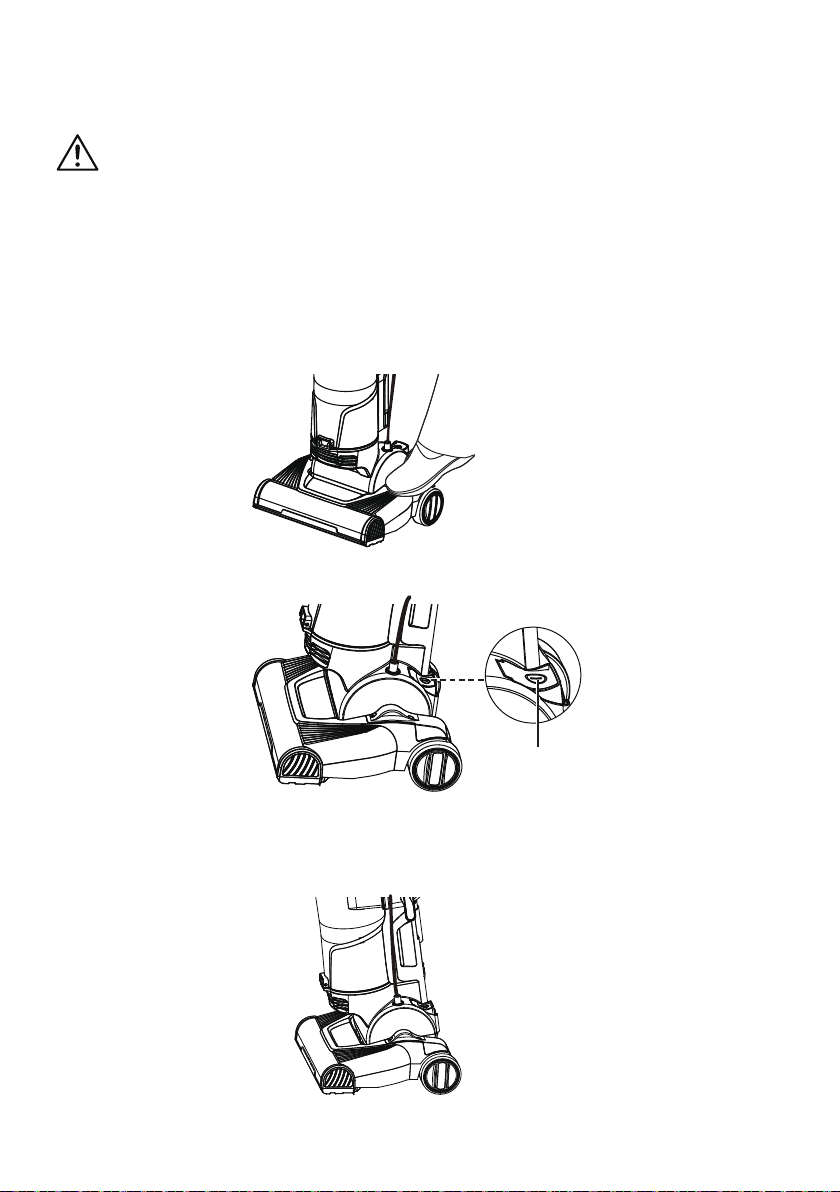

5. Release the handle by placing foot on the oor nozzle and pull back to change
the handle position.
6. Press the power button with your foot to turn the vacuum cleaner on.
7. Once you have completed vacuuming, press the power button again. Return
the handle to the fully upright position by pushing the handle forward until the
vacuum body is locked down in place. Unplug the power cord from the power
outlet.
Power Button

-12-
8. To store power cord after use, turn the upper cord hook to the upright position.
Then wrap cord loosely around cord hooks.
NOTE: Always keep the brushroll free of carpet ber, string, or hair build-up to
maintain a longer life of the brushroll belt. If the brushroll is entangled by any
string or hair, stop using and clean the brushroll immediately.
CAUTION
Do not allow the vacuum cleaner to remain in one spot for any length of time
when the brushroll is turning. Damage to carpet may occur.
CAUTION
Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll in
the oor nozzle when the vacuum is on. Contacting the brushroll while it is rotating
can cause injuries. Disconnect electrical supply before servicing or cleaning the
vacuum cleaner. Use caution when operating near children.
Using Your Vacuum Cleaner with Accessory
NOTE: Brushroll continues to rotate when using the vacuum with accessories. DO
NOT place the vacuum on the deep pile carpet to avoid damage to carpet.
1. Place vacuum cleaner in the upright locked position.
2. Press the hose release latch and release the lower hose end from the lower
hose connection.

-13-
3. Insert the hose end into the upper hose connection as shown until you hear a
‘click’.
4. Press the wand release button and lift up the wand.
Upper Hose Connection
1
2
Wand Release Button
2
1
Hose Release Latch

-14-
5. Choose the desired accessory and insert into the wand.
NOTE: You can also choose to use your vacuum cleaner by inserting the
combination tool directly into the hose.
6. Plug the power cord into an outlet located near the oor.
7. Press the power button to turn the vacuum cleaner on.
8. Once you have completed vacuuming, press the power button again. Remove
the accessory and unplug the power cord plug from the outlet.
IMPORTANT: Make sure to re-insert the hose end into the lower hose
connection before using the vacuum in uprignt mode.
CAUTION
When using accessories, be careful not to overextend the hose when reaching to
avoid tipping the vacuum over.
CAUTION
DO NOT pull the vacuum cleaner around the room by the hose. Property damage
or personal injury could result.
3-in-1 Combination Tool
3-in-1 Combination Tool

-15-
Accessory
3-in-1 Combination Tool

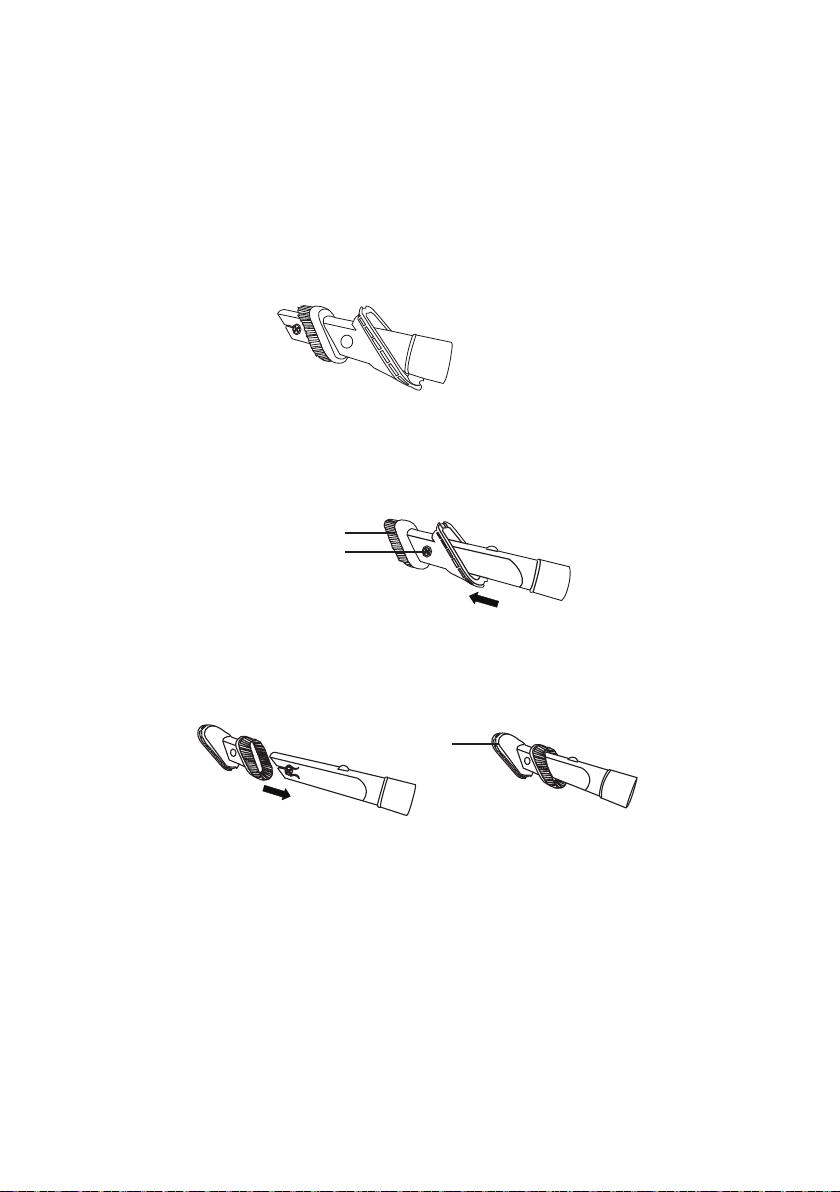

The 3-in-1 combination tool can be attached to the end of the wand and the hose.
Use the 3-in-1 combination tool in crevice tool mode for cleaning in tight spaces
such as furniture, between cushions, and stairs.
Set the combination tool in dusting brush mode by pressing the release button
and sliding the dusting brush side of the brush tool to the end of the combination
tool. Use in dusting brush mode for cleaning loose surfaces such as drapes.
Press the release button to remove the brush tool. Set the combination tool in
upholstery brush mode as shown. Use in upholstery brush mode for cleaning
fabric surfaces such as fabric sofa.
To return the combination tool to crevice tool mode, press the release button and
slide the brush tool down the combination tool.
NOTE: Always clean accessory before using on fabrics.
Storing your vacuum
1. Ensure the hose is locked into place and the accessory is stored on-board.
2. Gather the cord and wrap it loosely around the upper and lower cord hooks.
Lock the power cord plug onto the power cord.
3. Store the vacuum cleaner in a dry, indoor area, on the oor with the handle
locked in the upright position.
Dusting Brush
Release Button
Upholstery
Brush

-16-
Filter Port
Suction Port
CAUTION
To reduce the risk of shock, turn off and disconnect the power cord before
performing any service or maintenance.
NOTE: Use dry cloth to clean the outside of the unit. Do not allow any kind of
liquid to enter the unit. Wash the accessory in warm soapy water, rinse and air
dry. Do not clean in dishwasher.
Emptying the Dust Cup
NOTE: For best performance, empty dust cup after every use. Never operate
vacuum cleaner without dust cup and lters in place.

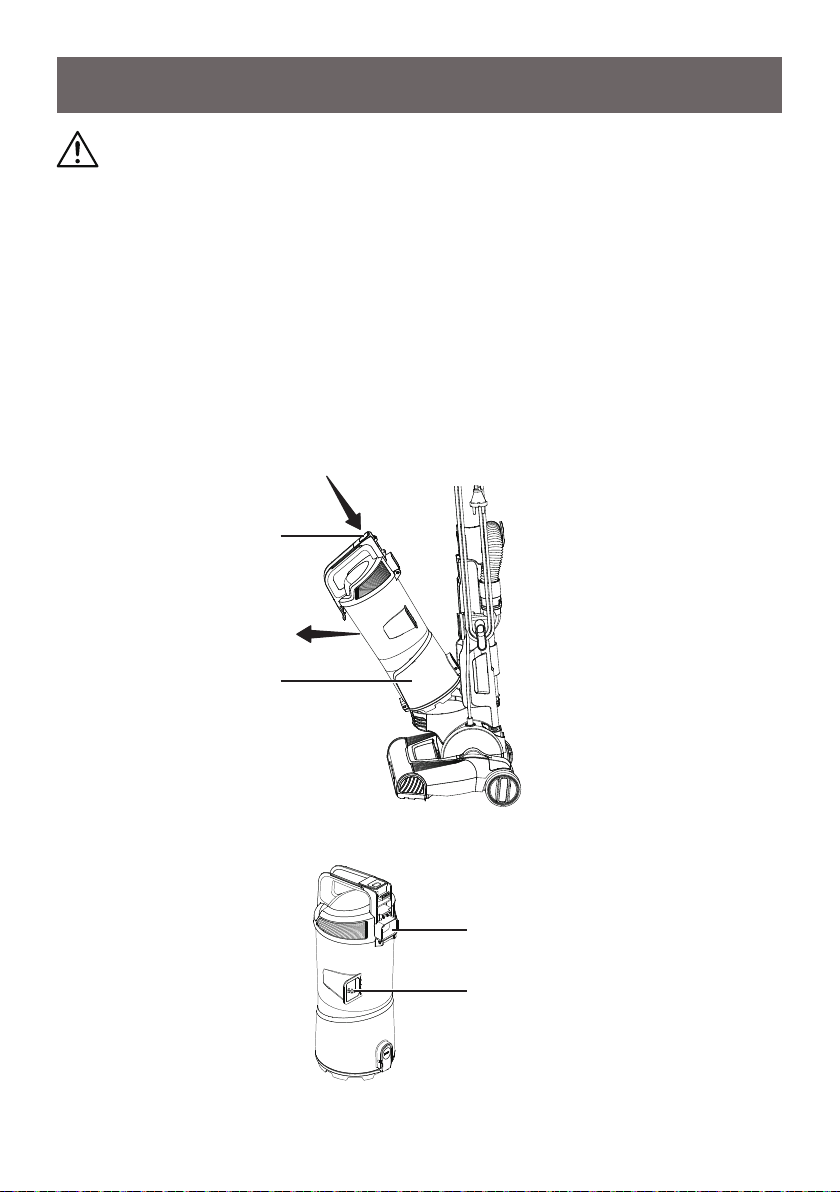

1. Press the dust cup release button to remove the dust cup from the main body.
2. Remove any clogs that might be located in the suction port or lter port area.
MAINTAINING YOUR VACUUM
Dust Cup
Dust Cup
Release
Button
1
2

-17-
3. Position dust cup area of vacuum over a waste receptacle. Press down on
the dust release button to open dust lid and allow contents to drop into waste
receptacle.
4. Shake the dust cup to release any debris that might hang in the pre-lter.
5. Reinstall and insert the dust cup into the slots on the bottom of the main body,
then press the dust cup into locked slot and click into place.
Cleaning the Felt Filter and Primary Filter
The felt lter and primary lter are xed together and located inside the dust cup
lid.
It is recommended to clean the felt lter and primary lter with cold water at least
once a month. Check the felt lter and primary lter frequently and clean when
dirty.
Dust Release Button
2
1
Dust Cup

-18-

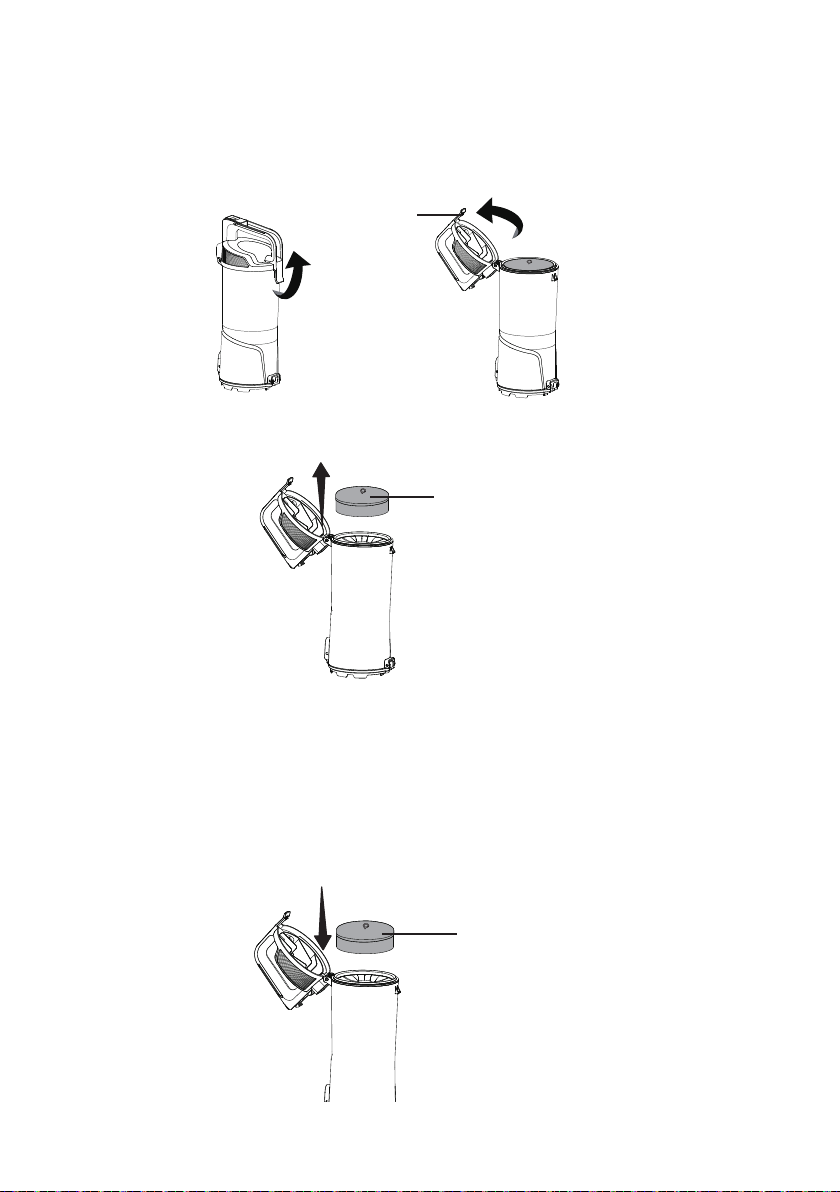

1. Remove the dust cup as outlined in the Emptying the Dust Cup.
2. Hold the dust cup, pull the dust cup lid latch and open the lid.
3. Remove the felt lter and primary lter from the dust cup using the small tab
attached on the lter.
4. Use a soft brush to brush loose debris from the felt lter and primary lter
then rinse with cold water. DO NOT use detergent or soap. Rinse and gently
squeeze dry the lters. Set them aside and allow to air dry for 24 hours.
IMPORTANT:
The lters must dry completely before reuse.
5. Place the primary lter and felt lter back into the dust cup.
Dust Cup Lid
Latch
Felt Filter &
Primary Filter
Felt Filter &
Primary Filter

-19-
6. Close the dust cup lid until you hear a click.
7. Reinstall the dust cup into the main body. See installation instructions in the
Emptying the Dust Cup.
Cleaning the Pre-lter
The pre-lter is located inside the dust cup. Check the pre-lter frequently and
clean when dirty.
NOTE: Make sure the dust cup is free of any debris before opening.

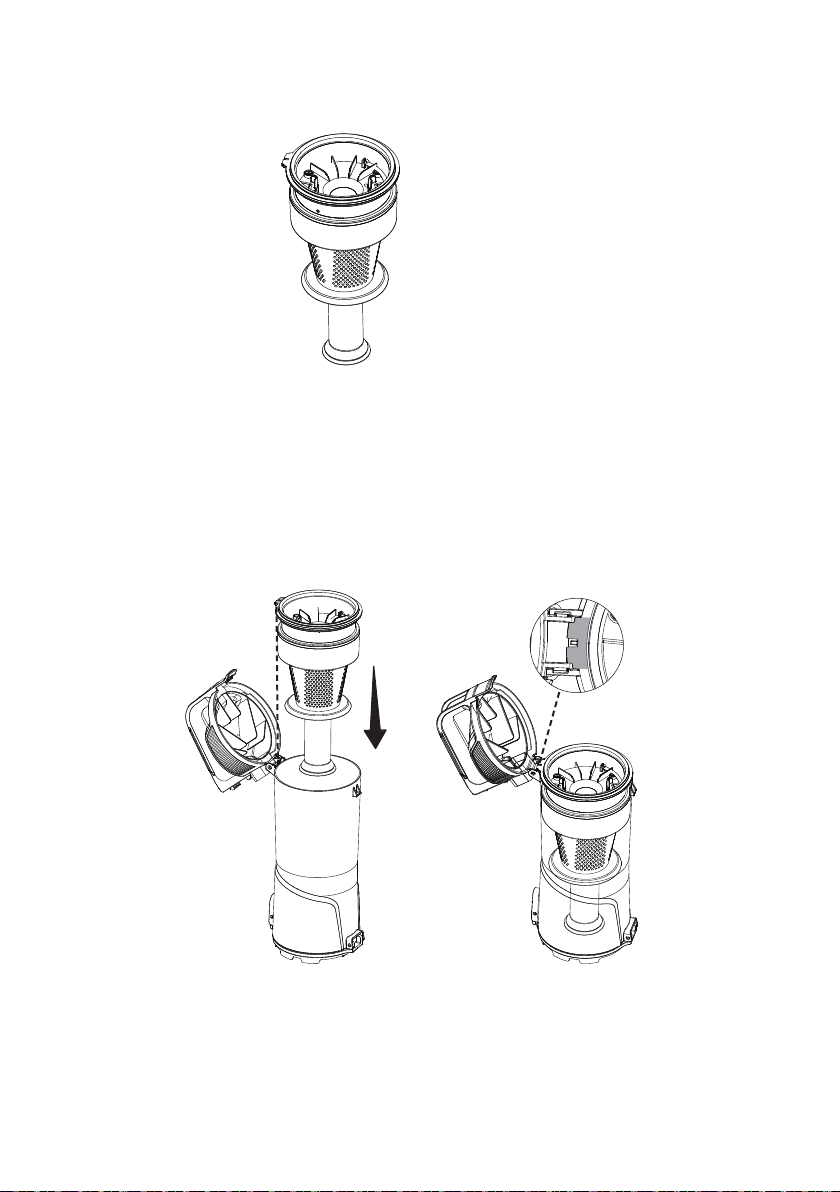

1. Open the dust cup lid and remove the felt lter and primary lter as outlined in
the Cleaning the Felt Filter and Primary Filter.
2. Lift up the pre-lter from the dust cup using the two tabs.
3. Clean off hair and other debris wrapped around the pre-lter. Clean the
pre-lter by gently tapping over a trash container. Tap on several sides to
ensure best cleaning.
Tabs

-20-
4. If necessary, rinse the pre-lter with cold water only. Do not use detergent or
soap. Set the pre-lter aside and allow to air dry for 24 hours.
Do not wash in the dishwasher. Do not install damp.
IMPORTANT: The lters must dry completely before reuse.
5. Reinstall the pre-lter back into the dust cup. Make sure the pre-lter is set into
place as shown.
6. Reinstall the primary lter and felt lter. See installation instructions in the
Cleaning the Felt Filter and Primary Filter.
