Vacmaster VWMB508 0101 User manual

Distributed by:
Costco Wholesale Corporation
P.O. Box 34535
Seattle, WA 98124-1535
USA
1-800-774-2678
www.costco.com
Importado por:
Importadora Primex S.A. de C.V.
Blvd. Magnocentro No.4
San Fernando La Herradura
Huixquilucan, Estado de México
C.P. 52765
RFC: IPR-930907-S70
(55)-5246-5500
www.costco.com.mx
Spanish/Español pg. 19
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.

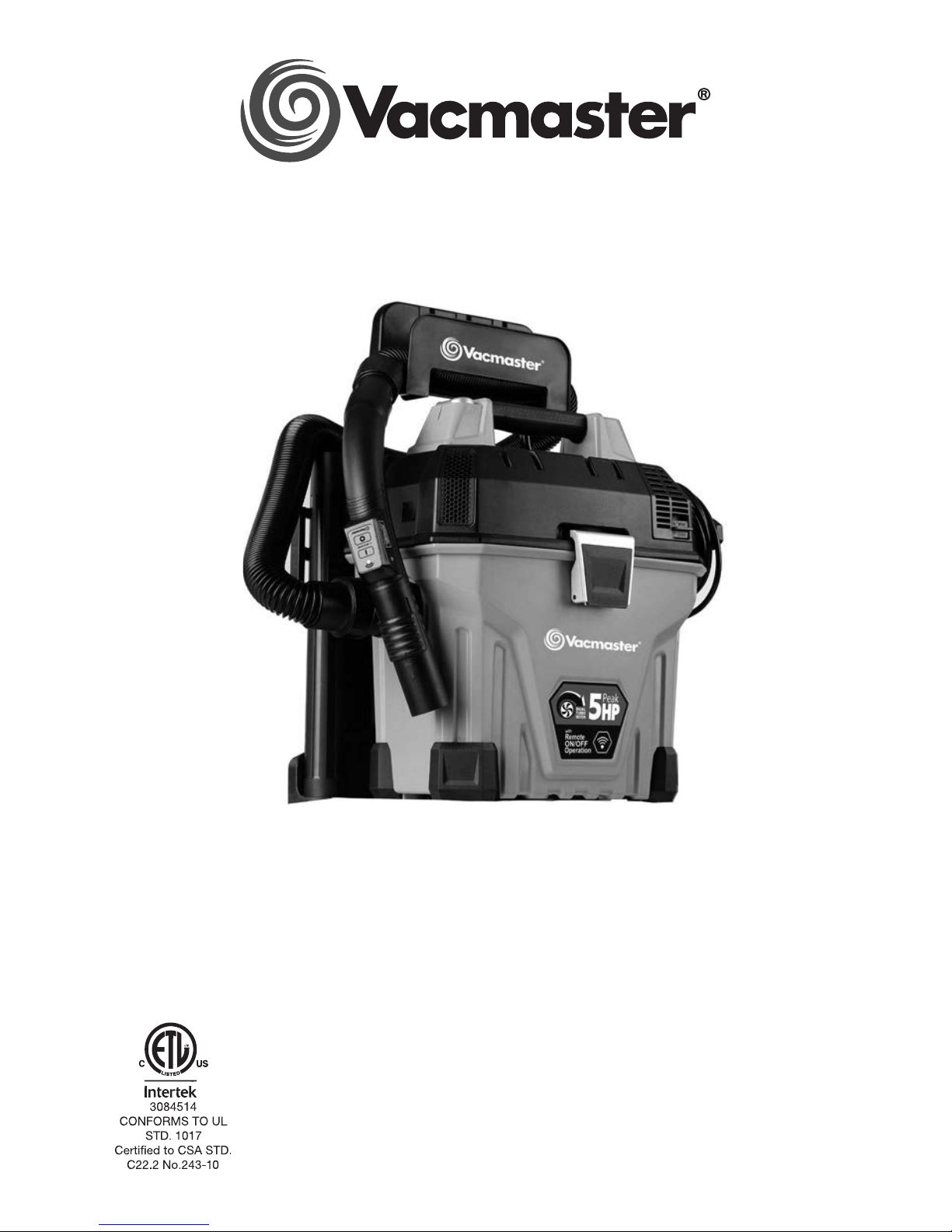

Wall Mountable Wet/Dry Vacuum
Model No.
VWMB508 0101
Operator’s Manual
Wet/Dry Vacuums
ITM. / ART. 1043254

Warranty ........................................................................................................................................
Safety Instructions and Warnings ..................................................................................................
Double Insulation Instructions .......................................................................................................
Extension Cords..............................................................................................................................
Package Contents..........................................................................................................................
General Assembly Instructions ......................................................................................................

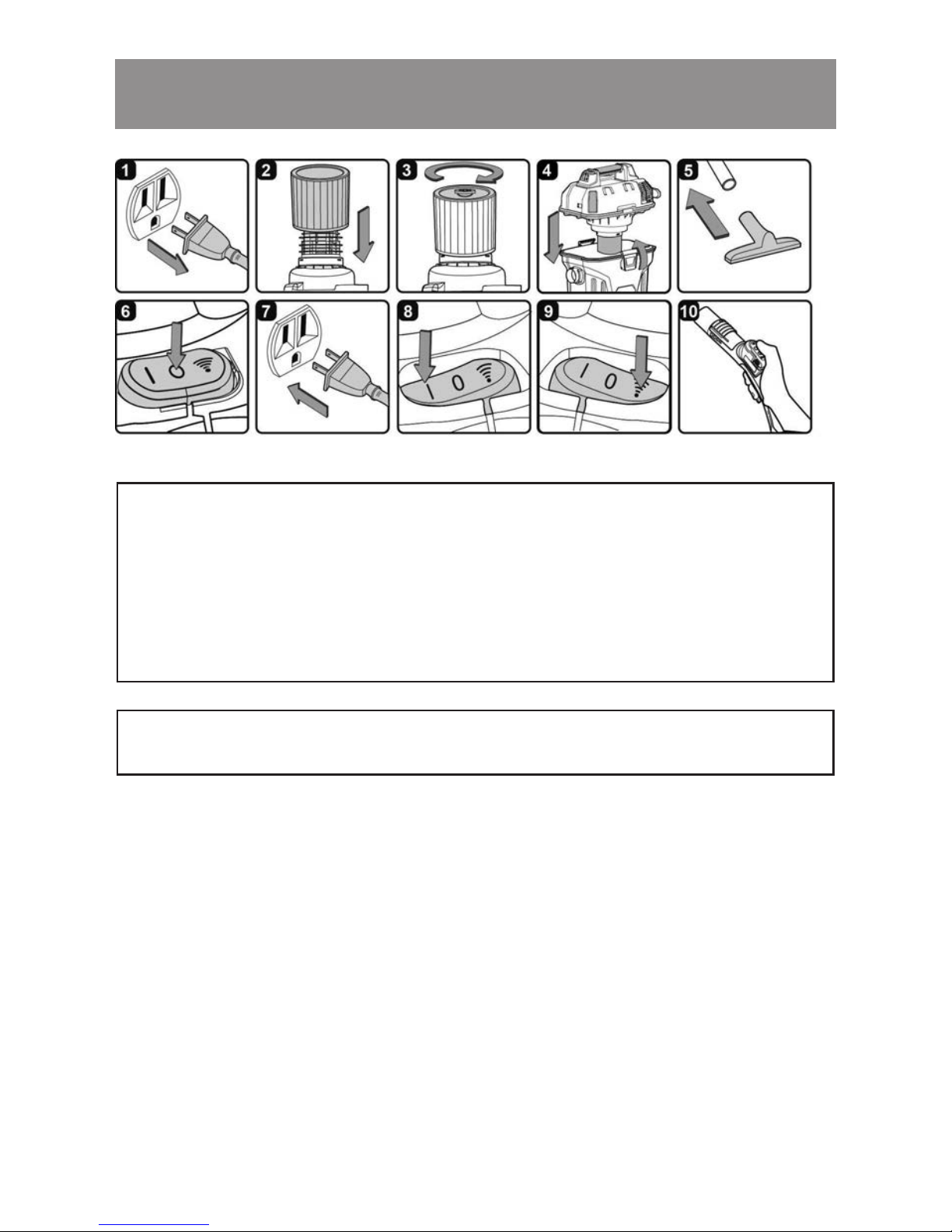

Dry Vacuum Operation ..................................................................................................................
Liquid Vacuum Operation ..............................................................................................................
Blower Operation ..........................................................................................................................
Care and Maintenance ..................................................................................................................

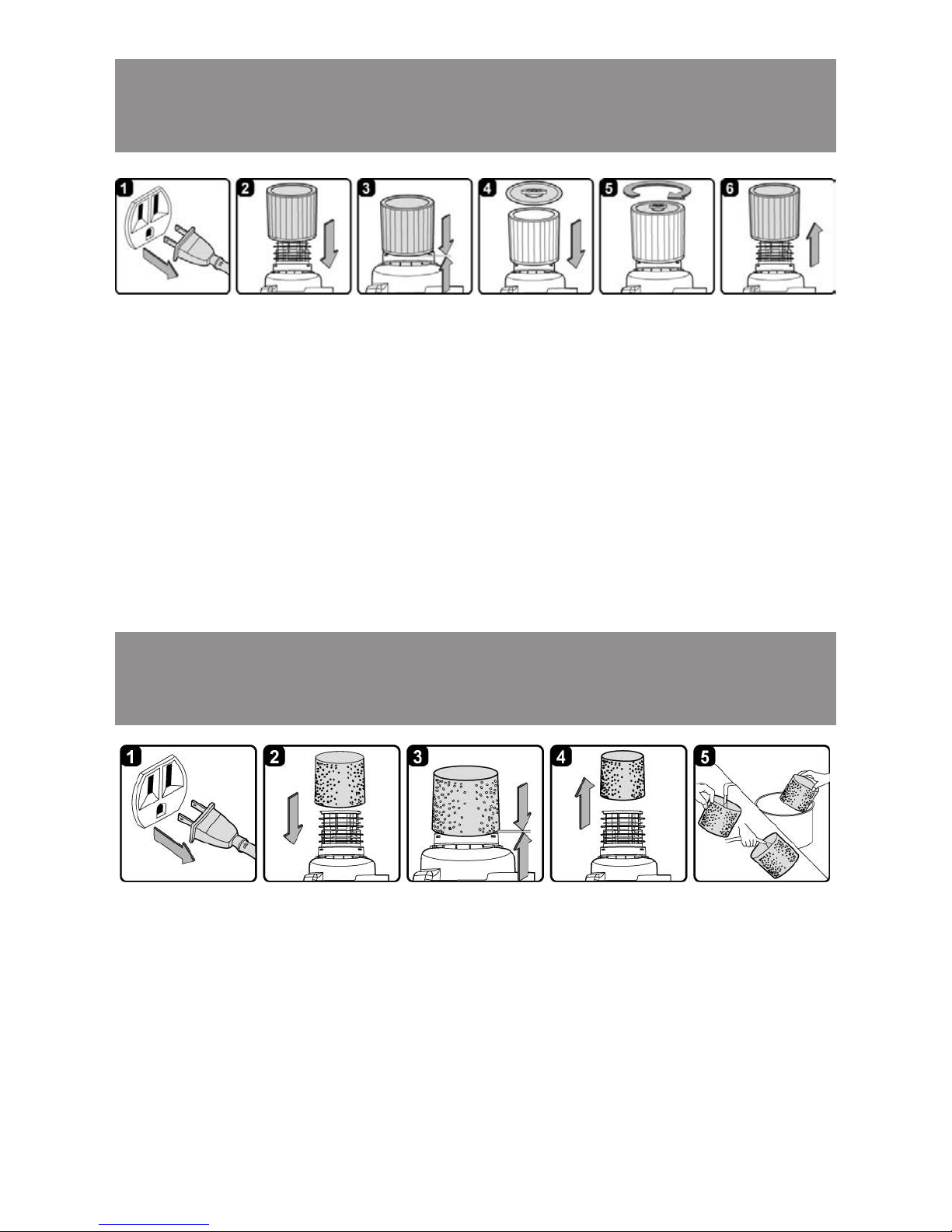

Installing & Cleaning Cartridge Filter .............................................................................................
Installing & Cleaning Foam Sleeve Filter .......................................................................................

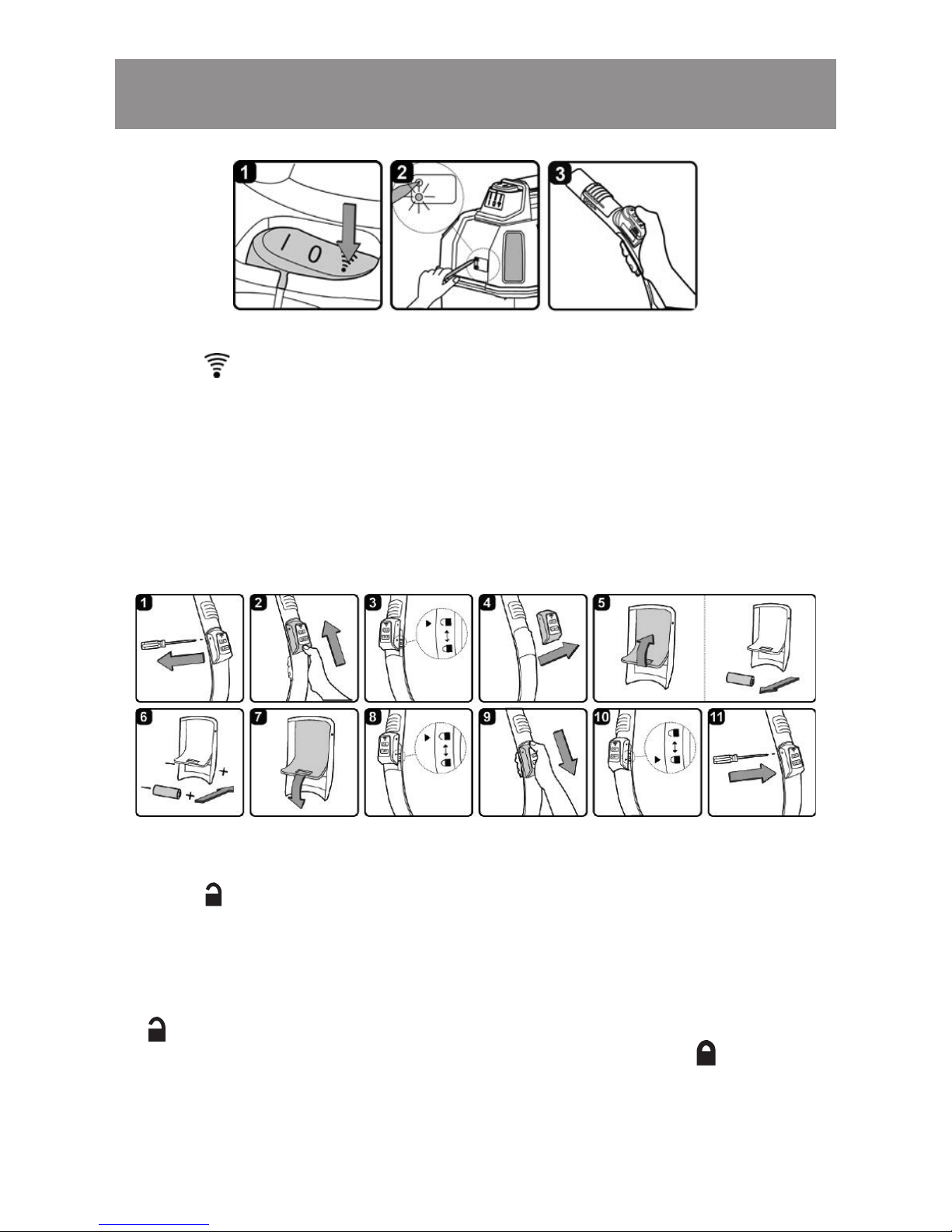

Resetting the Remote Control .......................................................................................................
Troubleshooting .............................................................................................................................

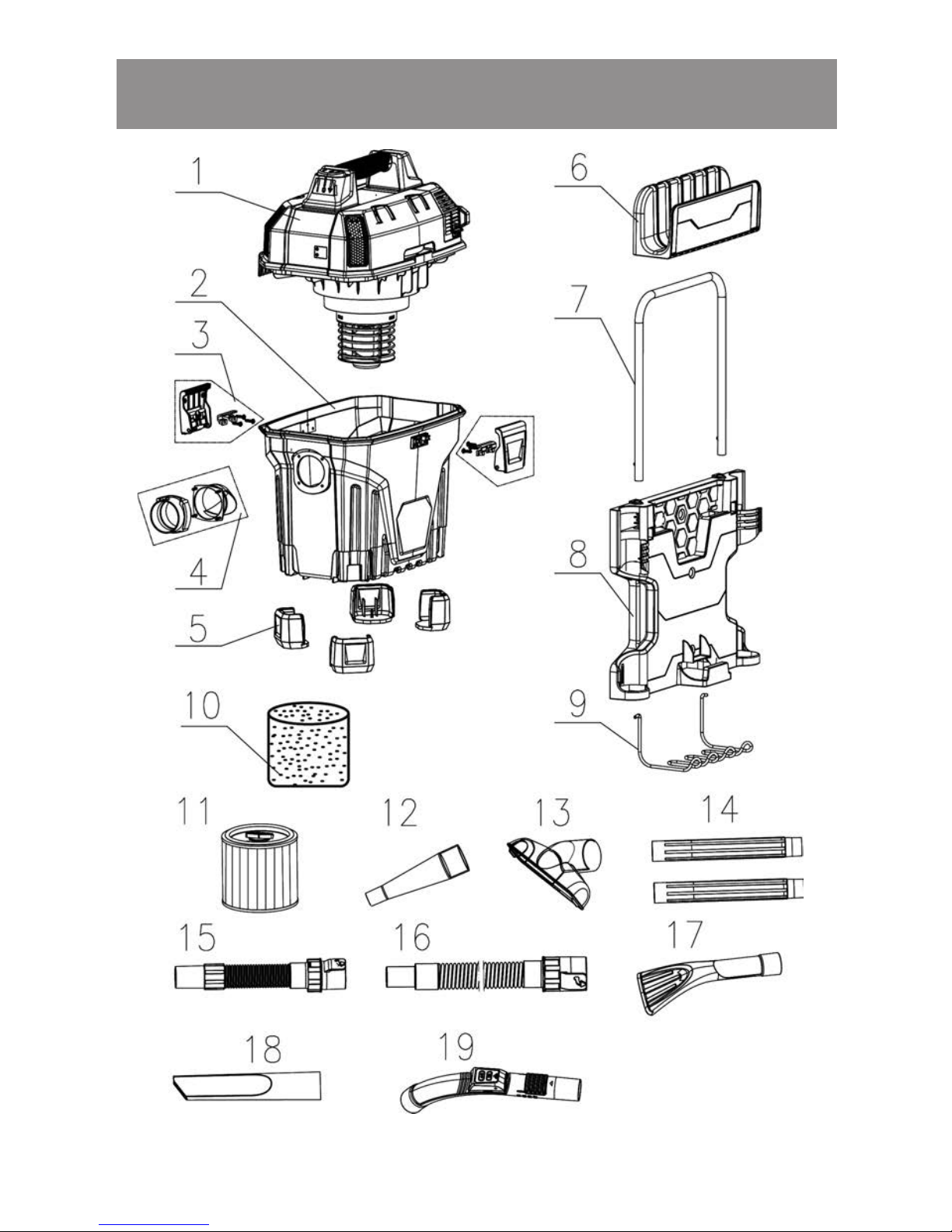

Exploded View ...............................................................................................................................
Parts List ........................................................................................................................................
2
4
5
5
6
7
9
10
12
13
14
14
15
16
17
18
SECTION
TABLE OF CONTENTS
WARRANTY
Thank you for purchasing this Vacmaster
®wet/dry vacuum cleaner.
Feel condent that with Vacmaster
®you are obtaining a high quality product engineered
for optimal performance. This vacuum is capable of picking up liquids and dry materials.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.
We take pride in producing a high quality, durable product. This Vacmaster
®product carries a
limited two (2) year warranty against defects in workmanship and materials from date of purchase
under normal household use. If product is to be used for commercial, industrial, or rental use, a 90
day limited warranty will apply. Warranty does not apply to defects due to direct or indirect abuse,
negligence, misuse, accidents, repairs, alterations, or lack of maintenance.
Please keep your receipt as proof of purchase. This warranty gives you specic legal rights.
For product service in English, call Customer Service at 1-866-384-8432 Mon-Fri 8:30am-5:30pm
Eastern Time.
2

Changes or modications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
CAUTION: Any changes or modications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
3

SAFETY INSTRUCTIONS & WARNINGS
4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THIS MANUAL
WARNING:
FOR FUTURE REFERENCE.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM
Read and understand this operator's manual and all labels on the Wet/Dry Vacuum cleaner before
operating. Safety is a combination of common sense, staying alert, and knowing how your vacuum
works. Use this Wet/Dry Vac only as described in this manual. To reduce the risk of personal injury
or damage to your Wet/Dry Vac, use only Vacmaster
®recommended accessories.
When using an electrical appliance, basic precautions should always be followed
including the following:
• Do not run vac unattended.
• Do not vacuum, or use this Wet/Dry Vac near ammable liquids, gases, or explosive vapors like
gasoline or other fuels, lighter uids, cleaners, oil-based paints, natural gas, hydrogen, or
explosive dusts like coal dust, magnesium dust, grain dust, or gun power. Sparks inside the
motor can ignite ammable vapors or dust.
• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Keep cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug, or other parts.
• If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped
into water, return it to a service center.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp
edges or corners.
• Do not run Wet/Dry Vac over cord.
• Do not handle plug or the Wet/Dry Vac with wet hands.
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not use this Wet/Dry Vac with a torn lter or without the lter installed except when vacuuming
liquids as described in the operation section of this manual.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or
cleaning lter.
• Do not leave Wet/Dry Vac unattended when plugged in. Unplug from outlet when not in use and
before servicing.
• Turn off Wet/Dry Vac before unplugging.
• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings
blocked; keep free of dust, lint, hair, or anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.
• To reduce the risk of falls, use extra care when cleaning on stairs.
• Unplug before connecting hose.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• This appliance is provided with double insulation. Use only identical replacement parts.
See “DOUBLE INSULATION INSTRUCTIONS”.
When using as blower:
• Direct air discharge only at work area.
• Do not use Wet/Dry Vac as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Use safety goggles.
Household Type

DOUBLE INSULATION INSTRUCTIONS
EXTENSION CORDS
This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use
only identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry
Vacs before servicing. Use this Wet/Dry Vac as described in this manual. Observe the following
warnings that appear on the motor housing of your Wet/Dry Vac.
When using an extension cord with your Wet/Dry Vac refer to the following table to determine
the required A.W.G. wire size. Before using the vacuum cleaner, make sure the power cord and
extension cord are in good working condition. Make repairs or replacements before using the
vacuum cleaner. Only use extension cords that are rated for outdoor use.
• To reduce the risk of electric shock - unplug before cleaning or servicing.
• DO NOT use without lters in place.
CAUTION: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG BEFORE
SERVICING.
DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE
ONLY IDENTICAL REPLACEMENT PARTS.
TO REDUCE THE RISK OF ELECTRIC SHOCK - DO NOT EXPOSE TO RAIN.
STORE INDOORS.
WARNING:
WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM
WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE
PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A
DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED.
SERVICING A DOUBLE INSULATED WET/DRY VACUUM REQUIRES EXTREME CARE AND
KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE
PERSONNEL. REPLACEMENT PARTS FOR A DOUBLE-INSULATED WET/DRY VACUUM
MUST BE IDENTICAL TO THE PARTS THEY REPLACE. YOUR DOUBLE-INSULATED
WET/DRY VAC IS MARKED WITH THE WORDS ‘DOUBLE INSULATED’ AND THE SYMBOL
(SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE APPLIANCE.
5
Length of Extension Cord
A.W.G. Wire Size
Not recommended
7.5 m / 25 ft 15.2 m / 50 ft 30.5 m / 100 ft 45.7 m / 150 ft
110V-120V
Amps
0-6
7-10
11-12
13-16
18
18
16
14
16
16
16
12
16
14
14
14
12
12

6

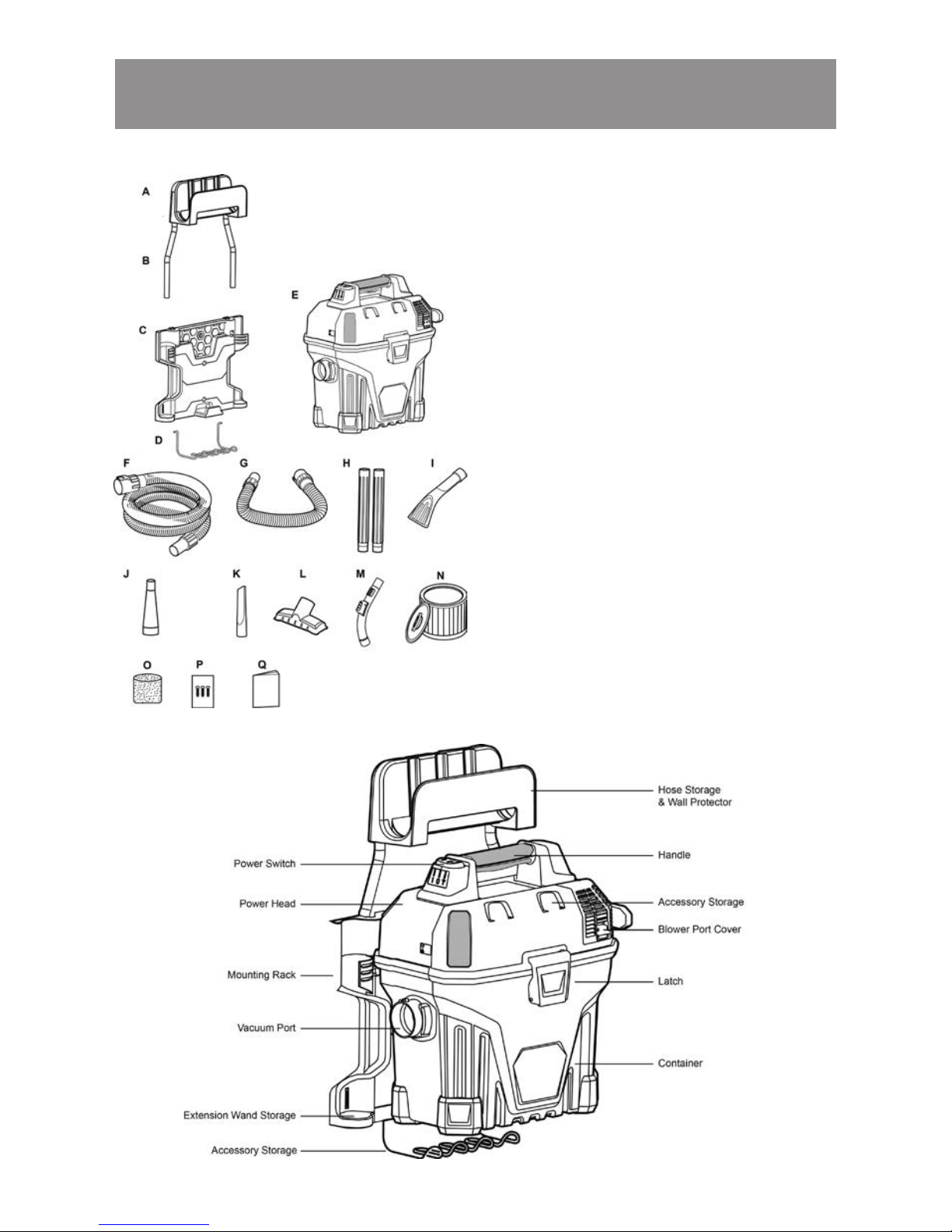

Remove entire contents of carton. Check each
item against the carton contents list.
Carton Contents List:
Key Description ..………………….…....... Qty.
A Hose Storage Rack …………...........
B Hose Storage Support ……...….......
C Wall Mount Rack ..……..…...….........
D Wire Accessory Rack …….…….......
E Vac Assembly ….…..........................
F Standard Hose ………….……..........
G Flex Hose ……………......................
H Extension Wands ……………..........
I Car Nozzle ……...............................
J Concentrator Nozzle .......…….........
K Crevice Tool ……………...................
L Utility Nozzle.………………...............
M Remote Control Handle .…...............
N Cartridge Filter ………………...........
O Foam Filter …………........................
P Screws ……………...........................
Q Operator’s Manual ……………..........
NOTE: The hose and accessories for this
vacuum are 1-7/8 in. diameter.
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
3
1
PACKAGE CONTENTS

7

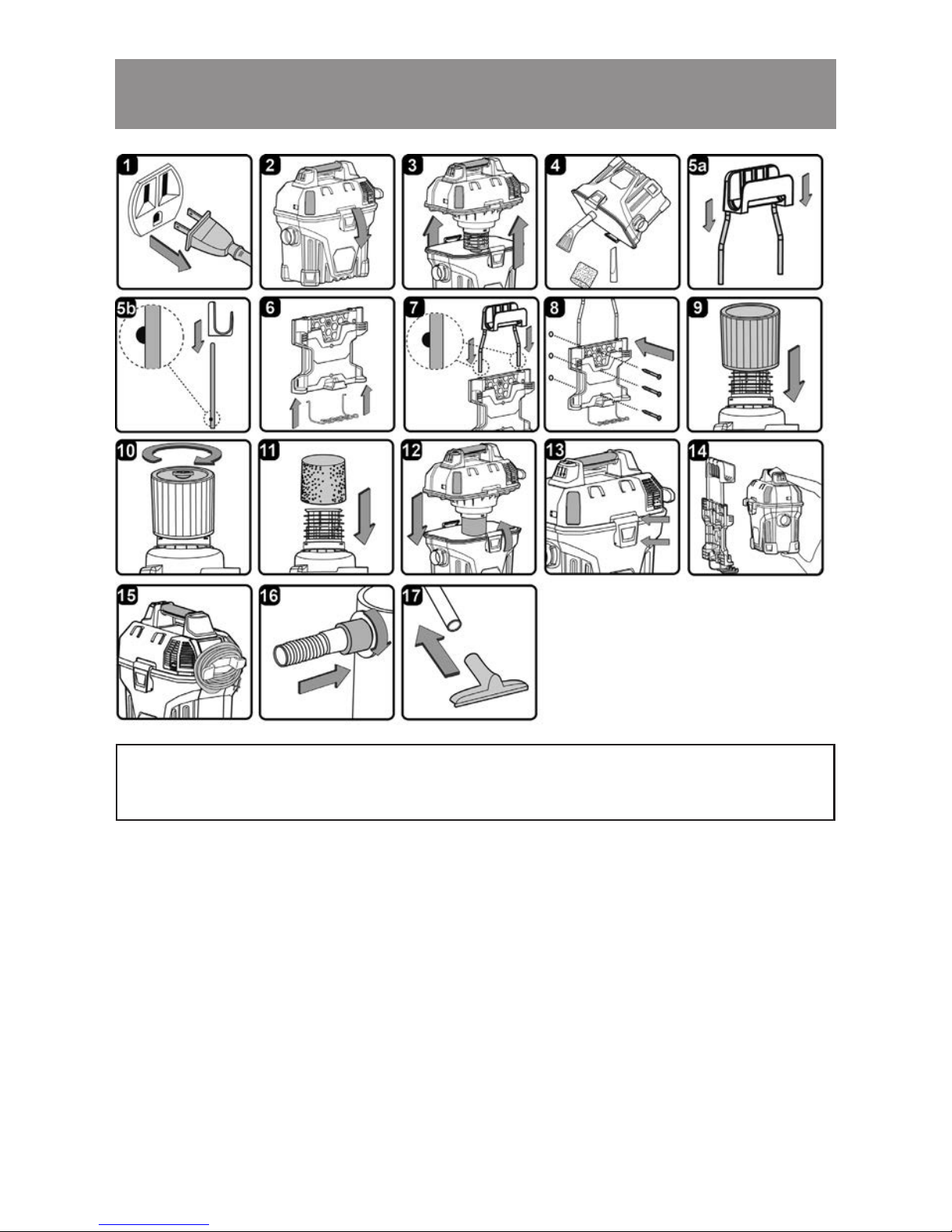

GENERAL ASSEMBLY INSTRUCTIONS
TO REDUCE THE RISK OF ELECTRIC SHOCK - DO NOT EXPOSE TO RAIN.
MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC.
WARNING:
UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY

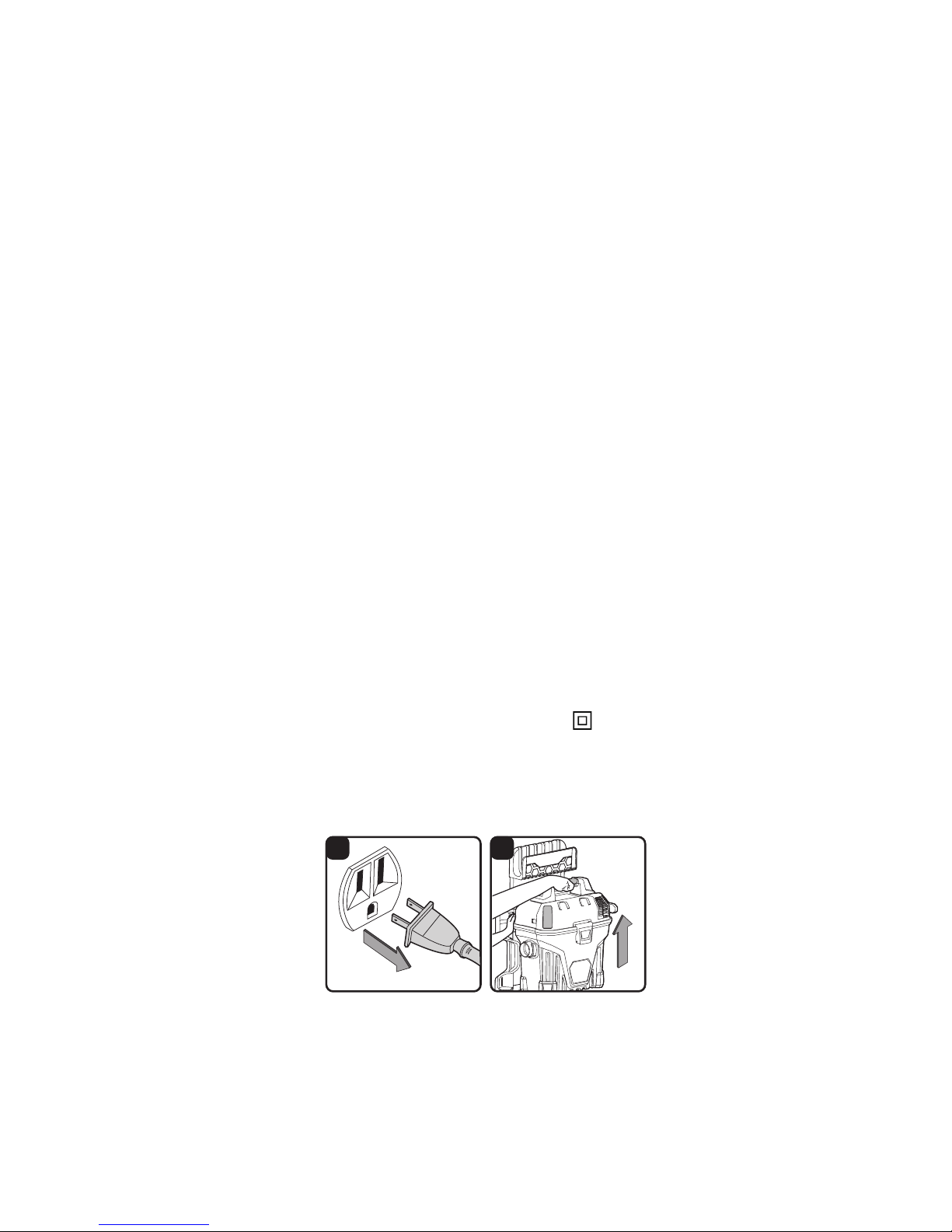

1. Verify that the power cord is disconnected from the outlet. (g. 1)
2. Undo the latches. (g. 2)
3. Lift the power head off of the container. (g. 3)
4. Remove the contents from inside the container. Make sure you have all contents as listed on
page 6. (g. 4)
5. Insert the steel rod into the hose holding rack, and snap into place. Make sure the buttons on
the rod are directed as illustrated. (g. 5a & g. 5b)
6. Locate the two openings on the bottom of the mounting rack and insert the wire accessory
storage into the mounting rack until they lock in place. Make sure the wire accessory storage is
directed towards the front side of the mounting rack. (g. 6)
7. Insert the steel rod with hose holding rack into the two holes located on the top of the mounting
rack. Ensure the Vacmaster logo is facing forward. (g. 7)

8
MOUNTING RACK AND STORAGE ASSEMBLY
IMPORTANT!
• Do not mount the rack over 1.5 m / 5 ft from the oor.
• Do not screw the rack to drywall only. Secure the screws to a stud.
• Do not hang from or sit on the mounting rack.
• Do not exceed 18 kg / 40 lb of maximum weight.
8. Locate a wall stud that is not more than 5.5 m / 18 ft away from an electrical outlet.
Align the three screw holes on the mounting rack so that they are over the stud. Make sure the
rack is level and mark the hole locations. Make a 1/8 in diameter pilot hole in each
marked location. Secure the mounting rack to the wall stud with the three screws provided. (g. 8)
MOUNTING THE VACUUM ON TO THE RACK
1. Your vacuum comes ready for dry vacuum cleaning. If the cartridge lter is not installed refer
to page 14 for lter installation. (g. 9, 10, & 11)
2. Place the power head on the container, and secure into place using the 2 side latches.
(g. 12 & g.13)
3. Mount the vacuum onto the mounting rack by aligning the vac hanging hook on the rear with
slot on the mounting rack and slide downward until it locks. (g. 14)
4. Wind the excess power cord around the cord wrap hooks located on the side of the vacuum.
(g. 15)
5. Insert the locking end of the hose into the vacuum port and lock in to place. (g. 16)
6. Secure a desired accessory, such as the suction control handle, onto the end of the hose.
(g. 17)
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than
the other). This plug will t in a polarized outlet only one way. If the plug does not t fully in the
outlet, reverse the plug. If it still does not t, contact a qualied electrician to install the proper
outlet. Do not change the plug in any way. Double insulation eliminates the need for the three
wire grounded power cord and grounded power supply system.
DISMOUNTING THE VACUUM FROM THE RACK
1 2
1. Disconnect the power cord from the electrical outlet. (g. 1)
2. Lift the vacuum up and out of the rack by the handle. (g. 2)

9
DRY-VACUUM OPERATION
DRY VACUUMING
WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION,
ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH
FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE
GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT
TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS.
EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN
OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR
DUST, DO NOT VACUUM TOXIC MATERIALS.
WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET. MAKE SURE PLUG
IS DISCONNECTED BEFORE CHANGING OR CLEANING FILTERS.
NOTICE
Do not vacuum drywall dust or replace soot or ash with standard Wet/Dry lter. This is a very ne
dust which will not be captured by the lter and may cause damage to motor. When vacuuming
ne dust use a ne dust lter (sold separately).
1. Verify that the power cord is disconnected from the outlet. (g. 1)
2. In order to prepare your vacuum for dry vacuuming, verify that the cartridge lter is securely
mounted. With the power head removed and in the upside down position, make sure the lter is
pushed in until it stops against the power head. (g. 2) Your Wet/Dry Vac comes with the
cartridge lter pre-installed, if not see page 14 for installation instructions.
3. Place lter retainer on top of cartridge lter and tighten down by turning the retainer handle
clockwise. (g. 3)
4. Place the power head back on the container, aligning the top section with the latches, and lock
into place. (g. 4)

10
LIQUID VACUUM OPERATION
LIQUID VACUUMING
WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION,
ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH
FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE
GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT
TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN,
OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR
DUST, DO NOT VACUUM TOXIC MATERIALS.
WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET.
MAKE SURE PLUG IS DISCONNECTED BEFORE CHANGING OR CLEANING FILTERS.
OPERATING INSTRUCTIONS: DRY VACUUMING
5. Insert the locking end of the hose into the vacuum port and lock in place. Push the required
attachment onto the free end of the hose or extension. (g. 5)
6. Verify that the switch is in the 'O' (OFF) position before plugging the power cord into the outlet
(g. 6). Hang the vacuum onto the rack or use off the rack.
7. Turn the motor on by ipping the switch to the ‘I’ ON position. (g. 8) For remote control use,
set the power switch to remote control position “ ” and turn the vacuum on by pressing the
‘I’ ON button on the remote control. (g. 9 & g. 10)
8. Once you have completed vacuuming, ip the switch to the ‘O’ OFF position or press the ‘O’
OFF button on the remote control for at least one second.
O = OFF I = ON = Remote Control
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
IMPORTANT! When vacuuming large volumes of liquids, we recommend that you remove the
vacuum from the mounting rack and put it on the oor. The vacuum can be heavy when full of
liquids and may be difcult to remove from the rack.

DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
1. Verify that the power cord is disconnected from the outlet (g. 1). Verify that the container is
clean and free of dust and dirt.
2. Remove the cartridge lter, then carefully install the foam sleeve lter over the lter cage (g. 2)
and place the power head back on the container. See lter installation instructions on page 14.
3. Fit the desired nozzle to the vacuum hose. (g. 3)
4. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the outlet.
(g. 4 & g. 5)
5. Turn the motor on by ipping the switch on the power head to the ‘I’ ON position or ip the
switch to the remote control position and use the ‘I’ ON button on the remote control.
6. After wet vacuuming, turn the machine off and remove plug from power supply. Empty the
container (g. 6), clean and dry the inside and outside of the container, and remove the foam
lter and allow to air dry before storage.
IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely
in the liquid; leave a gap at the tip of the nozzle opening to allow air inow. The machine is tted
with a oat valve that stops the suction action when the container reaches its maximum capacity.
You will notice an increase in motor speed. When this happens, turn off the machine, disconnect
from power supply, and empty the liquid into a suitable receptacle or drain. To continue vacuuming,
ret the power head to the container. After wet vacuuming, turn the machine off and remove plug
from power supply. To prevent the risk of possible mildew, empty the container, clean and dry the
inside and outside of the container, and remove the foam lter and allow to air dry before storage.
REMEMBER! The foam lter must be removed after wet vacuuming, and a cartridge lter must be
installed before dry vacuuming again.
DO NOT SUBMERGE THE REMOTE CONTROL IN LIQUIDS.
11

BLOWER OPERATION
This Wet/Dry Vac has blowing capabilities. To use the blower feature follow the instructions listed.
1. Verify that the switch is in the '0' (OFF) position. (g. 1)
2. Make sure the container is empty before using as a blower.
3. Lift the button on the blower lter door to the unlocked position and ip the blower lter door
open. (g. 2)
4. Remove hose from the vacuum port and insert the locking end of the hose into the blowing port
on the power head and lock into position. (g. 3)
5. Fit the desired extension wand and/or nozzle to the free end of the vacuum hose. (g. 4)
6. Before turning ON the vac, rmly hold loose end of the hose. Turn the motor on by ipping the
switch to the ‘I’ ON position (g. 5) or set the switch to the remote control setting and use the
remote control.
WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (or in
Canada, CSAZ94.3) BEFORE USING BLOWER.
WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT
BE INHALED.
CAUTION: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.
12

13
WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE
REMOVING THE POWER HEAD FROM THE CONTAINER.
1. Verify that the power cord is disconnected from the outlet. (g. 1)
2. Disconnect the hose from the vacuum. (g. 2)
3. Remove the vacuum from the mounting rack.
4. Undo the latches and remove the power head from the container. (g. 3)
5. Clear all dirt or debris from the container and hose. (g. 4)
6. Check the hose, attachments, and power cord to verify that they have not been damaged.
IMPORTANT! Clean or change the cartridge lter regularly for best performance. ALWAYS USE
CARTRIDGE FILTER FOR DRY VACUUMING. If the machine is used without the cartridge lter,
the motor will burn out and the warranty will be voided. Always keep spare cartridge lters on
hand.
NOTICE! The lters included are made of high quality materials designed to stop small dust
particles. The cartridge lter should be used for dry pick-up only. A dry cartridge lter is necessary
to pick up dust. If the cartridge lter is wet, it will clog quickly and be difcult to clean. Handle the
lter carefully when removing it for cleaning or replacing. Check the lters for tears or small holes.
A small hole can let dust pass through and out of the cleaner. Do not use a lter with holes or tears
in it; replace it immediately.
CAUTIONS: BATTERY INSTRUCTIONS
· Always purchase the correct size and grade of battery most suitable for the intended use.
· Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or
batteries of different types.
· Clean the battery contacts and also those of the device prior to battery installation.
· Ensure the batteries are installed correctly with regard to polarity (+ and -).
· Remove batteries from equipment which is not to be used for an extended period of time.
· Remove used batteries promptly.
For recycling and disposal of batteries to protect the environment, please check the internet or
your local phone directory for local recycling centers and / or follow local government regulations.
CARE AND MAINTENANCE

14
INSTALLING & CLEANING
CARTRIDGE FILTER
INSTALLING & CLEANING
FOAM SLEEVE FILTER
Installing Cartridge Filter
1. Verify that the power cord is disconnected from the outlet. (g. 1)
2. Remove power head and place in upside down position.
3. Install the cartridge lter over the lter cage with the at end of the lter towards the vacuum
power head. Carefully push lter in until it stops against the power head. (g. 2 & 3)
4. Place lter retainer on top of cartridge lter over the raised lip and tighten down by turning
retainer clockwise, taking care not to over tighten. (g. 4 & 5)
Removing and Cleaning Cartridge Filter
1. Unlock and remove the lter retainer by turning retainer handle counterclockwise.
2. Carefully remove the cartridge lter by sliding it off of the lter cage. (g. 6)
3. Clean the cartridge lter by gently tapping or brushing dirt off. Cleaning should not be done
indoors in living areas. For optimal performance a new lter is recommended.
4. Install cleaned or new lter as instructed above in steps 2 and 3 of Installing Cartridge Filter.
5. Wet lters should be removed and allowed to dry for 24 hours before installing onto the lter
cage.
Installing Foam Sleeve Filter
1. Verify that the power cord is disconnected from the outlet. (g. 1)
2. Remove power head and place in upside down position. Follow instructions to remove cartridge
lter in the section above.
3. Carefully slide foam sleeve lter down over the lter cage making sure the whole cage is
covered. (g. 2 & g. 3)
4. Replace the power head onto the container.
Cleaning Foam Sleeve Filter
1. With the removed power head in the upside down position, carefully remove foam sleeve lter.
(g. 4)
2. Use a mild soap and water solution to wash foam sleeve lter and rinse with clean water. (g. 5)
3. Allow lter to air dry before installing and using again.

15
RESETTING THE REMOTE CONTROL
1. Have the remote control accessible. Set the power switch on the vacuum to the remote control
position “ ”. (g. 1)
2. Press the RESET button on the side of the power head with pointed object such as paper clip or
a pen tip until the indicator lights up. (g. 2)
3. Release the RESET button once the red indicator light lights up and immediately press and hold
the “ON” button on the remote control handle until the vacuum powers on. (g. 3)
4. If the “ON” button is not pressed and held within a 15 second window, the reset will not be
successful. Repeat steps 2-3 to reset the remote control.
Changing The Battery – Replace Only With A 23AE 12V Alkaline Battery
1. Using a Phillips screwdriver, remove the screws on the remote control. (g. 1)
2. Slide back the remote cover so that the white triangle on the remote cover points to the unlock
symbol “ ” . (g. 2 & 3)
3. Remove the remote cover from the handle. (g. 4)
4. Lift the foam cover to expose the battery and remove the old battery. (g. 5)
5. Insert the new battery with the terminals in the direction shown and make sure to replace the
foam cover. (g. 6 & 7)
6. Replace the remote control by aligning the white triangle on the side cover to the unlock symbol
“ ” on the handle. (g. 8)
7. Slide the remote cover so that the white triangle is over the locked symbol “ ” . (g. 9 & 10)
8. Secure the cover with the screws. Do not over tighten. (g. 11)

16
TROUBLESHOOTING
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - UNPLUG BEFORE
TROUBLESHOOTING.
Symptom Possible Causes Corrective Action
Vacuum will not operate
1) No power supply. 1) Check power supply – cord,
breakers, fuses.
2) Faulty power cord. 2) Unplug and check the
power cord. If damaged,
have it repaired by a
professional.
3) Container full. 3) Empty container.
4) Switch in the wrong
position
4) Press the ON ‘I’ button on
the power head.
1) The cartridge lter is
missing or damaged.
1) Attach or replace cartridge
lter.
2) Vacuum has been used to
collect ne dust, such as
drywall dust, replace soot,
or ash, without a ne dust
lter equipped.
2) Remove the standard
cartridge lter and install
the appropriate ne dust
cartridge lter.
1) There is a blockage in the
nozzle, hose, or the
container inlet.
The cartridge lter is
clogged by ne dust.
1) Check nozzle, hose and
container inlets for blockage.
Take off the lter and clean
it.
Or install new cartridge lter.
1) Remote is not paired with
the vac.
1) Reset the remote using the
instructions on page 15.
2) Battery is dead. 2) Replace the battery.
Dust comes out from
motor cover.
Reduced efciency and
motor/speed vibration.
Remote will not operate
Changes or modications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.

17
EXPLODED VIEW

PARTS LIST
Key Description Part # Qty
Included
with Vac
1 Power Head Assembly 1
2Tank 1
3 Latch Assembly TVQTDK.14.01.X1.01 2
4 Vacuum Port Assembly TVQTXK.06.01.X5.01 1
5 Bumper Foot VW50P1.20.02.X1.01 4
6 Hose Storage Rack VW02P1.20.02.Y2 1
7 Hose Storage Support VW50P1.30.04.W1.00 1
8 Wall Mount Rack VW50P1.30.03.X2.01 1
9 Accessory Storage Rack VW01P1.30.03 1
10 Foam Filter FV9504.01.00 1
11 Cartridge Filter FV9543.06.20 1
12 47.6 mm / 1-7/8 in Concentrator
Nozzle
FV5316.01.01 1
13 47.6 mm / 1-7/8 in Utility Nozzle FV5772.01.01 1
14 47.6 mm / 1-7/8 in Extension Wand FV5901.01.01 2
15 47.6 mm x 3.0 m / 1-7/8 in x 10 ft Flex
Hose FV5861.01.00.30 1
16 47.6 mm x 3.0 m / 1-7/8 in x 10 ft
Standard Hose FV5843.01.00.33 1
17 47.6 mm / 1-7/8 in Car Claw FV5771.03.01 1
18 47.6 mm / 1-7/8 in Crevice Tool FV5771.01.02 1
19 47.6 mm / 1-7/8 in Remote Control
Handle
FV5331.01.01.X1.01 1
18
