Vacmaster VQ1030SIWDC-110 User manual

Original Instructions
1000W 110V 30L
VQ1030SIWDC-110

1
10
13
9
8
7
6
2
3
11
12
5
14
20 21 22 23 24 25
26 27 28 29 30 31
15 16 17 18 19
4

6
GB
Caution
Read operator’s manual.
Vacuum cleaners of dust category L according to IEC/EN 60335-2-69
for dry vacuuming of materials with an exposition limit value > 1mg/m3
that are hazardous to one's health.
WARNING:
The vacuum cleaner may contain materials that are
hazardous to one's health. Have the emptying and maintenance, incl.
the disposal of dust-collection container,
carried out by specialists.
Appropriate protective equipment is required. Do not operate the
vacuum cleaner without the complete lter system. Otherwise there
is danger to your own health.
TABLE OF CONTENTS
SECTION PAGE
Symbols..........................................................................................................................................
Safety Information...........................................................................................................................
Unpacking and Checking Carton Contents.....................................................................................
Assembly.........................................................................................................................................
Operation........................................................................................................................................
Maintenance...................................................................................................................................
Troubleshooting..............................................................................................................................
Technical Data................................................................................................................................
Recycling and Disposal..................................................................................................................
6
7
10
10
11
13
14
15
15
Thank you for purchasing this Vacmaster® wet and dry vacuum cleaner. Feel condent that with
Vacmaster®you are obtaining a high-quality product that is engineered for optimal performance.
This vacuum cleaner is suitable for use with both liquids and dry materials.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.
SYMBOLS

7
GB
SAFETY INFORMATION
This machine is intended for commercial use, for example in
hotels, schools, hospitals, factories, shops, ofces and rental
businesses.
When using the equipment, a few safety precautions must be
observed to avoid injuries and damage. Please read the complete
operating manual with due care. Keep this manual in a safe
place so that the information is always available. If you give
the equipment to any other person, give them these operating
instructions as well. We cannot accept any liability for damage or
accidents which arise due to a failure to follow these instructions
and the safety information.
• Never leave the appliance switched on unattended, if you leave
the work area, switch the appliance off or unplug it from the
power supply.
• Do not vacuum or use this Wet and Dry Vacuum cleaner near
ammable liquids, gases or explosive vapours like gasoline
or other fuels, lighter uids, cleaners, oil-based paints, natural
gas, hydrogen, or explosive dusts like coal dust, magnesium
dust, grain dust or gun power. Sparks inside the motor can
ignite ammable vapours or dust.
• This vacuum cleaner is not suitable for the vacuuming of
asbestos or asbestos dust.
• Do not vacuum anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
• Ensure the hose and connections are always pointed away
from the users face, hair, ears and eyes during operation and
never direct the nozzle towards persons or animals.
• Clear the working area of any items or precessions that you do
not wish to be vacuumed before operation.
• Keep cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on the cord. To unplug, grasp the plug,
not the cord.
• Do not use with damaged cord, plug or other parts.
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE
USING THIS VACUUM CLEANER.

8
GB
• Do not pull or carry by cord, use cord as handle, close a door
on cord, or pull cord around sharp edges or corners.
• Do not handle the plug or vacuum cleaner with wet hands.
• To reduce the risk of health hazards from vapours or dusts, do
not vacuum toxic materials.
• Frequently check that the oat valve positioned underneath the
motor is able to move freely.
• Do not use or store near hazardous materials.
• Do not use this vacuum cleaner with a torn lter or without the
lter installed.
• Do not allow to be used as a toy. Close attention is necessary
when used by or near children.
• To reduce the risk of injury from accidental starting, unplug
power cord before changing or cleaning lter.
• Do not leave vacuum cleaner unattended when plugged in.
Unplug from power supply when not in use and before carrying
out maintenance.
• Turn off Wet and Dry Vacuum cleaner before unplugging.
• Do not cover the ventilation openings. Do not vacuum with any
ventilation openings blocked; keep free of dust, lint, hair or
anything that may reduce air ow.
• Keep hair, loose clothing, ngers, all parts of body away from
openings and moving parts.
• If the supply cord is damaged, it must be replaced by the
manufacturer, a qualied service agent or similarly qualied
persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge.
• Children should be supervised to ensure that they do not play
with the appliance.
• Always unplug the appliance after use and before cleaning or
changing the lters or accessories.
• Only use the socket outlet on the machine for purposes
specied in the instructions.
• If foam or liquid escapes from the machine, switch off
immediately.
• Clean the oat valve regularly and examine it for signs of damage.

9
GB
When using as blower:
• Direct air discharge only at work area.
• Do not use Wet/Dry Vacuum as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.
When carrying out service or repair
operations, all contaminated items which cannot be satisfactorily
cleaned are to be disposed of; such items shall be disposed
of in impervious bags in accordance with any current regulation
for the disposal of such waste.
WARNING:

10
GB
UNPACKING AND CHECKING CARTON
CONTENTS
ASSEMBLY
NOTE: A Phillips screwdriver is required.
1. Remove all the contents from inside of the vacuum cleaner container.
2. Attach the carry handle into the slots located on the top of the power head (Fig. 1).
3. Turn the container upside down and insert the front feet with casters into the slots and apply
pressure until they click into place (Fig. 2).
4. Insert the wheel axle into the rear wheel housing on the base. Insert a washer onto the axle
followed by the rear wheel and another washer. Insert the wheel retaining pin into the hole on
the end of the axle to lock into place. Push t the hub cap onto the wheel. Repeat the same
steps on the other end of the axle (Fig. 3).
5. Your vacuum cleaner comes ready for dry vacuum cleaning with the cartridge lter and pre-lter
pre-installed. If the cartridge lter and pre-lter are not installed, refer to page 12.
6. Optionally, for improved dust ltration, fully t the dust bag ange onto the inlet stub (Fig. 4).

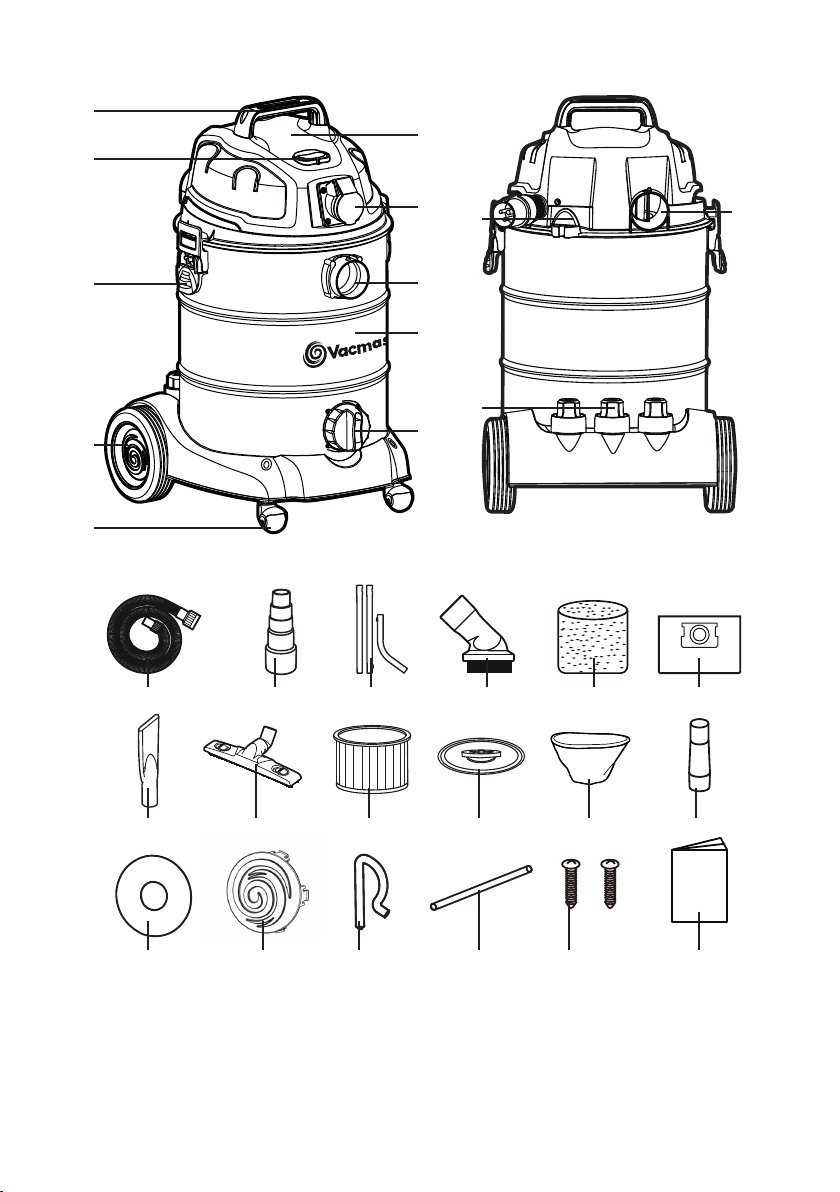

1 Carry Handle 17 Round Dust Brush
2On/Off Switch 18 Foam Filter
3 Latch 19 Dust Bag
4 Rear Wheel 20 Crevice Tool
5 Front Caster 21 Hard Floor Nozzle
6 Drainage Port 22 HEPA H13 Cartridge Filter (pre-installed)
7 Container 23 Filter Retainer (pre-installed)
8 Suction Port 24 Pre-lter
9Power Take-off Socket 25 Metal Accessory Adaptor
10 Power Head 26 Washer (x4)
11 Power Cable Hook 27 Hub Cap (x2)
12 Accessory Storage 28 Wheel Retaining Pin (x2)
13 Blowing Port 29 Wheel Axle
14 Suction Hose 30 Screw (x2)
15 Power Tool Hose Adaptor 31 Instruction Manual
16 Extension Wand (x3)

11
GB
OPERATION
1. Switching On/Off
Connect the mains plug to a suitable a power outlet.
Position Status
I on
O off
II automatic synchronized start-up
2. Power Tool Take-Off Operation (Fig. 7)
3. Dry & Wet Vacuum Operation
1) Connect the power cable of your power tool to the power take-off socket.
2) If applicable, connect the vacuum suction hose to the dust extractor connector on your tool with
the supplied adaptor.
3) Switch the vacuum cleaner to position II, as described in Switching ON/OFF. The moment you
switch on the power tool, the vacuum cleaner will also switch on. Once the electrical appliance
has been switched off, the vacuum cleaner switches off following a time lapse (around 5
second) to allow the suction tube to be emptied.
1) Verify that the correct lter is installed for wet or dry vacuuming and the container latches are
secured.
2) Secure the locking end of the hose into the vacuum suction port.
3) Push the desired accessories onto the hose nozzle. The air ow regulation allows you to
change vacuum cleaner suction. For best cleaning results, fully close the air ow regulation (Fig. 8).
4) Plug the power cord into a power outlet.
5) Turn on the motor by assigning the switch to the “I” ON position.
6) Once you have completed vacuuming, switch to the “O” OFF position and unplug the power
cord from the power.
WARNING: ALWAYS CHECK THE MAXIMUM WATTAGE COMPATIBILITY
OF THE POWER TOOL TAKE OFF SOCKET AGAINST THE DESIRED
POWER TOOL BEFORE CONNECTING TO PREVENT OVERLOADING.
WARNING! ENSURE YOU READ, UNDERSTAND AND APPLY SECTION
ENTITLED ‘SAFETY INFORMATION’.
7. For wet vacuuming, replace the cartridge lter and pre-lter with the foam lter supplied. Do not
use a dust bag when wet vacuuming. If the foam lter is not installed, refer to page 12.
8. Secure the power head back on the container, using the 2 side latches. Insert the locking end
of the hose into the suction port of the container and turn clockwise to lock into place (Fig. 5).
9. Choose the desired accessories and/or extension wands and push t onto the hose nozzle. To
use the dusting brush and crevice tool with an extension wand you will be required to use the
metal accessory adaptor (Fig. 6).

12
GB
4. Blower Operation
1) Make sure the container and any collected waste is emptied before using as a blower. This also
includes removal of the dust bag.
2) Insert the locking end of the hose into the blowing port on the rear of the power head (Fig. 12).
3) Turn on the motor on by turning the switch to the ‘I’ ON position.
1) To prepare your vacuum cleaner for dry vacuuming, install the cartridge lter over the lter cage
with the at end of the lter towards the vacuum power head. Carefully push lter until it sits
ush forming a tight seal.
2) Place the lter retainer cap on top of cartridge lter over the raised lip and tighten the retainer
lock clockwise to secure against the internal lter cage (Fig. 9).
3) Place the pre-lter on the collection tank. The pre-lter is designed to cover the full
circumference of the tank. Replace the power head, and secure it in place (Fig. 10).
4) Optionally, fully t the dust bag ange onto the inlet stub. The Vacuum cleaner can we be used
with or without dust bags.
IMPORTANT: Check the lter regularly for optimal performance. An old or blocked lter will reduce
suction performance.
For Wet Vacuuming:
1) To prepare your vacuum cleaner for wet vacuuming, remove the retainer cap and the dry use
cartridge lter and pre-lter.
2) Carefully install the supplied foam lter over the internal lter cage, making sure the whole cage
is covered (Fig. 11).
IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely;
leave a gap at the tip of the nozzle to allow air inow. The machine is tted with a oat valve that
stops the suction action when the container reaches its maximum capacity. You will notice an
increase in motor noise. When this happens, turn off the machine, disconnect from power supply,
and drain the liquid. To continue vacuuming, replace the drainage cap.
WARNING: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.
WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT
MIGHT BE INHALED.
WARNING:
DO NOT USE THE CARTRIDGE FILTER FOR WET VACUUMING.
DO NOT USE A DUST COLLECTION BAG FOR WET VACUUMING.
DO NOT USE THE PRE-FILTER FOR WET VACUUMING.
WARNING:
BEFORE INSTALLING, REMOVING OR CLEANING THE VACUUM
CLEANER FILTER, ENSURE THAT THE POWER CORD IS UNPLUGGED AND
SWITCHED OFF.
For Dry Vacuuming:

13
GB
MAINTENANCE
1. Cleaning Cartridge Filter & Pre-lter
Remove the lter and clean by gently tapping or brushing off dirt. For optimal performance it is
recommended to replace the old lter with a new lter regularly.
2. Cleaning Foam Filter
Remove the foam lter and use a mild soap and water solution to wash and rinse with
clean water (Fig. 13). Allow lter to air dry before installing and using again.
1) Keep all safety devices, air vents and the motor housing free of dirt and dust. Use a soft, dry
brush to clean the equipment regularly.
2) Clear all dirt or debris from the collection tank after each use. Allow to dry before replacing the
power head. Do not use cleaning agents or solvents; these may damage the appliance.
3) Check the hose, attachments, and power cord to verify that they have not been damaged or
any debris is trapped and blocking airow.
WARNING: REMOVE THE POWER CORD FROM THE POWER SUPPLY
BEFORE CARRYING OUT ANY MAINTENANCE.

14
GB
Cleaning Performance
Vacmaster vacuum cleaners are tested for endurance. If your motor is
operating, then the most likely cause for a loss in suction is a blockage or an
opening in the vacuum.
To maintain a high cleaning performance from your machine, it is important
to replace or clean cartridge lters as necessary. Replace full dust bags to
prevent performance drops. A performance drop with clean lters can only be
caused by a blockage in the tools or the hose.
TROUBLESHOOTING
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK-
UNPLUG BEFORE TROUBLESHOOTING.
PROBLEM POSSIBLE CAUSE SOLUTION
The appliance does
not work.
No power. Check the power supply and fuse.
Functional fault in the power cord,
switch, or motor.
Have the damaged part checked by
qualied personnel or contact the after
sales helpline.
Dust is escaping from
the motor cover.
The cartridge lter is missing or
damaged. Put in a cartridge lter or replace it.
Misuse the cartridge lter when
wet vacuuming, causing the
damage of cartridge lter.
Replace the damaged cartridge lter
with a new one when dry vacuuming.
Misuse the foam lter when dry
vacuuming.
Replace the foam lter with the
cartridge lter.
Power tool take-off
socket does not work.
Power tool wattage exceeds max
power.
Check the wattage is compatible with
the power tool take-off socket.
Incorrect operating mode
selected.
Ensure the switch is moved into
position II.
Low suction power and
high operating noise /
vibrations.
Dust bag is full. Replace the dust bag.
Suction nozzle, hose, or tank inlet
is blocked.
Check the suction nozzle, hose, and
tank inlet for obstructions.
Cartridge lter is blocked. Remove the cartridge lter and clean.
Float valve has closed.
Empty the container of any liquid
waste and ensure the oat value
located underneath the lter is able to
move freely.

15
GB
Noise/Vibration Information
Noise emission values determined according to EN 60335-2-69.
Typically, the A-weighted sound pressure level of the power tool is <74.5 dB(A).
Uncertainty K = 3 dB.
Total vibration values ah(triax vector sum) and uncertainty K determined according to
EN 60335-2-69: ah<2.5 m/s2, K =1.5 m/s2.
RECYCLING AND DISPOSAL
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. The machine must be delivered in rigid packaging to avoid damage during
transportation. The packaging and the machine itself are manufactured from recyclable
materials and should be disposed of accordingly.
TECHNICAL DATA
Model Number VQ1030SIWDC-110
Motor 110V~50Hz
Power Input 1000W
Max. Power Consumption of the Power
Tool Take-Off Socket Outlet 760W
Tank Volume 30L
Net Weight 10.4kg
Max. Vacuum Pressure 16kPa / 160hPa
Max. Flow Rate 35L/s / 126m3/h

1
5
46
13
12
78
911
10
32

17
GB

18
GB

19
GB

VQ1030SIWDC-110
Suzhou Cleva Electric Appliance Co., Ltd.
No.8 Ting Rong Street
Suzhou Industrial Park, Suzhou
Jiangsu Province, China
www.cleva-europe.com
Made in P.R.C
