Vaillant ecoTEC pure VC 146/7-2 User manual

Operating instructions
ecoTEC pure
VC 146/7-2 (E-DE)
VCW 206/7-2 (E-DE)
DE
Publisher/manufacturer
Vaillant GmbH
Berghauser Str. 40 D-42859 Remscheid
Tel. [phone]‑0 Fax [phone]‑2810
[email protected] www.vaillant.de

Contents
2Operating instructions ecoTEC pure 0020258017_00
Contents
1 Safety ............................................ 3
1.1 Action-related warnings ................. 3
1.2 Intended use .................................. 3
1.3 General safety information............. 4
2 Notes on the documentation ...... 7
2.1 Observing other applicable
documents ..................................... 7
2.2 Storing documents......................... 7
2.3 Validity of the instructions .............. 7
3 Product description..................... 7
3.1 Product design............................... 7
3.2 Control elements............................ 7
3.3 Description of the display............... 8
3.4 Information on the identification
plate ............................................... 8
3.5 Serial number ................................ 9
3.6 CE label ......................................... 9
4 Function........................................ 9
4.1 Operating concept ......................... 9
4.2 Opening the isolator devices ....... 10
4.3 Switching on the product ............. 10
4.4 Setting the heating flow
temperature ................................. 11
4.5 Setting the hot water
temperature ................................. 11
4.6 Switching off the product's
functions ...................................... 12
4.7 Guaranteeing the correct filling
pressure in the heating circuit...... 12
4.8 Switching the product to
standby mode .............................. 13
4.9 Protecting the heating
installation against frost ............... 14
5 Troubleshooting ........................ 14
5.1 Detecting and rectifying faults...... 14
5.2 Displaying the status codes ......... 14
6 Care and maintenance .............. 14
6.1 Maintenance ................................ 14
6.2 Caring for the product .................. 14
6.3 Reading maintenance
messages .................................... 15
6.4 Checking the condensate drain
pipework and tundish................... 15
7 Decommissioning...................... 15
7.1 Temporarily decommissioning
the product................................... 15
7.2 Permanently decommissioning
the product................................... 15
8 Recycling and disposal............. 15
9 Guarantee and customer
service ........................................ 16
9.1 Guarantee.................................... 16
9.2 Customer service......................... 16
Appendix ............................................... 17
A Operator level –overview ......... 17
B Status codes –Overview........... 17
C Troubleshooting and fault
elimination.................................. 18
C.1 Troubleshooting ........................... 18
C.2 Rectifying faults ........................... 18

Safety 1
0020258017_00 ecoTEC pure Operating instructions 3
1 Safety
1.1 Action-related warnings
Classification of action-re-
lated warnings
The action-related warnings
are classified in accordance
with the severity of the pos-
sible danger using the following
warning signs and signal words:
Warning symbols and signal
words
Danger!
Imminent danger to life
or risk of severe personal
injury
Danger!
Risk of death from electric
shock
Warning.
Risk of minor personal
injury
Caution.
Risk of material or envir-
onmental damage
1.2 Intended use
There is a risk of injury or death
to the user or others, or of dam-
age to the product and other
property in the event of im-
proper use or use for which it
is not intended.
The product is intended as a
heat generator for closed heat-
ing installations and for hot wa-
ter generation.
Intended use includes the fol-
lowing:
–observance of the operating
instructions included for the
product and any other system
components
–compliance with all inspection
and maintenance conditions
listed in the instructions.
This product can be used by
children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given supervi-
sion or instruction concerning
use of the product in a safe way
and understand the hazards in-
volved. Children must not play
with the product. Cleaning and
user maintenance work must
not be carried out by children
unless they are supervised.
Any other use that is not spe-
cified in these instructions, or
use beyond that specified in this
document shall be considered
improper use. Any direct com-
mercial or industrial use is also
deemed to be improper.
Caution.
Improper use of any kind is
prohibited.

1 Safety
4Operating instructions ecoTEC pure 0020258017_00
1.3 General safety
information
1.3.1 Danger caused by
improper operation
Improper operation may present
a danger to you and others, and
cause material damage.
▶Carefully read the enclosed
instructions and all other ap-
plicable documents, particu-
larly the "Safety" section and
the warnings.
▶Only carry out the activities
for which instructions are
provided in these operating
instructions.
1.3.2 Risk of death from
escaping gas
What to do if you smell gas in
the building:
▶Avoid rooms that smell of
gas.
▶If possible, open doors and
windows fully and ensure
adequate ventilation.
▶Do not use naked flames (e.g.
lighters, matches).
▶Do not smoke.
▶Do not use any electrical
switches, mains plugs, door-
bells, telephones or other
communication systems in
the building.
▶Close the emergency control
valve or the main isolator.
▶If possible, close the gas isol-
ator cock on the product.
▶Warn other occupants in the
building by yelling or banging
on doors or walls.
▶Leave the building immedi-
ately and ensure that others
do not enter the building.
▶Alert the police and fire bri-
gade as soon as you are out-
side the building.
▶Use a telephone outside the
building to inform the emer-
gency service department of
the gas supply company.
1.3.3 Risk of death due to a
blocked or leaking flue
gas pipe
What to do if you smell flue gas
in the property:
▶Open all accessible doors
and windows fully to provide
ventilation.
▶Switch off the product.
▶Inform a competent person.
1.3.4 Risk of death due to
explosive and flammable
materials
▶Do not use the product in
storage rooms that contain
explosive or flammable sub-
stances (such as petrol, pa-
per or paint).

Safety 1
0020258017_00 ecoTEC pure Operating instructions 5
1.3.5 Risk of death due
to changes to the
product or the product
environment
▶Never remove, bridge or
block the safety devices.
▶Do not tamper with any of the
safety devices.
▶Do not damage or remove
any seals on components.
▶Do not make any changes:
–The product itself
–to the gas, air, water and
electricity supplies
–to the entire flue gas install-
ation
–to the entire condensate
drain system
–to the expansion relief valve
–to the drain pipework
–to constructional condi-
tions that may affect the
operational reliability of the
product
1.3.6 Risk of poisoning
caused by insufficient
supply of combustion air
Conditions: Open-flued opera-
tion
▶Ensure that there is a suffi-
cient supply of combustion
air.
1.3.7 Risk of corrosion
damage due to
unsuitable combustion
and room air
Sprays, solvents, chlorinated
cleaning agents, paint, adhes-
ives, ammonia compounds,
dust or similar substances may
lead to corrosion on the product
and in the air/flue pipe.
▶Ensure that the supply of
combustion air is always free
of fluorine, chlorine, sulphur,
dust, etc.
▶Ensure that no chemical sub-
stances are stored at the in-
stallation site.
1.3.8 Risk of material damage
caused by frost
▶Ensure that the heating in-
stallation always remains in
operation during freezing con-
ditions and that all rooms are
sufficiently heated.
▶If you cannot ensure the op-
eration, have a competent
person drain the heating in-
stallation.

1 Safety
6Operating instructions ecoTEC pure 0020258017_00
1.3.9 Risk of injury and
material damage due to
maintenance and repairs
carried out incorrectly or
not carried out at all
▶Never attempt to carry out
maintenance work or repairs
on your product yourself.
▶Faults and damage should
be immediately rectified by a
competent person.
▶Adhere to the maintenance
intervals specified.

Notes on the documentation 2
0020258017_00 ecoTEC pure Operating instructions 7
2 Notes on the
documentation
2.1 Observing other applicable
documents
▶You must observe all operating instruc-
tions enclosed with the system compon-
ents.
2.2 Storing documents
▶Keep this manual and all other applic-
able documents safe for future use.
2.3 Validity of the instructions
These instructions apply only to:
Product article number
ecoTEC pure VC 146/7-
2 (E-DE) 0010023439
VCW 206/7-
2 (E-DE) 0010023440
3 Product description

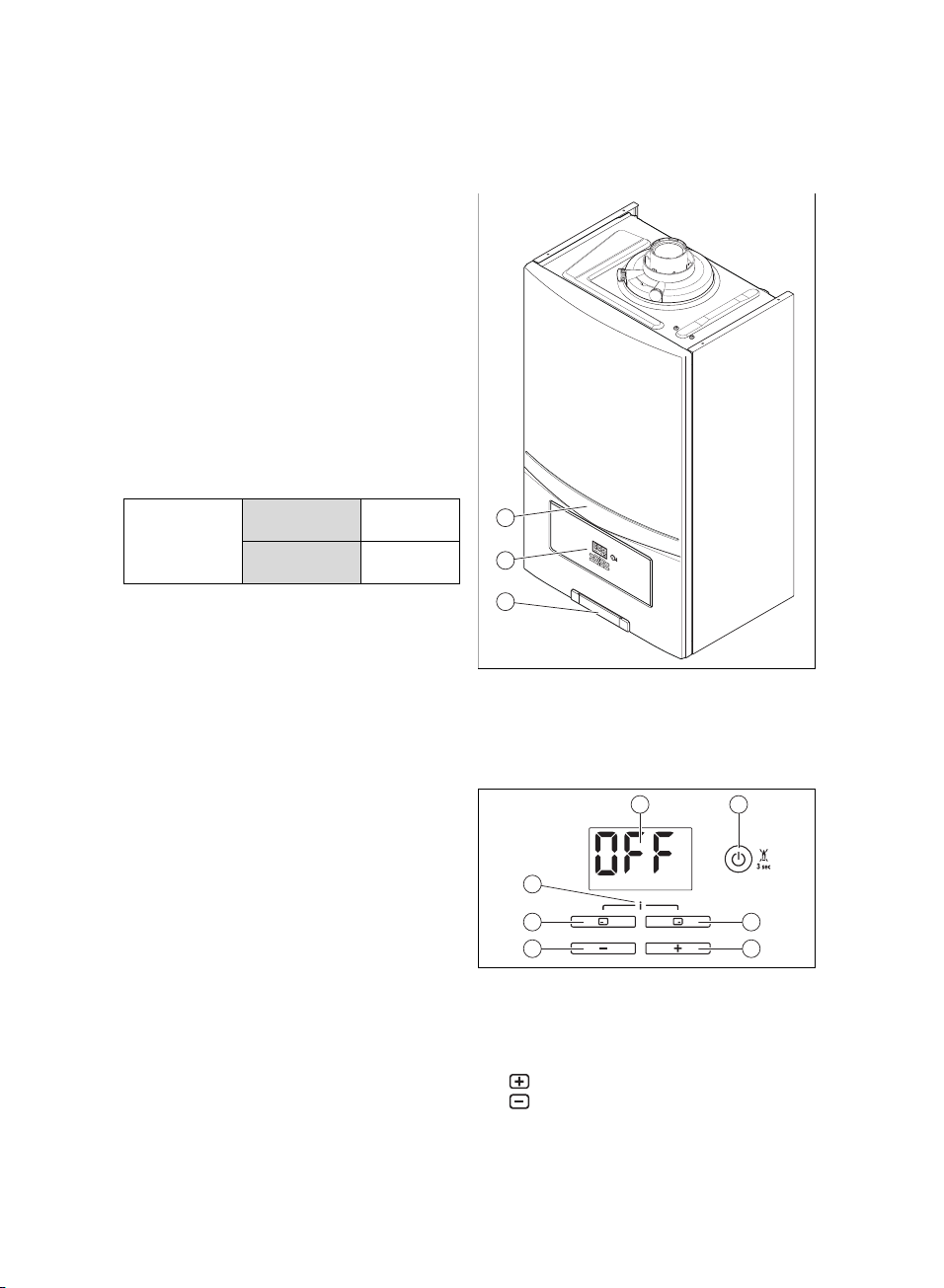

3.1 Product design
3
2
1
1 Product
2 Control elements
3 Plate with serial
number on the
rear
3.2 Control elements
3
4
6
5
7
1 2
1 Display
2 On/off button
and reset button
3 Right selection
button
4button
5button
6 Left selection
button
7 Access to the
menu for addi-
tional inform-
ation/installer
level

3 Product description
8Operating instructions ecoTEC pure 0020258017_00
3.3 Description of the display
1
2
3
1 Operating in-
formation
2 Operating mode,
selecting and
confirming the
operating mode
3 Display showing
the current heat-
ing flow temper-
ature, the filling
pressure in the
heating install-
ation, the oper-
ating mode or a
fault code
Symbol Meaning
Burner operating correctly
–Burner on
Heating installation filling
pressure
–Permanently on: Filling
pressure in the permitted
range
–Flashing: Filling pres-
sure outside the permitted
range, purging function
activated
DHW mode
–Permanently on: Hot wa-
ter activated
–Flashing: Burner on in
draw-off mode
Heating mode
–Permanently on: Heating
mode activated
–Flashing: Burner on in
heating mode
Maintenance required
Information on maintenance
messages in the event of
faults
Setting to be confirmed
Navigating through various
menus
Symbol Meaning
/ / Fault in the product
–Appears instead of the
basic display.
S.XX
Status code
OFF –Heating mode is switched
off (summer mode)
–Hot water handling mode
is switched off (product
with integrated hot water
generation/product with
connected domestic hot
water cylinder)
–Appears when the
product goes into standby
mode.
3.4 Information on the
identification plate
The identification plate is mounted on the
underside of the product in the factory.
The identification plate keeps record of
the country in which the product is to be
installed.
Information
on the data
plate
Meaning
Condensing
technology
Efficiency class of the boiler
in accordance with EC Dir-
ective 92/42/EEC
Serial number For quality control purposes;
3rd and 4th digits = year of
production
For quality control purposes;
5th and 6th digits = week of
production
For identification purposes;
7th to 16th digits = product
article number
For quality control purposes;
17th to 20th digits = place of
manufacture
... ecoTEC ... Product designation
Cat. Approved gas category
Type: Xx3(x) Permissible flue gas connec-
tions

Function 4
0020258017_00 ecoTEC pure Operating instructions 9
Information
on the data
plate
Meaning
2H/2E/3P/
2K...
Gas group and gas connec-
tion pressure as set at the
factory
Tmax Max. flow temperature
PMS Maximum water pressure in
heating mode
NOx NOx class for the product
V
Hz
Electric connection
W Max. electrical power con-
sumption
IP Protection class
Code (DSN) Specific product code
Heating mode
Qn Nominal heating load range
in heating mode
Pn Nominal heat output range
in heating mode
Pnc Nominal heat output range
in heating mode (condensing
technology)
Hot water generation
Qnw Nominal heating load range
in domestic hot water mode
Pnw Nominal heat output range
in domestic hot water mode
D Specific flow rate
PMW Maximum water pressure in
domestic hot water mode
Barcode with serial number
Note
Make absolutely sure that the
product is compatible with the gas
group at the installation site.
3.5 Serial number
The serial number can be found on the
rear of a plastic plate at the bottom of the
front casing and on the identification plate.
3.6 CE label
The CE label shows that the products
comply with the basic requirements of the
applicable directives as stated on the iden-
tification plate.
The declaration of conformity can be
viewed at the manufacturer's site.
4 Function
4.1 Operating concept
The display switches on when you switch
on the product or press a button. You can
now configure settings by pressing the
buttons again.
When you switch the product off using the
on/off button, the display goes out (the
frost protection function is active for as
long as power is supplied).
Button Meaning
–Setting the hot water temperat-
ure
–Cancelling the change to a set
value or activating an operating
mode
–Calling up a higher selection
level in the menu
–Setting the heating flow tem-
perature, filling pressure of the
heating system or activating the
heating mode
–Confirming a set value or activ-
ating an operating mode
–Calling up a lower selection
level in the menu
–Read the system pressure
(press twice)

4 Function
10 Operating instructions ecoTEC pure 0020258017_00

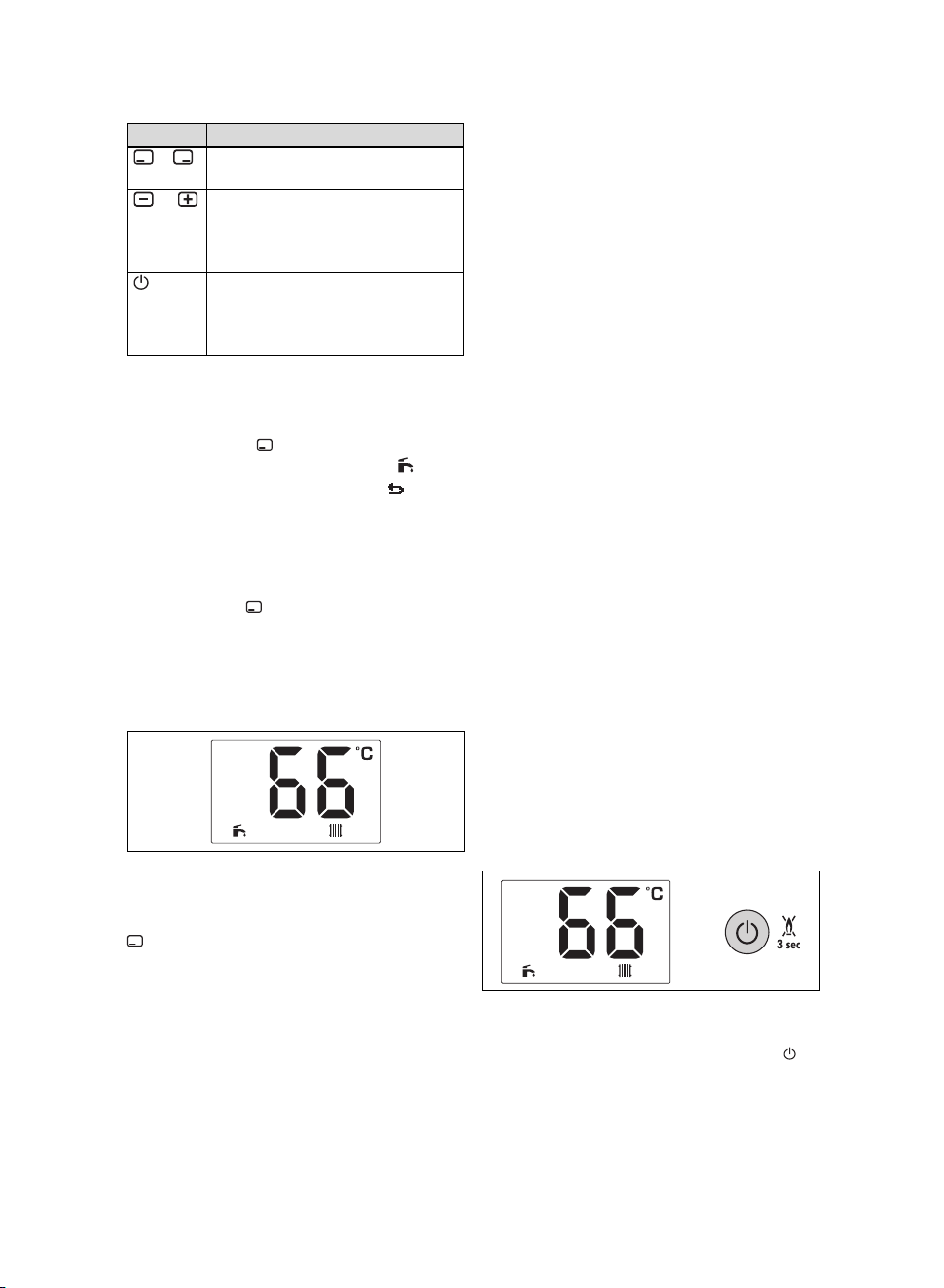

Button Meaning
+–Calling up the additional func-
tions
or –Navigating between individual
menu items
–Increasing or decreasing the
chosen set value
–On/off button (press and hold
the button for < 3 s)
–Reset button (press and hold
the button for > 3 s)
Both selection buttons have a soft key
function, i.e. their function can change.
If, for example, you press the left-hand
selection button in the basic display,
the current function switches from (Do-
mestic hot water temperature) to (Back).
Adjustable values are always displayed as
flashing.
You must always confirm a change to a
value. Only then is the new setting saved.
You can press to cancel a procedure at
any time. If you do not press any buttons
for longer 15 minutes, the display returns
to the basic display.
4.1.1 Basic display
The basic display shows the current
product status.
To return to the basic display, press the
button. If you do not press any buttons
within three minutes, the display becomes
dark and automatically switches back to
the basic display.
If an error message appears, the error
code will be shown on the basic display.
The available functions vary depending on
whether:
–A room thermostat is connected to the
product or not
–A domestic hot water cylinder with tem-
perature sensor is connected to the
product or not
4.1.2 Operating levels
The product has two operating levels:
–The operator level shows the most im-
portant information and offers set-up
options which do not require any special
prior knowledge.
–Specialised knowledge is required in or-
der to use the installer level (access for
competent persons). This is therefore
protected by an access code.
Operator level –overview (→Page 17)
4.2 Opening the isolator devices
1. Ask the competent person who in-
stalled the product to explain to you
where these isolator devices are loc-
ated and how to handle them.
2. Open the gas isolator cock installed
on-site.
3. Open the gas isolator cock, which is
directly below the product or in its im-
mediate vicinity.
4. Open the service valves in the heating
installation's flow and return.
5. Open the cold water stop valve.
4.3 Switching on the product
1. Only start up the product once the cas-
ing has been completely closed.
2. If the display is switched off, press
for less than 3 seconds.
◁The basic display is shown in the
display.

Function 4
0020258017_00 ecoTEC pure Operating instructions 11

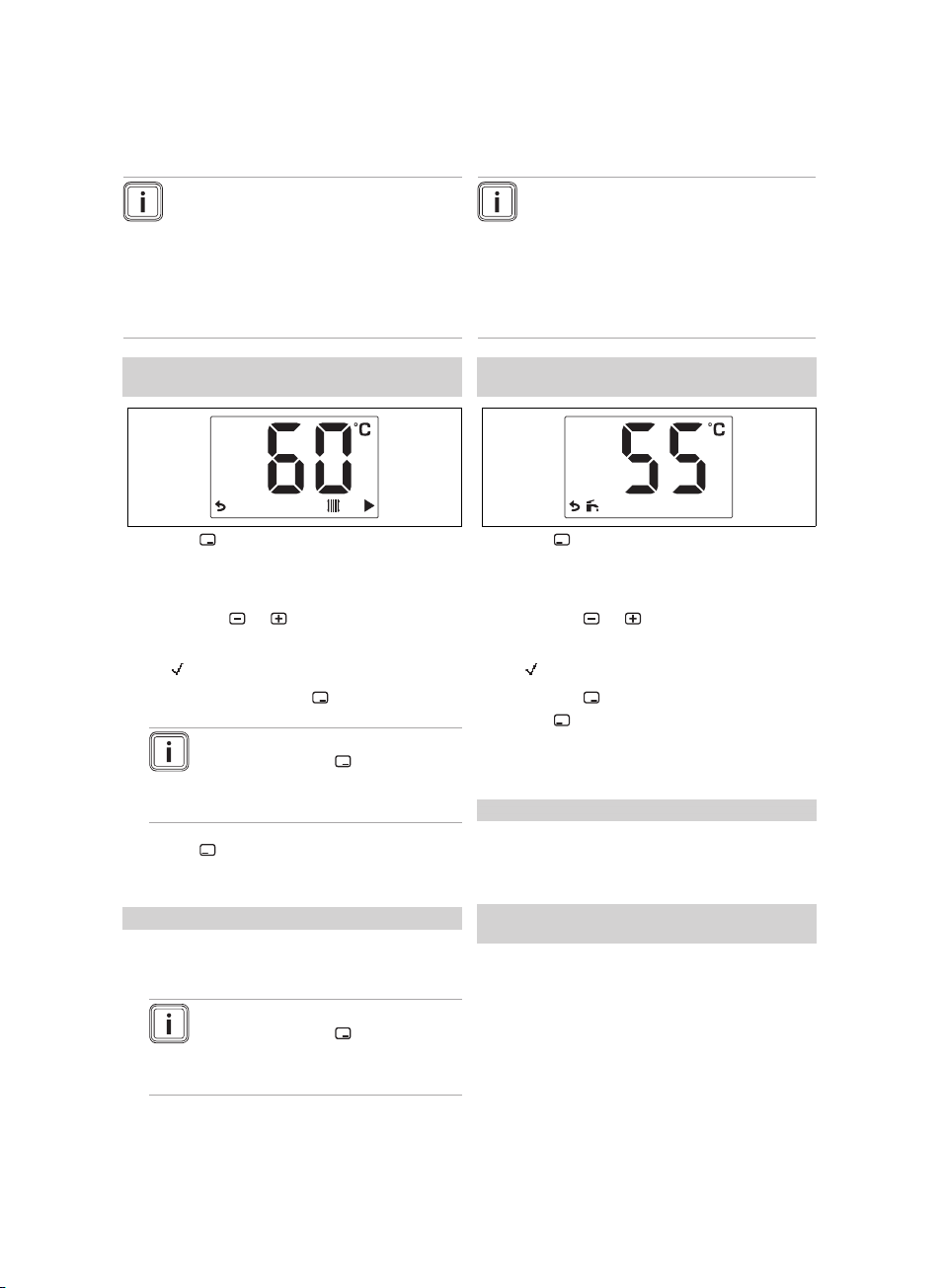

4.4 Setting the heating flow
temperature
Note
If the eBUS room temperature con-
trol is connected to the product,
the domestic hot water temperat-
ure and the heating flow temperat-
ure cannot be set via the operating
display.
Conditions: The temperature is controlled by the
product
▶Press .
◁The heating flow temperature
flashes in the display.
▶Press the or button to set the tem-
perature.
◁is shown in the display.
▶Confirm by pressing .
Note
If you press the button again,
the heating installation pressure
is shown in the display.
▶Press .
◁The basic display is shown.
Conditions: Controller-regulated temperature
▶You cannot set the heating flow tem-
perature.
Note
If you press the button, the
heating installation pressure is
shown in the display.
4.5 Setting the hot water
temperature
Note
If the eBUS room temperature con-
trol is connected to the product,
the domestic hot water temperat-
ure and the heating flow temperat-
ure cannot be set via the operating
display.
Conditions: The temperature is controlled by the
product
▶Press .
◁The domestic hot water temperature
now flashes in the display.
▶Press the or button to set the tem-
perature.
◁is shown in the display.
▶Press the button to confirm.
▶Press .
◁The display switches to the basic
display.
Conditions: Controller-regulated temperature
▶Set the hot water temperature on the
controller. See the instructions for the
controller.
Conditions: The temperature is controlled via the
domestic hot water cylinder's thermostat.
▶Set the hot water temperature on the
domestic hot water cylinder. See the
instructions for the domestic hot water
cylinder.

4 Function
12 Operating instructions ecoTEC pure 0020258017_00
Conditions: The temperature is controlled via the
domestic hot water cylinder's temperature sensor.
▶Set the hot water temperature on the
controller. See the instructions for the
controller.
4.6 Switching off the product's
functions
4.6.1 Switching off heating mode
(Summer mode)
Conditions: The temperature is controlled by the
product
▶Press .
◁The heating flow temperature
flashes in the display.
▶Press and press and hold until
OFF is shown in the display.
◁is shown in the display.
▶Confirm by pressing .
◁Heating mode is switched off.
▶Press .
◁The display switches to the basic
display.
Conditions: Controller-regulated temperature
▶You cannot switch off heating mode on
the product. See the instructions for the
controller.
4.6.2 Switching off the hot water
handling mode
Conditions: Temperature regulated by the product
or by the room temperature controller
▶Press .
◁The domestic hot water temperature
now flashes in the display.
▶Press and press and hold until
OFF is shown in the display.
◁is shown in the display.
▶Press to confirm.
◁Hot water generation is switched off.
▶Press .
◁The display switches to the basic
display.
4.7 Guaranteeing the correct
filling pressure in the heating
circuit
4.7.1 Checking the system pressure
Note
Your product has a pressure
sensor and a digital pressure
indicator.
The product switches to fault mode
if the pressure falls below the re-
quired system pressure (below
0.05 MPa (0.5 bar)). If the heating
installation extends over several
floors, a higher system pressure
may be necessary. Ask your com-
petent person for details.
1. Press twice.
◁The current system pressure is
shown in the display.
2. Check the system pressure on the
display.
1/2
System pressure: 0.08 … 0.2 MPa
(0.80 … 2.0 bar)
The system pressure is in the intended
pressure range.
2/2
System pressure: < 0.08 MPa
(< 0.80 bar)
▶Fill the heating installation.
(→Page 13)
◁When you have reached a suffi-
cient pressure range, the display
disappears after 20 seconds.

Function 4
0020258017_00 ecoTEC pure Operating instructions 13

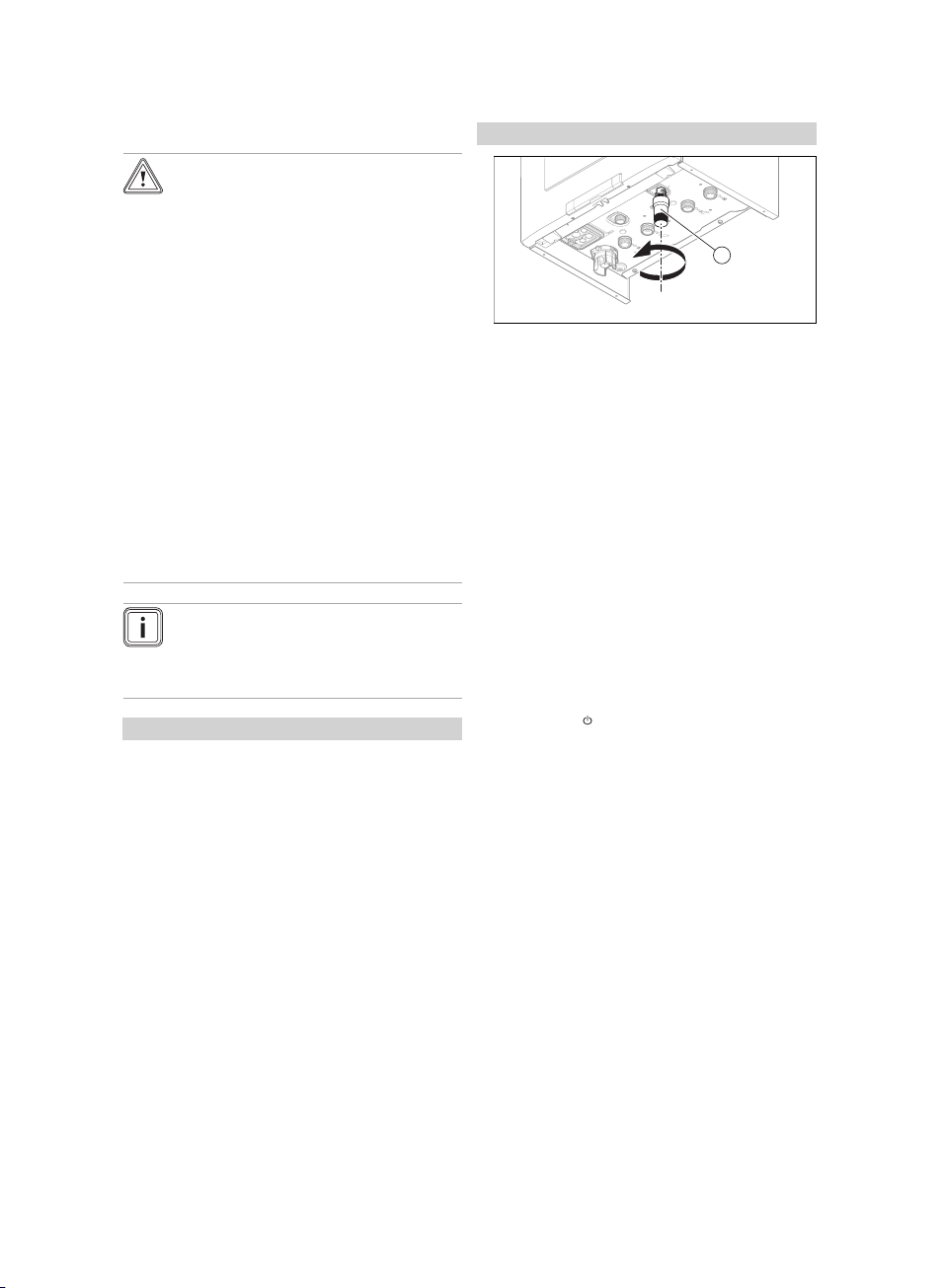

4.7.2 Filling the heating installation
Caution.
Risk of material damage due
to heating water that is ex-
tremely calciferous or corros-
ive or contaminated by chem-
icals.
Unsuitable tap water damages
the seals and diaphragms,
blocks components in the
product and heating installation
through which the water flows
and causes noise.
▶Only fill the heating install-
ation with suitable heating
water.
▶In case of doubt, ask a com-
petent person for details.
Note
The competent person is respons-
ible for filling the heating installa-
tion the first time.
Applicability: Product without filling device
▶On-site, connect the filling cock to a
cold water pipe, as explained by the
competent person.
▶Open all radiator valves (thermostatic
radiator valves) of the heating installa-
tion.
▶Open the cold water pipe.
▶Turn the filling cock on slowly and al-
low water to flow in until the required
system pressure has been reached.
▶Close the cold water pipe.
▶Purge all radiators.
▶Check the system pressure on the
display. (→Page 12)
▶Top up with more water if required.
▶Close the filling cock.
▶Disconnect the filling cock from the
cold water pipe.
Applicability: Product with filling device
1
▶Open all radiator valves (thermostatic
radiator valves) of the heating installa-
tion.
▶Slowly turn the blue valve on the
filling device (1) that is located be-
low the product and top it up with wa-
ter until the required system pressure
has been reached.
▶Purge all radiators.
▶Check the system pressure on the
display. (→Page 12)
▶Top up with more water if required.
▶Close the blue valve on the filling
device (1).
4.8 Switching the product to
standby mode
▶Press the button for less than three
seconds.
◁Once the requirement currently in
use has finished, the display will
show OFF and go out.
◁The product is now in standby mode.
◁The product's frost protection func-
tion is activated.
◁The main power supply is not inter-
rupted. The product continues to be
supplied with power.

5 Troubleshooting
14 Operating instructions ecoTEC pure 0020258017_00
4.9 Protecting the heating
installation against frost
4.9.1 Frost protection function
Caution.
Risk of material damage due
to frost.
The frost protection function
cannot guarantee flow through
the entire heating installation,
which means that parts of the
heating installation may freeze
and therefore become dam-
aged.
▶During a period of frost, en-
sure that the heating installa-
tion remains in operation and
that all rooms are sufficiently
heated, even when you are
away.
To keep the frost protection devices active,
you should switch your product on and off
using the controller, if one is provided.
If the heating flow temperature falls be-
low 5 °C when the on/off button is on, the
product comes into operation and heats
the circulating water to approx. 30 °C on
both the heating side and the hot water
side (if available).
4.9.2 Draining the heating
installation
When the unit is switched off for an exten-
ded period, frost protection can be guar-
anteed by completely draining the heating
installation and the product.
▶Consult a competent person about this.
5 Troubleshooting
5.1 Detecting and rectifying faults
▶If faults occur or fault messages (F.XX)
are displayed, proceed as set out in the
tables in the appendix.
▶If the product is not functioning cor-
rectly, contact a competent person.
5.2 Displaying the status codes
1. Press and at the same time.
◁S.XX is shown in the display, fol-
lowed by the heating flow temper-
ature and the internal system pres-
sure.
2. Look up the meaning of the status
codes.
Status codes –Overview (→Page 17)
3. Press .
◁The display switches to the basic
display.
6 Care and maintenance
6.1 Maintenance
An annual inspection and biennial main-
tenance of the product carried out by a
competent person is a prerequisite for
ensuring that the product is permanently
ready and safe for operation, reliable, and
has a long working life. The inspection
may require maintenance to be carried out
earlier, depending on the results.
6.2 Caring for the product
Caution.
Risk of material damage
caused by unsuitable clean-
ing agents.
▶Do not use sprays, scouring
agents, detergents, solvents
or cleaning agents that con-
tain chlorine.

Decommissioning 7
0020258017_00 ecoTEC pure Operating instructions 15
▶Clean the casing with a damp cloth and
a little solvent-free soap.
6.3 Reading maintenance
messages
If the symbol is shown in the display, the
product requires maintenance work.
The product is not in fault mode but contin-
ues to operate.
▶Consult a competent person about this.
▶If the water pressure is flashing at the
same time, simply add more heating
water.
6.4 Checking the condensate
drain pipework and tundish
The condensate drain pipework and tun-
dish must always be penetrable.
▶Regularly check the condensate drain
pipework and tundish for faults and,
particularly, for blockages.
You must not be able to see or feel any
obstructions in the condensate drain pipe-
work and tundish.
▶If you notice a fault, have it rectified by
a competent person.
7 Decommissioning
7.1 Temporarily decommissioning
the product
Caution.
Risk of material damage due
to frost.
The frost protection and mon-
itoring devices are only active
while the unit is connected to
the power mains and switched
on via the on/off button, and
when the gas isolator cock is
open.
▶Temporarily decommission
the product only if no frost is
expected.
▶Press the on/off button.
◁The display goes out.
▶When decommissioning the product
for a prolonged period (e.g. holiday),
close the gas isolator cock and also, for
combination products, the cold water
stop valve.
7.2 Permanently
decommissioning the product
▶Have a competent person permanently
decommission the product.
8 Recycling and disposal
▶The competent person who installed
your product is responsible for the dis-
posal of the packaging.
If the product is identified with this
symbol:
▶In this case, do not dispose of the
product with the household waste.
▶Instead, hand in the product to a collec-
tion centre for old electrical or electronic
appliances.
If the product contains batteries that
are marked with this symbol, these bat-
teries may contain substances that are
hazardous to human health and the envir-
onment.
▶In this case, dispose of the batteries at
a collection point for batteries.

9 Guarantee and customer service
16 Operating instructions ecoTEC pure 0020258017_00
9 Guarantee and customer
service
9.1 Guarantee
Herstellergarantie gewähren wir nur bei
Installation durch einen anerkannten Fach-
handwerksbetrieb.
Dem Eigentümer des Geräts räumen wir
diese Herstellergarantie entsprechend
den Vaillant Garantiebedingungen ein.
Garantiearbeiten werden grundsätzlich
nur von unserem Kundendienst ausge-
führt. Wir können Ihnen daher etwaige
Kosten, die Ihnen bei der Durchführung
von Arbeiten an dem Gerät während der
Garantiezeit entstehen, nur dann erstat-
ten, falls wir Ihnen einen entsprechenden
Auftrag erteilt haben und es sich um einen
Garantiefall handelt.
9.2 Customer service
Auftragsannahme Vaillant Kundendienst:
021 91 5767901

Appendix
0020258017_00 ecoTEC pure Operating instructions 17
Appendix
A Operator level –overview
Setting level Values Increment, select, explanation Default set-
ting
Min. Max.
Domestic hot water mode (product with integrated hot water generation or connected
domestic hot water cylinder with temperature sensor)
Water temperature Current value < 35 = OFF OFF
35 ℃60 ℃
Heating mode
Heating flow temperat-
ure
Current value < 10 = OFF
Underfloor heating = 35-50
Radiator = 35-80
Note
The temperature range above 75 °C
can only be set by a competent per-
son.
OFF
10 ℃80 ℃
B Status codes –Overview
Note
Since the code table is used for various products, some codes may not be vis-
ible for the product in question.
Codes that are not listed here can be found in the installation instructions.
Status code Meaning
Displays in heating mode
S.00 Heating mode: No requirement
S.02 Heating mode: Pump pre-run
S.03 Heating mode: Burner ignition
S.04 Heating mode: Burner on
S.06 Heating mode: Fan overrun
S.07 Heating mode: Pump overrun
S.08 Heating mode: Temporary shutdown after heating procedure
Displays in hot water handling mode
S.10 Hot water handling mode: Requirement
S.14 DHW mode: Burner on
Display in Comfort mode with warm start or hot water handling mode with cylinder
S.20 Hot water handling mode: Requirement
S.22 Hot water handling mode: Pump pre-run
S.24 DHW mode: Burner on
Other displays
S.31 No heating demand: Summer mode, eBUS controller, waiting period
S.34 Frost protection active

Appendix
18 Operating instructions ecoTEC pure 0020258017_00
Status code Meaning
S.46 Protection mode: Minimum load
C Troubleshooting and fault elimination
C.1 Troubleshooting
Symptom Possible cause Measure
The system pres-
sure is flashing on the
display
The system pressure
is too low: < 0.05 MPa
(< 0.50 bar). Low wa-
ter pressure in the
heating installation.
▶Fill the heating installation. (→Page 13)
The system pressure
is too high: > 0.3 MPa
(> 3 bar).
▶Wait until the excess heating water has
flowed out through the expansion relief
valve.
Product does not start
up (no hot water,
heating remains cold)
The gas isolator cock
installed on-site and/or
the gas isolator cock
on the product is
closed.
▶Open both gas isolator cocks.
The cold water stop
valve is closed.
▶Open the cold water stop valve.
The product is
switched off.
▶Switch on the product. (→Page 10)
The heating flow tem-
perature/hot water
temperature has been
set too low and/or the
heating mode/hot wa-
ter generation has
been switched off.
1. Set the heating flow temperature.
2. Set the hot water temperature.
There is air in the
heating installation.
▶Have a competent person purge the heating
installation.
Hot water generation
functioning correctly;
heating does not start
up
The external controller
is not set correctly.
▶Set the external controller correctly (→Con-
troller operating instructions).
C.2 Rectifying faults
Message Possible cause Measure
F.28 Ignition unsuc-
cessful
After three unsuc-
cessful ignition at-
tempts, the product
has switched to fault
mode.
1. Check whether the gas isolator cock is
open.
2. Press the reset button for longer than
three seconds.
3. If you have been unable to eliminate the
ignition fault after the fault clearance at-
tempt, consult a competent person.

0020258017_00 19.05.2017
Supplier
Vaillant Deutschland GmbH & Co.KG
Berghauser Str. 40 D-42859 Remscheid
Telefon [phone]‑0 Telefax 021 91 18‑2810
Auftragsannahme Vaillant Kundendienst 021 91 5767901
[email protected] www.vaillant.de
© These instructions, or parts thereof, are protected by copyright and may be
reproduced or distributed only with the manufacturer's written consent.
We reserve the right to make technical changes.
0020258017_00
