Please keep these instructions in the spedal pocket provided
in the boiler front panel (5, page 20). In this way they will
always be handy for future reference. /
Thank you for choosing the Vaillont TURBOmax combination boiler. The
information given in this booklet will enable you to obtain the best
performance from the boiler.
The TURBOmox provides both central heating and domestic hot water, with
the domestic hot water supplied directly from the boiler. The boiler will
operate automatically to provide domestic hot water whenever a hot water
tap is opened, and automatically adjusts to meet the demand for both
central heating and domestic hot water in the most economical way.
Because the TURBOmax operates at ahigh'effeciency, a plume of water
vapour may be visible at the flue terminal in cold weather. This is quite
normal and shows that the boiler is operating correctly. .
If, after reading these instructions, you have any questions onthe operation
of the boiler, please contact either your installer or Vaillant Technical
Department.
i
1 f '
~~i ;
.r. -l

,Important notes
• Please nate that the TURBOmax must be installed and serviced by a
competent person in accordance with the Gas Safety (Installation and Use)
Regulations 1994. (In the U.K. "CORGI" registered installers undertake the work
to a safe and satisfactory standard). .
• If a gas leak or faulfis suspected, turn off the boiler and fonsult your gQS supplier,
service agent or other competent person.
\
• If the boiler is installed in a compartment do not obstruct any purpose provided
ventilation openings; and do not use the compartment for storage purposes.
• The followin'g minimum clearances around the ,boiler case should be maintained:
5 mm either side' '150mm belqw -165 mm above
• Electricity Supply.Warning: This boiler' must be earthed.The electricity connection
to the boiler must be from a 230V-50Hz. supply: If a mains plug connection is
used it must be of a three pin type and contain a 3A fuse.
57166

Initial checks before turning the boiler on
Check supply pipes
Ensure cold water shut off valve @ is open (this con be checked by opening 0 hot top
and ensuring water flows). Also check that both the flow and return central heating
service valves CD and ® and the gas service valve (j) are open: (The flow, return
and gas service valves are open when the line marking is in the some direction os the
pipe).
The pressure relief valve ® is provided for safety reasons and must not be interfered
with. .
. i
1~.
; . ~~

Check water contents
Open the lower door by pulling outwards. Check the water contents of the system. The
white hand on the lower scale of the pressure and temperature gauge ® should be
between 1 and 1.5 bar. j(the hand is below O.B·bar when the system is cold, your
installer should be called to refill the system. .
The top scale of the pressure and temperature gauge shows the temperature of water in
the central heating cifCl1it. .
~:·,:8
I' l l'
0 ,•
•• 'S'
. '. r-,
0.11' J I'
·8~ ·B

Domestic .hot water operation

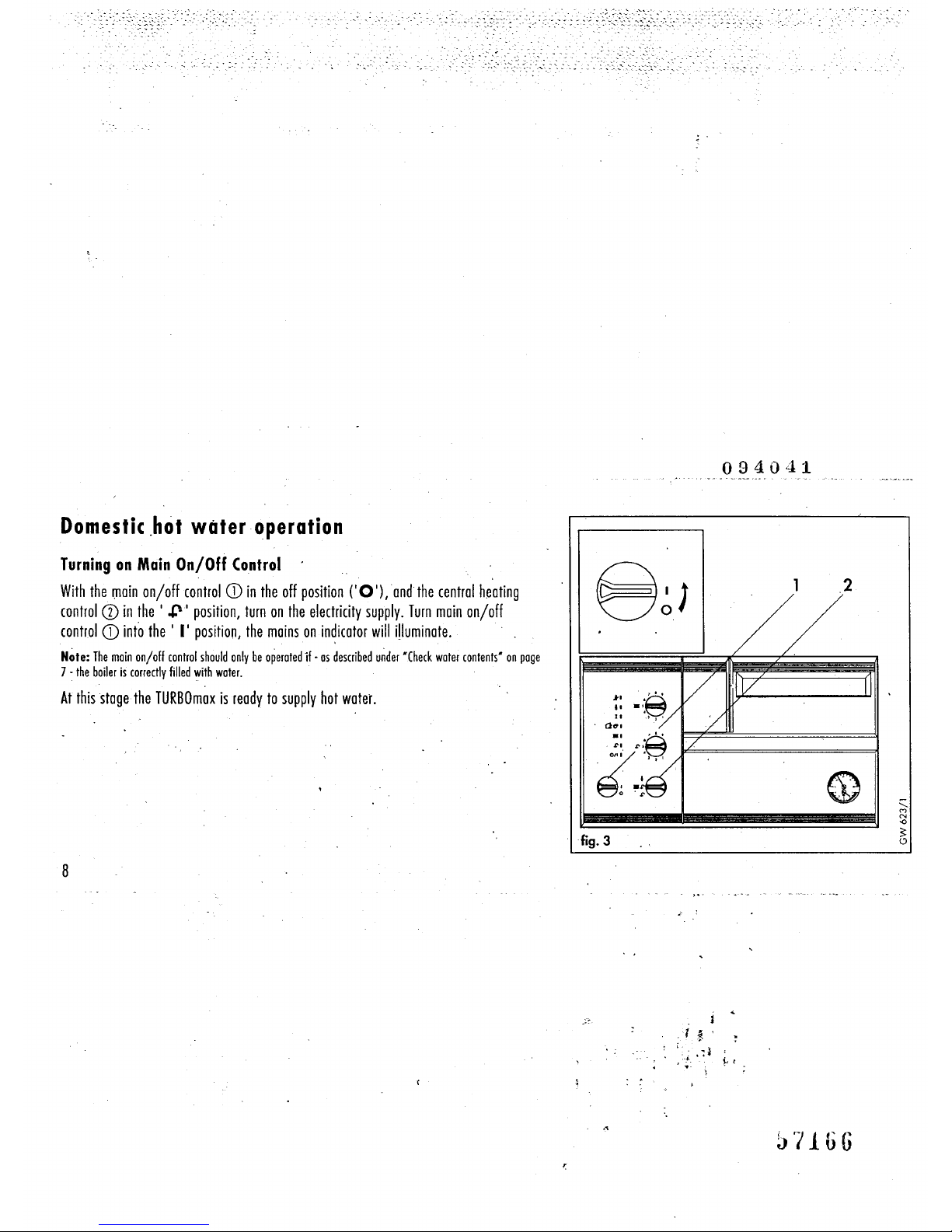

Turning on Main On/Off Control
With the main ani aff control CD in the off position (' 0'), and the central heating
control CD in the ' .t: position, turn on the electricity supply. Turn main on/off
control CD into the' I' position, the mains on in~icator will illuminate.
Note: The main on/off control should only be operated If· os described under 'Check water contents' on page
7 . the boiler is correctly filled with water.
At this stage the TURBOmax is ready to supply hot water.
j
.1 ~ .
, . ~}
~ ,
a'116G

Obtaining hot water
'On opening a hot water tap @ at a supply point (basin, shower, bath, etc.) the boiler
will operate automatically to provide hot water. (A short delay may be experienced in
obtaining hot water at the tap, depending on the length of pipework and your system
layout. This delay can be reduced by not fully opening the tap until the water is flowing
at the desired temperature).
With. the tap fully open you will receive the maximum flow rate of hot water. Should
you require hotter waterreduce the' flow by partially closing the tap.
On dosing the tap the boiler automatically switches off (or continues to operate for
central heating if required). The pump may continue to operate for a short 14
period. .
. l
:1~.
, . ~~
. . ~ ,
)
,
::·8
I
;:·8
8;-B
G)
-
57166

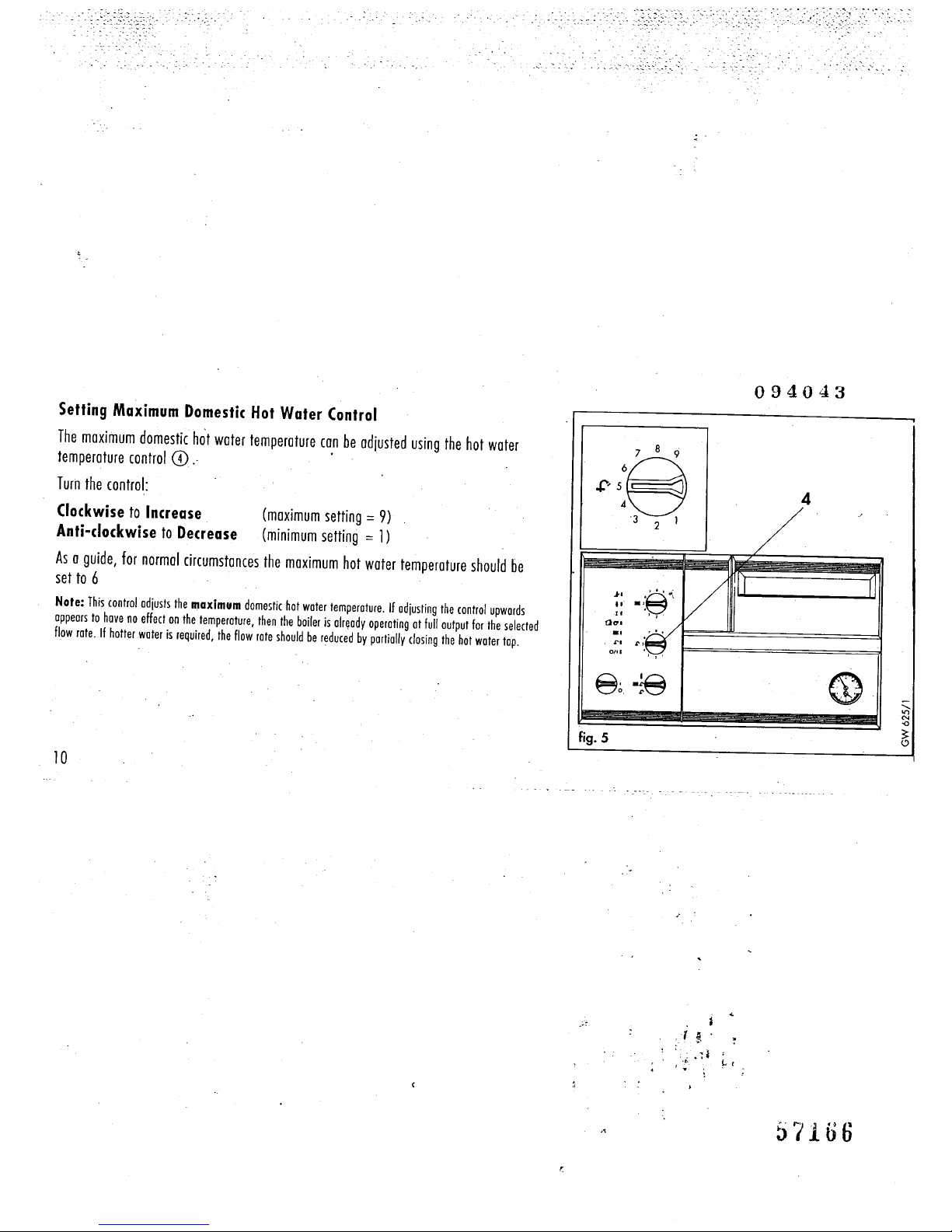

Setting Maximum Domestic Hot Water Control
The maximum domestic hot water temperature can be adjusted using the hot water
temperature control CD.· .
Turn the cantrol:
Clockwise to Increase (maximum setting = 9)
Anti-clockwise to Decrease (minimum setting = 1)
As a guide, for normal circumstances the maximum hot water temperature should be
set to 6
Note: This control adjusts the maximum domestic hot water temperature. If adjusting the control upwards
appears to hove no effect on the temperature, then the boiler is olr~ody operating at full output for the selected
flow rate. If hotter water is required, the flow rote should be reduced by partially dosing the hot water top.
~:·,:8\
If 1 l'
a".
.,
<'I
~
'W
. i
..1 ~ .
, .. ~~
-r
57166

Heating operation
Setting the Maximum Radiator Temper'ature Control
The maximum radiator temperature control CD maintains the temperature of water to
the central heating circuit at the desired level. This temperature is indicated on the .
pressure and temperature gauge ® during heating operation.
Turn the control:
Clockwise to Increase (maximum setting = 9)
Anti-Clockwise to Decrease (minimum setting = 1)
The following settings may be used as a guide:
Spring and Autumn 5· 6 Winter (normal) 6 .•7 . Winter (severe) 7· 9
7 8. 9
um,:8
3 2 1
k'
.
. '
..
II
aa,
., ·6
&'1 ~J~
'
~
. 1 ~ .
' .. ; ~
~ I

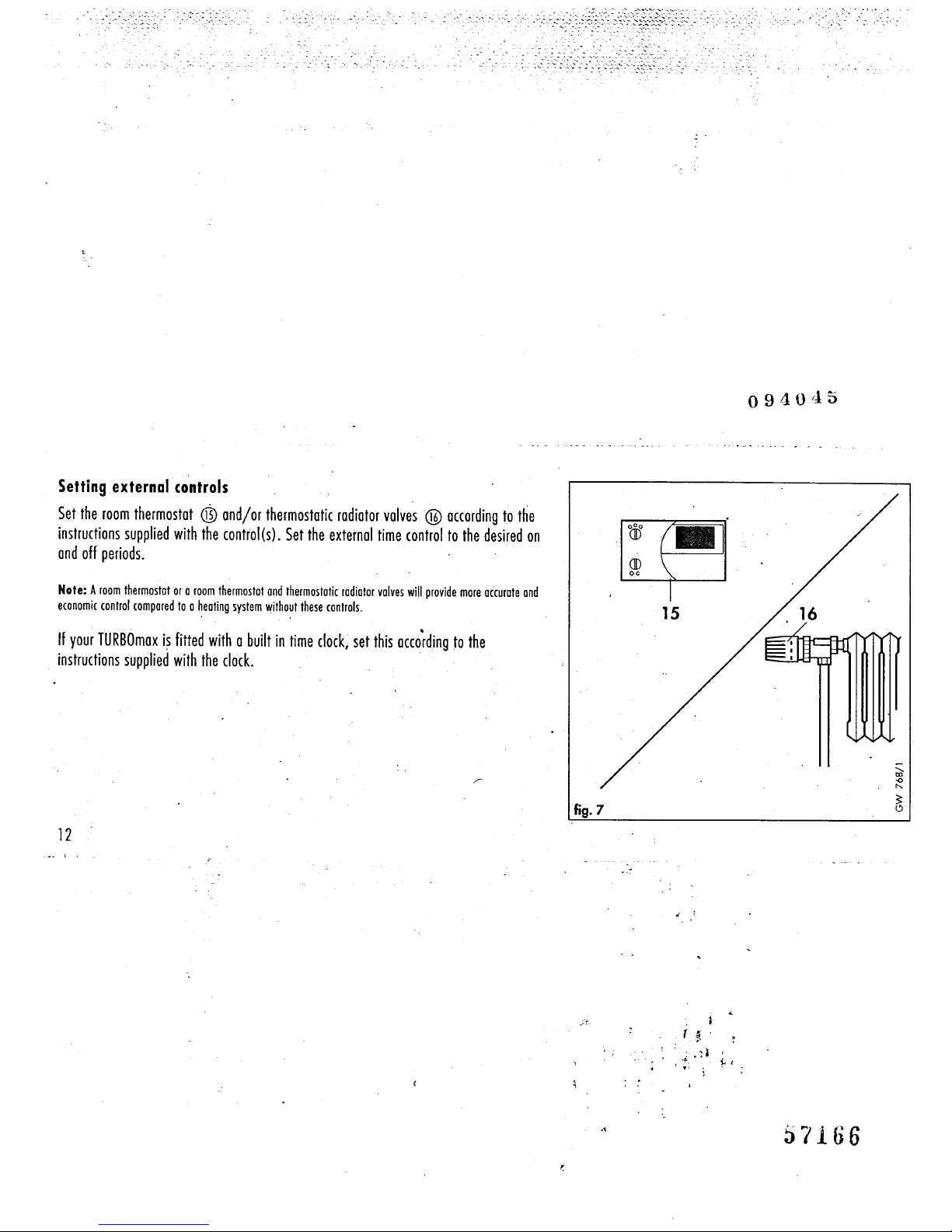

Setting external controls
Set the room thermostat <ID and/or thermostaticrodiator valves @ according to the
instructions supplied with the control (s). Set the external time control to the desired on
and off periods.
•
Note: A room thermostotor 0 room thermostat and therm astatic radiator valves will provide mare accurate and
economic control compared ta a heating system without these controls.
If your TURBOmax i~ fitted with a built in time clock, set this acco~ding to the
instructions supplied with the clock.
{ ~ .
.;: .~,i ~ t
571H6

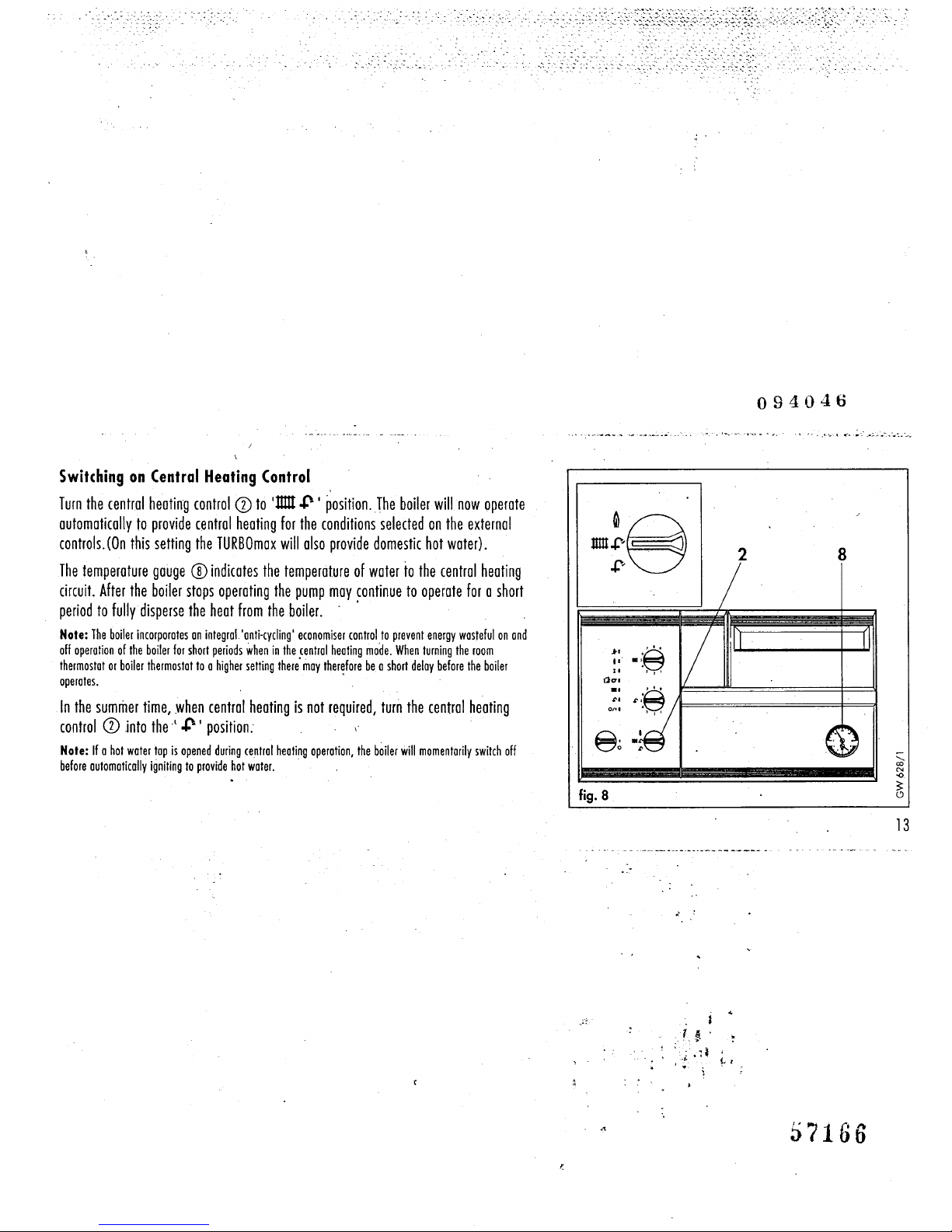

Switching on Central Heating Control
Turn the central heating control CD to 'mu: l\ I position. The boiler will now operate
automatically ta provide central heating for the conditions selected on the external
controls. (On this setting the TURBOmax will also provide domestic hot water).
The temperature gauge ® indicates the temperature of water to the central heating
circuit. After the boiler stops operating the pump may continue to operate for a short
period to fully disperse the heat from the boiler. . .
Note: The boiler incorporates an integral 'anti·cycling' economiser control to prevent energy wasteful on and
off operation of the boiler for short periods when in the central healing mo'de. When turning the room
thermostat or boiler thermostat to a higher setting there' may therefare be a short delay before the bailer
operates. .
In the summer time, when central heating is not required, turn the central heating
control CD into the' l\ I position:
Note: If a hot woter top is opened during central heating aperation, the boiler will momentarily switch off
before automatically igniting ta pravide hot water. .
• , 4
t ~.
, .~l l
~ ,
;>7166

Indicator lights
The Vaillant TURBOmax incorporates indicator lights to show the
operational status of the boiler. When the boiler is operatingcorrectly the
lights will illuminate in a given sequence, depending on whether heating
or hot water is being supplied (see fig.9l.
0/1 power on indicator
illuminates whenever the main ani off switch is set ,to the on (I)
position and electricity is being supplied to the boiler.
.r- hot water demand indicator
illuminates whenever a hot tap is opened and there isa demand for.
hot water. . ,
nm central heating demand indicator
illuminates whenever'there is a demand for central heating.
Note: If the external controls ore not calling for heat (e.g. the room thermostat has reached
temperature) this indicator will go out. This'is perfectly normal.
aO' fan operation indicator
illuminates during boiler operation to show that the fan and flue
system are functioning correctly. ' J
I ignition indicator .
illuminates to show that the gas valve has opened and that the boiler
is trying 'to ignite.
e flame indicator .
illuminates to show that the burner has lit to provide either central
heating or hot water.
k burner lock out indicator
illuminates whenever the boiler has tried and failed to light. Turn the
central heating control to the reset position I e I to restart the
boiler. If the boiler repeatedly fails to light contact your service agent
. or Vaillant Service Solutions.
Note: In the unlikely event of 0 fault developing these indicator lights con be used to help
rectify the problem, If contacting Voillont Service Solutions pleose remember to odvise 'which
lights, if ony, ore,iIIuminoted,
j
1 ~ ,
; .. ~~
, -;. ~ t

;
'1
nm,:S
11
I 1
, 2 I
(l0'1
nml
~':8
~I
0/11
3 .2 I
86
nm~8

When a hot water tap is opened or the central heating system requires heat, the boiler
automatically ignites and starts to operate. If no automatic ignition occurs within a set
period of about 9 seconds the boiler will reattempt ignition after a further delay of
approximately 10 seconds, if the boiler still does not start the lock out indicator will
illuminate (see Indicotor Lights) . A further ignition attempt can only take place once
the central heating control CD has been turned briefly to the reset position ~ and·
relea·sed. If after attempting to light the boiler by turning to the reset position, the
boiler shuts ·,down again or if an indicator light is flashing, consult your service agent or
Vaillant Service Solutions. .
·Note: Particularly when starting up for the first time, or after the boiler has been out of operation for 0 fairly
long period, it may be necessary to turn ,the central h~oting control to the reset position several times before .
ignition takes place.
~:··:8
11 1 l'
0 '
~: ,,·:8
•. , I'
8~
1 ~..
·i •~ i f< I

Turning the boiler off
To turn off the central heating ·only.1 urn the central heating control CD to
'.r-' position (Normal position during summer time).
To turn off the heating and hot water for short periods of time. 1 urn
the main on/off control CD to the '0' position. Should you leave for 0 longer time,
and there is no danger of frost. (e.g. summer holidays), you should also switch off the
electrical ~upply and turn off the gas supply.
. i
•.1 ~ .
. : : . ~~ ,
;. ~ t
57166

If the boiler is not operated for several hours during very cold weather
there is the possibility of the system freezing. Please ensure that if you
ore absent during a period of frost the central heating system remains in
operation and all rooms are kept above freezing point. (It must be
remembered, however, that the boiler will be automaticolly switched off
by the built-in monitoring devices if certain faults occur, e. g. interruption
in the gas or electricity supply or faults in the flue ga~ system. To
overcome this possibility you can drain" both the central heating" system"
and the boiler).
Note: The boiler has an internal frost protection thermostat, and in very
cold weather may therefore operate automatically to prevent damage to its-
elf. Thisfunction is only available when the main on/off control in the on
position (I) . "
Care and maintenance
Clean the outer casing with a damp cloth and a little soap. Do not use any
obrasives or solvent cleaning material which could damage the.case or plastic
fittings.
It is importan"t that the boiler is serviced at least once a year by a competent
service company. To ensure regular servicing it is strongly recommended that
" arrangements are made with your service' agent or Vaillant Ltd. for a
Maintainence Agreement. Please return the registration card if you would
like further details.
i
1 ~ .
i _~~~ I
-; ~ 1

Function checks.
In the unlikely event that 0 problem occurs with the operation of the
TURBOmax combinatinn boiler, the following points should be checked:
1. Boiler foils to operate
- Check gas supply' is turned on (see page 6)
Check water supply is turned on (see page 6)
Check water contents (see page 7)
- Check electricity supply is switched on (see page 8)
Check main on/off (0/1) control is turned to the on position (I)
(see page 8)
- Check boiler reset control (see page 16)
2. Hot Water operates but not central heating
- Check central heating service valves ore open (see page 6).
Check external controls ore calling for heat (see page 12)
- Check central heating control is in the cnm.r-) position (see page 13)
The anti-cycling economiser control may be engaged, please wait 0
short time before" trying to operate heating again.
If these actions do not result in the correct operation of the boiler plea'se
consult your installer. "
If you ore unable to contact your installer phone Vaillant Service Solutions:
08706060777.
t
1 f
·i.• ;}
f< t
57166

Operating summary
<IQ) Cold water shut off valve
® Pressure relief valve
@ Heating return service valve
. @ Water outlet
® Hot water tap
<ID Room thermostat (if fitted)
@ Thermostatic rodiator valves (if fitted) .
Key to Features
CD Main on/off control
CD Centrol Heating control and lock out reset
.CD Maximum Radiator T emperoture control
CD Maximum Hot Water Temperoture control
CD Instructions for Use
CD Heating flow service valve·
ill Gas service v.olve'
® Temperoture and pressure gauge
. CD Indicator lights We do not accept any liability for damage arising as a result of the
non-observance of these instructions.
~
t ~ .
