Owner’s Manual
Model GSR
Generationx2
(SiriusXM Connect Tuner and Subscription are required. Sold separately.)
Compatible with select Chevrolet, GMC, and Buick models.
Refer to GSR application guide for details.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Interface Adapter
CHEVROLET,GMC,
and BUICK
GSR-GM03-MAN

Installation 5
User Interface - Channels, Presets, Categories 9
Troubleshooting 11
SiriusXM Source Selection 7
Before You Start 3
Warranty 11
DO NOT DISASSEMBLE OR ALTER
Doing so may result in an accident, fire or electric shock
Do not block the airbag
Do not mount product or any added audio and/or video equipment where it can obstruct the operation of any safety
devices such as the airbag.
Distraction Warning
Do not let product or any added audio and/or video equipment distract you while you are driving.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL
Before starting any installation work , you must wait 90 seconds after turning the ignition switch to the LOCK position and
disconnecting the negative (-) terminal from the battery. The supplemental restraint system (airbag) is equipped with a
backup power source. If installation work is started less 90 seconds after disconnection of the negative (-)battery terminal,
the SRS may deploy. When the negative (-) terminal cable is disconnected from the battery the clock and audio systems
memory will be erased. Before starting installation work make a record of the clock and audio systems memory settings.
When installation is complete, reset the clock and audio systems to their previous settings . Power tilt, power telescopic
steering column, front power seats, power mirrors, and power shoulder belt anchorage are equipped with a memory
function .The rear power seat is not equipped with a memory function. e and they can make a record of the memory
contents, rear power seat is not equipped with the memory function. When installation is complete, it is necessary to
readjust the features to their previous settings Never use a backup power supply (such as another battery) during
installation work to avoid losing these memory settings.
DO NOT SPLICE INTO ELECTRICAL CABLES
Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of
the wire and result in fire or electric shock.
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS
Cables or wiring that obstruct or get caught on places such as the steering wheel, shift lever, brake pedals, etc. can be
extremely hazardous.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST
Moisture or dust may result in product failure.
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS
The wiring and installation of this product requires special technical skills and experience.
USE ONLY SPECIFIED ACCESSORY PARTS
Use of other than specified parts may damage product internally.
Follow the operational and installation manuals.
YOU SHOULD READ AND FAMILIARIZE YOURSELF THOROUGHLY WITH THE FOLLOWING INFORMATION PRIOR
TO INSTALLING AND USING THIS UNIT. IN ADDITION, YOU MUST CAREFULLY READ AND FOLLOW THE
INSTALLATION SCHEMATICS/INSTRUCTIONS FOR THE PRODUCT AND THE VEHICLE IN WHICH IT IS BEING
INSTALLED. FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS MAY DAMAGE THE PRODUCT AND THE
VEHICLE, WILL VOID THE PRODUCT WARRANTY, AND MAY VOID THE VEHICLE WARRANTY.
Check your local laws
Some States/Provinces or other governmental jurisdictions (such as cities) may have laws that prohibit the operation of a
video screen within the sight of the Driver. If you have purchased such a product, you should use the product only in
locations where it is legal to do so, and if you do use the product, set up the screen so it is only visible to passengers.
TROUBLESHOOTING
Should this product fail to operate properly, please contact your Dealer or our Customer Service Department at
[email protected].
WARNING
CAUTION
This unit is an interface adapter for Toyota/Scion head unit to control the SiriusXM Tuner SXV300 (SOLD SEPARATELY).
IMPORTANT
The unit may refuse to change the channel if your reception is going ON and OFF.
Please wait until your reception stabilizes in order for the unit to allow you to change the channel easily.
Due to bad reception in some areas, SiriusXM Satellite Radio may not work and/or not able to display text.
About SiriusXM Satellite Radio Operation
Before You Start

Installation 5
User Interface - Channels, Presets, Categories 9
Troubleshooting 11
SiriusXM Source Selection 7
Before You Start 3
Warranty 11
DO NOT DISASSEMBLE OR ALTER
Doing so may result in an accident, fire or electric shock
Do not block the airbag
Do not mount product or any added audio and/or video equipment where it can obstruct the operation of any safety
devices such as the airbag.
Distraction Warning
Do not let product or any added audio and/or video equipment distract you while you are driving.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL
Before starting any installation work , you must wait 90 seconds after turning the ignition switch to the LOCK position and
disconnecting the negative (-) terminal from the battery. The supplemental restraint system (airbag) is equipped with a
backup power source. If installation work is started less 90 seconds after disconnection of the negative (-)battery terminal,
the SRS may deploy. When the negative (-) terminal cable is disconnected from the battery the clock and audio systems
memory will be erased. Before starting installation work make a record of the clock and audio systems memory settings.
When installation is complete, reset the clock and audio systems to their previous settings . Power tilt, power telescopic
steering column, front power seats, power mirrors, and power shoulder belt anchorage are equipped with a memory
function .The rear power seat is not equipped with a memory function. e and they can make a record of the memory
contents, rear power seat is not equipped with the memory function. When installation is complete, it is necessary to
readjust the features to their previous settings Never use a backup power supply (such as another battery) during
installation work to avoid losing these memory settings.
DO NOT SPLICE INTO ELECTRICAL CABLES
Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of
the wire and result in fire or electric shock.
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS
Cables or wiring that obstruct or get caught on places such as the steering wheel, shift lever, brake pedals, etc. can be
extremely hazardous.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST
Moisture or dust may result in product failure.
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS
The wiring and installation of this product requires special technical skills and experience.
USE ONLY SPECIFIED ACCESSORY PARTS
Use of other than specified parts may damage product internally.
Follow the operational and installation manuals.
YOU SHOULD READ AND FAMILIARIZE YOURSELF THOROUGHLY WITH THE FOLLOWING INFORMATION PRIOR
TO INSTALLING AND USING THIS UNIT. IN ADDITION, YOU MUST CAREFULLY READ AND FOLLOW THE
INSTALLATION SCHEMATICS/INSTRUCTIONS FOR THE PRODUCT AND THE VEHICLE IN WHICH IT IS BEING
INSTALLED. FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS MAY DAMAGE THE PRODUCT AND THE
VEHICLE, WILL VOID THE PRODUCT WARRANTY, AND MAY VOID THE VEHICLE WARRANTY.
Check your local laws
Some States/Provinces or other governmental jurisdictions (such as cities) may have laws that prohibit the operation of a
video screen within the sight of the Driver. If you have purchased such a product, you should use the product only in
locations where it is legal to do so, and if you do use the product, set up the screen so it is only visible to passengers.
TROUBLESHOOTING
Should this product fail to operate properly, please contact your Dealer or our Customer Service Department at
[email protected].
WARNING
CAUTION
This unit is an interface adapter for Toyota/Scion head unit to control the SiriusXM Tuner SXV300 (SOLD SEPARATELY).
IMPORTANT
The unit may refuse to change the channel if your reception is going ON and OFF.
Please wait until your reception stabilizes in order for the unit to allow you to change the channel easily.
Due to bad reception in some areas, SiriusXM Satellite Radio may not work and/or not able to display text.
About SiriusXM Satellite Radio Operation
Before You Start 3

Only SiriusXM®brings you more of what you love to listen to, all in one place. Get over 140
channels, including commercial-‐free music plus the best sports, news, talk, comedy and
entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription
are required. For more information, visit www.siriusxm.com.
The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as
by looking on the label found on the SiriusXM Connect tuner and its packaging.
After installing your SiriusXM Connect Vehicle Tuner and antenna, power on your radio and select
SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1. If you
cannot hear the preview channel, please check the installation instructions to make sure your
SiriusXM Connect tuner is properly installed.
After you can hear the preview channel, tune to Channel 0 to find the Radio ID of your tuner. In
addition, the Radio ID is located on the bottom of the SiriusXM Connect Vehicle Tuner and its
packaging. You will need this number to activate your subscription. Write the number down for
reference.
Note: the SiriusXM Radio ID does not include the letters I, O, S or F.
In the USA, you can activate online or by calling SiriusXM Listener care:
• Visit www.siriusxm.com/activatenow
• Call SiriusXM Listener Care at 1-866-635-2349
For Canadian Subscriptions, please contact:
• Visit www.siriusxm.ca/activatexm
• Call XM customer Care at 1-877-438-9677
As part of the activation process, the SiriusXM satellites will send an activation message to your
tuner. When your radio detects that the tuner has received the activation message, your radio will
display: “SUBSCR UPDATE” “< please wait >”. Once subscribed, you can tune to channels in your
subscription plan. Note, the activation process usually takes 10 to 15 minutes, but may take up to
an hour. Your radio will need to be powered on and receiving the SiriusXM signal to receive the
activation message.
Sirius, XM, SiriusXM and all related marks and logos are trademarks of Sirius XM Radio Inc. All
rights reserved.
Before You Start
What’s Included
Vehicle Antenna
SiriusXM Tuner
SXV300
SiriusXM Connect Tuner
and Subscription are
required. Sold separately.
Generation 2
GSR Connectors and Ports
GSR
Interface Adapter
Grey USB
interface
connector
Interface connector
for SiriusXM SXV300 Tuner
Brown USB
interface
connector
Power connector
Micro USB connector
(used for firmware update)
LEDs
Installation
USB Type A (M) to
Connector (M) cable
Power harness
4

What’s Included
Vehicle Antenna
SiriusXM Tuner
SXV300
SiriusXM Connect Tuner
and Subscription are
required. Sold separately.
Generation 2
GSR Connectors and Ports
GSR
Interface Adapter
Grey USB
interface
connector
Interface connector
for SiriusXM SXV300 Tuner
Brown USB
interface
connector
Power connector
Micro USB connector
(used for firmware update)
LEDs
Installation
USB Type A (M) to
Connector (M) cable
Power harness
5

Installation
Connecting GSR
To Vehicle USB port
To SiriusXM Tuner SXV300
Blue AND Green Wires
connect BOTH to car chassis ground
Pink AND Yellow Wires
CONSTANT BATTERY POWER +12V
connect BOTH to constant battery power
DO NOT CONNECT TO
DO NOT CONNECT TO
ACCESSORY POWER
ACCESSORY POWER
!
ALL POWER WIRES
ALL POWER WIRES
MUST BE CONNECTED
MUST BE CONNECTED
!
CONSTANT BATTERY POWER ONLY
!

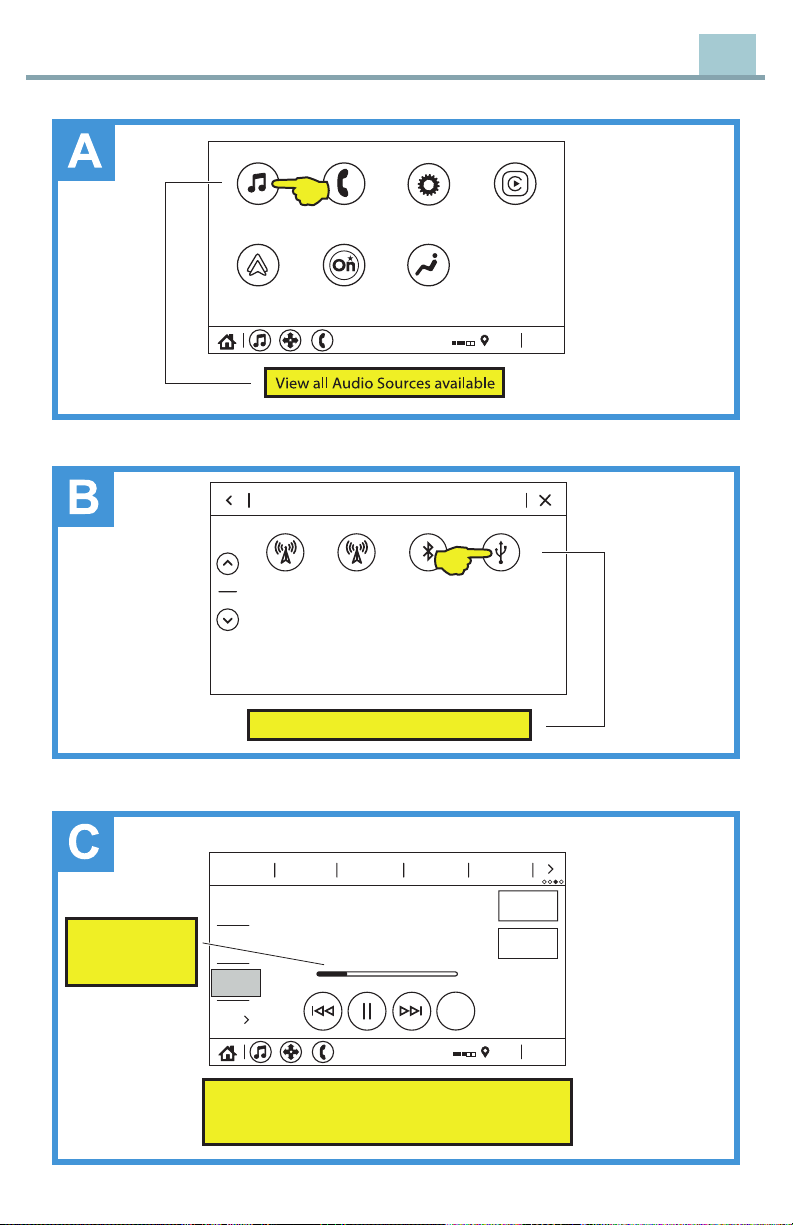

SiriusXM Source Selection
P02-036 Al.. CH005 50s.. Hold to SetHold to Set
SXM
97.3
Sound
P2-CH036 Alt Nation
Astronaut (Somet
Shuffle
Media Indexing
Browse
iPod 4G
More
SXM
4G LTE74O11:50
N
4G LTE74O11:50
N
AudioPhone Settings
Android Auto OnStar Services Climate
Apple CarPlay
AM FM Bluetooth SXM
Sources
Touch to select “SXM” USB Audio SourceTouch to select “SXM” USB Audio Source
Wait forWait for
“Media Indexing”“Media Indexing”
to completeto complete
Indexing can take up to 3 minutes the rst time,Indexing can take up to 3 minutes the rst time,
and approximately 30 seconds thereafter.and approximately 30 seconds thereafter.
Do not remove the USB connection during indexing.Do not remove the USB connection during indexing.
6

SiriusXM Source Selection
P02-036 Al.. CH005 50s.. Hold to SetHold to Set
SXM
97.3
Sound
P2-CH036 Alt Nation
Astronaut (Somet
Shuffle
Media Indexing
Browse
iPod 4G
More
SXM
4G LTE74O11:50
N
4G LTE74O11:50
N
AudioPhone Settings
Android Auto OnStar Services Climate
Apple CarPlay
AM FM Bluetooth SXM
Sources
Touch to select “SXM” USB Audio Source
Touch to select “SXM” USB Audio Source
Wait for
Wait for
“Media Indexing”
“Media Indexing”
to complete
to complete
Indexing can take up to 3 minutes the rst time,
Indexing can take up to 3 minutes the rst time,
and approximately 30 seconds thereafter.
and approximately 30 seconds thereafter.
Do not remove the USB connection during indexing.
Do not remove the USB connection during indexing.
7

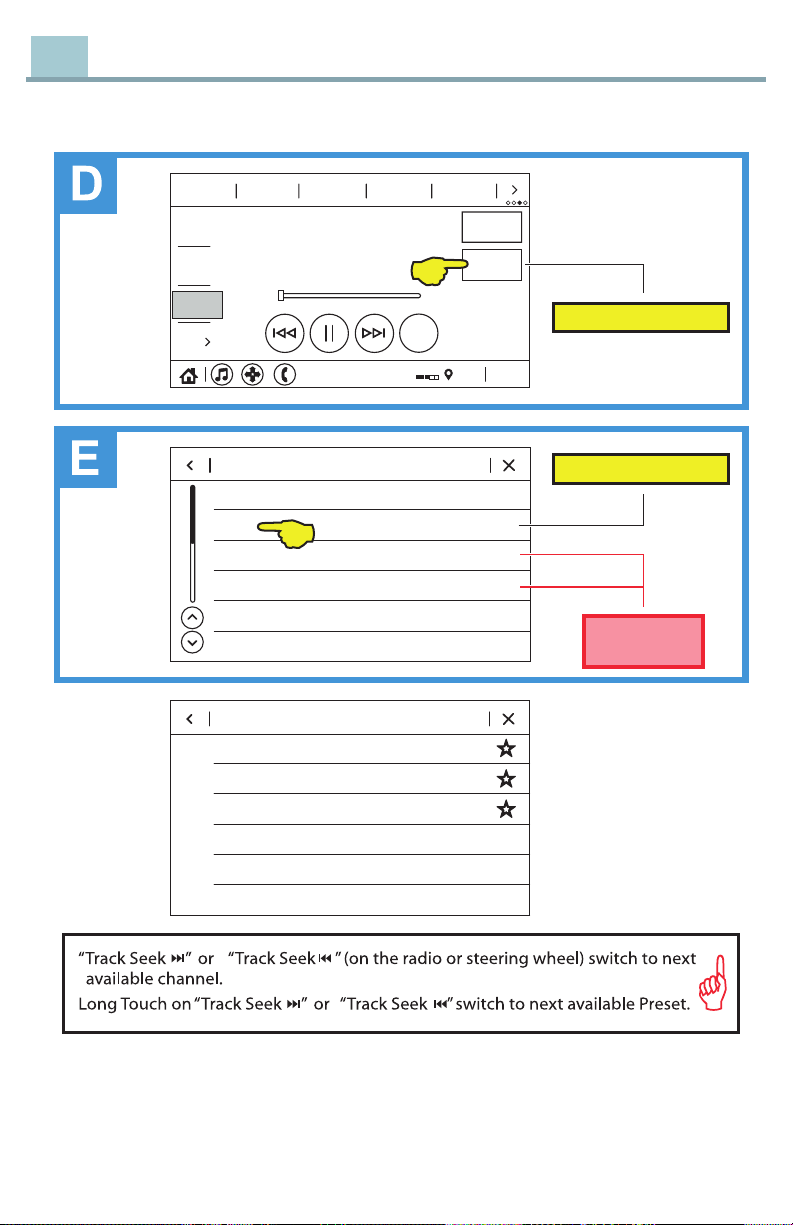

User Interface - Channels, Presets, Categories
All
Tune Presets/Channels
SXM Radio ID
Browse by Category
System Information
Add Current Channel as Preset
Save Current Channel
SiriusXM Source Selection
P02-036 Al.. CH005 50s.. Hold to SetHold to Set
SXM
97.3
Sound
P2-CH036 Alt Nation
First
Cold War Kids
Shuffle
0:00 1:00:00
Browse
iPod 4G
More
SXM
4G LTE74O11:50
N
Touch to select Browse
Touch to select Browse
Playlists
Artists
Songs
Albums
Genres
iTunes Radio
Browse
01.
02.
03.
Presets/Channels
Browse By Category
System Information
Artists
Touch to select Artists
Touch to select Artists
Do not use for
browsing
8

User Interface - Channels, Presets, Categories
All
Tune Presets/Channels
SXM Radio ID
Browse by Category
System Information
Add Current Channel as Preset
Save Current Channel
9

Pop
Rock
R&B
Artists
CH019 Elvis
CH020 E Street Radio
CH021 Underground Garage
CH022 Pearl Jam Radio
SiriusXM Radio ID
Signal Quality
System FW
Artists
Select To Display
Select To Display
HW Edition
System Reset
Poor
No Signal
Good
Excellent
All
Tune Presets/Channels
Browse by Category
System Information
All
Tune Presets/Channels
Browse by Category
System Information
User Interface - Channels, Presets, Categories
Troubleshooting
Warranty
10

System Messages
System Message Solution
“Loading” then after 30
seconds “Check Tuner”
Check the SXV300 Vehicle Connect Tuner connection to the Add On
Adapter Module.
If the message is displayed when the tuner is connected this indicates
a defective tuner. Replace the SXV300 Vehicle Connect Tuner.
“Check Antenna” Check the antenna connection to the SXV300 Vehicle Connect Tuner.
If the message is displayed when the SiriusXM antenna is connected
this indicates a defective SiriusXM antenna. Replace the antenna.
“No Signal” Make sure the SiriusXM antenna has a clear view of sky.
Check the antenna connection to the SXV300 Vehicle Connect Tuner.
If the message is displayed when the SiriusXM antenna is connected
this indicates a defective SiriusXM antenna. Replace the antenna.
“CHXXX UNAVAIL” The channel you are tuned to has become unavailable. Tune to a
dierent channel.
“UNSUB/UNAVAIL” The preset channel that you have tuned to has become unavailable.
Tune to a dierent channel.
“SUBSCR UPDATE”
“< please wait >”
SiriusXM is updating the channel subscription. This may take up to 15
to 20 seconds to complete. Once completed the messages, “SUBSCR
UPDATED” and “< tune CH to close >”will be displayed. Tune to a
channel to dismiss the message.
Troubleshooting
Warranty is available for download: https://www.vaistech.com/download/15244/
To request a paper warranty copy please contact us:
VAIS Technology
Warranty Department
8811 American Way
Unit 125
Englewood, CO 80112
720-733-2348
[email protected]
Warranty 11
11

VAIS Technology, 8811 American Way, Englewood, CO 80112
www.vaistech.com Phone: [phone] [e-mail]
GSR-GM03-MAN
