Vaisala HUMICAP MM70 User manual

USER'S GUIDE
Vaisala HUMICAP® Hand-Held
Moisture and Temperature in Oil Mete
r
MM70
M210498EN-C

PUBLISHED BY
Vaisala Oyj Phone (int.): [phone]
P.O. Box 26 Fax: [phone]
FIN-00421 Helsinki
Finland
Visit our Internet pages at http://www.vaisala.com/
© Vaisala 2007
No part of this manual may be reproduced in any form or by any means, electronic or
mechanical (including photocopying), nor may its contents be communicated to a third
party without prior written permission of the copyright holder.
The contents are subject to change without prior notice.
Please observe that this manual does not create any legally binding obligations for
Vaisala towards the customer or end user. All legally binding commitments and
agreements are included exclusively in the applicable supply contract or Conditions of
Sale.

________________________________________________________________________________
Table of Contents
CHAPTER 1
GENERAL INFORMATION............................................................................ 5
About This Manual ................................................................... 5
Product Related Safety Precautions ...................................... 5
ESD Protection ......................................................................... 5
Recycling .................................................................................. 6
Trademarks ............................................................................... 6
License Agreement .................................................................. 6
Warranty.................................................................................... 7
CHAPTER 2
PRODUCT OVERVIEW AND MECHANICS .................................................. 9
Vaisala´s Hand-held MM70 Device ......................................... 9
Structure of the MI70 Indicator............................................ 10
Structure of the MMP78 Probe............................................ 11
Tools.................................................................................... 11
Display Parameters ................................................................ 12
Options.................................................................................... 12
CHAPTER 3
INSTALLATION AND MOUNTING OPTIONS............................................. 13
Installing and Recharging the Batteries .............................. 13
Turning On the Device ........................................................... 13
Installing the Probe ................................................................ 14
Mounting the Probe for Pressurized Pipelines/Oils ........... 14
Tightening the Clasp Nut..................................................... 15
Ball Valve Installation ............................................................ 17
Mounting the Probe for Direct Measurement
(No Pressure).......................................................................... 19
CHAPTER 4
MENU OPERATIONS AND SETTINGS....................................................... 21
Function Keys and Menu Structure...................................... 21
Navigating in Menu ............................................................. 21
Basic Display....................................................................... 22
Graphical Display ................................................................ 23
Main Menu........................................................................... 23
Settings ................................................................................... 24
Display Settings .................................................................. 24
Quantities and Units............................................................ 24
VAISALA ________________________________________________________________________ 1

USER'S GUIDE____________________________________________________________________
Rounding .............................................................................24
Hold/Save Display ...............................................................25
Graphic History....................................................................25
User Interface Settings........................................................26
Selecting Language.............................................................27
Automatic Power Off............................................................27
Changing the Shorcut Keys.................................................28
Turning Key Click and Backlight On/Off..............................28
Setting Date and Time.........................................................28
Device Information...............................................................29
Restoring Factory Settings ..................................................30
PPM-calculation...................................................................30
Calculation Model with Oil Specific Coefficients .................31
Feeding the Coefficients to the MI70 Memory ....................31
Other Functions......................................................................32
Setting the Alarm Levels .....................................................32
Selecting and Scaling the Analog Output............................34
Taking Measurements............................................................35
Measuring Other Parameters Simultaneously.....................35
Recording Data .......................................................................36
Recording ............................................................................36
Stopping Recording.............................................................37
Viewing Recorded Data.......................................................38
Checking the Memory Status ..............................................38
Deleting All Recorded Files .................................................38
Transferring Recorded Data to PC......................................39
CHAPTER 5
CALIBRATION AND ADJUSTMENT...........................................................41
General Notes about Calibration and Adjustment of
Transmitters............................................................................41
Using MM70 in Checking and Adjusting .............................41
Using Calibration Cables.....................................................41
Calibration and Adjustment of HMP228
Series Transmitters .............................................................42
Relative Humidity Adjustment by Using a Calibrated
Reference Probe .................................................................43
1-point Relative Humidity Adjustment by
Using a Calibrator................................................................43
2-point Relative Humidity Adjustment by
Using a Calibrator................................................................44
Calibration and Adjustment of MMT318 Transmitters.........45
Field Checking and Adjustment by Using a Calibrated
Reference Probe .................................................................45
1-point Adjustment by Using a Calibrator............................46
2-point Adjustment by Using a Calibrator............................47
Calibration and Adjustment of MMT330 Transmitters.........48
Field Checking and Adjustment by Using a Calibrated
Reference Probe .................................................................48
1-point Adjustment by Using a Calibrator............................49
2-point Adjustment by Using a Calibrator............................50
Calibration and Adjustment of MM70 Series Probes..........51
General about Calibrations..................................................51
2 ___________________________________________________________________ M210498EN-C

________________________________________________________________________________
Preparations before the Calibration .................................... 51
Relative Humidity Adjustment ............................................. 51
Li-Cl-NaCl Automatic Adjustment ....................................... 51
2-point Adjustment .............................................................. 52
1-point Adjustment .............................................................. 53
Temperature Adjustment..................................................... 53
1-point Adjustment .............................................................. 54
2-point Adjustment .............................................................. 54
Last Adjustment Date.......................................................... 55
Determination of Oil-specific Coefficients........................... 55
Error Messages ...................................................................... 57
Error Message Types.......................................................... 57
CHAPTER 6
MAINTENANCE ........................................................................................... 59
Changing the Filter and Sensor............................................ 59
Cleaning the Sensor............................................................... 59
Changing the Battery ............................................................. 60
Vaisala Service Centers......................................................... 61
CHAPTER 7
TECHNICAL SPECIFICATIONS.................................................................. 63
Measured Variables................................................................ 63
Water Activity aw.................................................................. 63
Temperature........................................................................ 63
MMP78 Probe ..................................................................... 64
MI70 Indicator ..................................................................... 64
Battery Pack........................................................................ 65
General Facts about the MM70 Hand-held Humidity and
Temperature Meter ............................................................. 65
Electromagnetic Compatibility............................................. 65
Options and Accessories Available ..................................... 66
Dimensions in mm (inches) .................................................. 67
List of Figures

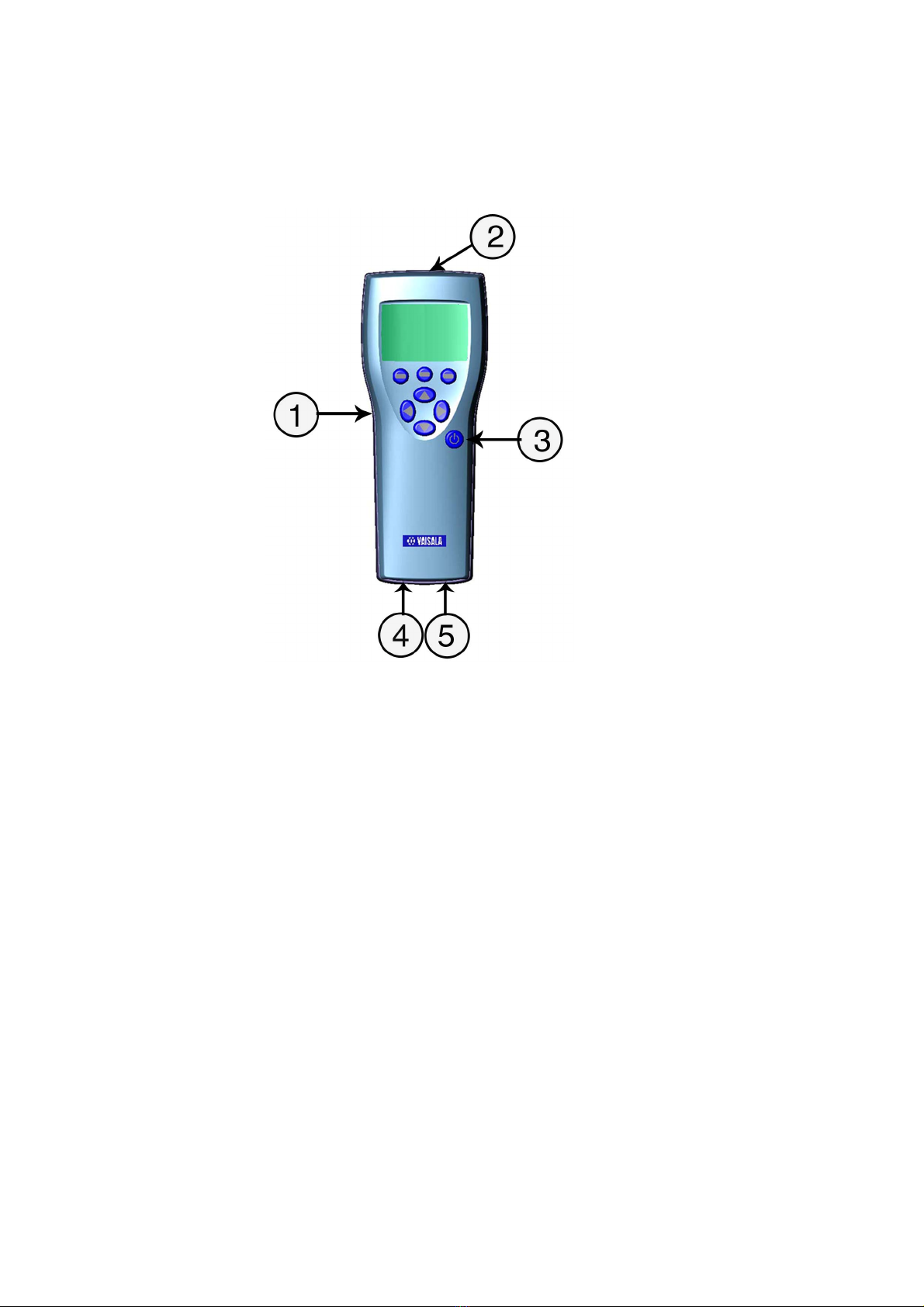

Figure 1 MI Indicator.............................................................................. 10
Figure 2 MMP78 Probe .......................................................................... 11
Figure 3 Protecting Cap and Plastic Wrench ......................................... 11
Figure 4 MMP78 Pipe Dimensions (in mm); 400 mm (adjustment range
340 mm) ................................................................................... 15

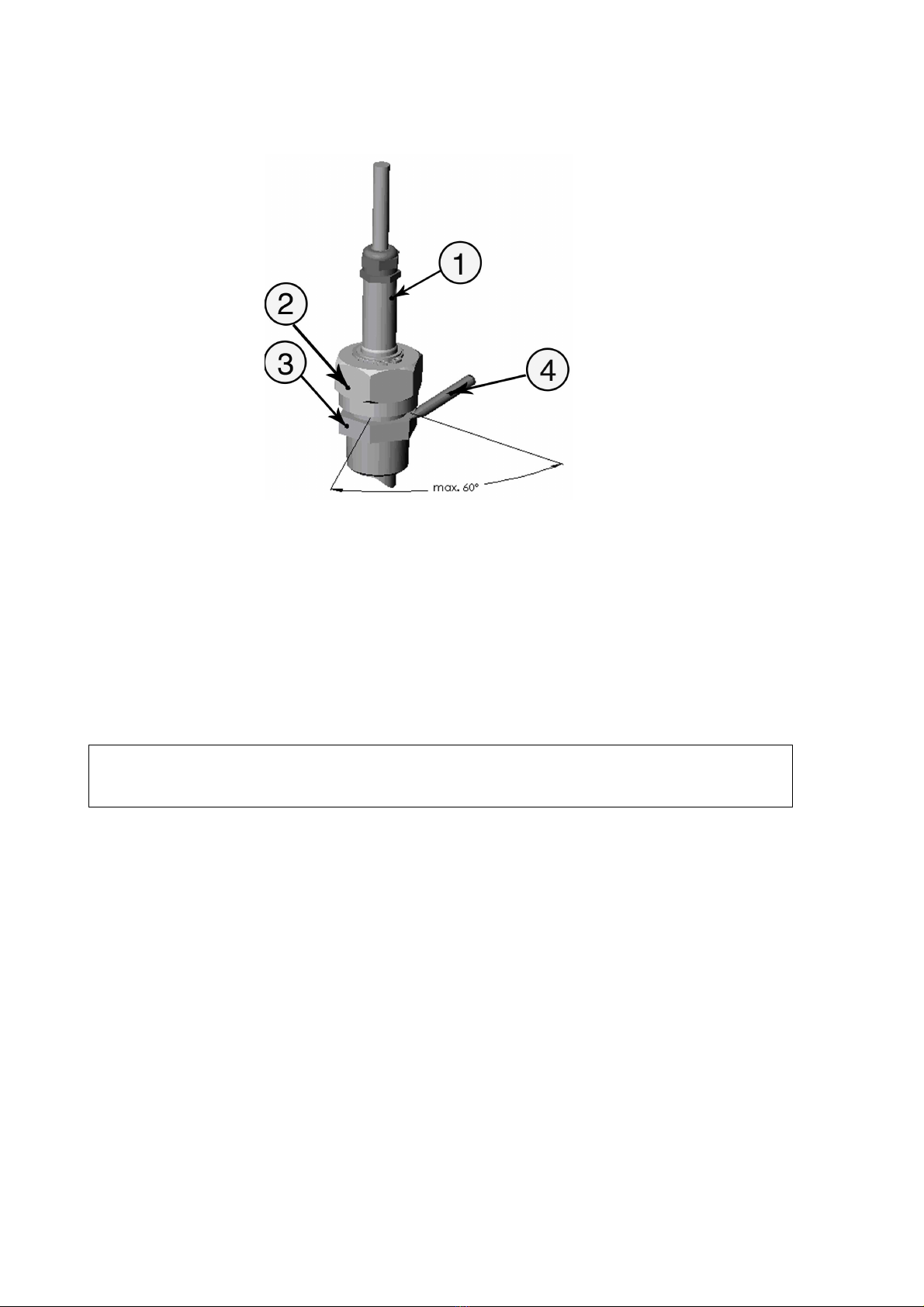

Figure 5 Tightening Clasp Nut................................................................ 16
Figure 6 Sealing Thread Cutting for the Fitting Body ............................. 17

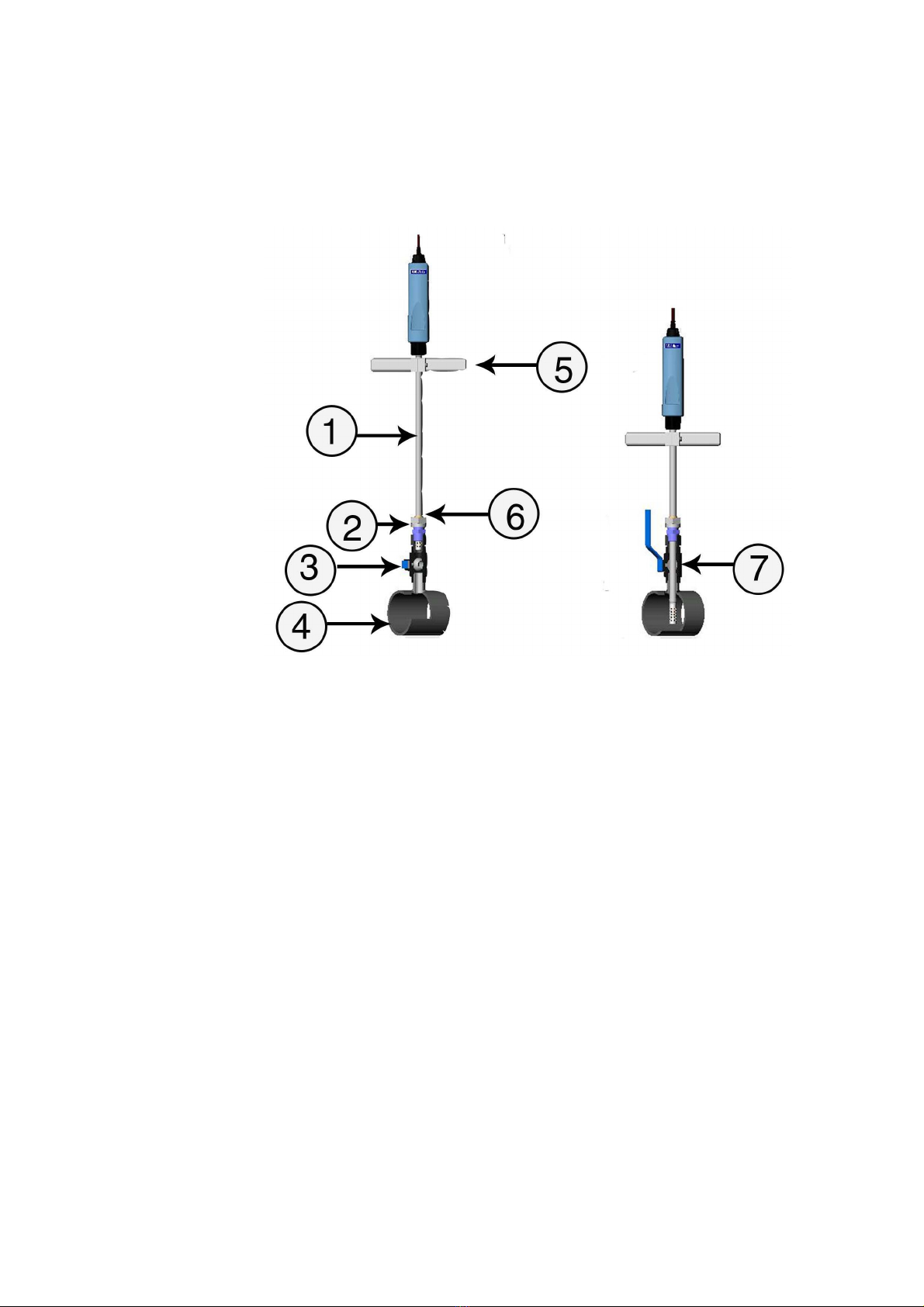

Figure 7 Ball Valve Installation ............................................................... 18
Figure 8 Direct Mounting ........................................................................ 19
Figure 9 Keypad ..................................................................................... 21
Figure 10 Basic Display............................................................................ 22
Figure 11 Display Setting Menus.............................................................. 24
Figure 12 User Interface Setting Menus................................................... 26
Figure 13 Device Information Setting Menus ........................................... 29
Figure 14 Device Information Submenus ................................................. 30
VAISALA ________________________________________________________________________ 3

USER'S GUIDE____________________________________________________________________
Figure 15 Measurement Setting Menus....................................................32
Figure 16 Alarm Function Menus..............................................................32
Figure 17 Analog Output Menus...............................................................34
Figure 18 Record and View Menu ............................................................36
Figure 19 Adjustment Mode......................................................................43
Figure 20 Installing the Battery Pack ........................................................60
Figure 21 MI70 Indicator...........................................................................67
Figure 22 MMP78 Probe...........................................................................68
List of Tables
Table 1 Measurement Intervals and Max. Recording Times.................37
Table 2 Example: Measured Water Content 213 ppm ..........................56
Table 3 List of Options and Accessories ...............................................66
4 ___________________________________________________________________ M210498EN-C

Chapter 1 __________________________________________________ GENERAL INFORMATION
CHAPTER 1
GENERAL INFORMATION
About This Manual
This manual provides information for installing, operating, and
maintaining the product.
Product Related Safety Precautions
The MM70 delivered to you has been tested for safety and approved
as shipped from the factory. Note the following precautions:
WARNING Ground the product, and verify outdoor installation grounding
periodically to minimize shock hazard.
CAUTION Do not modify the unit. Improper modification can damage the
product or lead to malfunction.
ESD Protection
Electrostatic Discharge (ESD) can cause immediate or latent damage
to electronic circuits. Vaisala products are adequately protected
against ESD for their intended use. However, it is possible to damage
the product by delivering electrostatic discharges when touching,
removing, or inserting any objects inside the equipment housing.
VAISALA ________________________________________________________________________ 5

USER'S GUIDE____________________________________________________________________
To make sure you are not delivering high static voltages yourself:
- Handle ESD sensitive components on a properly grounded and
protected ESD workbench. When this is not possible, ground
yourself with a wrist strap and a resistive connection cord to the
equipment chassis before touching the boards. When neither of the
above is possible, at least touch a conductive part of the equipment
chassis with your other hand before touching the boards.
- Always hold the boards by the edges and avoid touching the
component contacts.
Recycling
Trademarks
Microsoft®, Windows®, Windows NT®, and Windows® 2000 are
registered trademarks of Microsoft Corporation in the United States
and/or other countries.
License Agreement
All rights to any software are held by Vaisala or third parties. The
customer is allowed to use the software only to the extent that is
provided by the applicable supply contract or Software License
Agreement.
6 ___________________________________________________________________ M210498EN-C

Chapter 1 __________________________________________________ GENERAL INFORMATION
Warranty
Vaisala hereby represents and warrants all Products
manufactured by Vaisala and sold hereunder to be
free from defects in workmanship or material
during a period of twelve (12) months from the date
of delivery save for products for which a special
warranty is given. If any Product proves however to
be defective in workmanship or material within the
period herein provided Vaisala undertakes to the
exclusion of any other remedy to repair or at its
own option replace the defective Product or part
thereof free of charge and otherwise on the same
conditions as for the original Product or part
without extension to original warranty time.
Defective parts replaced in accordance with this
clause shall be placed at the disposal of Vaisala.
Vaisala also warrants the quality of all repair and
service works performed by its employees to
products sold by it. In case the repair or service
works should appear inadequate or faulty and
should this cause malfunction or nonfunction of the
product to which the service was performed Vaisala
shall at its free option either repair or have repaired
or replace the product in question. The working
hours used by employees of Vaisala for such repair
or replacement shall be free of charge to the client.
This service warranty shall be valid for a period of
six (6) months from the date the service measures
were completed.
This warranty is however subject to following
conditions:
a) A substantiated written claim as to any alleged
defects shall have been received by Vaisala
within thirty (30) days after the defect or fault
became known or occurred, and
b) The allegedly defective Product or part shall,
should Vaisala so require, be sent to the works
of Vaisala or to such other place as Vaisala may
indicate in writing, freight and insurance
prepaid and properly packed and labelled,
unless Vaisala agrees to inspect and repair the
Product or replace it on site.
This warranty does not however apply when the
defect has been caused through
a) normal wear and tear or accident;
b) misuse or other unsuitable or unauthorized use
of the Product or negligence or error in storing,
maintaining or in handling the Product or any
equipment thereof;
c) wrong installation or assembly or failure to
service the Product or otherwise follow
Vaisala's service instructions including any
repairs or installation or assembly or service
made by unauthorized personnel not approved
by Vaisala or replacements with parts not
manufactured or supplied by Vaisala;
d) modifications or changes of the Product as well
as any adding to it without Vaisala's prior
authorization;
e) other factors depending on the Customer or a
third party.
Notwithstanding the aforesaid Vaisala's liability
under this clause shall not apply to any defects
arising out of materials, designs or instructions
provided by the Customer.
This warranty is expressly in lieu of and excludes
all other conditions, warranties and liabilities,
express or implied, whether under law, statute or
otherwise, including without limitation any implied
warranties of merchantability or fitness for a
particular purpose and all other obligations and
liabilities of Vaisala or its representatives with
respect to any defect or deficiency applicable to or
resulting directly or indirectly from the Products
supplied hereunder, which obligations and
liabilities are hereby expressly cancelled and
waived. Vaisala's liability shall under no
circumstances exceed the invoice price of any
Product for which a warranty claim is made, nor
shall Vaisala in any circumstances be liable for lost
profits or other consequential loss whether direct or
indirect or for special damages.
VAISALA ________________________________________________________________________ 7

USER'S GUIDE____________________________________________________________________
This page intentionally left blank.
8 ___________________________________________________________________ M210498EN-C

Chapter 2 _____________________________________ PRODUCT OVERVIEW AND MECHANICS
CHAPTER 2
PRODUCT OVERVIEW AND
MECHANICS
Vaisala´s Hand-held MM70 Device
MM70 consists of two main units: MI70 indicator and MMP78 probe.
MM70 Hand-held humidity meter incorporates Vaisala's advanced
HUMICAP®technology which enables reliable and high performance
moisture in oil measurement.
Vaisala MM70 is delivered with a factory calibration certificate.
VAISALA ________________________________________________________________________ 9

USER'S GUIDE____________________________________________________________________
Structure of the MI70 Indicator
0605-094
Figure 1 MI Indicator
The following numbers refer to Figure 1 on page 10.
1 = MI70 indicator
2 = Recharger connector
3 = Power On/Off key
4 = Connector port for cable
5 = Connector port for probe
10 __________________________________________________________________ M210498EN-C

Chapter 2 _____________________________________ PRODUCT OVERVIEW AND MECHANICS
Structure of the MMP78 Probe
0605-087
Figure 2 MMP78 Probe
The following numbers refer to Figure 2 on page 11.
1 = Probe MMP78. Rugged probe with a long stainless steel
shaft.
2 = Probe filter
3 = Calibration button under the screw
4 = Manual press tool
5 = Clasp nut
6 = Fitting body
Tools
0605-082
Figure 3 Protecting Cap and Plastic Wrench
The following numbers refer to Figure 3 on page 11:
1 = Protecting cap (including plastic wire for attaching the cap to
the probe)
2 = Plastic wrench
VAISALA _______________________________________________________________________ 11

USER'S GUIDE____________________________________________________________________
Display Parameters
- aw: water activity
- T: temperature (°C/F)
- H2O: mass concentration of water (ppm)(available only if selected
when ordering)
Options
- carrying case for the indicator and the probe
- connection cables for the fixed transmitters: HMP228, MMT318,
and MMT330.
-MI70 Link software kit. The software can be used for transferring
recorded data to a PC. using a serial line or a USB instrument
cable. The MM70 readings can be easily monitored and examined
direcly in a Windows environment on a PC display. The data can
even be transferred further to a spreadsheet software (such as
Microsoft Excel) for modification. The MI70 Link Software can be
ordered from Vaisala. For more information, see section Options
and Accessories Available on page 66.
- extension cable (10m)
12 __________________________________________________________________ M210498EN-C

Chapter 3 ____________________________________ INSTALLATION AND MOUNTING OPTIONS
CHAPTER 3
INSTALLATION AND MOUNTING
OPTIONS
Installing and Recharging the Batteries
1. If you are using alkaline batteries, unscrew the back plate of the
indicator and insert the alkalines. If MM70 is ordered with
rechargeable battery, it is already in place as shipped from the
factory.
2. Recharge the battery as follows: Plug in charger connector to the
indicator. The plug is located at the top of the indicator, covered
by rubber seal. Then connect the charger to wall socket. A
battery symbol in the left corner of the display starts to roll.
3. It is not recommended to use MM70 during the first recharging.
Later on MM70 can be used while recharging.
4. Duration of recharging depends on the charge level of the
battery being 4 hours typical. The recommended first recharging
time is 6 hours.
5. The battery is full when the battery symbol stops rolling.
6. Disconnect the charger.
Turning On the Device
1. Connect the probe to either one of the bottom connectors of the
indicator. To ensure durable connection, screw the metal ring
clockwise until it tightens up. (Respectively, when
disconnecting the cable, first screw the metal ring
counterclockwise until it loosens and then pull out the plug.)
VAISALA _______________________________________________________________________ 13

USER'S GUIDE____________________________________________________________________
2. Press the power on/off key.
3. Select the language by using the arrow up/down keys. Confirm
by pressing the SELECT key. You can select the language later
on, as well. For more information, see Selecting Language on
page 27.
4. To change the date, select Date and press the SET key. Change
the date by using any of the arrow keys: up/down/left/right. To
confirm the date, press the OK key. The default date
presentation format is: year-month-date. If you want to change
the format, see Setting Date and Time on page 28.
5. To change the time, select Time and press the SET key. Change
the time by using any of the arrow keys. To confirm the time,
press the OK key. The default time presentation format is 24-
hour clock. If you want to use 12-hour clock, select 12-hour
clock, and press the On key.
6. Press the EXIT key. To check and change the pressure setting,
select YES. Otherwise select NO, basic display appears.
Installing the Probe
First select a place for the probe that simulates real conditions of the
process. Oil should circulate freely around the sensor; a rapid oil flow
is recommended. Install the probe directly into the circulation system
and not into the oil reservoir because of deposition.It is recommended
that the sensor head is installed directly in the process through the ball
valve assembly. When the ball valve assembly is used, the pipe does
not have to be emptied or shut down for installation or removal of the
probe. Install the sensor head transversely against the direction of the
process flow. Avoid installing into a bend in the pipe.
NOTE Take care not to damage the pipe of the probe. If the pipe is damaged,
the probe head is less tight and will not go through the clasp nut.
Make sure that the filter is tightly fastened to protect the sensors..
Mounting the Probe for Pressurized
Pipelines/Oils
Due to the sliding fit, the MMP78 is easy to install into and remove
from the pressurized process. The probe is especially suitable for the
14 __________________________________________________________________ M210498EN-C

Chapter 3 ____________________________________ INSTALLATION AND MOUNTING OPTIONS
measurements in pipelines. The maximum installation pressure is 10
bar and the maximum operation pressure is 20 bar.
0605-086

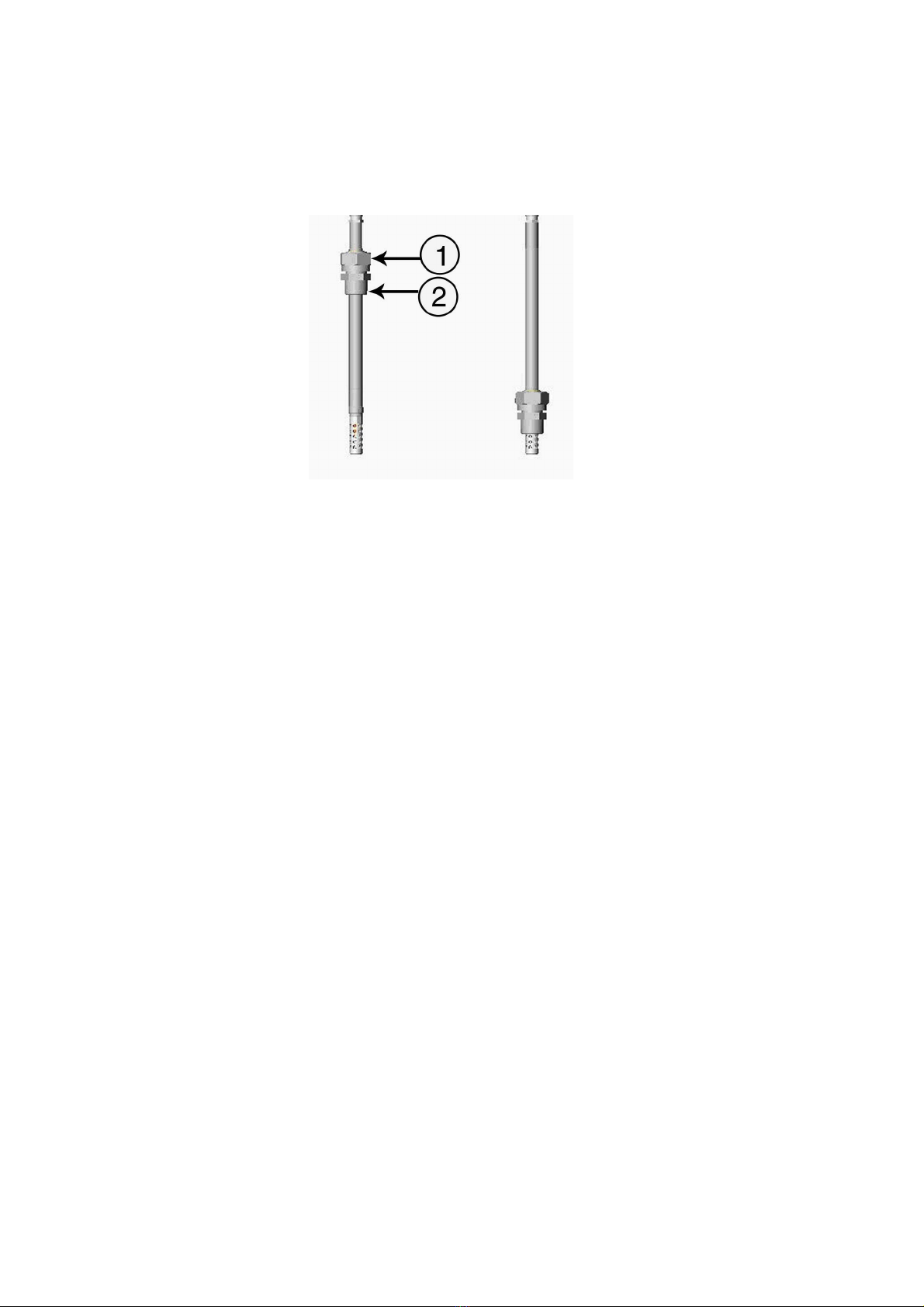

Figure 4 MMP78 Pipe Dimensions (in mm); 400 mm
(adjustment range 340 mm)
The following numbers refer to Figure 4 on page 15.
1 = Clasp nut, 27 mm hex nut)
2 = Fitting body, 24 mm hex head
Tightening the Clasp Nut
1. Adjust the probe to a suitable depth according to the type of
installation and tighten the clasp nut first manually.
2. Tighten the clasp nut first manually. Mark the fitting screw and
the clasp nut. Tighten the nut a further 30 - 40° (ca.1/12" turn)
with a plastic wrench. If you have a suitable torque spanner,
tighten the nut to max 35±5 Nm (25±4 ft-lbs).
VAISALA _______________________________________________________________________ 15

USER'S GUIDE____________________________________________________________________
0605-080
Figure 5 Tightening Clasp Nut
The following numbers refer to Figure 5 on page 16 above
1 = Probe
2 = Clasp nut
3 = Fitting screw
4 = Pen
NOTE Take care not to over tighten the clasp nut to avoid difficulties when
opening it.
When the probe is used in a pressurized processes the sensor head
should preferebly be installed through a ball valve assembly.
16 __________________________________________________________________ M210498EN-C

Chapter 3 ____________________________________ INSTALLATION AND MOUNTING OPTIONS
0605-083
Figure 6 Sealing Thread Cutting for the Fitting Body
CAUTION In pressurized processed it is essential to tighten the supporting nuts
and screws very carefully to prevent loosening of the probe by the
action of pressure
CAUTION Take care not to damage the probe body. A damaged body makes the
probe head less tight and may prevent it from going through the clasp
nut.
Ball Valve Installation
The ball valve installation is preferred when connecting the probe to a
pressurized process or pipeline. Use the Vaisala BALLVALVE-1 ball
valve set or a 1/2" ball valve assembly with a ball hole of 14 mm or
more. If you install the sensor head ( 12 mm) in a process pipe, please
note that the nominal size of the pipe must be at least 1 inch (2.54
cm). Use the manual press tool to press the sensor head into the
pressurized (< 10 bar) process or pipeline.
1. Shut down the process if the process pressure is more than 10
bars. If the pressure is lower there is no need to shut down the
process.
2. Make the installation according to the figure below. Install the
sensor head transversely against the direction of the process
flow.
VAISALA _______________________________________________________________________ 17

USER'S GUIDE____________________________________________________________________
3. Make sure that the temperature at the measurement point is
equal to that of the process, otherwise the moisture reading may
be incorrect.
0605-085
Figure 7 Ball Valve Installation
The following numbes refer to Figure 7 on page 18 above.
1 = Probe
2 = Clasp nut. The probe slides easily in place when you first fix
the clasp nut manually. Then complete the installation and
make it stable by tightening the clasp nut with a plastic
wrench. Do not overtighten the screw.
3 = Handle of the ball valve
4 = Process chamber/pipeline
5 = Manual press tool
6 = The groove on the probe indicates the upper adjustment limit
7 = Ball of the ball valve
18 __________________________________________________________________ M210498EN-C
