Valor AutoFire G4 User manual

©2021, Miles Industries Ltd.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Direct Vent Gas Fireplace Insert
Gas Fireplace
natural gas 785YN
propane gas 785YP
Installation Manual
G4
with
Canadian Patent 2,717,779 Issued October 24 2017
US Patent 10,060,624 Issued August 28 2018
US Patent 10,935,246 Issued March 2 2021
4006267-09

Ce guide est disponible en français sur demande.
This appliance is a domestic room-
heating appliance. It must not be used
for any other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in a bedroom or bed
sitting room.
2
The information contained in this manual is believed
to be correct at the time of printing. Miles Industries
Ltd. reserves the right to change or modify any
information or specifications without notice. Miles
Industries Ltd. grants no warranty, implied or stated,
for the installation or maintenance of your heater,
and assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2021. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorfireplaces.com
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter
in the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements in the fireplace
installation manual.
WARNING
This product can expose you to chemicals
including Benzene, which is known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains
Benzene.

Please read this manual BEFORE
installing and operating this
appliance.
3
This appliance has been professionally installed by:
Dealer Name: ________________________________
Phone:______________________________________
Welcome to Valor®
Fireplace Safety ................................................. 4
Specifications..................................................... 6
Kits & Accessories.............................................. 7
Dimensions......................................................... 8
Clearances .......................................................... 9
Installation Planning ........................................11
Before Installation......................................................11
Concept ........................................................................12
Venting .............................................................. 13
Concept.........................................................................13
Installation Preparation ................................. 14
Existing Fireplace Preparation .................................14
Unpack the Appliance................................................14
Remove Window ........................................................15
Install Fan Kit (if used) ...............................................15
Installation ....................................................... 16
Connect Venting..........................................................16
Gas Supply....................................................................17
Liner Panels .................................................................19
Remove and Re-install Burner (if necessary) ........19
Fuel Beds ..................................................................... 20
Install Driftwood 1101DWK.......................................20
Install Decorative Glass Murano 785XDGM ..........22
Install Window............................................................ 23
Remote Control Pairing............................................. 24
Check Operation and Aeration................................ 25
Adjust Aeration (if necessary) ..................................25
Accessories ................................................................. 26
Install Side Shrouds ...................................................26
Install Front, Trim and Barrier Screen.....................26
Install Handset Wall Holder......................................27
Wiring Diagram................................................ 28
Approved Venting Components.................... 29
Appendix A - Lighting Instructions Plate...... 30
Appendix B - Remote Control Use ................ 31
Appendix C - Spare Parts................................ 35

4
Fireplace Safety
This manual contains very important information about the safe installation and operation of the fireplace. Read and
understand all instructions carefully before installing and operating the fireplace. Failure to follow these instructions
may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting
valorfireplaces.com.
WARNING: Extremely Hot!
Heat and flammability
• Some parts of the fireplace are extremely hot, particu-
larly the glass window. Use the barrier screen provid-
ed or a gate to reduce the risk of severe burns.
• The glass windows can exceed 500°F at full capacity.
• Always keep the appliance clear and free from com-
bustible materials, gasoline, and other flammable
vapors and liquids.
• Be aware of hot wall surfaces! The wall directly above
the fireplace can get very hot when the fireplace
heats. Although safe, it may reach temperatures in ex-
cess of 200ºF (93°C) depending on choice of optional
accessories. Do not touch!
• Be aware of hot hearth/floor surfaces! Any projections
directly around the fireplace can get very hot when
the fireplace heats. Although safe, they may reach
temperatures in excess of 200ºF (93°C) depending on
elevation of hearth. Be careful of touching these! Tem-
perature of projection surfaces will be reduced when
barrier screens are installed.
• Some materials or items, although safe, may discolor,
shrink, warp, crack, peel, and so on because of the
heat produced by the fireplace. Avoid placing candles,
paintings, photos and other combustible objects
sensitive to heat or furniture within 36 inches (0.9m)
around the fireplace.
• Solid wood flooring in front of the fireplace (if allowed)
may shrink during the heating season due to heat.
• Any safety screen, guard, or barrier removed for ser-
vicing an appliance must be replaced prior to operat-
ing the appliance
• Due to its high temperatures, the appliance should be
located out of traffic areas and away from furniture
and draperies.
• Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children, and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at-risk individuals in the house. To
restrict access to a fireplace or stove, install an adjust-
able safety gate to keep toddlers, young children, and
other at-risk individuals out of the room and away
from hot surfaces.
• A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals
• Clothing or flammable material should not be placed
on or near the appliance.
Do not put
furniture or other objects
in this space in front of
WKHȴUHSODFH
36” [0.9 m]
)LUHSODFH
Hearth

5
Glass window
• The glass front assembly must be in place and sealed
before the unit can be placed into safe operation.
• The glass front assembly must only be replaced as a
complete unit, as supplied by the fireplace manufac-
turer. No substitute material may be used.
• Do not use abrasive cleaners on the glass front as-
sembly. Do not attempt to clean the glass when it is
hot.
Venting
• This unit must be used with a vent system as de-
scribed in this manual. No other vent system or com-
ponents may be used.
• Never obstruct the flow of combustion and ventilation
air. Keep the front of the appliance clear of all obsta-
cles and materials for servicing and proper operation.
• This gas fireplace and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning ap-
pliance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
WARNING
Do not operate this appliance with the
glass front removed, cracked, or broken.
Replacement of the glass front should
be performed by a licensed or qualified
service person. Do not strike or slam the
glass front.
Fireplace Safety
Intended use
• This appliance is designed and approved as a supple-
mental heater and provides the potential for most
energy conservation when used while attended. The
use of an alternate primary heat source is advisable.
• This unit is not for use with solid fuel.
• Do not use this heater as a temporary source of heat
during construction.
Installation and Servicing
• Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning might be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control com-
partments, burners, and circulating air passageways
of the appliance be kept clean.

6
Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for Vented
Gas Fireplace Heaters for use in Canada and USA, and
to CGA 2.17-91 High Altitude Standard in Canada. This
appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or the Natural Gas
and Propane Installation Code CAN/CGA-B149.1. Only
qualified licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to confirm.
For installations at elevations above 4,500 feet (1,370 m)
in Canada, please consult provincial and/or local
authorities having jurisdiction.
Model 785YN 785YP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 28,000 26,000
Input Minimum (Btu/h) 15,000 13,000
Manifold Pressure (in w.c.) 3.2” 9.5”
Minimum Supply Pressure (in w.c.) 5” 11”
Maximum Supply Pressure (in w.c.) 10” 14”
Main Burner Injector Marking 850 300
Pilot Injector Marking 51 30
Min. Rate By-Pass Screw 190 125
Supply Gas
Heater engine 785YN is used with natural gas.
Heater engine 785YP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings section.

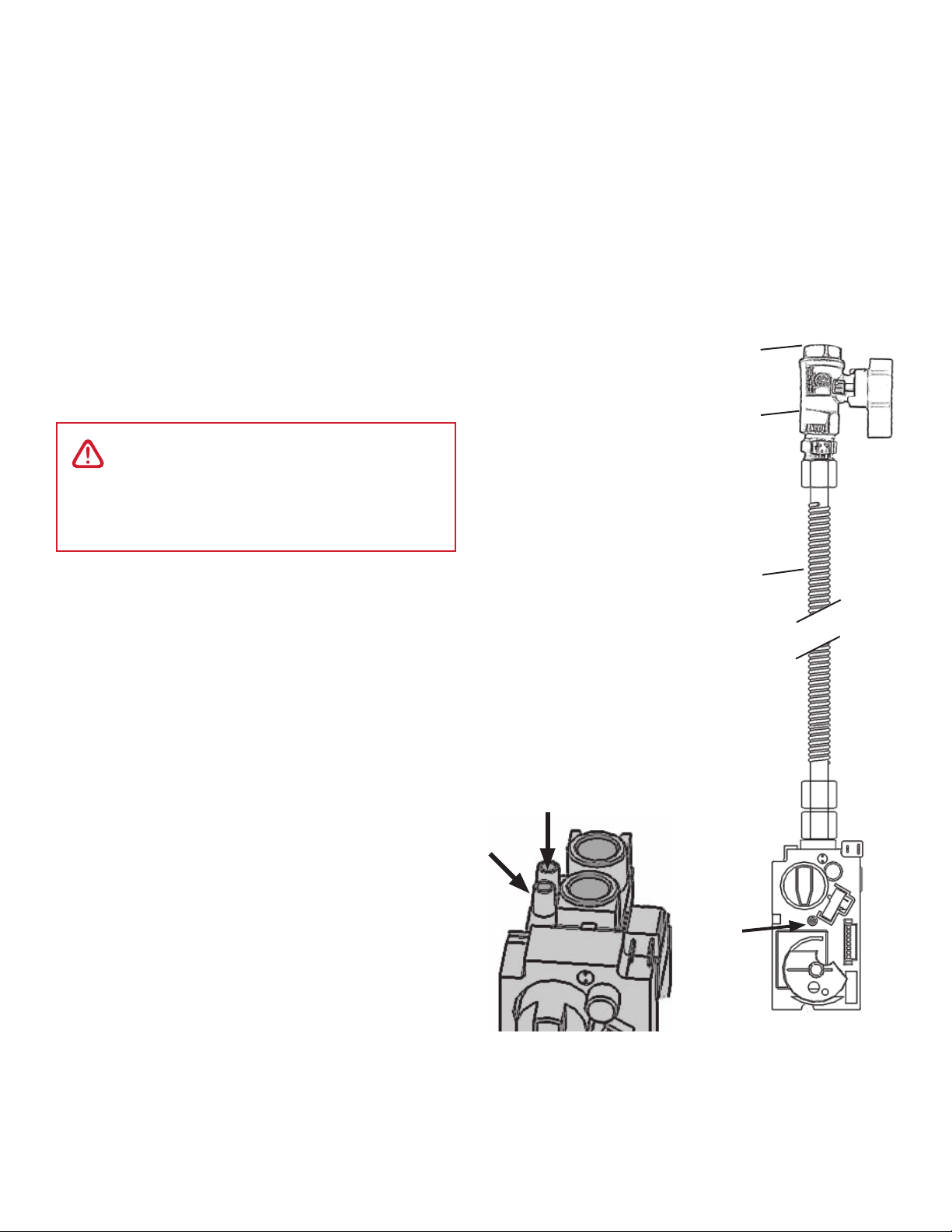

The supply connection is 1/2” NPT female and located
on the left side of the control valve. The gas line entry
point is on the the upper left hand side of the fireplace.
See Gas Supply pages 17–19 for connection details.
Electrical
The 785 G4 is designed to run on battery power and
does not require an electrical source to operate as a
heater. However, if the appliance is fitted with a fan, a
grounded power source is required.
Conversion Kits
The 785 is supplied as natural gas or propane gas and
is field convertible between fuels. See instructions
packaged with the conversion kits for further
information.
Floor/Hearth
This appliance is approved for installation into existing
solid-fuel burning fireplaces only. Combustible material
such as plywood and so on may be used for leveling
and shimming beneath the unit. This appliance does
not require a hearth other than to support the weight
of certain fronts.
X
X
Note: This appliance is designed and approved as
a supplemental heater and provides the potential
for most energy conservation when used while
attended. The use of an alternate primary heat
source is advisable.

7
Required Kits
Above information accurate at the time of printing and subject to change without notice.
Optional Accessories
Fuel Beds (choose one)
1101DWK Driftwood Log Set
785XDGM Decorative Glass Murano
Liners (choose one)
786LSLV3 Ledgestone Panels
787RGL Reflective Glass Panels
788FBLV2 Fluted Black Panels
789VRLV2 Valor Red Brick Panels
Fronts (choose one) Barrier
Screen
784EC Edgemont Craftsman Fronts
4007655AZ
784ECBR Bronze
784ECPW Pewter
784ECCB Champagne Brass
790FTV Floating Trim vintage iron 4003371AZ
791 Square Trim Kits
4003371AZ
791STB Black
791STV Vintage iron
791STP Polished
792 Floating Trim Kits
4003371AZ
792FTB Black
792FTV Vintage iron
792FTZ Bronze
798 Floating 4-Sided Trims
4003371AZ
798FFB Black
798FFV Vintage iron
798FFZ Bronze
799ED Edgemont Door Kits
4004348AZ799EDFZ Bronze
799EDFN Nickel
Backing Plates (choose one)
799BPB-1
799BPB-2
799BPB-3
3-Sided Backing plates black for 784 & 799
799BPB-4S 4-Sided Backing plate black for 784 & 799
Optional Backing Plates
794BPB
794BPB-1 Backing plates Black for 790, 791, 792 & 798
Gas Conversion Kits
780MNGK Conversion Kit to Natural Gas
780MPGK Conversion Kit to Propane Gas
Other Accessories
793RTB Riser trim black for 790, 791, 792 & 798
793RTV Riser trim vintage iron for 790, 791, 792 & 798
785RGP Reflective Glass Panel for 788FBLV2
795CFKV2 Circulating Fan Kit
796ALP Adjustable Leveling Platform
1265WSK Wall Switch Kit
RBWSK Remote Battery & Wall Switch Kit
Hearth Gate
Hearth gates such as Cardinal’s VersaGate
are available at retail stores carrying safety
products for children.
Kits & Accessories

8
Minimum Cavity Dimensions
All trims except 799 Edgemont Door With 799 Edgemont
Door Kit
Standard
Install
w/796
Leveling
Platform
w/795 Fan
Kit No Fan w/795 Fan
Width (min.
fireplace
opening at
front)
33-1/4”
[855 mm]
33-1/4”
[855 mm]
33-1/4”
[855 mm]
35-3/4”
[908 mm]
Depth X 15-1/2”
[855 mm]
16”
[406 mm]
18-1/2”
[470 mm]
16-3/4”
[426 mm]
19-3/4”
[502 mm]
Height Y * 23-1/4”
[591 mm]
23-1/4”
[591 mm]
23-1/4”
[591 mm]
23-3/4”
[603 mm]
* Please note that the 799BPB-4S 4-Sided backing plate extends below the
bottom of appliance by 2-13/16” (72 mm). Plan accordingly!
Dimensions
33” (838 mm)
24” (610 mm)
15”
(381 mm)
15”
(381 mm)
4”
(102 mm)
3”
(76 mm)
3”
(76 mm)
3”
(76 mm)
23” (584 mm)
to top of rebox
Gas line
access
Gas line approx. 24“ (610 mm)
of ex protruding from
sheet metal box
Optional
fan
Optional fan
6’ (1,8 m) fan
power cord
outlet
6’ (1.9 m) Fan power cord
Trim
(sold separately)
Valve
access
panel
9-1/2”
(241 mm)
AutoFire slider
assembly
Fireplace Dimensions
Cavity Dimensions
Check that masonry step does not interfere with install dimensions or vent pipe. If mantel is combustible, see
following table for allowable clearances. A hearth that is at a height within 4” (102 mm) of the bottom of the heater
MUST be non-combustible.
X
Y

9
Clearances based on diagram above in Inches [mm]
Mantel Projection A 1 [25] 4 [101] 8 [203] 14 [355]
Mantel Projection B* 34 [864] 36 [914] 38 [965] 40 [1016]
Combustible Mantel Clearances
* Measure taken from the underside of the mantel to
finished hearth or surface that the unit is sitting on.
Finishing Materials
Combustible Materials: Materials made of or surfaced
with wood, compressed paper, plant fibers, plastics, or
other material that can ignite and burn, whether flame
proofed or not, or plastered or unplastered.
Non-Combustible Materials: Material which will not
ignite and burn. Such materials are those consisting
entirely of steel, iron, brick, tile, concrete, slate, glass or
plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 °C.
Clearances
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel,
and so on because of the heat produced
by the fireplace. Avoid placing candles,
paintings, photos, and other items
sensitive to heat around the fireplace.
WARNING
HOT GLASS! The use of a screen in front
of the glass is highly recommended,
particularly in households with children
WARNING
HOT HEARTH/FLOOR! The hearth or floor
in front of the fireplace may become very
hot when the fireplace heats. Do not
use the hearth as a seat or shelf. Solid
wood flooring in front of the fireplace (if
allowed) may shrink during the heating
season due to heat.
A
B
Non-combustible hearth
With optional
Fan: depth
+3” (76 mm)
Do not put
furniture or
objects within
36” (914 mm)
of the front of
appliance

10
Sidewall Clearances
Minimum distance from side of appliance (liner box) to
combustible wall: 9” [229 mm] (see above).
Mantel legs projecting forward less than 6” [152 mm]
may be located within 5” [127 mm] of the side of the
appliance (liner box).
Floor/ Hearth Clearances
Combustible shims/supports may be used beneath
the appliance to level or raise the appliance within the
existing fireplace cavity.
Combustible flooring/hearths in front of the appliance
must be at a minimum of 4” [102 mm] below the
bottom of the appliance. The gas insert does not
require a hearth.
9” (229 mm)
sidewall
Clearances Clearances to Sidewall

11
Installation Planning Before Installation
Before Installation
1. YOU NEED TO KNOW FROM THE HOMEOWNER:
• Whether any facing material will be used over
the existing fireplace.
• What trim, front, and optional accessories (if
any) will be installed with this unit.
2. Unpack the appliance and recycle the packaging.
3. Check that you have everything, using the Pack Con-
tent sheet. Also, check that you have:
• A fuel bed (packed separately)
• Liner panels (packed separately)
• Venting accessories
• Electrical accessories (if using a fan kit)
• Any other ordered accessories
4. Carefully read the Installers Checklist included with
the fireplace for the installation sequence.
Caution
Only qualified, license, or trained personnel
should install this appliance.
Note
The following steps must be done BEFORE the
appliance is placed in its final position, since
the connections are done from the back of the
appliance:
• Electrical connections (if needed for fan kit)

12
Installation Planning Concept
Trim
(sold separately)
2 x 3” approved Flex Chimney
Liners running full length
Chimney Terminal Cap
WARNING
HOT HEARTH / FLOOR! The hearth or floor
in front of the fireplace may become very
hot when the fireplace heats. Do not
use the hearth as a seat or shelf. Solid
wood flooring in front of the fireplace (if
allowed) may shrink during the heating
season due to heat.
Flashing
Existing unaltered, functioning
solid-fuel-burning fireplace and
chimney
785 fireplace
Existing non-combustible hearth.
Combustible hearth or floors within
16” of insert must be a minimum 4”
(102 mm) below bottomr of insert.
Gas insert does not require a hearth.
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel,
and so on because of the heat produced
by the fireplace. Avoid placing candles,
paintings, photos, and other items
sensitive to heat around the fireplace.
Caution
This appliance may ONLY be installed
in an existing unaltered, functioning
solid-fuel burning fireplace with a
working flue and constructed of non-
combustible material.
DO NOT install into combustible
construction. This appliance is NOT
APPROVED for installation with a
zero clearance kit.

13

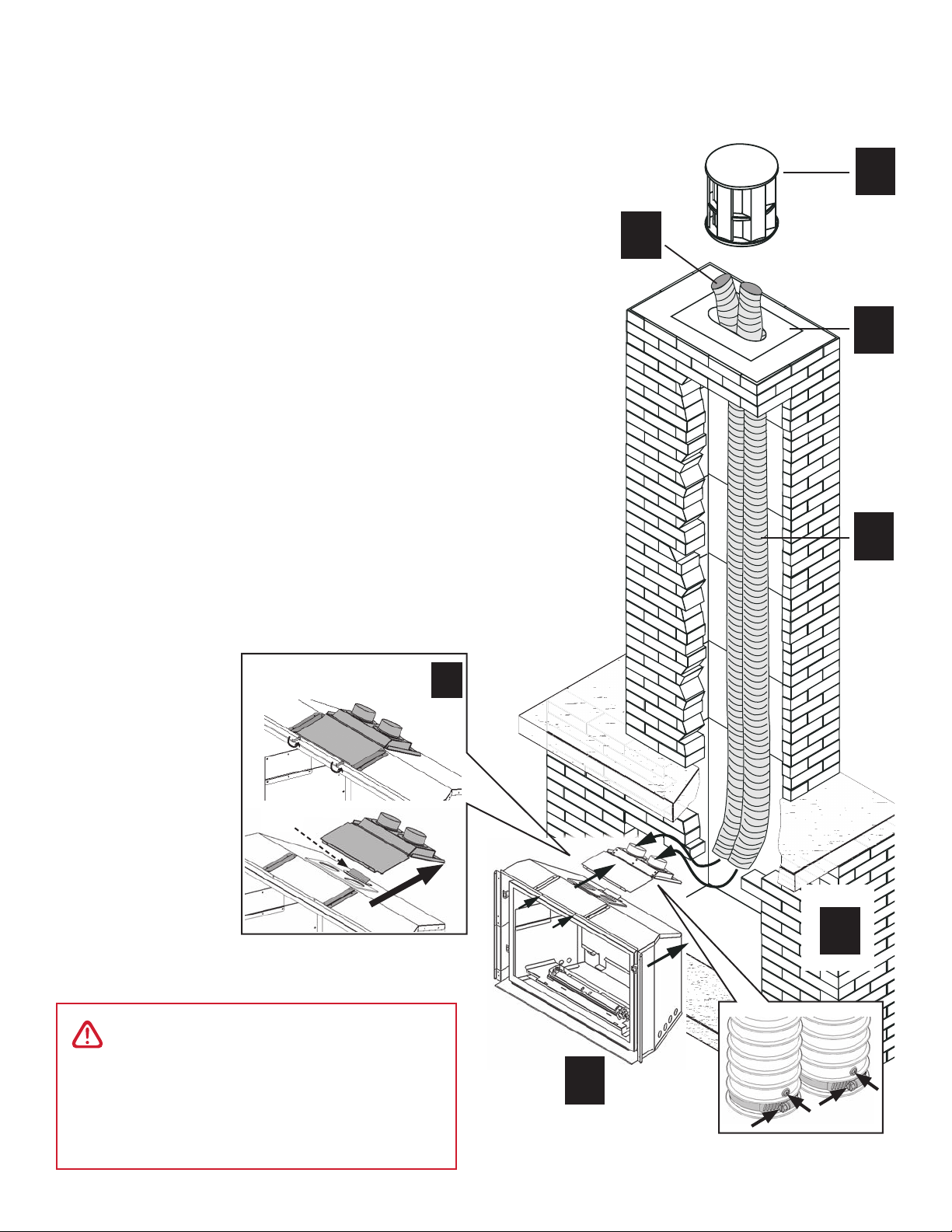

Typical Vent Installation
NOTE: Flexible co-linear vent pipes may only be
installed into existing non-combustible solid-fuel
burning fireplaces and chimneys.
See list of approved Venting Accessories on page 30
of this manual. The appliance must not be connected
to a chimney flue serving a separate solid-fuel burning
appliance.
Vent Location
The vent terminal must be located through the roof.
This direct vent appliance is designed to operate when
an undisturbed airflow hits the outside vent terminal
from any direction.
Check local codes for allowable vertical vent
termination.
Venting Table
Maximum vertical height 40 ft (measured to bottom of
termination)
Minimum vertical height 10 ft (measured to bottom of
termination)
Maximum horizontal run 4 ft (measured center to center of
pipe)
Maximum offset angle 45˚(sweeping bend to allow for
obstructions)
Venting Notes
Where possible, avoid joining flex pipes. If joints are
required, use a approved connector and seal joints with
RTV high temp sealant.
Horizontal offset is permissible to
allow for routing around masonry
projections. Avoid bending flex pipe
over a 45 degrees radius where
possible.
Terminal Cap
Flashing
2 x 3” flex
liners—see
Venting
Table for
length
allowed
Existing
fireplace
and
chimney
Venting Concept
3” Liners
3” min.
Bend
Radius

14
Installation Preparation
Unpack the Appliance
1. Unpack the appliance.
2. Unpack any loose items from around the appliance
and check against the Pack Content list provided in
the documentation package.
3. Remove the window and set aside in a safe place to
avoid damage—see next page.
4. Verify that you have all the components required for
the installation, including:
• liner panels
• fuel bed
• trim
• venting components and accessories
• fan and electrical components for its installation
(if used)
WARNING
Beware of sharp edges! Wear gloves!
Existing Fireplace Preparation
A few points must be considered before inserting
the 785 into an existing fireplace cavity. Generally, no
modifications are allowed to the existing fireplace that
will compromise the integrity of the existing fireplace.
Components that are bolted or screwed on such as
dampers or baffles may be removed to accommodate
the installation of the 785 engine.
Cutting away any sheet metal parts of the existing
fireplace to accommodate the installation of the 785
is prohibited.
Check with local authorities if in doubt.
Clean Fireplace and Chimney
Have the chimney swept and the fireplace cavity
including ash dumps and clean-outs cleaned before
installing the 785 heater and vent liners. Any creosote
or soot residue remaining in the fireplace cavity
chimney or clean-out may cause odors or stains once
the 785 insert is installed. Consult with chimney sweep
for information on how best to clean.
Existing Dampers
Factory-built, zero-clearance fireplaces will require
the damper to be removed in order to install the vent
liners. These dampers are usually bolted into place.
Dampers in masonry fireplaces must be fixed open and
may remain in place.
Ash Retaining Curbs
Some fireplaces (particularly factory-built) have a
raised curb at the front edge to retain ashes. Check the
dimensions carefully to ensure the 785 engine will fit
behind any raised curb (some curbs may be removed
separately from the refractory base).
Gas Line Routing
Plan the routing of the gas line before proceeding.
Utilize the existing hole for the gas line of the factory-
built fireplace.
If the fireplace has no access hole, carefully drill an
access hole of 1.5 inch (38 mm) or less through the
lower sides or bottom of the firebox. The access hole
must be plugged with non-combustible insulation after
the gas supply line has been installed.
See Dimensions section for detailed location of gas inlet.
Also, take into consideration whether or not a fan or
shut-offvalve will interfere when planning routing of
the gas line.
Existing Glass Doors and Wire Screens
Existing glass doors must be permanently removed
prior to installing the 785 insert.
Combustible Mantels
Combustible mantel clearances must conform to those
required for the original solid-fuel fireplace into which
the 785 is being installed.
Attach Warning Conversion Plate to Existing
Fireplace
(Label supplied loose with 785 heater)
Attach the “This fireplace has been converted...” label to
the existing fireplace using screws or other mechanical
means and store any removed parts in back of the
existing fireplace for future use.

15
Window and Fan
Installation Preparation
Install Fan Kit (if used)
If the 795CFKV2 Circulating Fan Kit (blower) is to be
installed, we suggest that you do it now.
The fan cavity is accessible from the back of the firebox
to facilitate its installation. If the fan is retrofitted after
the installation of the appliance, the appliance will need
to be removed. Therefore, we recommend that, where
possible, the fan be installed before the appliance is
fitted into the cavity.
Refer to instructions provided with the 795CFKV2 to
install the fan.
6’ power
cord
Remove Window
The window is held in place by a spring-loaded lever on
each side. To remove the window:
1. Locate the levers on each side of the window
towards the top. Using your finger, pull the lever
towards you and unhook it from the window frame
bracket.
2. Gently pull the top of the window outward.
3. Lift the window out of its bottom railing and set it
aside in a safe place to avoid damage.

16
Connect Venting
Installation
Connect Venting
IMPORTANT: This appliance’s venting system is room
sealed and therefore, does not require room air to be used
in the combustion process.
1. Rough-in two 3” diameter vent liners into the existing
chimney system from the roof. Be careful not to tear
or damage the liners in the process. It may be easier to
install both liners at the same time rather than one at
a time. Leave plenty of liners at the bottom to facilitate
the connection of the liners to the vent slider. It is best
to leave the top termination until later.
Designate and mark the top and bottom of one liner
as “EXHAUST” to avoid confusion later.
2. Release the two screws retaining the vent slider to the
front of the firebox. Remove the slider from the firebox
by sliding it towards the back of the firebox.
3. Fit the two liners ensuring that the exhaust liner is
connected to the identified “EXHAUST” vent collar.
Secure liners to collars with hose clamps (included)
and 2 tapping screws per liner.
4. Slide the firebox onto the vent slider in the cavity tak-
ing care not to damage the liners. Make sure that the
rear edge of the slider is hooked over the cleat on the
firebox. Secure the vent slider to the front of the fire-
box with two screws
removed earlier.
5. From the roof, pull
the liners and fit the
flashing.
6. Fit the terminal cap
ensuring that the
exhaust liner is
connected to the
exhaust vent collar.
Secure with screws.
7. Seal the terminal
and flashing from
water penetration as
required. 3
7
1
5
4
6
2
Vent slider
cleat
WARNING
Failure to position the parts in accordance
with these diagrams or failure to use
only parts specifically approved with this
appliance may result in property damage
or personal injury.

17
Gas Supply
Installation

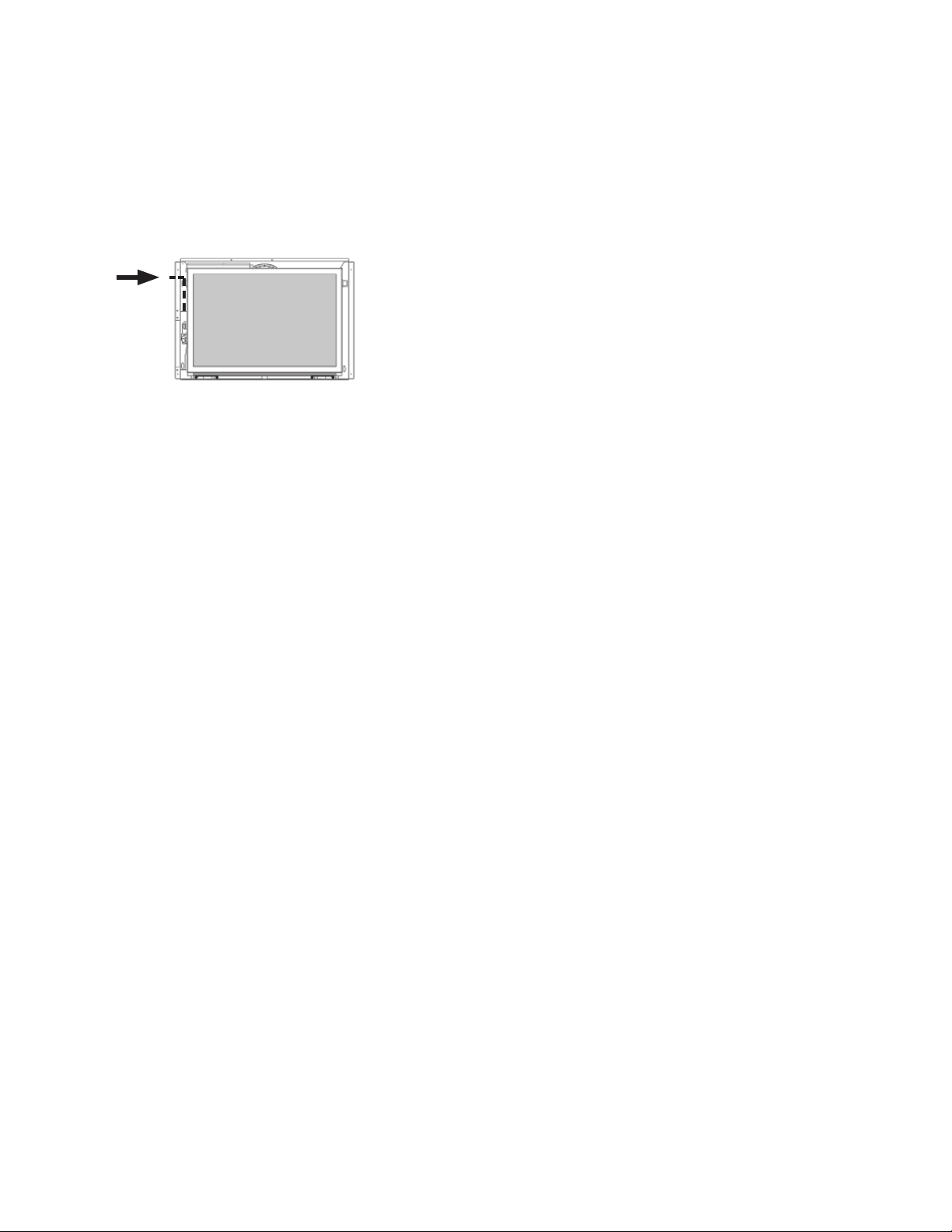

Connect Gas Supply
The gas supply inlet connection is a 1/2” NPT female.
Gas shut-offvalve supplied on the end of stainless steel
flexible connector. Flex connector is located on the left
hand rear corner of the appliance.
Use only new black iron or steel pipes, CSST, or copper
tubing if acceptable—check local codes. Note that
in USA, copper tubing must be internally tinned for
protection against sulfur compounds.
The burner module and gas train on this appliance
may be removed as a unit for servicing. The flex pipe
supplied with the unit provides a union for removal of
the module.
Unions in gas lines should be of ground joint type.
The gas supply line must be sized and installed to
provide a supply of gas sufficient to meet the maximum
demand of the appliance without undue loss of
pressure.
Sealant used must be resistant to the action of all gas
constituents including LP gas. Sealant should be applied
lightly to male threads to ensure excess sealant does
not enter gas lines.
Pressure test the supply line for leaks.
The appliance and its individual shut-offvalve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply
piping system by closing its equipment shut-offvalve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psi
(3.5 kPa).
Failure to either disconnect or isolate the appliance
during pressure testing may result in regulator or valve
damages and void the warranty. Consult your dealer in
case of damages.
X
X

18
Installation Gas Supply
WARNING
NEVER USE AN OPEN FLAME to check
for leaks. Correct any leak detected
immediately.
Manifold Test
Pressure
Valve Inlet
Pressure
Valve Assembly
Control
Valve
34” (864 mm)
flex pipe
supplied with
appliance
Shut-offvalve
supplied with
appliance
1/2” NPT
female
Manifold
Pressure
Adjustment
behind
Plastic Cap
Pressure Test Points
The minimum supply pressure is given in the section
Specifications on page 6 of this manual.
All piping and connections must be tested for leaks
after installation or servicing. All leaks must be
corrected immediately.
When testing for leaks:
• Make sure that the appliance is turned off.
• Open the manual shut-offvalve.
• Test for leaks by applying a liquid detergent or soap
solution to all joints. Bubbles forming indicate a gas
leak.
The pressure test tapping locations are shown in the
figure below. An internal regulator within the valve
controls the burner manifold pressure.
The correct pressure range is shown in the table in
section Specifications of this manual on Specifications
on page 6.
The pressure check should be made with the burner
alight and at its highest setting—see Appendix A -
Lighting Instructions Plate on page 31 for full operating
details.

19
Gas Supply
Installation
Front view,
left side
Top view, left side
Flex connector redirected using one elbow.
Flex connector redirected using two elbows.
Common fittings required (not supplied)
3/8” elbow
+ short 3/8”
nipple
OR
3/8” street
elbow(s)
(where al-
lowed)
1. Remove flex connector.
2. Remove flared connector.
3. Install new inlet elbow.
4. Add flared connector to new el-
bow and fit flex connector. Close
the access panel.

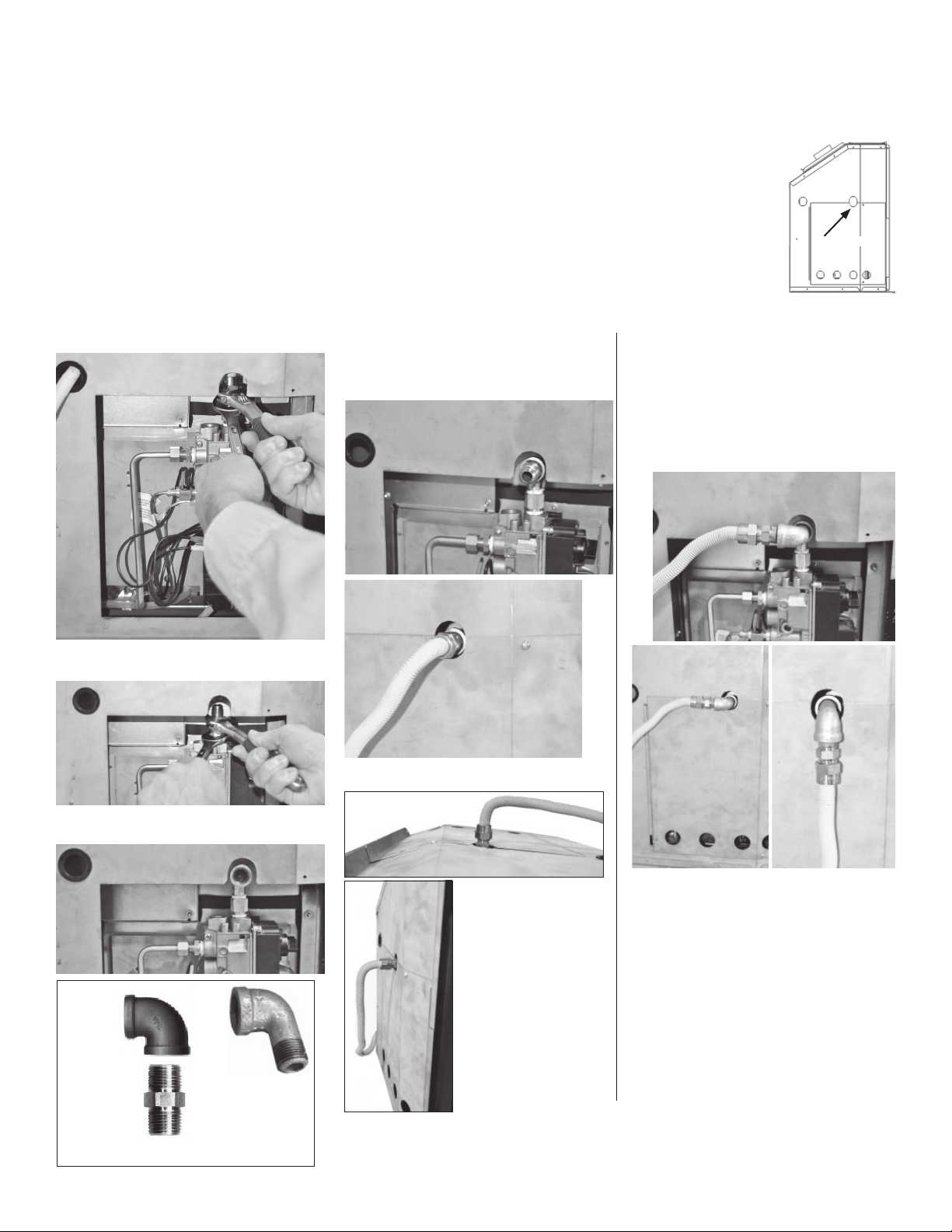

Alternate Inlet Connection
In cases where local codes do not permit the flex
connector to be used inside the appliance case,
reconnect the flex connector outside of the appliance
case. A cut-out is provided in the appliance case for this
purpose. Cut-out
Option 1 Option 2
4. Add another elbow, the flared
connector and refit the flex
connector. Direct it towards
the rear of the appliance or
downward.
Close the access panel.
Use common elbow and fittings (not
supplied) to redirect the position of the
flex connector. NOTE: the flex connector
bend radius must be no smaller than
the size of a golf ball (approx. 1-3/4” or
44 mm).

20
Installation Liner Panels
2. Place the rear panel against the back of the firebox,
on the ledge at the bottom, behind the burner.
3. Rotate the anchor up and out of the way and slide
the left hand side panel against the firebox side.
Rotate the anchor back down to hold the panel.
4. Rotate the anchor up and out of the way and slide
the right hand side panel against the firebox side.
Rotate the anchor back down to hold the panel.
5. Tighten the side panel anchors on each side of the
firebox.
6. Install the top panel supporting it with the back and
side panels.
7. Discard the front bricks as they are not required on
this fireplace.
Remove and Re-install Burner (if necessary)
The ceramic panels can be installed without removing
the burner. However, you can remove the burner for
additional space if desired.
1. Remove the scew fixing the rear of the burner to the
manifold bracket as indicated.
2. Grab the burner and gently pull up the rear first
while pushing back and unhooking the front tabs
from their retaining lances. Be careful not to hook
the pilot hood as you pull the burner up.
3. To re-install the burner, fit
the burner in the firebox
inserting the front tabs first
in the lances.
Note: Ensure the front of
the burner is well hooked
when re-installing! Again
be careful not to hook the
pilot hood when fitting the
burner over the pilot.
4. Secure the burner to the manifold bracket at the
rear with screw.
Screw
Install Liner Panels
The following guidelines apply for all liner panels
(with the exception of the 787RGL Reflective Glass
Liners—see the installation manual supplied with that
liner kit for details). You do not need to remove the
burner to install the panels unless installing the 785RGP
Reflective Glass Panel—see instructions provided with
the Glass Panel.
1. Inside the firebox, on the top of each side, loosen
the screw of the side panel anchors (one per side)
just enough to allow them to rotate (one per side).
