Valor HORIZON 534XAN Manual

4000307-15
© 2009, Miles Industries Ltd. All rights reserved.
HORIZON
WARNING: If the information in these
instructions is not followed exactly, a  re
or explosion may result causing property
damage, personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light the appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the  re department.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certi ed kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
Manufactured by
MILES INDUSTRIES LTD.
British Columbia, Canada
www.valor replaces.com
Installation & Operating Instructions
Do not store or use gasoline or other
 ammable vapors and liquids in the vicinity
of this or any other appliance.
Installation and service must be performed
by a quali ed installer, service agency or the
gas supplier.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
Model 534XAN (Natural Gas)
Model 534XAP (Propane)
Direct Vent Gas Fireplace Heater
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Massachusetts: The piping and  nal
gas connection must be performed by a
licensed plumber or gas  tter in the State of
Massachusetts. Also, see Carbon Monoxide
Detector requirements under “Safety and
Warning Information” on page 5.
Please read this manual BEFORE installing and operating this appliance.

2
Designed and Manufactured by / for
Miles Industries Ltd.
190 – 2255 Dollarton Highway, North Vancouver B.C., CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorreplaces.com
© Copyright Miles Industries Ltd., 2009
WARNING
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
2
Thank You ...
For purchasing a Valor by Miles Industries. Your new radiant gas heater is a technical
appliance that must be installed by a qualied dealer. Each Valor replace is fully
tested during the production process for your safety and comfort.
Your unit has been professionally installed by:
Dealer Name _______________________________________
Phone Number ______________________________________
Should you encounter an operational problem, call your dealer immediately.
Do not try to repair the unit as you may cause an injury or damage the replace.
The information contained in this installation manual is believed to be correct at
the time of printing. Miles Industries Ltd. reserves the right to change or modify any
information or specications without notice. Miles Industries Ltd. grants no warranty,
implied or stated, for the installation or maintenance of your heater, and assumes no
responsibility for any consequential damage(s).
We recommend that our gas
hearth products be installed
and serviced by professionals
who are certied in the United
States by NFI (National Fireplace
Institute®).

33
Table of Contents
Safety and Warning Information ..............................................................4
Options.......................................................................................................7

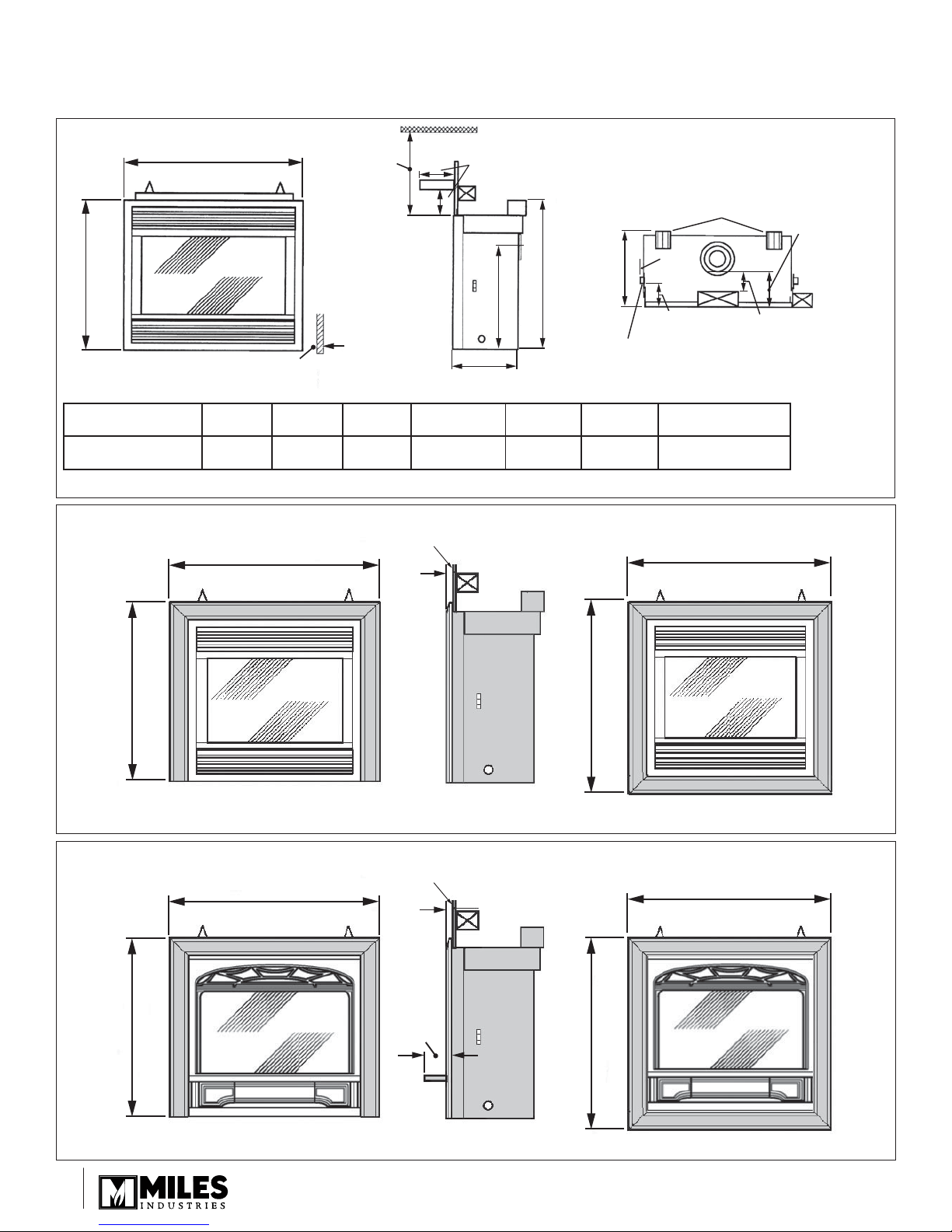

Dimensions ................................................................................................8
Specications ............................................................................................9
Location....................................................................................................10

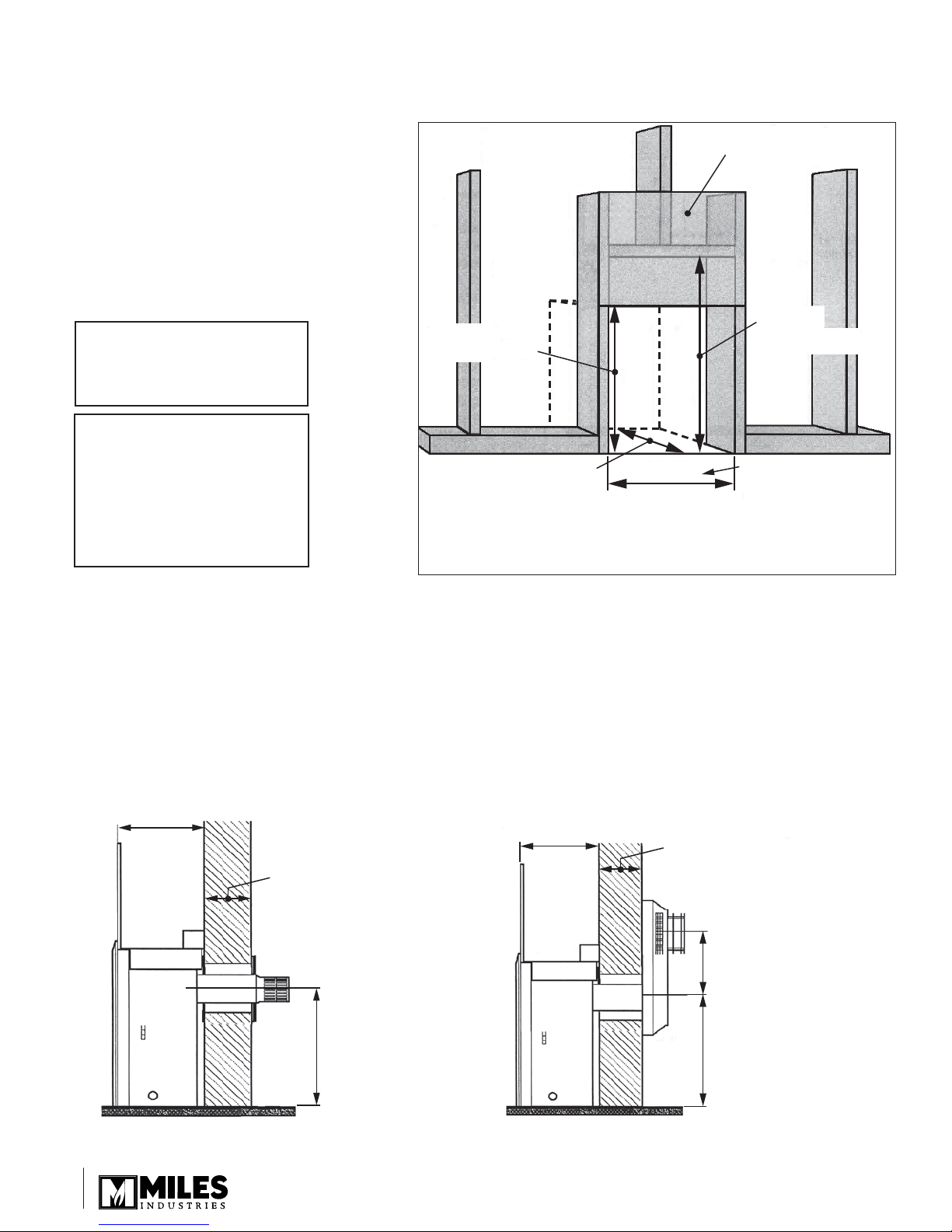

Recessed Insert Applications ................................................................17
Horizontal Termination Locations..........................................................18
Supply Gas...............................................................................................19
Pack Contents..........................................................................................19
Appliance Preparation ............................................................................21

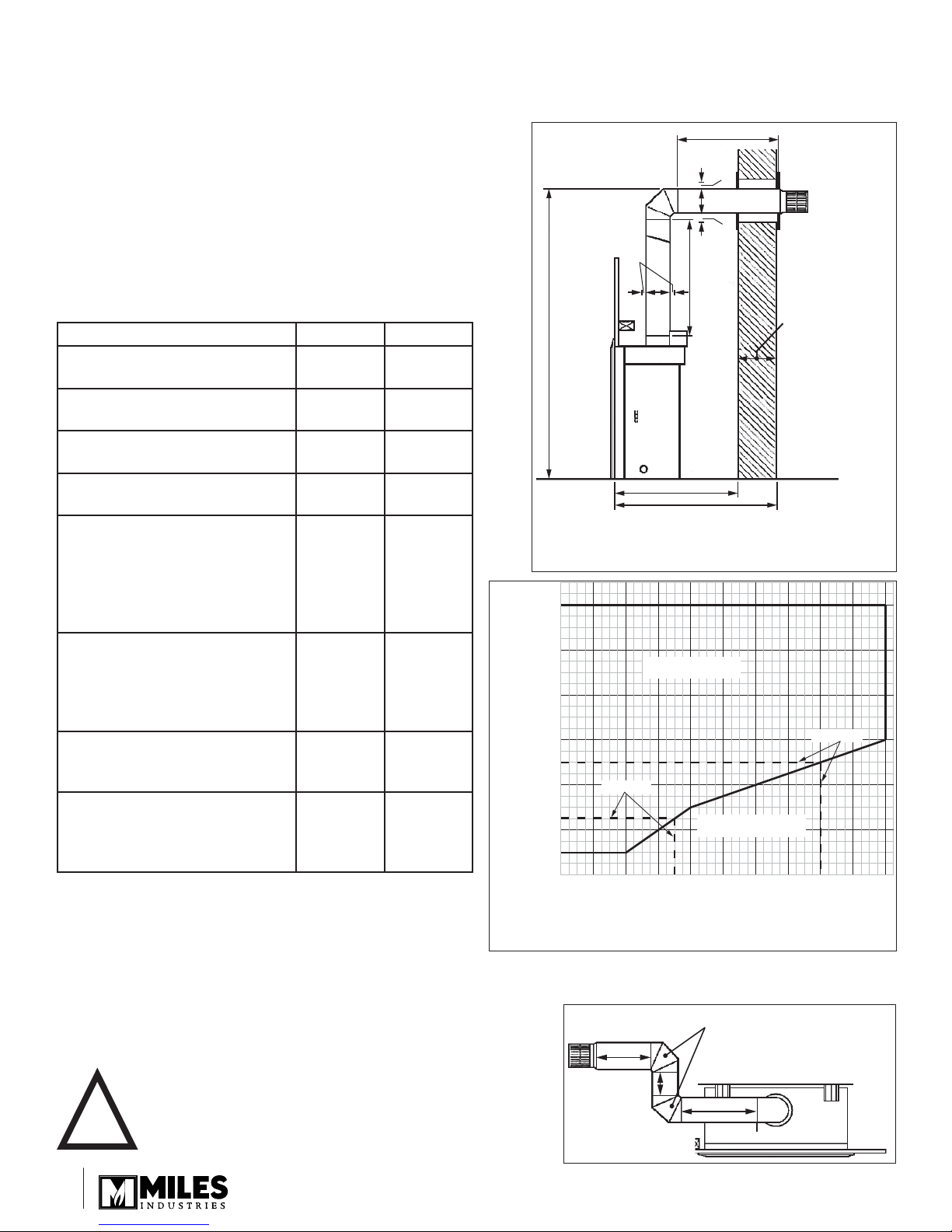

Installations with Horizontal Termination—Installing to Wall .............26

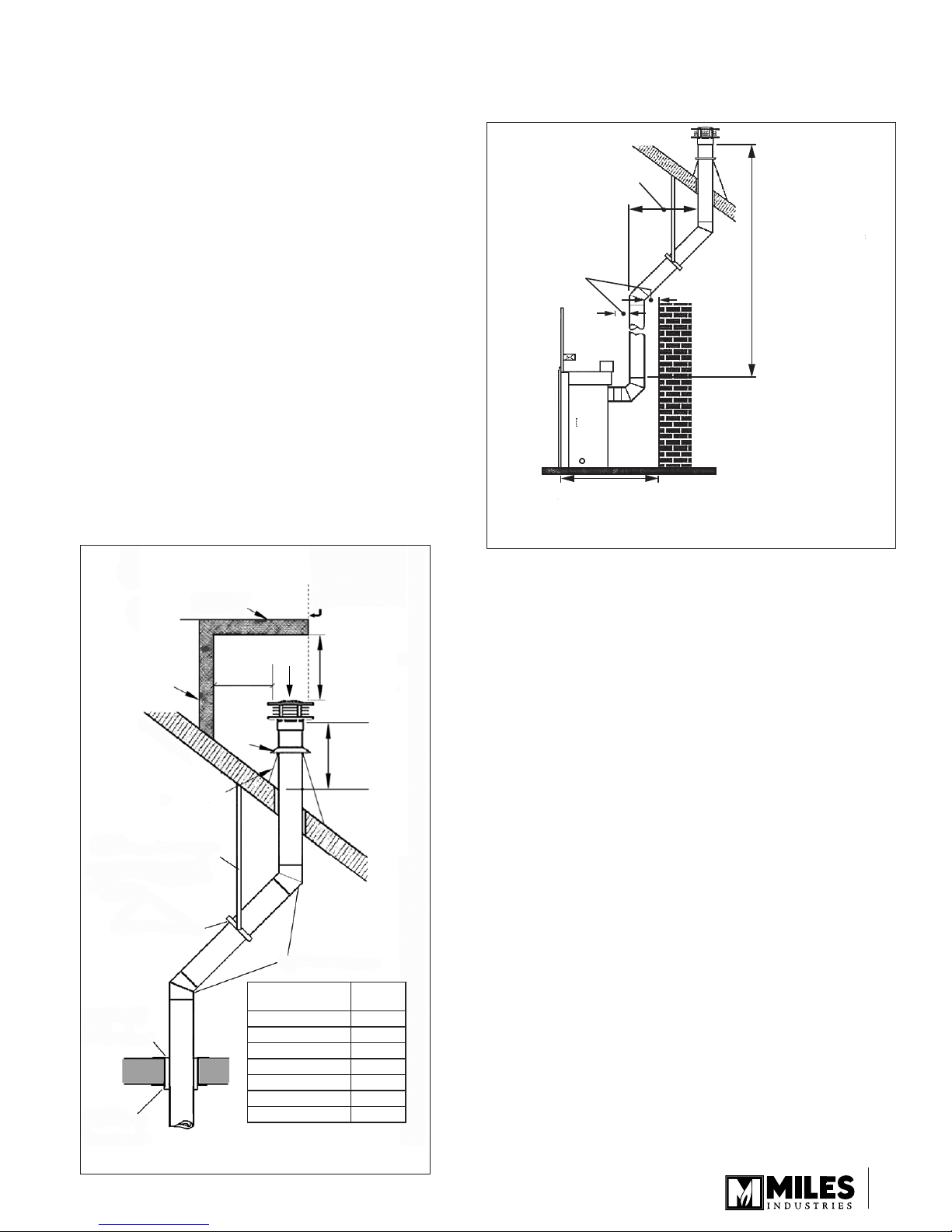

Installations with Vertical Termination—Through the Roof ................28
Remote Control Installation....................................................................29
Gas Supply Installation...........................................................................30
Aeration Setting Check...........................................................................30
Ceramic Fuel Bed Installation ................................................................31
Window Retting & Checking ................................................................32
Operation Checks....................................................................................32
Front Installation .....................................................................................33
Owner’s Information................................................................................34
Remote Control Operation......................................................................36
Lighting Instructions...............................................................................38
Approved Venting Components.............................................................39
Warranty ...................................................................................................41

44
Safety and Warning Information
Children and adults should be ALERTED to the hazards
of high surface temperature and should STAY AWAY to
avoid burns or clothing ignition. Young children should be
CAREFULLY SUPERVISED when they are in the same
room as the appliance.
DO NOT place furniture or any other combustible
household objects within 36” of the replace front.
READ and UNDERSTAND all instructions carefully before
starting the installation. FAILURE TO FOLLOW these
installation instructions may result in possible re hazard
and will void the warranty.
Prior to the rst ring of the replace, READ the Owner’s
Information section of this manual.
DO NOT USE this appliance if any part has been under
water. Immediately, CALL a qualied service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualied service person. The appliance and venting
system should be INSPECTED before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive lint
from carpeting, bedding, etc. It is IMPERATIVE that the
unit’s control compartment, burner, and circulating air
passageways BE KEPT CLEAN to provide for adequate
combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other ammable
vapors and liquids.
NEVER OBSTRUCT the ow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should be
LOCATED out of trafc areas and away from furniture and
draperies. Clothing or ammable material SHOULD NOT
BE PLACED on or near the appliance.
This unit MUST be used with a vent system as described
in this installation manual. NO OTHER vent system or
components MAY BE USED.
This gas replace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached to a
chimney serving a separate solid fuel burning appliance.
Each gas appliance MUST USE a separate vent system.
Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air ow.
The glass door assembly MUST be in place and sealed
before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door
removed, cracked, or broken. Replacement of the glass
door should be performed by a licensed or qualied
service person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced as a
complete unit, as supplied by the replace manufacturer.
NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass door
when it is hot.
TURN OFF the gas before servicing this appliance. It is
recommended that a qualied service technician perform
an appliance check-up at the beginning of each heating
season.
Any safety screen or guard removed for servicing MUST
BE REPLACED before operating this appliance.
BE CAREFUL not to put any decorating objects sensitive
to heat too close near or above the replace as it gets
very hot when operating.
DO NOT use this heater as a temporary source of heat
during construction.
Operating Your Fireplace for the First Time. When operating your new replace for the rst time, some vapors may be
released due to the burning of curing compounds used in the manufacture of the appliance. They may cause a slight odor
and could cause the ames to be the full height of the rebox, or even slightly higher, for the rst few hours of operation.
It is also possible that these vapors could set off any smoke detection alarms in the immediate vicinity. These vapors are
quite normal on new appliances. We recommend opening a window to vent the room. After a few hours use, the vapors
will have disappeared and the ames will be at their normal height.

55
State of California. Proposition 65 Warning. Fuels used in gas, wood-burning or oil red appliances, and the products
of combustion of such fuels, contain chemicals known to the State of California to cause cancer, birth defects and other
reproductive harm. California Health & Safety Code Sec. 25249.6.
State of Massachusetts Carbon Monoxide Detector/Vent Terminal Signage Requirements
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or
in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust
vent termination is less than seven (7) feet above nished grade in the area of the venting, including but not limited to
decks and porches, the following requirements shall be satised:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with
an alarm and battery back-up is installed on the oor level where the gas equipment is to be installed. In addition, the
installing plumber or gas tter shall observe that a battery operated or hard wired carbon monoxide detector with an
alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented
gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed
professionals for the installation of hard wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard
wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner
shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty
(30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the
above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a
minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas
fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not
approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA
54 as adopted by the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer
of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system
components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the
Safety and Warning Information

66
venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the
manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the ue gases, but identies “special venting systems”, the following requirements shall be satised by the
manufacturer:
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall
include a parts list and detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all
venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the
appliance or equipment at the completion of the installation.
Safety and Warning Information

77
Options
Heater engine unit #534XAN is used with all natural gas installations.
Heater engine unit #534XAP is used with all propane gas installations.
Optional features
Circulating Fan Kit #755CFK
Having variable speed and temperature control, it is designed to boost the natural convection process through the
appliance. It may be tted before the replace is installed or retrotted at a later date.
Natural Gas Conversion Kit #607NGK
For conversion from propane to natural gas. Intended primarily for post installation conversion in areas where natural gas
was not available at the time of initial installation.
Venting options
Direct vent installations (solid piping)
A list of all approved venting accessories is shown on pages 39–40 of this manual.
Direct Vent Co-Linear Installations (exible piping)
Converts the appliance outlet collars to accept two 3” dia. ex liners for installation into existing solid fuel burning
replaces and chimneys. Requires a co-linear adapter at the appliance and either a co-linear terminal or co-linear-to-co-
axial adapter and terminal at the top of the chimney. A list of approved venting accessories is shown on pages 39–40 of
this manual.

88
32-3/16” (817 mm)
29-3/4” (756 mm)
3” (75 mm) min.
To side wall from inner frame
Mantel
36”
(914 mm)
min. See table
A
B
23-1/8” (587 mm)
to rear vent center
33-1/2” (850 mm)
14”
(355 mm)
34-7/8” (887 mm)
31-1/8” (780 mm)
34-7/8” (887 mm)
32-1/2” (825 mm)
Finished wall
(See Location section-Framing)
3/4”
(19 mm)
34-7/8” (887 mm)
31-1/8” (780 mm)
34-7/8” (887 mm)
32-1/2” (825 mm)
Finished wall
(See Location section-Framing)
3/4”
(19 mm)
2-1/8”
(53 mm)
Stand-offs
7” (180 mm)
From finished
wall front
to top vent
2” (50 mm) min.
From combustible
framing to vent
Stand-offs
4-1/2”
(114 mm)
1-1/2
(38 mm)
16” (406 mm)
Dimensions
Figure 1 Major dimensions & clearances without optional trims (shows with #601SFB Front)
Figure 2 #601SFB Front with optional trims
Figure 3 #602CFB Front with optional trims
3-sided trims
4-sided trims
3-sided trims
4-sided trims
Mantel depth “A” 1”
(25 mm)
2”
(51 mm)
3”
(76 mm)
4”–5”
(102–127 mm)
6”
(152 mm)
7”
(178 mm)
8”–12” Max.
(203–305 mm) Max.
Mantel clearance “B” 7”
(178 mm)
8”
(203 mm)
9”
(229 mm)
10”
(254 mm)
11”
(279 mm)
12”
(305 mm)
14”
(356 mm)

99
Specications
Approvals & codes
These appliances are certied by ANSI Z21.88b-2008 / CSA 2.33b-2008 Vented Gas Fireplace Heater for use in Canada
and USA. These appliances are for installation directly venting through an outside wall or through the roof.
Model 534XAN is for use with natural gas.
Model 534XAP is for use with propane gas. It can be converted for use with natural gas with kit #607NGK.
These appliances comply with CGA P.4.1 Testing method for measuring annual replace efciencies.
The installation must conform with local codes or, in the absence of local codes with the National Fuel Gas Code, ANSI
Z223.1 or the Natural Gas and Propane Installation Code CAN/CGA-B149. Only qualied licensed or trained personnel
should install these appliances.
These appliances, when installed, must be electrically grounded in accordance with local codes or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1.
*Tested to CAN/CGA - 2.17 Gas red appliances for use at high altitudes. In the USA, installations may require
deration over 2000’—check local codes.
Wall Thickness
The vent system (when horizontally terminated) is approved to pass through combustible wall construction of up to
14” (36 cm) thick.
A non-combustible wall can be any thickness up to the maximum horizontal run of vent pipe allowed for the
particular installation—see Location section.
Model 534XAN 534XAP
Gas Natural Propane
Altitude (Ft.) 0-4500 *
Input Max. (Btu/h) 24,000 24,000
Input Min. (Btu/h) 6,500 13,000
Manifold pressure (in w.c..) 3.8 – 4.2 9.3 – 9.7
Min. Supply pressure (in. w.c.) 5.0 11.0
Max. Supply pressure (in. w.c.) 10.5 14.0

1010
Location
Framing
The framing dimensions are shown in Figure 4.
• A non-combustible hearth is not necessary in
front of this appliance.
• Note that the unit is installed at the framing
stage and xed to framing using support
angles. See gures 26 and 30. Wall nish is
then installed over the support angles up to
the black frame on the unit.
NOTE: If using a 612DKA or
a 613CCB front, refer to the
kit’s instruction manual for
framing dimensions.
Wall Finish
29-3/4”
to Wall Finish
33-3/4”
to header
16” min. straight
out or off the top.
Allow for elbow if
rear vent with rise.
This is the framing
width.Wall finish
to 32-3/16” wide.
35-1/2”
Figure 4 Framing
Rear Vent Connection—Flat on Wall
See gure 5.
Requires standard vent kit #551DVK only.
The horizontal vent run cannot be extended by the use of any vent accessory pipes.
Rear Vent Connection—Flat on Wall with Snorkel Termination
See gure 6.
For use on horizontal installations where the outsides ground level is too close to the standard terminal. Adapter
#817VAK, a pipe length and snorkel termination will be required. See venting accessories list on pages 39–40 for
allowable components.
16”
(41 cm)
min.
14” (36 cm) max.
combustible wall
26” (66 cm) max.
non-combustible wall
23-1/8”
(58.7 cm)
16”
(41 cm)
min.
14” (36 cm) max.
combustible wall
26” (66 cm) max.
non-combustible wall
23-1/8”
(58.7 cm)
36” (91.4 mm) or
14” (35.6 mm) rise
(See venting accessories
options at the end of this
manual)
Figure 5 Rear vent—at on wall Figure 6 Rear vent—at on wall with snorkel
When the appliance is installed
directly on carpeting, tile or
other combustible material
other than wood ooring, the
appliance shall be installed on a
metal or wood panel extending
the full width and depth of the
appliance.

1111
Minimum Maximum
A: From oor to top of vent duct 4’-3½”
(131 cm)
9’-3½”
(283 cm)
B: Frame front face to outside
wall -12’-5½” (380 cm)
C: Frame front face to inside
wall
2’-5½”
(75 cm) -
D: Vertical pipe run between
elbows
12”
(30.5 cm)
6’
(183 cm)
E1+E2: Total horizontal pipe
run including terminal pipe
but excluding adapter and
elbows -
10’
(305 cm)
with no
elbows in
horizontal
run
F: Clearance to combustible
materials above horizontal
pipe run inside building
(Outside wall shields/
thimbles)
1”
(2.5 cm) -
G: Clearance to combustible
materials below horizontal
pipe run
1-5⁄16”
(3.3 cm) -
H: Clearance to combustible
materials all round vertical
pipe run and at sides of
horizontal pipe run
2”
(5.1 cm) -
Rear Vent Connection—Vertical Vent Rise with
Horizontal Rear Termination
See gure 7.
Can be used with either #551DVK standard vent kit or
another terminal cap and accessories.
Adapter #817VAK, two 90º elbows and pipe lengths will be
required. See venting accessories list on pages 39–40 for
allowable components.
The location requirements are shown in the table and graph
below and figure 7.
For installations with a horizontal rear termination, the
combination of horizontal and vertical vent pipes must
be within the allowed area shown in Graph 1. A minimum
vertical pipe run of 12” is necessary.
Example a: If a vertical rise of 3’ is required, the horizontal run must not be more than 7’9”.
Example b: If a horizontal run of 3’6” is required, the vertical run must be at least 1’9”.
If the horizontal pipe run is redirected using a further 90° elbow, the maximum total horizontal run allowed is
reduced by 3’ to 7’. Redirection using 45° elbows reduces the maximum total horizontal run by 18” per elbow.
Rear Vent Connection—Vertical Vent Rise with Horizontal Snorkel Termination
For “semi-basement” situations where a snorkel accessory alone does not raise the termination sufciently above ground
level. The dimensional requirements in the section above, gure 7, and graph 1 apply.
Adapter #817VAK, two 90° vent elbows, pipe lengths and a snorkel termination will be required. A thimble kit may also be
necessary. See venting accessories list on pages 39–40 for allowable components.
14” (36 cm) max.
combustible wall
A
B
C
D
E1
E2
F
G
H
1
02 3 4 5 6
1
2
3
4
5
6
7 8 9 10
FORBIDDEN VENT PIPE
COMBINATIONS
Example b
Example a
ALLOWED VENT PIPE
COMBINATIONS
Maximum Horizontal Run (Ft) (E1+ E2in Fig. 7)
Vertical
Rise (Ft)
(D in Fig. 7)
Figure 7 Rear vent—Vertical rise, rear termination
Location
Graph 1

1212
Location
Rear Vent Connection—Corner Location,
Horizontal Vent Run ONLY
See gure 8.
Can be used with either #551DVK standard vent kit or
another terminal cap and accessories. Adapter #817VAK
and 45° elbow will be required. See venting accessories list
on pages 39–40 for allowable components.
Rear Vent Connection—Corner Location,
Vertical Rise, Horizontal Termination
See gure 9.
Can be used with either #551DVK standard vent kit or
another terminal cap and accessories. Adapter #817VAK,
two 90° elbows and pipe lengths will be required. See
venting accessories list on pages 39–40 for allowable
components.
All the vent pipe dimensional limits are as section Rear
Vent Connection—Vertical Vent Rise with Horizontal Rear
Termination.
Rear Vent Connection—Vertical Rise, through
the Roof Termination
See gure 10.
Adapter #817VAK, one 90° vent elbow, pipe lengths, a vertical vent terminal and roof ashing will be required. Various
other ceiling or roof items may be necessary depending on the particular installation. See venting accessories list on
pages 39–40 for allowable components.
Note
1. The distance from the roof to the lowest terminal discharge opening depends on the roof pitch and must be in
accordance with the manufacturer’s instructions supplied with the termination unit.
2. The venting system for these appliances is considered to be a Special Venting System. The rule in the Natural Gas
and Propane Installation Code CAN/CGA-B149 requiring a minimum vent height of 2’ above any portion of a building
within 10’ does not, therefore, apply.
45-1/2” (115.5 cm) min. 15” (38 cm)
max. pipe
8-1/8”
(20.6 cm)
min.
45-1/2” (115.5 cm) min.
1-1/2”
(38 mm)
min.
clearance
64-5/16” (163.3 cm) min.
9-1/2” (24 cm) max. combustible
or non-combustible wall
Figure 8 Rear vent connection—Corner location,
horizontal vent run
Figure 9 Rear vent connection—Corner location, vertical
rise, horizontal vent run
Figure 10 Rear vent connection—Through the roof
termination
45-1/2” (115.5 cm) min.
6-3/8”
(16.2 cm)
min.
45-1/2” (115.5 cm) min.
1-1/2”
(38 mm)
min.
clearance
64-5/16” (163.3 cm) min.
14” (36 cm) max.
combustible wall
40’ (12.2 m) max.
10’ (3.05 m) min.
5-9/16” (142 mm) min.
from hole
center
to back
wall
2” (51 mm) min.
clearance to
combustible
materials
all round
28-5/8” (72.7 cm) min.

1313
Location
Rear Vent Connection—Vertical Rise with
Offset, through the Roof Termination
See gure 11.
For situations where offset is necessary in an attic to avoid
obstructions or allow useful space.
Adapter #817VAK, one 90° vent elbow, two 45° vent elbows,
pipe lengths, a vertical vent terminal and roof ashing will
be required. Various other ceiling or roof items may be
necessary depending on the particular installation. See
venting accessories list on pages 39–40 for allowable
components.
Note
1. The distance from the roof to the lowest terminal
discharge opening depends on the roof pitch and must
be in accordance with the manufacturer’s instructions
supplied with the termination unit.
2. The venting system for these appliances is considered
to be a Special Venting System. The rule in the Natural
Gas and Propane Installation Code CAN/CGA-B149
requiring a minimum vent height of 2’ above any portion
of a building within 10’ does not, therefore, apply. See
gure 11a.
40’ (12.2 m) max.
12’ (3.66 m) min.
2” (51 mm) min.
clearance to
combustible
materials
all round
4’6” (1.37 m) max.
28-5/8” (72.7 cm) min.
Figure 11 Rear vent connection—Vertical rise with offset,
through the roof termination
‘H’
Horizontal
overhang
Vertical
wall
Termination
cap
Storm
collar
Roof
flashing
Plumber’s tape
fixed to wall strap
Wall strap
Ceiling
firestop
Ceiling
support
Offset elbows
Min.
18”
Overhang should
not extend beyond
vent if within 48”of
termination cap
Min. 24”
(unvented soffit)
Min. 36”
(vented soffit)
Roof Pitch Minimum
‘H’ (feet)
Flat to 7/12 1’
Over 7/12 to 8/12 1.5’
Over 8/12 to 9/12 2’
Over 9/12 to 10/12 2.5’
Over 10/12 to 11/12 3.25’
Over 11/12 to 12/12 4’
Over 12/12 to 14/12 5’
Figure 11a

1414
Minimum Maximum
A: From oor to top of vent duct 3’-7 9⁄16”
(111 cm)
9’-1 9⁄16”
(278 cm)
B: Frame front face to outside
wall -11’4” (345 cm)
C: Frame front face to inside
wall
16”
(40.6 cm) -
D: Vertical pipe run between
elbows
6”
(15.2 cm)
6’
(183 cm)
E: Total horizontal pipe run from
elbow (including terminal
pipe) -
10’
(305 cm)
with no
elbow in
horizontal
run
F: Clearance to combustible
materials above horizontal
pipe run inside building
(Outside wall shields/
thimbles)
1”
(2.5 cm) -
G: Clearance to combustible
materials below horizontal
pipe run
1-5⁄16”
(3.3 cm) -
H: Clearance to combustible
materials all round vertical
pipe run and at sides of
horizontal pipe run
2”
(5.1 cm) -
Top Vent Connection—Horizontal Rear
Termination
See gure 12.
Can be used with either #551DVK standard vent kit or
another terminal cap and accessories.
Adapter #817VAK, one 90º vent elbow and pipe lengths will
be required. See venting accessories list on pages 39–40 for
allowable components.
The location requirements are shown in the table and graph
below and figure 12.
14” (36 cm) max.
combustible wall
A
B
C
D
E
F
G
H
1
02 3 4 5 6
1
2
3
4
5
6
7 8 9 10
FORBIDDEN VENT PIPE
COMBINATIONS
Example b
Example a
ALLOWED VENT PIPE
COMBINATIONS
Maximum Horizontal Run (Ft) (E in Fig. 12)
Vertical
Rise (Ft)
(D in Fig. 12)
Figure 12
Graph 2
For installations with a horizontal rear termination, the
combination of horizontal and vertical vent pipes must
be within the allowed area shown in Graph 2. A minimum
vertical pipe run of 6” is necessary.
Example a: If a vertical rise of 2’6” is required, the horizontal
run must not be more than 8’.
Example b: If a horizontal run of 3’6” is required, the vertical
run must be at least 1’3”.
The horizontal vent pipe run may be redirected by using
elbows up to a total of 180° but the maximum horizontal
run (E in gure 7 & graph 1) is reduced by 18” for every
45°. For example, if two 90° elbows are used as in
gure 13, the maximum horizontal run is reduced by 3’
per elbow—total reduction = 6’.
Max. Horizontal run (A + B + C)
reduced by 3’per elbow
C
A
B
Figure 13
!
Location

1515
Top Vent Connection—Horizontal Side
Termination
The vent pipe dimensional requirements in section
Top Vent Connection—Horizontal Rear Termination
apply.
The minimum oor location is shown in gure 14.
Can be used with either #551DVK standard vent kit
or another terminal cap and accessories. Adapter
#817VAK, one 90° vent elbow and pipe lengths will
be required. See venting accessories list on pages
39–40 for allowable components.
Top Vent Connection—Horizontal Side or
Rear Snorkel Termination
The vent pipe dimensional requirements in sections
Top Vent Connection—Horizontal Rear Termination
and Top Vent Connection—Horizontal Side
Termination apply.
Adapter #817VAK, one 90° vent elbow, a snorkel
termination and pipe lengths will be required. A
thimble kit may also be necessary. See venting
accessories list on pages 39–40 for allowable
components.
Top Vent Connection—Corner Location,
Horizontal Termination, 45° Pipe Run
The vent pipe dimensional requirements in section
Top Vent Connection—Horizontal Rear Termination
apply.
The minimum corner location is shown in gure 15.
Can be used with either #551DVK standard vent kit
or another terminal cap and accessories. Adapter
#817VAK, one 90° vent elbow and pipe lengths will
be required. See venting accessories list on pages
39–40 for allowable components.
6-1/8” (156 mm)
min.
to hole center
14” (36 cm)
max.
combustible
wall
16-1/2”
(42 cm)
min.
Figure 14
1-1/2” (38 mm) min.
clearance
1-1/2” (38 mm) min.
clearance
14” (36 cm) max.
combustible
wall
45-7/8”
(117 cm)
min.
10-7/8”
(276 mm)
min.
45-7/8” (117 cm) min.
64-3/8” (164 cm) min.
Figure 15
Location

1616
Top Vent Connection—Through the Roof
Termination*
See gure 16.
Adapter #817VAK, pipe lengths, a vertical vent terminal
and roof ashing will be required. Various other ceiling or
roof items may be necessary depending on the particular
installation. See venting accessories list on pages 39–40 for
allowable components.
Top Vent Connection—Offset and Through the
Roof Termination*
See gure 17.
For situations where offset is necessary in an attic to avoid
obstructions or allow useful space.
Adapter #817VAK, two 45° vent elbows, wall straps, pipe
lengths, a vertical vent terminal and roof ashing will
be required. Various other ceiling or roof items may be
necessary depending on the particular installation. See
venting accessories list on pages 39–40 for allowable
components.
*Note
1. The distance from the roof to the lowest terminal
discharge opening depends on the roof pitch and must
be in accordance with the manufacturer’s instructions
supplied with the termination unit.
2. The venting system for these appliances is considered
to be a Special Venting System. The rule in the Natural
Gas and Propane Installation Code CAN/CGA-B149
requiring a minimum vent height of 2’ above any portion
of a building within 10’ does not, therefore, apply. See
gure 17a.
‘H’
Horizontal
overhang
Vertical
wall
Termination
cap
Storm
collar
Roof
flashing
Plumber’s tape
fixed to wall strap
Wall strap
Ceiling
firestop
Ceiling
support
Offset elbows
Min.
18”
Overhang should
not extend beyond
vent if within 48”of
termination cap
Min. 24”
(unvented soffit)
Min. 36”
(vented soffit)
Roof Pitch Minimum
‘H’ (feet)
Flat to 7/12 1’
Over 7/12 to 8/12 1.5’
Over 8/12 to 9/12 2’
Over 9/12 to 10/12 2.5’
Over 10/12 to 11/12 3.25’
Over 11/12 to 12/12 4’
Over 12/12 to 14/12 5’
Figure 17a
40’ (12.2 m) max.
10’ (3.05 m) min.
5-9/16” (142 mm)
min.
from hole
center
to back
wall
2” (51 mm) min.
clearance to
combustible
materials
all round
16”
(41 cm)
min.
Figure 16
Figure 17
4’6” (1.37 m)
max.
40’ (12.2 m) max.
12’ (3.66 m) min.
2” (51 mm) min.
clearance to
combustible
materials
all round
16”
(41 cm)
min.
Location

1717
Rear or Top Outlet Conversion to Co-Linear
Liners using Valor #556CLA Co-Linear Adapter.
(Generic co-axial to co-linear adapter boxes may
also be used as an alternate to the 556CLA).
Only for use when retrotting a solid-fuel burning replace
and chimney.
The appliance must not be connected to a chimney ue
serving a separate solid-fuel burning appliance.
Requires #556CLA Co-Axial to Co-Linear Appliance Adapter
(or, alternatively, a generic adapter), two lengths of 3” dia.
exible chimney liner, co-linear termination kit and ashing
and either high wind vertical vent terminal cap or a low
prole vertical termination. Zero Clearance stand-offs and
shields supplied with the heater are not required for this
application.
Flashing
2 x 3”
liners
3”min.
bend radius
Co-linear
adapter
2 x 3”
liners
18”max.
horizontal run
Co-linear
adapter
534
engine
Approved co-linear
termination or approved
co-linear adapter
and approved
co-axial
termination
Recessed Insert Applications
Co-Axial to Co-Linear Adapter
(alternate to
#556CLA)
10”
10”
3” Inlet & Exhaust
Collars
7-5/8” dia.
collar
556CLA
2 x 3”Liners 556CLA
2 x 3”Liners
556CLA
Rear Mounted
556CLA
Top Mounted
Alternate to 559CLT/559FSK Conversion
559FSK Flashing Kit559CLT Co-Linear Terminal
Co-Linear installation into existing F/P
556CLA Kit
Terminal Cap
Co-Linear to Co-Axial
Adapter
Flashing

1818
Vent Location
• The vent terminal must be located on an outside wall or through the roof.
• This direct vent appliance is designed to operate when an undisturbed airow hits the outside vent terminal from any
direction.
• The minimum clearances from this terminal that must be maintained when located on an outside wall are shown in
gure below. Any reduction in these clearances could result in a disruption of the airow or a safety hazard. Local
codes or regulations may require greater clearances.
• The vent terminal must not be recessed into a wall or siding.
• The vent terminal should be positioned where any snowdrifts will not cover it.
• Sidewall vent terminations within 7’ of grade require a terminal guard when
used with a 551DVK.
Horizontal Termination Locations
KEY VENT TERMINAL LOCATIONS - MINIMUM DISTANCES MINIMUM
CLEARANCE
Inches Cm
AClearance above grade, verandah, porch, deck or balcony 12 30
BClearance to window or door that may be opened 12 30
CClearance to permanently closed window (recommended to prevent condensation on window) 12 30
DVertical clearance to ventilated soft located above the terminal within a horizontal distance of
2 feet (60 cm) from the center-line of the terminal
18 46
E Clearance to unventilated soft 12 30
F Clearance to outside corner 12 30
G Clearance to inside corner 12 30
H Horizontal clearance to center-line of meter/regulator assembly located within 15 feet (4,6 m)
below the terminal
36 90
I Clearance to service regulator vent outlet 36 90
JClearance to non-mechanical air supply inlet to the building or the combustion air inlet to any
other appliance
12 30
KClearance to a mechanical air supply inlet 72 180
LClearance above paved sidewalk or a paved driveway located on public property
Note: A vent must not terminate directly above a sidewalk or paved driveway, which is located
between two single-family dwellings and serves both dwellings
84 210
MClearance under a verandah, porch, deck or balcony
Only permitted if veranda, porch, deck or balcony is fully open on a minimum of 2 sides
beneath the oor
12 30
Note: Local codes and regulations may require different clearances.
V
G
A
Min. 72”
Max. 72”
Alcove detail
(open on one
side) Normal
ceiling/soft
clearances
apply.
Figure 18

1919
Supply Gas
Heater engine unit #534XAN is used with all natural gas installations.
Heater engine unit #534XAP is used with all propane gas installations.
The supply pressure must be between the limits shown in the section Specications of this manual.
The supply connection is ⅜” NPT.
The opening for the gas supply line is at the rear left corner of the appliance.
Pack Contents
See gure 19
#534XAN or #534XAP Engine Unit
1 Appliance engine unit tted with window
1 Ceramic ash bed
5 Ceramic logs
1 Firebox ceramic rear wall
2 Firebox ceramic sidewalls
1 Port cover
2 Frame side xing brackets
1 Ash bed rear support
2 Restrictor plates type “A”
2 Restrictor plates type “B”
2 Restrictor plates type “C”
1 Gas inlet pipe connection adapter
1 Top heat shield panel with blanking plate
1 Frame top support angle
2 Stand-off brackets
2 Screws for wall switch plate
4 Screws for frame side xing brackets
2 Screws for top heat shield panel
3 Screws for frame top support angle
6 Screws for stand-off brackets
2 Screws for vent xing
4 Wood screws for xing appliance to studding
1 Deluxe remote control
#601SFB Standard Metal Front (alternative)
1 Upper louver unit
1 Lower louver unit
2 Side channels
2 Hinge studs
2 Hinge spacers
2 Magnet counter plates
#602CFB Cast Iron Front (alternative)
1 Top casting unit
1 Bottom casting unit
#551DVK Standard Horizontal Through-the-
Wall Vent Kit (alternative to other kit)
1 Vent pipe & terminal unit
2 Wall plates
2 Wall shields (supplied at)
12 Thread cutting screws
1 Styrofoam cutting support
8 Wood screws
8 Wall plugs
#755CFK Circulating Fan Kit (additional option)
Details are with the kit.
#603FSK Black or #604FSK Champagne
Three-Sided Trims (additional option)
1 Top trim
2 Side trims
2 Trim xing brackets
2 Corner connection plates
8 Grub screws for corner connections
10 Screws for side trims & engine attachment
#605FSK Black or #606FSK Champagne Four-
Sided Trims (additional option)
2 Top & bottom trims
2 Side trims
2 Trim xing brackets
4 Corner connection plates
16 Grub screws for corner connections
10 Screws for side trims & engine attachment
Take care when removing the contents from the packaging to prevent damage. Check that all the contents are in the
packs and are undamaged.

2020
Pack Contents
Ceramic Walls
Ceramic Logs
Gas Inlet
Adaptor
Stand-off
Brackets
Screw
Pack
Top Heat Shield Panel
Type“C” Type “B”
Type“A”
Ash Bed
Support
Port Cover
Appliance Engine
Frame Side
Fixing Brackets
Frame Top
Support Angle
Side Channels
Upper
Louver
Lower
Louver
Hinge
Spacers
Magnet
Counterplates
Hinge
Studs
Top Casting
Bottom Casting
Styrofoam Support
Vent Pipe
& Terminal
12 Thread-cutting
Screws Wall Shields
Wall Plates
8 Wall Plugs
8 Wood Screws
Top Trim
Side Trims
Screw
Pack
Corner
Connection
Plates
Trim
Fixing
Brackets
Side Trims
Top Trim
Screw
Pack
Corner
Connection
Plates
Trim
Fixing
Brackets
535XAN/XAP Engine Pack
601SFB
551DVK
602CFB
603FSK & 604FSK
605FSK & 606FSK
Restrictor Plates
Figure 19 Pack contents
