Valsi GT140MG2200RV User manual

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
2
SPECIFICATIONS

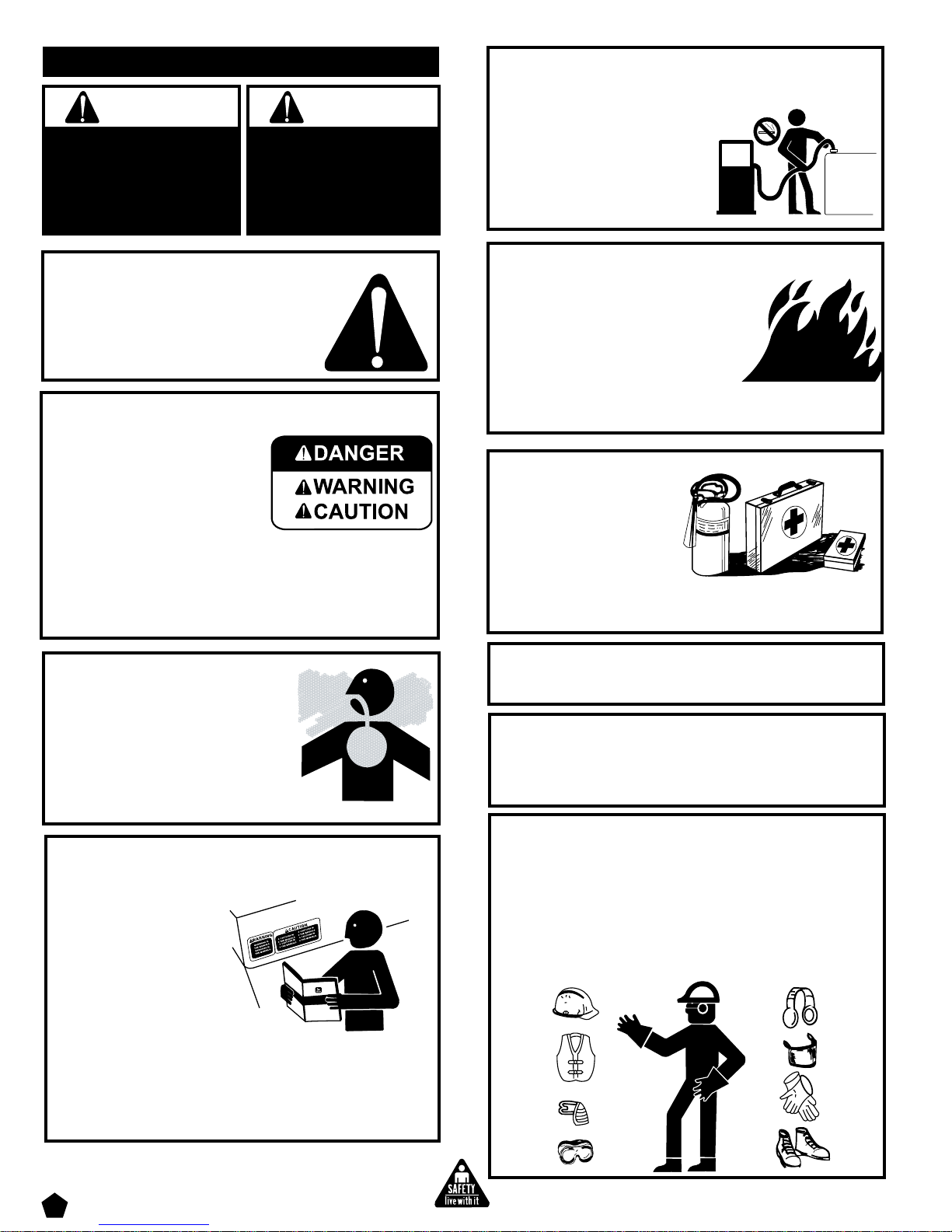

SAFETY AND OPERATION RULES
1
2
3
4
5
6
7
8
9
10
Read carefully and understand operator manual before
operate this product. Read and understand engine manual
prior to operation. Follow all warnings and instructions.
Knowyourequipment. Consider theapplications, limitations
and the potential hazards specific to your unit.
Equipment must be placed on a firm, supporting surface.
Load must be kept within rating stated on generator
nameplate. Overloading will damage the unit or shorten
its life.
Engine not to be run at excessive speeds. To operate an
engineatexcessivespeedsincreasesthehazardofpersonal
injury. Do not tamper with parts which may increase or
decrease the governed speed.
SAFETY INFORMATION
DANGER indicates a
potentially hazardous situation
which, if not avoided, WILL
result in death or serious injury.
WARNING indicates a
potentially hazardous situation
which if not avoided could result
in death or serious injury.
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate personal injury, or
property damage.
DANGER WARNING CAUTION
To prevent accidental starting, always remove the
spark plug or cable from the spark plug before
maintaining the generator or engine.
Units with broken or missing parts, or without
protective housing or covers, should never be
operated.Contactyourservicecenterforreplacement
parts.
Units should be not operated or stored in wet or
damp conditions or highly conductive locations
such as metal decking and steel work.
Keep the generator clean and free of oil and other
foreign matter.
Extension cords, power cords, and all
electrical equipment must be in good
conditions. Never operate electrical
equipment with damaged or defective
cords.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 3
11
12
13
15
16
17
18
19
20
21
22
23
24
14
DANGER-CARBON MONOXIDE HAZARD;
the engine exhaust contains carbon
monoxide,a poisonous odorless, invisible
gas which, if breathed, may cause death or
serious personal injury. If you start to feel sick, dizzy
or weak while using the generator, shut it off and get
tofreshair rightaway;you mayhave carbonmonoxide
poisoning.
b.Goodventilationforcooling.Airflowandtemperatures
areimportantforaircooledunits.Temperaturesshould
not exceed 104ºF ambient (40ºC).
c.Refuelthegeneratorina welllightedarea.Avoidfuel
spills and never refuel while the generator is running.
Allow engine to cool for two minute prior to refueling.
d. Do not refuel near open flames, pilot lights, or
sparking electrical equipment such a power tools,
welders and grinders.
e. The muffler and cleaner must be installed and kept
in good condition at all times as they function as flame
arrest if backfiring occurs.
f. Do not smoke near the generator.
Ensure that generator is properly grounded (see
Grounding the Generator section in this manual).
Donot wear looseclothing jewelry, or anything
that maybe caught in the alternator. Or other
rotating parts.
Unit must reach operating speed before electrical
loads are connected. Disconnect loads before turning
off engine.
To prevent surging that may possibly damage
equipment do not allow engine to run out of fuel when
electrical loads are applied.
When powering solid state equipment, a Power Line
conditionershould beusedtopreventpossibledamage
to the equipment.
Do not stick anything through ventilating slots, even
when the generator is not operating. This can damage
the generator or cause personal injury.
Before transporting the generator in a vehicle, drain all
fuel to prevent leakage that may occur.
NOISE CAUTIONS
Thegeneratorcanproducehighnoiselevels.Prolonged
exposure to noise levels above 85 dBA is a hazard to
hearing. Always wear ear protection when operating or
working around the generator when it is running.
Store the generator in a well ventilated area
withthefueltankempty.Fuelshallnotbestored
near the generator.
Your generator should never be operated under these
conditions:
• Uncontrolled change in engine speed.
• Electrical output loss.
• Overheating in connected equipment.
• Sparking
• Damaged receptacles
• Engine starting failure
• Excessive vibration
• Flame or smoke.
• Enclosed compartment.
• Rain or inclement weather. Do not let the unit get wet
when operating.
Check the fuel system periodically for leaks or signs of
deteriorations, such as chafed or spongy hose, loose
or missing clamps, or damaged tank or cap.All defects
should be corrected before operation.
Thegeneratorshouldbeoperatedserviced,andrefueled
under the follow Conditions:
a. Start and run the generator outdoors. Do not run the
generatorin anenclosedarea,evenifdoors or windows
are open; avoid areas where vapors may be trapped,
such as pits, garages, cellars, excavations, etc.
To avoid burns, do not touch engine muffler or other
engine or generator surfaces which became hot during
operation.
Do not alter or modify the heat shield.
DEFINING TOTAL WATTAGE
1
2
3
4
5
6
7
In order to prevent overloading and possible damage to
your generator it is necessary to know total wattage
of the connected load. To determine which load and or
appliances your generator will run follow these steps.
Check wattage requirements by referring to the loads
nameplateorbycalculatingit(multiplyampsxvolts=watts).
You can get help for calculation using the Table 1
Total the watts for each item. If the nameplate only give
volts and amps, multiply volts x amps = watts. 1 kW =
1,000 watts.
Motorized appliances or tools require more than their
rated wattage for start up.
NOTE:Allow 2½to4timesthelisted wattageforstarting
equipment powered by electric motors.
The generator’s rated watts should match or exceed
the total number of watts required for the equipment
you want to run.
Thealtitudeandtemperaturecanmodify thegenerator’s
ratings. Use the Table 2 to calculate the generator’s
rating,multiplythefactorxratedoutputinthegenerator’s
specs when the condition is not at 21ºC at the sea
level.
Always connect first to the generator the heaviest load,
and then add other items one at a time.
Use proper lifting techniques when transporting the
generator from site to site. Improper lifting techniques
may result in personal injury.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
4
INSTALLATION
BEFORE OPERATION
1
1
2
3
4
5
WARNING
WARNING : To avoid possible personal
injury or equipment damage, a register
electrician or an authorized service
representative should perform installation
and all service. Under no circumstances
should an unqualified person attempt to wire into
utility circuit.
Give the generator at least two feet of space from
any nearby wall to dissipate heat.
WARNING
WARNING: do not use a pipe carrying
combustible material as the ground
source.
WARNING
WARNING: To avoidbackfeeding intoutility
system, isolation of the residence electrical
system is required. Before temporary
connection of a generator to the residence
electrical system turn off the main switch.
Before making permanent connections a double
throw transfer switch must be installed. To avoid
electrocution or property damage, only a trained
electrician should connect generator to residence
electrical system. California law requires isolation
oftheresidenceelectricalsystembeforeconnecting
generator to residence electrical system.
A power line conditioner should be used when running
one or more of the following solid state items:
• Garage door openers.
• Kitchen appliances with digital displays.
• Televisions.
• Stereos.
• Personal computers.
• Quartz clocks.
• Copy machines
• Telephone equipment
Other solid state equipment may require a power line
conditioner, for more information contact customer
service.
To avoid back feeding into utility systems, isolation of
the residence electrical system is required.
Before temporary connection of the generator to the
residencesystem,turnoffthemainservicedisconnecting
device.
If your generator is to be used as a stand – by power
source in case of utility power failure, it should be
installed by a registered electrician and in compliance
with all applicable local electrical codes.
Proper use requires that a double throw transfer switch
be installed by licensed qualified electrician so that the
building’s electrical circuits may be safely switched
between utility power and the generator output; thereby
preventing back feed into the power utility’s electrical
system.
Always follow local codes and regulations that apply to
the installation of any item that concerns this product.
1. NFPA 70 – National Electrical Code.
2. NFPA 37 – Standard for Installation and Use of
Stationary Combustible Engines.
3.Agricultural Wiringhandbook ofFarm StandbyElectric Power.
GROUNDING THE GENERATOR
The National Electric Code requires that this product be
properly connected to appropriate earth ground to help
prevent electric shock. A ground terminal connected
to the frame of the generator has been provided for
this purpose. Connect a length of a heavy gauge (12
AWG min.) bare cooper cable between the ground lug
attached to the generator´s frame (identified with a label
with the ground symbol- see figure below) and a cooper
rod drawn 1 meter into the ground which should provide
a suitable ground connection. However, consult with
a local electrician to insure that local codes are being
adhered to.
OPERATION VOLTAGE
CAUTION
C A U T I O N : Operating voltage and frequency
requirements of all electronic equipment should
be checked prior plugging them into this
generator. Damage may result if the equipment
is not designed to operate within +/- 10% of voltage
and +/- 3 Hz of the rated values marked in the
generator´s nameplate. To avoid damage, always
have an additional no solid state load plugged into
the generator if only solid state equipment (such as
a television set) is used. Apower line conditioner is
recommended for some solid state applications.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 5
5-20P L21-30P
2
3
Generator Ground Terminal
LUBRICATION
DO NOT attempt to start the engine without filling the
engine crankcase with the proper amount and type of
oil. Use SAE 30 oil.
Yourgeneratorhasbeenshippedfromthefactorywithout
oilintheenginecrankcase.Operatingtheunitwithout oil
can damage the engine and lose the warranty.
Fill the engine according to the engine manual. In this
engine the plastic plug of the engine crankcase is the oil
fill and check plug.Fill with oil and check the level using
the marks settings in the dipstick.
LOW OIL SENSOR
The engine is equipped with an oil sensor. If the oil level
becomes lower than required, the sensor will activate
a warning device and stop the engine (see the
accompanying engine manual for more information).
If the generator turns off and the oil level is within
specifications, check that the generator is not placed at
an angle that forces the oil level to change. Place the
generator in an even area to correct this problem. If the
engine doesn’t start, the oil level could not be enough
to shut off the automatic “low oil” swith. Make sure the
oil cap is in the correct level.
FUEL
Fill the tank with unleaded fuel, clean and new. You can
use regular-grade fuel as long as it has a high octane
value (at least 85 octane). Always use a fuel additive.
A fuel additive will minimize the development of fuel
gum deposits during storage. The fuel additive can be
added to the fuel int the gas tank or put toguether to the
fuel in a storage container. The fuel and engine smoke
are flammable and potentially explosive. Use a suitable
procedure to store and handle fuel. Always have ABC
fire extinguisher nearby.
ELECTRIC EXTENSIONS OR CORDS
All generator loads will be connected from the control
panel with extensions or cords with 3-prong grounded
plug for connection to 127 volts outlet and 5-prong
grounded plug for connection to 127/220 volts outlet.
See Table 3 for select the minimum cable gauge of
extensions or cords in agreement with the necessities
of the loads.
Whentheloadincreasesmustbeusedacableextension
of greater size. Using extensions of inadequate size it is
inwhere canresult inserious problemswith thevoltage,
reducing the electric energy applied to the tools and
causing damage on them.
Asfarassmalleristhenumberofthewiregaugegreater
is the conduction capacity, an example is that A wire
gauge 14 for example can lead a current higher than a
wire gauge16.
When several extensions are connected it is a must to
review that each extension is of the minimum gauge
required.
If you need to use an extension with outlets to connect
more than one electric tool, sum the amperes marked in
the nameplates of each tool to determine the minimum
cord gauge you need to use.
Theextensionsfor127voltsaremadeof3cableswhere
the green cable is the grounding one, the white cable is
the neutral and the black cable is the hot wire.
1
2
3
4
5
6
7
Connect a bare # 12 AWG copper
cable from the ground terminal to
an earth grounding point
4
CAUTION
Do not overfill the tank.
Keep maximum fuel level
to ¼ inch below the top of
the tank. This will allow for
expansion during warm weather,
and so, avoiding spillage.
8The extensions for exits of 127/220 are made of 5 cables
wherethegreencableisthegroundingone,thewhitecable
is the neutral and the yellow cables are the hot wires.
UNPACKING
When umpacking check to make sure that all parts are
included. Refer to the General Assembly Drawing and
Parts List at the end of this manual.
If any parts are missing or broken, please call our
distributor.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
6
BATTERY INSTALLATION
3
4
5
1
2
CAUTION
Before installing the battery, remove the key from
the Control Panel of your generator.
Setthebattery holderon theframeandsecureitwiththe
screw, washer and nut as shown in the drawing.
Place the battery on the battery holder.
Secure the battery using the brackets attach on the
battery holder.
Identifytheredandblackwireswithpositiveandnegative
electrodes of the battery.
Connect the red wire to the positive terminal of the
battery and the black wire to the negative terminal.
(See Fig.
Handlethebatterycarefullyasitcontainshighlycorrosive
acidandcancauseburns.Never connectthe redwireto
black, this can cause damage to physical integrity and
the equipment.
ENGINE CONTROLS
The ligth must be turn off when
the engine is running.
Choke
Fuel valve
Key switch and oil pressure
indicator light
ASSEMBLY INSTRUCTIONS
Beforestartingyourgenerator, youmustinstallthe following
components: Handles,wheelkit,andbatteryholder(battery
is not included).
HANDLE INSTALLATION
1
2
3
4
6
5
Unpack and inspect all parts to see if there are not
missing or defective parts.
Find the 2 handles, the bolts and the pins.
Attach the handle to the frame using the holes to set
the handles.
Insert the bolt to hold the handle to the frame.
Set the pin in the bolt hole.
Repeat operations 3, 4 and 5 for the next handle
WHEEL INSTALLATION
1
2
3
Beforemountingthewheels,makesuretheyareinflated
to a pressure between 15 psi and 20 psi, not exceeding
24 psi, as this could cause damage to you.
Insert the shaft to the base through the hubs of the
frame.
Support the generator in blocks of wood to a sufficient
heightthat allowsthe assemblyof therim andplace the
spacing rings on both sides.
Insert both wheels on the axle and secure with pins.
4
FRONT SUPPORT INSTALLATION
1
2
Place the generator, without tires on wooden blocks,
allowing a place to install the front support.
Attachthefrontsupporttotheframewithscrewsprovided
and tighten securely, as shown in the drawing.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 7
GENERATOR SET UP AND CABLE
CONNECTIONS
1
1
2
2
3
3
4
Place the generator outdoors where it will be used. This
must be a flat surface. and far from flamables materials.
Do not allow the generator gets wet.
Fill the tank fuel (outdoors) up to 6.0 gallon of gasoline,
do not fill the tank up to the top of tank.
After removing the plug with dipstick located in one side
of the engine, fill with 1.2 liter of oil. Fill with SAE 30 oil.
Use a funnel to avoid the spill of the oil. Review the oil
level by means of the dipstick, it must mark “Full”. Place
the plug with plastic dipstick, carefully, to avoid damage
of the threads.
Before connecting the equipment to the generator
review that the equipment is Off. Read the section
DETERMININGTOTALWATTAGE. Do notoverloadthe
generator. Calculate the total power of the equipment.
The maximum power of the generator is indicated in the
specification sheet.
CONTROL PANEL
Hourmeter
Circuit breaker
Voltmeter
Voltmeter switch
127/220 VAC
surge
120 VAC surge
GENERATOR ELECTRIC CONTROLS
& OUTLETS
STARTING THE GENERATOR
ELECTRIC FUEL INJECTION
WARNING
WARNING: If the Generator will be used to
replace facility power in times of outages, the
facilitypowerinputmustbeisolated.Refertothe
Electric Generator Safety Precautions.
Theseconnectionsmustonlybemadebyalicensed
electrician.
CAUTION
CAUTION:Thisproductcontains,orproduces
chemicals when it is used, known by the
Californian state that cause cancer, severe
birth defects or other damages. (Californian
Code of Health and Security 25249,5 et seq.).
CAUTION
CAUTION: Do not connect a battery charger to the
generator. Battery chargers operate with a higher DC
voltage and this could damage the Electronic Fuel
Injection System.
CAUTION
CAUTION:Do not operate the generator with a low fuel
level. The EFI system could damage if the equipment
doesn’t have enough fuel.
All engines exhaust carbon monoxide, a deadly gas.
Breathing carbon monoxide can cause headaches,
dizziness, nausea, confusion and eventually death.
The carbon monoxide is colorless, odorless, tasteless
gaswhichmaybepresentevenifyoudonotseeorsmell
any engine exhaust. Deadly levels of carbon monoxide
can lay for hours or day in inclosed or poorly ventilated
areas. If you experience any symptoms of carbon
monoxide poisoning, leave the area immediately, get
fresh air and SEEK MEDICAL TREATMENT.
To prevent serious injury or death from carbon
monoxide:
NEVER run engine indoors. Even if you try to ventilate
engine exhaust with fans or open windows and doors,
carbon monoxide can rapidly reach dangerous levels.
NEVERrunengineinpoorly-ventilatedorpartiallyenclosed
areas such as barns, garages, basements,carports,
under dwellings or pits.
NEVER run engines outdoors where engine exhaust
can be dawn into a building through openings such as
windows and doors.
The GT160 model is equipped with
Electronic Fuel Injection system (FI
system) integrated with ECU (Engine
Control Unit).
The FI system consists of throttle body
(2-barrel), ECU, MAP (Manifold Air
Pressure) sensor, injector, pressure
regulator, temperature sensor, electric fuel pump, and
pulsation damper.
The fuel system is calibrated after careful testing for
optimum all-round performance (including starting,
acceleration, fuel consumption, output power
characteristics).
Thethrottlebodymonitorsairandenginetemperatureat
start up and performs the choke function automatically.
While the engine is in operation, the throttle body
monitorsenginespeed,manifoldairpressure,andengine
temperature to ensure proper engine performance.
NOTE:Controlpanel
mayvarydepending
on the model

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
8
5
6
MAINTENANCE
1
2
3
4
ATTENTION: Disconnect all plugs from the panel, and
the cable of the spark plug if the motor is of electrical
starting, before any inspection for maintenance.
Before each use, review the general conditions for the
generator,reviewthatallthepiecesarecomplete,review
iftherearedamaged cablesorsomeotherconditionthat
can affect that the generator operates on safe way. If a
strange noise is listened to or some abnormal vibration,
turn off the generator immediately. Be sure to fix the
problem before giving the generator more use. Do not
use the equipment damaged.
Periodically inspect all the screws and bolts to check
they are in place and tight.
Keep this equipment in a clean and dry place.
For the best maintenance of the engine and any other
problem, read the engine owner’s manual.
After theenginehasbecomecool,removetheexcessive
gasoline and store it in a container, safe and approved
for that purpose.
After the first 20 hours of use of the generator drain and
replace the oil of the engine, after that the oil must be
changed every 100 working hours
HEAT SHIELD:
Inspecttoensurethatallheatshieldsandheatdeflectors
are intact and in place. Removing of these parts could
cause serious damage to the unit.
STARTING THE UNIT
PRE-START PREPARATION
WARNING
WARNING: This generator must not be
operated without heat shield installed in
factory. Failure to comply may cause the
fuel tank to overheat an result in personal
injury from fire.
WARNING
WARNING: Gasoline is very dangerous.
Serious injury or death may result from fire
caused by gasoline contacting hot surfaces.
1. Do not fill the fuel tank with the engine
running.
2. Turn off the engine and wait 2 minutes before
filling the tank.
3. Do not spill fuel while refilling tank.
4. Do not mix oil with gasoline.
5. Follow all the instructions and warnings in the
engine manual.
1
2
3
4
5
6
Beforestarting the generator, check for looseor missing
parts and for any damage which may have occurred
during shipment.
Check the oil level and fuel.
Disconnect all electrical loads from the unit.
Open fuel shut off valve.
Adjust choke as necessary.
Set the engine switch to the “ON” position.
Pull on the starter rope with fast steady pull. As the
engine warms up, readjust the choke. On electrical start
models, turn the key switch to “START”. Release key
switch after the engine start.
DANGER
• Provide adequate ventilation for toxic exhaust
gases and cooling air flow.
• Do not start or run the generator in an enclosed
area, even if doors or windows are open.
• Engines operation produces carbon monoxide, an
odorless, colorless, poison gas.
• Breathing carbon monoxide can cause nausea, fainting
or death.
CAUTION
Allow generator to run at no load for five
minutes after each initial start-up to permit
engine and generator to stabilize.
CAUTION
When applying a load, do not exceed the
maximumwattageratingofthegeneratorwhen
using one or more receptacles. Also, do not
exceed the amperage rating of any receptacle.
CAUTION
Do not apply a heavy electrical load during
start period (the first two to three hours of
operation).
APPLYING LOAD
SHUTTING THE GENERATOR OFF
INITIAL START PROCEDURE
This unit has been pretested and adjusted to handle its
full capacity. When starting the generator, disconnect
all loads.Apply load only after the generator is running.
Voltage is regulated via the engine speed adjusted
al the factory for correct output. Readjusting will void
warranty.
Remove entire electrical load.
Let the engine run for a few minutes with no load.
Move the engine switch to the “OFF” position.(turn the
key switch to “OFF” on the electrical start models).
Do not leave the generator until it has been completely
stopped.
Close the fuel shut off valve if the engine is to be put in
storage or transported.
If cover is used, do not install it untill the generator is
cool.
1
2
3
4
5
6
Controlled initial start helps insurance of proper engine
and generator operation. Follow engine start procedure
outlined in engine manual.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 9
QUICKSTARTINGTIPSFORUNITSTHAT
HAVE BEEN SITTING FORA WHILE
1
2
3
4
5
6
SERVICE AND STORAGE
1
2
3
4
If your unit has not been used for a long period of time
and it is hard to start it, try to do some of these easy
steps before calling the customers hotline.
Check the oil level.
Replace the old fuel.
Change the spark plug.
Check the fuel lines. Make sure the fuel valve is open.
Check all generator parts for integrity
Clean the carburetor. (See engine manual for service
centers)
INFREQUENT SERVICE
Iftheunitisusedinfrequently,difficultstartingmayresult,
to eliminate hard starting, run the generator at least 30
minutes every 15 days. Also, if the unit will not be used
for some time, it is a good idea to drain the fuel from the
carburetor and gas tank.
LONG TERM STORAGE
Whenthegeneratorsetis notbeingoperatedoris being
stored more than one month, follow these instructions:
Replenish engine oil to upper level.
Drain gasoline from fuel tank line and carburetor.
Pouraboutone teaspoon ofengineoilthroughthespark
plug hole,pulltherecoilstarterseveraltimesandreplace
the plug. Then pull the starter until you feel piston is on
its compression stroke and leave it in that position. This
closesboththeintakeandexhaustvalvesto preventthe
inside of cylinder from rusting.
Cover the unit and store in a clean, dry place that is well
ventilated away from open flame or sparks.
NOTE: We recommend always using a fuel stabilizer.
A fuel stabilizer will minimize the formation of fuel gum
depositsduringstorage.Thefuelstabilizercanbeadded
to the gasoline in the fuel tank, or into the gasoline in a
storage container.
ENGINE: Carburetor Icing
During the winter months, rare atmospheric conditions
could cause an icing condition in the carburetor. If it
happens, the engine may run rough, loose power, and
may stall. Call Product Service for more information.
NOTE: Refer to the engine manufacturer’s manual for
service and maintenance of the engine.
ENGINE WIRING DIAGRAM

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
10
GT150 WIRING DIAGRAM
GT160 WIRING DIAGRAM

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 11
GT140 WIRING DIAGRAM

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
12
T-100-LB ALTERNATOR ASSEMBLY DRAWING
READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS
PROVIDED THE PARTS DIAGRAM IN THIS MANUAL
AS A REFERENCE TOOL ONLY. NEITHER THE
MANUFACTURER NOR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND
TO THE BUYER THAT HE OR SHE IS QUALIFIED TO
MAKE ANY REPAIRS TO THE PRODUCT OR THAT
HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS
OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT
ALLREPAIRSANDPARTSREPLACEMENTSSHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED
TECHNICIANS AND NOT BY THE BUYER. THE
BUYERASSUMESALLRISKANDLIABILITYARISING
OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO,
OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERE TO.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 13
GENERATOR GENERAL ASSEMBLY DRAWING
NOTE: Some parts are listed and shown for illustration
purposesonlyand not availableindividuallyasreplacement
parts.
NOTE: Control panel may vary
depending on the model

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
14
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual and
on your product safety signs. Keep safety signs in good
condition.
Replace missing or
damaged safety signs.
Be sure new product
components and repair
parts include the current
safety signs.
Learnhow to operate the
product and how to use
controls properly. Do not
let anyone operate without instruction.
Keep your product in proper working condition.
Unauthorized modifications to the product may impair
the function and/or safety and affect product life.
If you do no understand any part of this manual and
need assistance, contact your Distributor.
RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol.
When you see this symbol on your
product or in this manual, be alert to the
potential for personal injury.
Follow recommended precautions and
safe operating practices.
UNDERSTAND SIGNAL WORDS
A signal word--DANGER, WARNING or CAUTION-
is used with the safety-alert
symbol.
DANGER identifies the most
serious hazards.
DANGER or WARNING safety
signs are located near specific hazards. General
precautions are listed on
CAUTION safety signs.
CAUTION also calls attention to safety messages in this
manual.
SAFETY INFORMATION
WARNING WARNING
The engine exhaust from
this product, contains
chemicals known to the
State of California to cause
cancer, birth defects or
other reproductive harm.
This product contains
one or more chemicals
known to the State of
California to cause cancer
and birth defects or other
reproductive harm.
WORK IN A VENTILATED AREA
Engine exhaust fumes can cause
sickness or death. If it is necessary
to run an engine in an enclosed
area, remove the exhaust fumes
from the area with an exhaust pipe
extension.
If you do not have an exhaust pipe
extension, donot usethegenerator
in an enclosed area.
DRAIN GASOLINE WHEN STORING YOUR
PRODUCT
Gasoline stored in fuel tank can
explode.
Never store your product with
gasolineinthetankinsideabuilding
where fumes may reach an open
flame or spark.
Always drain gasoline from fuel
tank and carburetor bowl when storing your product.
Allow engine to cool before storing.
HANDLE FUEL SAFETY-AVOID FIRES
Handlefuelwithcare:itis highlyflammable.Do notrefuel
the product while smoking or when near open flame or
sparks.
Always stop engine before
refueling product. Fill fuel
tank outdoors. Prevent fires
by keeping product clean of
accumulated trash, grease and
debris. Always clean up spilled
fuel.
P R E P A R E F O R
EMERGENCIES
Be prepared if a fire
starts.
Keep a first aid kit and fire
extinguisher handy.
Keepemergencynumbers
for doctors, ambulance
service, hospital and fire
department near your
telephone.
INSPECT YOUR GENERATOR
Be sure all covers, guards and shields are in place.
Locate all operating controls and safety labels.
SERVICE GENERATOR SAFELY
Beforeservicingyourgenerator,disconnectallplugwires,
and allow unit to cool down.
Service generator in a clean dry flat area. If applicable,
block wheels to prevent unit from rolling.
WEAR PROTECTIVE CLOTHING
Wear close fitting clothing and safety equipment
appropriate to the job.
Prolongedexposure toloudnoisecancauseimpairment
or loss of hearing. Wear a suitable hearing protective
device such as earmuffs or earplugs to protect against
objectionable or uncomfortable loud noises.
Operating equipment safely requires the full attention of
the operator. Do not wear radio or music headphones
while operating equipment.

ESPECIFICACIONES SUJETAS A CAMBIO SIN PREVIO AVISO 15
ESPECIFICACIONES
REGLAS DE SEGURIDAD
PELIGRO indica una situación
potencialmente peligrosa que, si
noseevita,PROVOCARÁmuerte
o una lesión seria.
ADVERTENCIAindicaunasituación
de peligro potencial, la cual, si no
se evita, podría ocasionar lesiones
severas e incluso la muerte.
PRECAUCIONindicaunasituación
potencialmente de riesgo, la cual,
si no se evita, puede ocasionar
heridas personales menores o
moderadas o daños materiales.
PELIGRO ADVERTENCIA PRECAUCION
REGLAS DE SEGURIDAD Y
FUNCIONAMIENTO
1
2
3
4
5
6
ADVERTENCIA. El no seguir estas instrucciones
y advertencias puede ocasionar muerte, heridas
personales o daños materiales.
Leacuidadosamenteyentiendael manualdeloperador
antesdeutilizar esteproducto. Leayentiendael manual
de motor antes de su funcionamiento. Siga todas las
advertencias e instrucciones.
Conozca su equipo. Considere las aplicaciones,
limitaciones y los riesgos potenciales específicos de
su unidad.
El equipo deberá colocarse sobre una base de
sustentación firme.
La carga debe de mantenerse dentro de los valores
nominales que aparecen en la placa de identificación
del generador. Una sobrecarga dañará la unidad o
acortara su vida útil.
No se debe de hacer funcionar el motor a velocidades
demasiado altas. Si se opera el motor a excesiva
velocidad aumenta el riesgo de lesiones físicas. No
toqueacambiepiezasquepuedanaumentarodisminuir
la velocidad regulada.
Para evitar un arranque inesperado, siempre retire
el cable de la bujía antes de dar mantenimiento al
generador o al motor.

ESPECIFICACIONES SUJETAS A CAMBIO SIN PREVIO AVISO
16
15
16
17
18
19
20
21
22
23
24
14
PRECAUCIONES DE RUIDO
• Velocidad del motor fuera de control.
• Pérdida de carga eléctrica.
• Sobrecalentamiento de el equipo conectado.
• Formación de chispas.
• Receptáculos dañados.
• Fallo de encendido.
• Vibración excesiva.
• Llamas o humo.
• Compartimiento cerrado.
• Lluvia o inclemencia del tiempo. No permita que la
unidad se moje cuando está funcionado.
Verifique periódicamente que no haya fugas o señales
de deterioro en el sistema de combustible, como
manguerasdemasiadogastadasoblandas,abrazaderas
flojasofaltantes,otanqueotapóndañados.Todosestos
defectos deberán corregirse antes de la operación.
El generador debe operarse, recibir servicio y
rellenarse de combustible solamente en las siguientes
condiciones:
• Encienda y ponga a funcionar el generador al aire libre.
No ponga a funcionar el generador en un área cerrada,
aun cuando las puertas o ventanas se encuentren
abiertas; evite áreas donde los gases de escape
puedanencerrarse,talescomopozos,garajes,sótanos,
excavaciones y galerías.
PELIGRO-RIESGO DE MONOXIDO DE
CARBONO: Los gases del escape del motor
contienen monóxido de carbono, un gas
letal, inodoro, invisible que, si se inhala,
puede provocar la muerte o una lesión personal
seria. Si comienza a sentirse indispuesto, mareado
o débil mientras utiliza el generador, apáguelo e
inmediatamente vaya a un lugar fresco; podría padecer
de envenenamiento por monóxido de carbono.
• Buena ventilación para el enfriamiento. La circulación
de aire y las temperaturas son importantes para
las unidades enfriadas por aire. Las temperaturas
no deberán exceder 40°C (104° F) de temperatura
ambiente.
Elgenerador puedeproducir elevadosniveles desonido, un
niveldesonidoprolongadoarribade85dBesdañinoparael
oído. Utilice protección para los oídos cuando esté operando
alrededor del generador mientras está encendido.
13
7
9
8
10
11
12
Nuncadebeoperarseunaunidadconpiezasquebradas
ofaltantes, osinelrevestimientoocubiertasprotectoras.
Comuníquese con su centro de servicio para solicitar
los repuestos.
Las unidades no deben operarse ni almacenarse
en lugares húmedos o mojados ni altamente
conductores tales como plataformas metálicas o
estructuras de acero
Mantenga el generador limpio y libre de aceite, barro o
cualquier otro material extraño.
Los cordones de extensión, los cordones eléctricos y
todos los equipos eléctricos deben estar en buenas
condiciones. Nunca opere un equipo eléctrico con
cordones dañados o defectuosos.
Guarde el generador en un lugar con buena
ventilación, con el tanque de combustible
vacío. No se debe de almacenar combustible
cerca del generador.
Su generador no deberá operase jamás si ocurre lo
siguiente:
• Rellene de combustible al generador en un área bien
iluminada. Evite el derrame de combustible y nunca
rellene con combustible mientras el generador está
funcionando.Antesderellenarcombustible,espereque
el motor se enfríe durante 2 minutos.
• No eche combustible cerca de llamas, luces piloto
o equipos eléctricos con chispas como herramientas
mecánicas, soldadoras y rectificadoras.
• El motor deberá tener instalado siempre el silenciador
y el filtro de aire, los cuales deberán de estar en buenas
condiciones en todo momento ya que detienen el fuego
en caso de una ignición incompleta en el motor.
• No fume cerca del generador.
Cerciórese que el generador esté conectado a tierra
correctamente (consulte la sección Puesta a Tierra del
Generador).
No use ropa demasiado holgada, alhajas o
cualquier otra cosa que se pueda atrapar en
el alternador u otras partes movibles.
La unidad debe de alcanzar la velocidad de operación
antes de conectarse las cargas eléctricas. Desconecte
las cargas antes de apagar el motor.
Para evitar sobrecargas que podrían dañar el equipo,
no permita que el motor se quede sin combustible al
aplicarse las cargas eléctricas.
Aldarcargaaunequipodeestadosólido,debeutilizarse
un protector de sobrecarga para evitar posibles daños
al equipo.
No coloque nada a través de las ranuras de ventilación,
aun cuando el generador no esté en operación.
Esto puede dañar al generador o causar lesiones
personales.
Antes de transportar el generador en vehículo, extraiga
todo el combustible para evitar la posibilidad de fugas
o derrames.
Use técnicas correctas para alzar el generador de un
lugara otro.Delocontrario,podríanproducirselesiones
personales.
Para evitar quemaduras, no toque el silenciador del
motor u otras superficies del generador que
se hayan calentado durante la operación.
No modifique el deflector de calor.

ESPECIFICACIONES SUJETAS A CAMBIO SIN PREVIO AVISO 17
1
2
3
4
5
6
COMO DETERMINAR LA POTENCIA
A fin de evitar la sobrecarga y los posibles daños a su
generador,resultanecesarioconocerlapotenciatotalde
la carga conectada. Para determinar a qué herramientas
y/o equipos electrodomésticos su generador hará
funcionar, siga los pasos a continuación:
Determine si desea hacer funcionar un aparato o varios
aparatos simultáneamente.
Verifique los requerimientos de potencia de arranque
y de funcionamiento de los aparatos fijándose en la
carga especificada en la etiqueta o ayúdese utilizando
los valores de la Tabla 1 o calculándola (multiplique
volts x amperes).
Sume la potencia necesaria de arranque y de
funcionamiento de cada aparato. Si la etiqueta solo le
da el voltaje y el amperaje, entonces multiplique volts x
ampes = watts. 1kW = 1,000 watts.
Los electrodomésticos o las herramientas impulsadas
pormotores requierenmáspotencia queloespecificado
en su placa de datos para arrancar.
NOTA: Considere 2 ½ - 4 veces la potencia marcada
para arrancar al equipo.
Los watts unitarios del generador deberían coincidir o
superar el número de watts que requiere el equipo que
usted desea arrancar.
La potencia continua del generador disminuye
de acuerdo a la temperatura y la altitud del
lugar donde se está usando, utilice la tabla de
corrección de potencia y multiplique el factor de
corrección por la potencia nominal indicada en
la hoja de especificaciones.
Siempreconectela cargamásgrandeprimero,y
luego agregue los demás equipos uno por uno.
7
REQUERIMIENTO DE VOLTAJE
PRECAUCION
Los requerimientos de voltaje y frecuencia operativa
detodoslosequiposelectrónicos debencomprobarse
antes de enchufarlos a este generador. Pueden ocurrir
daños siel equiponoestádiseñadoparaoperardentro
de una variación de voltaje de +/- 10% y una variación
de frecuencia de +/- 3 Hz de los valores nominales que
aparecen en la placa de datos de el generador. A fin de
evitar daños, siempre tenga una carga adicional no de
estado sólido enchufada al generador en caso de usarse
solamente equipos de estado sólido (tales como un
aparato de televisión). También podría resultar necesario
un regulador de línea eléctrica para algunas aplicaciones
de equipo de estado sólido.
Se deberá de utilizar un acondicionador
(regulador) de línea cuando se operen uno
o más de los siguientes equipos de estado
sólido:
• Control para abrir la cochera o garaje.
• Equipos de cocina con visualización digital.
• Televisores.
• Estéreos.
• Computadoras personales.
• Relojes de cuarzo.
• Máquinas fotocopiadoras.
• Equipo telefónico.
INSTALACION
ADVERTENCIA
Para evitar posibles lesiones físicas o daños
materiales, es necesario que la instalación y
todo el servicio sea realizado por un electricista
profesionalorepresentantedeservicioautorizado.
Bajo ninguna circunstancia debe permitirse que
una persona que no está capacitada trate de manipular
cables dentro del circuito de la compañía suministradora
del servicio eléctrico.

ESPECIFICACIONES SUJETAS A CAMBIO SIN PREVIO AVISO
18
ANTES DE LA INSTALACIÓN
1
2
3
4
5
ADVERTENCIA
Nouseunatuberíaqueconduzcamateriales
combustibles como punto de conexión a
tierra.
ADVERTENCIA
Para evitar la retroalimentación hacia
los sistemas de suministro eléctrico,
se requiere el aislamiento del sistema
eléctrico residencial. Antes de realizar
la conexión temporal del generador al sistema
eléctricoresidencial, apagueelinterruptor principal.
Antes de hacer las conexiones permanentes, debe
de instalarse un interruptor de transferencia de
doble tiro. Para evitar la electrocución o daños a la
propiedad,solodebedeser unelectricista calificado
el que conecte el generador al sistema eléctrico
residencial.
Las leyes de California requieren el aislamiento del
sistema eléctrico residencial antes de conectar un
generador a los sistemas eléctricos residenciales.
Terminal de puesta a tierra
Siempre siga los códigos y regulaciones locales que se
aplican a la instalación de cualquier equipo que tenga
relación con este producto.
NFPA 70- Código Nacional Eléctrico.
NFPA30- Estándar para la instalación y uso de motores
estacionarios de combustible.
Manual de cableado agrícola de la energía eléctrica en
posición auxiliar para granjas.
PUESTAA TIERRA DEL GENERADOR
EL Código Nacional Eléctrico requiere que este producto
se conecte adecuadamente a una puesta de tierra para
prevenir un choque eléctrico. Para este propósito, se
proporciona una terminal de tierra conectada al marco
del generador. Conecte una punta de un cable de cobre
desnudo(calibre12AWG mínimo)a laterminal detierra
situada en el marco del equipo (se identifica por una
calcomaníaconelsímbolodetierrafísicaverfiguraabajo)
yla otra punta del cablea unavarilla decobre enterrada
en el suelo (1metro) la cual deberá proporcionar una
conexión a tierra adecuada. Sin embargo, consulte con
un electricista local para asegurarse que los códigos
locales se cumplen adecuadamente.
LUBRICACION
NO intente arrancar este motor sin llenar el cárter con
la cantidad y el tipo de aceite adecuado. (Utilice aceite
SAE 30). Su generador ha sido enviado de fábrica sin
aceite en el cárter. El operar la unidad sin aceite puede
arruinar el motor.
Llene el motor con aceite de acuerdo con el manual del
motor. En este motor el tapón de plástico del cárter por
donde se le llena de aceite contiene la bayoneta con
las marcas de lleno y vacío.
EL SENSOR DE BAJO NIVEL DE ACEITE
Esta unidad esta equipada con un sensor de nivel bajo
de aceite. Inicialmente, si el nivel de aceite es menor
queelrequerido,elsensoractivaráunartefacto yparará
el motor. (Consulte el manual adjunto del motor para
más información)
Si se apaga el generador y el nivel de aceite se
encuentra dentro de las especificaciones, verifique
que el generador no esté colocado a un ángulo que
obligue a que el aceite varíe su nivel. Colóquelo sobre
una superficie pareja para corregir este problema. Si
el motor no arranca, el nivel de aceite podría no ser el
suficiente como para desactivar el interruptor de bajo
nivel de aceite. Asegúrese de que el tapón de aceite
marque que está en nivel correcto.
COMBUSTIBLE
Lleneeltanquecongasolinasinplomoparaautomóviles,
limpiay nueva.Puedeusarsegasolinadegradoregular
siempre y cuando se obtenga un valor alto de octanaje
(por lo menos 85 octanos). Recomendamos que
siempre utilice un aditivo de gasolina. Un aditivo de
gasolina minimizarálaformaciónde depósitos degoma
de gasolina durante el almacenamiento. El aditivo de
gasolinapuede agregarse ala gasolina enel tanque de
combustible o junto con la gasolina en un contenedor
de almacenamiento.
El combustible y el humo del motor son inflamables, y
potencialmente explosivos. Utilice un procedimiento
adecuado para almacenar y manejar combustible.
Siempre tenga extinguidores ABC a la mano.
Conectar un cable de cobre desnudo
# 12 AWG entre la terminal de tierra y
un punto de aterrizado adecuado
1
2
3
4
Para evitar la retroalimentación a los sistemas de
suministro, se requiere el aislamiento del sistema
eléctrico residencial.
Antes de realizar la conexión temporal del generador
hacia el sistema eléctrico residencial, apague o
desconecte el servicio principal.
Si el generador va usarse como fuente de energía de
reserva en caso de un fallo del suministro eléctrico, debe
deser instaladoporunelectricistacalificadode acuerdo
con todos los códigos eléctricos locales aplicables.
Elusoapropiadorequiere lainstalacióndeuninterruptor
de transferencia de doble tiro por un electricista
capacitado y calificado para asegurar que los circuitos
eléctricos del edificio puedan ser conmutados con
seguridad entre el suministro eléctrico y la salida del
generador, evitando de este modo la retroalimentación
hacia el sistema de suministro eléctrico.

ESPECIFICACIONES SUJETAS A CAMBIO SIN PREVIO AVISO 19
5-20P
EXTENSIONES ELECTRICAS
1Todas las cargas del generador serán conectadas al
panel mediante extensiones o cables y deberán ser
hechascon clavijasoenchufesaterrizados de3espigas
para los receptáculos de 127 volts y con clavijas o
enchufesde5espigasparalosreceptáculosde 127/220
volts.
2
3
4
5
6
7
8
DESEMPAQUE
Refiérase a la tabla para los calibres mínimos de
extensión eléctrica de acuerdo con las necesidades de
las cargas.
Cuando la carga aumenta debe de utilizarse una
extensióndecabledecalibremayor.Utilizarextensiones
de calibre inadecuado puede causar serios problemas
con el voltaje, dando como resultado una pérdida de
energía y el daño de las herramientas.
Cuantomás pequeño esel número del calibre del cable
mayores la capacidadde conducción. Un cable calibre
14, por ejemplo, puede conducir una corriente más alta
que un calibre 16.
Cuando hay varias extensiones conectadas debe de
revisarse que cada extensión sea del calibre mínimo
de cable requerido.
Si se utiliza una extensión con salidas para más de una
herramienta sume los amperes de placa de datos de
cadaunadelasherramientasparadeterminareltamaño
mínimo del calibre del cable de la extensión.
Cuando desempaque el generador, asegúrese de que
todas las piezas esten completas, vea la sección de
Explosivo de Partes y Listado de Partes que están al
final de este manual.
Si alguna de las piezas no está o se encuentra en mal
estado, por favor diríjase a nuestro distribuidor lo más
pronto posible.
L21-30P
PRECAUCION
No llene demasiado el tanque. Mantenga
un nivel máximo de combustible a
¼ de pulgada por debajo de la parte
superior deltanquedecombustible.Esto
permitirá la expansión durante el clima
cálido, evitando así el derrame.
INSTRUCCIONES DE ENSAMBLE
Antes de arrancar su generador, debe instalar los
siguientes componentes: Kit de llantas, soporte de
batería (no incluida), Mofle, y Manijas.
INSTALACION DE MANIJAS
1
2
3
4
6
5
Desempaque y revise todas las partes para ver si no
vienen defectuosas o falta alguna de ellas.
Localice las dos manijas, dos pernos y 2 chavetas.
Fije la manija en la base utilizando como posición los
barrenos de la base.
Inserte el perno para sujetar la manija con la base.
Coloque la chaveta en el barreno del perno.
Repita las operaciones 3, 4 y 5 para la siguiente
manija.
Las extensiones para salidas a 127 volts son de 3
conductores, donde el conductor verde es el cable de
tierra, el conductor blanco es la conexión al neutro del
generador, y el conductor negro es el cable vivo.
Las extensiones para salidas de 127/220 son de 5
conductores, donde el conductor verde es el cable de
tierra, el conductor blanco es la conexión al neutro del
generador, y los conductores amarillos son los vivos.

ESPECIFICACIONES SUJETAS A CAMBIO SIN PREVIO AVISO
20
INSTALACION DE RUEDAS
1
2
3
Antesdemontarlasruedas,asegúresequeesteninfladas
a una presión entre15 psi y 20 psi, no exceda las 24 psi,
ya que esto podría causarle daños fìsicos
Inserte el eje a la base a traves de los bujes de la base.
Apoye el generador en blocks de madera a una altura
suficiente que le permita el montaje de las llanta y colque
2 anillos separadores a ambos lados.
Inserte ambas llantas en el eje y asegúrelas con las
chavetas.
4
INST. DE SOPORTE FRONTAL
1Coloqueelextremodelgenerador,sinllantassobrelosbloques
de madera, permitiendo un espacio para colocar el soporte
delgenerador.
Fijeelsoportefrontalalabaseconlostornillossuministrados
y aprietelos bien, como se indica en el dibujo.
INSTALACION DE BATERIA
3
4
5
1
2
PRECAUCION
Antes de instalar la batería, quite la llave del Panel
de control de su generador.
Monte sobre la base del generador el portabaterias
y asegurelo con el tornillo, rondana y tuerca como se
indica en el dibujo.
Cóloque la batería sobre el soporte.
Asegure la batería usando los soportes que se sujetan
sobre la base.
Identifique los cables rojo y negro con los electrodos
negativo y positivo de la batería.
Conecte el cable rojo a la terminal positivo de la bateria
y el cable negro al terminal negativo. (Vea la figura.
Maneje con cuidado la batería ya que contiene acidos
muy corrosivos y puede causar quemaduras. Nunca
conecteel cablerojo alnegro, estopuede causardaños
a su integridad física y a su equipo.
CONTROLES DEL MOTOR
Foco apagado cuando
elmotor esta trabajando
Ahogador
Válvula de Gasolina
Llave de arranque/paro
y foco indicador
baja presión de aceite
PANEL DE CONTROL
Horómetro
Interruptor
termomagnético
Voltmetro
Monitor de
Voltaje
Salida
120 VAC
Salida
127/220 VAC
NOTA:Elpanelpuede
variar dependiendo
del modelo.
